BRAKE

ABS & VSC ACTUATOR

3221

INSTALLATION

Installation is in the reverse order of removal (See page

BR–51

).

HINT:

After installation, fill the brake reservoir with brake fluid and bleed brake system (See page

BR–4

).

Check for leaks.

NOTICE:
In case of replacing the skid control ECU, perform the zero point calibration of the steering angle,
master cylinder pressure, yawrate and deceleration sensors (See page

DI–897

).

BR0A2–05

F08184

8.0 (82, 71 in.·lbf)

8.0 (82, 71 in.·lbf)

Front Speed Sensor

: Specified torque

N·m (kgf·cm, ft·lbf)

8.0 (82, 71 in.·lbf)

–

BRAKE

FRONT SPEED SENSOR

BR–55

3222

FRONT SPEED SENSOR

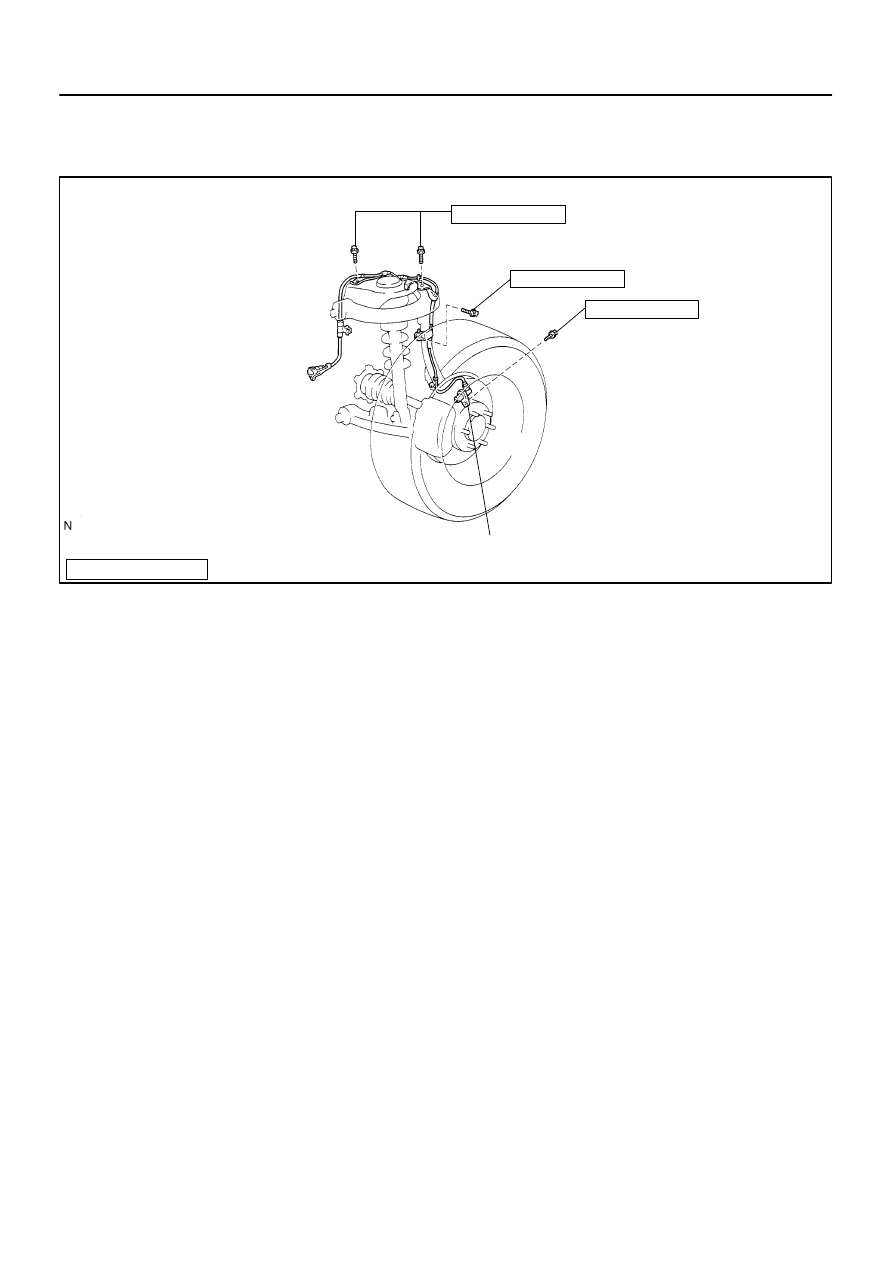

COMPONENTS

BR0A3–04

F08186

BR–56

–

BRAKE

FRONT SPEED SENSOR

3223

REMOVAL

1.

REMOVE FRONT WHEEL
Torque: 110 N·m (1,122 kgf·cm, 81 ft·lbf)

2.

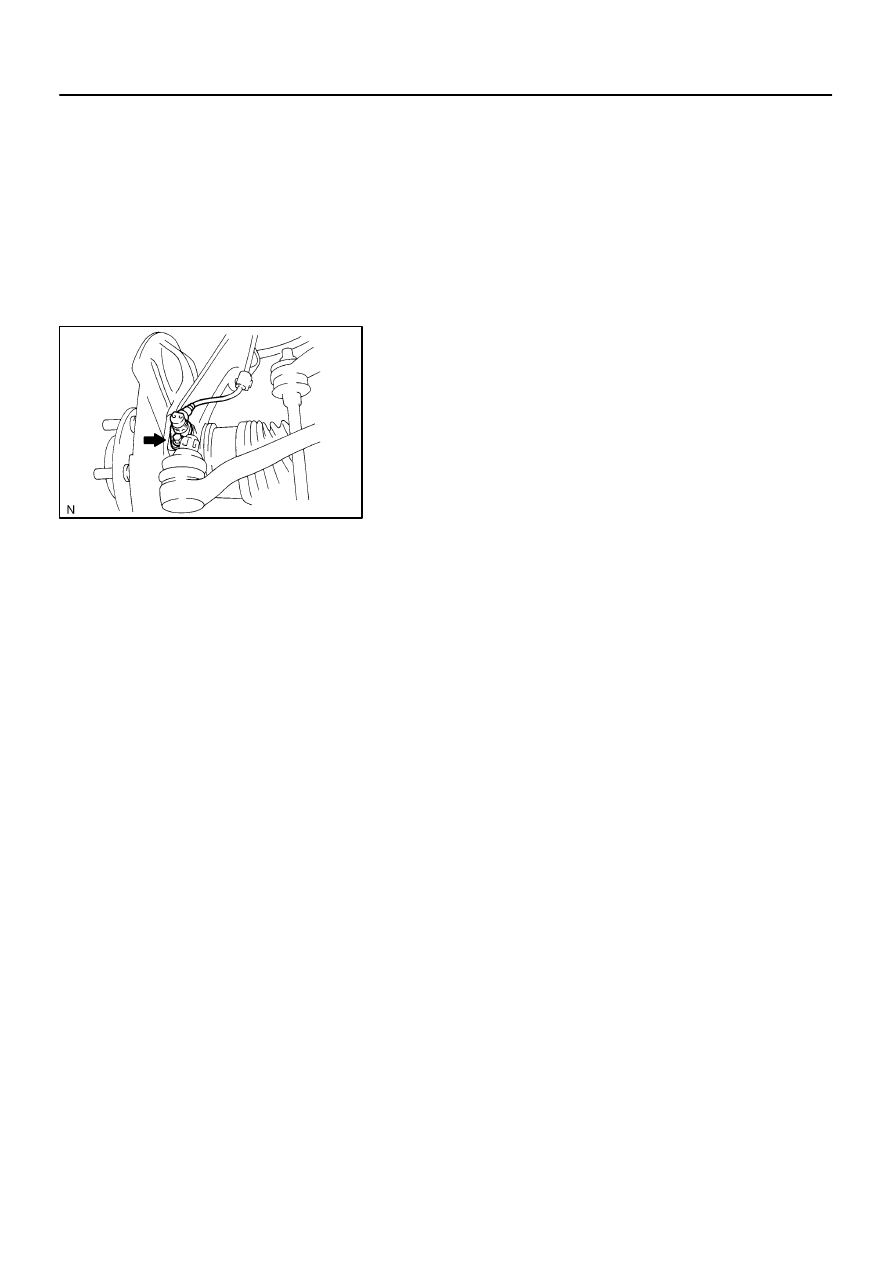

DISCONNECT SPEED SENSOR CONNECTOR

3.

REMOVE SPEED SENSOR

(a)

Remove the clips and 3 clamp bolts holding the sensor
harness from the frame, upper arm and steering knuckle.
Torque: 8.0 N·m (82 kgf·cm, 71 in.·lbf)

(b)

Remove the bolt and speed sensor from the steering
knuckle.
Torque: 8.0 N·m (82 kgf·cm, 71 in.·lbf)

BR0A4–07

–

BRAKE

FRONT SPEED SENSOR

BR–57

3224

INSTALLATION

Installation is in the reverse order of removal (See page

BR–56

).

HINT:
After installation, check speed sensor signal (See page

DI–899

).
