BR08X–06

BR–18

–

BRAKE

BRAKE MASTER CYLINDER

3185

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

BR–17

).

NOTICE:
Apply lithium soap base glycol grease to the rubber parts indicated by the arrows (See page

BR–15

).

BR08Y–07

–

BRAKE

BRAKE MASTER CYLINDER

BR–19

3186

INSTALLATION

Installation is in the reverse order of removal (See page

BR–16

).

HINT:

After installation, fill the brake reservoir with brake fluid and bleed brake system (See page

BR–4

).

Check for leaks.

NOTICE:
In case of replacing the master cylinder assembly or master cylinder pressure sensor, perform the
zero point calibration of the steering angle, master cylinder pressure, yawrate and deceleration sen-
sors (See page

DI–897

).

BR2237

BR0AK–07

BR2238

1st

3rd

2nd

GOOD

NO GOOD

BR–20

–

BRAKE

BRAKE BOOSTER ASSEMBLY

3187

BRAKE BOOSTER ASSEMBLY

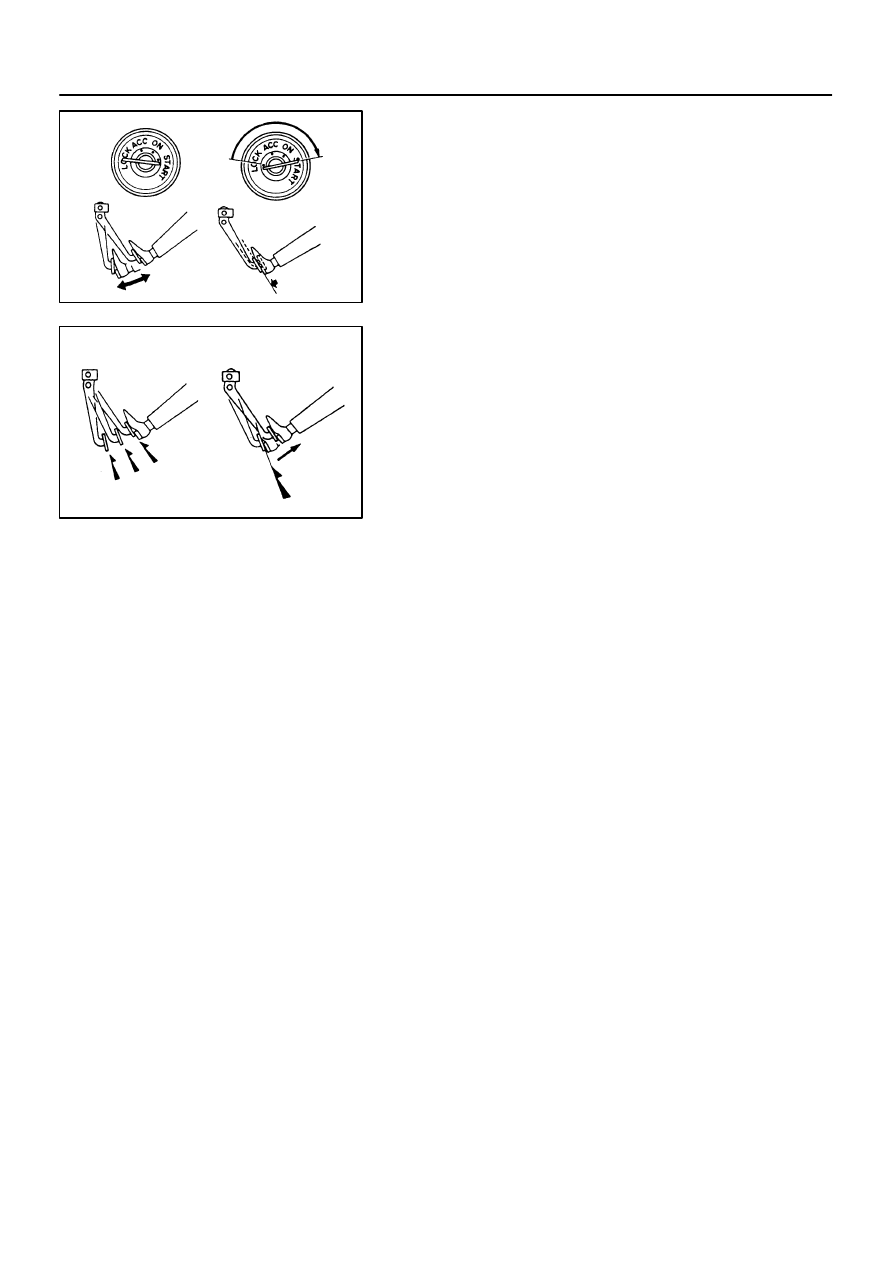

ON–VEHICLE INSPECTION

1.

OPERATING CHECK

(a)

Depress the brake pedal several times with the engine off
and check that there is no change in the pedal reserve
distance.

(b)

Depress the brake pedal and start the engine. If the pedal
goes down slightly, operation is normal.

2.

AIR TIGHTNESS CHECK

(a)

Start the engine and stop it after 1 or 2 minutes. Depress
the brake pedal several times slowly.

If the pedal goes down farthest the 1st time, but gradually rises
after the 2nd or 3rd time, the booster is airtight.
(b)

Depress the brake pedal while the engine is running, and
stop the engine with the pedal depressed. If there is no
change in the pedal reserve travel after holding the pedal
for 30 seconds, the booster is airtight.

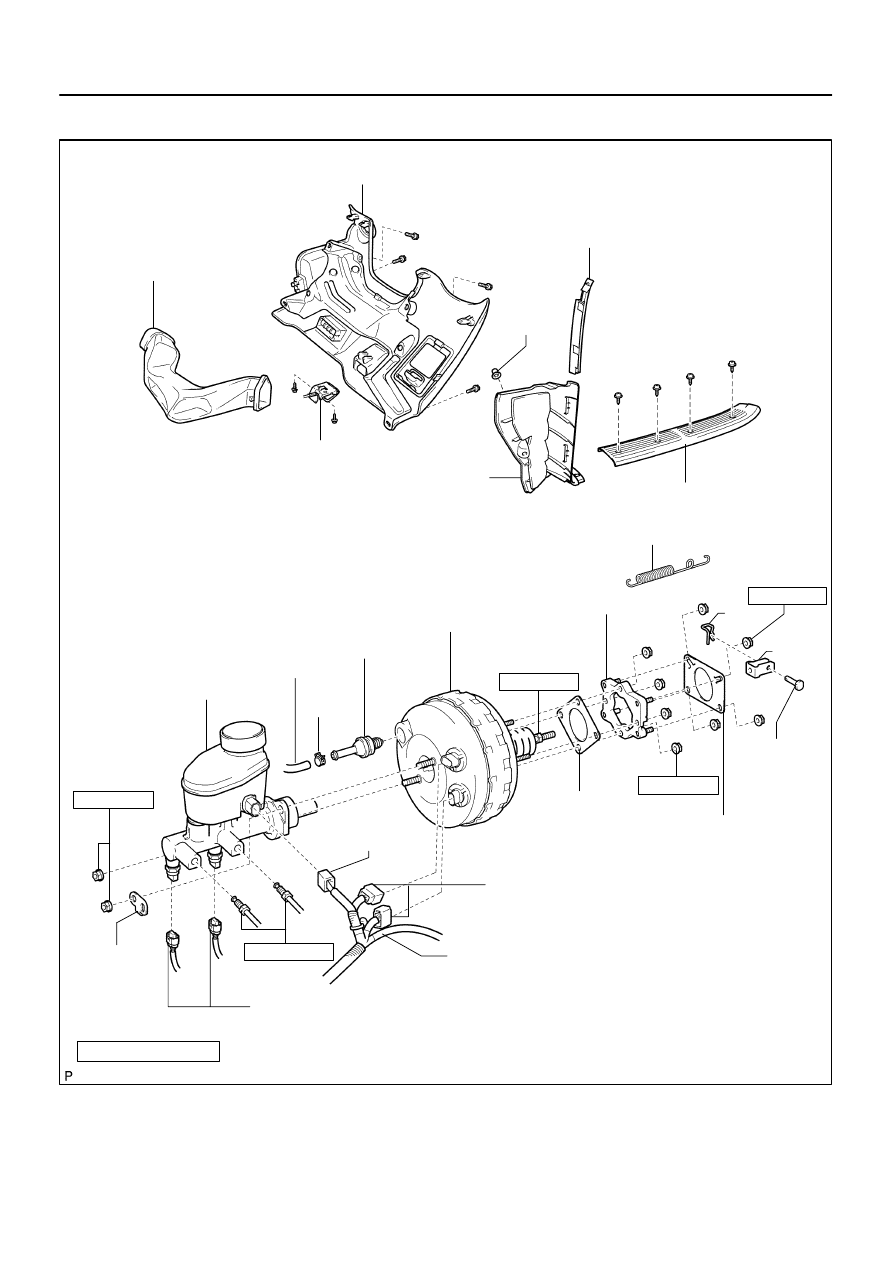

BR10G–04

F16311

Master Cylinder

Vacuum Hose

Level Warning
Switch Connector

Brake Booster

 Gasket

Clevis Pin

Brake Booster Bracket

Clip

: Specified torque

N·m (kgf·cm, ft·lbf)

 Non–reusable part

Pedal Return Spring

Wire Harness
Bracket

Lower Finish Panel

Food Lock Release Lever

No. 2 Heater to Register Duct

Cowl Side Trim Board

Front Door Scuff Plate

 Gasket

Clevis

Vacuum Switch Connector

19.5 (195, 14)

25 (250, 18)

25 (250, 18)

Clip

Check Valve

25 (250, 18)

Side Panel

Wire Harness

13 (130, 9)

Clip

Master Cylinder
Presser Sensor Connector

–

BRAKE

BRAKE BOOSTER ASSEMBLY

BR–21

3188

COMPONENTS
