BR10C–03

BR–14

–

BRAKE

PARKING BRAKE PEDAL

3181

INSTALLATION

Installation is in the reverse order of removal (See page

BR–11

).

HINT:
After the installation, check and adjust parking brake pedal travel (See page

BR–9

).

BR10E–04

F16310

Master Cylinder

Level Warning
Switch Connector

Brake Booster

Cap

Strainer

Reservoir

Set Screw

Grommet

Cylinder Body

N·m (kgf·cm, ft·lbf) : Specified torque

 Non–reusable part

Lithium soap base glycol grease

Wire Harness
Bracket

Master Cylinder
Pressure Sensor
Connector

Master Cylinder Pressure Sensor

 Seal

25 (250, 18)

25 (250, 18)

19.5 (195, 14)

Wire Harness

1.5 (15, 13 in.·lbf)

Grommet

–

BRAKE

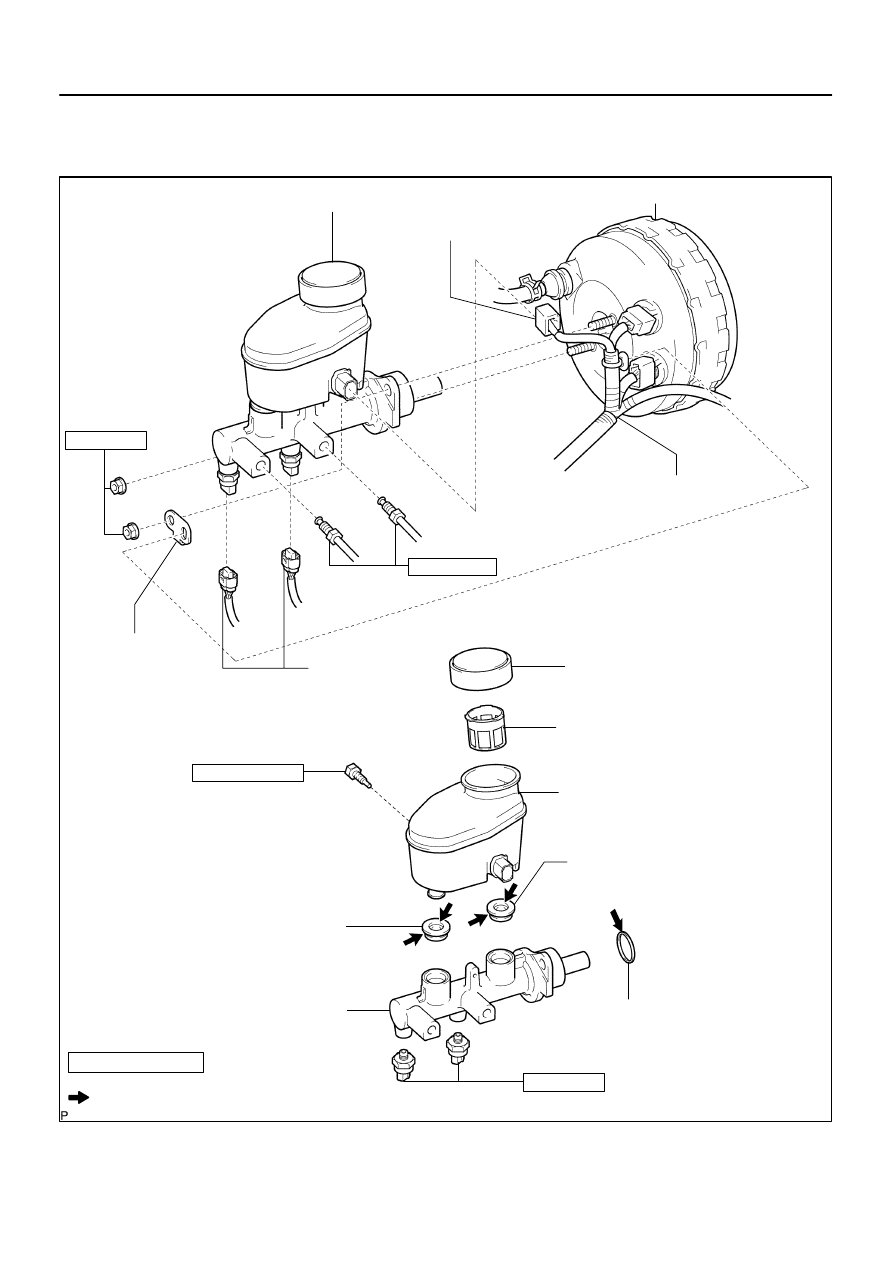

BRAKE MASTER CYLINDER

BR–15

3182

BRAKE MASTER CYLINDER

COMPONENTS

BR08U–05

F16312

F16313

BR–16

–

BRAKE

BRAKE MASTER CYLINDER

3183

REMOVAL

1.

DRAW OUT FLUID WITH SYRINGE

NOTICE:
Wash the brake fluid off immediately if it comes into con-
tact with any painted surface.
2.

DISCONNECT LEVEL WARNING SWITCH CONNEC-
TOR

3.

DISCONNECT 2 MASTER CYLINDER PRESSURE
SENSOR CONNECTORS

4.

DISCONNECT WIRE HARNESS

Using a clip remover, disconnect the wire harness from the wire
harness bracket.

5.

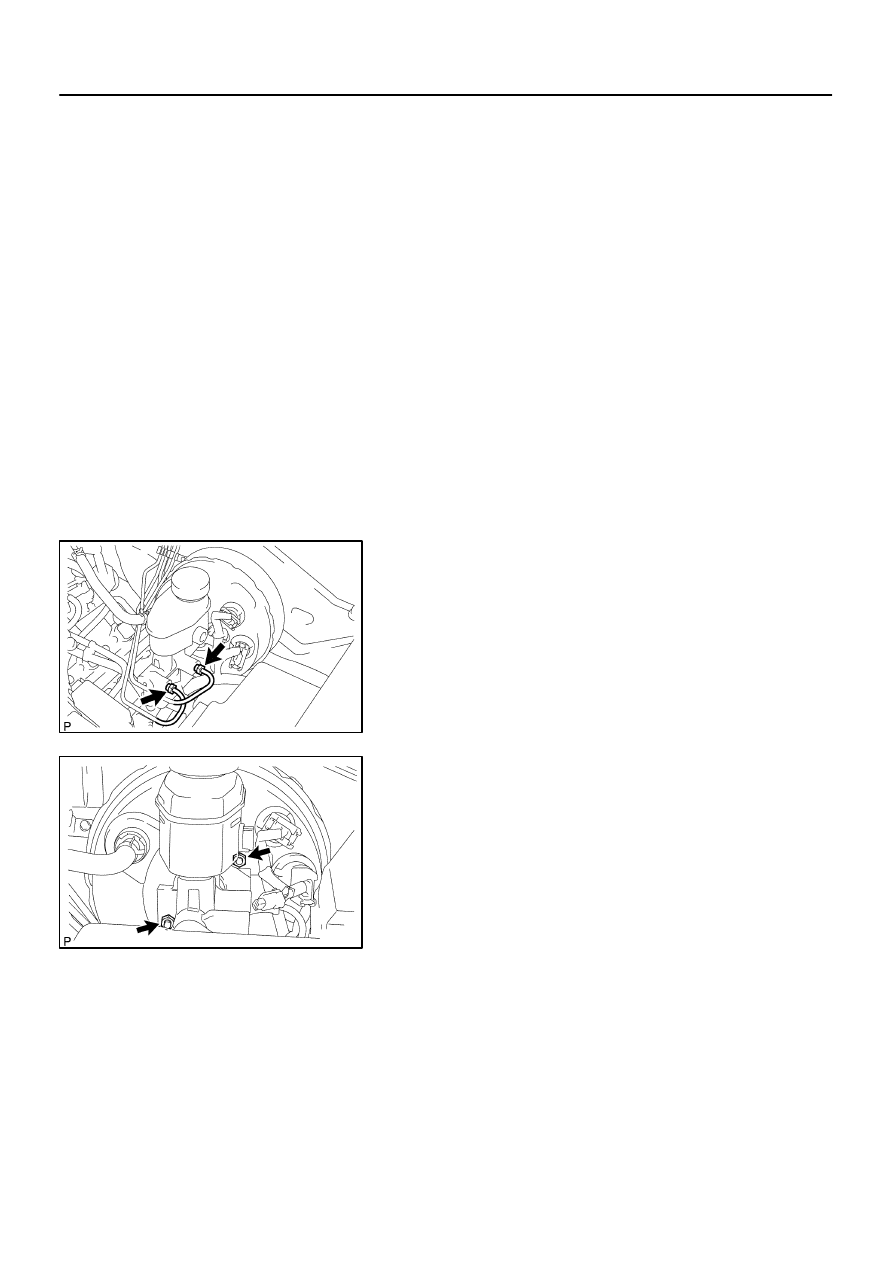

DISCONNECT BRAKE LINES

Using SST, disconnect the 2 brake lines from the master cylin-
der.

SST

09023–38201

Torque: 19.5 N·m (195 kgf·cm, 14 ft·lbf)

6.

REMOVE MASTER CYLINDER

(a)

Remove the 2 nuts and wire harness bracket.
Torque: 25 N·m (250 kgf·cm, 18 ft·lbf)

(b)

Pull out the master cylinder from the brake booster.

BR1ND–02

–

BRAKE

BRAKE MASTER CYLINDER

BR–17

3184

DISASSEMBLY

1.

REMOVE RESERVOIR

(a)

Remove the set screw and pull out the reservoir.
Torque: 1.5 N·m (15 kgf·cm, 13 in.·lbf)

(b)

Remove the cap and strainer from the reservoir.

2.

REMOVE 2 GROMMETS

3.

REMOVE SEAL

4.

REMOVE 2 MASTER CYLINDER PRESSURE SENSORS
Torque: 25 N·m (250 kgf·cm, 18 ft·lbf)
