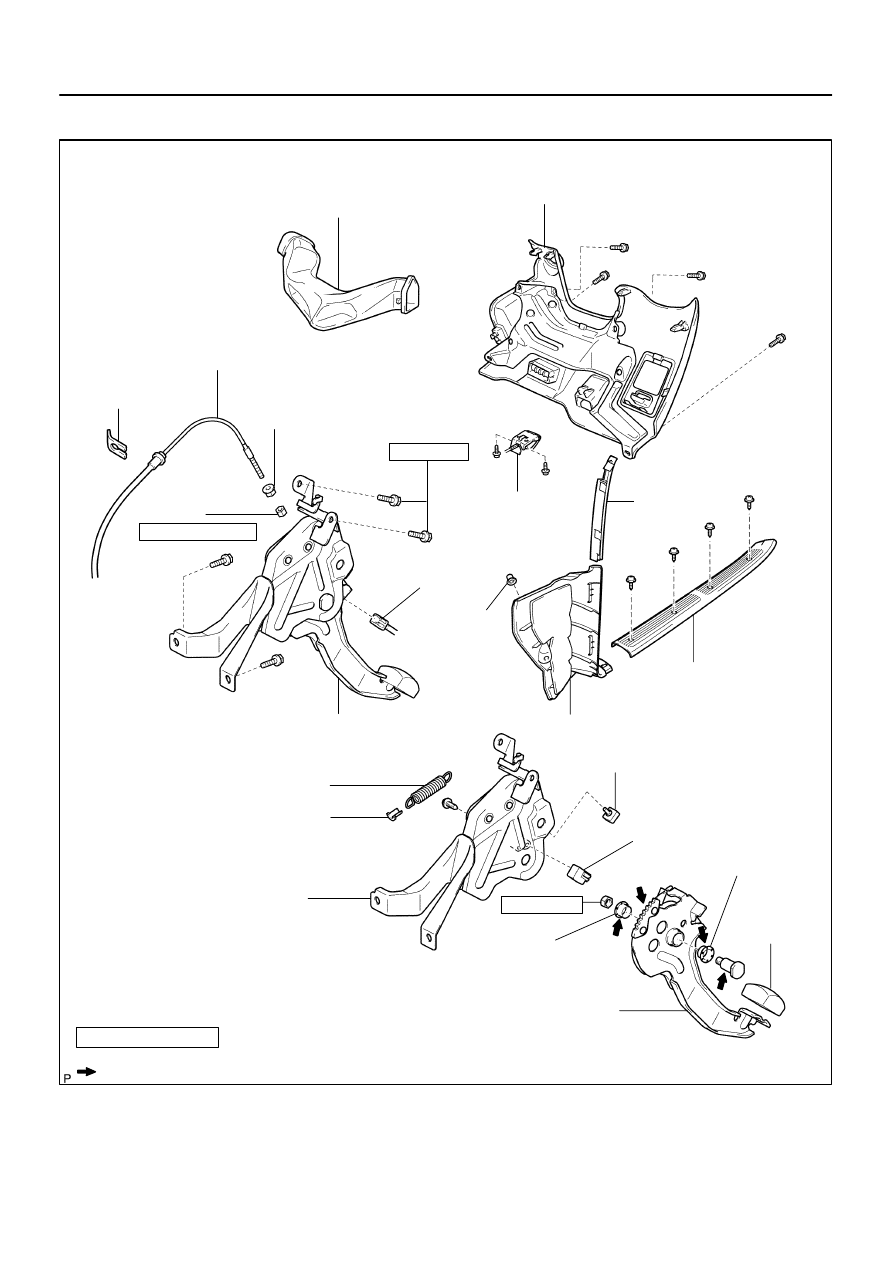

BR10A–04

F13306

No. 2 Heater to Register Duct

Lower Finish Panel

Hood Lock
Release Lever

Parking Brake Wire

Clip

Pedal Pad

Parking Brake
Pedal Assembly

: Specified torque

N·m (kgf·cm, ft·lbf)

Cowl Side Trim Board

Front Door Scuff Plate

13 (130, 9)

Adjusting Nut

Lock Nut

Clip

Return Spring

Return Spring Damper

32 (320, 23)

Parking Brake Switch

Cushion

5.4 (55, 48 in.·lbf)

Pedal Assembly

Lithium soap base glycol grease

 Non–reusable part

 Bushing

 Bushing

Pedal Bracket

Parking Brake Switch
Connector

Side Panel

BR–10

–

BRAKE

PARKING BRAKE PEDAL

3177

COMPONENTS

BR10B–04

–

BRAKE

PARKING BRAKE PEDAL

BR–11

3178

REMOVAL

1.

REMOVE FRONT DOOR SCUFF PLATE, COWL SIDE TRIM BOARD, SIDE PANEL, LOWER FIN-
ISH PANEL AND NO. 2 HEATER TO REGISTER DUCT (See page

BO–89

)

2.

REMOVE PARKING BRAKE PEDAL ASSEMBLY

(a)

Disconnect the parking brake switch connector.

(b)

Remove the lock nut and adjusting nut from the parking brake wire.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)

(c)

Remove the clip and disconnect the parking brake wire from the parking brake pedal assembly.

(d)

Remove the 4 bolts and parking brake pedal assembly.
Torque: 13 N·m (130 kgf·cm, 9 ft·lbf)

BR1NB–02

BR–12

–

BRAKE

PARKING BRAKE PEDAL

3179

DISASSEMBLY

1.

REMOVE RETURN SPRING AND RETURN SPRING DAMPER

2.

REMOVE CUSHION

3.

REMOVE PEDAL ASSEMBLY

(a)

Remove the nut, bolt and pedal assembly.
Torque: 32 N·m (320 kgf·cm, 23 ft·lbf)

(b)

Remove the 2 bushings from the pedal assembly.

(c)

Remove the pedal pad.

4.

REMOVE PARKING BRAKE SWITCH

Remove the screw and parking brake switch.

BR1NC–02

–

BRAKE

PARKING BRAKE PEDAL

BR–13

3180

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

BR–12

).

NOTICE:
Apply lithium soap base glycol grease to the parts indicated by the arrows (See page

BR–10

).
