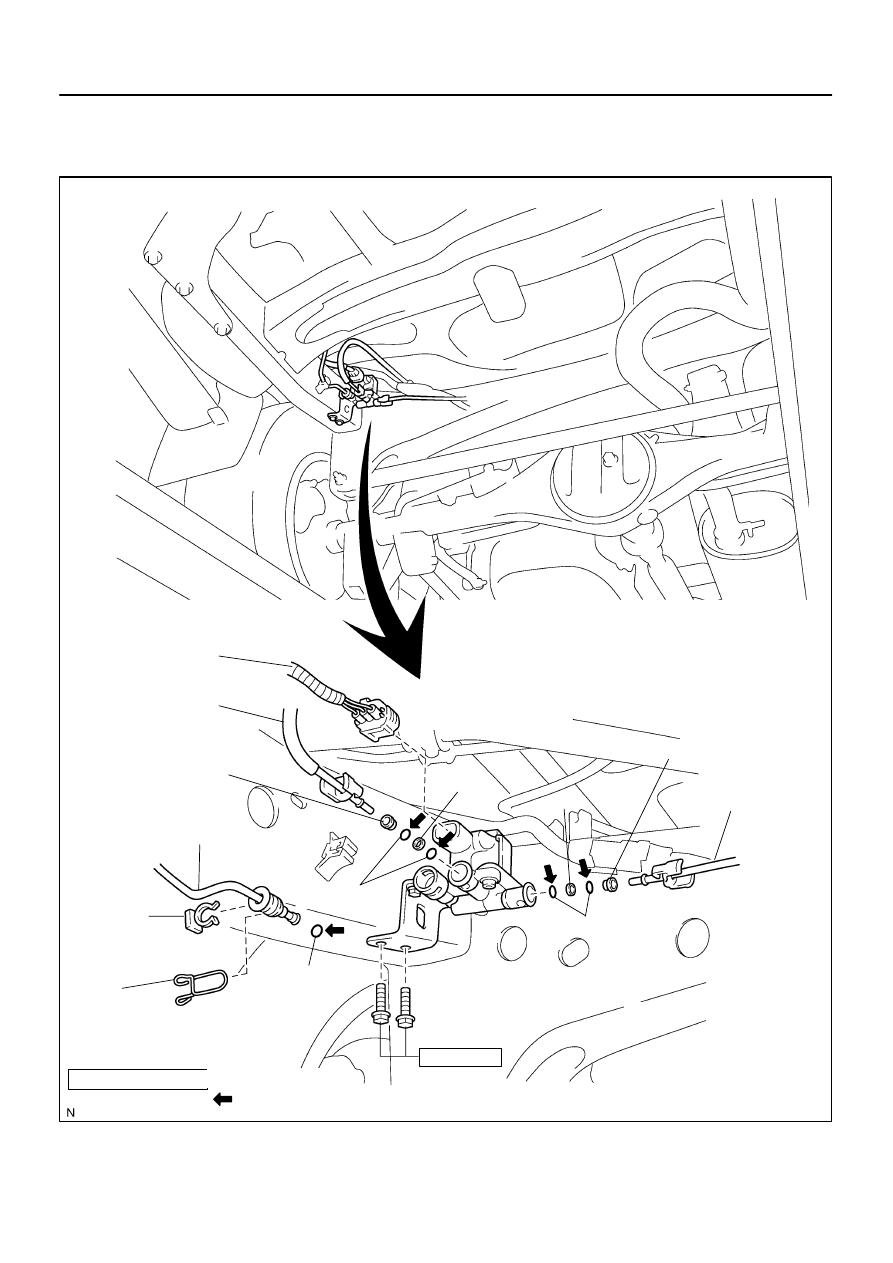

SA0L4–05

F16841

N·m (kgf·cm, ft·lbf)

: Specified torque

 Non–reusable part

29 (300, 21)

Connector

Height Control Tube

Height Control Tube

Holder

Clip

O–Ring

Height Control Tube

Plate

Plate

Connector No.2

O–Rings

O–Rings

Height Control
Valve

MP grease

Connector No.2

–

SUSPENSION AND AXLE

HEIGHT CONTROL VALVE

SA–165

3161

HEIGHT CONTROL VALVE

COMPONENTS

SA2D2–01

F16832

C

B

A

F16833

F16834

SA–166

–

SUSPENSION AND AXLE

HEIGHT CONTROL VALVE

3162

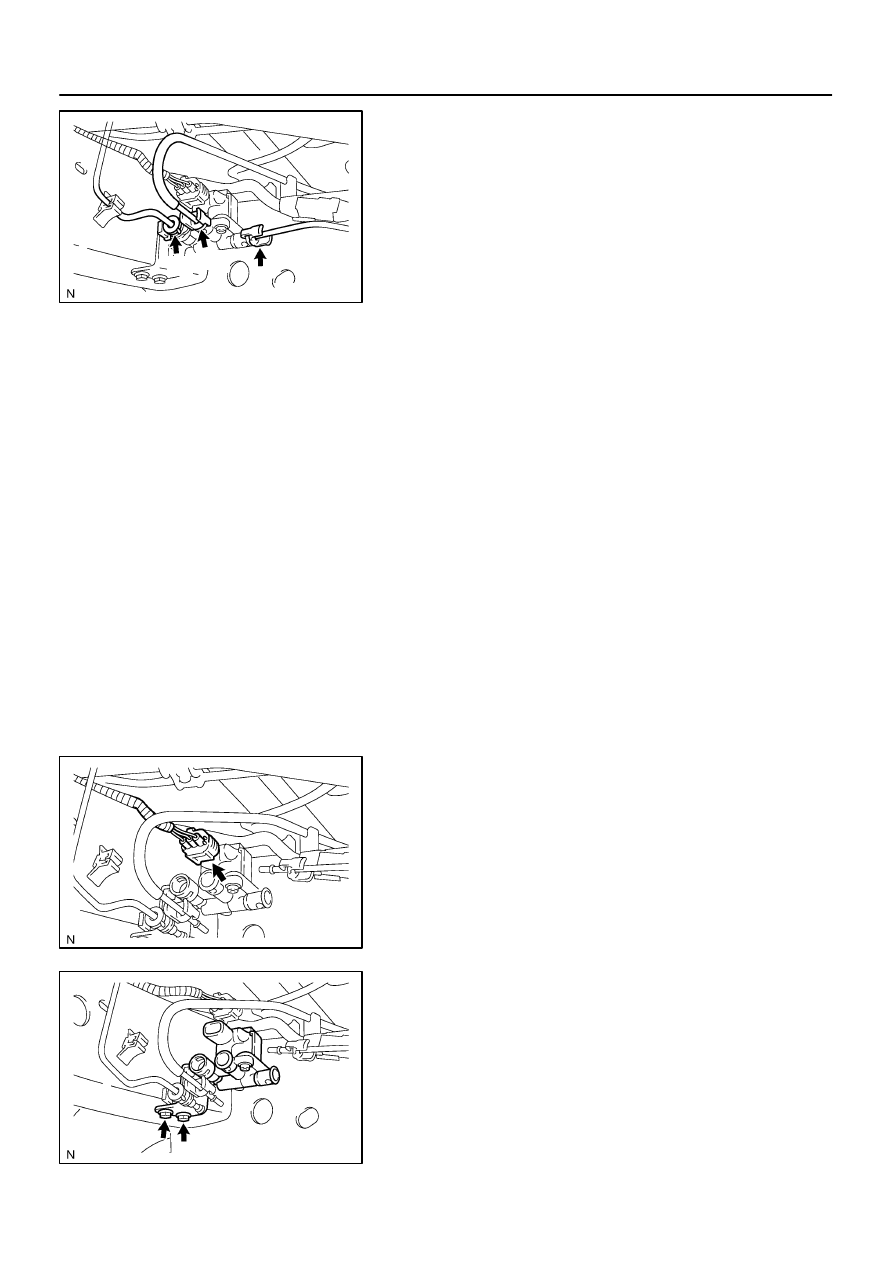

REMOVAL

1.

DISCONNECT HEIGHT CONTROL TUBE

(a)

When disconnecting the height control tube A:
(1)

Remove the clip and holder.

(2)

Using SST, disconnect the height control tube.

SST

09730–00010

(3)

Remove the O–ring from the height control tube.

HINT:
Perform the following before installation:

Coat a new O–ring with MP grease.

Push the air tube in straight to connect it until the clip
makes a ”clicking” sound.

(b)

When disconnecting the height control tubes B and C:

NOTICE:
Be careful when removing tube as it will cause air to be re-
leased from the pneumatic cylinder and vehicle  height to
decrease. When using a jack or two–post lift, read the op-
eration procedures and precautions for the pneumatic cyl-
inder to prevent damaging the cylinder.

(1)

Spread the clip and slowly pull the 2 height control
tubes straight out.

(2)

Remove the 4 O–rings, 2 plates, and 2 connector
No.2 from the height control tube.

HINT:
Perform the following before installation:

Coat 4 new O–rings with MP grease.

2.

DISCONNECT CONNECTOR

3.

REMOVE HEIGHT CONTROL VALVE

(a)

Remove the 2 bolts and height control valve.
Torque: 29 N·m (300 kgf·cm, 21 ft·lbf)

SA0L6–03

–

SUSPENSION AND AXLE

HEIGHT CONTROL VALVE

SA–167

3163

INSTALLATION

Installation is in the reverse order of removal (See page

SA–166

).

SA1I9–03

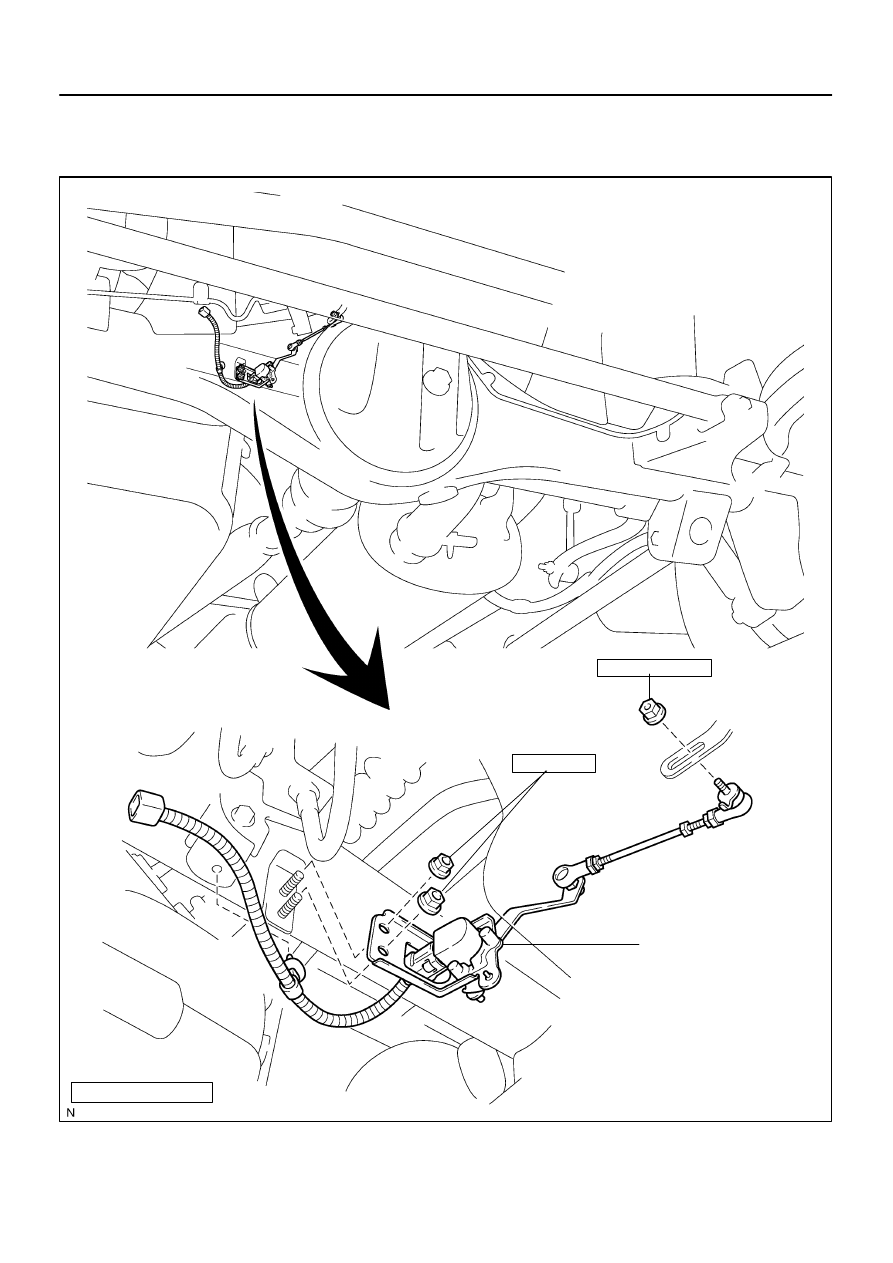

F16849

N·m (kgf·cm, ft·lbf)

: Specified torque

29 (300, 21)

5.4 (55, 48 in.·lbf)

Rear Height
Control Sensor

SA–168

–

SUSPENSION AND AXLE

REAR HEIGHT CONTROL SENSOR

3164

REAR HEIGHT CONTROL SENSOR

COMPONENTS
