Toyota Sequoia (2005). Manual - part 792

SA0L1–06

F16846

N·m (kgf·cm, ft·lbf) : Specified torque

 Non–reusable part

Height Control Filter

Bracket

Rear Bumper

Holder

Bushing

O–Rings

5.9 (60, 52 in.·lbf)

Height Control Compressor
and Dryer

6.4 (65, 57 in.·lbf)

Height Control Compressor

Hose

Clip

Clip

Clip

Clip

29 (300, 21)

29 (300, 21)

Clip

Height Control Tube

MP grease

Bushing

Compressor Cover

–

SUSPENSION AND AXLE

HEIGHT CONTROL COMPRESSOR AND DRYER

SA–161

3157

HEIGHT CONTROL COMPRESSOR AND DRYER

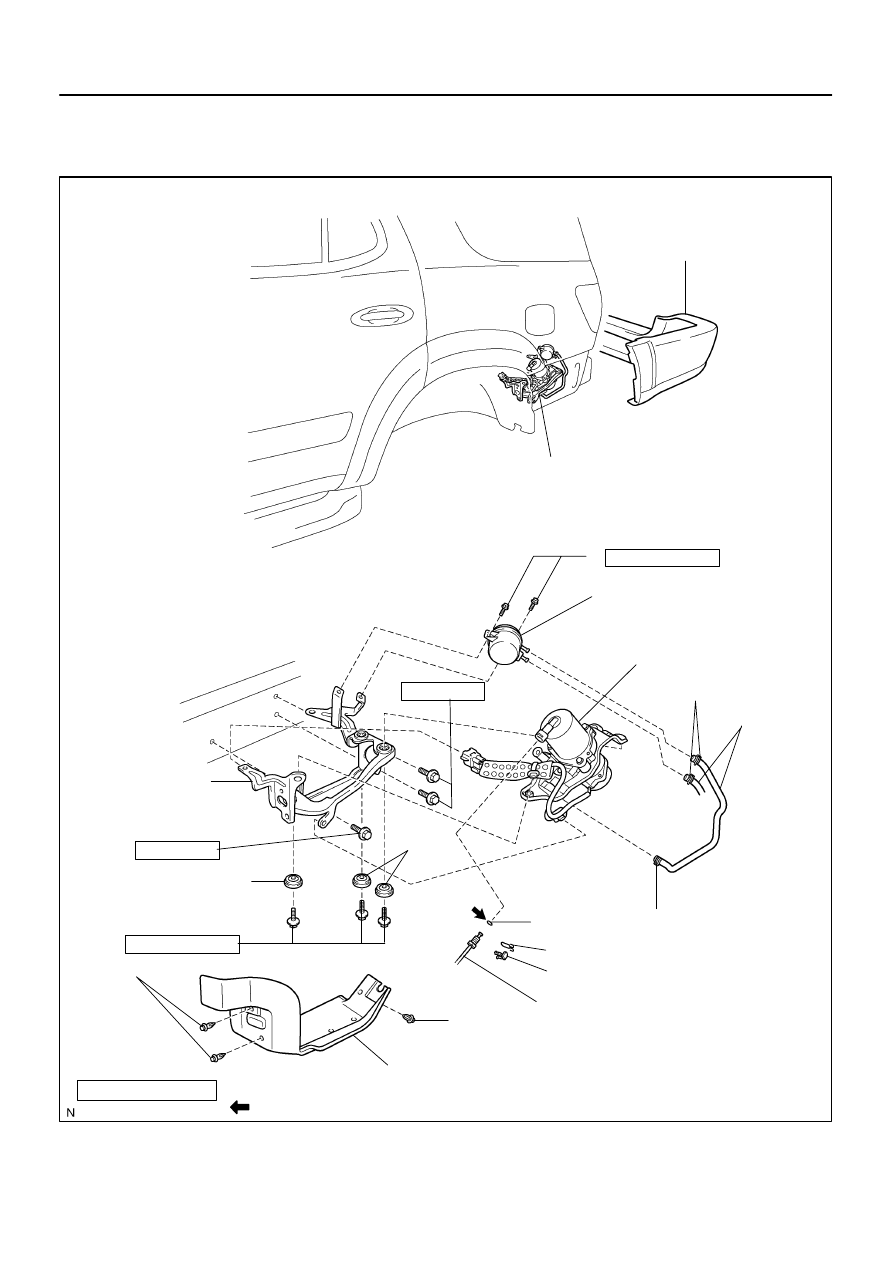

COMPONENTS

SA2D1–01

F16829

F16830

SA–162

–

SUSPENSION AND AXLE

HEIGHT CONTROL COMPRESSOR AND DRYER

3158

REMOVAL

1.

REMOVE REAR BUMPER (See page

BO–6

)

2.

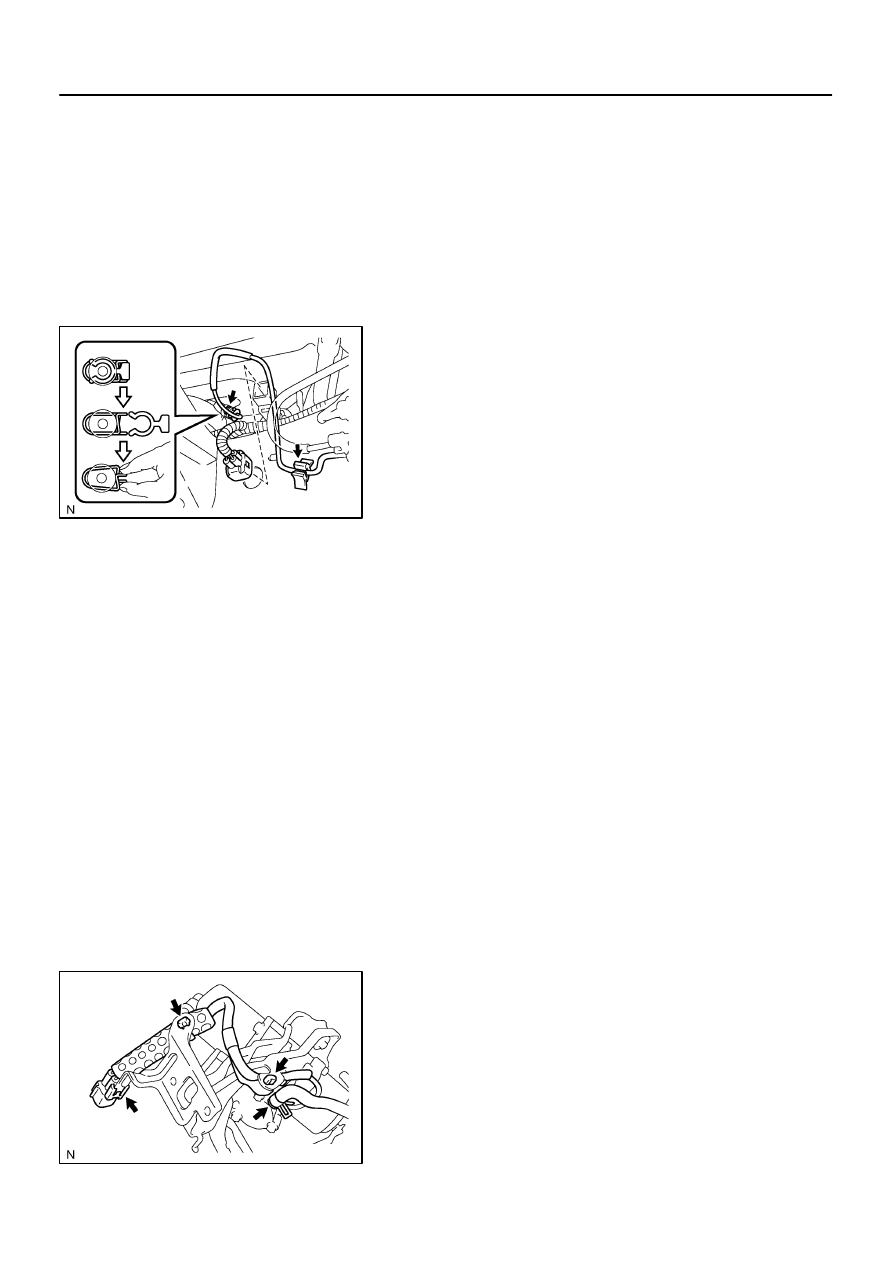

DISCONNECT HEIGHT CONTROL TUBE

(a)

Remove the holder.

(b)

Spread the clip and slowly pull the height control tube
straight out.

NOTICE:
Do not remove the clip from the union except when replac-
ing it.
(c)

Remove the O–ring.

HINT:
Perform the following before installation:

Coat a new O–ring with MP grease.

Push the air tube in straight to connect it until the clip
makes a ”clicking” sound.

3.

REMOVE HEIGHT CONTROL COMPRESSOR AND
DRYER

HINT:
Check for leakage after installation (See page

SA–153

).

(a)

Separate the hose from the compressor cover.

(b)

Remove the 3 clips and compressor cover.

(c)

Remove the hose.

(d)

Disconnect the wire harness from the clamp.

(e)

Remove the 3 bolts and height control compressor and
dryer.
Torque: 29 N·m (300 kgf·cm, 21 ft·lbf)

(f)

Disconnect the 3 wire harness clamps and hose.

F16831

–

SUSPENSION AND AXLE

HEIGHT CONTROL COMPRESSOR AND DRYER

SA–163

3159

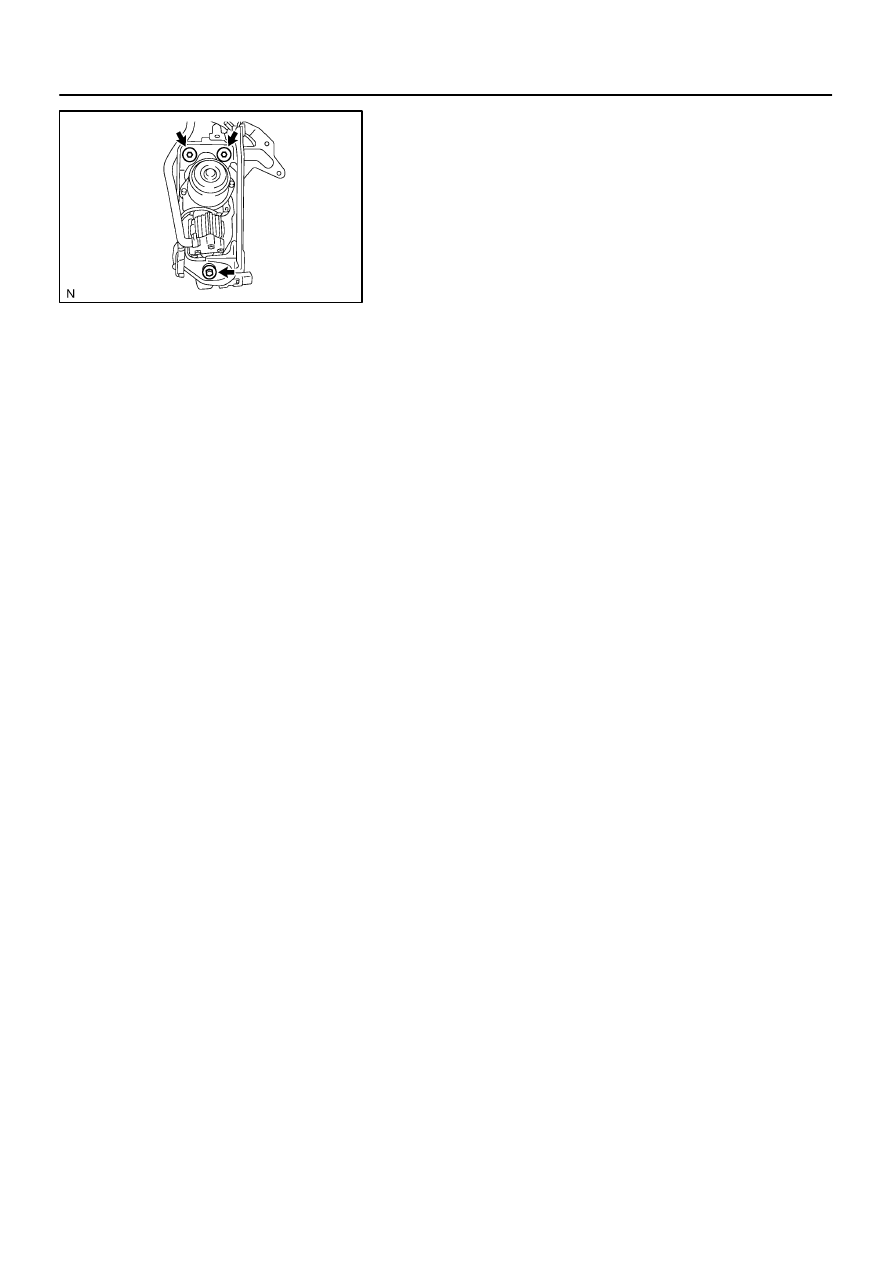

(g)

Remove the 3 bolts, bushing and the bracket from the
height control compressor.
Torque: 5.9 N·m (60 kgf·cm, 52 in.·lbf)

(h)

Remove the 2 bolts and the filter from the height control
compressor.
Torque: 6.4 N·m (65 kgf·cm, 56 in.·lbf)

SA0L3–03

SA–164

–

SUSPENSION AND AXLE

HEIGHT CONTROL COMPRESSOR AND DRYER

3160

INSTALLATION

Installation is in the reverse order of removal (See page

SA–162

).
