SA179–01

–

SUSPENSION AND AXLE

REAR LATERAL CONTROL ROD

SA–145

3141

INSTALLATION

Installation is in the reverse order of removal (See page

SA–144

).

SA17B–05

F14298

Speed Sensor
Wire Harness

Lower Control Arm

N·m (kgf·cm, ft·lbf) : Specified torque

Upper Control Arm

140 (1,428, 103)

140 (1,428, 103)

28 (286, 21)

130 (1,326, 96)

26 (265, 19)

Parking Brake Cable

130 (1,326, 96)

Brake Line
Bracket

SA–146

–

SUSPENSION AND AXLE

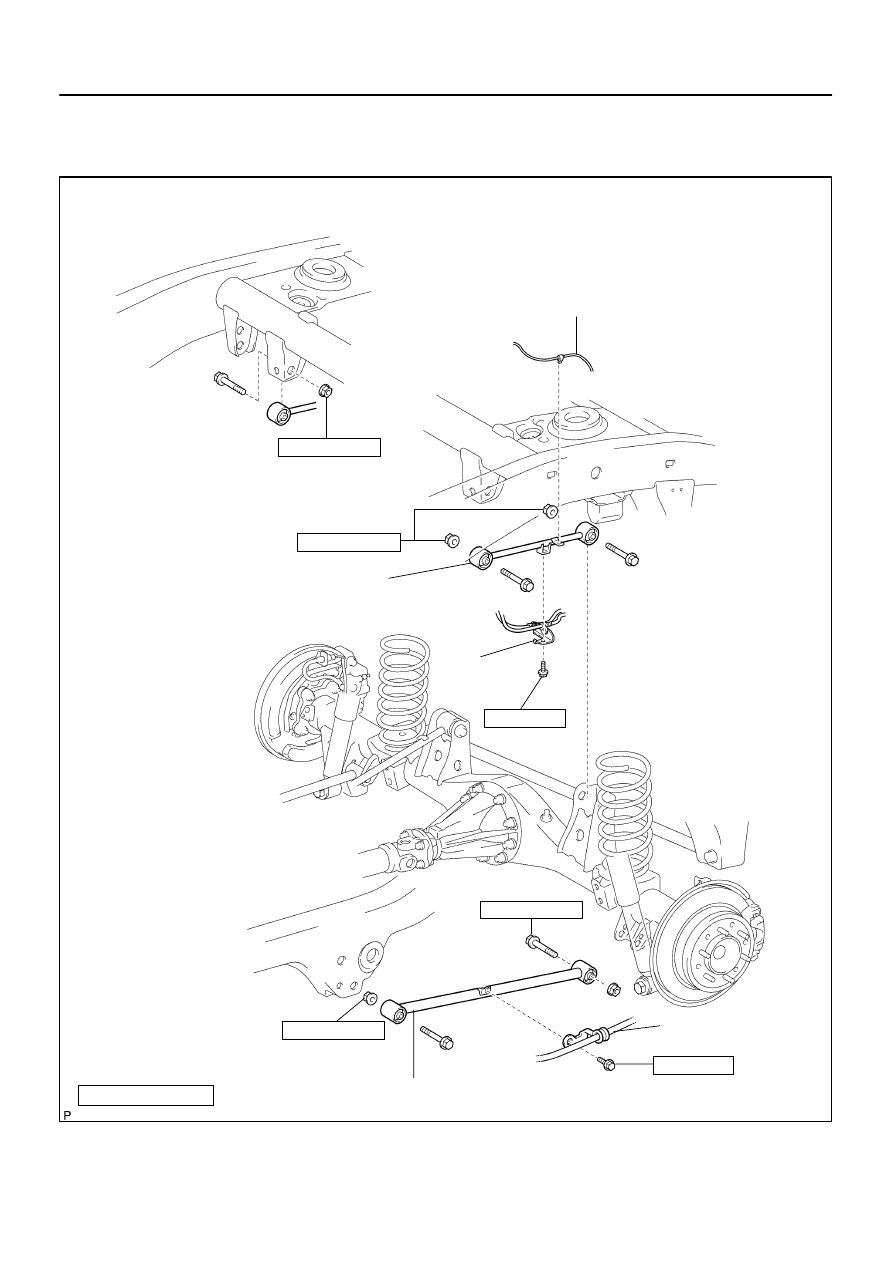

REAR UPPER AND LOWER CONTROL ARM

3142

REAR UPPER AND LOWER CONTROL ARM

COMPONENTS

SA24J–02

F14299

F14300

–

SUSPENSION AND AXLE

REAR UPPER AND LOWER CONTROL ARM

SA–147

3143

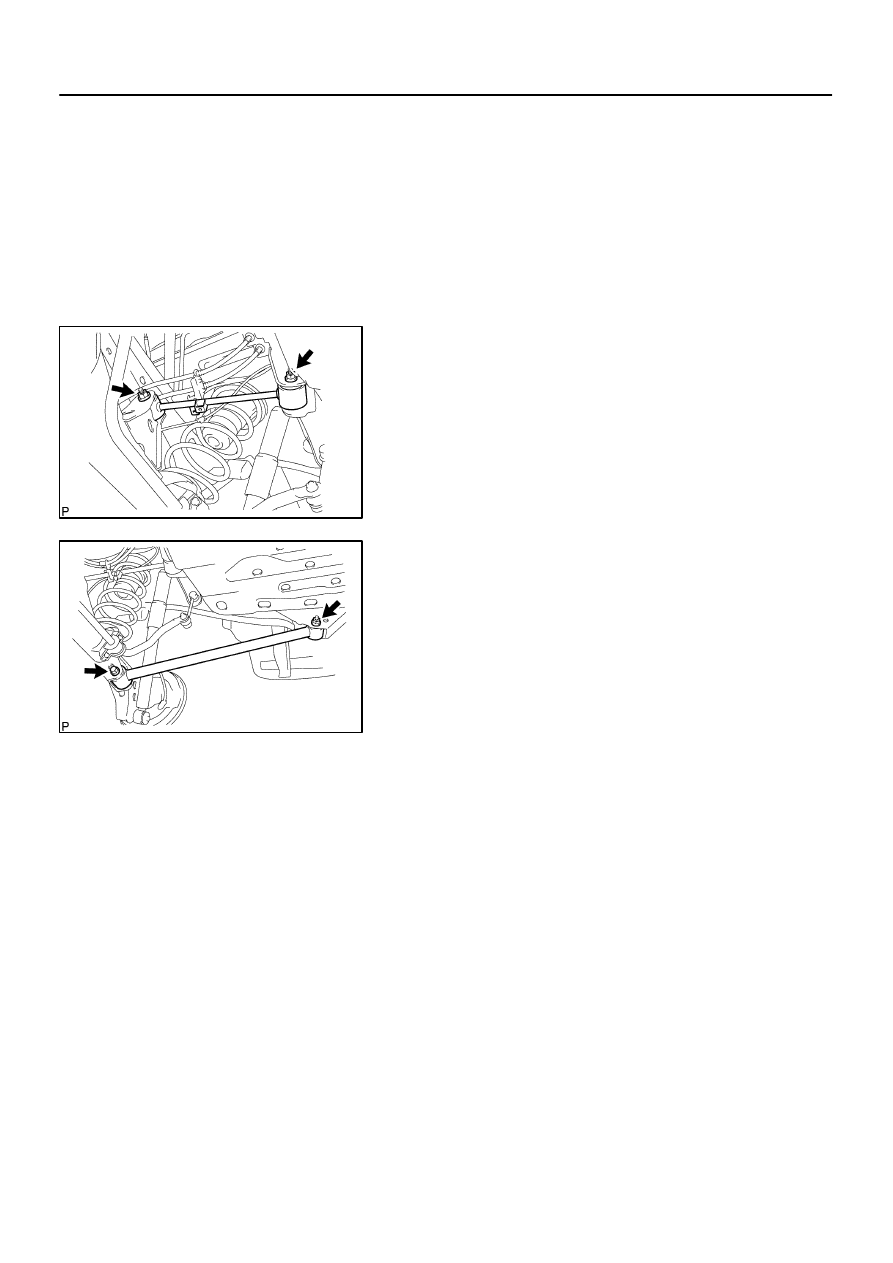

REMOVAL

1.

REMOVE REAR WHEEL
Torque: 110 N·m (1,150 kgf·cm, 83 ft·lbf)

2.

SUPPORT REAR AXLE HOUSING WITH JACK

3.

REMOVE UPPER CONTROL ARM

(a)

Disconnect the speed sensor wire harness.

(b)

Remove the bolt and brake line bracket.
Torque: 28 N·m (286 kgf·cm, 21 ft·lbf)

(c)

Remove the 2 nuts, washers, bolts and upper control arm.
Torque: 140 N·m (1,428 kgf·cm, 103 ft·lbf)

HINT:
At the time of installation, after stabilizing the suspension,
torque the nuts.

4.

REMOVE LOWER CONTROL ARM

(a)

Remove the bolt and parking brake cable bracket.
Torque: 26 N·m (265 kgf·cm, 19 ft·lbf)

(b)

Remove the 2 nuts, bolts and lower control arm.
Torque: 130 N·m (1,326 kgf·cm, 96 ft·lbf)

HINT:
At the time of installation, after stabilizing the suspension,
torque the nuts.

SA17D–01

SA–148

–

SUSPENSION AND AXLE

REAR UPPER AND LOWER CONTROL ARM

3144

INSTALLATION

Installation is in the reverse order of removal (See page

SA–147

).
