SUSPENSION AND AXLE

COIL SPRING AND REAR SHOCK ABSORBER

SA–141

3137

REPLACEMENT

1.

Normal Type:

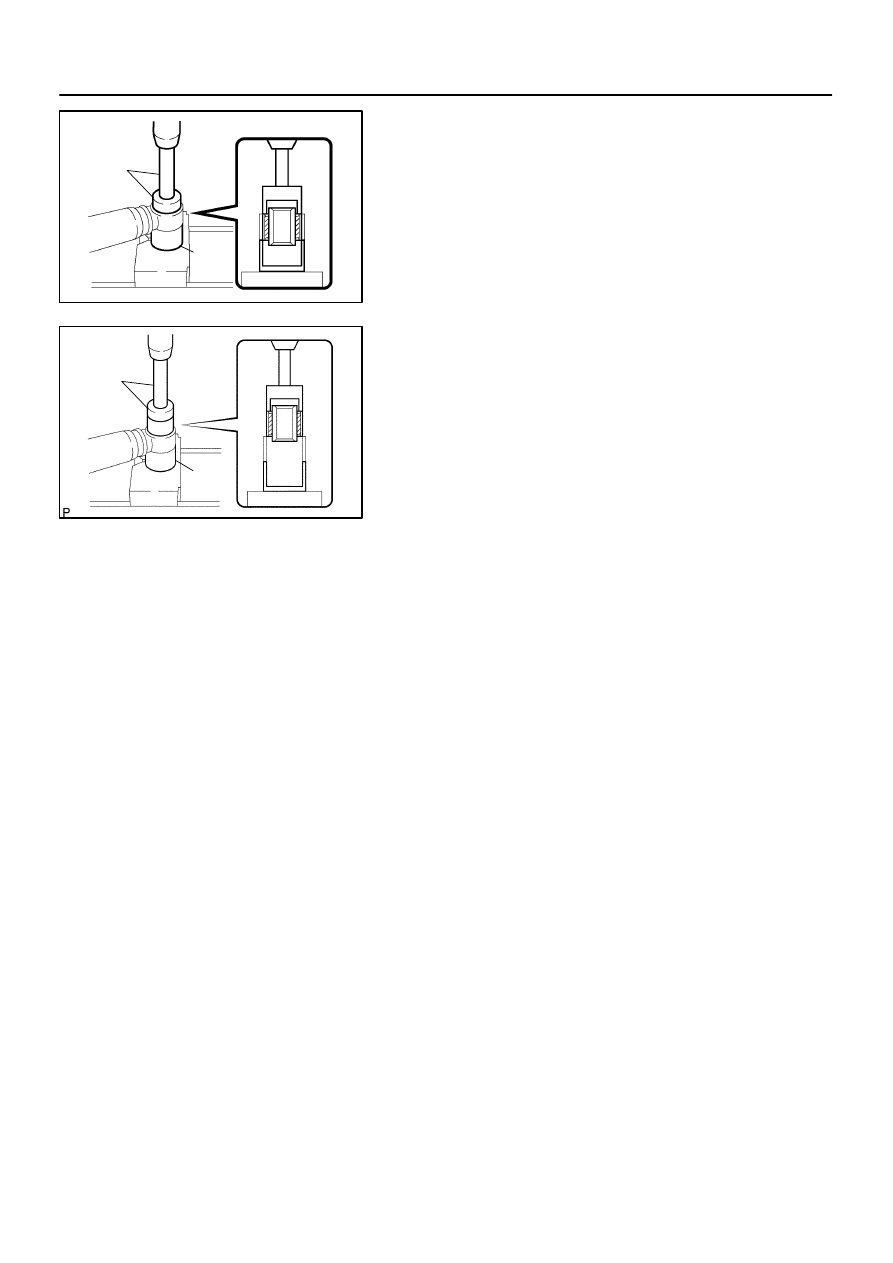

REMOVE BUSHING

Using SST and a press, remove the bushing.

SST

09710–14013 (09710–00061),
09710–28012 (09710–07031),
09950–70010 (09951–07100)

2.

Normal Type:
INSTALL BUSHING

Using SST and a press, install a new bushing.

SST

09710–14013 (09710–00061),
09710–28012 (09710–07031),
09950–70010 (09951–07100)

SA176–04

SA–142

–

SUSPENSION AND AXLE

COIL SPRING AND REAR SHOCK ABSORBER

3138

INSTALLATION

Installation is in the reverse order of removal (See page

SA–137

).

SA177–04

F14296

Lateral Control Rod

N·m (kgf·cm, ft·lbf) : Specified torque

130 (1,326, 96)

140 (1,428, 103)

Non–reusable part

–

SUSPENSION AND AXLE

REAR LATERAL CONTROL ROD

SA–143

3139

REAR LATERAL CONTROL ROD

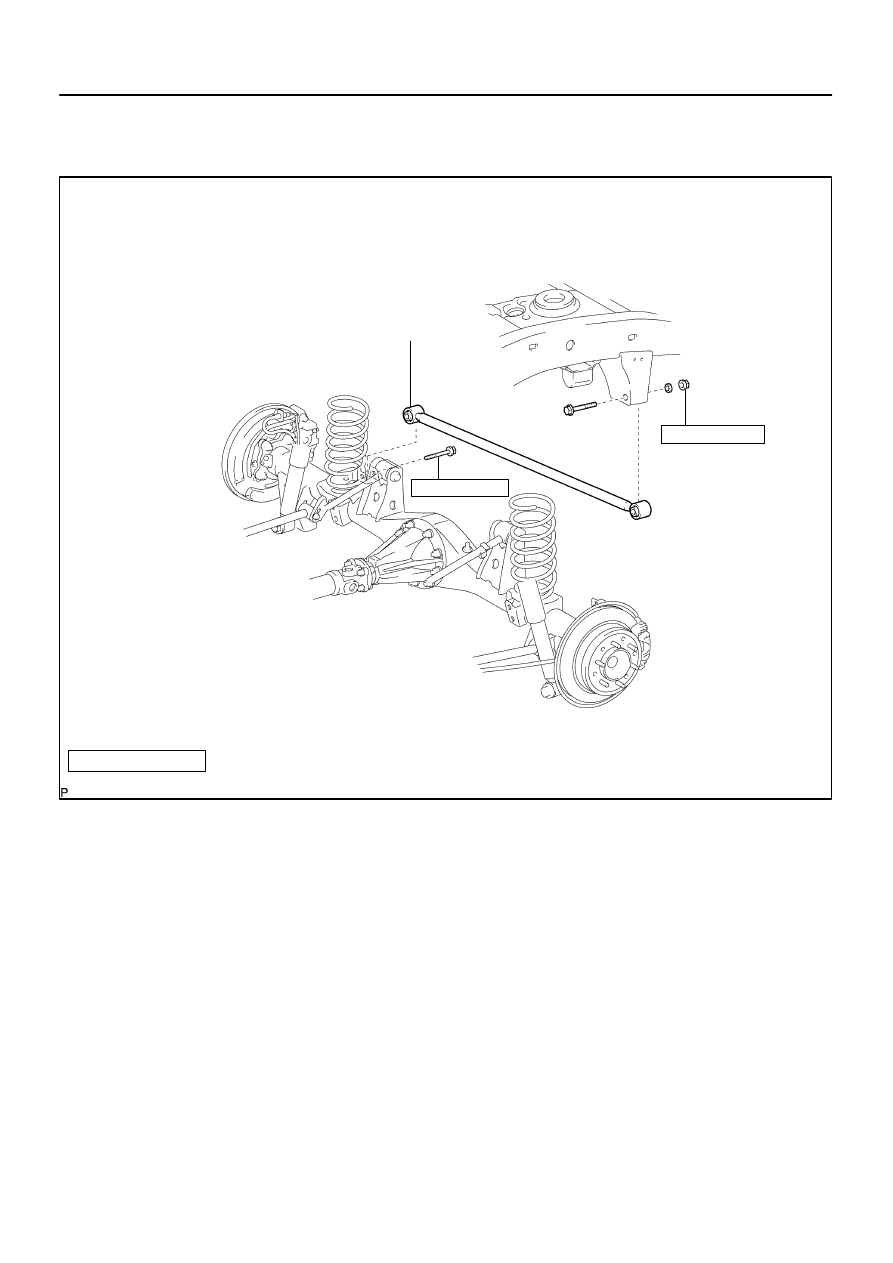

COMPONENTS

SA178–04

F14297

A

B

SA–144

–

SUSPENSION AND AXLE

REAR LATERAL CONTROL ROD

3140

REMOVAL

1.

SUPPORT REAR AXLE HOUSING WITH JACK

2.

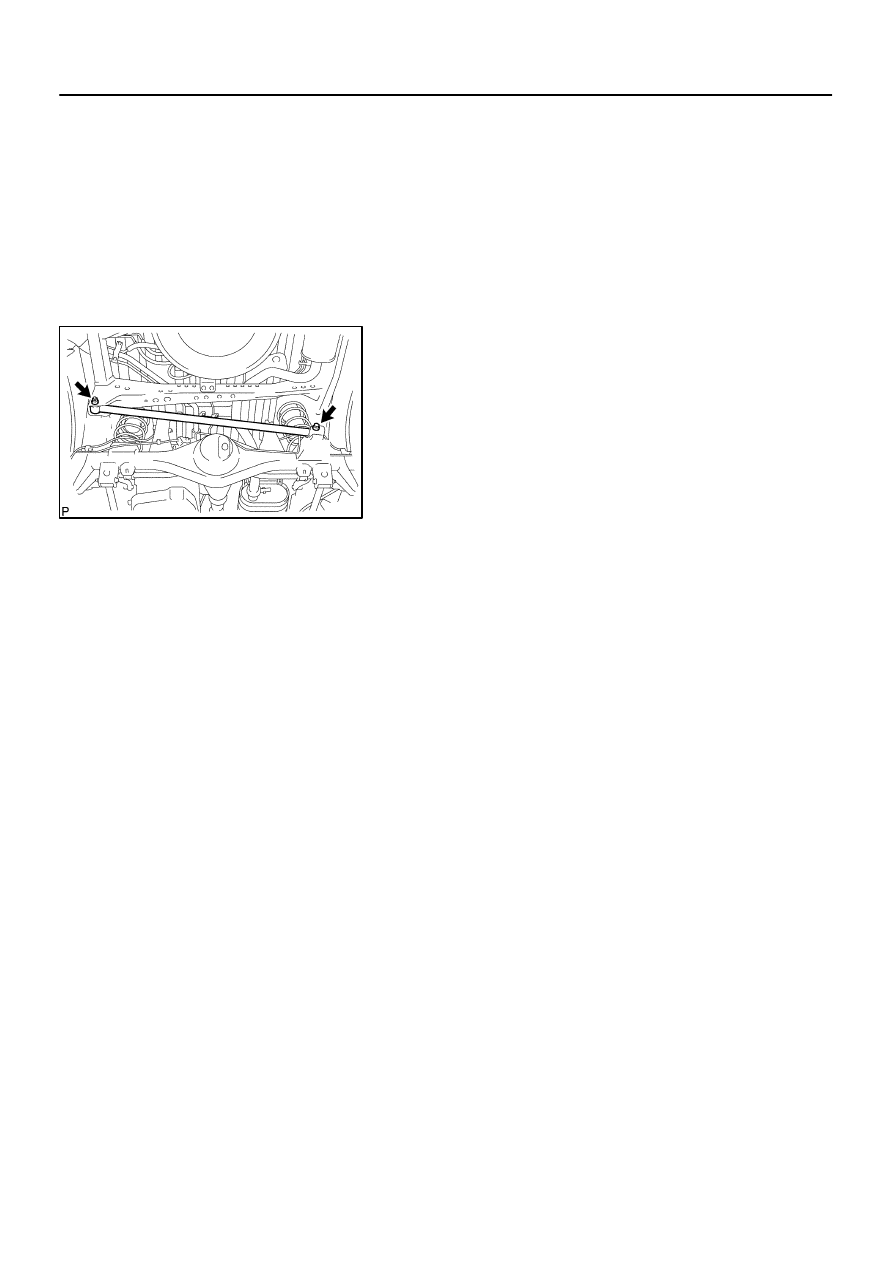

REMOVE LATERAL CONTROL ROD

Remove the 2 bolts, nut, washer and lateral control rod.

Torque:
A 140 N·m (1,428 kgf·cm, 103 ft·lbf)
B 130 N·m (1,326 kgf·cm, 96 ft·lbf)

HINT:
At the time of installation, please refer to the following items.

Replace the used nut with a new one.

After stabilizing the suspension, torque the nut and bolt.
