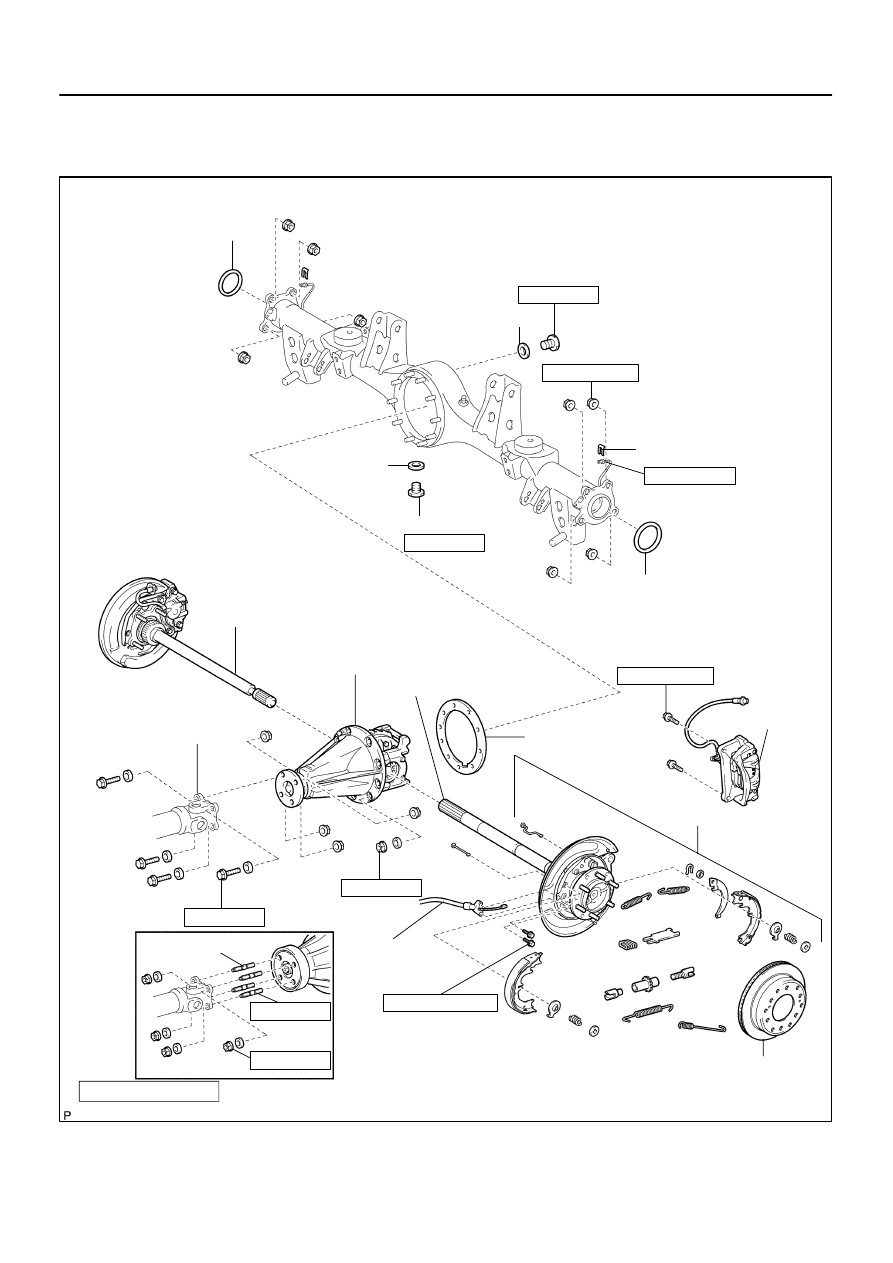

SA15M–05

F14291

Brake Caliper

Disc

Parking Brake Assembly

Drain Plug



Gasket

Filler Plug

Parking Brake
Cable

Differential Carrier

Axle Shaft (RH)

x10

Propeller Shaft

Axle Shaft (LH)

Gasket





49 (500, 36)

Clip

O–ring



122 (1,244, 90)

Gasket





49 (500, 36)

15.5 (158, 11)

N·m (kgf·cm, ft·lbf) : Specified torque



Non–reusable part

74 (750, 55)

73 (744, 53)

105 (1,070, 77)

8.0 (82, 71 in.·lbf)

10 (102, 7.4)

2WD:

74 (750, 55)

Stud Bolt

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

SA–109

3105

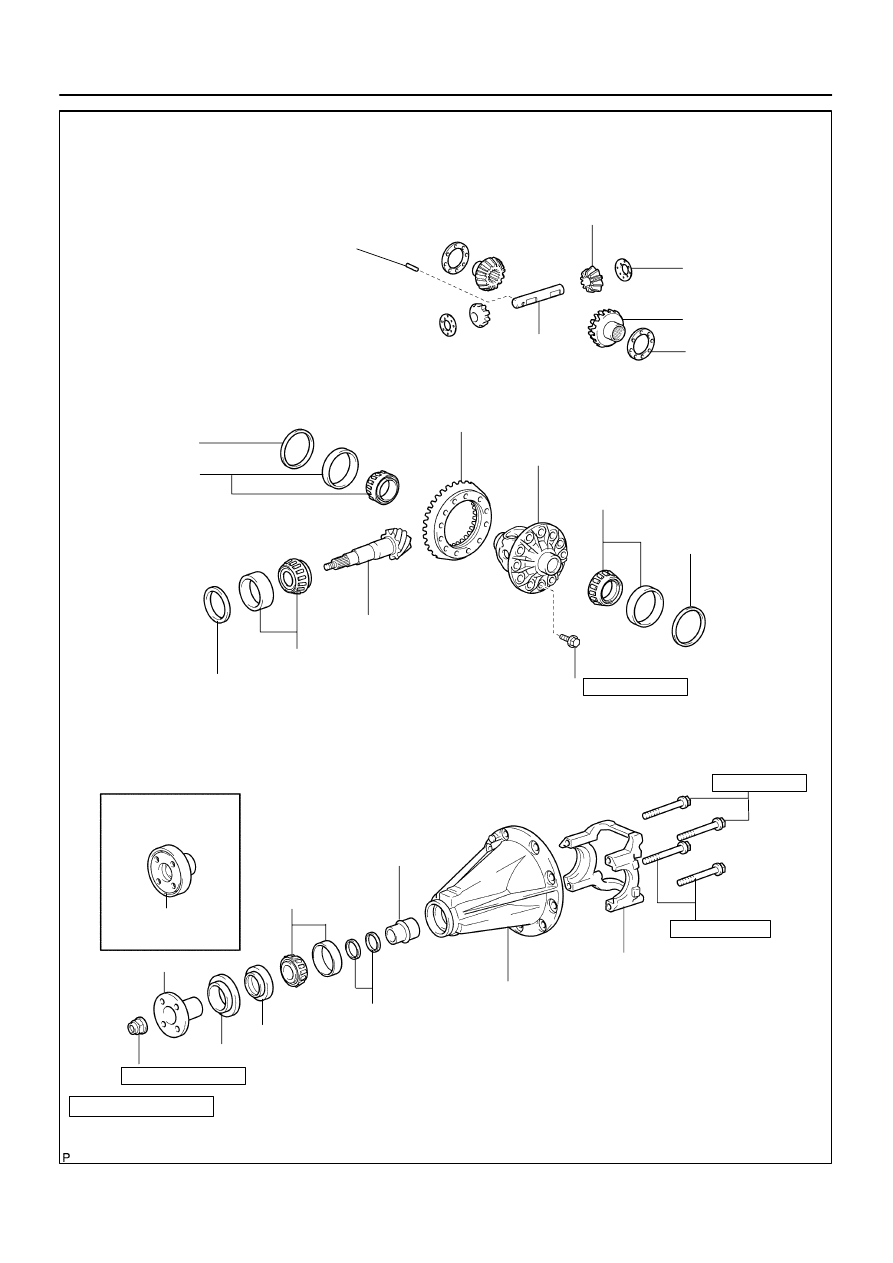

REAR DIFFERENTIAL CARRIER

COMPONENTS

F14292

N·m (kgf·cm, ft·lbf)

: Specified torque

Straight Pin

Pinion Shaft

Pinion Gear

Thrust Washer

Side Gear

Ring Gear

Differential Case

Drive Pinion

Rear Bearing



 Adjusting Washer



 Bearing Spacer

Front Bearing



 Dust Deflector

Companion Flange

Bearing Cap

Thrust Washer

Plate Washer

Side Bearing

Side Bearing

Plate Washer

Differential Carrier

Washer





Oil Seal

x12

125 (1,270, 92)

113 (1,150, 83)

113 (1,150, 83)

See page

SA–119



 Non–reusable part

 Precoated part

Companion
Flange

2WD:

SA–110

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

3106

SA24E–02

F14273

SST

F14274

F14276

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

SA–111

3107

REMOVAL

1.

REMOVE 2 REAR WHEELS
Torque: 110 N·m (1,122 kgf·cm, 81 ft·lbf)

2.

DRAIN HYPOID GEAR OIL
Torque: 49 N·m (500 kgf·cm, 36 ft·lbf)

3.

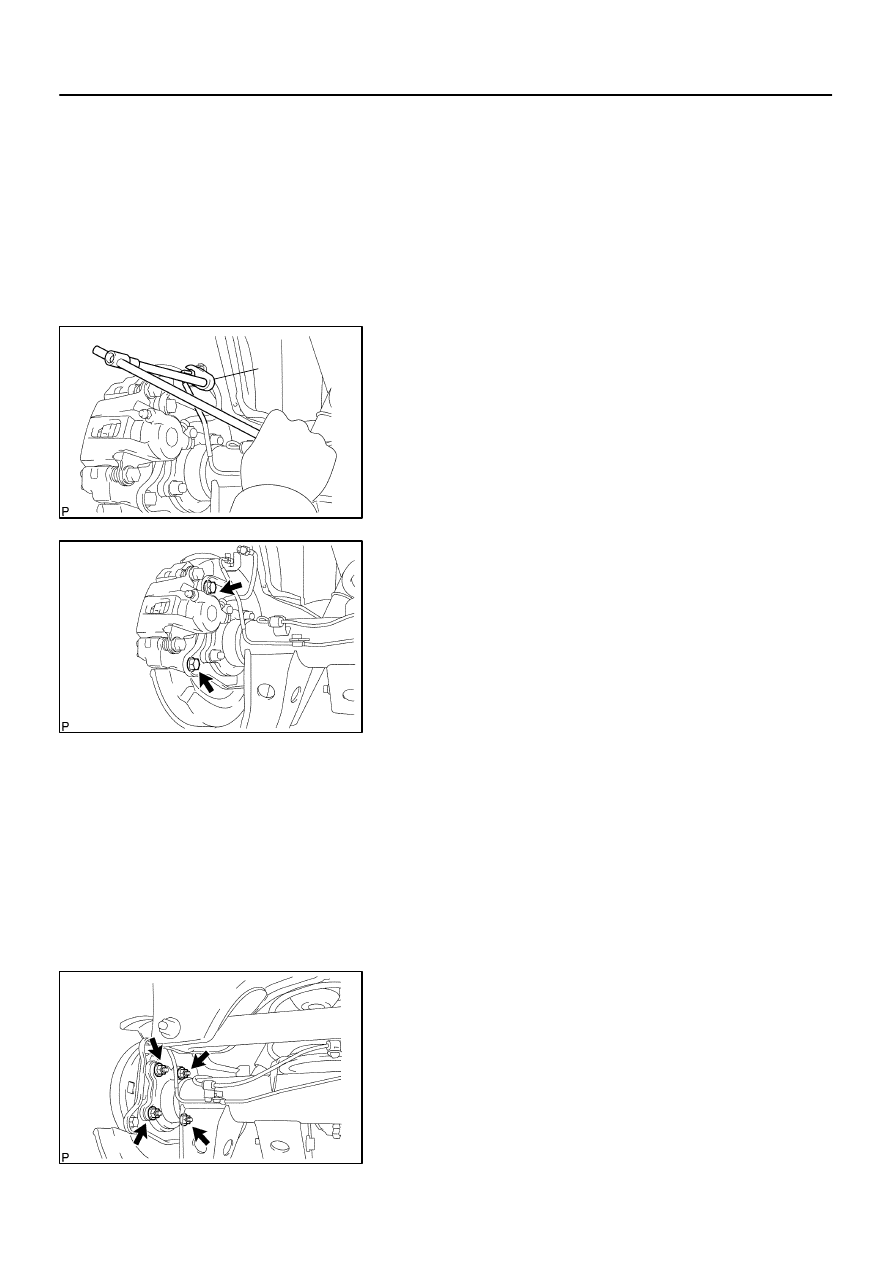

DISCONNECT BRAKE LINES

(a)

Using SST, disconnect the brake line and remove the clip.
SST

09023–00100

Torque: 15.5 N·m (158 kgf·cm, 11 ft·lbf)

(b)

Use the same procedure described above to the other
side.

4.

REMOVE BRAKE CALIPER AND DISC

(a)

Remove the 2 bolts, brake caliper and disc.
Torque: 105 N·m (1,070 kgf·cm, 77 ft·lbf)

(b)

Use the same procedure described above to the other
side.

5.

REMOVE PARKING BRAKE ASSEMBLY

(a)

Remove the parking brake assembly (See page

BR–43

).

(b)

Remove the 2 bolts and pull out the parking brake cable
from the backing plate.
Torque: 8.0 N·m (82 kgf·cm, 71 in.·lbf)

(c)

Use the same procedures described above to the other
side.

6.

REMOVE AXLE SHAFTS

(a)

Remove the 4 nuts.
Torque: 122 N·m (1,244 kgf·cm, 90 ft·lbf)

(b)

Pull out the axle shaft and remove the O–ring.

NOTICE:
Be careful not to damage the oil seal.
(c)

Use the same procedures described above to the other
side.

F14294

Matchmarks

F14295

SA–112

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

3108

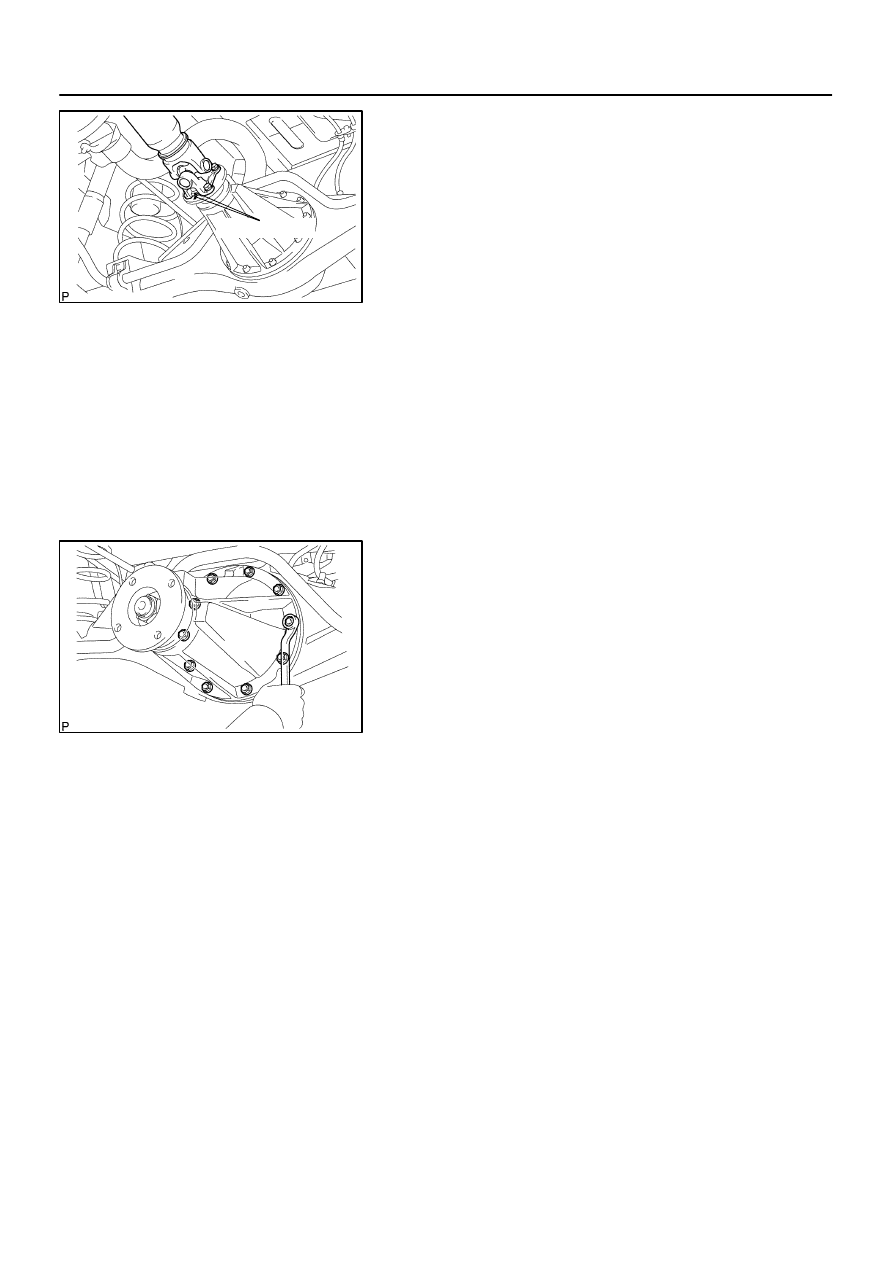

7.

DISCONNECT REAR PROPELLER SHAFT

(a)

4WD:
(1)

Place matchmarks on the propeller shaft and differ-
ential flange.

(2)

Remove the 4 nuts, bolts, washers and disconnect
the propeller shaft.

Torque: 74 N·m (755 kgf·cm, 55 ft·lbf)

(b)

2WD:
(1)

Place matchmarks on the propeller shaft and differ-
ential flange.

(2)

Remove the 4 nuts, stud bolts, washers and discon-
nect the propeller shaft.

Torque: 74 N·m (755 kgf·cm, 55 ft·lbf)

(c)

Support the propeller shaft securely.

8.

REMOVE DIFFERENTIAL CARRIER ASSEMBLY

(a)

Remove the 10 nuts, washers and differential carrier as-
sembly.

NOTICE:
Be careful not to damage the installation surface.

Torque: 73 N·m (744 kgf·cm, 53 ft·lbf)

(b)

Remove the gasket.
