Toyota Sequoia (2005). Manual - part 778

SA24D–04

F14486

40 mm

(1.57 in.)

F14485

SST

F14484

SST

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL FRONT OIL SEAL

SA–105

3101

REPLACEMENT

1.

DRAIN DIFFERENTIAL OIL

2.

DISCONNECT REAR PROPELLER SHAFT
2WD: See page

PR–3

4WD: See page

PR–7

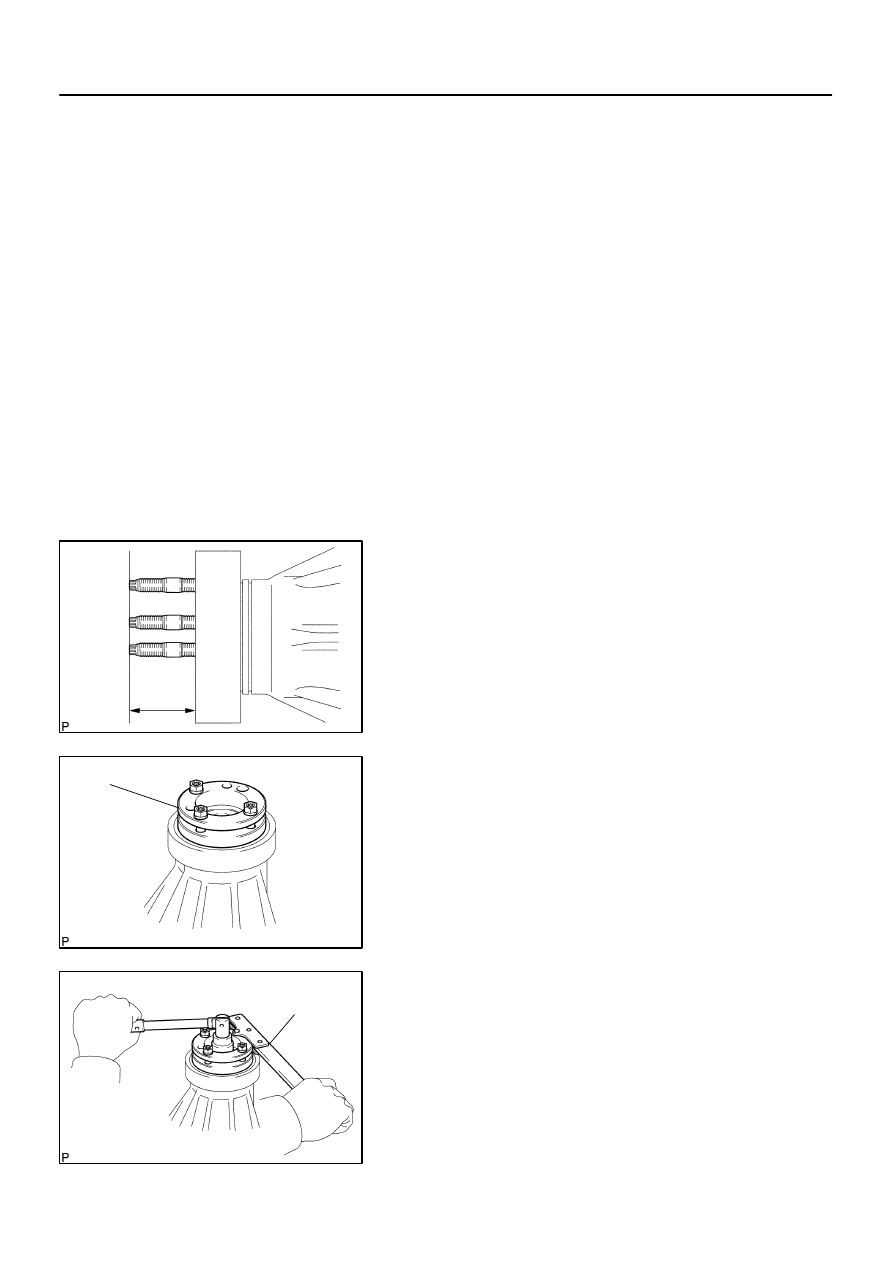

3.

REMOVE COMPANION FLANGE

(a)

2WD:
Remove the companion flange nut.
(1)

Using a chisel and hammer, loosen the staked part
of the nut.

(2)

Install the 3 stud bolts so that the heads come out
40 mm (1.57 in.).

(3)

Set the SST and install the 3 nuts to the companion
flange.

SST

09213–58013

(4)

Install the other SST to the set SST to hold the com-
panion flange, and remove the nut.

SST

09330–00021

(5)

Remove the 3 nuts, SST and stud bolts from the
companion flange.

SA2349

SST

R13357

SST

R13358

SST

SST

R13359

SST

SA–106

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL FRONT OIL SEAL

3102

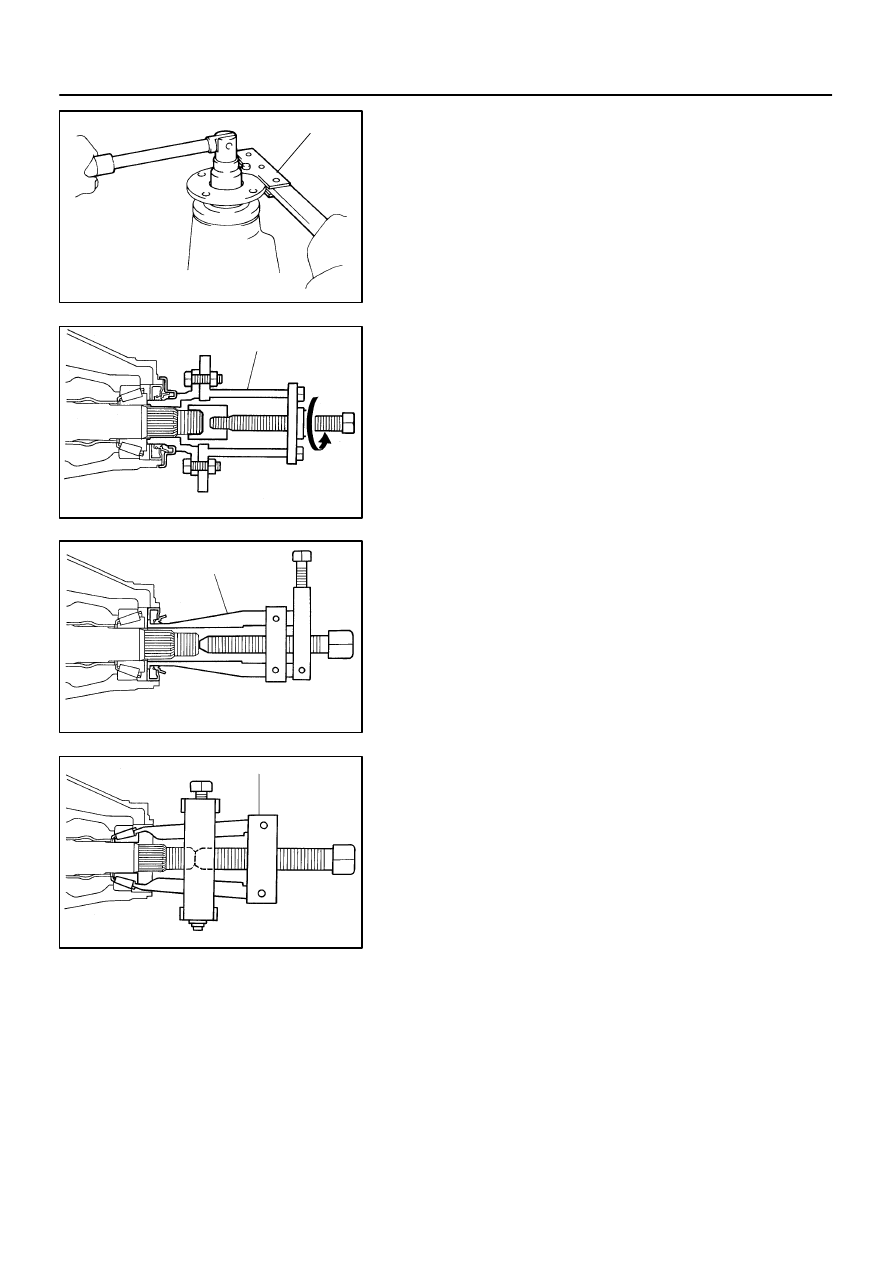

(b)

4WD:
(1)

Using a chisel and hammer, loosen the staked part
of the nut.

(2)

Using SST to hold the flange, remove the nut.

SST

09330–00021

(c)

Using SST, remove the companion flange.
SST

09950–30012 (09951–03010, 09953–03010,
09954–03010,  09955–03030, 09956–03050)

4.

REMOVE OIL SEAL

Using SST, remove the oil seal.

SST

09308–10010

5.

REMOVE FRONT BEARING

Using SST, remove the front bearing from the drive pinion.

SST

09556–22010

6.

REMOVE BEARING SPACER

(a)

Remove the 2 washers.

(b)

Remove the bearing spacer.

7.

INSTALL NEW BEARING SPACER

(a)

Install a new bearing spacer.

(b)

Install the 2 washers.

8.

INSTALL FRONT BEARING

(a)

Place the front bearing.

R13361

SST

R13360

SST

Vinyl Tape

F14486

40 mm

(1.57 in.)

F14485

SST

F14522

SST

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL FRONT OIL SEAL

SA–107

3103

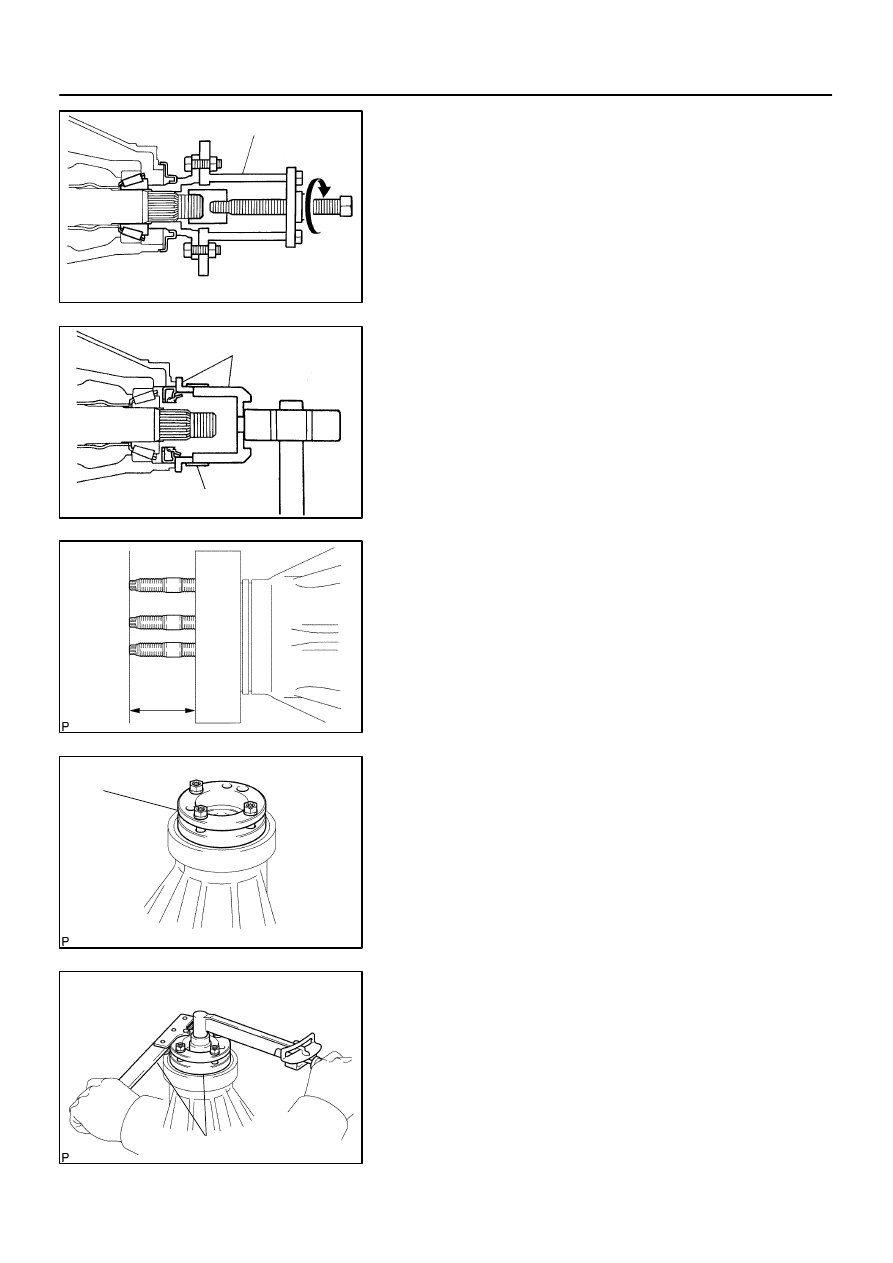

(b)

Using SST and the companion flange, install the front
bearing then remove the companion flange.
SST

09950–30012 (09951–03010, 09953–03010,
09954–03010,  09955–03030, 09956–03050)

9.

INSTALL NEW OIL SEAL

(a)

Coat a new oil seal lip with MP grease.

(b)

Using SST and a plastic hammer, install the oil seal until
its surface is flush with the differential carrier end.
SST

09316–12010, 09649–17010

HINT:
Connect 2 SST with vinyl tape.
10.

INSTALL COMPANION FLANGE

(a)

Place the companion flange on the drive pinion.

(b)

Coat the threads of a new nut with hypoid gear oil.

(c)

2WD:
Install the companion flange nut.
(1)

Install the 3 stud bolts so that the heads come out
40 mm (1.57 in.).

(2)

Set the SST and install the 3 nuts to the companion
flange .

SST

09213–58013

(3)

Install the other SST to the set SST to hold the com-
panion flange and torque the nut.

SST

09330–00021

Torque: 147 N·m (1,500 kgf·cm, 109 ft·lbf)
(4)

Remove the 3 nuts, SST and stud bolts from the
companion flange.

FA1083

SST

FA1084

R13337

Less than
5 mm (0.20 in.)

SA–108

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL FRONT OIL SEAL

3104

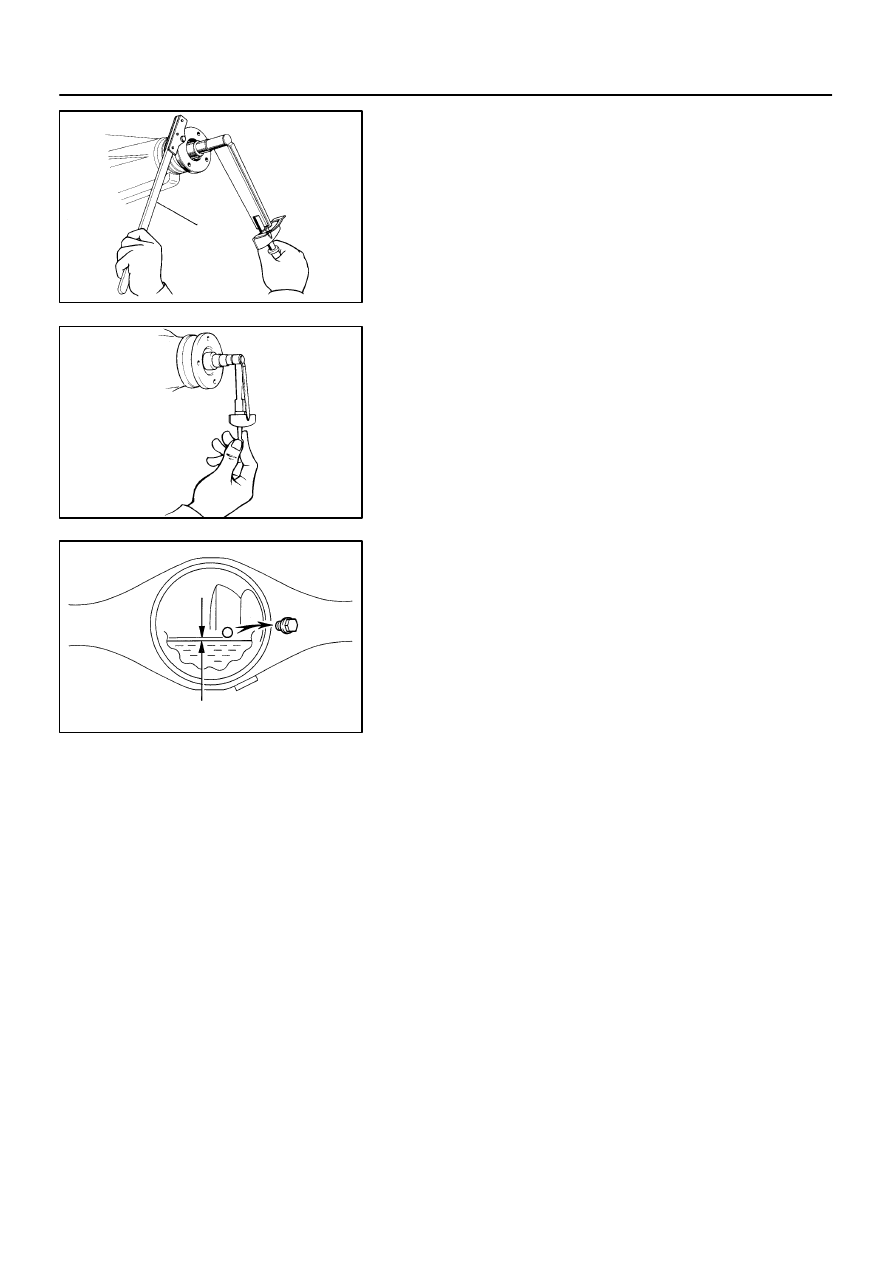

(d)

4WD:
Using SST to hold the flange, torque the nut.
SST

09330–00021

Torque: 147 N·m (1,500 kgf·cm, 109 ft·lbf)

11.

ADJUST DRIVE PINION PRELOAD
(See page

SA–119

)

12.

STAKE DRIVE PINION NUT

13.

CONNECT REAR PROPELLER SHAFT
2WD: See page

PR–5

4WD: See page

PR–9

14.

FILL DIFFERENTIAL WITH HYPOID GEAR OIL
Torque: 49 N·m (500 kgf·cm, 36 ft·lbf)
Oil type: Hypoid gear oil API GL–5
Recommended oil viscosity:
SAE 75W – 140 (Synthetic)
Capacity: 3.65 liters (3.86 US qts, 3.21 Imp. qts)
