SA24B–02

F14284

Socket Wrench

F14286

F14287

SST

SST

F14288

SST

SST

–

SUSPENSION AND AXLE

REAR AXLE SHAFT

SA–101

3097

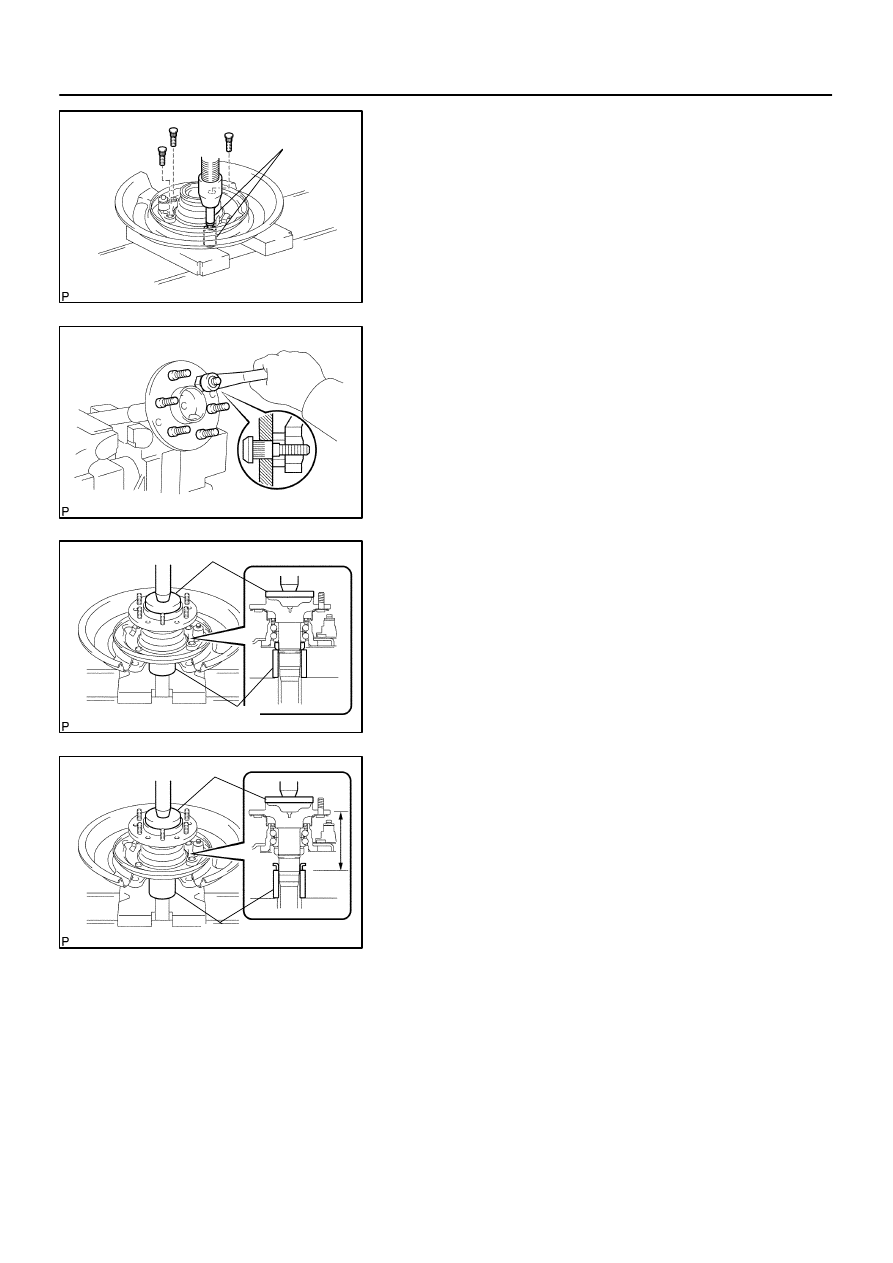

REASSEMBLY

1.

INSTALL BEARING ASSEMBLY

Position the backing plate on the bearing assembly and using
a press and 2 socket wrenches, install the serration bolts.

2.

INSTALL OIL DEFLECTOR AND GASKET

Position a new gasket and oil deflector on the axle shaft and
install a washer and nut to a new hub bolt, as shown in the il-
lustration, and install the hub bolt by torquing the nut.
3.

INSTALL REAR AXLE SHAFT TO BACKING PLATE

(a)

Install the backing plate, spring washer and bearing re-
tainer on the rear axle shaft.

(b)

Using SST and a press, install the rear axle shaft into the
backing plate.
SST

09631–12090, 09950–60020 (09951–01030)

4.

INSTALL SNAP RING TO AXLE SHAFT

Using a snap ring expander, install a new snap ring.

5.

INSTALL SPEED SENSOR ROTOR AND BEARING RE-
TAINER (DIFFERENTIAL SIDE)

Using SST and a press, install a new speed sensor rotor and
bearing retainer.

SST

09631–12090, 09950–60020 (09951–01030)

Standard length: 132.8

±

 1.0 mm (5.228

±

 0.039 in.)

SA17X–07

SA–102

–

SUSPENSION AND AXLE

REAR AXLE SHAFT

3098

INSTALLATION

Installation is in the reverse order of removal (See page

SA–95

).

HINT:
After installation, fill the brake reservoir with brake fluid, bleed the brake system (See page

BR–4

), check

for leaks and check the speed sensor signal (See page

DI–899

).

SA24C–02

F14274

F14290

Nut

Washer

–

SUSPENSION AND AXLE

REAR WHEEL HUB BOLT

SA–103

3099

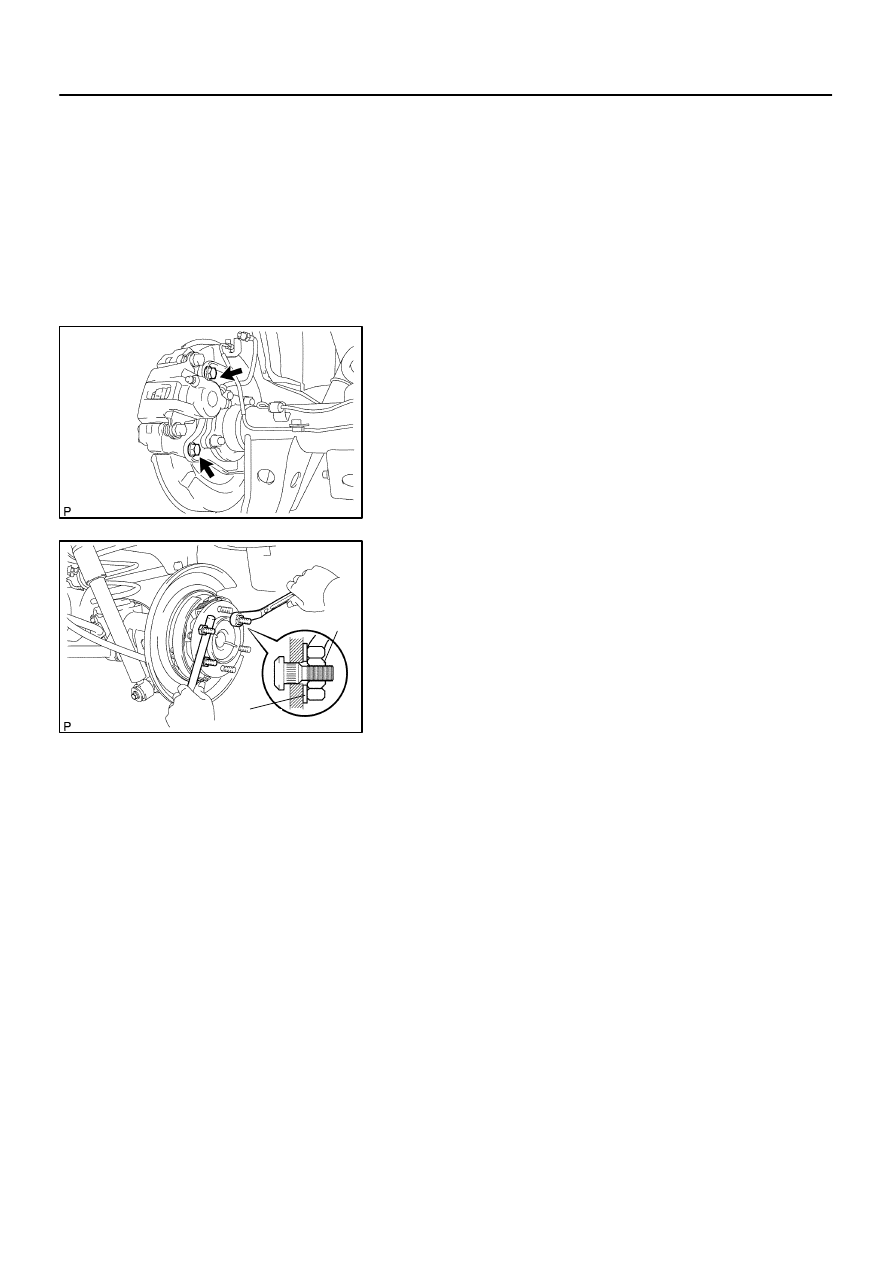

REAR WHEEL HUB BOLT

REPLACEMENT

1.

REMOVE REAR WHEEL

2.

REMOVE BRAKE CALIPER AND DISC

(a)

Remove the 2 bolts, brake caliper and disc.

(b)

Support the brake caliper securely.

3.

REMOVE HUB BOLT (See page

SA–97

)

4.

INSTALL HUB BOLT

Install a washer and nut to a new hub bolt, as shown in the il-
lustration. Install the hub bolt by torquing the nut, while holding
the axle shaft using a brass bar or an equivalent.
5.

INSTALL DISC AND BRAKE CALIPER

Install the disc and brake caliper with the 2 bolts.

Torque: 105 N·m (1,070 kgf·cm, 77 ft·lbf)

6.

INSTALL REAR WHEEL
Torque: 110 N·m (1,150 kgf·cm, 83 ft·lbf)

SA15K–09

F14321

 Oil Seal

Front Bearing

 Bearing Spacer

N·m (kgf·cm, ft·lbf) : Specified torque

 Non–reusable part

Companion Flange

Rear Propeller Shaft

Washer

74 (750, 54)

Drive Pinion

2WD:

10 (102, 7.4)

74 (750, 54)

See page

SA–119

Stud Bolt

Companion
Flange

See page

SA–119

SA–104

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL FRONT OIL SEAL

3100

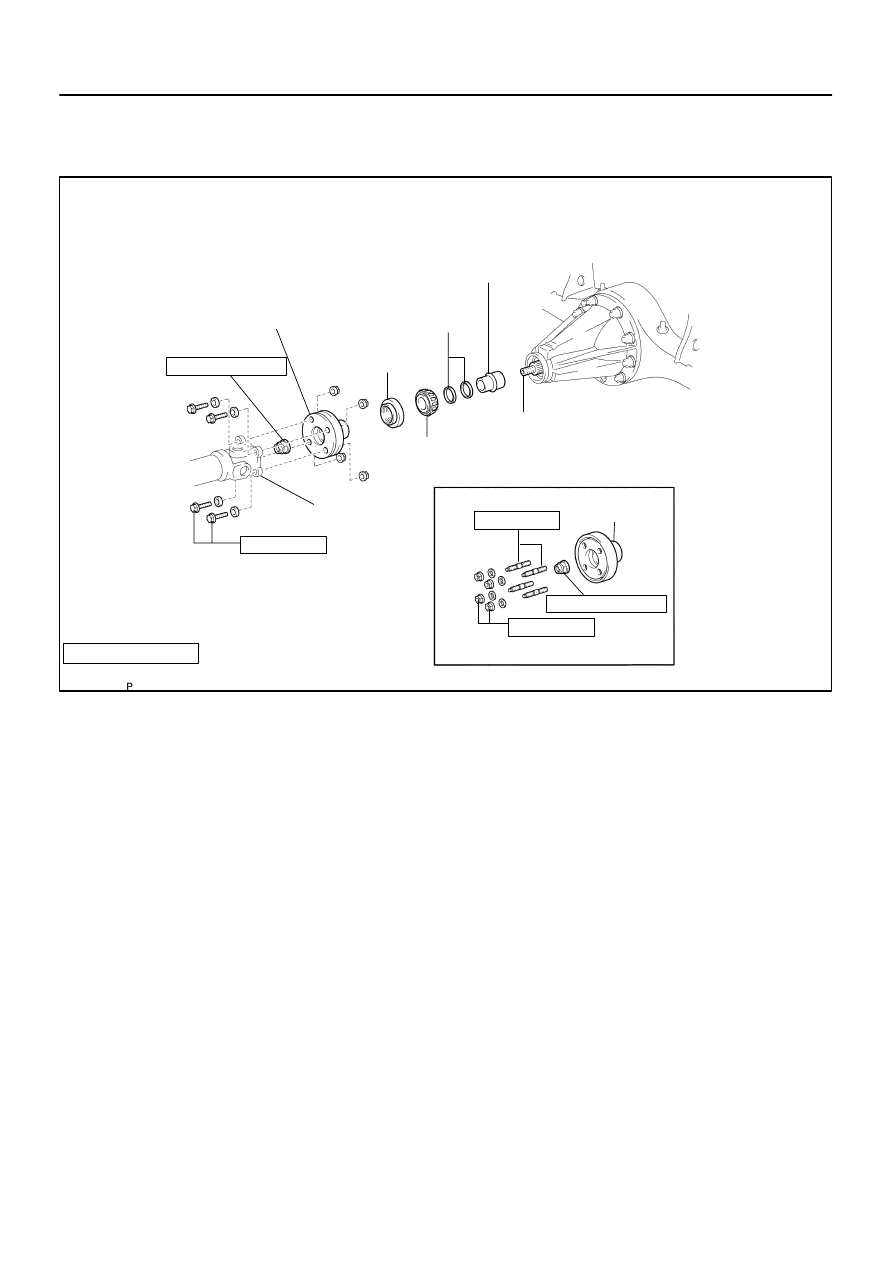

REAR DIFFERENTIAL FRONT OIL SEAL

COMPONENTS
