SA249–03

F07266

Cutout

–

SUSPENSION AND AXLE

FRONT STABILIZER BAR

SA–93

3089

INSTALLATION

1.

INSTALL STABILIZER BAR LINKS

(a)

Install the 2 bushings, retainers and stabilizer bar link to
the stabilizer bar.

(b)

Hold the stabilizer bar link, and install a new nut.
Torque: 19 N·m (190 kgf·cm, 14 ft·lbf)

(c)

Use the same procedures described above to the other
side.

2.

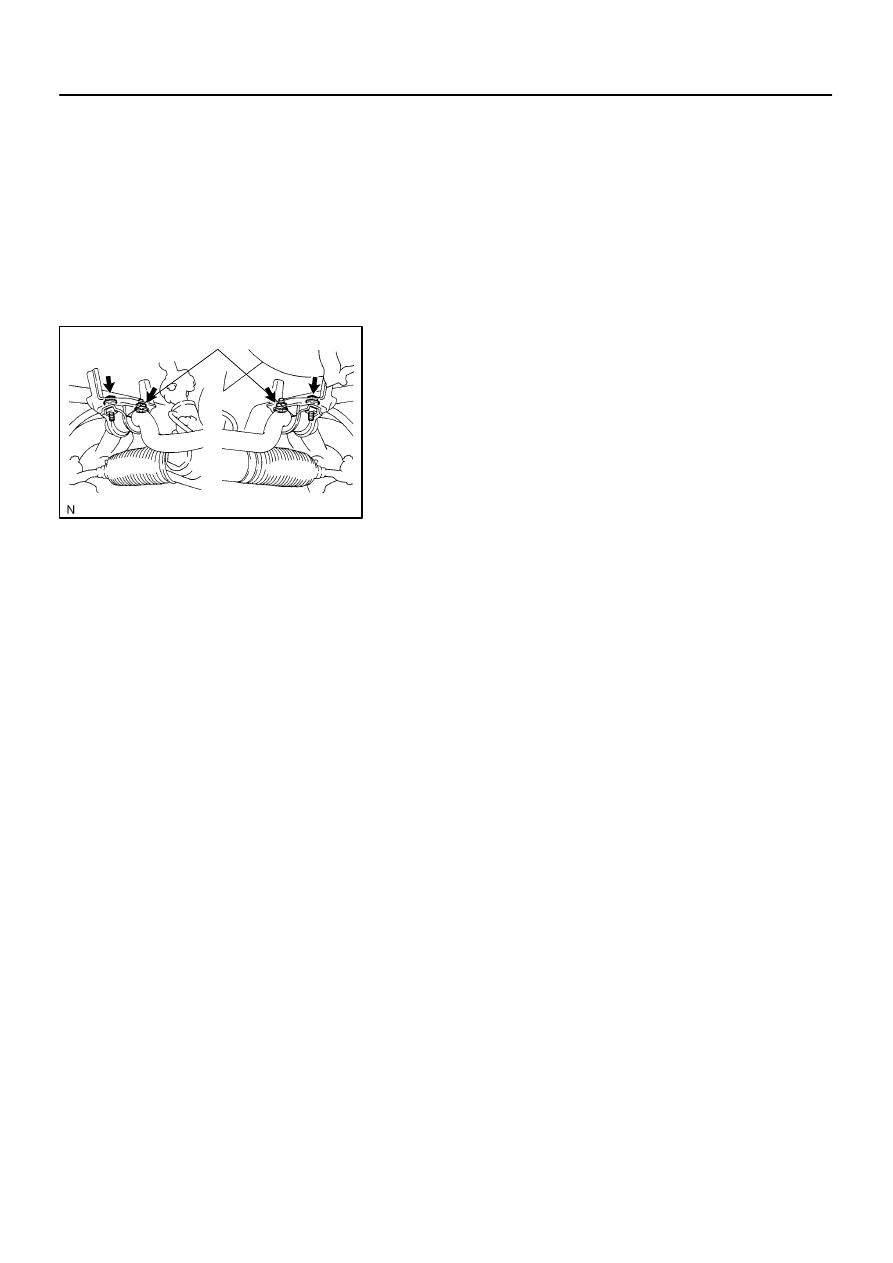

INSTALL STABILIZER BAR

(a)

Install the 2 bushings with their cutout facing to the rear-
ward of the stabilizer bar.

(b)

Install the stabilizer bar and 2 brackets with the nuts and
bolts.
Torque: 37 N·m (377 kgf·cm, 27 ft·lbf)

3.

CONNECT STABILIZER BAR LINKS TO LOWER SUS-
PENSION ARM
Torque: 69 N·m (700 kgf·cm, 51 ft·lbf)

HINT:
If the ball joint turns together with the nut, use a hexagon (6 mm)
wrench to hold the nut.

SA17R–04

F14272

122 (1,244, 90)

 Oil Seal

 O–ring

Parking Brake Assembly

Disc

Brake Caliper

 Bearing Retainer

 Speed Sensor Rotor

 Snap Ring

 Bearing Retainer

 Spring Washer

Backing Plate

Serration Bolt

 Hub Bolt

Oil Deflector

 Gasket

Axle Shaft

N·m (kgf·cm, ft·lbf) : Specified torque

 Non–reusable part

x6

105 (1,070, 77)

15.5 (158, 11)

Clip

Parking Brake Cable

 Hub Bolt

8.0 (82, 71 in.·lbf)

 Bearing Assembly

SA–94

–

SUSPENSION AND AXLE

REAR AXLE SHAFT

3090

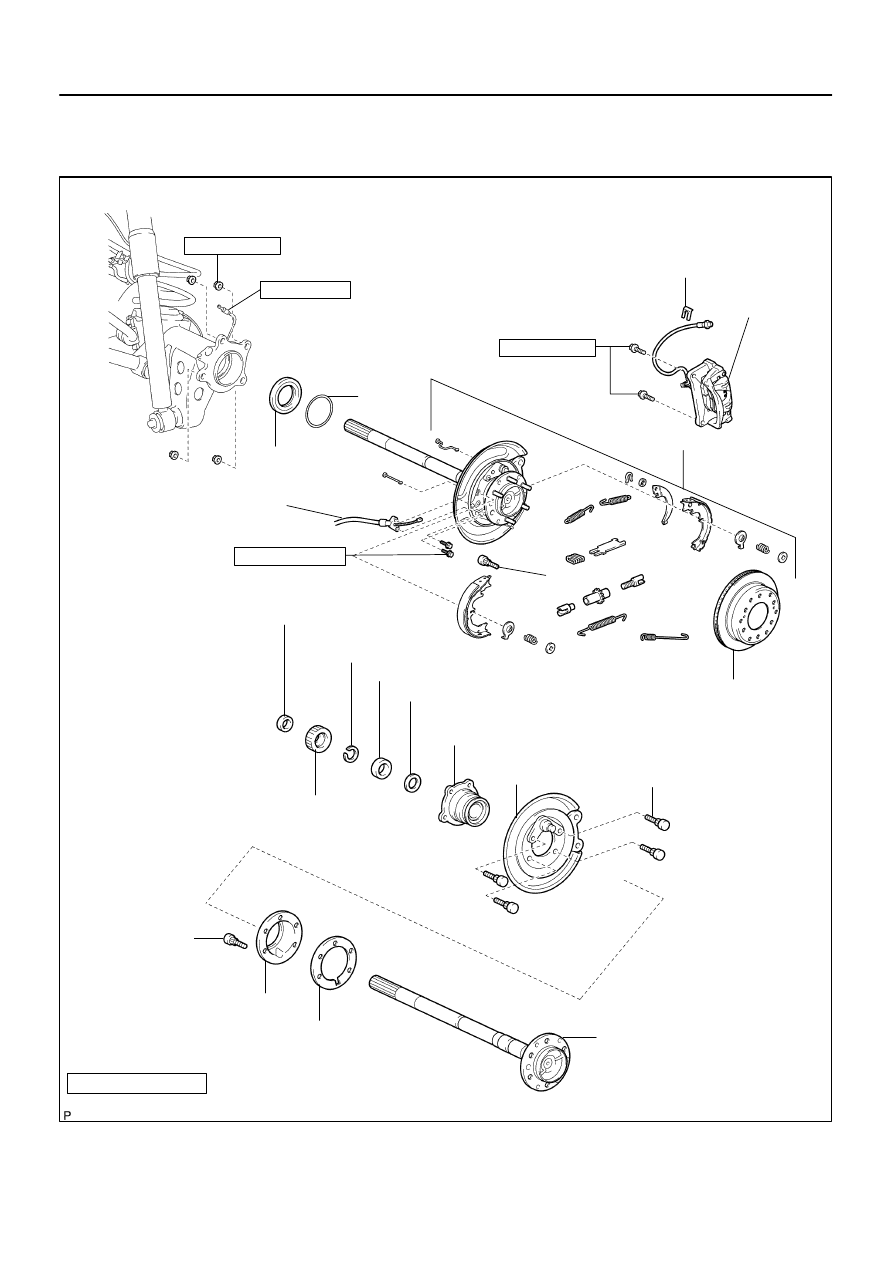

REAR AXLE SHAFT

COMPONENTS

SA17S–04

F14273

SST

F14274

F14275

–

SUSPENSION AND AXLE

REAR AXLE SHAFT

SA–95

3091

REMOVAL

1.

REMOVE REAR WHEEL
Torque: 110 N·m (1,150 kgf·cm, 83 ft·lbf)

2.

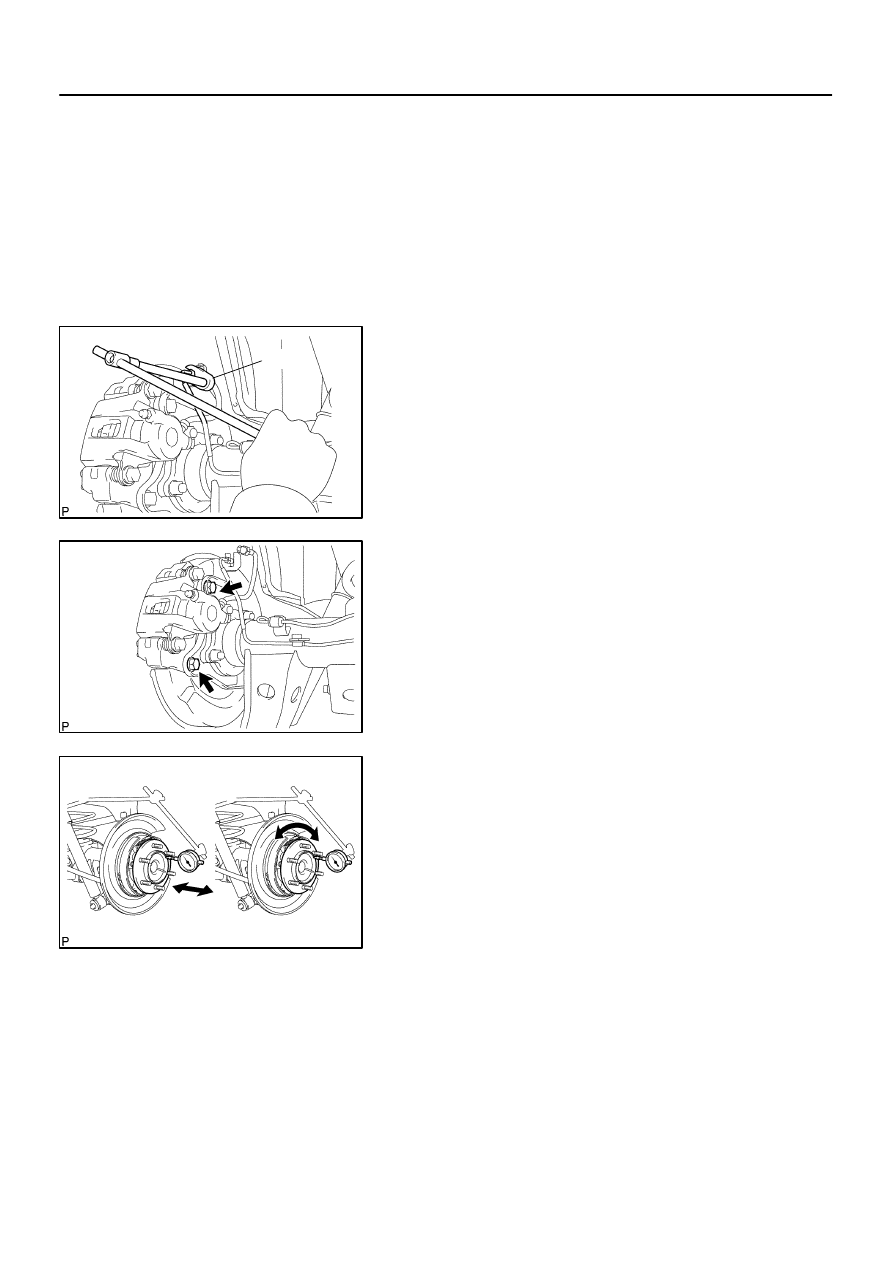

DISCONNECT BRAKE LINE

Using SST, disconnect the brake line and remove the clip.

SST

09023–00101

Torque: 15.5 N·m (158 kgf·cm, 11 ft·lbf)

3.

REMOVE BRAKE CALIPER AND DISC

Remove the 2 bolts, brake caliper and disc.

Torque: 105 N·m (1,070 kgf·cm, 77 ft·lbf)

4.

CHECK BEARING BACKLASH AND AXLE SHAFT
DEVIATION

(a)

Using a dial indicator, check the backlash in the bearing
shaft direction.
Maximum: 0.6 mm (0.024 in.)

If the backlash exceeds the maximum, replace the bearing.
(b)

Using a dial indicator, check the deviation at the surface
of the axle shaft outside the hub bolt.
Maximum: 0.1 mm (0.0040 in.)

If the deviation exceeds the maximum, replace the axle shaft.
5.

REMOVE PARKING BRAKE ASSEMBLY

(a)

Remove the parking brake assembly (See page

BR–43

).

(b)

Remove the 2 bolts and pull out the parking brake cable
from the backing plate.
Torque: 8.0 N·m (82 kgf·cm, 71 in.·lbf)

(c)

Use the same procedures described above to the other
side.

F14276

SA–96

–

SUSPENSION AND AXLE

REAR AXLE SHAFT

3092

6.

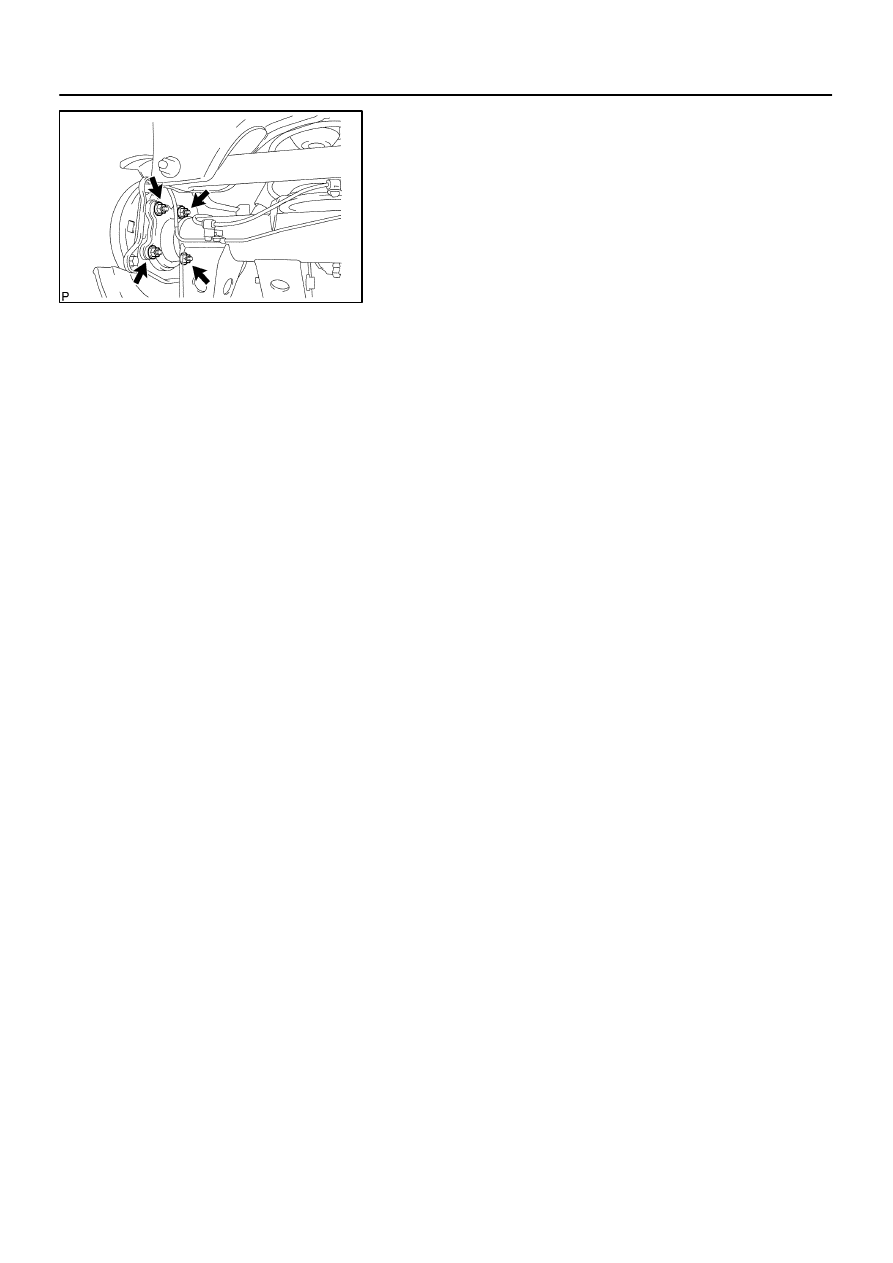

REMOVE AXLE SHAFT ASSEMBLY

(a)

Remove the 4 nuts.
Torque: 122 N·m (1,244 kgf·cm, 90 ft·lbf)

(b)

Pull out the axle shaft assembly.

NOTICE:
Be careful not to damage the oil seal.
(c)

Remove the O–ring from the axle housing.
