SUSPENSION AND AXLE

FRONT DIFFERENTIAL CARRIER

SA–53

3049

(d)

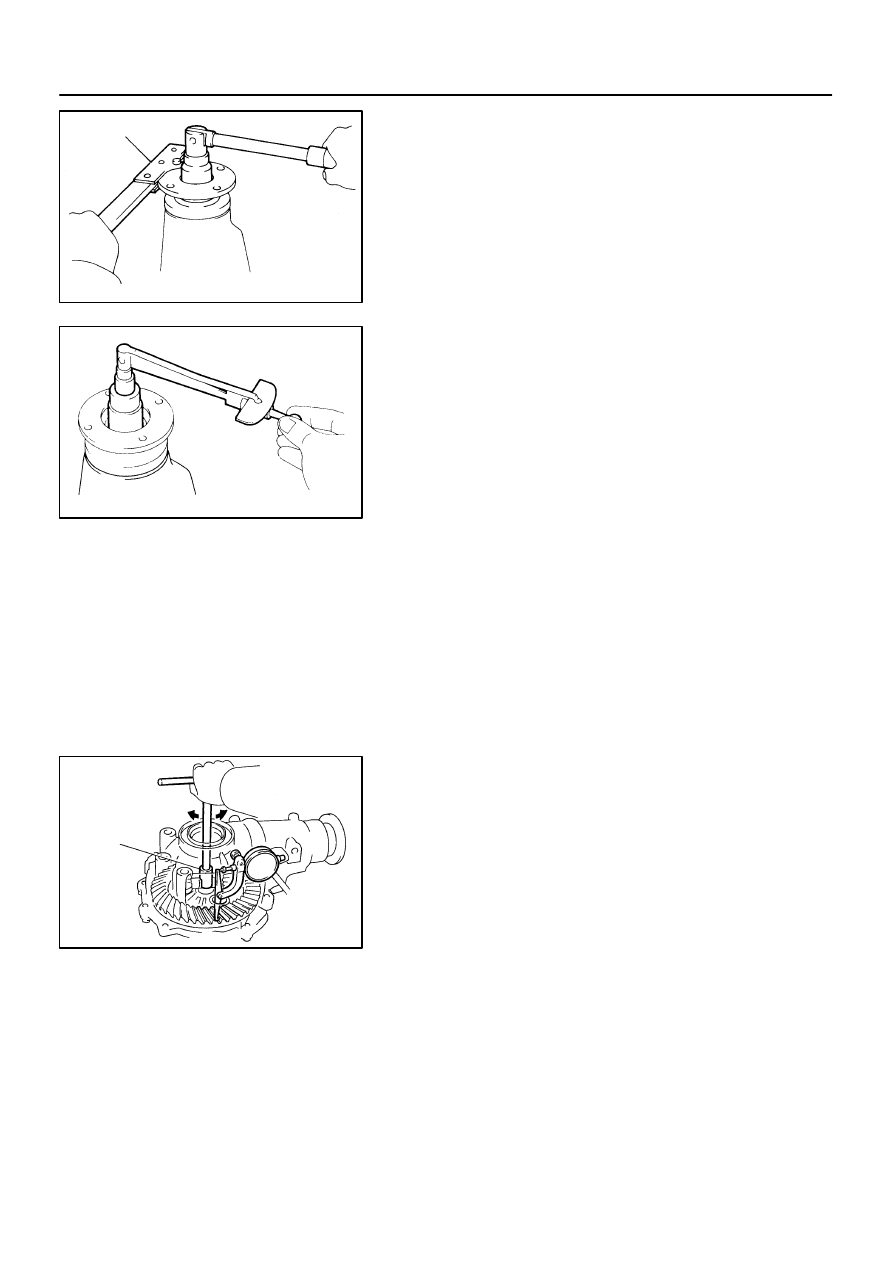

Using SST to hold the flange, tighten the nut.

HINT:
Adjust the drive pinion preload by tightening the companion
flange nut.

SST

09330–00021

NOTICE:
As there is no spacer, tighten the nut a little at a time and
be careful not to overtighten it.

(e)

Using a torque wrench, measure the preload of the drive
pinion using the backlash between the drive pinion and
ring gear.
Preload (at starting):
New bearing
1.1 – 1.8 N·m (11 – 18 kgf·cm, 9.7 – 15.9 in.·lbf)
Reused bearing
0.5 – 0.9 N·m (5 – 9 kgf·cm, 4.4 – 8.0 in.·lbf)

10.

INSTALL DIFFERENTIAL CASE IN DIFFERENTIAL
CARRIER

11.

ADJUST RING GEAR BACKLASH

(a)

Install the side bearing retainer with the 10 bolts.
Torque: 69 N·m (700 kgf·cm, 51 ft·lbf)

HINT:
Rotate the ring gear several times to make the bearing fit.

(b)

Using SST and a dial indicator, measure the ring gear
backlash.
SST

09564–32011

Backlash: 0.1 – 0.18 mm (0.0039 – 0.0071 in.)

If the backlash is not within the specified value, adjust it by ei-
ther increasing or decreasing the thickness of plate washers on
both sides by an equal amount.
HINT:
There should be no clearance between the plate washer and
case. Ensure that there is ring gear backlash.

R13220

SA–54

–

SUSPENSION AND AXLE

FRONT DIFFERENTIAL CARRIER

3050

Washer thickness:

Thickness    mm (in.)

Thickness    mm (in.)

Thickness    mm (in.)

2.00 – 2.02 (0.0787 – 0.0795)

2.27 – 2.29 (0.0894 – 0.0902)

2.54 – 2.56 (0.1000 – 0.1008)

2.03 – 2.05 (0.0799 – 0.0807)

2.30 – 2.32 (0.0906 – 0.0913)

2.57 – 2.59 (0.1012 – 0.1020)

2.06 – 2.08 (0.0811 – 0.0819)

2.33 – 2.35 (0.0917 – 0.0925)

2.60 – 2.62 (0.1024 – 0.1031)

2.09 – 2.11 (0.0823 – 0.0831)

2.36 – 2.38 (0.0929 – 0.0937)

2.63 – 2.65 (0.1035 – 0.1043)

2.12 – 2.14 (0.0835 – 0.0843)

2.39 – 2.41 (0.0941 – 0.0949)

2.66 – 2.68 (0.1047 – 0.1055)

2.15 – 2.17 (0.0846 – 0.0854)

2.42 – 2.44 (0.0953 – 0.0961)

2.69 – 2.71 (0.1059 – 0.1067)

2.18 – 2.20 (0.0858 – 0.0866)

2.45 – 2.47 (0.0965 – 0.0972)

2.72 – 2.74 (0.1071 – 0.1079)

2.21 – 2.23 (0.0870 – 0.0878)

2.48 – 2.50 (0.0976 – 0.0984)

2.75 – 2.77 (0.1083 – 0.1091)

2.24 – 2.26 (0.0882 – 0.0890)

2.51 – 2.53 (0.0988 – 0.0996)

2.78 – 2.80 (0.1094 – 0.1102)

12.

MEASURE TOTAL PRELOAD

Using a torque wrench, measure the preload with the teeth of
the drive pinion and ring gear in contact.

Total preload (at starting):
Drive pinion preload plus 0.4 – 0.6 N·m (4 – 6 kgf·cm,
3.5 – 5.2 in.·lbf)

13.

INSPECT TOOTH CONTACT BETWEEN RING GEAR
AND DRIVE PINION

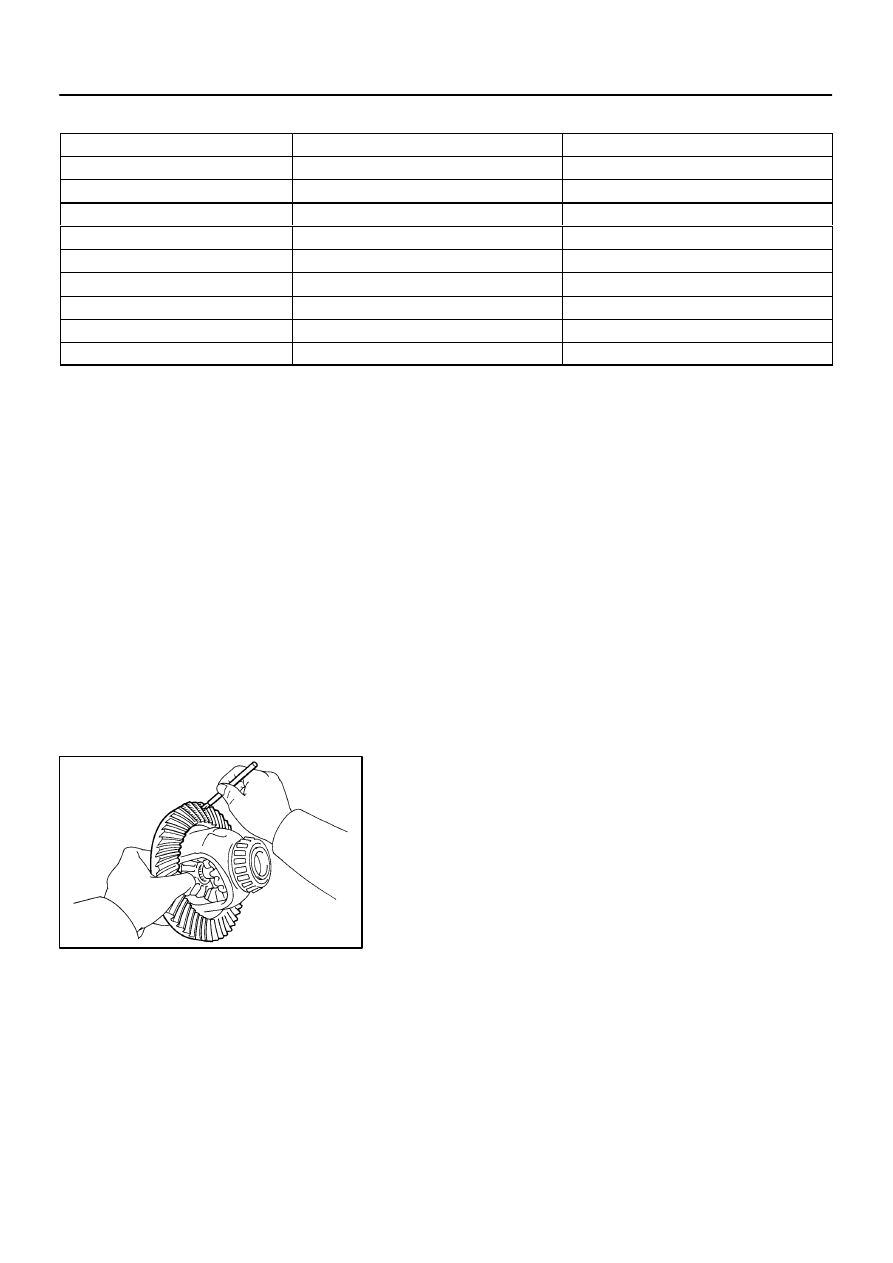

(a)

Remove the 10 bolts, side bearing retainer and differen-
tial case.

(b)

Coat 3 or 4 teeth at three different positions on the ring
gear with red lead primer.

(c)

Install the differential case and side bearing retainer with
the 10 bolts.
Torque: 69 N·m (700 kgf·cm, 51 ft·lbf)

(d)

Hold the companion flange firmly and rotate the ring gear
in both directions.

(e)

Remove the 10 bolts, side bearing retainer and differen-
tial case.

(f)

Inspect the tooth contact pattern.

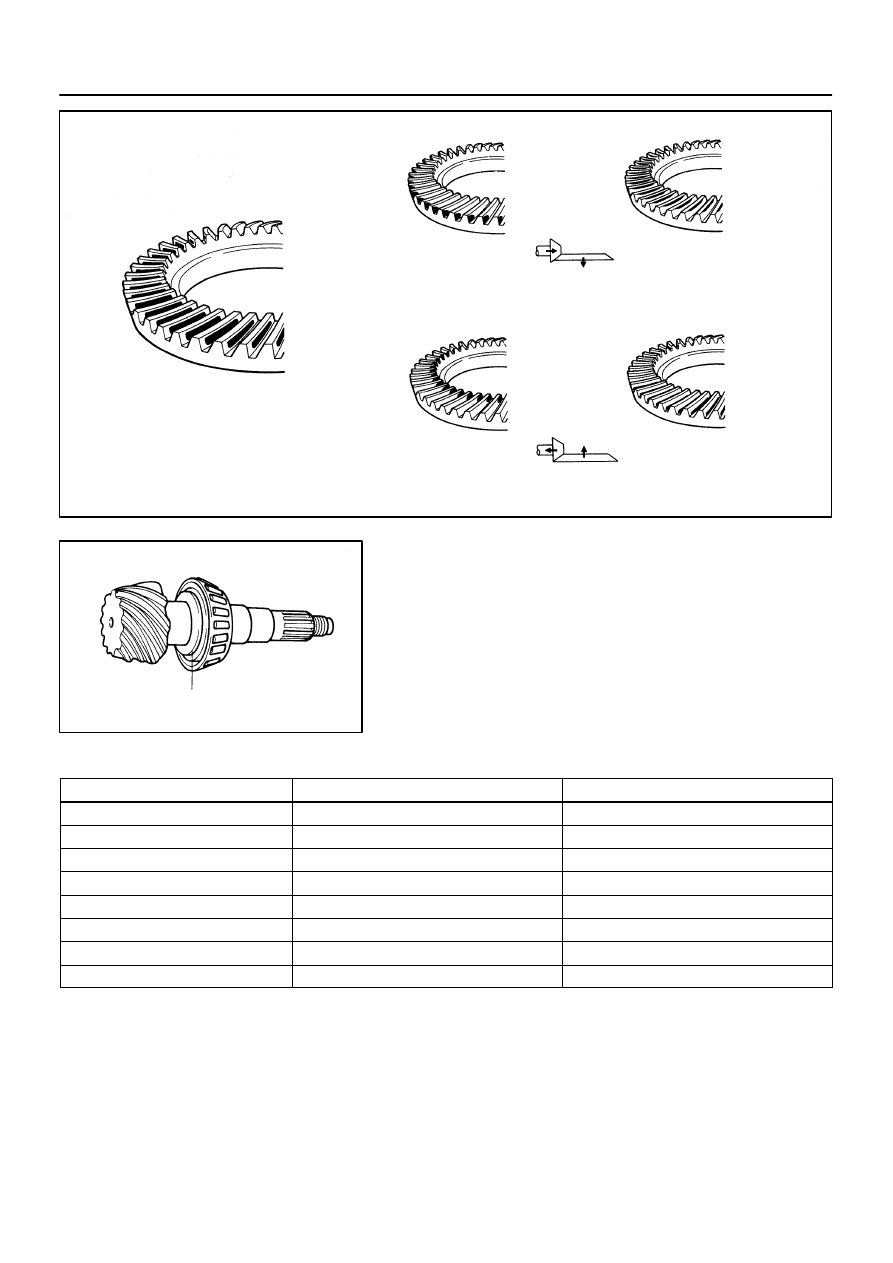

Z00699

Heel Contact

Face Contact

Proper Contact

Select an adjusting washer that will bring the
drive pinion closer to the ring gear.

Toe Contact

Flank Contact

Select an adjusting washer that will shift the
drive pinion away from the ring gear.

FA2008

Washer

–

SUSPENSION AND AXLE

FRONT DIFFERENTIAL CARRIER

SA–55

3051

If the teeth are not contacting properly, use the following table
to select a proper washer for correction.

Washer thickness:

Thickness    mm (in.)

Thickness    mm (in.)

Thickness    mm (in.)

1.69 – 1.71 (0.0665 – 0.0673)

1.93 – 1.95 (0.0760 – 0.0768)

2.17 – 2.19 (0.0854 – 0.0862)

1.72 – 1.74 (0.0677 – 0.0685)

1.96 – 1.98 (0.0772 – 0.0780)

2.20 – 2.22 (0.0866 – 0.0874)

1.75 – 1.77 (0.0689 – 0.0697)

1.99 – 2.01 (0.0783 – 0.0791)

2.23 – 2.25 (0.0878 – 0.0886)

1.78 – 1.80 (0.0701 – 0.0709)

2.02 – 2.04 (0.0795 – 0.0803)

2.26 – 2.28 (0.0890 – 0.0898)

1.81 – 1.83 (0.0713 – 0.0720)

2.05 – 2.07 (0.0807 – 0.0815)

2.29 – 2.31 (0.0902 – 0.0909)

1.84 – 1.86 (0.0724 – 0.0732)

2.08 – 2.10 (0.0819 – 0.0827)

2.32 – 2.34 (0.0913 – 0.0921)

1.87 – 1.89 (0.0736 – 0.0744)

2.11 – 2.13 (0.0831 – 0.0839)

–

1.90 – 1.92 (0.0748 – 0.0756)

2.14 – 2.16 (0.0843 – 0.0850)

–

14.

REMOVE COMPANION FLANGE AND OIL SLINGER
(See page

SA–43

)

15.

REMOVE REAR BEARING (See page

SA–43

)

16.

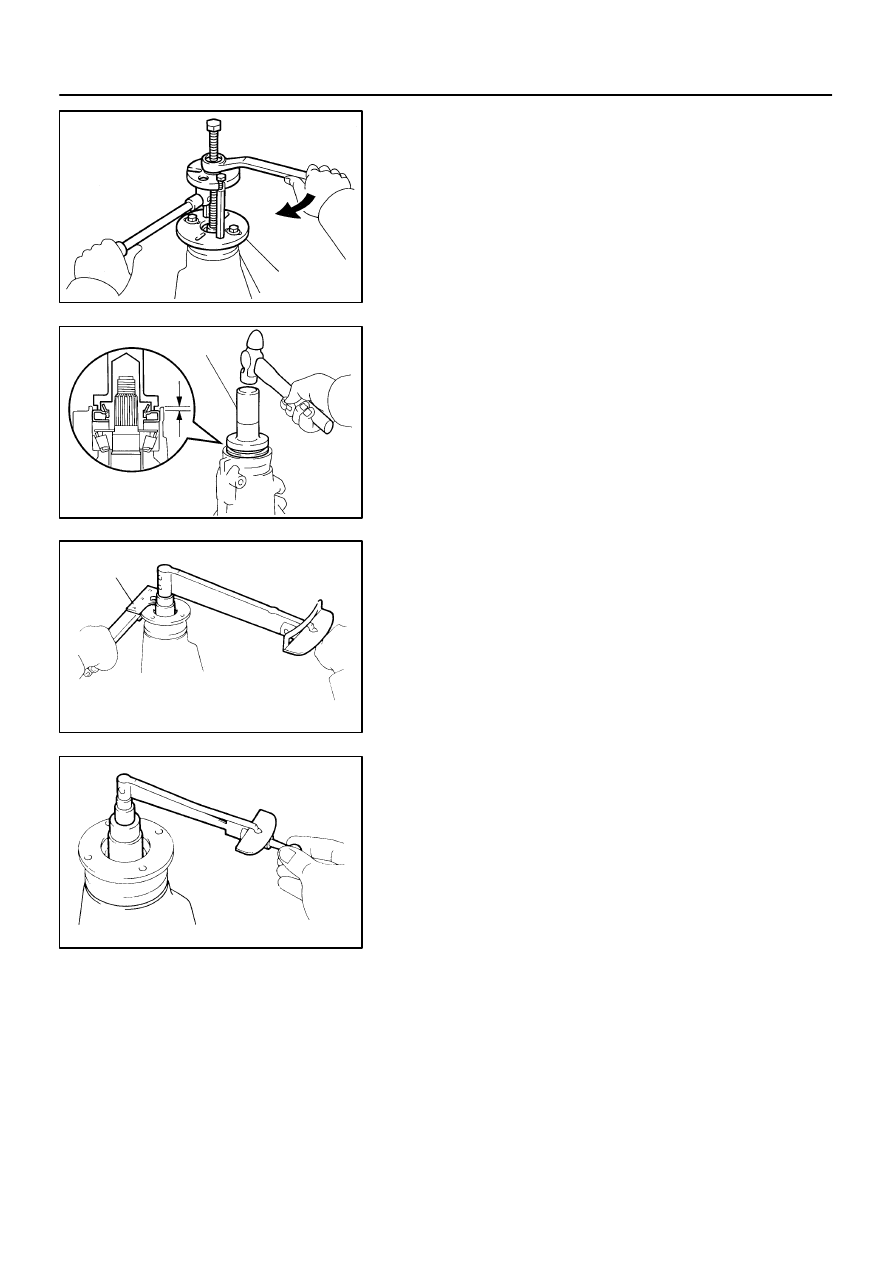

INSTALL NEW BEARING SPACER, REAR BEARING
AND OIL SLINGER

(a)

Install a new bearing spacer and place the rear bearing
and oil slinger.

R11163

SST

R13417

SST

4.5

± 0.3

mm

(0.177

± 0.012

in.)

SA2351

SST

SA2352

SA–56

–

SUSPENSION AND AXLE

FRONT DIFFERENTIAL CARRIER

3052

(b)

Using SST and the companion flange, install the rear
bearing, then remove the companion flange.
SST

09950–30012 (09951–03010, 09953–03010,
09954–03010,  09955–03030, 09956–03020)

17.

INSTALL OIL SEAL

(a)

Using SST and a hammer, install a new oil seal.
SST

09554–22010

Oil seal drive in depth: 4.5

± 0.3

mm (0.177

±

0.012 in.)

(b)

Coat the oil seal lip with MP grease.

18.

INSTALL COMPANION FLANGE

(a)

Place the companion flange on the drive pinion.

(b)

Coat the threads of a new nut with hypoid gear oil.

(c)

Using SST to hold the flange, torque the nut.
SST

09330–00021

Torque: 108 N·m (1,100 kgf·cm, 80 ft·lbf)

19.

ADJUST DRIVE PINION PRELOAD

Using a torque wrench, measure the preload of the drive pinion
using the backlash between the drive pinion and the ring gear.

Preload (at starting):
New bearing
1.2 – 1.9 N·m (12 – 19 kgf·cm, 10.4 – 16.5 in.·lbf)
Reused bearing
0.6 – 1.0 N·m (6 – 10 kgf·cm, 5.2 – 8.7 in.·lbf)

If the preload is greater than the specified value, replace the
bearing spacer.
If the preload is less than the specified value, retighten the nut
with 13 N·m (130 kgf·cm, 9 ft·lbf) of torque at a time until the spe-
cified preload is reached.

Torque: 223 N·m (2,275 kgf·cm, 165 ft·lbf) or less

If the torque is exceeded the maximum while retightening the
nut, replace the bearing spacer and repeat the preload adjust-
ing procedure. Do not loosen the nut to reduce the preload.
