AT13D–01

D10678

D10679

AUTOMATIC TRANSMISSION (A750E, A750F)

COLUMN SHIFT ASSEMBLY

AT–21

2929

INSTALLATION

1.

INSTALL SHIFT LEVER HOUSING

Using a torx

®

 socket wrench, install the shift lever housing with

3 new screws.

Torque: 12 N·m (120 kgf·cm, 9 ft·lbf)

2.

INSTALL SHIFT LEVER

(a)

Using a torx

®

 socket wrench, install the shift lever with a

new screw.
Torque: 18 N·m (180 kgf·cm, 13 ft·lbf)

(b)

Connect the connector.

3.

INSTALL PARKING LOCK CABLE NO. 1 AND NO. 2

(a)

Apply MP grease on the lock pin and internal surface of
shift lever housing.

(b)

Install the spring and parking lock cable No. 1 into the shift
lever housing.

NOTICE:
Be careful not to bend or twist the cable abnormally.
(c)

Using a torx

®

 socket wrench, install 2 new screws.

Torque: 2.9 N·m (29 kgf·cm, 25 in.·lbf)

(d)

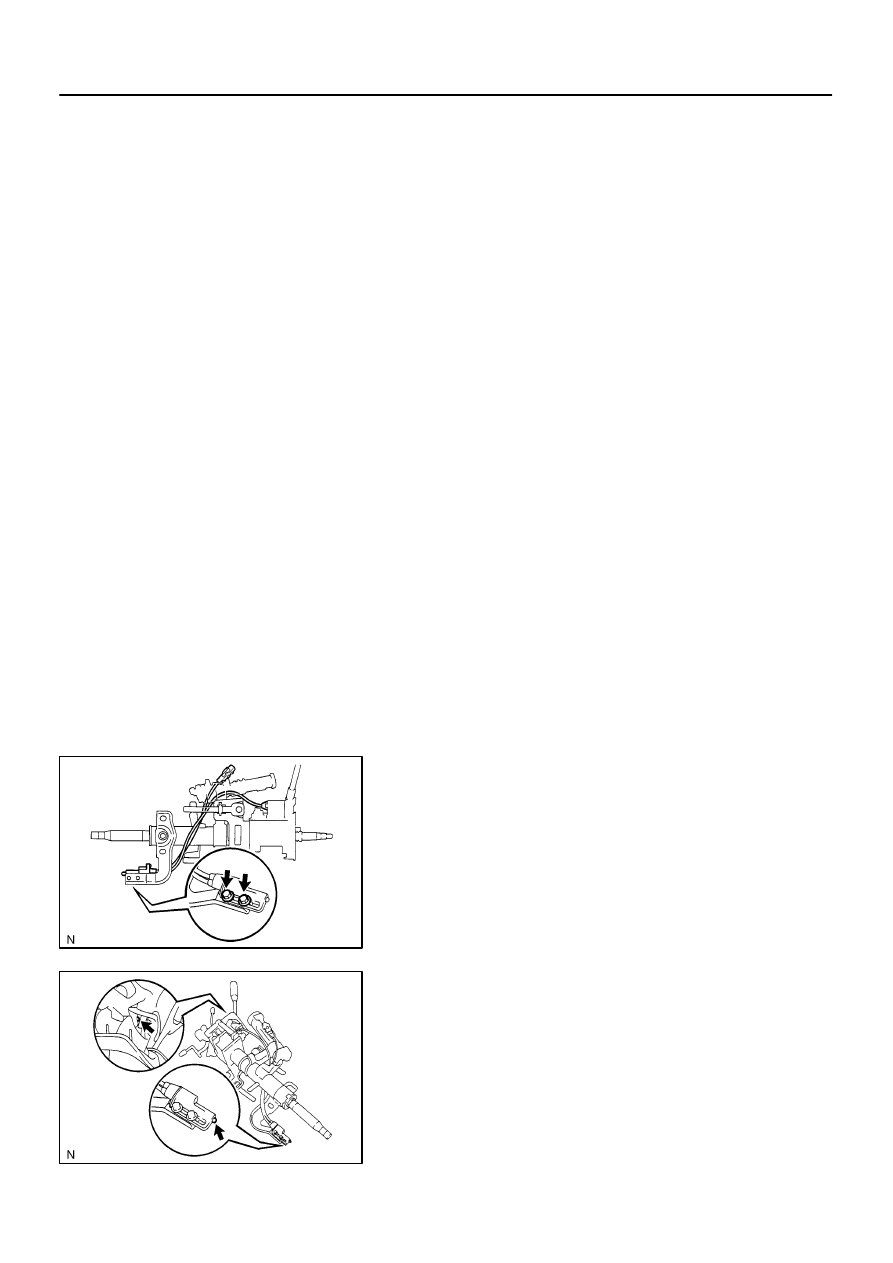

Wire the cable No. 1 and No. 2, as shown in the illustra-
tion.

(e)

Temporarily install the cable housing to steering column
assembly with 2 new bolts.

NOTICE:
Be careful not to bend or twist the cable abnormally.

(f)

After installation, confirm the following items.
(1)

When the shift lever is in P position and the pedal
button is pushed in by 7 mm (0.28 in.), shift lever
should be locked by lock pin.

(2)

When the pedal button is released, the shift lever
should be able to be shifted from P position to other
positions.

(3)

When the shift lever is in the N or D position and the
pedal button is pushed in by 7 mm (0.28 in.), the
shift lever should be able to be shifted.

D02002

AT–22

AUTOMATIC TRANSMISSION (A750E, A750F)

COLUMN SHIFT ASSEMBLY

2930

(g)

Install the parking lock cable No. 2 to column upper brack-
et with the clip.

(h)

Install the cable end to the sliding block of the column up-
per bracket with the screw.
Torque: 2.2 N·m (23 kgf·cm, 19 in.·lbf)

(i)

After installation, check the following items.
(1)

When the pedal button is pushed, shift lever should
be locked.

(2)

When the pedal button is released, shift lever
should be unlocked.

4.

INSTALL STEERING COLUMN ASSEMBLY
(See page

SR–23

)

5.

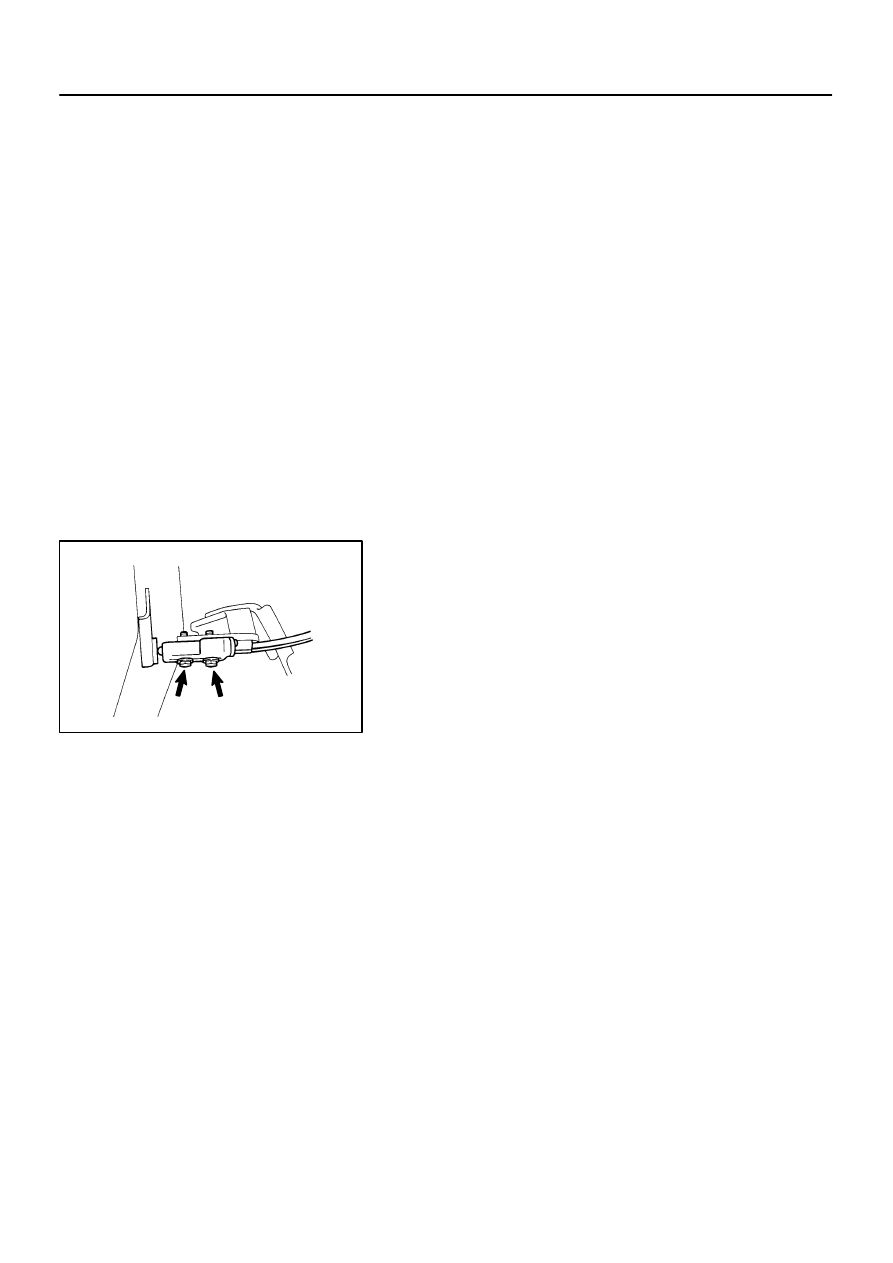

ADJUST CABLE HOUSING

(a)

Shift the shift lever to the P position.

(b)

Turn the ignition key to the LOCK position.

(c)

Loosen the 2 bolts and adjust the cable housing.

HINT:



Pedal button should touch the pedal plate cushion.



Brake pedal should not be moved by the pedal button.



Cable housing should not be toughed the brake pedal
and the brake pedal plate cushion.

(d)

Torque the 2 bolts.
Torque: 10.5 N·m (110 kgf·cm, 8 ft·lbf)

6.

CONFIRM SHIFT LOCK SYSTEM OPERATION

(a)

Only when the brake pedal is engaged and the ignition
key is not in the LOCK position, the shift lever can be
shifted from the P position to other positions.
When the shift lever is in the P position and the brake ped-
al is released, the shift lever cannot be shifted from P posi-
tion to other positions.

(b)

When the shift lever is not in the P position, the ignition
key cannot be turned to the LOCK position.
Only when the shift lever is in the P position, the ignition
key can be removed.

(c)

Cable No. 1 and No. 2 should not be deformed by other
parts located around the steering column.

AT13E–01

D13873

A750E

Clamp

Oil Cooler Pipe

34 (346, 25)

Torque
Converter
Clutch

x6

Transmission

48 (490, 35)

71 (724, 52)

Front Exhaust Pipe RH

N·m (kgf·cm, ft·lbf)

: Specified torque



Non–reusable part

37 (377, 27)

Stabilizer Bar

Bushing

Stabilizer Bar Bracket

No. 1 Engine Under Cover

40 (410, 30)

88 (897, 65)

18 (185, 13)

Crossmember

Engine Rear
Mounting Insulator

Shift Control Cable

37 (377, 27)

Gasket



Front Exhaust
Pipe LH

Rear End Plate

18 (185, 13)

Gasket





62 (630, 46)





62 (630, 46)





 Gasket

Propeller Shaft

19.5 (199, 14)

14.5 (148, 11)

65 (660, 48)

72 (734, 53)

33 (336, 24)

33 (336, 24)





 Gasket

48 (490, 35)

Front Suspension
Member Bracket

Front Suspension
Member Bracket

12 (122, 9)

48 (490, 35)

AUTOMATIC TRANSMISSION (A750E, A750F)

AUTOMATIC TRANSMISSION UNIT

AT–23

2931

AUTOMATIC TRANSMISSION UNIT

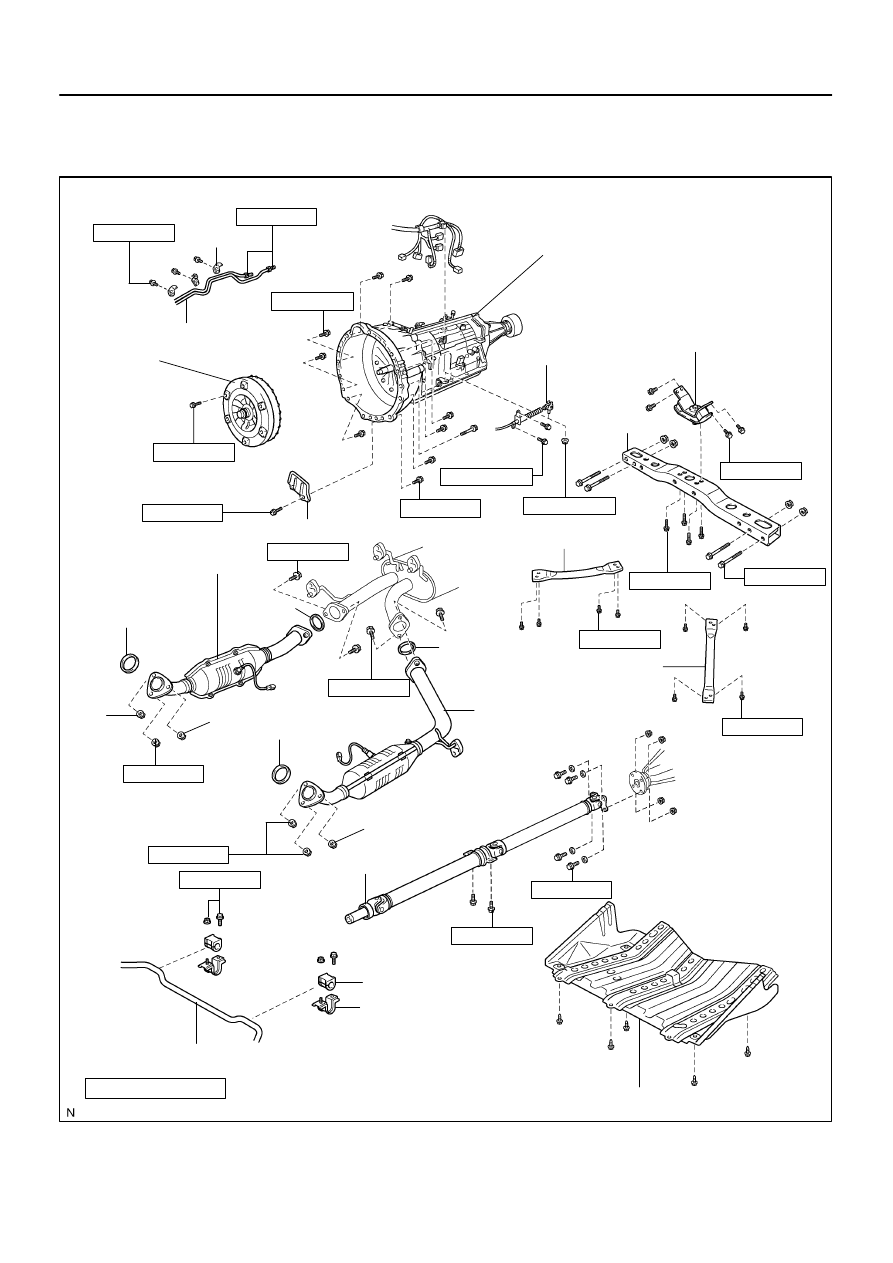

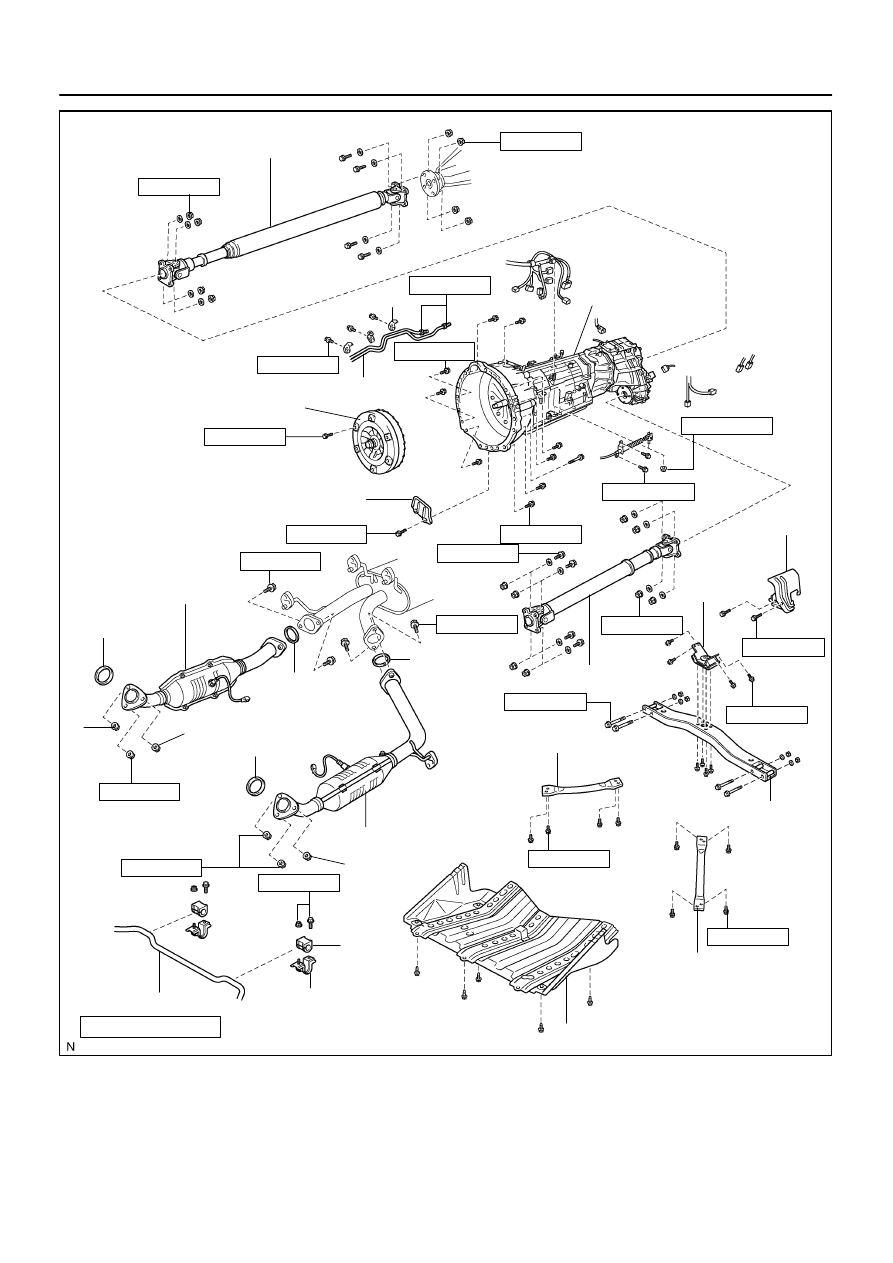

COMPONENTS

D13874

A750F

N·m (kgf·cm, ft·lbf)

: Specified torque



Non–reusable part

37 (377, 27)

Stabilizer Bar

Bushing

Stabilizer Bar Bracket

No. 1 Engine Under Cover

18 (185, 13)

Rear End Plate

Torque Converter Clutch

x6

48 (490, 35)

Oil Cooler Pipe

34 (346, 25)

Gasket



Front Exhaust Pipe RH

Gasket





 Gasket

37 (377, 27)

Crossmember

Engine Rear
Mounting
Insulator

19.5 (199, 14)

14.5 (148, 11)

Transmission and
 Transfer

88 (897, 65)

Rear Propeller Shaft

88 (897, 65)

Front Propeller Shaft

Heat Insulator

Front Exhaust Pipe LH

Clamp

71 (724, 52)



 Gasket

48 (490, 35)

16 (164, 12)

65 (660, 48)

88 (897, 65)

88 (897, 65)

72 (734, 53)

Front Suspension
Member Bracket

33 (336, 24)

Front Suspension
Member Bracket

33 (336, 24)







62 (630, 46)



62 (630, 46)



12 (122, 9)

48 (490, 35)

AT–24

AUTOMATIC TRANSMISSION (A750E, A750F)

AUTOMATIC TRANSMISSION UNIT

2932
