AUTOMATIC TRANSMISSION (A750E, A750F)

AIR COOLED OIL COOLER

AT–17

2925

INSTALLATION

Installation is in the reverse order of removal (See page

AT–16

).

HINT:
After installation, check fluid level (See page

DI–524

).

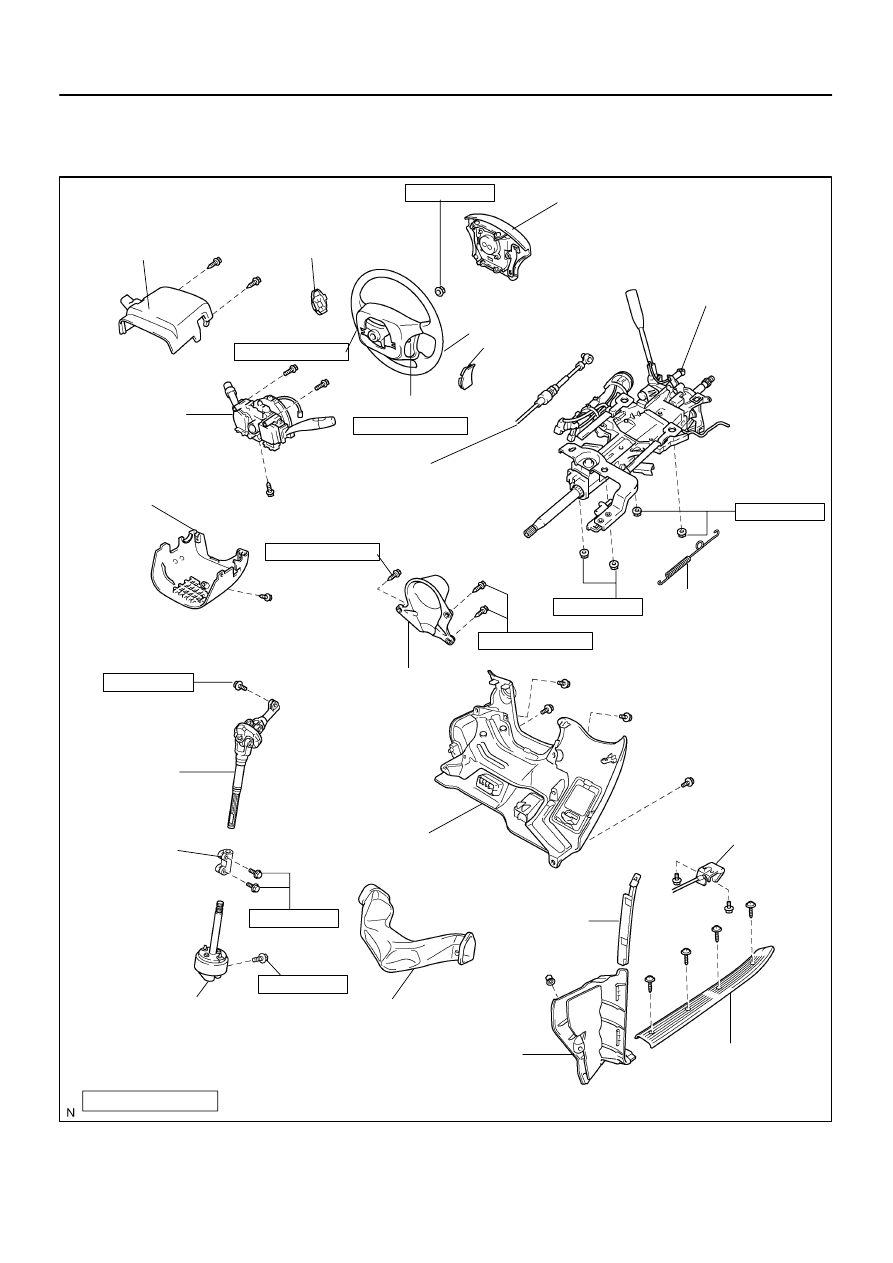

AT13B–01

F17895

Steering Wheel Pad

Steering
Wheel

Column Lower
Cover

Combination
Switch

Steering Column Assembly

Transmission Control
Cable Assembly

Lower LH Finish Panel

Column Hole
Cover No. 2

No. 2 Universal
Joint Assembly

No. 2 Heater to Register Dust

Torx

®

 Screw

35 (360, 26)

35 (360, 26)

8.0 (82, 71 in.·lbf)

26 (260, 19)

26 (260, 19)

8.8 (90, 78 in.·lbf)

50 (510, 37)

8.8 (90, 78 in.·lbf)

Front Door Scuff Plate

Cowl Side Trim

Hood Lock
Release Lever

8.0 (82, 71 in.·lbf)

Side Panel

No. 2 lntermediate
Shaft Assembly

Brake Pedal
Return Spring

Column Upper Cover

N·m (kgf·cm, ft·lbf) : Specified torque

Steering Wheel Lower
No. 3 Cover

Steering Wheel Lower
No. 2 Cover

35 (360, 26)

Siding Yoke

Torx

®

 Screw

AT–18

–

AUTOMATIC TRANSMISSION (A750E, A750F)

COLUMN SHIFT ASSEMBLY

2926

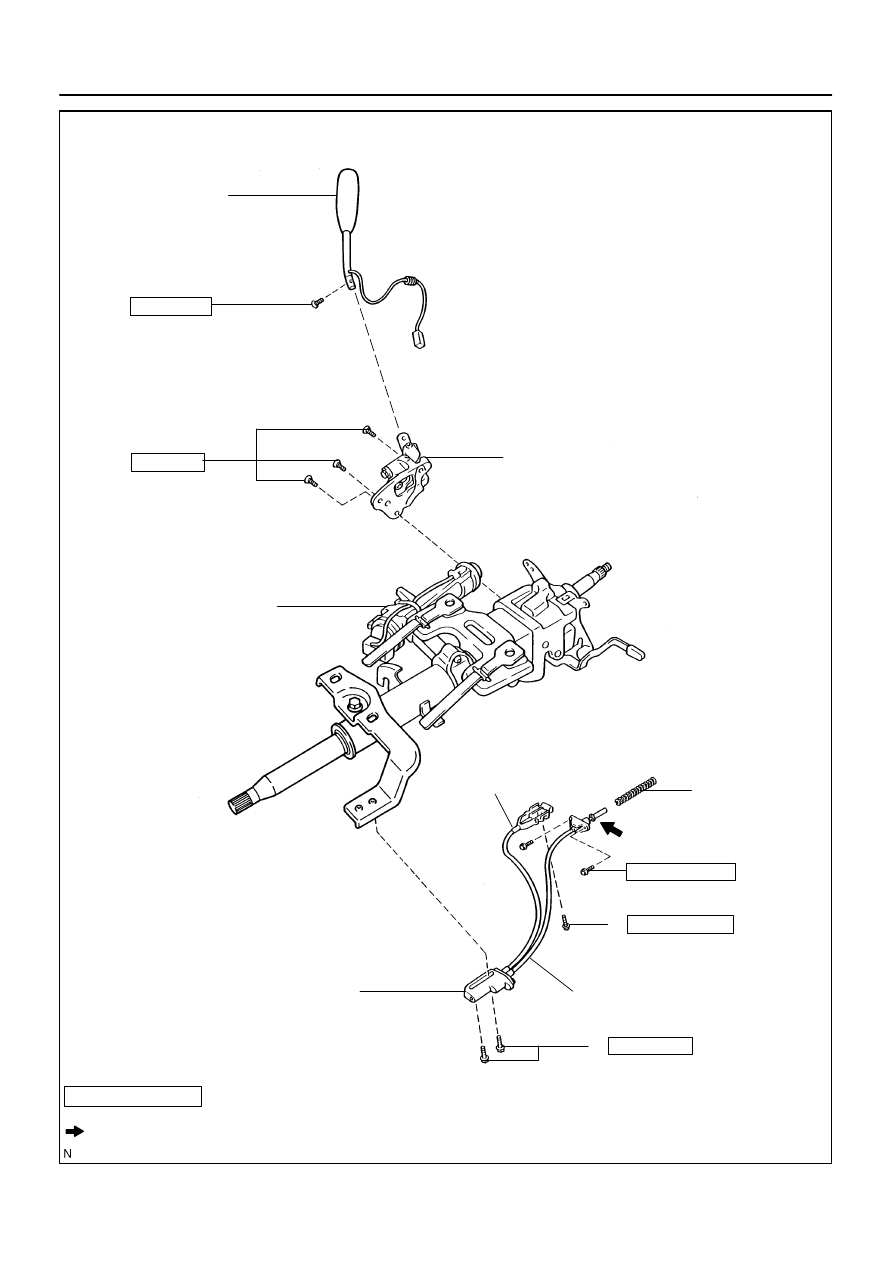

COLUMN SHIFT ASSEMBLY

COMPONENTS

D14235

: Specified torque

N·m (kgf·cm, ft·lbf)

Shift Lever Housing

Spring

Shift Lever

Steering Column Assembly

10.5 (110, 8)

2.2 (23, 19 in.·lbf)

2.9 (29, 25 in.·lbf)

12 (120, 9)

Parking Lock Cable Housing

18 (180, 13)

Parking Lock Cable No. 2

Parking Lock Cable No. 1

MP grease

 Non–reusable part

–

AUTOMATIC TRANSMISSION (A750E, A750F)

COLUMN SHIFT ASSEMBLY

AT–19

2927

AT13C–01

D05180

AT–20

–

AUTOMATIC TRANSMISSION (A750E, A750F)

COLUMN SHIFT ASSEMBLY

2928

REMOVAL

1.

REMOVE STEERING COLUMN ASSEMBLY
(See page

SR–14

)

2.

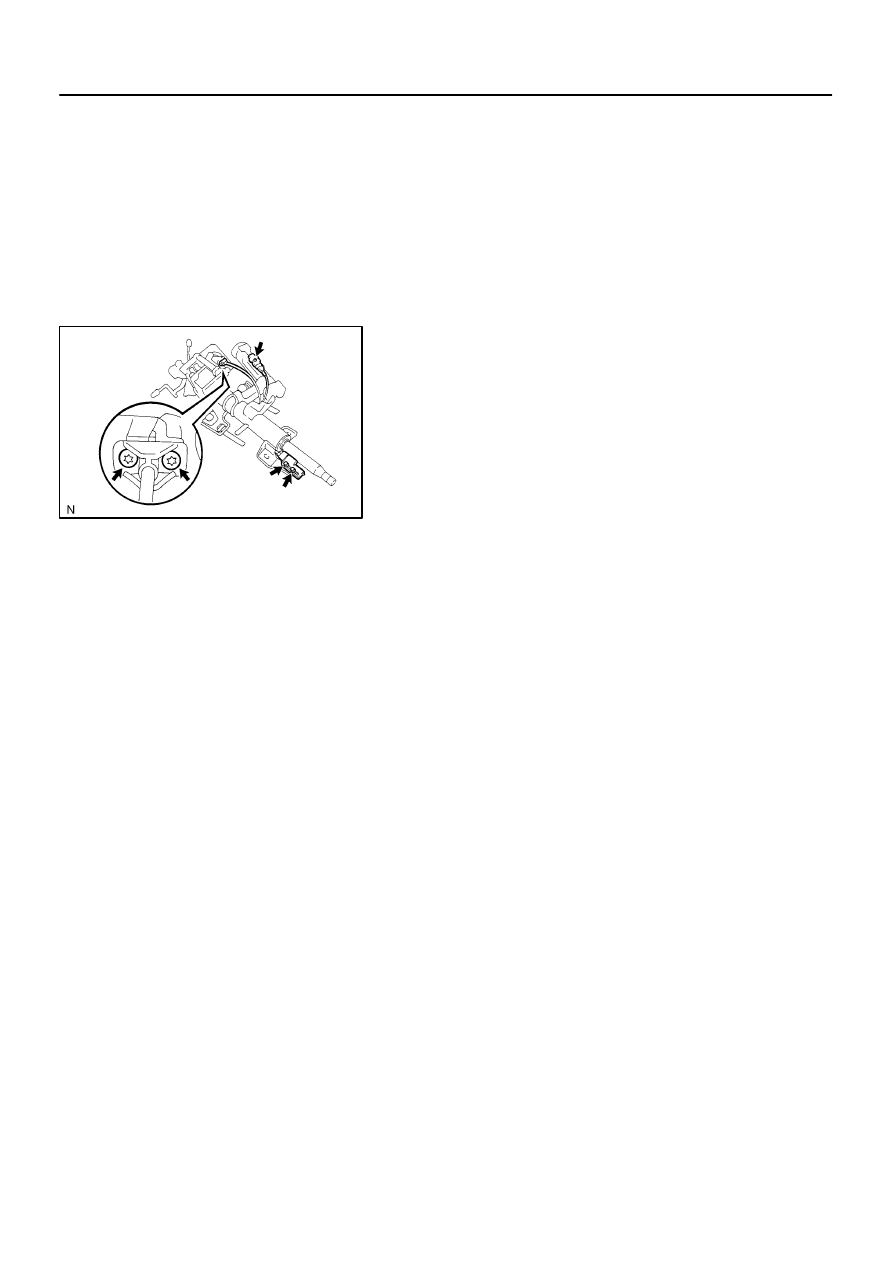

REMOVE PARKING LOCK CABLE ASSEMBLY

(a)

Remove the screw and parking lock cable No. 2.

(b)

Using a torx

®

 socket wrench, remove the 2 screws and

parking lock cable No. 1.

(c)

Remove the spring.

(d)

Remove the 2 bolts and parking lock cable housing.

3.

REMOVE SHIFT LEVER

(a)

Disconnect the connector.

(b)

Using a torx

®

 socket wrench, remove the torx

®

 screw and

shift lever.

4.

REMOVE SHIFT LEVER HOUSING

Using a torx

®

 socket wrench, remove the 3 torx

®

 screws and

shift lever housing.
