LU08Z–10

B07332

New O–Ring

B07837

–

LUBRICATION

OIL COOLER

LU–23

2857

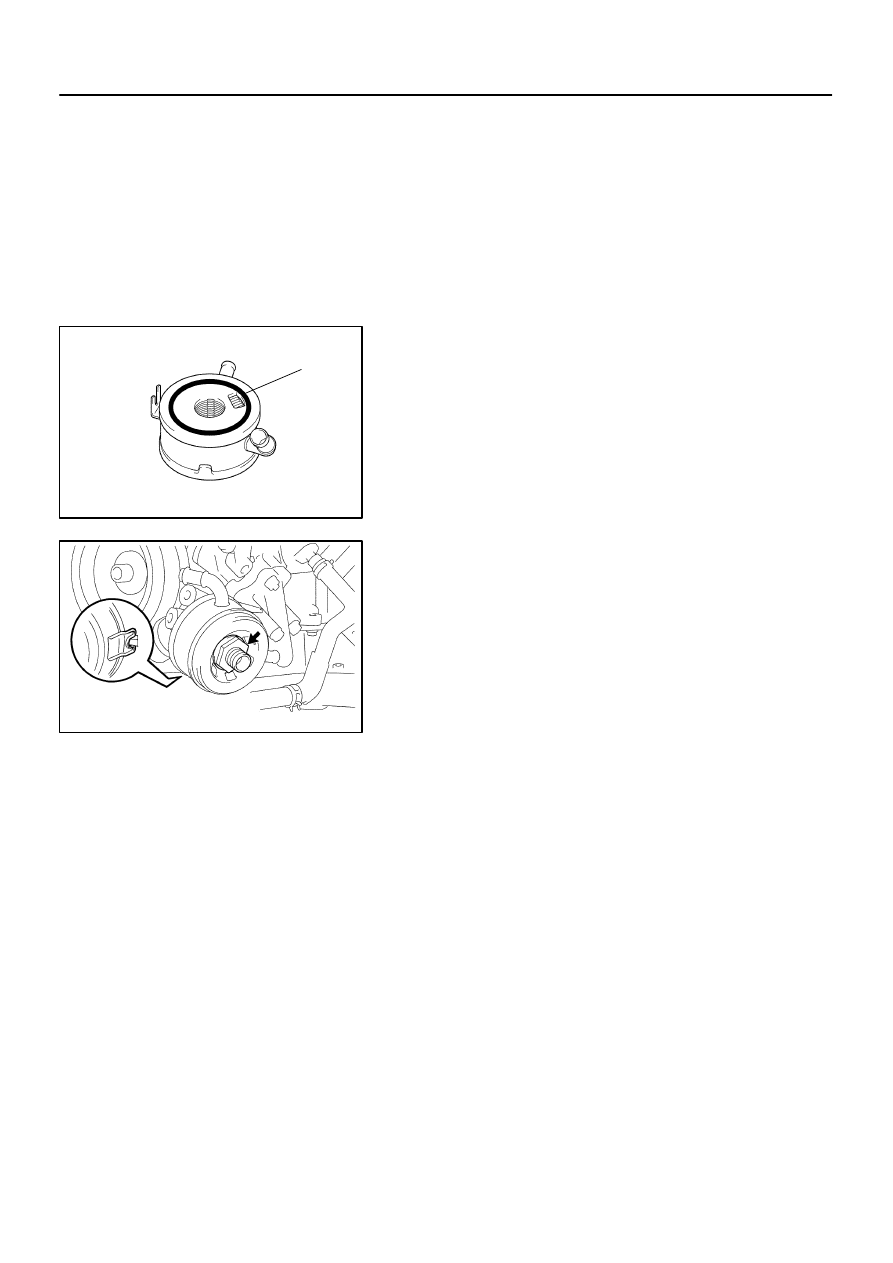

INSTALLATION

1.

INSTALL OIL COOLER

(a)

Clean the oil cooler contact surface on the cooler mount-
ing.

(b)

Place a new O–ring to the oil cooler.

(c)

Apply a light coat of engine oil on the threads and under
the head of the union bolt.

(d)

Install the oil cooler and plate washer with the union bolt.
Torque: 68.6 N·m (700 kgf·cm, 51 ft·lbf)

(e)

Connect the 2 oil cooler hoses to the oil cooler.

2.

INSTALL OIL FILTER (See page

LU–2

)

3.

FILL WITH ENGINE COOLANT

4.

START ENGINE AND CHECK FOR ENGINE OIL
LEAKS

5.

CHECK ENGINE OIL LEVEL

LU0IH–06

B17483

Piston

Connecting Rod Bearing

Connecting Rod Cap

Cylinder Block

Lower Main Bearing

Upper Crankshaft
Thrust Washer

Crankshaft

See page

EM–119

1st 24.5 (250, 18)
2nd Turn 90

°

Upper Main Bearing

Lower Crankshaft
Thrust Washer

Main Bearing Cap

See page

EM–119

1st 27 (275, 20)
2nd Turn 90

°

N·m (kgf·cm, ft·lbf)

: Specified torque

 Non–reusable part

Oil Nozzle

9.0 (92, 80 in.·lbf)

LU–24

–

LUBRICATION

OIL NOZZLE

2858

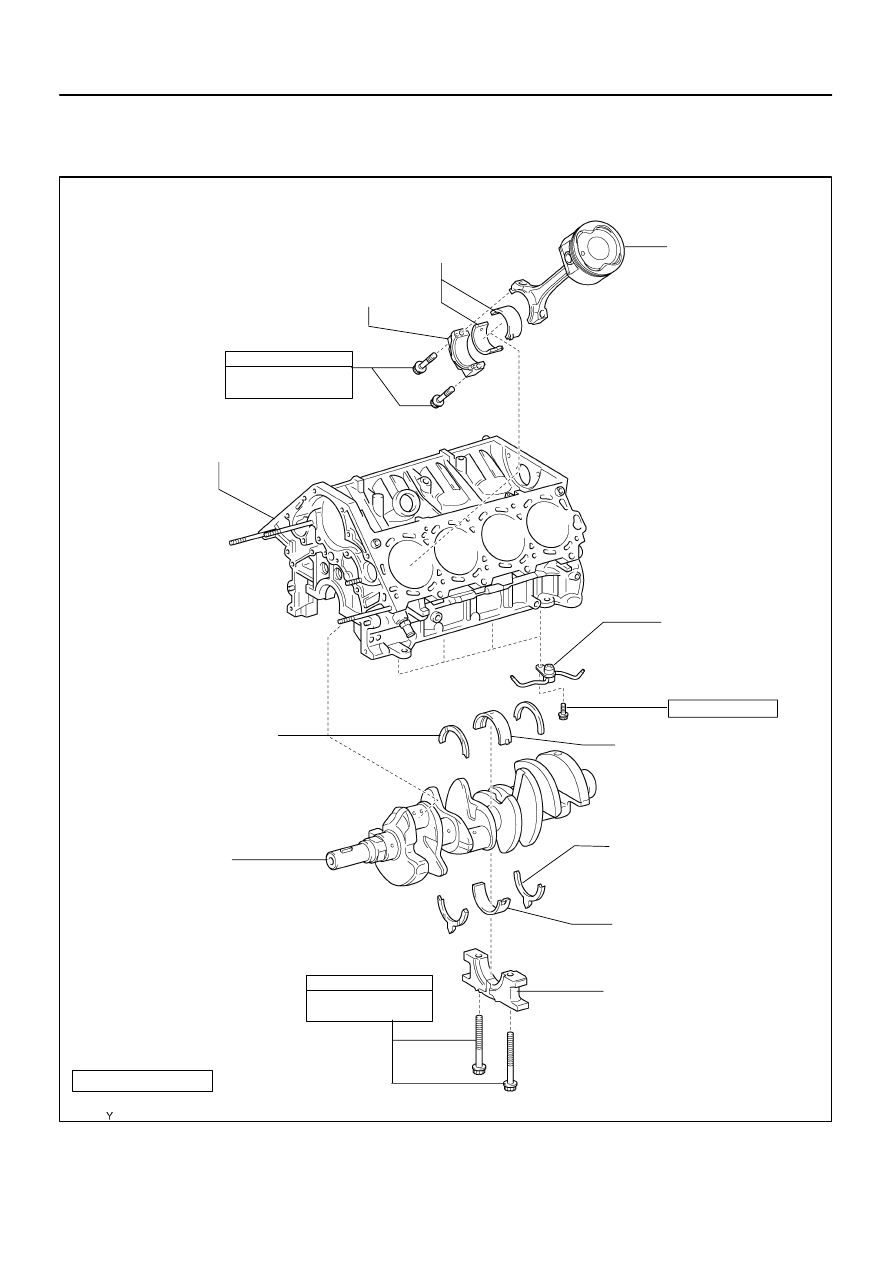

OIL NOZZLE

COMPONENTS

LU0ID–05

B17484

–

LUBRICATION

OIL NOZZLE

LU–25

2859

REMOVAL

1.

REMOVE CRANKSHAFT (See page

EM–101

)

2.

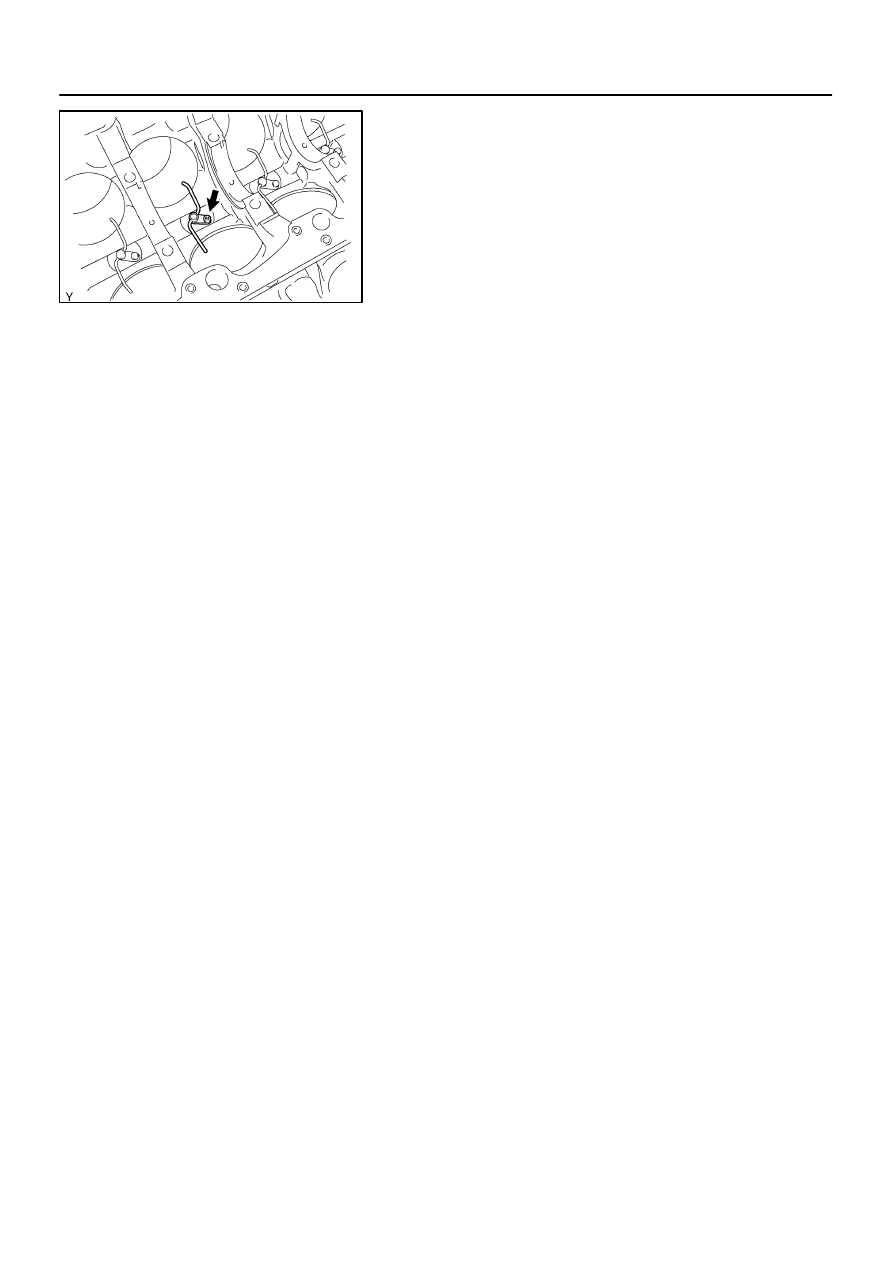

REMOVE OIL NOZZLE (WITH RELIEF VALVE)

Using a 5 mm hexagon wrench, remove the bolt and oil nozzle.

LU0IE–05

B17485

LU–26

–

LUBRICATION

OIL NOZZLE

2860

INSPECTION

INSPECT RELIEF VALVE (OIL NOZZLE)
Push the valve with a wooden stick to check if it is stuck.
If stuck, replace the relief valve.
