LU0IF–05

B17484

–

LUBRICATION

OIL NOZZLE

LU–27

2861

INSTALLATION

1.

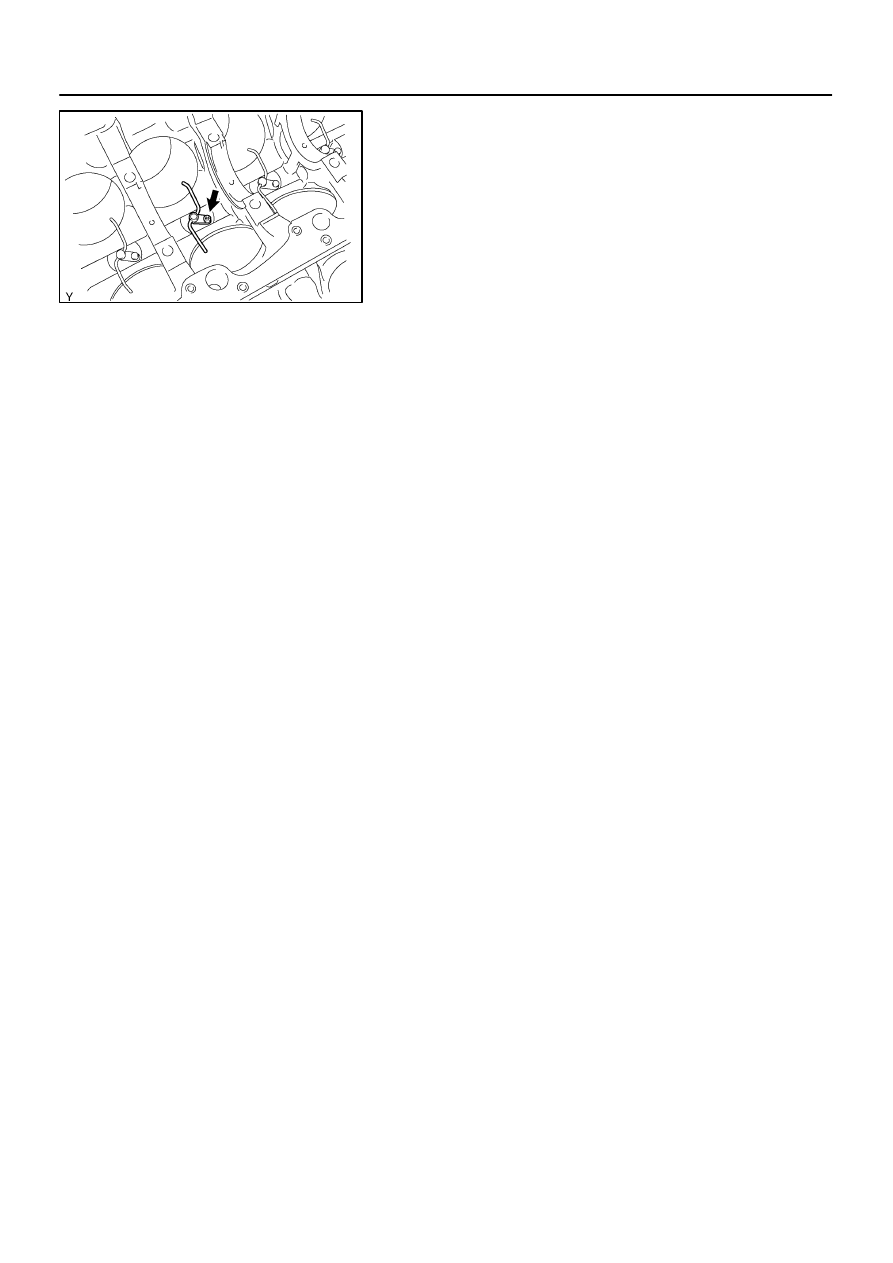

INSTALL OIL NOZZLE (WITH RELIEF VALVE)

Using a 5 mm hexagon wrench, install the oil nozzle with the
bolt.

Torque: 9.0 N·m (92 kgf·cm, 80 in.·lbf)

2.

INSTALL CRANKSHAFT (See page

EM–119

)

IG0MF–01

–

IGNITION

IGNITION SYSTEM

IG–1

2862

IGNITION SYSTEM

ON–VEHICLE INSPECTION

NOTICE:
”Cold” and ”Hot” in these sentences express the tempera-
ture of the coils themselves. ”Cold” is from –10

°

C (14

°

F) to

50

°

C (122

°

F) and ”Hot” is from 50

°

C (122

°

F) to 100

°

C

(212

°

F).

1.

INSPECT IGNITION COIL (WITH IGNITER) AND
SPARK TEST

Check that the spark occurs.

(1)

Remove the ignition coils (with igniter).
(see page

IG–5

)

(2)

Remove the spark plugs.

(3)

Install the spark plugs to each ignition coil (with ig-
niter), and connect the ignition coil (with igniter) con-
nector.

(4)

Disconnect the 8 injector connectors.

(5)

Ground the spark plug.

(6)

Check that spark occurs while engine is being
cranked.

NOTICE:
To prevent gasoline from being injected out of injectors
during this test, crank the engine for no more than 5 to 10
seconds at a time.

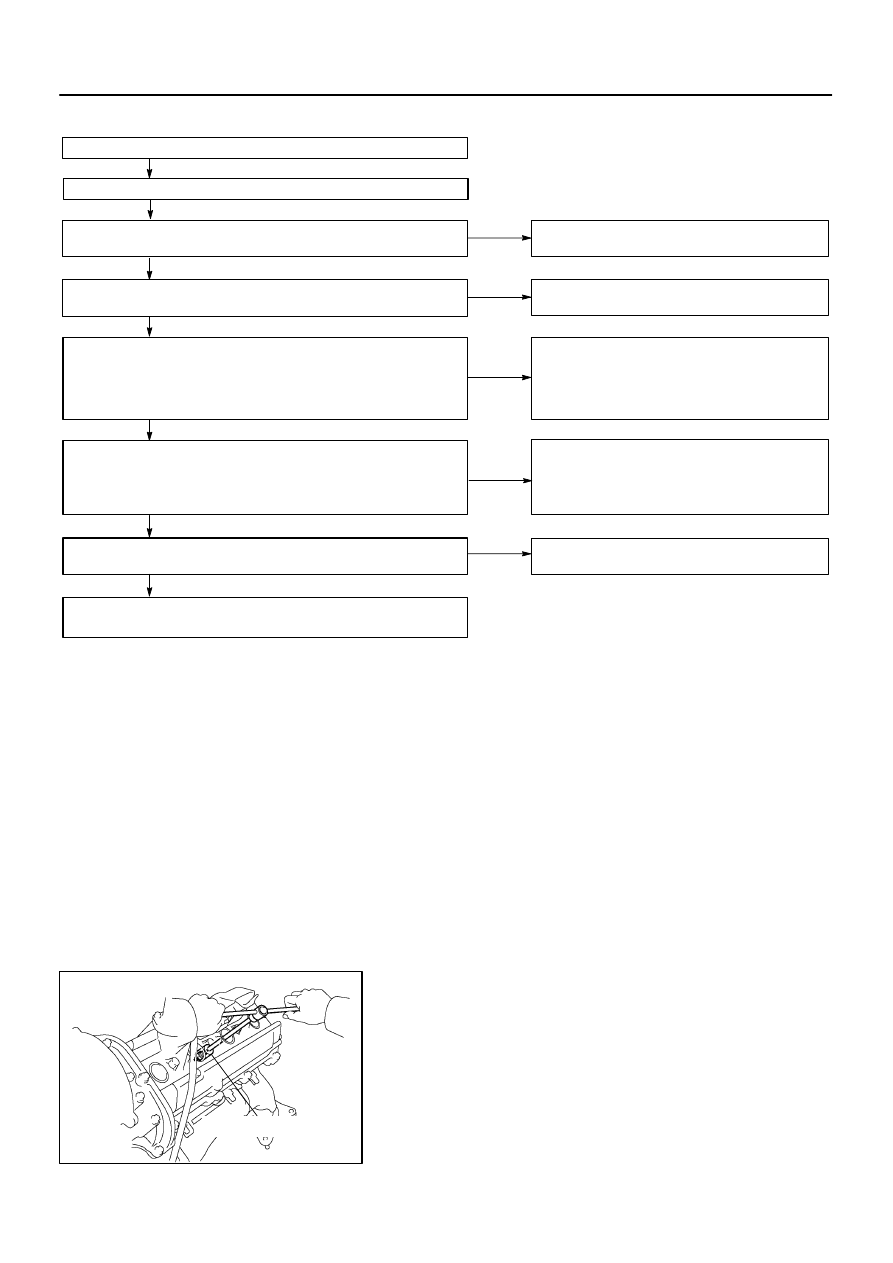

SPARK TEST

Replace the crankshaft position sensor.

CHECK CONNECTION OF IGNITION COIL
CONNECTOR

CHECK RESISTANCE OF CRANKSHAFT POSITION

Resistance:

Cold

Hot

CHECK IGT SIGNAL FROM ECM

(See page

DI–221

)

REPAIR WIRING BETWEEN IGNITION COIL
AND ECM

Connect securely.

Check wiring between ignition switch
to ignition coil (with igniter).

Check ECM (See page

IN–35

)

NG

OK

OK

OK

BAD

BAD

BAD

CHANGE IT TO NORMAL IGNITION COIL (WITH
IGNITER) AND PERFORM SPARK TEST AGAIN

OK

Replace the ignition coil (with igniter).

NO

OK

985 – 1,600

Ω

1,265 – 1,890

Ω

BAD

CHECK POWER SUPPLY TO IGNITION COIL (WITH

1. Turn ignition switch to ON.
2. Check that there is battery voltage at ignition coil positive (+)

 terminal.

IGNITER)

CHECK TDC

NG

SENSOR (See page

IG–12

)

B03198

16 mm Plug Wrench

IG–2

–

IGNITION

IGNITION SYSTEM

2863

If the spark does not occur, do the test as follows:

(7)

Using a 16 mm plug wrench, install the spark plugs.

Torque: 17.5 N·m (180 kgf·cm, 13 ft·lbf)
(8)

Reinstall the ignition coils (with igniter).
(see page

IG–6

)

2.

INSPECT SPARK PLUGS

(a)

Remove the ignition coils (with igniter).
(see page

IG–5

)

(b)

Using a 16 mm plug wrench, remove the spark plugs.

IG0152

IG0148

P03792

–

IGNITION

IGNITION SYSTEM

IG–3

2864

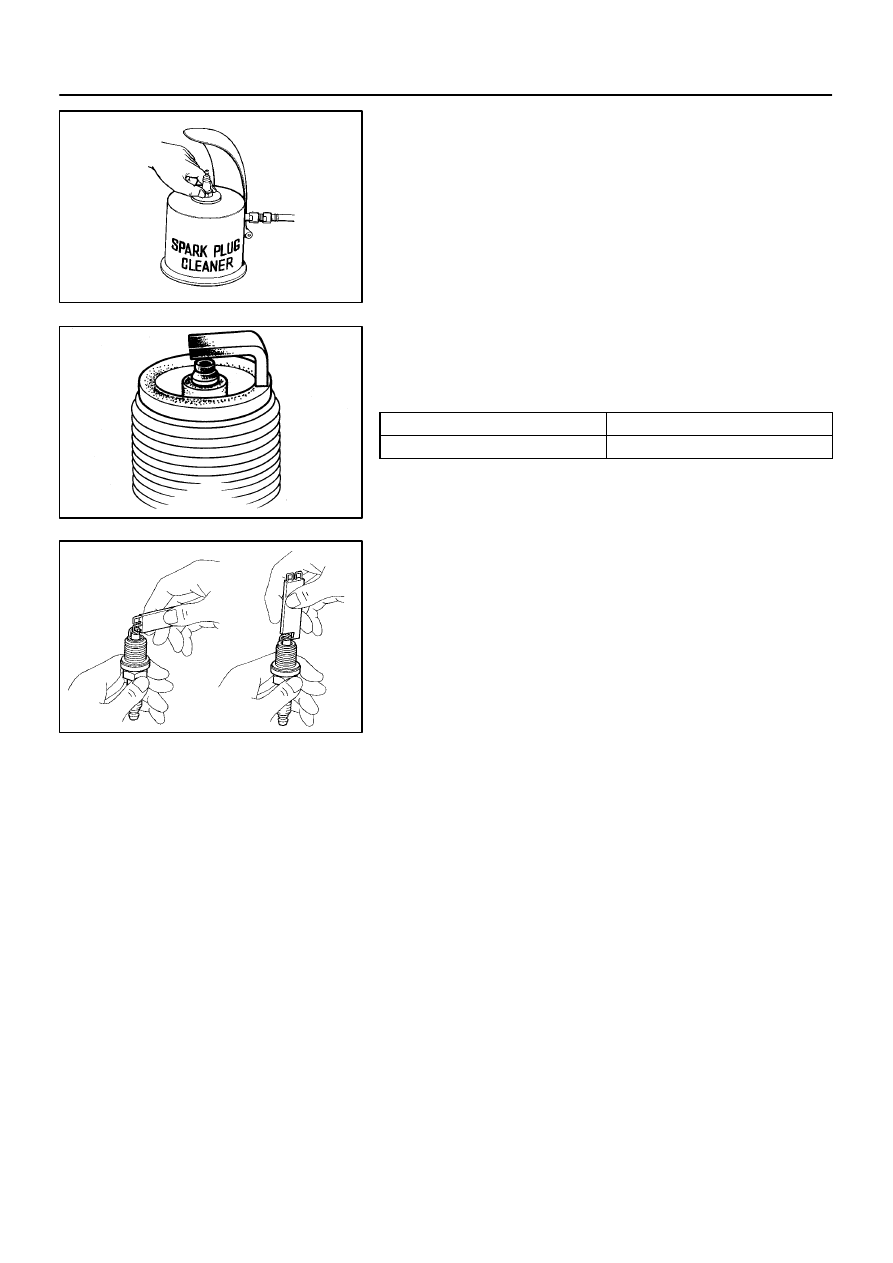

(c)

Clean the spark plugs.

If the electrode has traces of wet carbon, allow it to dry and then
clean with a spark plug cleaner.

Air pressure: Below 588 kPa (6 kgf/cm

2

, 85 psi)

Duration: 20 seconds or less

HINT:
If there are traces of oil, remove it with gasoline before using the
spark plug cleaner.

(d)

Check the spark plug for thread damage and insulator
damage.

If abnormal, replace the spark plug.

Recommended spark plug:

DENSO made

SK20R11

NGK made

IFR6A11

(e)

Adjust the spark plug electrode gap.
Electrode gap: 1.0 to 1.1 mm (0.039 to 0.043 in.)

(f)

Using a 16 mm plug wrench, install the spark plugs.
Torque: 17.5 N·m (180 kgf·cm, 13 ft·lbf)

(g)

Reinstall the ignition coils (with igniter).
(see page

IG–6

)
