EM–106

ENGINE MECHANICAL

CYLINDER BLOCK

2685

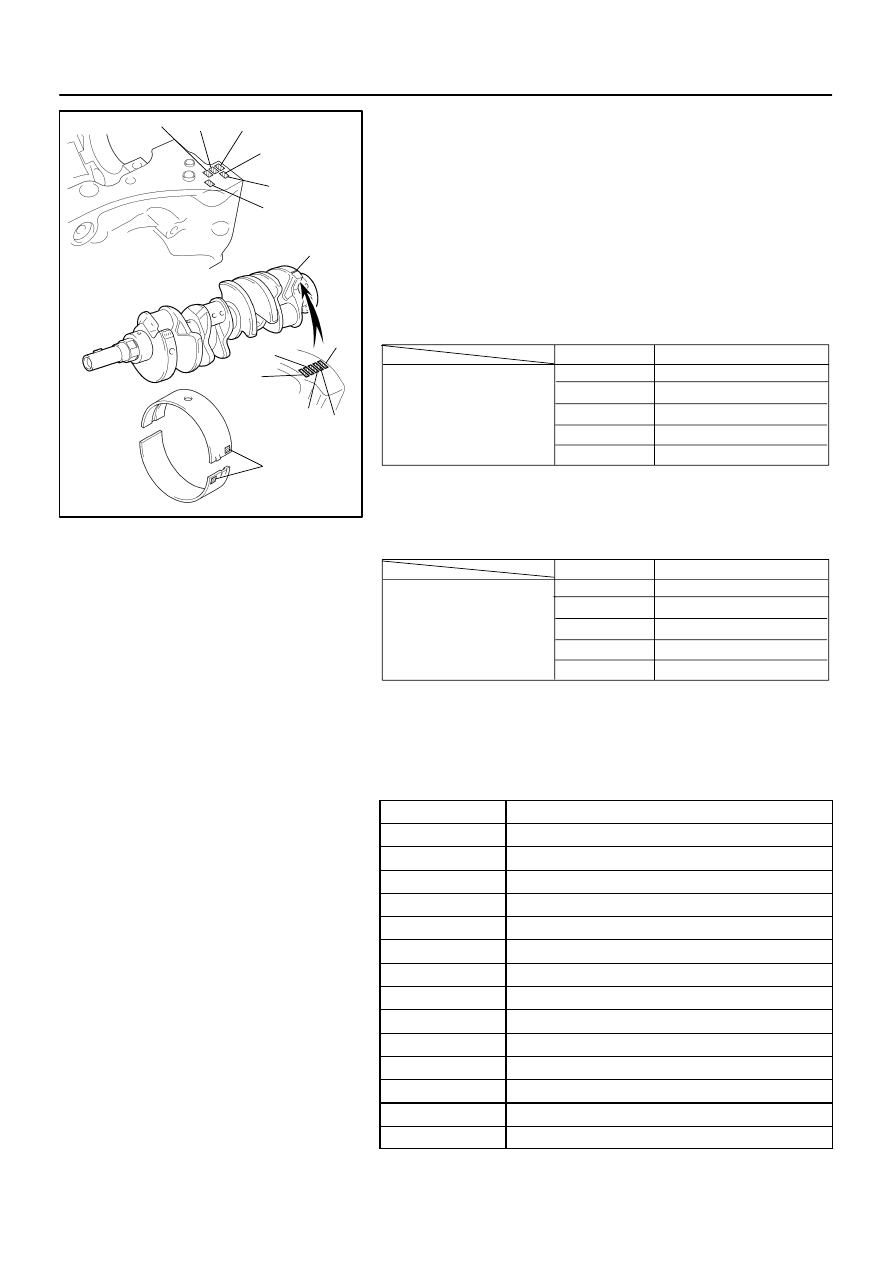

HINT:
If using a standard bearing, replace it with one having the same
number. If the number of the bearing cannot be determined, se-
lect the correct bearing by adding together the numbers im-
printed on the cylinder block and crankshaft, then refer to the
table below for the appropriate bearing number. There are 5
sizes of the standard bearings. For No.1 and No.5 position
bearings, use bearings marked ”3”, ”4”, ”5”, ”6” and ”7”. For oth-
ers position bearings, use bearings marked ”1”, ”2”, ”3”, ”4” and
”5”.

Reference
Cylinder block main journal bore diameter (A):

Mark ”00”

72.000 mm (2.8346 in.)

Mark ”01”

72.001 mm (2.8347 in.)

Mark ”02”

72.002 mm (2.8347 in.)

Mark ”03”

72.003 mm (2.8348 in.)

Mark ”04”

72.004 mm (2.8348 in.)

Mark ”05”

72.005 mm (2.8348 in.)

Mark ”06”

72.006 mm (2.8349 in.)

Mark ”07”

72.007 mm (2.8349 in.)

Mark ”08”

72.008 mm (2.8350 in.)

Mark ”09”

72.009 mm (2.8350 in.)

Mark ”10”

72.010 mm (2.8350 in.)

Mark ”11”

72.011 mm (2.8351 in.)

Mark ”12”

72.012 mm (2.8351 in.)

Mark ”13”

72.013 mm (2.8352 in.)

Mark ”14”

72.014 mm (2.8352 in.)

A04862

ENGINE MECHANICAL

CYLINDER BLOCK

EM–107

2686

Mark ”15”

72.015 mm (2.8352 in.)

Mark ”16”

72.016 mm (2.8353 in.)

Crankshaft main journal diameter (B):

Mark ”00”

67.000 mm (2.6378 in.)

Mark ”01”

66.999 mm (2.6378 in.)

Mark ”02”

66.998 mm (2.6377 in.)

Mark ”03”

66.997 mm (2.6377 in.)

Mark ”04”

66.996 mm (2.6376 in.)

Mark ”05”

66.995 mm (2.6376 in.)

Mark ”06”

66.994 mm (2.6376 in.)

Mark ”07”

66.993 mm (2.6375 in.)

Mark ”08”

66.992 mm (2.6375 in.)

Mark ”09”

66.991 mm (2.6374 in.)

Mark ”10”

66.990 mm (2.6374 in.)

Mark ”11”

66.989 mm (2.6374 in.)

Mark ”12”

66.988 mm (2.6373 in.)

Standard bearing center wall thickness:
No.1 and No.5

Mark ”3”

2.487 to 2.490 mm (0.0979 – 0.0980 in.)

Mark ”4”

2.490 to 2.493 mm (0.0980 – 0.0981 in.)

Mark ”5”

2.493 to 2.496 mm (0.0981 – 0.0983 in.)

Mark ”6”

2.496 to 2.499 mm (0.0983 – 0.0984 in.)

Mark ”7”

2.499 to 2.502 mm (0.0984 – 0.0985 in.)

Others

Mark ”1”

2.481 to 2.484 mm (0.0977 – 0.0978 in.)

Mark ”2”

2.484 to 2.487 mm (0.0978 – 0.0979 in.)

Mark ”3”

2.487 to 2.490 mm (0.0979 – 0.0980 in.)

Mark ”4”

2.490 to 2.493 mm (0.0980 – 0.0981 in.)

Mark ”5”

2.493 to 2.496 mm (0.0981 – 0.0983 in.)

(k)

Completely remove the Plastigage.

24.

REMOVE CRANKSHAFT

(a)

Lift up the crankshaft.

(b)

Remove the 5 upper main bearings and 2 upper thrust
washers from the cylinder block.

HINT:
Arrange the main bearing caps, bearings and thrust washers in
correct order.
25.

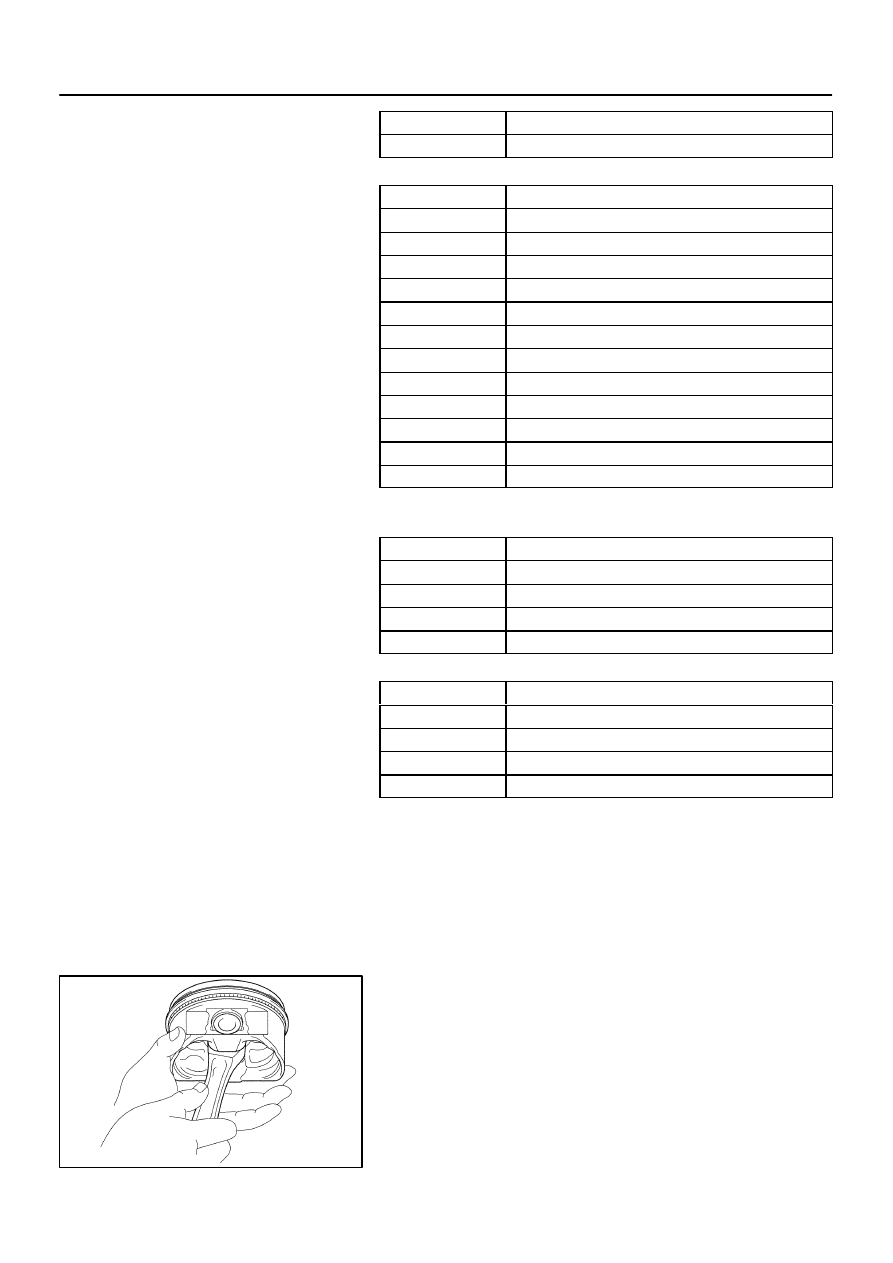

CHECK FIT BETWEEN PISTON AND PISTON PIN

Try to move the piston back and forth on the piston pin.
If any movement is felt, replace the piston and pin as a set.

A04873

A04860

A04887

A04888

EM–108

ENGINE MECHANICAL

CYLINDER BLOCK

2687

26.

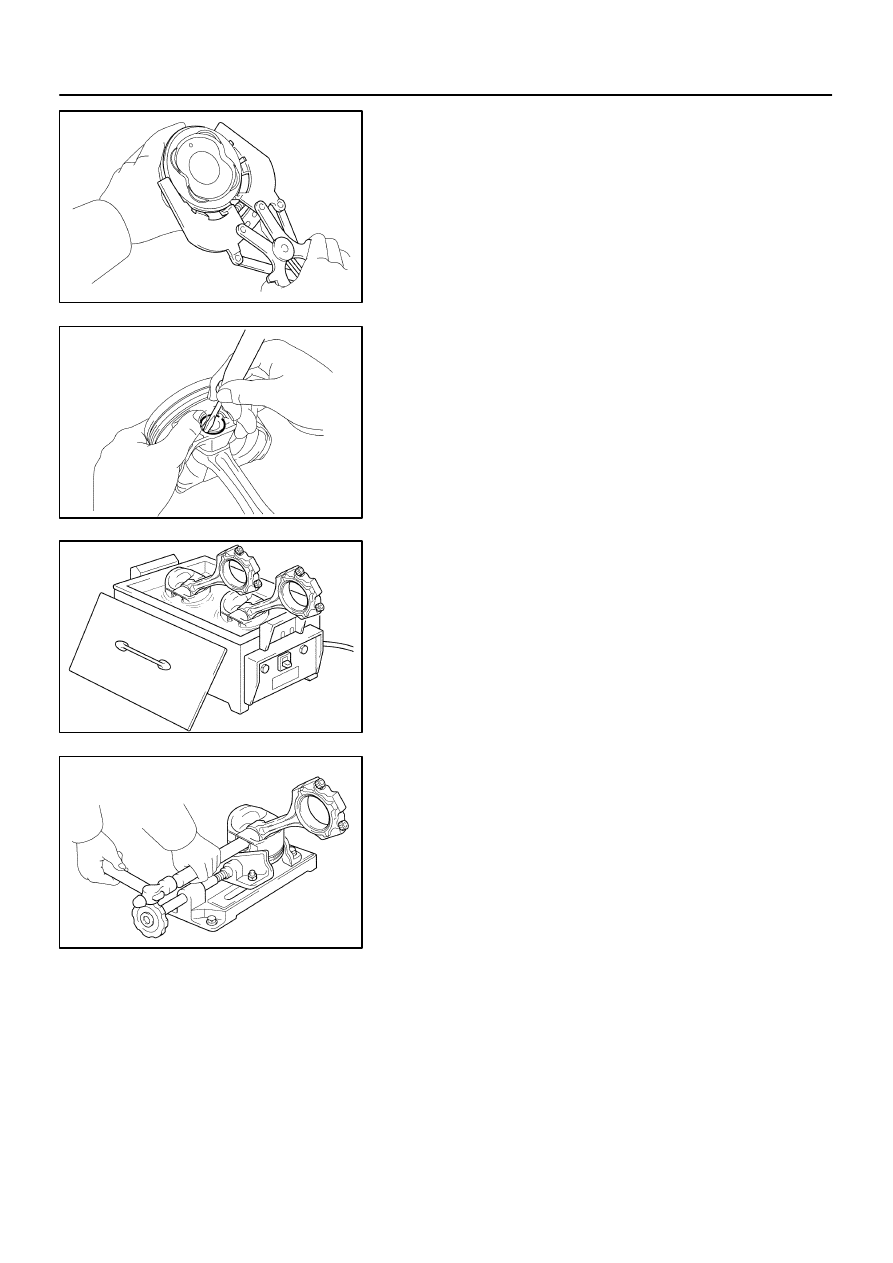

REMOVE PISTON RINGS

(a)

Using a piston ring expander, remove the 2 compression
rings.

(b)

Remove the 2 side rails and oil ring by hand.

HINT:
Arrange the piston rings in correct order only.

27.

DISCONNECT CONNECTING ROD FROM PISTON

(a)

Using a small screwdriver, pry out the 2 snap rings.

(b)

Gradually heat the piston to approx. 60

°

C (140

°

F).

(c)

Using a plastic–faced hammer and brass bar, lightly tap
out the piston pin and pin and remove the connecting rod.

HINT:



The piston and pin are a matched set.



Arrange the pistons, pins, rings, connecting rods and
bearings in correct order.

EM0EB–17

A04849

A04850

A04210

A04212

A05178

Cylinder Block Side

Main Bearing Cap Side

A04853

ENGINE MECHANICAL

CYLINDER BLOCK

EM–109

2688

INSPECTION

1.

CLEAN CYLINDER BLOCK

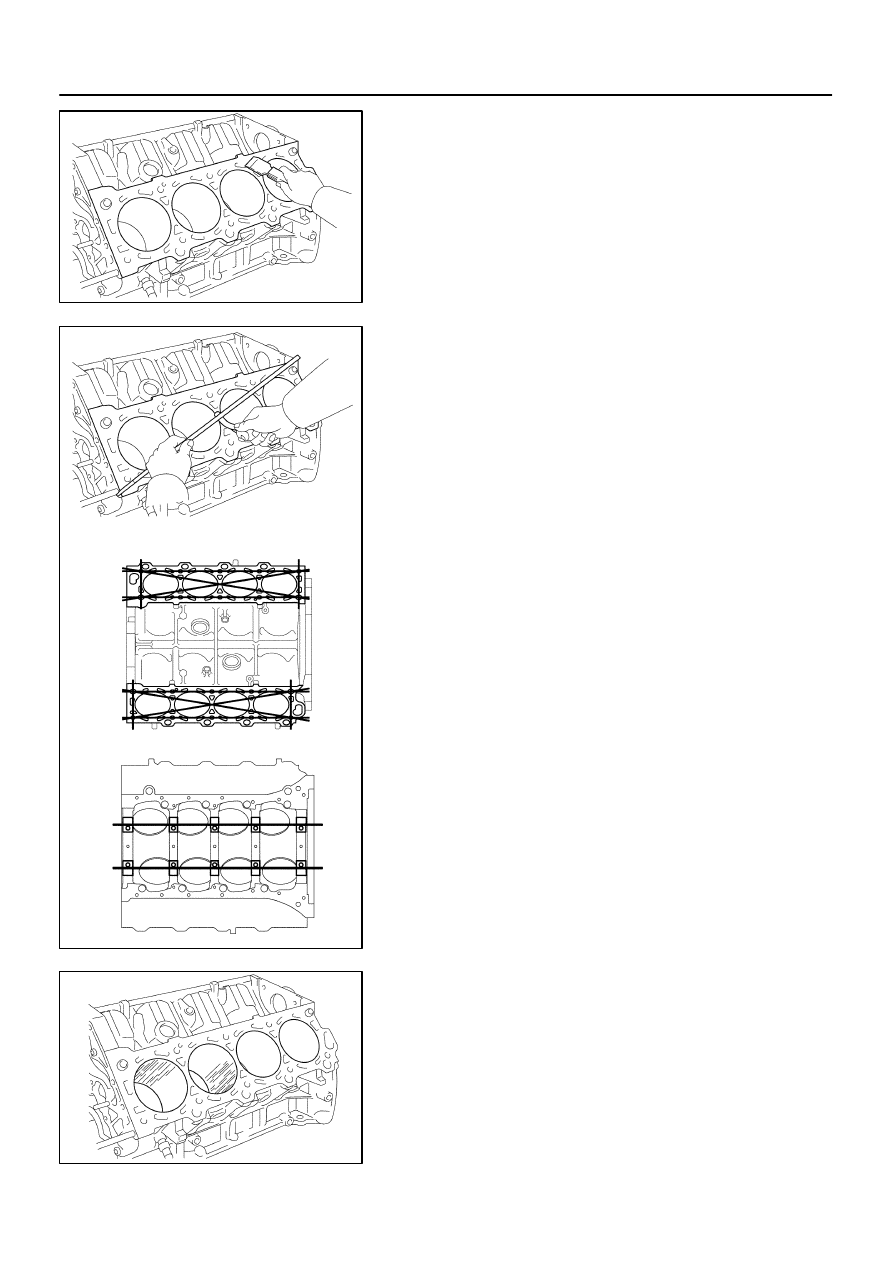

(a)

Using a gasket scraper, remove all the gasket material
from the top surface of the cylinder block.

(b)

Using a soft brush and solvent, thoroughly clean the cylin-
der block.

2.

INSPECT CYLINDER BLOCK

(a)

Inspect for flatness.
Using a precision straight edge and feeler gauge, mea-
sure the surfaces contacting the cylinder head and main
bearing cap for warpage.
Maximum warpage: 0.07 mm (0.0028 in.)

If warpage is greater than maximum, replace the cylinder block.

(b)

Visually check the cylinder for vertical scratches.

If deep scratches are present, rebore all the 8 cylinders and re-
place all the 8 pistons. (See page

EM–116

) If necessary, re-

place the cylinder block.
