Toyota Tundra (2015 year). Manual - part 3068





Last Modified: 9-16-2014

6.6 T

Doc ID: RM000001NES01OX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: PROBLEM SYMPTOMS TABLE;

2015 MY Tundra [08/2014 -        ]

PROBLEM SYMPTOMS TABLE

HINT:

SYMPTOM

SUSPECTED AREA

SEE

PAGE

Front seat RH occupant conditions and displayed passenger airbag

ON/OFF indicator do not correspond

Passenger airbag ON/OFF

indicator circuit

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICA...

Last Modified: 9-16-2014

6.6 U

Doc ID: RM0000010V407AX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: TERMINALS OF ECU; 2015 MY

Tundra [08/2014 -        ]

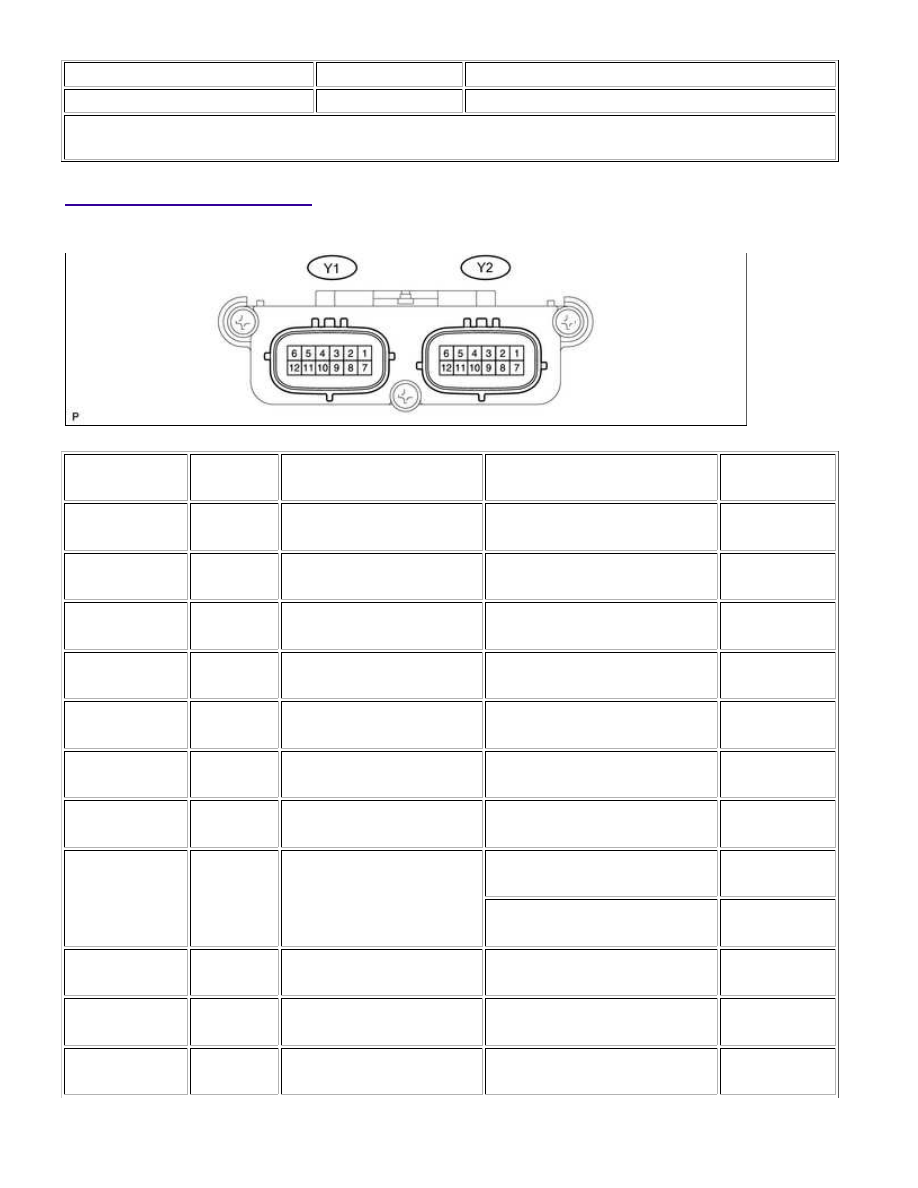

TERMINALS OF ECU

1. CHECK OCCUPANT CLASSIFICATION ECU

TERMINAL NO.

(SYMBOLS)

WIRING

COLOR

TERMINAL DESCRIPTION

CONDITION

SPECIFICATION

Y2-1 (+B) - Y2-3

(GND)

W - W-B

Battery

Ignition switch ON

11 to 14 V

Y2-2 (DIA) -

Y2-3 (GND)

GR - W-B

Diagnosis (DLC3)

Ignition switch ON

Pulse

generation

Y2-3 (GND) -

Body ground

W-B - Body

ground

Ground

Always

Below 1 Ω

Y2-4 (FSR-) -

Y2-3 (GND)

Y - W-B

Center airbag sensor

communication ground line

Always

Below 1 Ω

Y2-5 (BGND) -

Y2-3 (GND)

P - W-B

Passenger side buckle switch

ground line

Always

Below 1 Ω

Y2-7 (IG2) -

Y2-3 (GND)

B - W-B

Power source (IGN fuse)

Ignition switch ON

11 to 14 V

Y2-8 (FSR+) -

Y2-4 (FSR-)

L - Y

Center airbag sensor

communication line

Ignition switch ON

Pulse

generation

Y2-9 (BSW) -

Y2-5 (BGND)

G - P

Passenger side buckle switch

line

Ignition switch ON, buckle switch

ON

0.12 to 0.18 A

Ignition switch ON, buckle switch

OFF

0.4 to 0.7 mA

Y1-1 (SGD1) -

Y2-3 (GND)

G - W-B

Front occupant detection

sensor LH ground line

Always

Below 1 Ω

Y1-2 (SGD2) -

Y2-3 (GND)

O - W-B

Front occupant detection

sensor RH ground line

Always

Below 1 Ω

Y1-3 (SGD3) -

Y2-3 (GND)

W - W-B

Rear occupant detection

sensor LH ground line

Always

Below 1 Ω

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICA...

TERMINAL NO.

(SYMBOLS)

WIRING

COLOR

TERMINAL DESCRIPTION

CONDITION

SPECIFICATION

Y1-4 (SGD4) -

Y2-3 (GND)

BR - W-B

Rear occupant detection

sensor RH ground line

Always

Below 1 Ω

Y1-11 (SVC1) -

Y1-1 (SGD1)

R - G

Front occupant detection

sensor LH power supply line

Ignition switch ON, load is

applied to front occupant

detection sensor LH

4.5 to 5.1 V

Y1-12 (SVC2) -

Y1-2 (SGD2)

W - O

Front occupant detection

sensor RH power supply line

Ignition switch ON, load is

applied to front occupant

detection sensor RH

4.5 to 5.1 V

Y1-5 (SVC3) -

Y1-3 (SGD3)

GR - W

Rear occupant detection

sensor LH power supply line

Ignition switch ON, load is

applied to rear occupant

detection sensor LH

4.5 to 5.1 V

Y1-6 (SVC4) -

Y1-4 (SGD4)

V - BR

Rear occupant detection

sensor RH power supply line

Ignition switch ON, load is

applied to rear occupant

detection sensor RH

4.5 to 5.1 V

Y1-7 (SIG1) -

Y1-1 (SGD1)

P - G

Front occupant detection

sensor LH signal line

Ignition switch ON, load is

applied to front occupant

detection sensor LH

Pulse

generation

Y1-8 (SIG2) -

Y1-2 (SGD2)

L - O

Front occupant detection

sensor RH signal line

Ignition switch ON, load is

applied to front occupant

detection sensor RH

Pulse

generation

Y1-9 (SIG3) -

Y1-3 (SGD3)

Y - W

Rear occupant detection

sensor LH signal line

Ignition switch ON, load is

applied to rear occupant

detection sensor LH

Pulse

generation

Y1-10 (SIG4) -

Y1-4 (SGD4)

B - BR

Rear occupant detection

sensor RH signal line

Ignition switch ON, load is

applied to rear occupant

detection sensor RH

Pulse

generation

If the result is not as specified, the ECU may have a malfunction.

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICA...

Last Modified: 9-16-2014

6.6 D

Doc ID: RM0000010VJ0APX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: DIAGNOSIS SYSTEM; 2015

MY Tundra [08/2014 -        ]

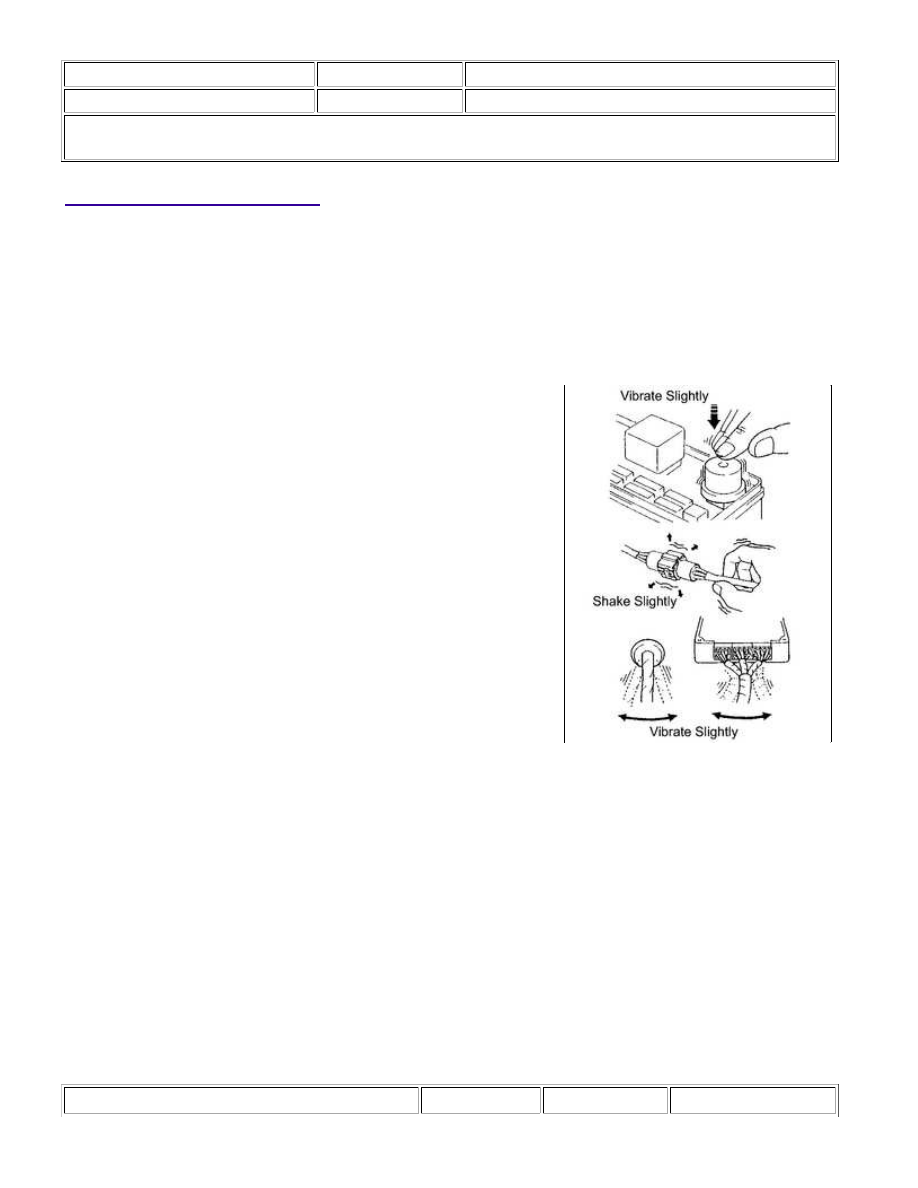

DIAGNOSIS SYSTEM

1. SYMPTOM SIMULATION

HINT:

The most difficult case in troubleshooting is when no problem symptoms occur. In such a case, a thorough

HINT:

Perform the simulation method only during the primary check

period (for approximately 6 seconds after the ignition switch is
turned ON).

malfunction occurs.

HINT:

Shaking the relays too strongly may result in open relays.

(2) Slightly shake the connector vertically and horizontally.

(3) Slightly shake the wire harness vertically and horizontally.

(b) Simulation method for DTC B1795: Turn the ignition switch from OFF to ON, hold it for 10 seconds, and then

turn it back to OFF. Repeat this procedure 50 times in a row.

HINT:

DTC B1795 is output if the occupant classification ECU receives the ignition switch lock-on-lock signal 50

times in a row when a malfunction occurs in the power circuit for the occupant classification system.

2. FUNCTION OF PASSENGER AIRBAG ON/OFF INDICATOR

(a) Initial check

(1) Turn the ignition switch ON.

(2) The passenger airbag ON/OFF indicator (ON and OFF) comes on for approximately 4 seconds, then goes

off for approximately 2 seconds.

(3) Approximately 6 seconds after the ignition switch is turned ON, the passenger airbag ON/OFF indicator

will be ON/OFF depending on the conditions listed below.

FRONT SEAT PASSENGER

ON INDICATOR

OFF INDICATOR

SRS WARNING LIGHT

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICA...
