Toyota Tundra. Manual - part 2726





Fig. 100: Locating Air Duct Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

18. REMOVE STEERING INTERMEDIATE SHAFT ASSEMBLY

a. Remove the 3 bolts and nut.

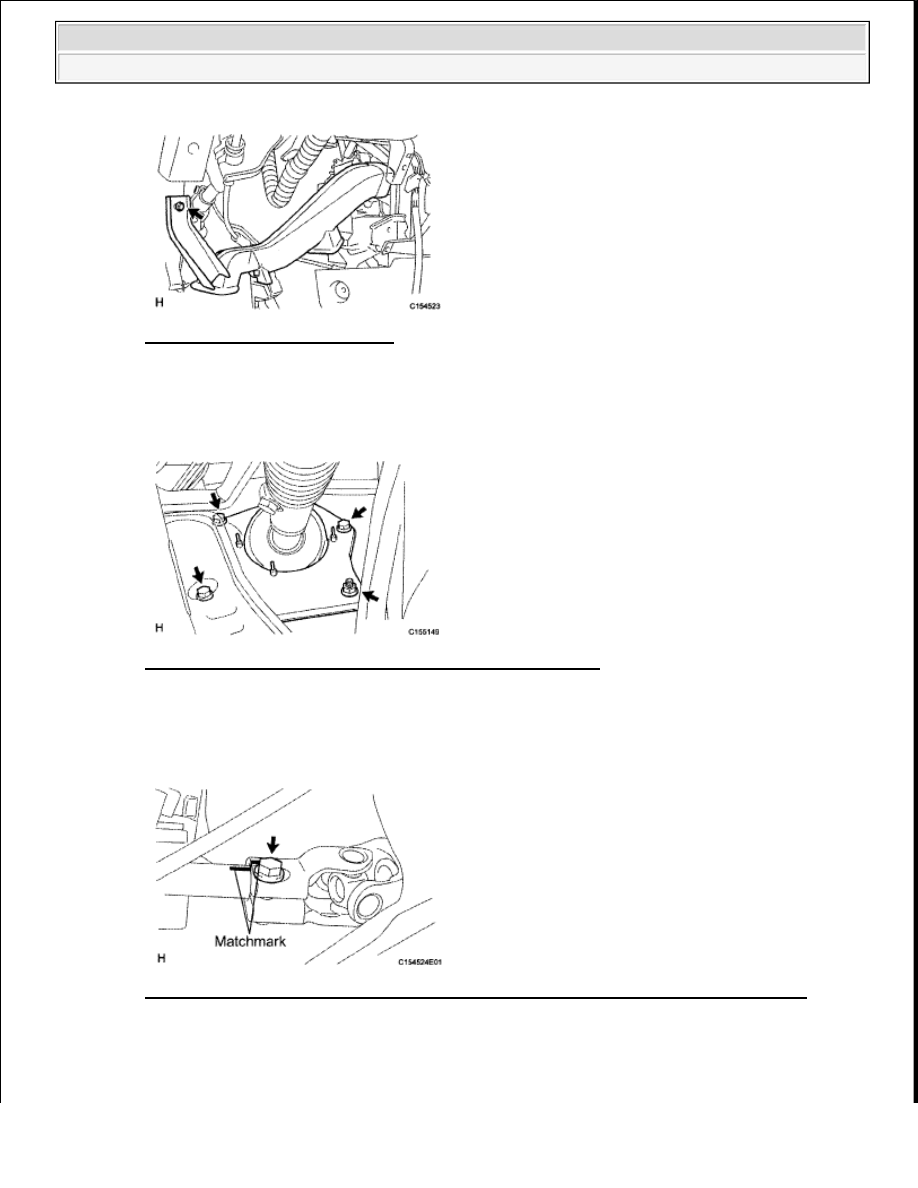

Fig. 101: Locating Steering Intermediate Shaft Nut & Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Put matchmarks on the steering intermediate shaft and the steering column.

c. Remove the bolt and steering intermediate shaft from the steering column.

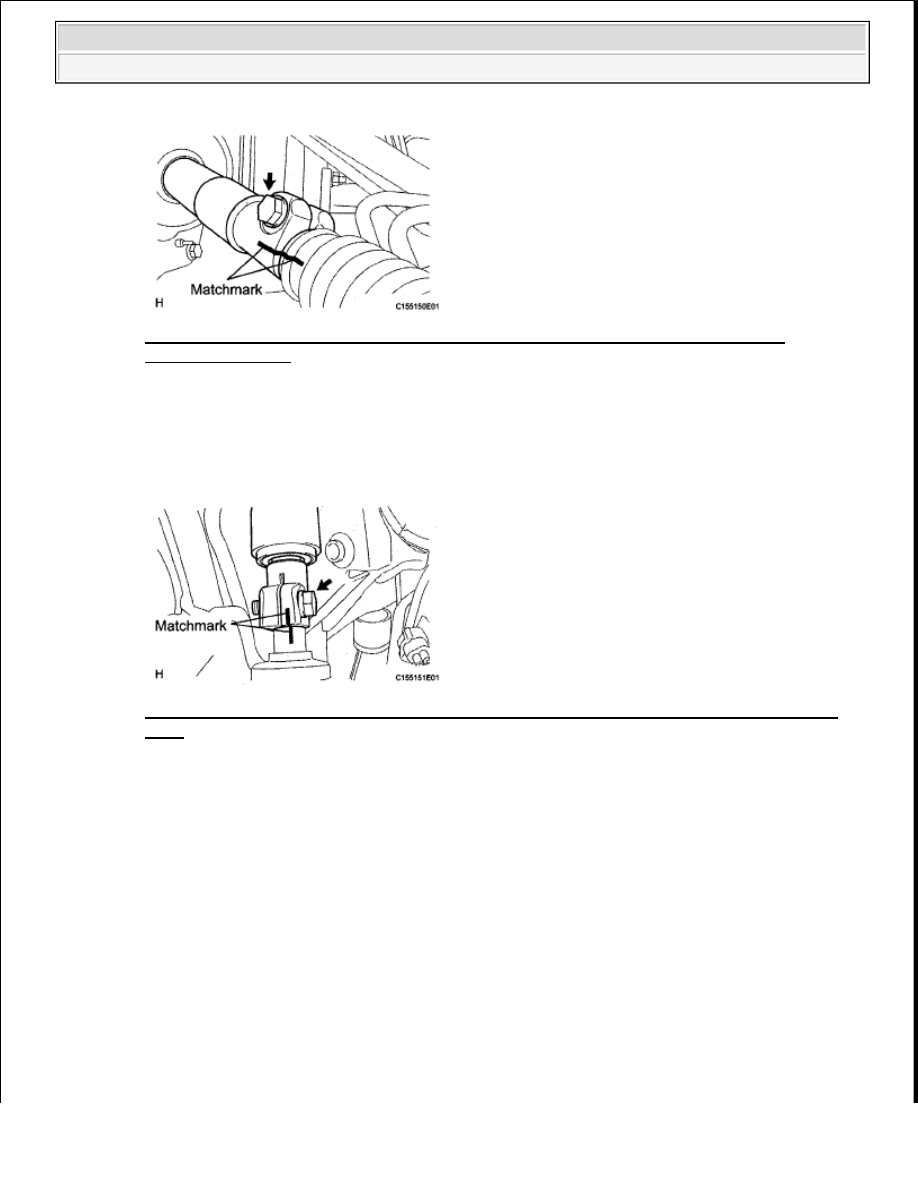

Fig. 102: Identifying Matchmarks On Steering Intermediate Shaft & Steering Column
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

d. Put matchmarks on the No. 2 steering intermediate shaft and steering intermediate shaft.

e. Remove the bolt and steering intermediate shaft from the No. 2 steering intermediate shaft.



2009 Toyota Tundra

2009 STEERING Steering Column - Tundra































Fig. 103: Identifying Matchmarks On No. 2 Steering Intermediate Shaft & Steering
Intermediate Shaft

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

19. REMOVE NO. 2 STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY

a. Put matchmarks on the No. 2 steering intermediate shaft and power steering gear.

b. Remove the bolt and No. 2 steering intermediate shaft from the power steering gear.

Fig. 104: Identifying Matchmarks On No. 2 Steering Intermediate Shaft & Power Steering
Gear

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

20. REMOVE STEERING COLUMN ASSEMBLY

a. Remove the bolt and 2 nuts. Then remove the steering column from the instrument panel

reinforcement.



2009 Toyota Tundra

2009 STEERING Steering Column - Tundra































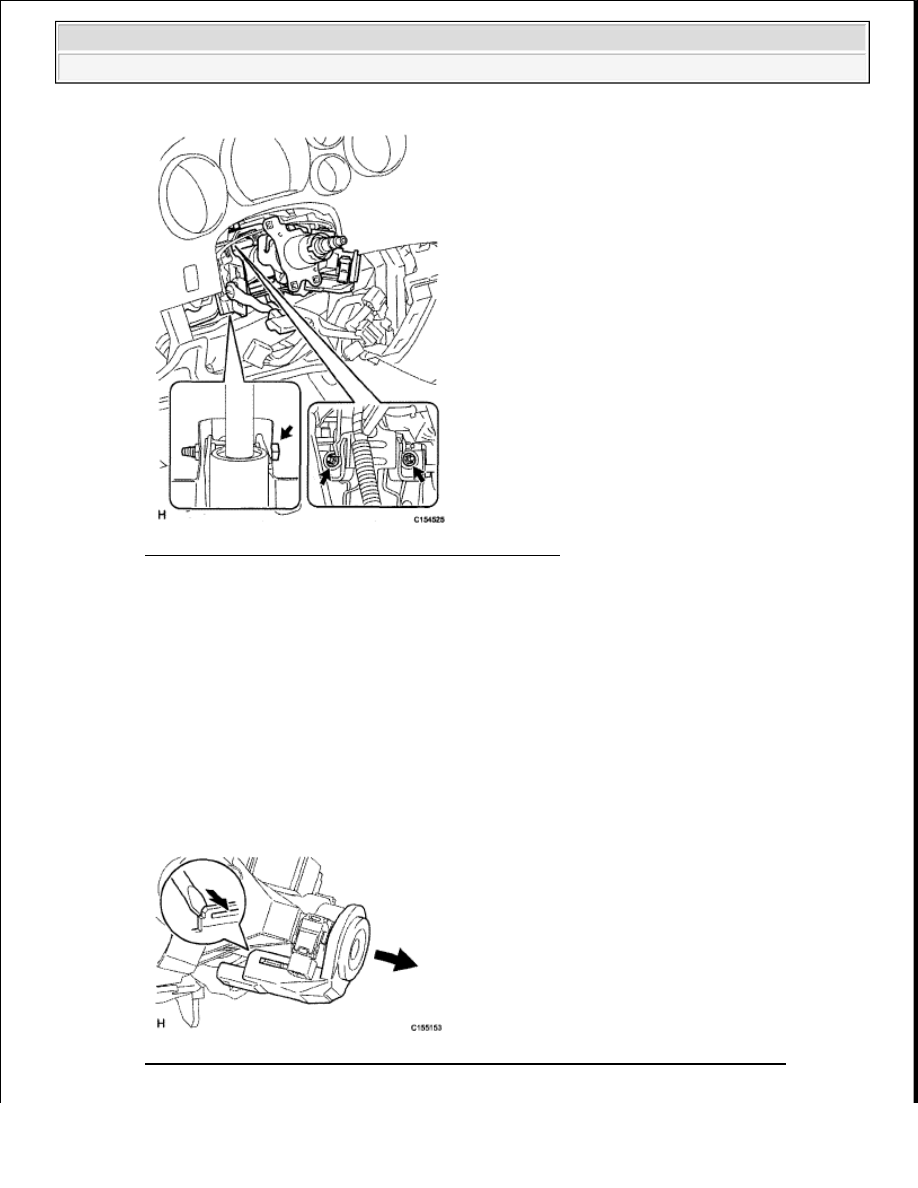

Fig. 105: Locating Steering Column With Bolt & Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

DISASSEMBLY

1. REMOVE TRANSPONDER KEY AMPLIFIER (w/ Engine Immobilizer System)

a. Using a screwdriver, widen the claws attached to the upper bracket by approximately 1.0 mm

(0.0394 in.).

b. Pull out the transponder key amplifier with the claws open.

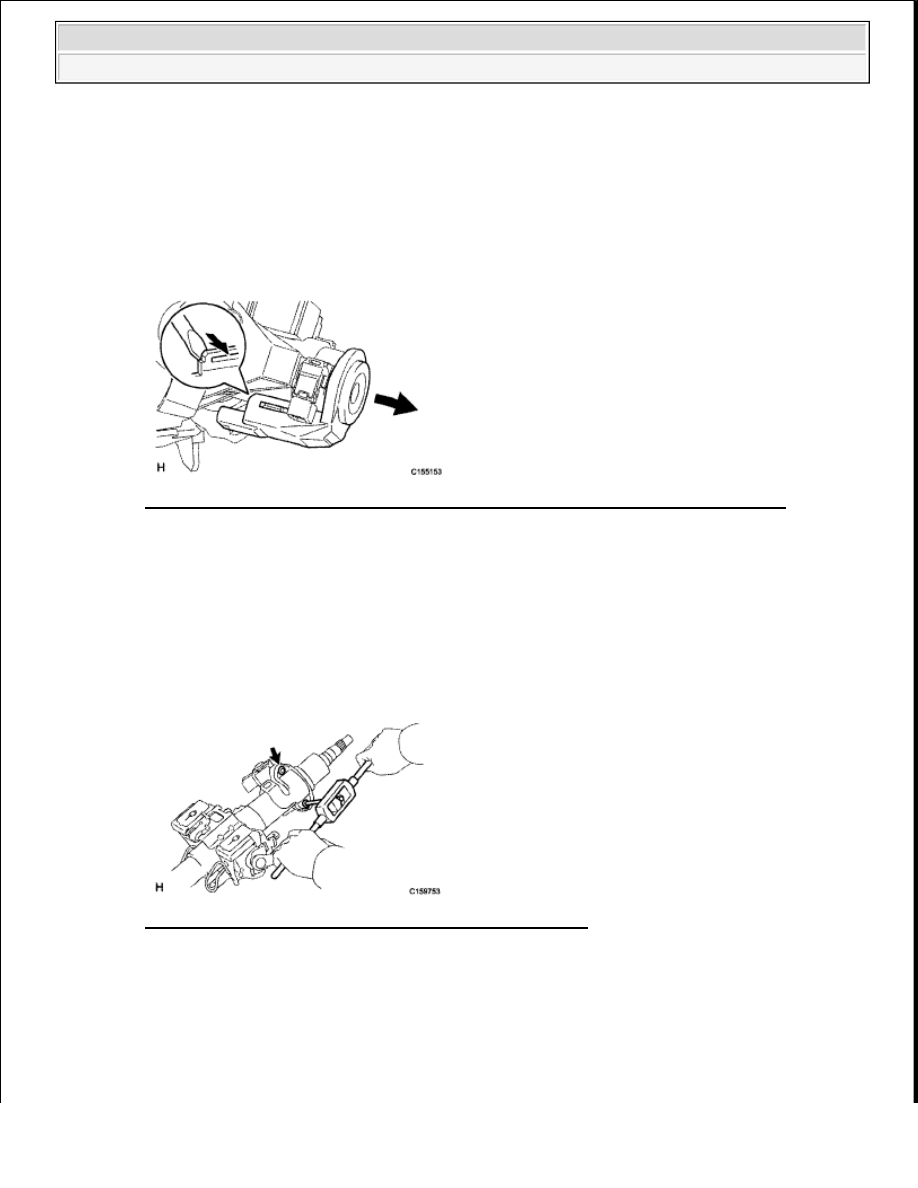

Fig. 106: Removing Transponder Key Amplifier And Key Cylinder Light Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NOTE:

When using a vise, do not overtighten it.

NOTE:

Using excessive force may damage the case.



2009 Toyota Tundra

2009 STEERING Steering Column - Tundra































2. REMOVE KEY CYLINDER LIGHT ASSEMBLY (w/o Engine Immobilizer System)

a. Using a screwdriver, widen the claws attached to the upper bracket by approximately 1.0 mm

(0.0394 in.).

b. Pull out the key cylinder light with the claws open.

Fig. 107: Removing Transponder Key Amplifier And Key Cylinder Light Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. REMOVE UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY

a. Secure the steering column in a vise.

b. Using a center punch, mark the center of the 2 tapered-head bolts.

c. Using a 3 to 4 mm (0.119 to 0.159 in.) drill, drill a hole in the 2 tapered-head bolts.

d. Using a screw extractor, remove the 2 tapered-head bolts, and then remove the upper steering

column with switch bracket and the steering lock bracket from the steering column.

Fig. 108: Drilling Hole In Tapered-Head Bolts Using Drill
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. REMOVE IGNITION SWITCH LOCK CYLINDER ASSEMBLY

a. Turn the ignition switch lock cylinder to the ACC position.

b. Push down the stop pin with a screwdriver and pull out the ignition switch lock cylinder.

NOTE:

Using excessive force may damage the case.



2009 Toyota Tundra

2009 STEERING Steering Column - Tundra
