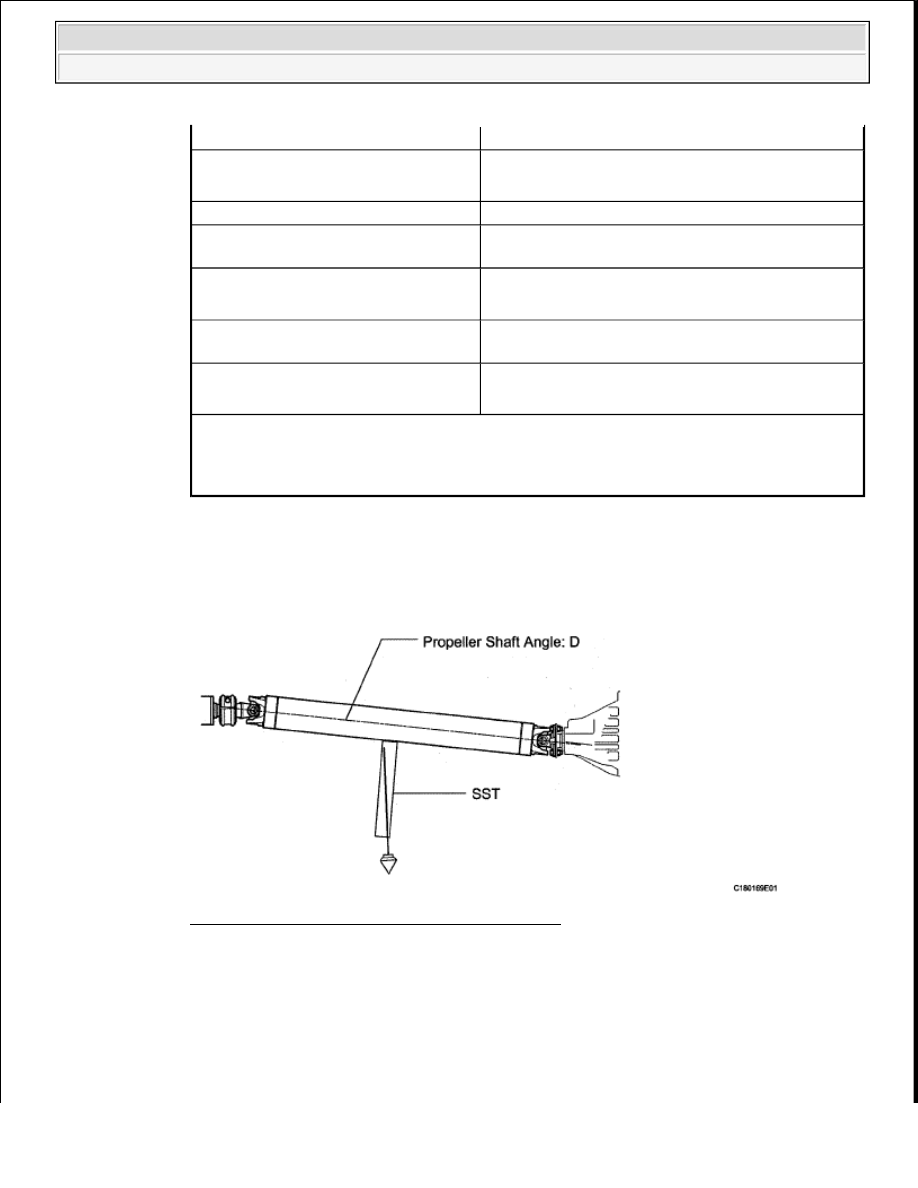

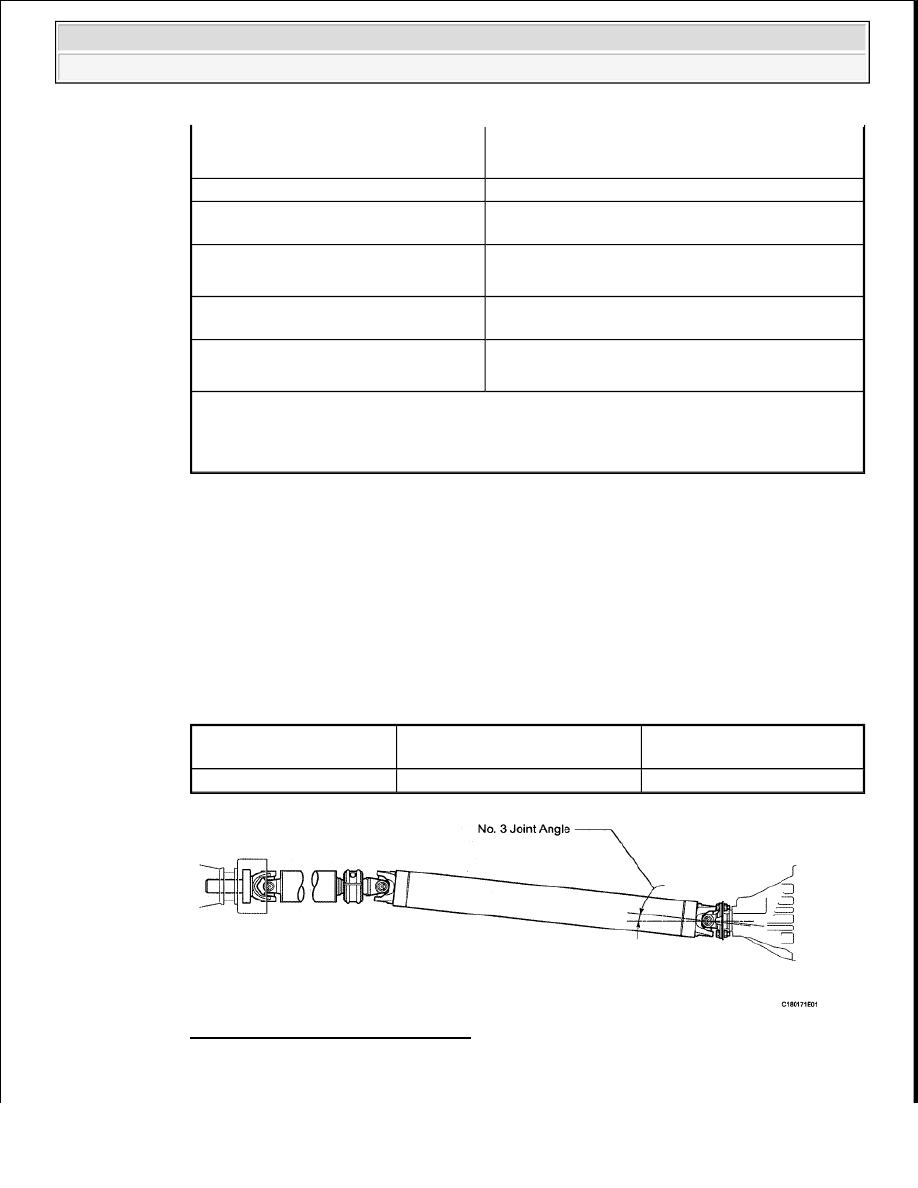

b. Measure the No. 2 joint angle. 1. Using SST, measure and record the angle of the propeller shaft (D). SST 09370-50010 Fig. 61: Measuring Angle Of Propeller Shaft (D) 2. Subtract the angle of the propeller shaft (D) from the angle of the intermediate shaft (C) to calculate the No. 2 joint angle. No. 2 joint angle: Angle of intermediate shaft (C) - Angle of propeller shaft (D) USK51L-CRTLKA USK51L-CRTSKA (2)
USK51L-CRTLKA (2) 0°41' +/-0°60' (0.68° +/-1.00°) USK52L-CHTSKA 0°58' +/-0°60' (0.97° +/-1.00°) UCK51L-PSASKA 0°41' +/-0°60' (0.68° +/-1.00°) UCK51L-PSASKA (2)
UCK51L-PSALKA (2) 0°41' +/-0°60' (0.68° +/-1.00°) USK51L-PSTSKA 0°41' +/-0°60' (0.68° +/-1.00°) USK51L-PSTSKA (2)
USK51L-PSTLKA (2) 0°41' +/-0°60' (0.68° +/-1.00°) (1) for 5 leaf spring (2) includes Off road package If the measured angle is not within the specification, adjust it
