Toyota Hilux (2017 year). Manual - part 133

539

7-3. Do-it-yourself maintenance

7

M

ai

nte
nan
ce and

 ca

re

■

After a fuse is replaced

●

If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (

→P. 540)

●

If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.

■

If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.

WARNING

■

To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.

●

Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.

●

Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.

●

Do not modify the fuses or fuse boxes.

NOTICE

■

Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional as soon as possible.

540

7-3. Do-it-yourself maintenance

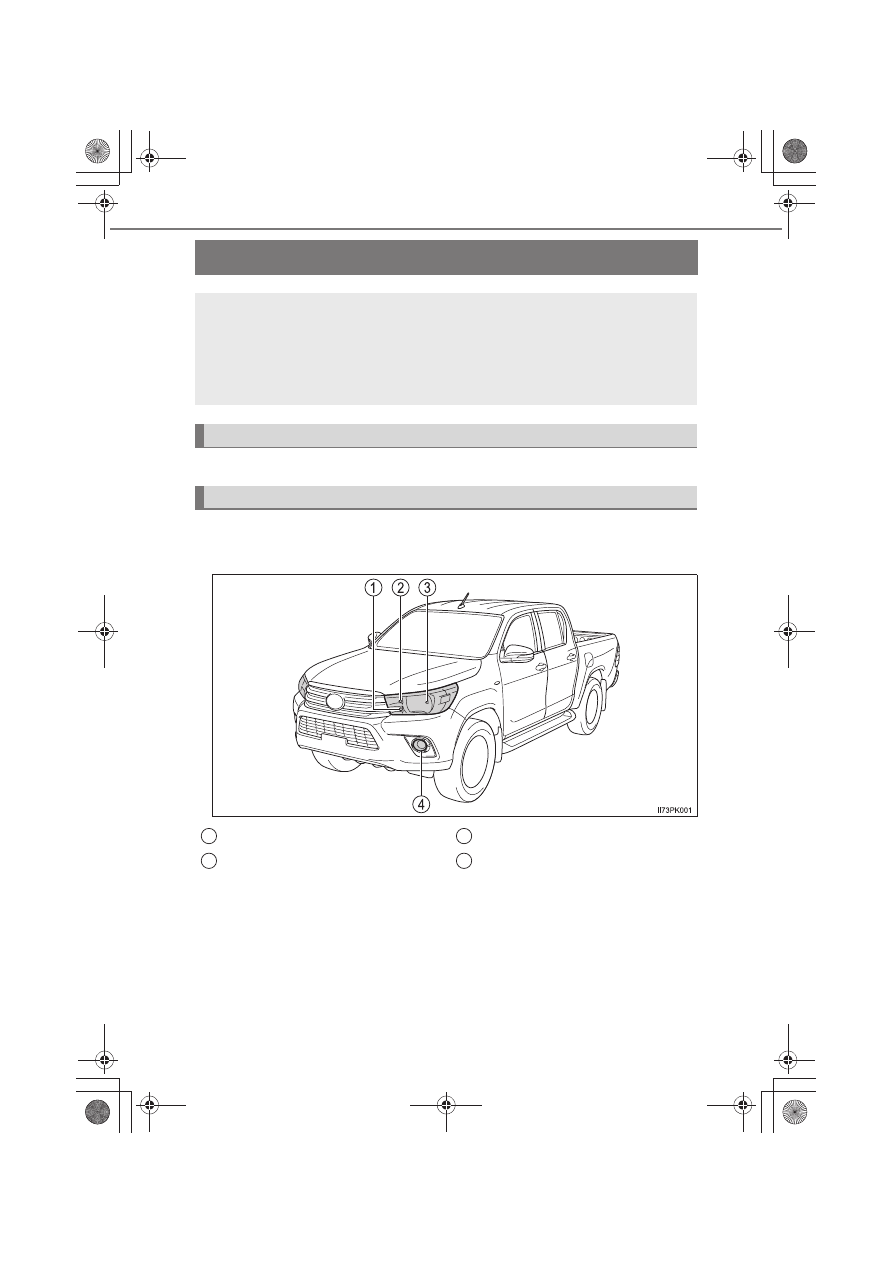

Light bulbs

Check the wattage of the light bulb to be replaced. (

→P. 644)

■

Front

X

Vehicles with halogen headlights

*

: If equipped

You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

Preparing for light bulb replacement

Bulb locations

Front turn signal light
Front position light/daytime run-
ning light

*

Headlight
Front fog light

*

1
2

3
4

541

7-3. Do-it-yourself maintenance

7

M

ai

nte
nan
ce and

 ca

re

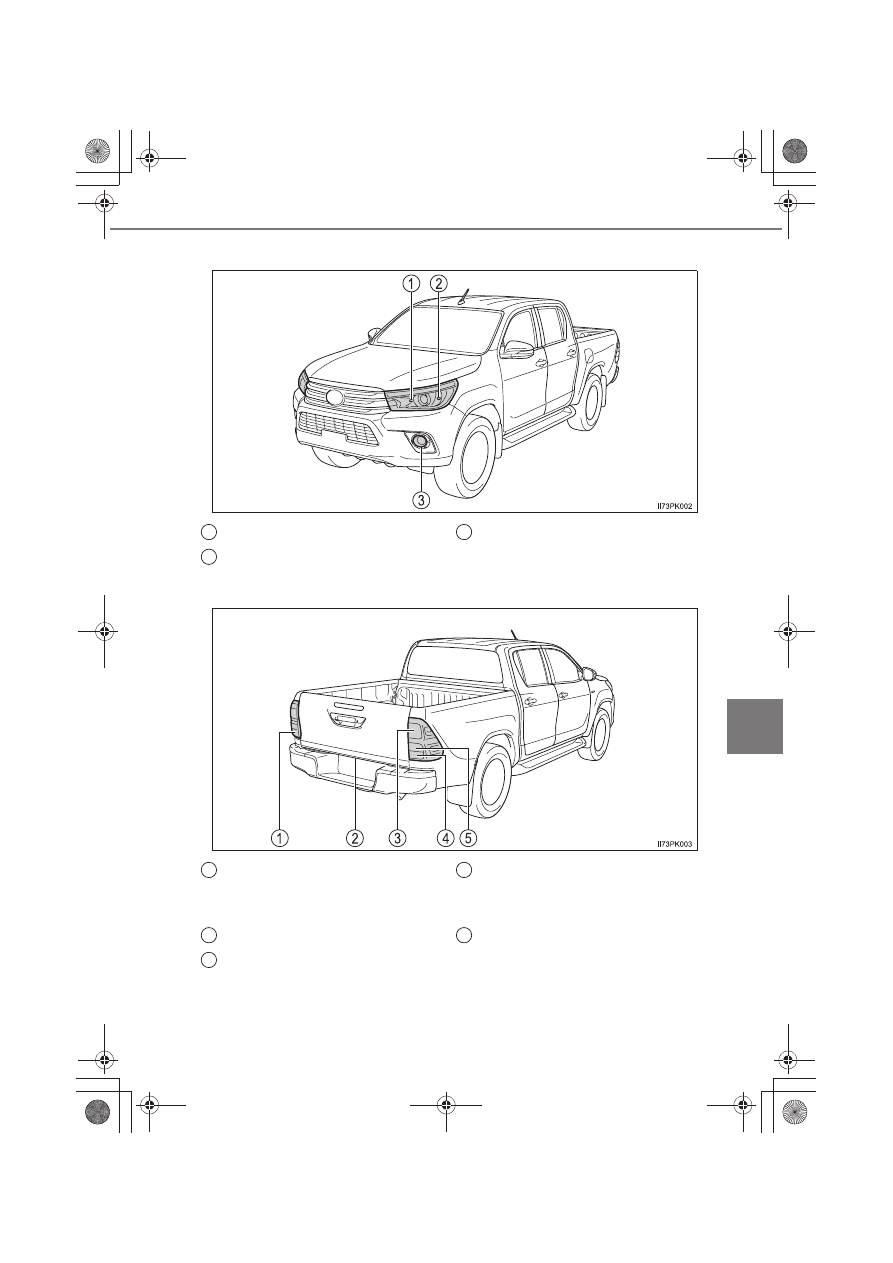

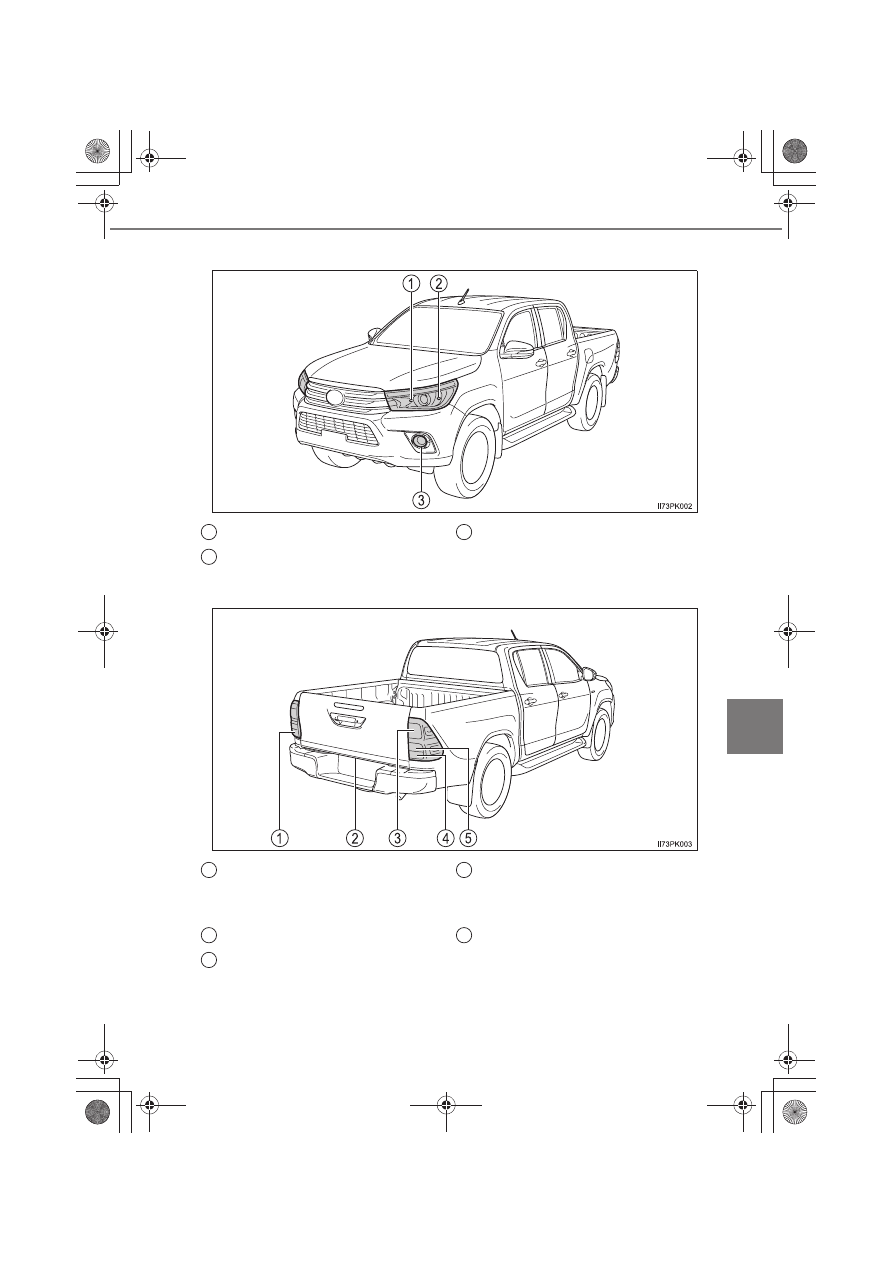

X

Vehicles with LED headlights

■

Rear

*

: If equipped

Headlight (high beam)
Front turn signal light

Front fog light

1
2

3

Rear fog light

*



(left-hand drive vehicles)
or back-up light
License plate light
Stop/tail light

Rear fog light

*



(right-hand drive vehicles)
or back-up light
Rear turn signal light

1

2
3

4

5

542

7-3. Do-it-yourself maintenance

■

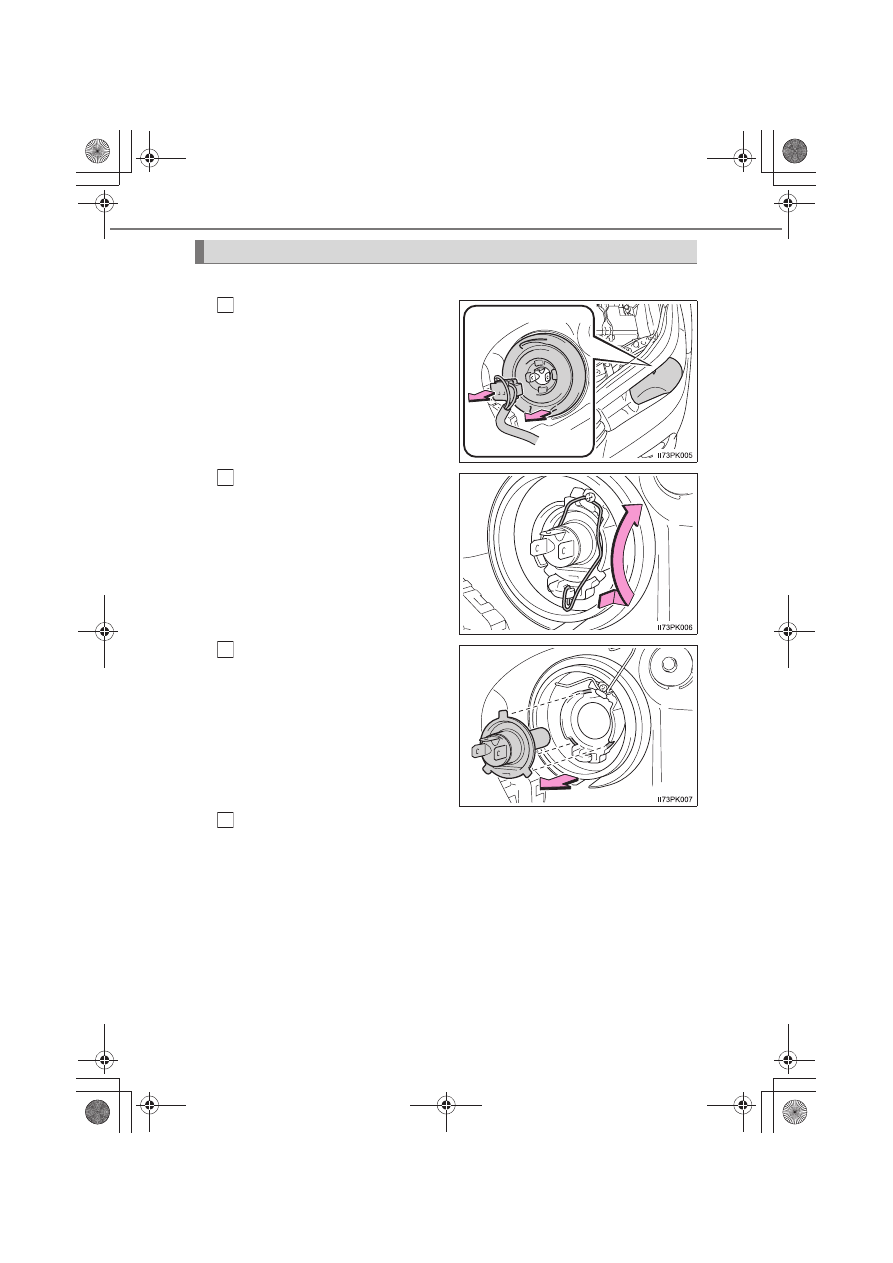

Headlight high/low beams (vehicles with halogen headlights)

Unplug the connector and
remove the rubber cover.

Release the bulb retaining
spring.

Remove the bulb.

To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.

When installing, reverse the steps listed.

Replacing light bulbs

1

2

3

4
