Toyota Hilux (2017 year). Manual - part 132

535

7-3. Do-it-yourself maintenance

7

M

ai

nte
nan
ce and

 ca

re

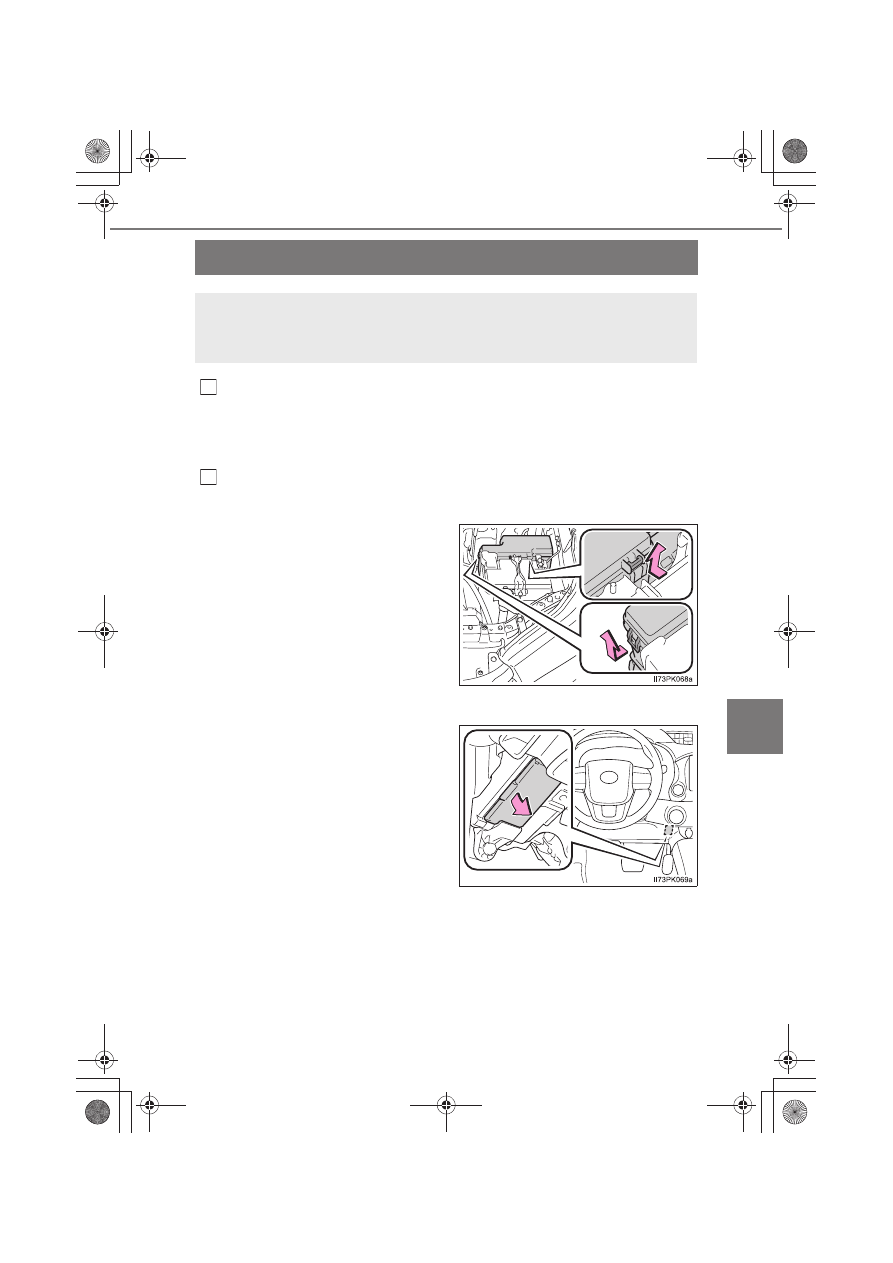

Checking and replacing fuses

Vehicles without smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system:
Turn the engine switch off.
Open the fuse box cover.

X

In the engine compartment

Push the tab in and pull the lock
release, and lift the lid off.

X

Under the instrument panel (left-hand drive vehicles)

Remove the lid.

If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.

1

2

536

7-3. Do-it-yourself maintenance

X

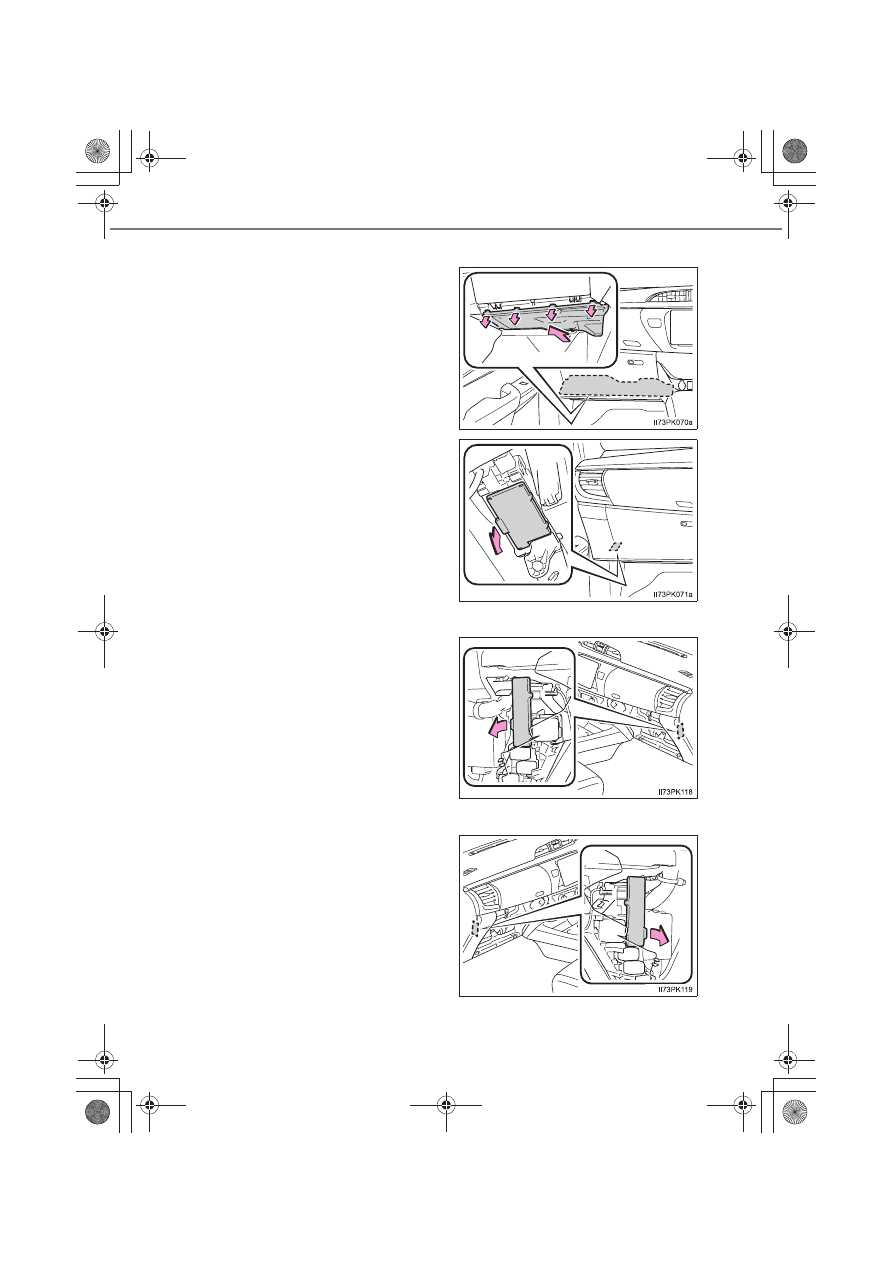

Under the instrument panel (right-hand drive vehicles)

Remove the cover (if
equipped).

Remove the lid.

X

Behind the instrument panel (left-hand drive vehicles)

Remove the glove box
(

→P. 530), and remove the lid.

X

Behind the instrument panel (right-hand drive vehicles)

Remove the glove box
(

→P. 530), and remove the lid.

537

7-3. Do-it-yourself maintenance

7

M

ai

nte
nan
ce and

 ca

re

X

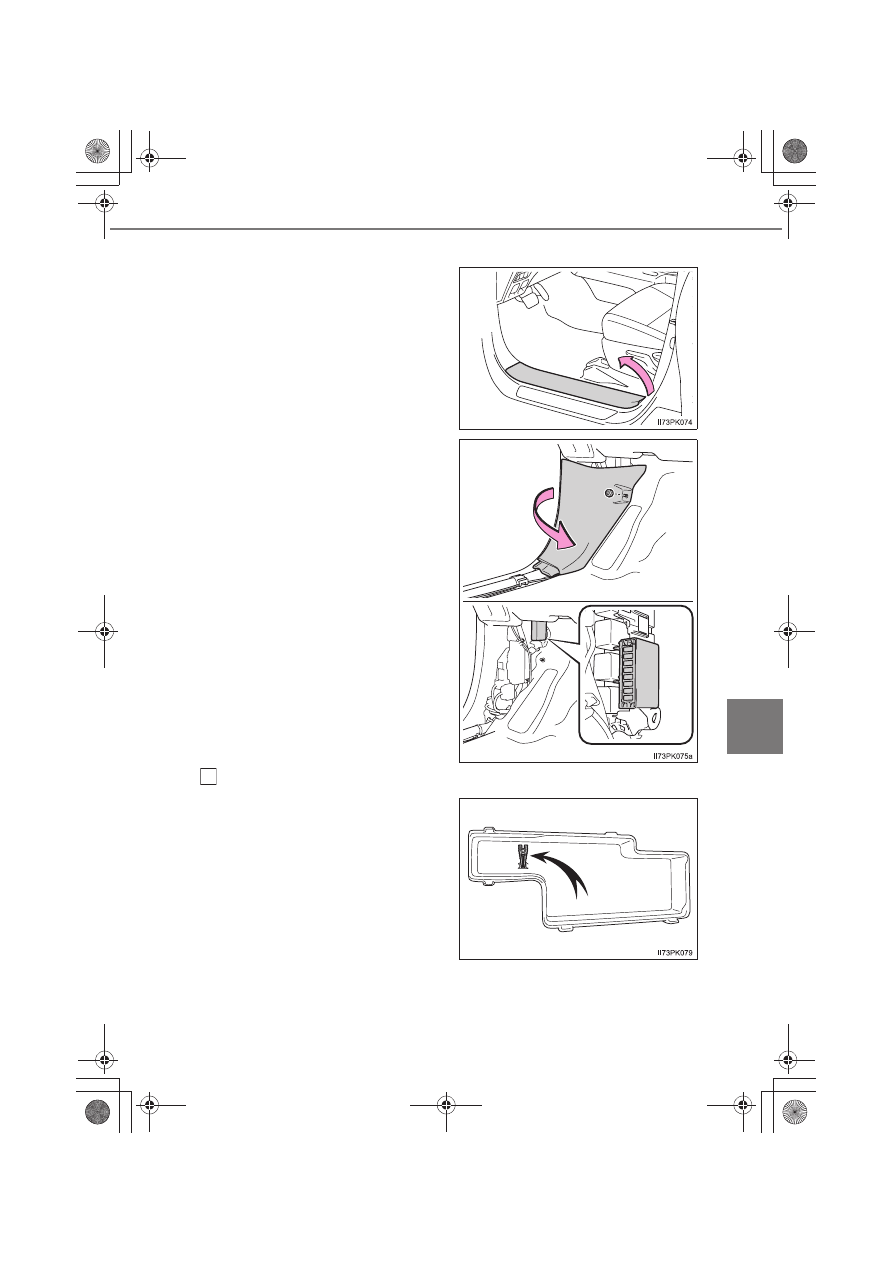

Behind the cowl side panel

Remove the driver’s door scuff
plate (left-hand drive vehicles)
or the front passenger’s door
scuff plate (right-hand drive
vehicles).

Remove the nut and the cowl
side panel.

Remove the fuse.

Only type A fuse can be
removed using the pullout tool.

3

538

7-3. Do-it-yourself maintenance

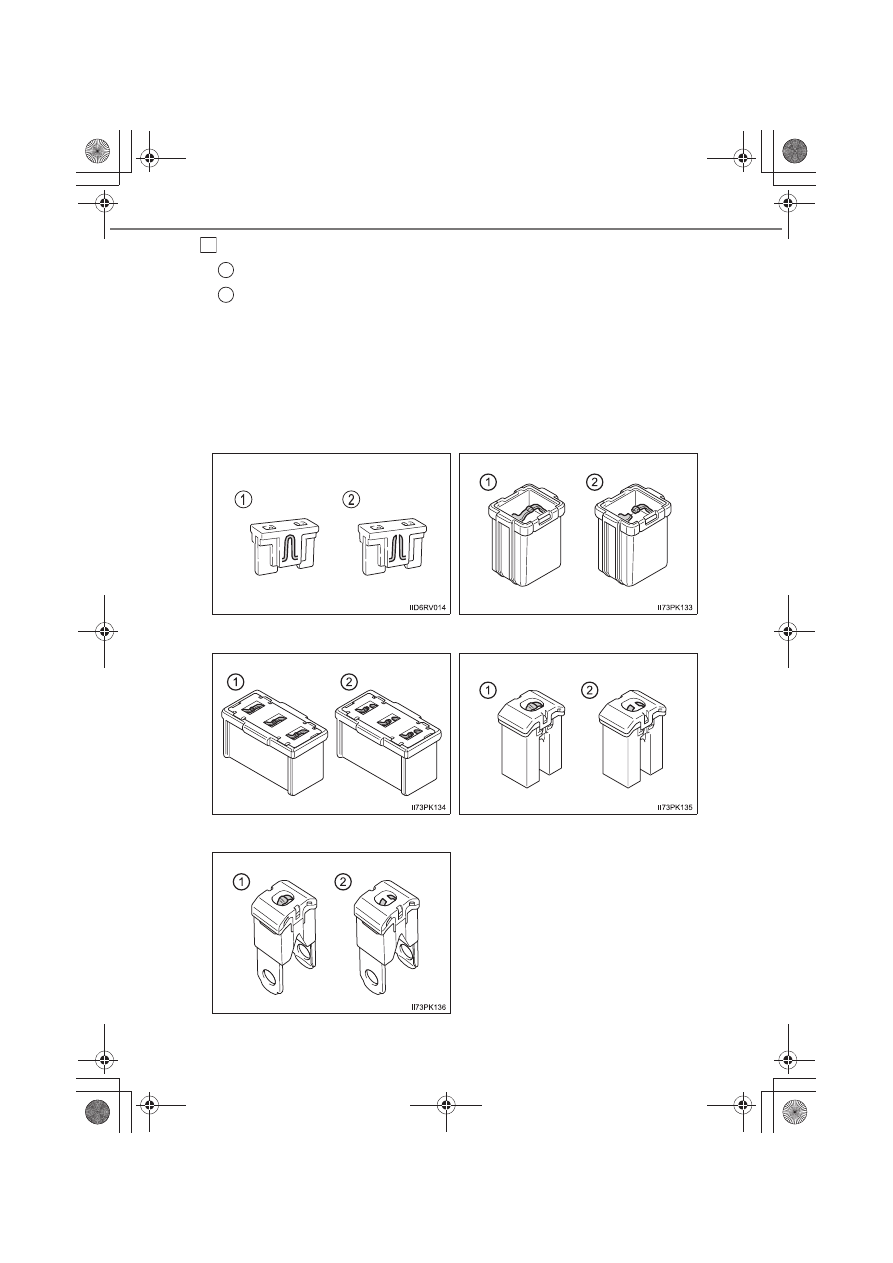

Check if the fuse is blown.

Normal fuse
Blown fuse

Type A, B, C and D:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.

4

1
2

X

Type A

X

Type B

X

Type C

X

Type D

X

Type E
