319

4-5. Using the driving support systems

4

D

riv

in

g

■

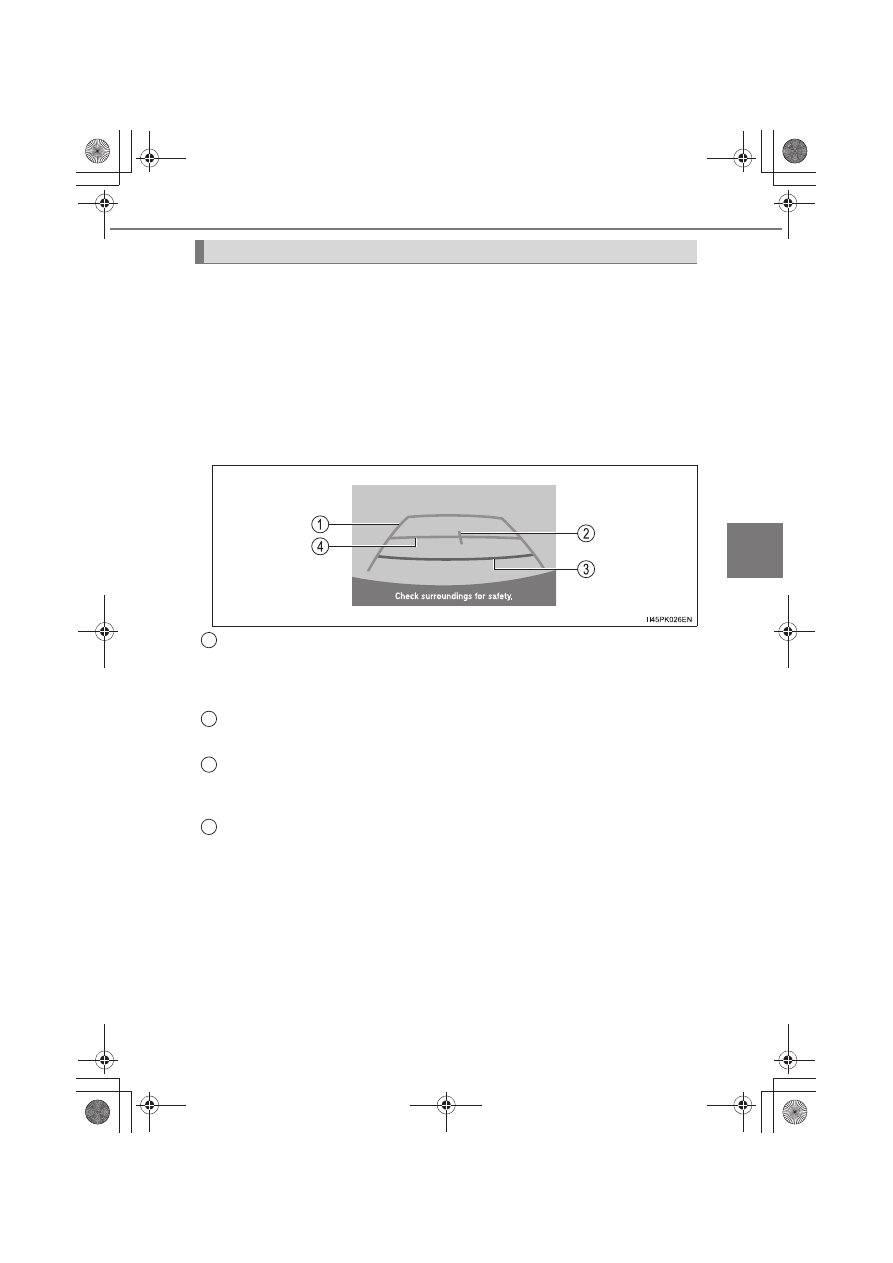

Screen description

X

Vehicles without smart entry & start system

The rear view monitor system screen will be displayed if the shift
lever is shifted to R while the engine switch is in the “ON” position.

X

Vehicles with smart entry & start system

The rear view monitor system screen will be displayed if the shift
lever is shifted to R while the engine switch is in IGNITION ON
mode.

Vehicle width guide line

The line indicates a guide path when the vehicle is being backed straight
up.
The displayed width is wider than the actual vehicle width.

Vehicle center guide line

The line indicates the estimated vehicle center on the ground.

Distance guide line (red)

The line shows distance behind the vehicle, a point approximately 0.5 m
(1.5 ft.) from the edge of the bumper.

Distance guide line (blue)

The line shows distance behind the vehicle, a point approximately 1 m
(3 ft.) from the edge of the bumper.

Using the rear view monitor system

1

2

3

4

320

4-5. Using the driving support systems

■

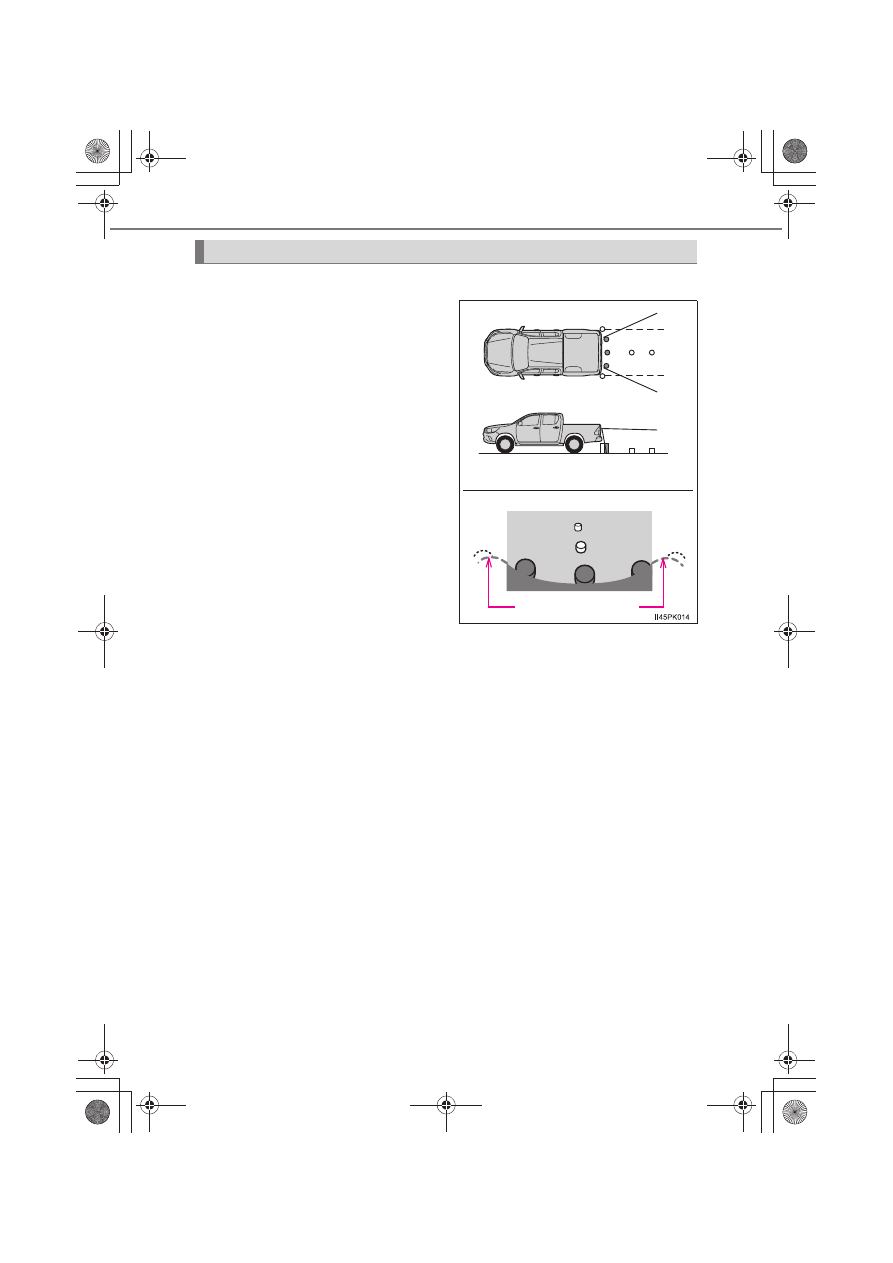

Area displayed on screen

The rear view monitor system
displays an image of the view
from the bumper of the rear
area of the vehicle.
The image on the rear view
monitor system screen can be
adjusted. Refer to the “Naviga-
tion and multimedia system
Owner’s manual”.

• The area displayed on the

screen may vary according to
vehicle orientation conditions.

• Objects which are close to either

corner of the bumper or under
the bumper cannot be dis-
played.

• The camera uses a special lens.

The distance of the image that
appears on the screen differs
from the actual distance.

• Items which are located higher than the camera may not be displayed

on the monitor.

Rear view monitor system precautions

Corners of bumper

321

4-5. Using the driving support systems

4

D

riv

in

g

■

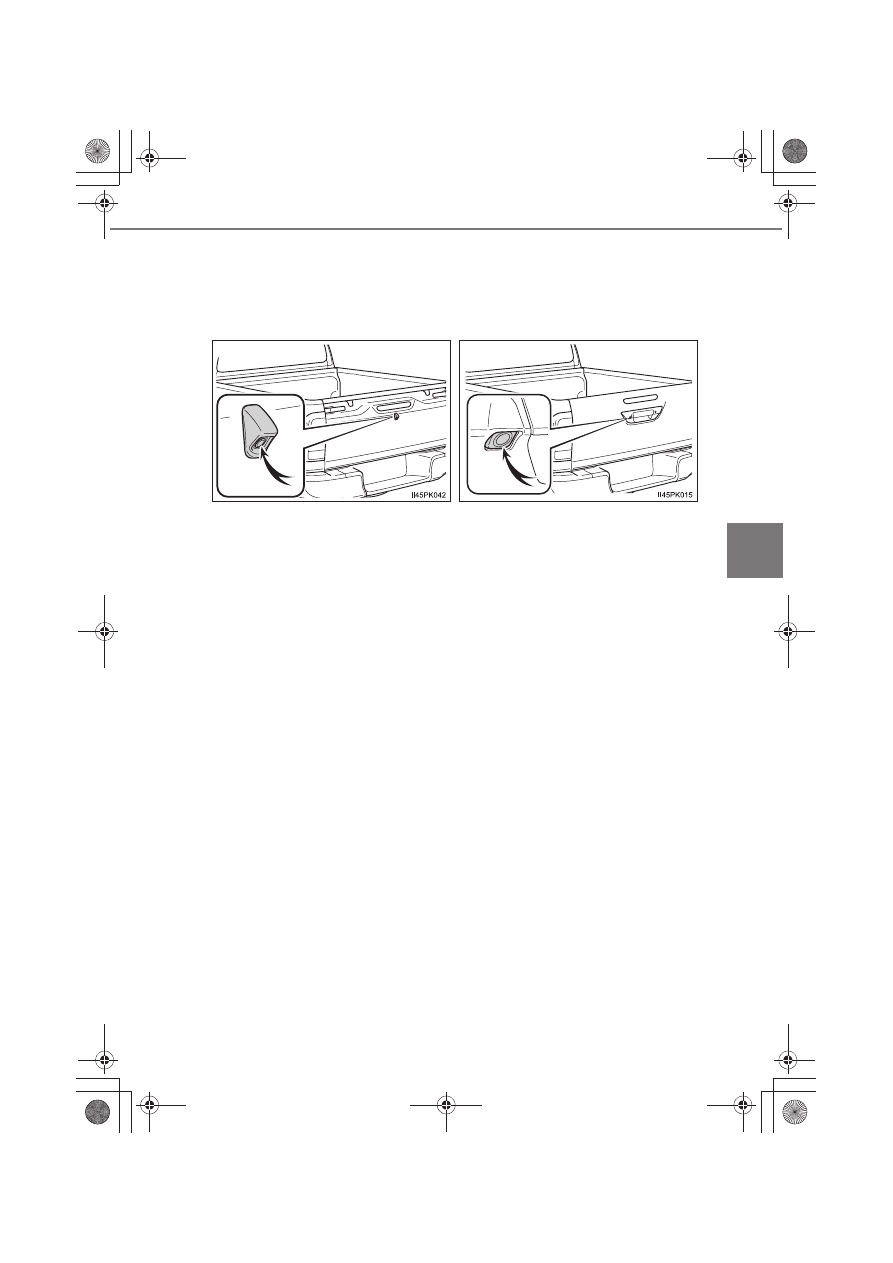

Rear view monitor system camera
The camera for the rear view monitor system is located on the tail-
gate.

● Using the camera

If dirt or foreign matter (such as water droplets, snow, mud etc.)
is adhering to the camera, it cannot transmit a clear image. In
this case, flush it with a large quantity of water and wipe the cam-
era lens clean with a soft and wet cloth.

■

Differences between the screen and the actual road
The distance guide lines and the vehicle width guide lines may not
actually be parallel with the dividing lines of the parking space, even
when they appear to be so. Be sure to check visually.
The distances between the vehicle width guide lines and the left
and right dividing lines of the parking space may not be equal, even
when they appear to be so. Be sure to check visually.
The distance guide lines give a distance guide for flat road sur-
faces. In any of the following situations, there is a margin of error
between the fixed guide lines on the screen and the actual dis-
tance/course on the road.

X

Type A

X

Type B

322

4-5. Using the driving support systems

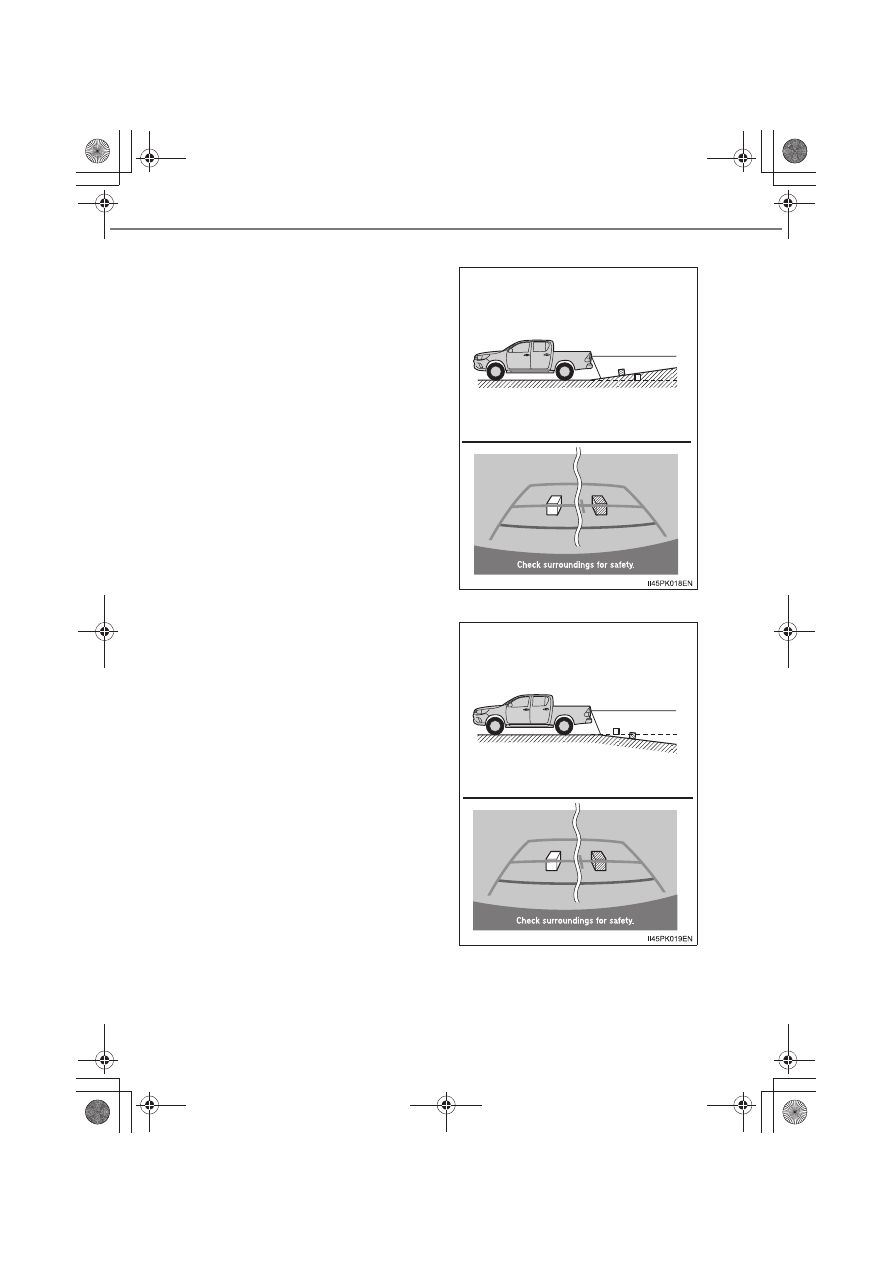

● When the ground behind the vehicle slopes up sharply

The distance guide lines will
appear to be closer to the
vehicle than the actual dis-
tance. Because of this,
objects will appear to be fur-
ther away than they actually
are. In the same way, there
will be a margin of error
between the guide lines and
the actual distance/course on
the road.

● When the ground behind the vehicle slopes down sharply

The distance guide lines will
appear to be further from the
vehicle than the actual dis-
tance. Because of this,
objects will appear to be
closer than they actually are.
In the same way, there will be
a margin of error between
the guide lines and the actual
distance/course on the road.
