4-5. Using the driving support systems

4

D

riv

in

g

● When any part of the vehicle sags

When any part of the vehicle
sags due to the number of
passengers or the distribu-
tion of the load, there is a
margin of error between the
fixed guide lines on the
screen and the actual dis-
tance/course on the road.

■

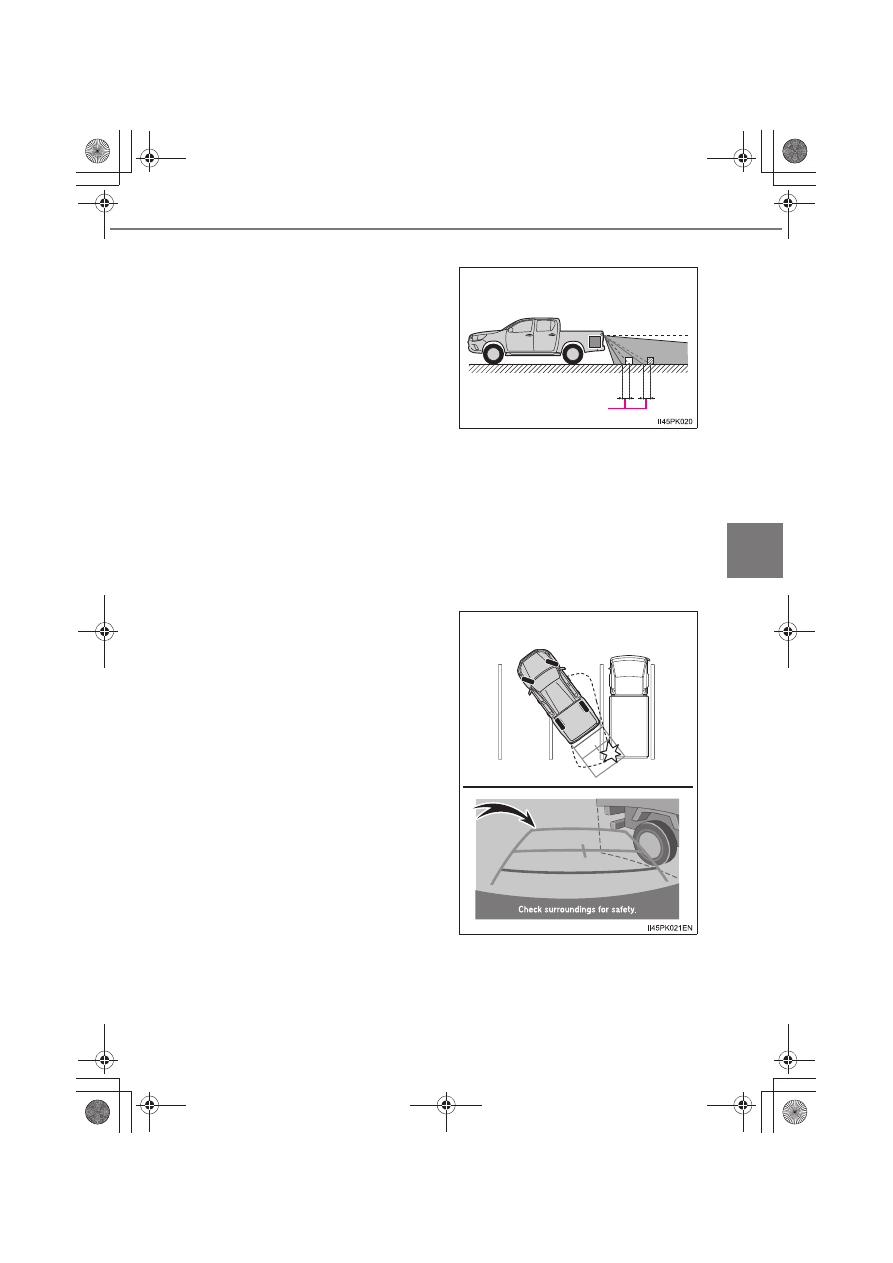

When approaching three-dimensional objects
The distance guide lines are displayed according to flat surfaced
objects (such as the road). It is not possible to determine the posi-
tion of three-dimensional objects (such as vehicles) using the vehi-
cle width guide lines and distance guide lines. When approaching a
three-dimensional object that extends outward (such as the flatbed
of a truck), be careful of the following.
● Vehicle width guide lines

Visually check the surround-
ings and the area behind the
vehicle. In the case shown in
the illustration, the truck
appears to be outside of the
vehicle width guide lines and
the vehicle does not look as if
it hits the truck. However, the
rear body of the truck may
actually cross over the vehi-
cle width guide lines. In real-
ity if you back up as guided
by the vehicle width guide
lines, the vehicle may hit the
truck.

A margin of error

324

4-5. Using the driving support systems

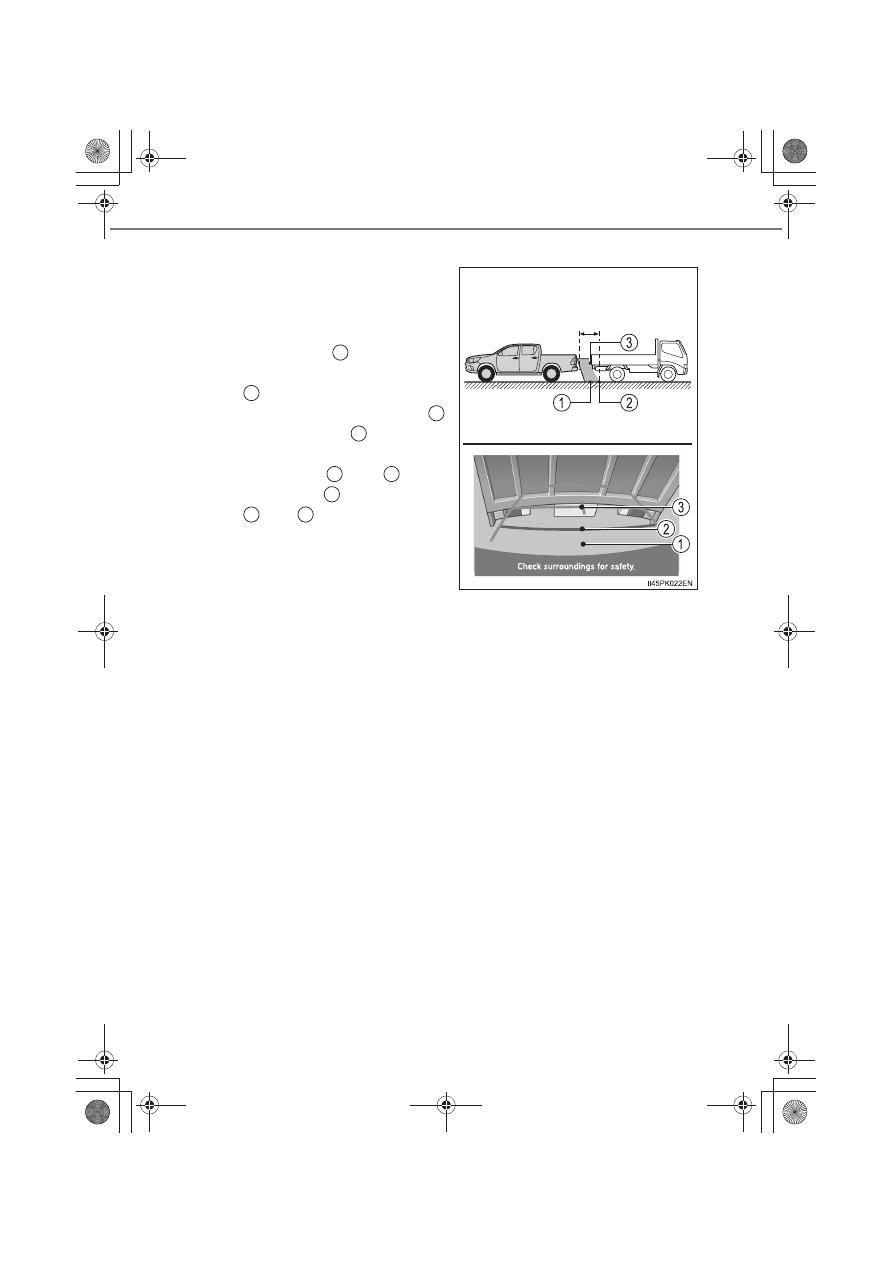

● Distance guide lines

Visually check the surround-
ings and the area behind the
vehicle. On the screen, it
appears that a truck is park-
ing at point

. However, in

reality if you back up to point

, you will hit the truck. On

the screen, it appears that
is closest and

 is farthest

away. However, in reality, the
distance to

 and

 is the

same, and

 is further than

 and

.

2

1

1

3

1

3

2

1

3

325

4-5. Using the driving support systems

4

D

riv

in

g

■

If you notice any symptoms
If you notice any of the following symptoms, refer to the likely cause
and the solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle
inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.

Things you should know

Likely cause

Solution

‰

The image is difficult to see

• The vehicle is in a dark area
• The temperature around the lens

is either high or low

• The outside temperature is low
• There are water droplets on the

camera

• It is raining or humid
• Foreign matter (mud etc.) is

adhering to the camera

• There are scratches on the cam-

era

• Sunlight or headlights are shining

directly into the camera

• The vehicle is under fluorescent

lights, sodium lights, mercury
lights etc.

If this happens due to these causes,
it does not indicate a malfunction.
Back up while visually checking the
vehicle’s surroundings. (Use the
monitor again once conditions have
been improved.)
The image on the rear view monitor
system screen can be adjusted,
refer to the “Navigation and
multimedia system Owner’s
manual”.

‰

The image is blurry

Dirt or foreign matter (such as water
droplets, snow, mud etc.) is adher-
ing to the camera.

Flush the camera with a large quan-
tity of water and wipe the camera
lens clean with a soft and wet cloth.

326

4-5. Using the driving support systems

‰

The image is out of alignment

The camera or surrounding area has
received a strong impact.

Have the vehicle inspected by any
authorized Toyota dealer or repairer,
or another duly qualified and
equipped professional.

‰

The fixed guide lines are very far out of alignment

The camera position is out of align-
ment.

Have the vehicle inspected by any
authorized Toyota dealer or repairer,
or another duly qualified and
equipped professional.

• The vehicle is tilted (there is a

heavy load on the vehicle, tire
pressure is low due to a tire punc-
ture, etc.)

• The vehicle is used on an incline.

If this happens due to these causes,
it does not indicate a malfunction.
Back up while visually checking the
vehicle’s surroundings.

Likely cause

Solution
