Запчасти: WHEEL AND SPARE WHEEL CARRIER для SFC 407 LHD Euro II

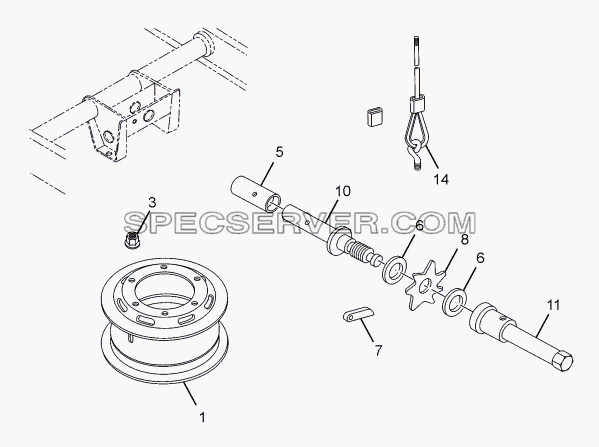

WHEEL AND SPARE WHEEL CARRIER для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264033408206	HUB COVER (FRONT AXLE)
1	265140100198	WHEEL RIM 6.00 G X 16
3	264040100101	ASSY. WHEEL NUT
5	265140308401	SLEEVE
6	257340306301	FRICTION PAD
7	257640307109	RATCHET ARM
8	257640307108	RATCHET WHEEL
10	265140300115	ASSY. SHAFT
11	270540300101	ASSY. HANDLE
14	265140300146	ASSY. WIRE ROPE

Запчасти: PROPELLER SHAFT для SFC 407 LHD Euro II

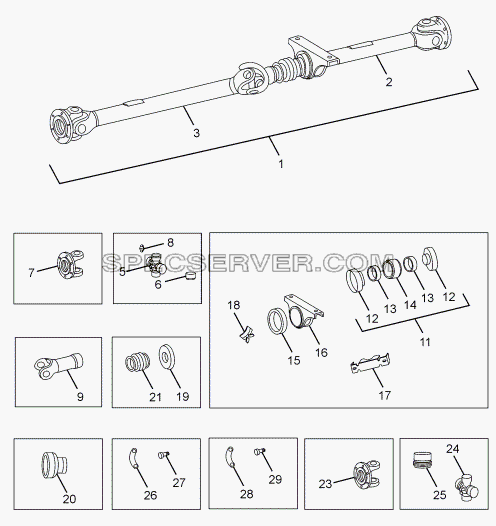

PROPELLER SHAFT для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	265131408231	GUARD REPAIR KIT
-	265141100128	CROSS REPAIR KIT
-	265141106502	HEX. NUT (M 26X1.5)
-	265141114311	CIRCLIP
-	885441011210	ASSY. CROSS KIT CONSISTING OF:
-	CLOSING RING
-	GREASE NIPPLE
-	HEX LOCK NUT M 8 X 1
-	LOCK NUT
-	SPRING RING
1	265141000102	ASSY.UNITISED PROP.SHAFT COMPLETE
2	265141110129	ASSY. PROPELLER SHAFT COMPLETE FRONT
3	265141120106	ASSY. PROPELLER SHAFT REAR COMPLETE
5	ASSY. CROSS
6	ASSY. BEARING CUP
7	265141105102	U J FLANGE
8	GREASE NIPPLE
9	265141100101	ASSY. LONG FORK
11	265441300104	ASSY. CENTRE BEARING
12	265441308205	DUST SEAL RETAINER
13	265441307802	DUST SEAL
14	265441303101	SRDG. BALL BEARING
15	265441307503	RUBBER BEARING (PROPELLER SHAFT CENTRE BEARING)
16	265141303301	ASSY. CENTRE BEARING BRACKET
17	269841304201	CLAMP
18	269841308202	RETAINER
19	269841308203	DUST COVER
20	265141118603	SPACER
21	265141120101	ASSY. PROTECTIVE CAP
23	3124111111	UNIVERSAL JOINT FLANGE
24	ASSY. CROSS
25	ASSY. BEARING CUP
26	265141108001	FITTING SCREW
27	265141108230	LOCKING PLATE
28	3219901501	FITTING SCREW
29	250526406101	LOCKING PLATE

Запчасти: PROPELLER SHAFT (MSL MAKE) для SFC 407 LHD Euro II

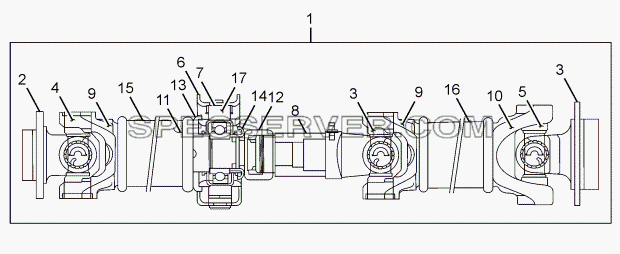

PROPELLER SHAFT (MSL MAKE) для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	265141000110	ASSY.UNITISED PROP.SHAFT (M/S MSL)
2	265141105121	1350 FLANGE YOKE
3	265141125101	1410 FLANGE YOKE
4	265141105122	1350 U.J.KIT
5	265141105123	1410 U.J.KIT
6	265141108232	CENTER BEARING BRACKET
7	265141107501	CENTER BEARING RUBBER
8	265141105124	SLEEVE YOKE
9	265141105125	1350 STUB YOKE
10	265141125102	1410 STUB YOKE
11	265141105126	BEARING PLUG SHAFT
12	265141108233	DUST CAP FOR SLEEV YOKE
13	265141108234	FLINGER
14	265141108235	DUST COVER (SHIELD)
15	265141110147	ASSY FRONT SHAFT
15	265141110148	ASSY SHAFT FRONT
16	265141120115	ASSY.REAR SHAFT
17	265141100146	CENTER BEARING KIT

Запчасти: FRONT WHEEL BRAKES для SFC 407 LHD Euro II

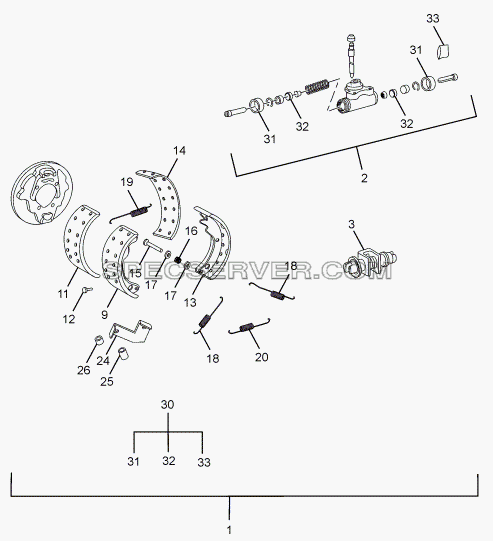

FRONT WHEEL BRAKES для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	265142100152	ASSY AUTO ADJUSTER-NEW
-	270542100132	ASSY ANCHOR PLATE FRONT-LH
-	270542100133	ASSY ANCHOR PLATE FRONT-RH
1	265142100171	ASSY. FRONT AXLE BRAKE-LH
1	265142100172	ASSY. FRONT AXLE BRAKE-RH
2	264042120105	ASSY. WHEEL CYLINDER 22.22 DIA.
3	265142100121	ASSY. ADJUSTER COMPLETE
9	265142130128	ASSY.BRAKE SHOE W/LINING PRIM-SA63SM
11	264042136306	BRAKE LINING PRIMARY NORMAL, 9.8 MM THICK
11	264042136307	BRAKE LINING PRIMARY R/S I, 10.8 MM THICK
11	264042136308	BRAKE LINING PRIMARY R/S II, 11.8 MM THICK
12	13442506102	HOLLOW RIVET 6X10 ST.
13	265142130129	ASSY.BRAKE SHOE W/LINING PRIM-SA63SM
14	264042136302	BRAKE LINING SECONDARY NORMAL 9.8 MM THICK
14	264042136303	BRAKE LINING SECONDARY R/S I 10.8 MM THICK
14	264042136304	BRAKE LINING SECONDARY R/S II 11.8 MM THICK
15	264042106701	PIN
16	265142308701	SPRING (AXIAL RETAINING)
17	265142308215	COVER
18	264042108705	RETURN SPRING (CENTRE)
19	264042108704	SPRING
20	265142108706	RETURN SPRING (BOTTOM)
24	265142107103	LOCK PLATE
25	265142107707	PLUG
26	265142307705	PLUG REPAIR KITS
30	264042120108	REPAIR KIT (MINOR) FOR WHEEL CYLINDER (22.22 MM DIA.) CONSISTING OF :
31	RUBBER BOOT
32	CUP SEAL
33	GREASE TUBE

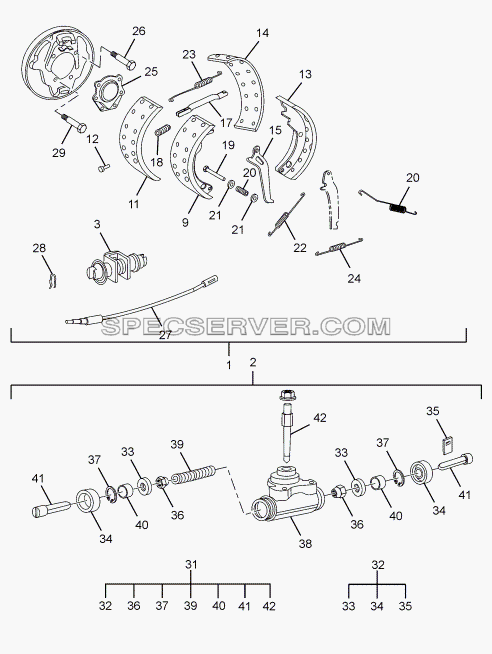

REAR WHEEL BRAKES для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	265142100152	ASSY AUTO ADJUSTER-NEW
-	265142310133	ASSY ANCHOR PLATE REAR-LH
-	265142310134	ASSY ANCHOR PLATE REAR-RH
1	265142310164	ASSY REAR AXLE BRAKE LH (SFC 406)
1	265142310165	ASSY REAR AXLE BRAKE RH (SFC 406)
2	265142300165	ASSY. WHEEL CYLINDER 17.78 DIA.
3	265142100121	ASSY. ADJUSTER COMPLETE
9	265142130128	ASSY.BRAKE SHOE W/LINING PRIM-SA63SM
11	264042136306	BRAKE LINING PRIMARY NORMAL, 9.8 MM THICK
11	264042136307	BRAKE LINING PRIMARY R/S I, 10.8 MM THICK
11	264042136308	BRAKE LINING PRIMARY R/S II, 11.8 MM THICK
12	13442506102	HOLLOW RIVET 6X10 ST.
13	265142130129	ASSY.BRAKE SHOE W/LINING PRIM-SA63SM
14	264042136302	BRAKE LINING SECONDARY NORMAL 9.8 MM THICK
14	264042136303	BRAKE LINING SECONDARY R/S I 10.8 MM THICK
14	264042136304	BRAKE LINING SECONDARY R/S II 11.8 MM THICK
15	264042306001	BRAKE LEVER RH
15	264042306002	BRAKE LEVER LH
17	264042300105	ASSY. THRUST ROD LH
17	264042300106	ASSY. THRUST ROD RH
18	264042308701	THRUST SPRING
19	264042106701	PIN
20	265142308701	SPRING (AXIAL RETAINING)
21	265142308215	COVER
22	264042108705	RETURN SPRING (CENTRE)
23	264042108704	SPRING
24	265142108706	RETURN SPRING (BOTTOM)
25	265142308233	OIL CATCHER
26	257342308004	HEX. SCREW
27	265242700120	ASSY. PARKING BRAKE CABLE REAR
28	265142704301	CLIP
29	264142308001	HEX. SCREW
31	265142300171	REPAIR KIT (MINOR) WHEEL CYLINDER (17.78 MM DIA.) CONSISTING OF :
32	265142300167	REPAIR KIT (MINOR) WHEEL CYLIDER (17.85 MM DIA.) CONSISTING OF
33	LIP SEAL
33	LIP SEAL
34	RUBBER BOOT
34	RUBBER BOOT
35	GREASE TUBE
35	GREASE TUBE
36	CAP
37	CIRCLIP
38	BODY
39	SPRING
40	PISTON
41	PUSH ROD
42	BLEEDER SCREW

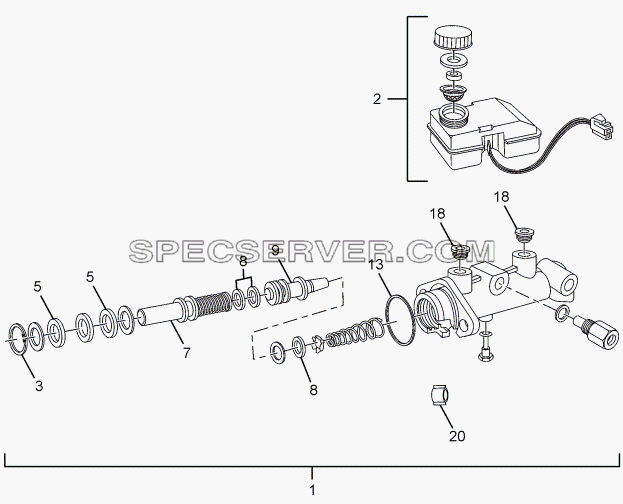

TANDEM MASTER CYLINDER для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	265442100178	MAJOR KIT-TANDEM MASTER CYLINDER(KBX)
-	265442100179	MINOR KIT-TANDEM MASTER CYLINDER(KBX)
-	265443100132	MAJOR KIT-TANDEM MASTER CYL(BIL)
-	265443100133	MINOR KIT-TANDEM MASTER CYL(BIL)
-	CIRCLIP
-	CIRCLIP
-	GREASE SACHET
-	GREASE SACHET
-	PLUNGER ASSY.-PRIMARY
-	PLUNGER ASSY.-SECONDARY
-	SEAL (BACK-SEC)
-	SEAL - FLUID TANK
-	SEAL - FLUID TANK
-	SEAL RECUPERATING
-	SEAL-GLAND
-	SEAL-GLAND
-	SEALING RING
-	SEALING RING
-	SPACER
-	STOP PIN
-	STOP WASHER
-	WASHER(STOP PIN)
-	WASHER(STOP PIN)
1	269843100101	ASSY. TANDEM MASTER CYLINDER
2	265443100118	ASSY. BRAKE FLUID CONTAINER
3	CIRCLIP 35X1.5
3	CIRCLIP 35X1.5
5	REAR SEAL
5	REAR SEAL
7	PRIMARY PISTON ASSY
7	PRIMARY PISTON ASSY
8	PISTON STOP PLATE
8	PRIMARY CUP
8	SECONDARY CUP
9	SECONDARY PISTON ASSY
13	O RING
13	O RING
18	RESERVOIR GROMMET
18	RESERVOIR GROMMET
20	PISTON GUIDE
20	PISTON GUIDE

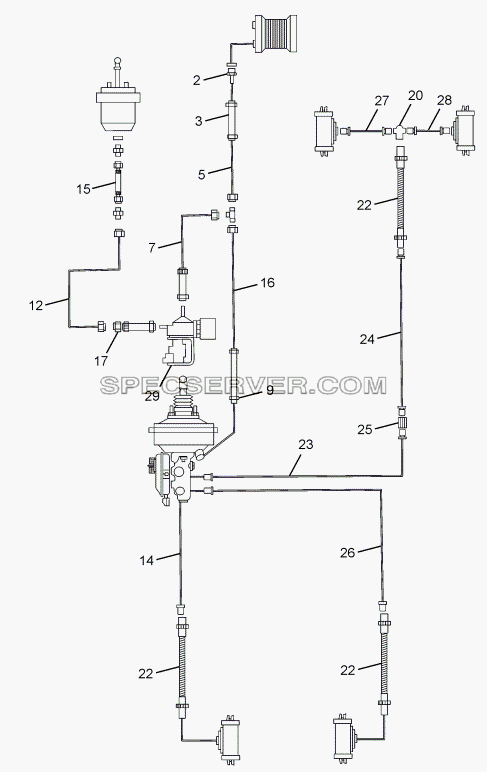

BRAKE PIPE LINES для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
2	265143510109	TUBE ASSY.
3	265143505804	HOSE
5	265142810107	ASSY TUBE
7	265142800199	ASSY.TUBE
9	264043505801	HOSE
12	265142800199	ASSY.TUBE
14	265143800152	ASSY TUBE
15	257525600106	ASSY HOSE
16	265142810108	ASSY.TUBE
17	264142900102	HOSE ASSEMBLY
20	265142806803	THREE WAY CONNECTOR
22	264042800121	ASSY. HOSE 3.2 DIA.
23	265142800198	ASSY.TUBE
24	265142800165	ASSY. TUBE
25	265142806804	ADAPTER
26	265143800153	TUBE ASSY.
27	265142800144	ASSY. TUBE FOR L.H.SIDE WHEEL CYLINDER.
28	265142800145	ASSY. TUBE FOR R.H.SIDE WHEEL CYLINDER.
29	264154209903	MAGNETIC VALVE

PARKING BRAKE 357175, 357174 для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	264042700167	ASSY. HAND BRAKE LEVER (COMPLETE)
2	265142705603	KNOB
3	265142708603	SPRING GUIDE
4	265142708703	HELICAL COMPRESSION SPRING
5	265142709902	PAWL
7	265142705601	HANDLE
8	265142706705	CLEVIS PIN
9	264042700113	ASSY. RATCHET
10	265142706707	PIN
11	265242700117	ASSY. CABLE FRONT
12	265142708601	SPACER
13	265142706706	CLEVIS PIN
14	13150606165	SPLIT PIN 2X16
16	264042700116	ASSY. HAND BRAKE COVER
17	265242708201	LINK
19	265142709907	SPHERICAL NUT
20	265242700120	ASSY. PARKING BRAKE CABLE REAR

PARKING BRAKES 357171, 357172, 357173 для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	265242708701	RETURN SPRING (PARKING BRAKE CABLE)
-	270242804301	CLIP (BRAKE HOSE)
1	265242700122	ASSY.PARKING BRAKE HANDLE
2	265242700128	ASSY. CUP(PARKING BRAKE HANDLE)
11	265242700117	ASSY. CABLE FRONT
14	13150606165	SPLIT PIN 2X16
17	265242708201	LINK
19	265142709907	SPHERICAL NUT
20	265242700120	ASSY. PARKING BRAKE CABLE REAR

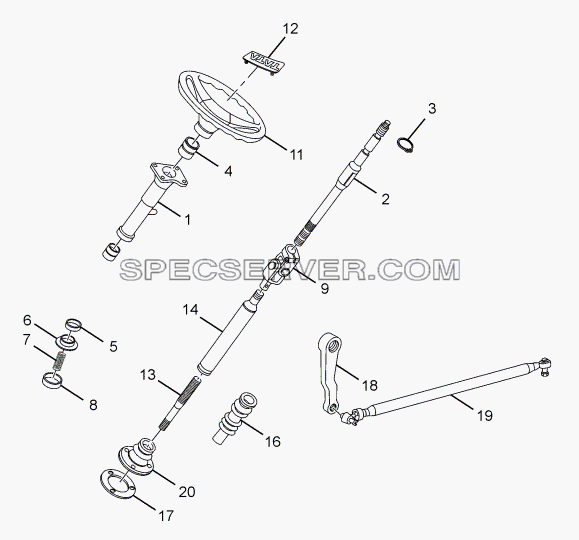

STEERING LINKAGES для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	265146600132	ASSY. 26 DIA. BALL JOINT (THREADED) -DRAG LINK
-	265146600135	ASSY. 26 DIA. BALL JOINT (CLAMPED) -DRAG LINK
-	265146603201	BOLT
-	265946406305	HORN PAD
1	265146210109	ASSY STEERING COLUMN
2	264046200134	ASSY. STEERING SPINDLE TOP
3	14550602009	CIRCLIP 20X1.2 N
4	264046203102	S.R.D.G. BALL BEARING
5	264146207920	SPACER
6	265446209915	SPRING SEAT
7	265446208711	COMPRESSION SPRING
8	265446208278	SPRING SEAT CUP
9	265146600102	ASSY.UNIVERSAL JOINT
11	265946400101	ASSY STEERING WHEEL 400 DIA, 4 SPOKE
12	265446406312	T EMBLEM
13	265146210119	ASSY.SPINDLE
14	269846207916	STEERING SPINDLE - BOTTOM
16	265846206306	RUBBER BELLOW (SLEEVE / TOP).
17	265146108201	CLAMPING RING
18	265146306009	PITMAN ARM LHD
19	265146600125	ASSY DRAG LINK
20	265146106301	RUBBER BELLOW (ON FLOOR)
