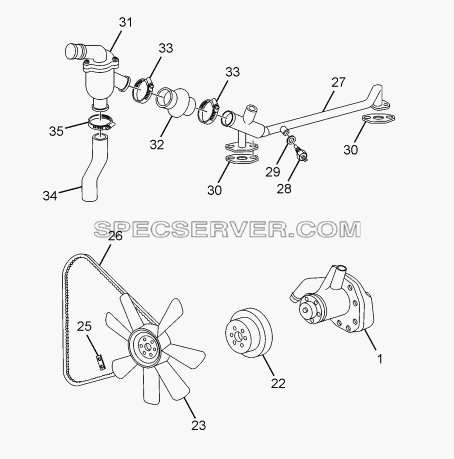

Запчасти: WATER PUMP 357171, 357172, 357173 для SFC 407 LHD Euro II

WATER PUMP 357171, 357172, 357173 для SFC 407 LHD Euro II (список запасных частей)

WATER PUMP 357171, 357172, 357173 для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 253420105301 GASKET
- 253420143801 FAN SPACER-15
1 253420100130 ASSY.WATER PUMP
22 253320137003 WATER PUMP PULLEY
23 254720140101 ASSY. FAN (PLASTIC MOULDED) (418 DIA.)
25 3129940330 LOCK PLATE
26 253420156302 NARROW V BELT 1185 LG COGGED TYPE
27 253420120108 ASSY.UPPER COOLING WATER LINE
28 263254209903 TEMP. TRANSDUCER
29 16220510216 SEALING WASHER 14X18 AL
30 252020125301 GASKET (UPPER COOLING LINE)
31 253420120143 ASSY.THERMOSTATE(83 DEG.)-EURO-III
32 253450005801 RUBBER BELLOW
33 254750104222 HOSE CLAMP (50 DIA)
34 253450105828 RUBBER HOSE (THERMOSTAT TO WATER PUMP)
35 252750104208 HOSE CLAMP 34

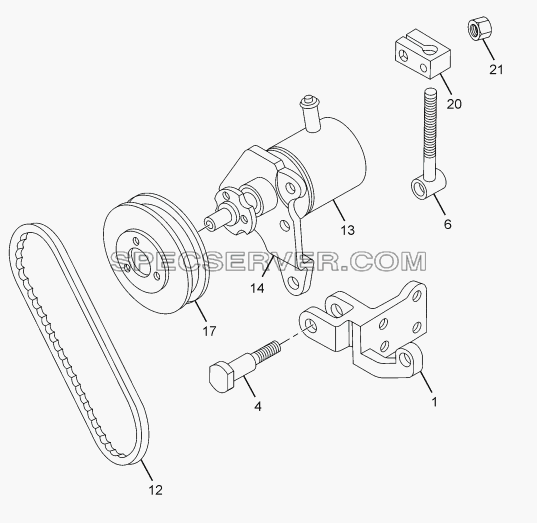

Запчасти: POWER STEERING PUMP MOUNTING для SFC 407 LHD Euro II

POWER STEERING PUMP MOUNTING для SFC 407 LHD Euro II (список запасных частей)

POWER STEERING PUMP MOUNTING для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 12140501202 NYLOCK NUT M 12
1 253423400131 ASSY BRACKET (POWER STEERING MOUNTING)
4 252523116704 PIN
6 253423400136 ASSY. TENSIONER (P/S-PUMP)
12 253420156330 V BELT -950 LG
13 264146800144 ASSY.STEERING.PUMP-ZF CP1
14 253423400137 ASSY. BRACKET (FOR POWER STRG. PUMP)
17 253423407007 PULLEY (FOR POWER STEERING PUMP)
20 3141550228 CLAMPING PIECE
21 3521550272 CLAMPING NUT

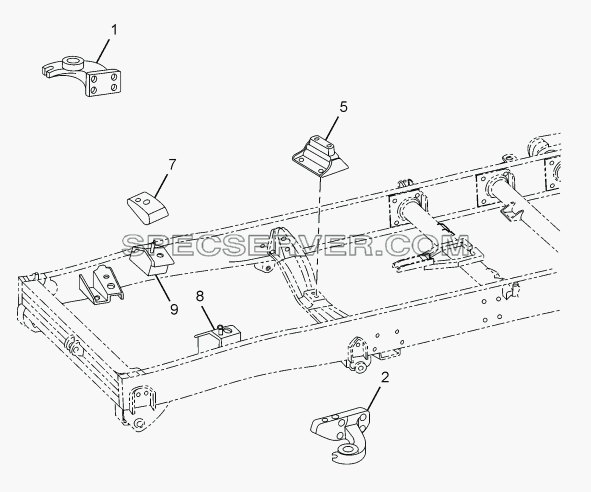

Запчасти: ENGINE SUSPENSION для SFC 407 LHD Euro II

ENGINE SUSPENSION для SFC 407 LHD Euro II (список запасных частей)

ENGINE SUSPENSION для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 265124100113 KIT FOR ENGINE MOUNTING PAD CONSISTING OF
- 265124208204 OIL BAFFLE
1 253422125105 FRONT ENGINE SUPPORT LEFT
2 253422125104 FRONT ENGINE SUPPORT RIGHT
5 265124200102 ASSY. ENGINE MOUNTING REAR
5 ASSY. ENGINE MOUNTING REAR
7 264124108211 COVER ENGINE MOUNTING FRONT (RH)
8 264124100109 ASSY. ENGINE MOUNTING FRONT (RH)
8 ASSY. ENGINE MOUNTING FRONT RH
9 264124100110 ASSY. ENGINE MOUNTING FRONT (LH)
9 ASSY. ENGINE MOUNTING FRONT LH

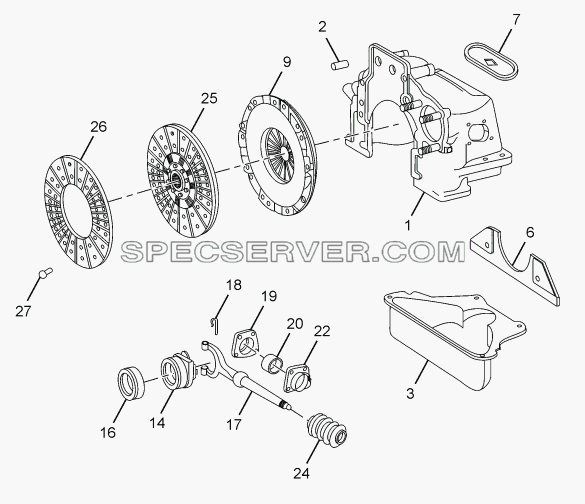

Запчасти: CLUTCH HOUSING для SFC 407 LHD Euro II

CLUTCH HOUSING для SFC 407 LHD Euro II (список запасных частей)

CLUTCH HOUSING для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 253425105301 GASKET (INSPECTION WINDOW) CLUTCH 240 DIA. CL.DISC & PR.PLATE (CEEKAY) CONSISTS OF :
- 253425108214 COVER (FOR INSPECTION WINDOW)
- 265125200108 REPAIR KIT FOR 240 MM DIA. CLUTCH DISC CONSISTING OF :
- 265125400109 REPAIR KIT (MAJOR) FOR 240 MM DIA. CLUTCH PRESSURE PLATE CONSISTING OF :
- 265125400110 REPAIR KIT (MINOR) FOR 240 MM DIA. CLUTCH PRESSURE PLATE CONSISTING
- DIAPHRAGM SPRING
- GUIDE PLATE
- OF : GUIDE PLATE
- RING
- RIVET
- RIVET
- RIVET
- RIVET
- RIVET (DIAPHRAGM SPRING)
- STRAP
- STRAP
1 253425103711 CLUTCH HOUSING
2 252325106701 PIN
3 253425108207 CLUTCH HOUSING LOWER PART
6 252325108203 PROTECTIVE COVER (CLUTCH HOUSING FRONT)
7 253425108206 COVER FOR INSPECTION WINDOW
9 265125400114 240 DIA. CLUTCH COVER ASSY.- CK-HIGH CAPA 240 DIA. CL.DISC & PR.PLATE (CLUTCH AUTO) CONSISTS OF :
9 265125400116 ASSY.240 DIA. PR.PLATE (CA)- HIGH CAPACITY
14 265425600102 ASSY. CLUTCH RELEASE BEARING WITH SLEEVE
16 265125603107 CLUTCH RELEASE BEARING
17 265125600107 ASSY. RELEASE FORK WITH BALL PIN
18 3122541013 LOCKING WIRE
19 265125608202 BRACKET INSIDE
20 265125603102 OUTER RACE
22 265125600111 ASSY. BRACKET OUTSIDE
24 265125607702 RUBBER BELLOW REPAIR KITS
25 265125200136 240 DIA. CL.DISC ASY(F510)- CK-HIGH TORQUE
25 265125200137 240 DIA. CL.DISC ASY(F510)- CA-HIGH TORQUE
26 CLUTCH LINING (3.4 MM THICK)
26 CLUTCH LINING (4.6 MM THICK)
27 RIVET (CLUTCH LINING)

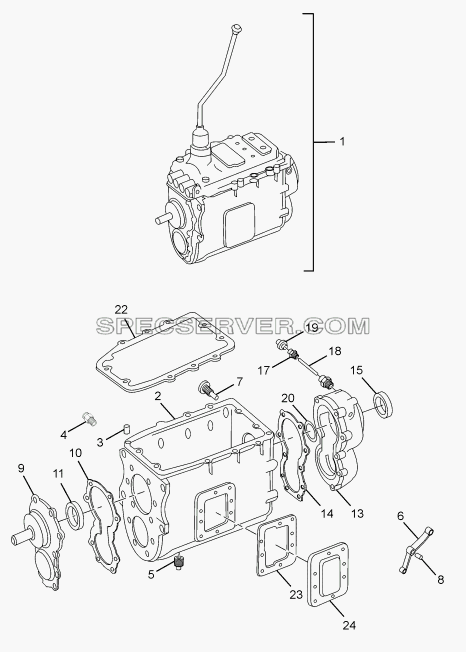

Запчасти: GEAR BOX(HOUSING) для SFC 407 LHD Euro II

GEAR BOX(HOUSING) для SFC 407 LHD Euro II (список запасных частей)

GEAR BOX(HOUSING) для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 13050909250 PIN CYLINDRICAL (ON CYL. BLOCK MTG. FACE)
- 251526000101 GASKET KIT CONSISTING OF :
- 251526258301 SHIM 1.2 MM THICK
- 3122831052 SHIM 0.1 MM THICK
- 3122831152 SHIM 0.2 MM THICK
- 3122831252 SHIM 0.4 MM THICK
- 3122831752 SHIM 0.05 MM THICK
- 3122832152 SHIM 0.8 MM THICK
- 3212610031 ADAPTER
1 251526010006 ASSY.GEAR BOX -GB18 WITH PTO OPENING - LHD
2 251526103703 GEAR BOX HOUSING (WITH PTO OPENING)
3 13050909209 CYLINDRICAL PIN 10 H 8X20
4 0009970006J PLUG OIL FILLING
5 266335107207 MAGNETIC DRAIN PLUG
6 251526515114 INTERMEDIATE LEVER (REVERSE GEAR)
7 251526515901 SLIDING KEY
8 251526106701 PIVOT PIN
9 251526253702 GEAR BOX HOUSING COVER FRONT
10 251526255302 GASKET (FRONT COVER TO HOUSING)
10 GASKET (FRONT COVER)
11 251526257805 OIL SEAL DRIVE SHAFT
13 251526203705 GEAR CASE COVER REAR LHD
14 251526205301 GASKET
14 GASKET (REAR COVER)
15 251526207805 OIL SEAL MAIN SHAFT
17 250626207804 ROTARY SHAFT OIL SEAL
18 250626207904 SHAFT SPEEDOMETER DRIVE
19 251926200105 ASSY.PINION (SPEEDOMETER DRIVE)
20 251526258301 SHIM 1.2 MM THICK
20 3122831052 SHIM 0.1 MM THICK
20 3122831152 SHIM 0.2 MM THICK
20 3122831252 SHIM 0.4 MM THICK
20 3122831752 SHIM 0.05 MM THICK
20 3122832152 SHIM 0.8 MM THICK
22 251526105301 GASKET
22 GASKET (TOP COVER)
23 3122611019 GEAR CASE COVER SIDE
24 3122611080 GASKET, SIDE COVER GASKET KIT

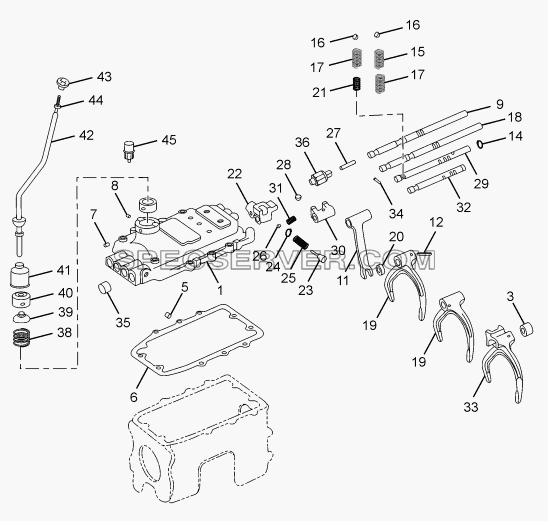

GEAR BOX(TOP COVER) для SFC 407 LHD Euro II (список запасных частей)

GEAR BOX(TOP COVER) для SFC 407 LHD Euro II (список запасных частей)

GEAR BOX(TOP COVER) для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 251526713404 BUSH (GEAR CASE COVER TOP)
- 251526713708 GEAR CASE COVER TOP (WITH RIS)
- 264126807719 REXIN BELLOW
1 251526710119 ASSY. TOP COVER WITH PIN (WITH RIS)
3 251526708602 SPACER
5 251526716701 PIN TOP COVER
6 251526105301 GASKET
7 13102105103 GROOVED PIN 5X10
8 3129911362 DOWEL PIN
9 251526707910 SHIFTER SHAFT (REVERSE SPEED)
11 251526515102 SELECTOR FORK REVERSE SPEED
12 13120509220 DOWEL SLEEVE HEAVY 5X22
14 14550501601 EXTERNAL CIRCLIP 16X1.5 H
15 251526718703 COMPRESSION SPRING
16 15950100904 BALL 9 DIA.
17 251526208701 COMPRESSION SPRING
18 251526707908 SHIFTER SHAFT (1ST SPEED)
19 251526515108 SHIFTER FORK 1 / 2 / 3 SPEED
20 251526708603 SPACER
21 251526718702 PRESSURE SPRING
22 251526513704 SHIFTER DOG (1ST / REV. SPEED)
23 251526516702 PLUNGER GEAR CASE COVER TOP
24 14550800706 EXTERNAL CIRCLIP 8X0.8 N
25 251526518701 COMPRESSION SPRING
26 15950100602 BALL 6 DIAMETER
27 13120505208 DOWEL SLEEVE HEAVY 3X20
28 15950101200 BALL 12 DIAMETER
29 251526707903 SHIFTER SHAFT 2ND / 3RD SPEED
30 251526515106 SHIFTER DOG 2ND / 3RD SPEED
31 251526718702 PRESSURE SPRING
32 251526707904 SHIFTER SHAFT 4TH / 5TH SPEED
33 251526515109 SHIFTER FORK 4 / 5 SPEED
34 15953540131 NEEDLE ROLLER 4X13.8
35 251526718204 CAP
36 265454510123 ASSY.REV.LT.SW.P/TAIL-MS HARNESS [O.DRG]
38 3129936501 PRESSURE SPRING
39 251526718202 BALL PIECE GEAR SHIFT DOME
40 251526718201 CAP GEAR SHIFT DOME
41 3122671096 PROTECTIVE RUBBER CAP
42 251526800109 ASSY GEARSHIFT LEVER (FOR 407 LHD)
43 251826700101 ASSY. GEAR SHIFT LEVER KNOB
44 HEX THIN NUT
45 266835150102 PRESSURE RELIEF VALVE

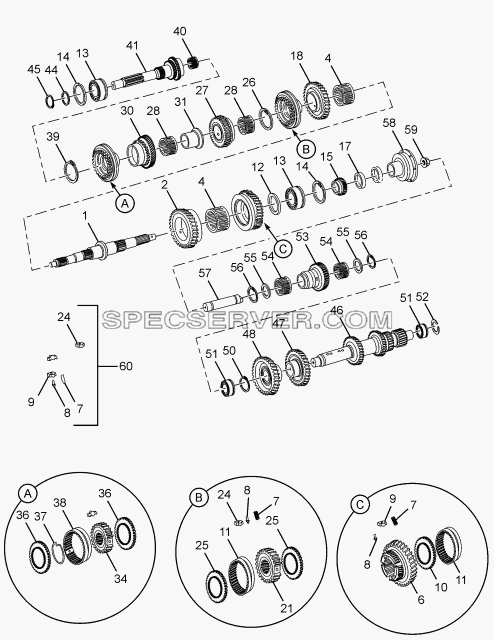

GEAR SHAFTS AND GEARS для SFC 407 LHD Euro II (список запасных частей)

GEAR SHAFTS AND GEARS для SFC 407 LHD Euro II (список запасных частей)

GEAR SHAFTS AND GEARS для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 251526258201 OIL SLINGER (DRIVE SHAFT)
- CARRIER 4 / 5
1 251526207904 MAIN SHAFT
2 251526205411 GEAR FIRST SPEED
4 251526203104 NEEDLE CAGE 1ST / 2ND SPEED
6 251526205403 REVERSE GEAR
7 COMP. SPRING
8 BALL PIN
9 CARRIER 2 / 3
10 251526203802 SYNCHRONISING CONE
11 251526204604 SHIFTER SLEEVE (1, REVERSE, 2 & 3 SPEED)
12 251526208603 SPACER 6.65 THICK
12 251526208604 SPACER 6.70 THICK
12 251526208605 SPACER 6.75 THICK
12 251526208606 SPACER 6.80 THICK
12 251526208608 SPACER 6.90 THICK
12 251526208609 SPACER 6.95 THICK
12 251526208610 SPACER 7.00 THICK
12 251526208611 SPACER 7.05 THICK
12 251526208612 SPACER 7.10 THICK
12 251526208613 SPACER 7.15 THICK
12 251526208614 SPACER 7.20 THICK
12 251526208616 SPACER 7.30 THICK
12 251526208617 SPACER 7.35 THICK
12 251526208618 SPACER 7.40 THICK
12 251526208619 SPACER 7.45 THICK
13 251526203114 SINGLE ROW DEEP GROOVE BALL BEARING
14 251526204302 SNAP RING 2.68 THICK
14 251526204303 SNAP RING 2.73 THICK
14 251526204304 SNAP RING 2.78 THICK
14 251526204305 SNAP RING 2.83 THICK
14 251526204306 SNAP RING 2.88 THICK
14 251526204307 SNAP RING 2.93 THICK
15 251526200119 ASSY.GEAR SPEEDOMETER DRIVE
17 251526208601 SPACER
18 251526205402 HELICAL GEAR 2ND SPEED
21 251526205407 ENGAGING GEAR (2ND AND 3RD SPEED)
24 CARRIER 1ST
25 251526203803 SYNCHRO CONE (2ND / 3RD)
26 251526204312 CIRCLIP 2.5 THICK
26 251526204313 CIRCLIP 2.54 THICK
26 251526204314 CIRCLIP 2.58 THICK
26 251526204315 CIRCLIP 2.62 THICK
26 251526204316 CIRCLIP 2.66 THICK
26 251526204333 CIRCLIP 2.7 THICK
26 251526204334 CIRCLIP 2.8 THICK
26 251526204335 CIRCLIP 2.75 THICK
27 251526205408 HELICAL GEAR 3RD SPEED
28 251526203103 NEEDLE CAGE (4TH / 3RD SPEED)
30 251526205401 HELICAL GEAR (4TH SPEED)
31 251526203402 COLLOR BUSH (4TH SPEED)
34 251526205410 ENGAGING GEAR 4TH / 5TH SPEED
36 251526203801 SYNCHRONISING CONE (4TH / 5TH SPEED)
37 251526208702 SPRING RING
38 251526204601 SHIFTER SLEEVE (4TH / 5TH SPEED)
39 251526204311 CIRCLIP 2.46 THICK
39 251526204318 CIRCLIP 2.5 THICK
39 251526204319 CIRCLIP 2.54 THICK
39 251526204320 CIRCLIP 2.58 THICK
39 251526204321 CIRCLIP 2.62 THICK
39 251526204322 CIRCLIP 2.66 THICK
40 251526253101 ROLLER CAGE
41 251526257913 DRIVESHAFT (5.54, WITH CIRCLIP GROOVE)
44 251526258602 SPACER DRIVE SHAFT
45 251526254306 CIRCLIP (2.5 THK)
45 251526254307 CIRCLIP (2.4 THK)
45 251526254308 CIRCLIP (2.3 THK)
45 251526254309 CIRCLIP (2.2 THK)
45 251526254310 CIRCLIP (2.1 THK)
46 251526307904 COUNTER SHAFT
47 251526305409 4TH GEAR COUNTER SHAFT
48 251526305408 CONSTANT MESH GEAR (COUNTER SHAFT)
50 14550504007 EXT. CIRCLIP 40X2.5 H
51 265133403129 TAPER ROLLER BEARING
52 3122631452 SHIM 0.125 FOR COUNTER SHAFT
52 3122631552 SHIM 0.240 FOR COUNTER SHAFT
52 3122631652 SHIM 0.500 FOR COUNTER SHAFT
52 3122632152 SHIM 0.050 FOR COUNTER SHAFT
53 251526355402 REVERSE IDLER GEAR
54 251526353101 ROLLER CAGE REVERSE IDLER
55 251526358601 SPACER
56 14580603603 INT. CIRCLIP 36X1.5 N
57 251526357901 REVERSE IDLER GEAR SHAFT
58 251526200111 ASSY. COUPLING FLANGE
59 265141106502 HEX. NUT (M 26X1.5)
60 885426060407 SYNCHRO KIT GBS 18 CONSISTING OF :

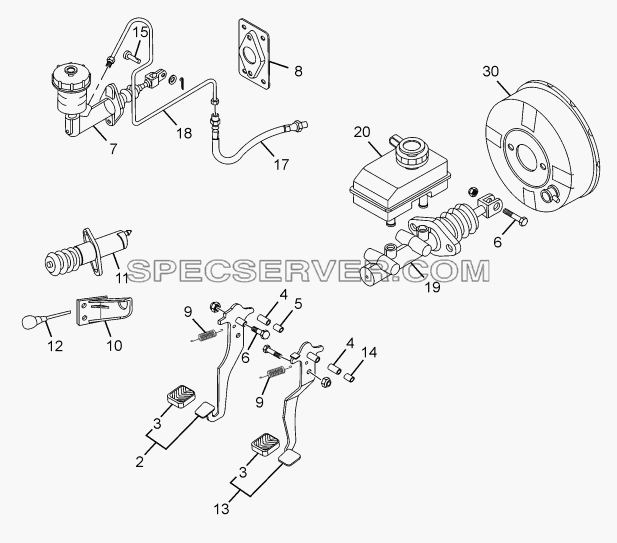

CLUTCH/BRAKE PEDALS для SFC 407 LHD Euro II (список запасных частей)

CLUTCH/BRAKE PEDALS для SFC 407 LHD Euro II (список запасных частей)

CLUTCH/BRAKE PEDALS для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

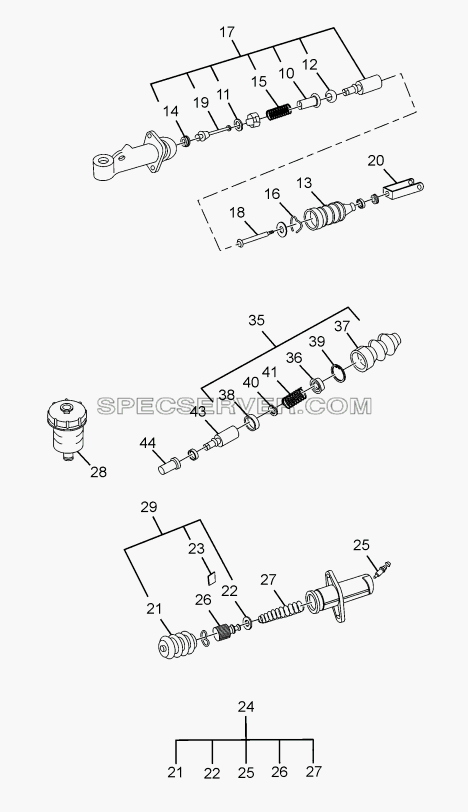

REPAIR KITS FOR CMC AND CSC для SFC 407 LHD Euro II (список запасных частей)

REPAIR KITS FOR CMC AND CSC для SFC 407 LHD Euro II (список запасных частей)

REPAIR KITS FOR CMC AND CSC для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 265429200103 REPAIR KIT FOR 19.05 CMC (MINOR) M/S KBX
- 265429200104 REPAIR KIT FOR 19.05 CMC (MAJOR) M/S KBX
- 269929100177 REPAIR KIT (MAJOR) CLUTCH MASTER CYLINDER (19.05 MM DIA.) CONSISTING OF (M/S BI):
- BOOT RING
- CASE,INLET VALVE
- FILTER
- GREASE PACK
- RESERVOIR BODY
- RESERVOIR CAP
- ROD,INLET
10 SPRING RETAINER
11 CUP WASHER
12 SECONDARY SEAL
13 BOOT
13 BOOT
14 SEAL INLET VALVE
15 SPRING
16 PISTON STOP RING
16 PISTON STOP RING
17 PISTON ASSY
18 RESERVOIR BOLT
19 PUSH ROD ASSEMBLY
20 SHACKLE
21 RUBBER BOOT
22 PISTON SEAL
23 GREASE TUBE
24 265129100137 REPAIR KIT (MAJOR) CLUTCH SLAVE CYLINDER (25.4 MM DIA.) CONSISTING OF (M/S BI):
25 BLEEDER SCREW
26 PISTON
27 SPRING
28 ASSY. FLUID RESERVOIR
29 265129100132 REPAIR KIT (MINOR) CLUTCH SLAVE CYLINDER (25.4 MM DIA.) CONSISTING OF (M/S BI):
29 MINOR REPAIR KIT
35 265129100148 REPAIR KIT (MINOR) CLUTCH MASTER CYLINDER (19.05 MM DIA.) CONSISTING OF (M/S BI)
35 MINOR REPAIR KIT
36 SEAL
37 RUBBER BELLOW
38 SEAL
39 CIRCLIP
40 SPRING WASHER
41 SPRING
43 PISTON
44 VALVE SPACER

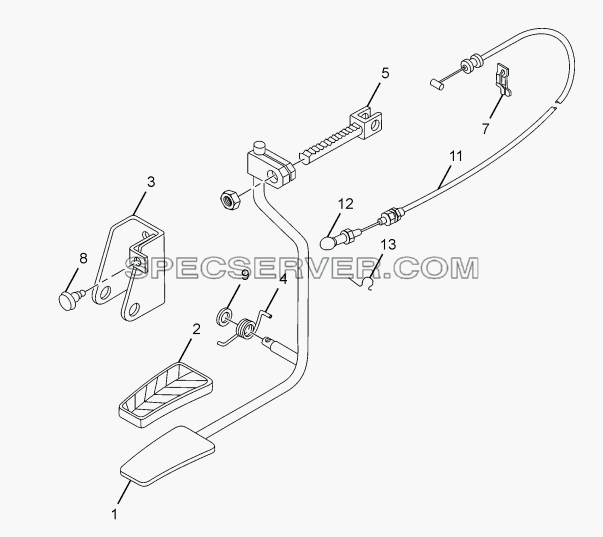

ACCELERATOR CONTROLS для SFC 407 LHD Euro II (список запасных частей)

ACCELERATOR CONTROLS для SFC 407 LHD Euro II (список запасных частей)

ACCELERATOR CONTROLS для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 265130100149 ASSY. ACCLERATOR PEDAL
2 270230107703 RUBBER COVER (ACC.PEDAL)
3 264730100102 ASSY.PEDAL MTG. BRACKET
4 269930108701 SPRING (ACCLERATOR PEDAL RETURN)
5 264130109902 FORK
7 265142804201 HOLDER BRAKE HOSE
8 265430107701 RUBBE STOPPER
9 265430108601 SPACER
11 265130100147 ASSY.PULL CABLE ACCELERATOR
12 0009910522 BALL END(40MM)
13 14450601005 LOCKING RING 10 TS15624
