Запчасти: ACCELERATOR CONTROL для LPT 613/34 WB Euro III

ACCELERATOR CONTROL для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	264130100155	ACCELERATOR PEDAL MODULE (M/S BOSCH)
2	264330100126	ASSY. BRACKET ACCL. MODULE MTG.

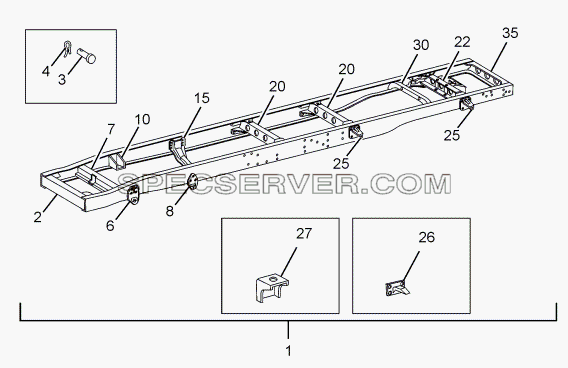

Запчасти: FRAME для LPT 613/34 WB Euro III

FRAME для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264131300102	ASSY. BRACKET (BUMP STOP FRT. SPRING)
1	264331000101	ASSY FRAME COMP.(LPT 613/34)
2	264131200109	ASSY. FRONT CROSS MEMBER
3	265131406701	PIN
4	265131406702	PIN
6	264132100103	ASSY. BRACKET FRONT SPRING (FRONT)
7	264331200101	ENGINE CROSS MEMBER (FRONT)
8	264032100101	ASSY. FRONT SPRING BRACKET (REAR)
10	264131200111	ASSY. SUPPORT (ENG. C.M. - REAR)
15	264131208256	ENGINE CROSS MEMBER (REAR)
20	264031208206	CROSS MEMBER
22	264131200113	ASSY. CROSS MEMBER (SPARE WHEEL)
25	264032403701	SPRING HANGER BRACKET (REAR)
26	264132403702	SLIDE SUPPORT
27	264131400111	ASSY. CLEAT
30	264131200120	ASSY. CROSS MEMBER (RR SH. ABSORBER)
35	264131208255	END CROSS MEMBER

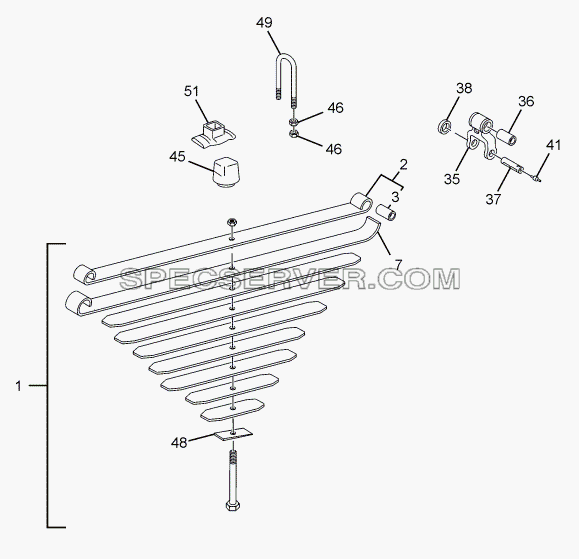

Запчасти: FRONT SPRING для LPT 613/34 WB Euro III

FRONT SPRING для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	17170600801	GREASE NIPPLE AM 8X1
-	264032108201	LOCKING PLATE
-	FRONT SPRING	FRONT SPRING , DRIVER SIDE (LPT 613)
1	264132100133	ASSY. FRONT SPRING (NORMAL CAMBER)
1	264132100134	ASSY. FRONT SPRING (HIGHER CAMBER)
2	264132100137	ASSY. FIRST LEAF WITH BUSH
2	264132100138	ASSY. FIRST LEAF WITH BUSHES
3	265132403401	BUSH
3	265132403401	BUSH
7	264132107195	SECOND LEAF ASSY FRONT SPRING, (HIGHER CAMBER)
7	264132107206	SECOND LEAF
35	264032100105	ASSY. SHACKLE WITH BUSH
36	265132403401	BUSH
37	265132106704	SPRING PIN (SHACKLE END)
38	265132400126	ASSY. SEALING RING
41	257441109902	GREASE NIPPLE
45	264032207702	RUBBER BUFFER (FRONT)
46	12052396067	HEX NUT M 16X1.5
48	264132207103	CASTER PLATE
49	264132204209	U - CLAMP (FRONT)
51	206033105301	GUIDE PLATE (CAST) FRONT

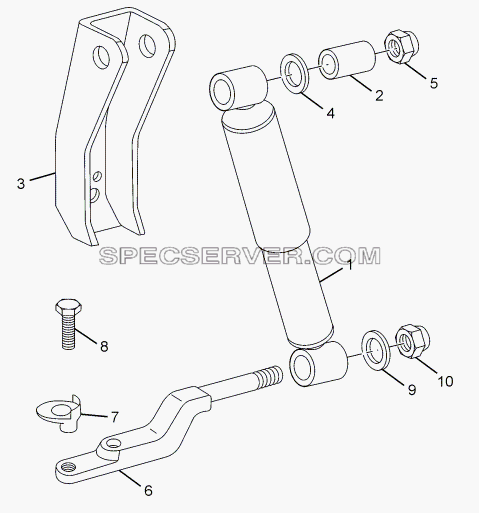

Запчасти: FRONT SHOCK ABSORBER для LPT 613/34 WB Euro III

FRONT SHOCK ABSORBER для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	11064199112	HEX BOLT M 12X1.5X52
-	11324299078	HEX SCREW M 12X1.5X35
-	3123231576	WASHER
1	264132300101	ASSY. FRONT SHOCK ABSORBER
2	257432308602	BUSH (FRONT SHOCK ABSORBER)
3	264432300102	ASSY. FRONT SHOCK ABSORBER BRACKET
4	265132608210	WASHER
5	12140601606	NYLOC NUT M 16X1.5
6	264132305103	BRACKET BOTTOM (FRONT SHOCK ABSORBER MTG.)
7	12580601306	TAB WASHER 13
8	11063996167	HEX BOLT M 16X1.5X125
9	264132308206	WASHER
10	12140601606	NYLOC NUT M 16X1.5

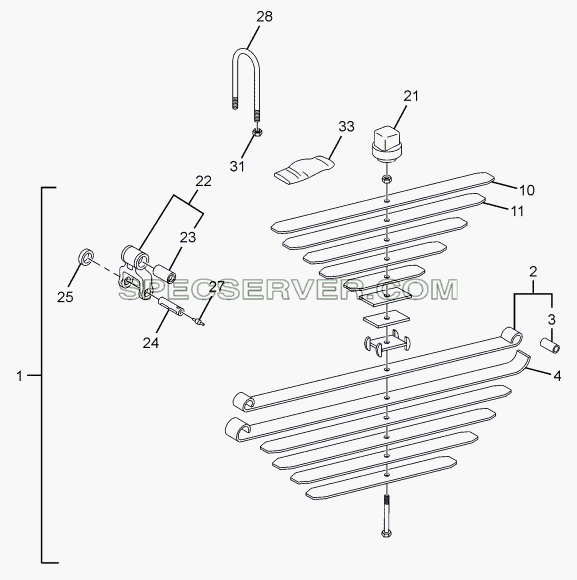

Запчасти: REAR SPRING для LPT 613/34 WB Euro III

REAR SPRING для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264032108202	LOCK PLATE
-	3123251070	SPHERICAL WASHER
1	264432400107	ASSY. REAR SPRING WITH AUX. SPRING
2	264432400108	ASSY. FIRST LEAF WITH BUSH
3	264032403401	BUSH
4	264432407136	SECOND LEAF
10	264432407128	FIRST LEAF (AUX. SPRING)
11	264432407129	SECOND LEAF (AUX. SPRING)
21	264431400101	ASSY. RUBBER BUFFER (R.A. STOPPER)
22	264032400106	ASSY. SHACKLE WITH BUSH
23	264032403401	BUSH
24	264032406702	SPRING PIN (REAR)
25	264032400104	ASSY. SEALING RING
27	257441109902	GREASE NIPPLE
28	264432504203	U - CLAMP
31	12052396067	HEX NUT M 16X1.5
33	257432253706	GUIDE PLATE (REAR SPRING)

Запчасти: REAR SHOCK ABSORBER для LPT 613/34 WB Euro III

REAR SHOCK ABSORBER для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	264032600117	ASSY. REAR SHOCK ABSORBER
2	3123231576	WASHER
3	11063996167	HEX BOLT M 16X1.5X125
4	12140601606	NYLOC NUT M 16X1.5
5	11063996108	HEX BOLT M 14X1.5X70
6	12140601401	NYLOC NUT M 14X1.5

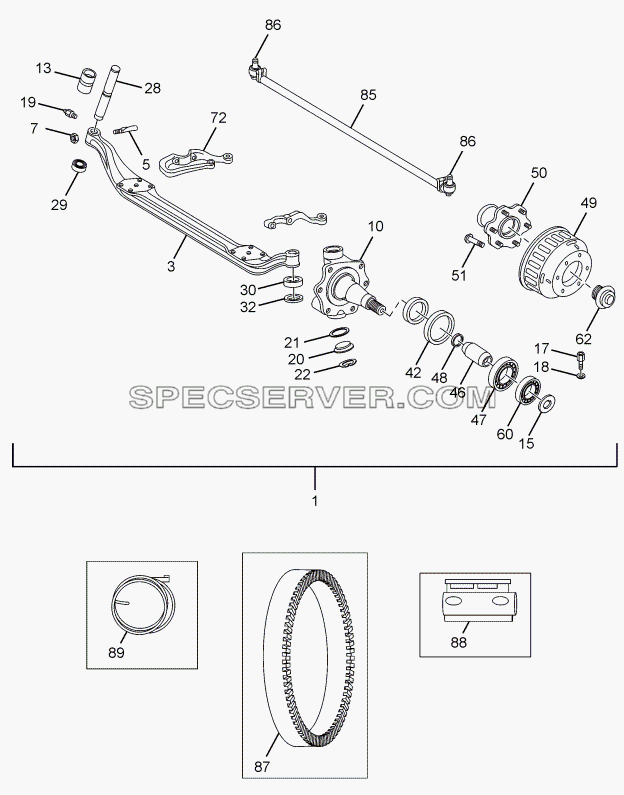

FRONT AXLE для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

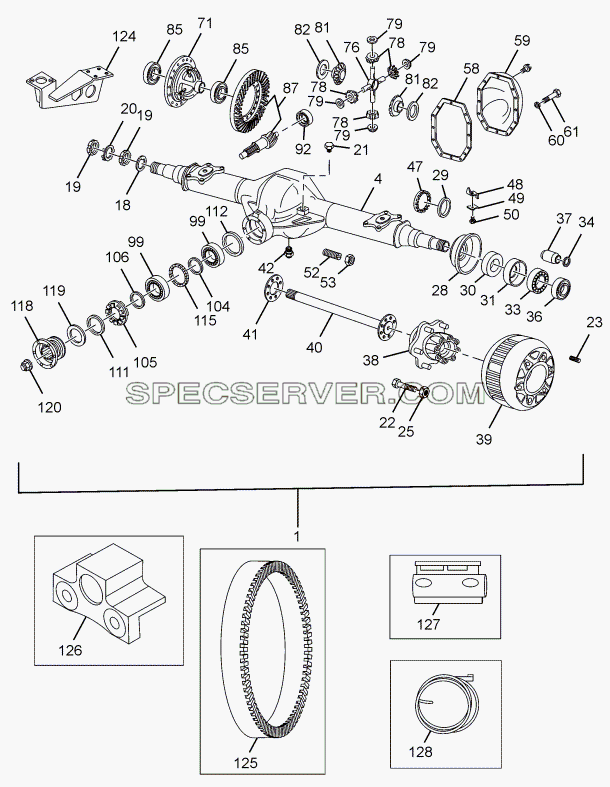

REAR AXLE для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	257533206301	DUST CAP, STUB AXLE
-	264033408601	SEAL RACE (STUB AXLE)
-	264342103401	SENSOR SLEEVE -FRONT
-	265133205117	SPLIT NUT
-	885433010709	KING PIN M KIT RS I COMPRISES OF :
-	885433020709	KING PIN M KIT RS II COMPRISES OF :
-	885433030709	KING PIN M KIT RS III COMPRISES OF :
-	885433190709	KING PIN KIT STD COMPRISES OF :
-	BUSH
-	BUSH
-	BUSH
-	BUSH
-	CIRCLIP
-	CIRCLIP
-	CIRCLIP
-	CIRCLIP
-	COTTER PIN
-	COTTER PIN
-	COTTER PIN
-	COTTER PIN
-	GREASE NIPPLE
-	GREASE NIPPLE
-	GREASE NIPPLE
-	GREASE NIPPLE
-	HEX. NUT
-	HEX. NUT
-	HEX. NUT
-	HEX. NUT
-	KING PIN (30.00)
-	KING PIN (30.10)
-	KING PIN (30.20)
-	KING PIN (30.30)
-	SEALING CAP
-	SEALING CAP
-	SEALING CAP
-	SEALING CAP
-	SPRING WASHER
-	SPRING WASHER
-	SPRING WASHER
-	SPRING WASHER
-	‘O’ RING
-	‘O’ RING
-	‘O’ RING
-	‘O’ RING
1	264333000107	ASSY. FRONT AXLE WITH BRAKES (ABS)
3	264133105107	FRONT AXLE BEAM (STD)
5	264033206711	COTTER PIN
7	12051596011	HEX NUT M 12
10	264333200106	ASSY. STUB AXLE RH WITH BUSH STD
10	264333200107	ASSY. STUB AXLE LH WITH BUSH STD
13	264033203402	STEERING BUSH
15	265133409204	THRUST WASHER
17	11411410252	CAP SCREW M 10X25
18	264133409202	WASHER
19	17170600801	GREASE NIPPLE AM 8X1
20	282133408202	KING PIN CAP
21	282133407701	SEALING RING
22	14580604006	INTERNAL CIRCLIP 40X1.75 N
28	264033206707	KING PIN (STD)
29	264033403108	THRUST BEARING (STD) RH SIDE
30	264133403109	ASSY THRUST PAD (NORMAL)
32	264033208302	SHIM 0.8 MM THICK
32	264033208303	SHIM 0.9 MM THICK
32	264033208304	SHIM 1.0 MM THICK
32	264033208305	SHIM 1.1 MM THICK
32	264033208306	SHIM 1.2 MM THICK
32	264033208307	SHIM 1.3 MM THICK
32	264033208308	SHIM 1.4 MM THICK
32	264033208309	SHIM 1.5 MM THICK
32	264033208310	SHIM 1.6 MM THICK
32	264033208311	SHIM 1.7 MM THICK
42	265133407804	OIL SEAL
46	264133209901	SPACER (BETWEEN BEARINGS)
47	265135603101	TAPER ROLLER BEARING
48	265133208630	SHIM
48	265133208631	SHIM
48	265133208632	SHIM
48	265133208633	SHIM
48	265133208634	SHIM
48	265133208635	SHIM
48	265133208636	SHIM
48	265133208637	SHIM
48	265133208638	SHIM
48	265133208639	SHIM
49	264142103709	CASTILATED BRAKE DRUM(709 VEHICLES)
50	264333403702	FRONT HUB(SLOTTED)
51	264140106703	HUB PIN REAR (S-CAM)
60	0009819605	TAPER ROLLER BEARING
60	264133403101	TAPER ROLLER BEARING
62	264133403704	HUB COVER FRONT
72	282133805105	STEERING ARM RH
85	264133200121	ASSY. TIE ROD
86	264133200135	ASSY.BALL JOINT L.H (FOR M/S TALBROS TIE ROD)
86	264133200136	ASSY.BALL JOINT R.H (FOR M/S TALBROS TIE ROD)
87	264342109902	POLE WHEEL - FRONT
88	263242103403	SENSOR BUSH -ABS
89

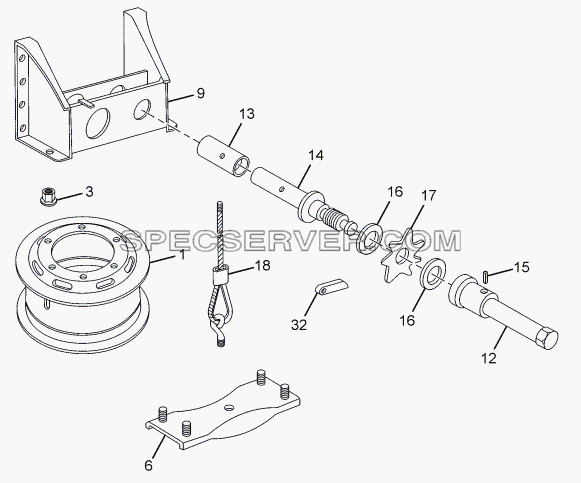

SPARE WHEEL CARRIER для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	14580611002	INTERNAL CIRCLIP 110X4
-	261235308201	LOCKING PLATE
-	266135108202	OIL SLINGER
-	266135300125	DIFFERENTIAL GEAR AND SPIDER KIT CONSISTS OF:
-	266135306101	LOCKING PLATE (DIFFERENTIAL CASE)
-	266135307801	DUST SEAL
-	266135308004	HEX. SCREW
1	266135000140	ASSY. REAR AXLE COMPLETE WITH BRAKE ( 28/9 CWP RATIO ) WITH ABS
4	266135100139	ASSY. REAR AXLE HOUSING WITH SUPPORTING TUBES, WITH ABS
18	261235608601	SPACER
19	261235606501	LOCKING RING
20	261235608202	LOCKING PLATE
21	257433150102	ASSY. BREATHER
22	282140106701	HUB PIN REAR
23	266535608801	STUD M16
25	12302696029	HEX NUT M12X1.5
28	266135608201	OIL CATCHER, (FOR ABS)
29	266135108602	PRESSURE RING
30	0009976747	OIL SEAL, HUB OUTER (SINGLE LIP)
30	266135607701	OIL SEAL, HUB INNER (DOUBLE LIP)
31	266135608601	SPACER
33	257535603110	TAPER ROLLER BEARING, INNER
34	266135608301	SHIM-0.05 THK.
34	266135608302	SHIM-0.10 THK.
34	266135608303	SHIM-0.15 THK.
34	266135608304	SHIM-0.20 THK.
34	266135608305	SHIM-0.25 THK.
34	266135608306	SHIM-0.30 THK.
34	266135608307	SHIM-0.50 THK.
34	266135608308	SHIM-1.00 THK.
34	266135608309	SHIM-1.50 THK.
34	266135608310	SHIM-2.5 THK.
36	261235603102	TAPER ROLLER BEARING, OUTER
37	266135608602	SPACER TUBE
38	266135603710	REAR HUB ( RAS-104 WITH 'S' CAM)
39	264142103709	CASTILATED BRAKE DRUM(709 VEHICLES)
40	266135707902	REAR AXLE SHAFT
41	266135605302	GASKET (FOR BRAKE DRUM WITH HUB)
42	266335107201	MAGNETIC DRAIN PLUG
47	266135306501	THREADED RING
48	3129941201	LOCKING PLATE
49	261235608202	LOCKING PLATE
50	11323996191	HEX. SCREW M 8X12
52	261235300103	ADJUSTING PIN
53	12080901800	HEX. THIN NUT M 18X1.5
58	266135105301	GASKET (BETWEEN R.A. HOUSING & REAR COVER)
59	266135100105	ASSY. COVER REAR AXLE HOUSING
60	12520698050	SPRING WASHER B 10
61	11323998185	HEX. SCREW M 10X18
71	266135300121	DIFFERENTIAL HOUSING ASSY.
76	266135305103	DIFFERENTIAL SPIDER
76	DIFFERENTIAL SPIDER
78	266135305419	DIFFERENTIAL BEVEL PINION
78	BEVEL GEAR
79	266135309210	SPHERICAL WASHER (STEEL)
81	266135305420	REAR AXLE SHAFT GEAR
81	GEAR R.A SHAFT
82	266135309202	THRUST WASHER, SHAFT GEAR 1.95 MM
82	266135309203	THRUST WASHER, SHAFT GEAR 2.00 MM
82	266135309204	THRUST WASHER, SHAFT GEAR 2.05 MM
82	266135309205	THRUST WASHER, SHAFT GEAR 2.10 MM
82	266135309206	THRUST WASHER, SHAFT GEAR 2.15 MM
82	266135309207	THRUST WASHER, SHAFT GEAR 2.20 MM
82	266135309208	THRUST WASHER, SHAFT GEAR 2.25 MM
85	261235303101	TAPER ROLLER BEARING (55X100X26.75)
87	266135300119	SET CROWN WHEEL AND PINION (31/8 RATIO)
92	266135303116	CYLINDRICAL ROLLER BRG. (PINION NOSE)
99	266135303105	TAPER ROLLER BRG. (TAIL PINION)
104	266135308632	SPACER (BETWEEN TAIL PINION BRGS.)
105	266135306501	THREADED RING
106	266135308668	SPACER (BETWEEN BRG. AND FLANGE)
111	266135307702	OIL SEAL TAIL PINION
112	266135308303	SHIM 0.15 THICK
112	266135308304	SHIM 0.20 THICK
112	266135308305	SHIM 0.25 THICK
112	266135308306	SHIM 0.30 THICK
112	266135308307	SHIM 0.45 THICK
112	266135308308	SHIM 0.50 THICK
112	266135308309	SHIM 1.0 THICK
112	266135308310	SHIM 1.5 THICK
115	266135308637	SPACER RING, TAIL PINION 7.64 THICK
115	266135308638	SPACER RING, TAIL PINION 7.66 THICK
115	266135308639	SPACER RING, TAIL PINION 7.68 THICK
115	266135308641	SPACER RING, TAIL PINION 7.72 THICK
115	266135308642	SPACER RING, TAIL PINION 7.74 THICK
115	266135308644	SPACER RING, TAIL PINION 7.78 THICK
115	266135308646	SPACER RING, TAIL PINION 7.82 THICK
115	266135308647	SPACER RING, TAIL PINION 7.84 THICK
115	266135308648	SPACER RING, TAIL PINION 7.86 THICK
115	266135308649	SPACER RING, TAIL PINION 7.88 THICK
115	266135308650	SPACER RING, TAIL PINION 7.90 THICK
115	266135308651	SPACER RING, TAIL PINION 7.92 THICK
115	266135308652	SPACER RING, TAIL PINION 7.94 THICK
115	266135308653	SPACER RING, TAIL PINION 7.96 THICK
115	266135308654	SPACER RING, TAIL PINION 7.98 THICK
115	266135308655	SPACER RING, TAIL PINION 8.00 THICK
115

№	Номер детали	Наименование запчасти
-	14150504504	DISC SPRING A 45
-	264140300106	ASSY. SPARE WHEEL CARRIER
-	265140100002	LOCKING RING
1	264040100102	ASSY. WHEEL RIM WITH DISC (6X16)
3	264040100101	ASSY. WHEEL NUT
6	264140300104	ASSY. BRACKET
9	264140300105	ASSY. BRACKET (SPARE WHEEL MTG.)
12	264140300102	ASSY. HANDLE
13	265140308401	SLEEVE
14	265140300115	ASSY. SHAFT
15	13102104247	GROOVED PIN 4X24
16	257340306301	FRICTION PAD
17	257640307108	RATCHET WHEEL
18	265140300116	ASSY. WIRE ROPE
32	257640307109	RATCHET ARM

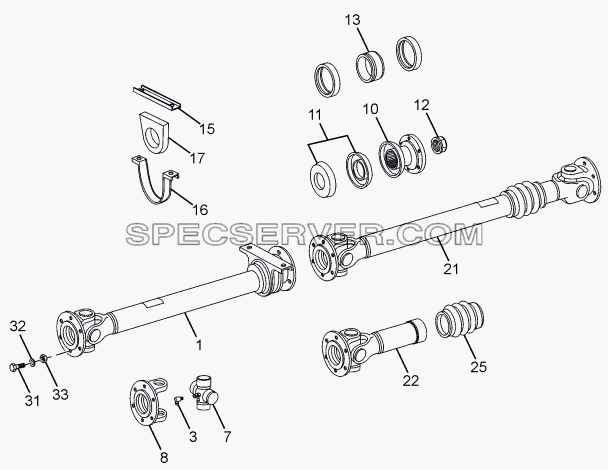

PROPELLER SHAFT для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	0009972247	PACKING RING
-	14280500705	HOSE CLAMP 70
-	14280500802	HOSE CLAMP 80
-	257341308216	DUST SEAL RETAINER
-	257441303101	SRDG. BRG. 40 BC02/80X18/6208
-	3284110051	RING
-	ASSY. BEARING CUP
-	CLOSING RING
-	CROSS
-	GREASE NIPPLE
-	HEX THIN NUT M 8X1
1	264141110105	ASSY. PROPELLER SHAFT WITH CENTRE BEARING (FRT)
3	17172001009	GREASE NIPPLE AM 10X1
7	265141100128	CROSS REPAIR KIT
7	265141100128	CROSS REPAIR KIT
7	265141100128	CROSS REPAIR KIT
8	3124111111	UNIVERSAL JOINT FLANGE
8	3124111111	UNIVERSAL JOINT FLANGE
10	257341300114	ASSY. COUPLING FLANGE - WITH PROTECTIVE COVER
11	257341308209	PROTECTIVE CAP
12	0424110072J	HEX NUT
13	257341300118	ASSY. CENTRE BEARING
15	257341304202	CLAMP
16	257341303307	BRACKET
17	257341307505	RUBBER HOUSING PROPELLER SHAFT (REAR)
21	264041120111	ASSY.PROP.SHAFT (REAR)
22	257341120109	ASSY. U.J. LONG FORK COMPLETE
25	3284110097	PROTECTIVE CAP
31	257641113201	BOLT
32	250526406101	LOCKING PLATE
33	12051901001	HEX NUT M 10X1 REPAIR KIT
