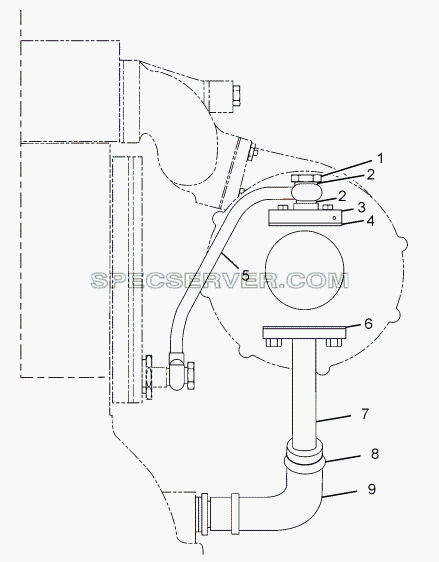

Запчасти: OIL PIPING FOR TURBOCHARGER для LPT 613/34 WB Euro III

OIL PIPING FOR TURBOCHARGER для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	16531911001	PIPE UNION BOLT 10 IS3174 SS9400
2	16220510216	SEALING WASHER 14X18 AL
3	252518175101	FLANGE (ON TURBO)
4	252514115301	GASKET (TURBO TO EXHAUST MANIFOLD)
5	252518170196	ASSY. LUBE LINE (FLEXIBLE)
6	252518175302	GASKET, FLANGE TO TURBO (OIL RETURN FROM TURBO TO CYL. BLOCK)
7	252518170152	ASSY.OIL OUTLET TUBE
8	269944804205	HOSE CLAMP 30 (STAINLESS STEEL)
9	252518175804	HOSE (TC OIL OUTLET TO CYL. CR)

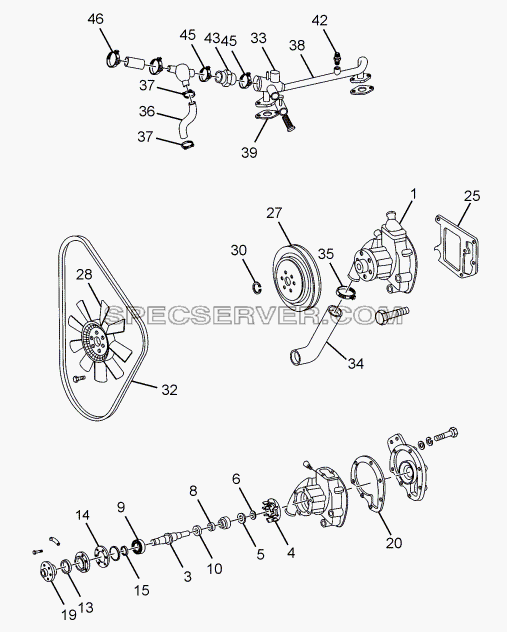

Запчасти: WATER PUMP для LPT 613/34 WB Euro III

WATER PUMP для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	11631407252	STUD AM 8X25
-	14280599264	HOSE CLIP TB 34
-	14550502802	CIRCLIP A 28X2 (HUB LOCKING ON W/P SHAFT)
-	252520100118	MINOR REPAIR KIT (WATER PUMP) CONSISTING OF :
-	252520140132	FAN DRIVE ASSEMBLY (LOW SPEED)
-	252550005831	Z HOSE (THERMOSTAT TO RADIATOR)
-	264354249903	TEMPARATURE SENSOR REPAIR KITS
-	AXLE SLIDE RING SEAL
-	CYCLAM SLIDE RING SEAL
-	MAJOR REPAIR KIT (WATER PUMP) CONSISTING OF :
-	SEAL SLIDING RING
1	252520100129	ASSY. WATER PUMP
3	SHAFT
4	IMPELLER, PLASTIC
5	SLIDING RING
5	SLIDING RING
6	SEALING MEMBER
6	SEALING MEMBER
8	RUBBER SEAL RING
9	TAPER ROLLER BEARING
10	TAPER ROLLER BEARING
13	OIL SEAL
13	OIL SEAL
14	GASKET WATER PUMP
14	GASKET WATER PUMP
15	SHIM 0.05 MM THICK
15	SHIM 0.10 MM THICK
15	SHIM 0.15 MM THICK
15	SHIM 0.20 MM THICK
15	SHIM 0.50 MM THICK
19	HUB
20	GASKET
20	GASKET WATER PUMP
25	252720105303	GASKET (WATER PUMP) PULLEY, FAN & V-BELT
25	GASKET
25	GASKET CLUTCH
27	252520140124	ROLLED PULLEY (WATER PUMP)-3 GR
28	252520140109	ASSY FAN (WITHOUT VISCOUS COUPLING)
30	CIRCLIP A 28X2
30	CIRCLIP A 28X2 (HEAVY DUTY)
32	252520151605	COGGED V-BELT 1280 LONG
33	252520121601	ASSY. THERMOSTAT W/O BYPASS - 87 C
34	252550005832	RADIATOR HOSE (RADIATOR TO WATER PUMP)
35	14280598217	HOSE CLIP TB 54
36	252520125817	REDUCER HOSE (THERMOSTAT TO WATER PUMP)
37	254750104222	HOSE CLAMP (50 DIA)
38	252520120203	ASSY. UPPER COOLING WATER LINE
39	252020125301	GASKET (UPPER COOLING LINE)
42	263254209903	TEMP. TRANSDUCER
43	252550005830	RUBBER BELLOW (U.C. LINE TO THERMOSTAT)
45	254750104222	HOSE CLAMP (50 DIA)
46	14280599302	HOSE CLAMP TB 36

Запчасти: ENGINE SUSPENSION для LPT 613/34 WB Euro III

ENGINE SUSPENSION для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	252322123204	HEX COLLER SCREW
-	252322123205	HEX COLLER SCREW
-	3129900540	WASHER
-	3129900640	WASHER
-	3129940132	LOCKING PLATE
1	252922125101	ENGINE MOUNTING ARM, FRONT
4	264324100101	ASSY. RUBBER SUPPORT, FRONT LH
5	3522420509	TORQUE SUPPORT
8	257324100103	ASSY. ENGINE MTG. PAD FRONT
15	264024200110	ASSY. RUBBER SUPPORT, REAR
19	252522107108	LIFTING HOOK, FRONT
20	252722107106	LIFTING HOOK, REAR

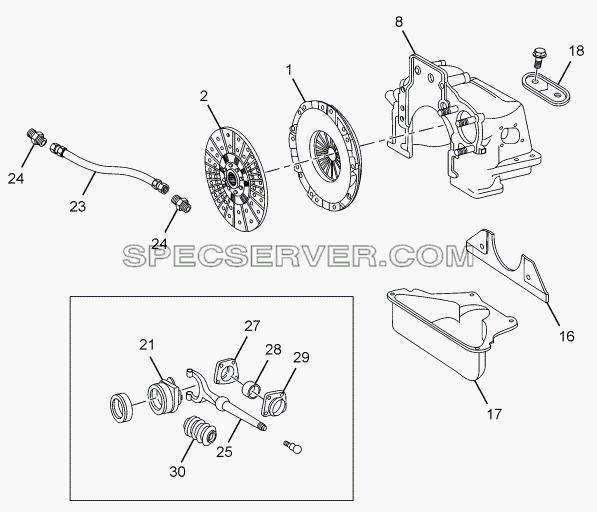

Запчасти: CLUTCH (310 MM DIA) для LPT 613/34 WB Euro III

CLUTCH (310 MM DIA) для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	252325106701	PIN
-	253425108214	COVER (FOR INSPECTION WINDOW)
-	257525600104	ASSY. COVER
-	276325200113	KIT FOR CLUTCH DISC CONSISTING OF :
-	276325400114	COVER DIAPHRAGM SUB ASSY. CONSISTING OF :
-	276325400115	KIT FOR STRAP AND RIVETS CONSISTING OF :
-	3029910015	BALL PIN
-	CLUTCH COVER HOUSING
-	CLUTCH FACINGS (310 DIA.)
-	COVER PLATE
-	DIAPHRAGM PLATE
-	DIAPHRAGM RIVETS
-	DIAPHRAGM SPRING
-	FACING RIVET
-	FACING RIVET
-	FULCRUM PLATE
-	RIVET (COVER)
-	RIVET (PRESSURE PLATE)
-	STRAP
1	276325400105	ASSY. COVER PLATE 310 DIA. (REINFORCED)
2	276325200105	DRIVEN PLATE ASSY. 310 DIA.(REINFORCED)
8	252525103740	CLUTCH HOUSING (310 DIA BS-III)
16	252325108203	PROTECTIVE COVER (CLUTCH HOUSING FRONT)
17	252525108201	CLUTCH HOUSING LOWER PART
18	0422510004J	CLUTCH COVER HOUSING UPPER
21	272425600151	CLUTCH RELEASE BEARING WITH SLEEVE
23	257525600121	ASSY. HOSE
24	257625606801	DOUBLE SOCKET
25	272425605106	CLUTCH RELEASE FORK
27	272425608201	BRACKET INSIDE
28	272425600103	OUTER RACE
29	272425600102	ASSY. BRACKET OUTSIDE
30	3522540097	RUBBER BELLOW

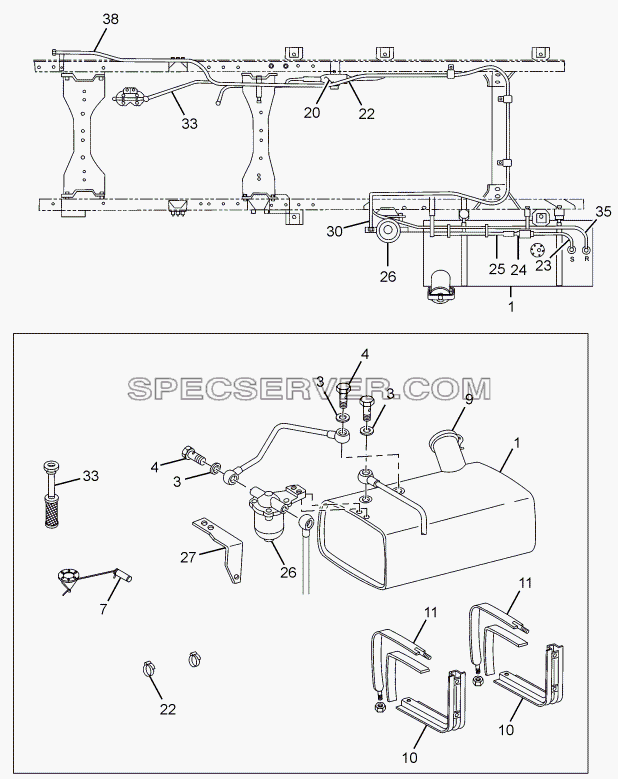

FUEL SYSTEM для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	16220510216	SEALING WASHER 14X18 AL
-	264142900179	ASSY.CLAMP (FOR FUEL SRAINER)
-	264347600157	ASSY BRACKET (FEED PUMP MOUNTING)
-	264347605802	FUEL HOSE
-	264747605801	FUEL HOSE (SUCTION SIDE)
-	264747605802	FUEL HOSE (ENGINE SIDE)
-	3124761426	RUBBER HOSE
1	264147000101	ASSY FUEL TANK WITH STRAP & SUPPORT
3	16220510577	SEALING WASHER 38X44 AL
4	16531999049	PIPE UNION BOLT 10
7	265154210101	TANK UNIT
9	0424700605J	ASSY. FUEL TANK CAP
10	264047500104	ASSY. BRACKET (FUEL TANK MTG)
11	265147500102	ASSY. STRAP
20	252707100189	ELECTRIC FUEL FEED PUMP
22	14280500209	HOSE CLAMP 20
23	264347600180	ASSY.SUCTION LINE(FUEL TANK TO STRAINER)
24	278609999951	FUEL STRAINER
25	264347600181	ASSY. SUCTION LINE (STRAINER TO W/SEP)
26	264347100101	WATER SEP WITH HEATER(FLEETGUARD-FH232)
27	264347600170	ASSY BKT(FLEETGUARD W/SEP WITH HEATER)
30	264347600183	ASSY.SUCTION LINE(W/SEP TO FEED PUMP)
33	264347600167	ASSY. SUCTION LINE (FEED PUMPTO FILTER)
35	264347600182	ASSY. RETURN LINE
38	264347600185	ASSY.SUCTION LINE (W/SEP TO HEATER)

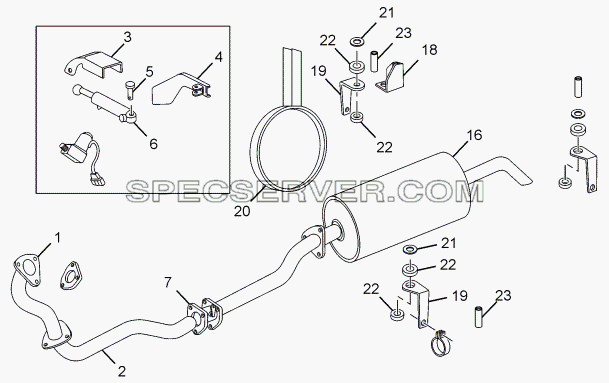

EXHAUST SYSTEM для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	257649205302	GASKET
1	264349200179	ASSY.EXHAUST PIPE (FRONT).
2	264349200180	ASSY.EXHAUST PIPE FRONT (NT6A)
3	263249105301	GASKET
4	208949200102	ASSY. BRACKET
5	275449206701	PIN
6	277054249904	ASSY. MAGNETIC VALVE 24 V (EXHAUST BRAKE)
7	276349200123	ASSY. EXHAUST BRAKE UNIT
16	264349100111	ASSY. SILENCER COMPLETE(WITH TAIL PIPE)
18	264349200181	ASSY. BRACKET (EXHAUST MTG.)
19	264349200171	ASSY.BRACKET (EXHAUST MTG.)
20	264349200173	ASSY. CLAMP (SILENCER MTG.)
21	257649009202	WASHER
22	257649007502	RUBBER BUFFER
23	257649006902	TUBE

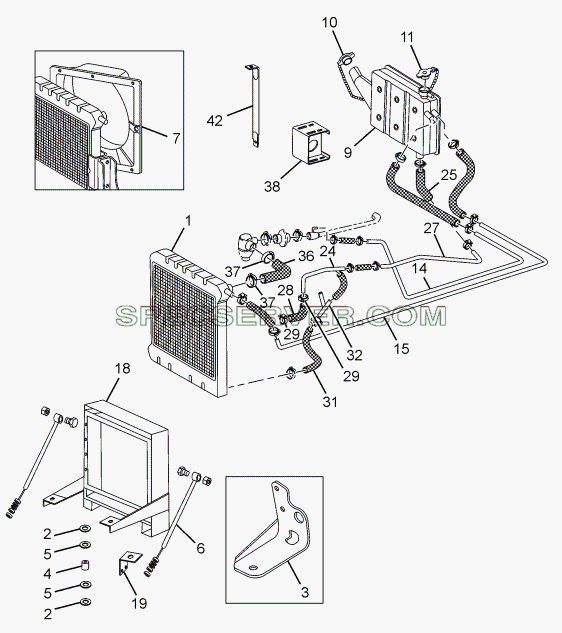

RADIATOR AND FITMENTS для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	252550005827	HOSE (268.6 ID X 100 LONG)
-	252550005833	RADIATOR HOSE (RADIATOR TO WATER PUMP)
-	252750100216	ASSY SUPPORT ( FOR MTG OF AUX. TANK MTG BKT)
-	252750108225	CLAMP REAR (AUX TANK LPT 709)
-	257450006906	SPACER TUBE (25.5 LONG)
-	278614609201	WASHER
-	278650006302	RUBBER BUFFER
-	278650108301	SHIM 1THK
-	278650108302	SHIM 2 THK
-	278650108303	SHIM 3 THK
-	278650109908	DRAIN COCK
1	278650100283	ASSY. RADIATOR
2	252550006301	RUBBER BUFFER
3	252550100299	ASSY. BRACKET RH (RAD FRAME MTG. ON LM)
3	252550100301	ASSY. BRACKET LH (RAD FRAME MTG. ON LM)
4	257450006904	SPACER TUBE ( 35 LONG )
5	257450009202	WASHER (47DIA)
6	252550100291	.ASSY.TIE ROD (RAD.FR.MTG.TOP ON LM)
7	252550506320	FAN SHROUD
9	252750100249	SET. ASSY. AUX. TANK & MTGS.
10	252750108242	ASSY. PRESSURE VALVE CAP (7 PSI)
11	252750108243	ASSY. PRESSURE VALVE CAP (14 PSI)
14	252550005828	VENT TUBE (AUX. TANK TO UPPER COOLING WATER LINE)
15	252550005829	VENT TUBE ( AUX. TANK TO RADIATOR )
18	252550000187	ASSY.RADIATOR FRAME WITH TOP IC MTG BRACKET
19	252550103302	BRACKET LH (TIE ROD MOUNTING ON LONG MEMBER)
19	252550103303	BRACKET RH (TIE ROD MOUNTING ON LONG MEMBER)
24	252550106935	WATER FILL PIPE-II (AUX. TANK TO RAD)
25	252550005825	RUBBER HOSE , TANK TO TUBE TO RADIATOR
27	252550106938	WATER FILL PIPE-II (AUX. TANK TO RAD)
28	14280500454	HOSE CLAMP (45 DIA.)
29	252550005826	HOSE (L = 115 MM)
31	252550005832	RADIATOR HOSE (RADIATOR TO WATER PUMP)
32	252550100292	CONNECTOR (RADIATOR TO WATER PUMP)
36	252550005831	Z HOSE (THERMOSTAT TO RADIATOR)
37	14280599302	HOSE CLAMP TB 36
38	252550100345	ASSY SUPPORT ( AUX. TANK MTG)
42	252750100214	CLAMP FRONT (AUX. TANK)

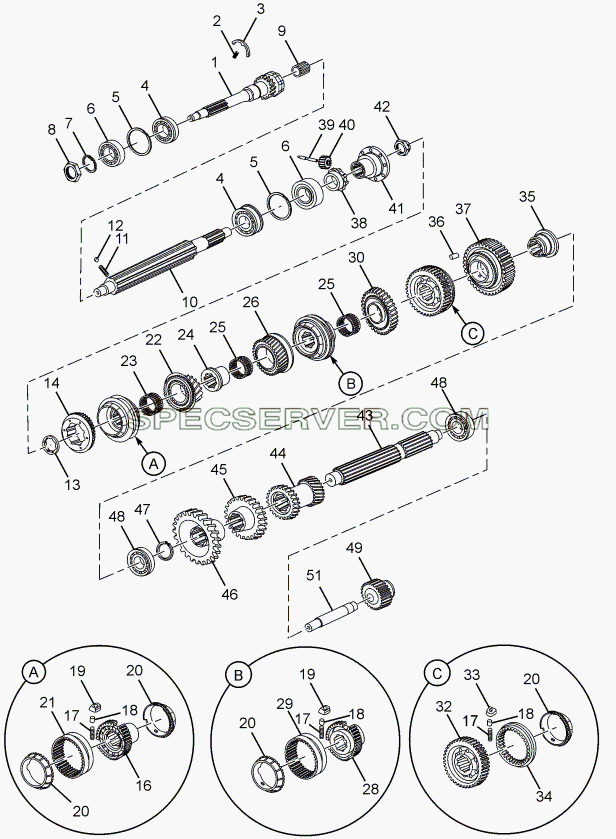

GEAR SHAFT AND GEAR для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	250526353401	BUSH (REVERSE IDLER GEAR)
-	885426041612	SYNCHRO KIT GBS 40 CONSISTING OF :
1	250526257904	DRIVE SHAFT (6.34)
2	3219931201	COMPRESSION SPRING
3	3212620073	CLAMPING PLATE
4	0009811201	CYLINDRICAL ROLLER BEARING
5	250526204302	SNAP RING 2.68 MM THICK
5	250526204303	SNAP RING 2.73 MM THICK
5	250526204304	SNAP RING 2.78 MM THICK
5	250526204305	SNAP RING 2.83 MM THICK
5	250526204306	SNAP RING 2.88 MM THICK
5	250526204307	SNAP RING 2.93 MM THICK
6	250526203106	FOUR POINT BALL BEARING
7	250726258601	SPACER ON DRIVE SHAFT
8	3122621172	LOCK NUT LH THREAD
9	250526203118	ROLLER CAGE (31MM LONG)
10	250526207903	MAIN SHAFT (W/O GROOVE)
11	3129931701	PRESSURE SPRING
12	3212620374	PIN ON MAIN SHAFT
13	250526208608	BUTTING RING 6.95 MM THICK
13	250526208609	BUTTING RING 7.05 MM THICK
13	250526208610	BUTTING RING 7.15 MM THICK
13	250526208611	BUTTING RING 7.25 MM THICK
13	250526208612	BUTTING RING 7.35 MM THICK
13	250526208613	BUTTING RING 7.75 MM THICK
13	250526208614	BUTTING RING 7.85 MM THICK
13	250526208615	BUTTING RING 7.95 MM THICK
13	3212620462	BUTTING RING 7.40 MM THICK
13	3212620562	BUTTING RING 7.50 MM THICK
13	3212620662	BUTTING RING 7.60 MM THICK
13	3212620762	BUTTING RING 7.70 MM THICK
13	3212621762	BUTTING RING 7.30 MM THICK
13	3212621862	BUTTING RING 7.20 MM THICK
13	3212621962	BUTTING RING 7.10 MM THICK
13	3212622062	BUTTING RING 7.00 MM THICK
13	3212622162	BUTTING RING 6.90 MM THICK
13	3212622562	BUTTING RING 7.80 MM THICK
13	3212622662	BUTTING RING 7.90 MM THICK
13	3212622762	BUTTING RING 8.00 MM THICK
13	3212622862	BUTTING RING 7.45 MM THICK
13	3212622962	BUTTING RING 7.55 MM THICK
13	3212623062	BUTTING RING 7.65 MM THICK
14	3222620134	SYNCHRONISING RING
16	250530155403	SYNCHRONISING SLEEVE 4TH & 5TH
17	COMP. SPRING
18	RETENTION PIN 1ST
18	RETENTION PIN 4/5, 2/3
19	CARRIER 4/5 & 2/3
20	250526203802	SYNCHRONISING CONE
20	250526203802	SYNCHRONISING CONE
20	250526203802	SYNCHRONISING CONE
21	3212620823	SHIFTING SLEEVE
22	250526200135	ASSY. HELICAL GEAR 4TH SPEED
23	250526203123	DOUBLE ROW NEEDLE CAGE
24	3222624050	COLLAR BUSHING 44.5 MM LONG (FOR THIRD SPEED GEAR)
24	3222624150	COLLAR BUSHING 44.6 MM LONG (FOR THIRD SPEED GEAR)
25	250526203124	DOUBLE ROW ROLLER CAGE
25	250526203124	DOUBLE ROW ROLLER CAGE
26	250526200118	ASSY. HELICAL GEAR 3RD SPEED
28	3222620435	SYNCHRONISING SLEEVE 2/3
29	3212620823	SHIFTING SLEEVE
30	3222620112	HELICAL GEAR 2ND SPEED
32	3222630333	REVERSE GEAR ON MAIN SHAFT
33	CARRIER 1ST
34	3212620723	SHIFTER SLEEVE 1ST SPEED
35	250530153401	COLLAR BUSHING 47.2 MM LONG
35	250530153402	COLLAR BUSHING 47.3 MM LONG
35	250530153403	COLLAR BUSHING 47.4 MM LONG
35	250530153404	COLLAR BUSHING 47.5 MM LONG
35	250530153405	COLLAR BUSHING 47.6 MM LONG
35	250530153406	COLLAR BUSHING 47.7 MM LONG
35	250530153407	COLLAR BUSHING 47.8 MM LONG
35	250530153408	COLLAR BUSHING 47.9 MM LONG
36	250526203001	CYLINDRICAL ROLLER 4X8
37	250530155401	GEAR WHEEL 1ST SPEED
38	3522640130	GEAR SPEEDOMETER DRIVE
39	250526207902	SHAFT (SPEEDO DRIVE)
40	3522640130	GEAR SPEEDOMETER DRIVE
41	3222620045	COUPLING FLANGE (8 HOLES)
42	3222620072	HEX. NUT
43	250530147901	COUNTER SHAFT (WITH PTO PROVISION)
44	250526305402	TWIN GEAR (COUNTER SHAFT) (2/3)
45	250526305401	4TH GEAR (ON COUNTER SHAFT)
46	250526305407	CONSTANT MESH GEAR (ON COUNTER SHAFT) (6.34)
47	14550699053	CIRCLIP A 52X2.5
48	250526303104	TAPER ROLLER BEARING
49	250526350102	REVERSE IDLER GEAR WITH BUSH
51	250530177901	REVERSE IDLER GEAR SHAFT

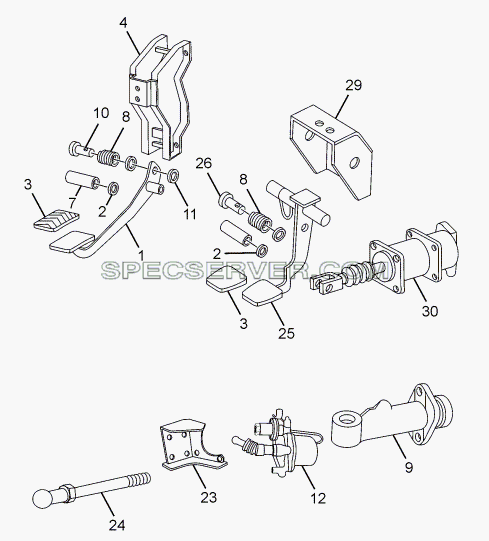

CLUTCH AND BRAKE CONTROLS для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264129100155	MAJOR REPAIR KIT CLUTCH MASTER CYLINDER, CONSISTING OF :
-	264129100156	MINOR REPAIR KIT CLUTCH MASTER CYLINDER
-	264129109902	SLEEVE
-	264129200114	MAJOR REPAIR KIT, CLUTCH BOOSTER
-	264129200115	MINOR REPAIR KIT, CLUTCH BOOSTER
-	CIRCLIP
-	CRIMPING SLEEVE
-	FORK
-	MINOR REPAIR KIT CLUTCH MASTER CYLINDER
-	PUSH ROD
-	RUBBER BELLOW
-	SEAL
1	264129200109	ASSY.CLUTCH PEDAL
2	265129103401	SINTERED BUSH
2	265129103401	SINTERED BUSH
3	265129107703	RUBBER COVER
3	265129107703	RUBBER COVER
4	264129200107	ASSY.SUPPORT COMPLETE(CLUTCH)
7	264129108602	SPACER
8	264129108701	TORSION SPRING
8	264129108701	TORSION SPRING
9	264129100117	ASSY. CLUTCH MASTER CYL.
10	264129106702	PIN CLUTCH PEDAL
11	264129106301	BUSH (CLUTCH PEDAL)
12	264129200112	ASSY. CLUTCH BOOSTER(90DIA)
23	264129200113	ASSY.BRACKET (CLUTCH BOOSTER MTG.)
24	264129300104	ASSY. PUSH ROD BRAKE PEDAL
25	264329100135	ASSY. BRAKE PEDAL COMPLETE, LHD
26	264129106703	BRAKE PIN
29	264129200110	ASSY. COVER (CONTROLS)
30	263243700165	FOOT BRAKE VALVE VOSS 74.5MM

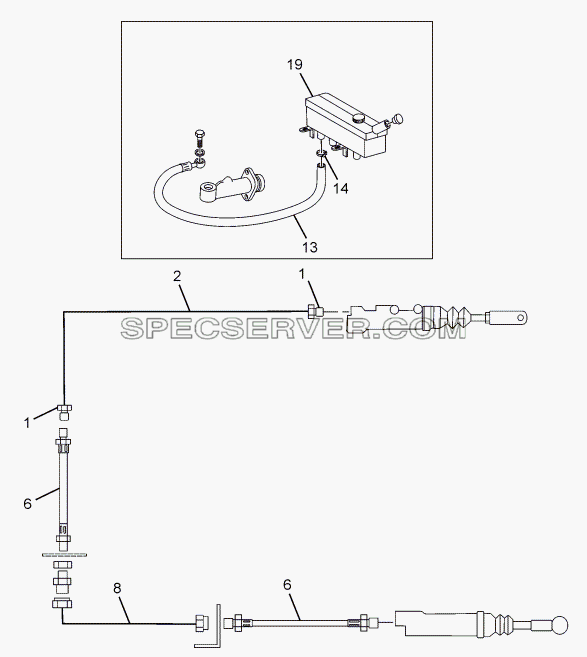

CLUTCH PIPE LINES для LPT 613/34 WB Euro III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	0004280172J	COUPLING NUT
2	264329200108	ASSY. TUBE
6	264129100199	ASSY. HOSE
8	264329200107	ASSY. TUBE
13	264129100127	ASSY CONNECTING LINE
14	14270201700	HOSE CLIP 17
19	264129100182	ASSY. FLUID CONTAINER
