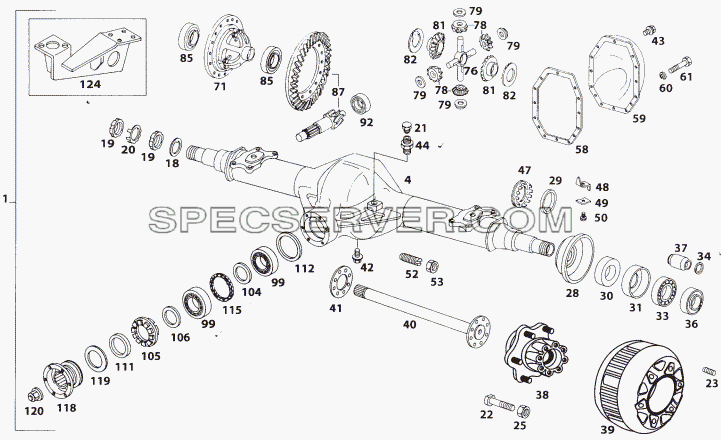

REAR AXLE для LP/LPT 613 LHD (список запасных частей)

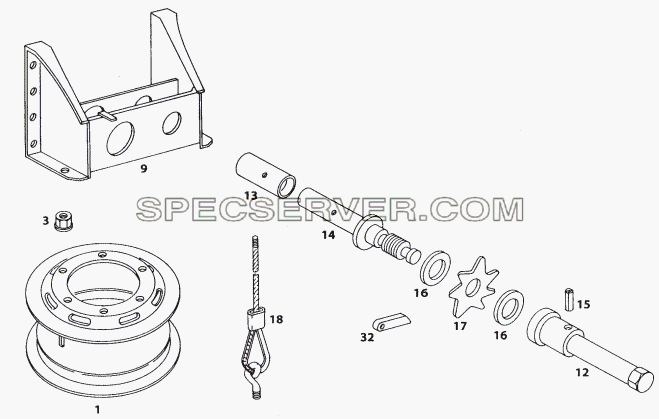

SPARE WHEEL CARRIER для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	000 997 67 47	Oil Seal, Hub Outer (Single Lip)
-	1458 061100 2	Internal Circlip 110x4
-	2612 3530 82 01	Locking Plate
-	2632 4210 34 03	Sensor Bush -ABS
-	2643 4230 33 02	Sensor Mtg. Bracket (Rear) - ABS
-	2643 4230 33 03	Sensor Mtg. Bracket (Rear) - ABS
-	2643 4230 99 01	Pole Wheel Rear
-	2643 5420 99 29	Sensor -`L Type' (Wheel Speed) .
-	2661 3510 82 02	Oil Slinger
-	2661 3530 01 25	Differential Gear and Spider Kit Consists of:
-	2661 3530 61 01	Locking Plate (Differential Case)
-	2661 3530 78 01	Dust Seal
-	2661 3530 80 04	Hex. Screw
1	2661 3500 01 40	Assy. Rear Axle Complete with Brake ( 28/9 CWP Ratio ) With ABS
4	2661 3510 01 39	Assy. Rear Axle Housing with Supporting Tubes, with ABS
18	2612 3560 86 01	Spacer
19	2612 3560 65 01	Locking Ring
20	2612 3560 82 02	Locking Plate
21	2574 3315 01 02	Breather
22	2821 4010 67 01	Hub Pin Rear
23	2665 3560 88 01	Stud M16
25	1230 269602 9	Hex Nut M12X1.5
28	2661 3560 82 01	Oil Catcher, (For ABS)
29	2661 3510 86 02	Pressure Ring
30	2661 3560 77 01	Oil Seal, Hub Inner (Double Lip)
31	2661 3560 86 01	Spacer
33	2575 3560 31 10	Taper Roller Bearing, Inner
34	2661 3560 83 01	Shim-0.05 Thk.
34	2661 3560 83 02	Shim-0.10 Thk.
34	2661 3560 83 03	Shim-0.15 Thk.
34	2661 3560 83 04	Shim-0.20 Thk.
34	2661 3560 83 05	Shim-0.25 Thk.
34	2661 3560 83 06	Shim-0.30 Thk.
34	2661 3560 83 07	Shim-0.50 Thk.
34	2661 3560 83 08	Shim-1.00 Thk.
34	2661 3560 83 09	Shim-1.50 Thk.
34	2661 3560 83 10	Shim-2.5 Thk.
36	2612 3560 31 02	Taper Roller Bearing, Outer
37	2661 3560 86 02	Spacer Tube
38	2661 3560 01 18	Assy.Rear Hub (For ABS)
39	2641 4210 37 01	Brake Drum
40	2661 3570 79 02	Rear Axle Shaft
41	2661 3560 53 02	Gasket (For Brake Drum with Hub)
42	2663 3510 72 01	Magnetic Drain Plug
43	000 997 05 06	Screw Plug, Oil Filling
47	2661 3530 65 01	Threaded Ring
48	312 994 12 01	Locking Plate
49	2612 3560 82 02	Locking Plate
50	1132 399619 1	Hex. Screw M 8x12
52	2612 3530 01 03	Adjusting Pin
53	1208 090180 0	Hex. Thin Nut M 18x1.5
58	2661 3510 53 01	Gasket (Between R.A. Housing & Rear Cover)
59	2661 3510 01 05	Assy. Cover Rear Axle Housing
60	1252 069805 0	Spring Washer B10
61	1132 399818 5	Hex. Screw M 10x18
71	2661 3530 01 21	Differential Housing Assy.
76	2661 3530 51 03	Differential Spider
76	Differential Spider
78	2661 3530 54 03	Differential Bevel Pinion
78	Bevel Gear
79	2661 3530 92 10	Spherical Washer (Steel)
81	2661 3530 54 04	Rear Axle Shaft Gear
81	Gear R.A Shaft
82	2661 3530 92 02	Thrust Washer, Shaft Gear 1.95 mm
82	2661 3530 92 03	Thrust Washer, Shaft Gear 2.00 mm
82	2661 3530 92 04	Thrust Washer, Shaft Gear 2.05 mm
82	2661 3530 92 05	Thrust Washer, Shaft Gear 2.10 mm
82	2661 3530 92 06	Thrust Washer, Shaft Gear 2.15 mm
82	2661 3530 92 07	Thrust Washer, Shaft Gear 2.20 mm
82	2661 3530 92 08	Thrust Washer, Shaft Gear 2.25 mm
85	2612 3530 31 01	Taper Roller Bearing (55x100x26.75)
87	2661 3530 01 19	Set Crown Wheel and Pinion (31/8 Ratio)
92	2661 3530 31 16	Cylindrical Roller Brg. (Pinion Nose)
99	2661 3530 31 05	Taper Roller Brg. (Tail Pinion)
104	2661 3530 86 32	Spacer (Between Tail Pinion Brgs.)
105	2661 3530 65 01	Threaded Ring
106	2661 3530 86 68	Spacer (Between Brg. and Flange)
111	2661 3530 77 02	Oil Seal Tail Pinion
112	2661 3530 83 03	Shim 0.15 Thick
112	2661 3530 83 04	Shim 0.20 Thick
112	2661 3530 83 05	Shim 0.25 Thick
112	2661 3530 83 06	Shim 0.30 Thick
112	2661 3530 83 07	Shim 0.45 Thick
112	2661 3530 83 08	Shim 0.50 Thick
112	2661 3530 83 09	Shim 1.0 Thick
112	2661 3530 83 10	Shim 1.5 Thick
115	2661 3530 86 37	Spacer Ring, Tail Pinion 7.64 Thick
115	2661 3530 86 38	Spacer Ring, Tail Pinion 7.66 Thick
115	2661 3530 86 39	Spacer Ring, Tail Pinion 7.68 Thick
115	2661 3530 86 41	Spacer Ring, Tail Pinion 7.72 Thick
115	2661 3530 86 42	Spacer Ring, Tail Pinion 7.74 Thick
115	2661 3530 86 44	Spacer Ring, Tail Pinion 7.78 Thick
115	2661 3530 86 46	Spacer Ring, Tail Pinion 7.82 Thick
115	2661 3530 86 47	Spacer Ring, Tail Pinion 7.84 Thick
115	2661 3530 86 48	Spacer Ring, Tail Pinion 7.86 Thick
115	2661 3530 86 49	Spacer Ring, Tail Pinion 7.88 Thick
115	2661 3530 86 50

№	Номер детали	Наименование запчасти
-	1415 050450 4	Disc Spring A 45
-	2641 4030 01 04	Assy. Bracket
-	2641 4030 01 06	Assy. Spare Wheel Carrier
-	2651 4010 00 02	Locking Ring
1	2640 4010 01 02	Assy. Wheel Rim with Disc (6x16)
3	2640 4010 01 01	Assy. Wheel Nut
9	2641 4030 01 05	Assy. Bracket (Spare Wheel Mtg.)
12	2641 4030 01 02	Assy. Handle
13	2651 4030 84 01	Sleeve
14	2651 4030 01 15	Assy. Shaft
15	1310 210424 7	Grooved Pin 4x24
16	2573 4030 63 01	Friction Pad
17	2576 4030 71 08	Ratchet Wheel
18	2651 4030 01 16	Assy. Wire Rope
32	2576 4030 71 09	Ratchet Arm

№	Номер детали	Наименование запчасти
-	000 997 22 47	Packing Ring
-	1428 050070 5	Hose Clamp 70
-	1428 050080 2	Hose Clamp 80
-	2573 4130 82 16	Dust seal Retainer
-	2574 4130 31 01	SRDG. BRG. 40 BC02/80x18/6208
-	328 411 00 51	Ring
-	Assy. Bearing Cup
-	Closing Ring
-	Cross
-	Grease Nipple
-	Hex Thin Nut M 8x1

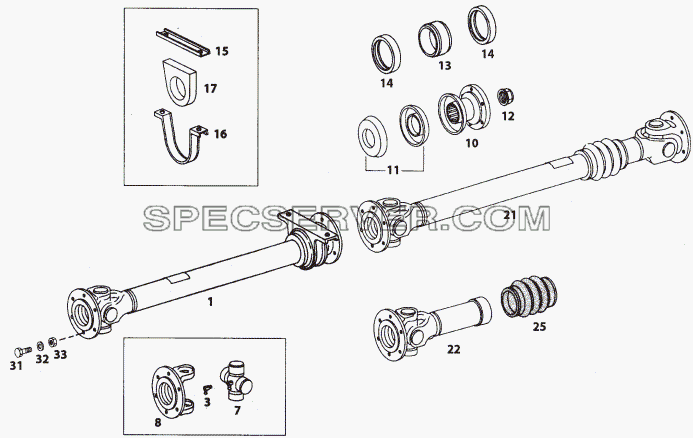

1	2641 4111 01 05	Assy. Propeller Shaft with Centre Bearing (Frt)
3	1717 200100 9	Grease Nipple AM 10x1
7	2651 4110 01 28	Cross Repair Kit
7	2651 4110 01 28	Cross Repair Kit
7	2651 4110 01 28	Cross Repair Kit
8	312 411 11 11	Universal Joint Flange
8	312 411 11 11	Universal Joint Flange
10	2573 4130 01 14	Assy. Coupling Flange - with Protective Cover
11	2573 4130 82 09	Protective Cap
12	042 411 00 72J	Hex Nut
13	2573 4130 01 18	Assy. Centre Bearing
14	2573 4130 82 10	Retainer
15	2573 4130 42 02	Clamp
16	2573 4130 33 07	Bracket
17	2573 4130 75 05	Rubber Housing
21	2641 4112 01 07	Assy. Propeller Shaft Rear
22	2573 4112 01 09	Assy. U.J. Long Fork Complete
25	328 411 00 97	Protective Cap
31	2576 4111 32 01	Bolt
32	2505 2640 61 01	Locking Plate
33	1205 239601 6	Hex Nut M 10x1

№	Номер детали	Наименование запчасти
-	2643 4210 01 71	Kit - Lining Set (STD)
-	2643 4210 01 72	Kit - Lining Set (R/S I)
-	2643 4210 01 73	Kit - Lining Set (R/S II)
1	2643 4210 37 02	Torque Plate LH
1	2643 4210 37 03	Torque Plate RH
2	2641 4210 01 70	Assy. Chamber Mtg. Bracket LH
2	2641 4210 01 71	Assy. Chamber Mtg. Bracket RH
3	2641 4210 51 04	Cam Shaft LH
3	2641 4210 51 05	Cam Shaft RH
4	2641 4210 77 03	Oil Seal
5	2641 4210 34 04	Bush (Bronze)
6	2641 4210 86 02	Sleeve (Delrin)
7	2641 4210 83 04	Shim 0.50 mm
7	2641 4210 83 05	Shim 0.30 mm
8	2641 4210 83 06	Shim 1.00 mm
8	2641 4210 83 06	Shim 1.00 mm
9	2641 4210 43 01	Circlip
10	2643 4210 01 10	Assy. Brake Shoe (STD)
11	2641 4210 99 06	Roller
12	2641 4210 87 05	Spring Pull Off (Cam End)
13	2641 4210 87 06	Spring Pull Off (Fulcrum End)
14	2641 4210 67 04	Fulcrum Pin
15	2641 4210 34 05	Fulcrum Pin Bush
16	2641 4210 82 12	Dust Cover Front (Top)
16	2641 4210 82 13	Dust Cover Front (Bottom)
19	2573 4210 75 01	Grommet

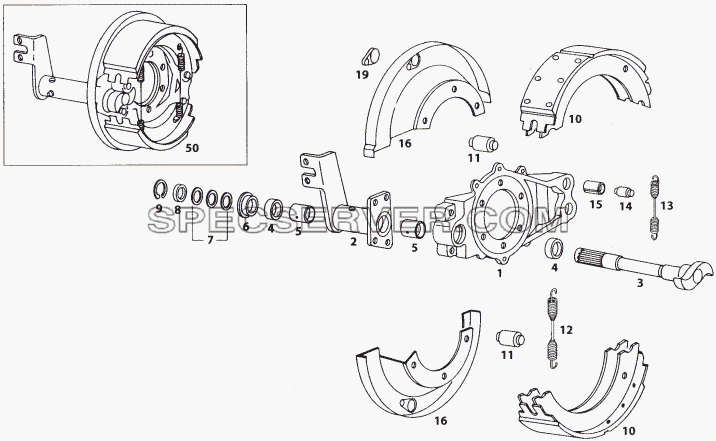

50	2643 4210 01 05	Assy. Front Brake LH
50	2643 4210 01 06	Assy. Front Brake RH

№	Номер детали	Наименование запчасти
-	2643 4210 01 71	Kit - Lining Set (STD)
-	2643 4210 01 72	Kit - Lining Set (R/S I)
-	2643 4210 01 73	Kit - Lining Set (R/S II)
1	2643 4230 37 02	Torque Plate - LH
1	2643 4230 37 03	Torque Plate - RH
2	2641 4210 01 10	Assy. Brake Shoe (STD)
3	2641 4230 51 06	Cam Shaft Rear LH
3	2641 4230 51 07	Cam Shaft Rear RH
4	2641 4210 77 03	Oil Seal
5	2641 4210 34 04	Bush (Bronze)
6	2641 4230 01 91	Assy. Bracket Cam Shaft
7	2641 4230 86 03	Spacer (Cam Shaft)
8	2643 4210 86 01	Sleeve
9	2093 4210 92 04	Washer 1.50 mm
9	2641 4210 83 04	Shim 0.50 mm
9	2641 4210 83 05	Shim 0.30 mm
10	2641 4210 83 06	Shim 1.00 mm
11	2641 4210 43 01	Circlip
12	2641 4210 67 04	Fulcrum Pin
13	2641 4210 34 05	Fulcrum Pin Bush
14	2641 4210 99 06	Roller
15	2641 4210 87 05	Spring Pull Off (Cam End)
16	2641 4210 87 06	Spring Pull Off (Fulcrum End)
17	2641 4230 82 10	Dust Cover (Top)
17	2641 4230 82 11	Dust Cover (Bottom)
20	2573 4210 75 01	Grommet

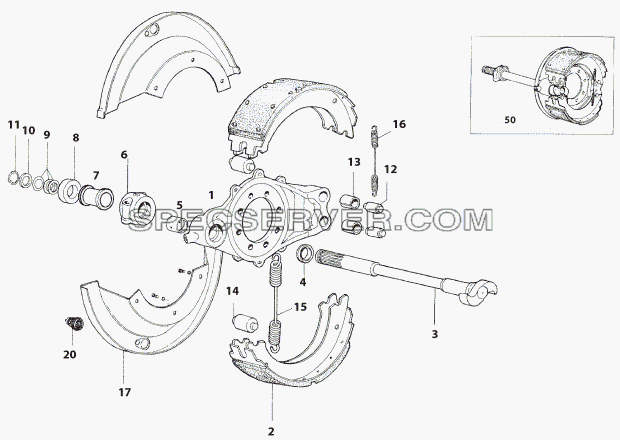

50	2643 4230 01 05	Assy. Rear Brake RH
50	2643 4230 01 06	Assy. Rear Brake LH

№	Номер детали	Наименование запчасти
-	2573 4295 01 76	"3/8"" Hose 630 lg (Modulator Valve to Rear Brake Chamber)"
-	2576 4320 67 02	Pin
-	2641 4290 01 66	Assy. Nylon Tube (Int. Joint to Assy. Hose Parking Line)
-	2641 4320 01 19	Assy. Bracket RH (Air Drier)
-	2643 4290 01 38	Assy. Tube, Elbow To Tee On Rear Axle)
-	2643 4370 01 11	Assy. Bracket Hand Brake Valve
-	2643 4390 01 15	Assy.Nylon Pipe Set
-	2643 4390 01 18	Assy.Nylon Pipe Set
-	2821 4390 82 01	Bracket-Modulator Valve Mtg.- Front.
-	2821 4390 82 02	Bracket-Modulator Valve Mtg. Rear

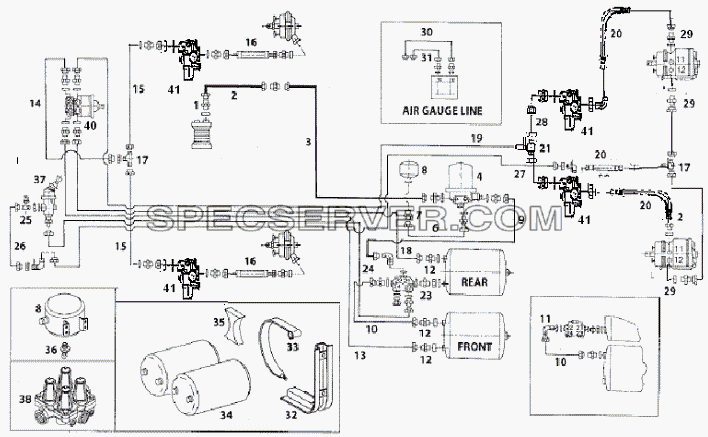

1	1644 280150 2	Coupling Body M 20x22 (On Compressor)
2	2643 4390 01 16	Assy. Tube With Crimped Hose (1st Pipe From Compressor)
3	2643 4390 01 05	Assy. Tube (2 nd Pipe From Compressor)
3	2643 4390 01 06	Assy. Tube (3 rd Pipe From Compressor)

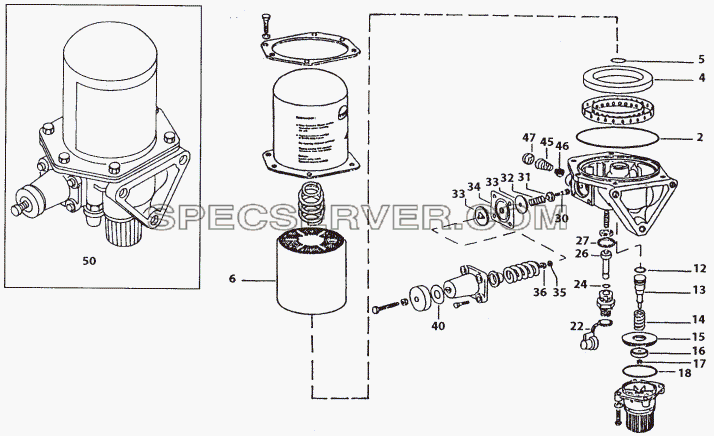

4	2641 4370 01 05	Air Drier
6	2643 4290 01 40	Assy. Tube (Air Drier to Purge Tank)
7	2576 4350 68 02	Double Socket (On Purge Tank)
8	2768 4370 01 02	Purge Tank
9	2643 4290 01 33	Assy. Nylon Tube (Air Drier Port 21 to System Protection Valve)
10	2641 4290 01 53	Assy. Nylon Tube (System Protection Valve to Air Tank Front)
11	2573 4290 68 09	Elbow (On System Protection Valve)
12	2576 4350 68 02	Double Socket (On Purge Tank)
13	2643 4290 01 36	Assy. Nylon Tube (Air Tank Front to Port No. 12 of Duel Treadle Valve)
14	2643 4290 01 32	Assy. Nylon Tube (Port No. 22 of Duel Treadle Valve toTee Front Brake)
15	2643 4290 01 19	Assy. Nylon Tube (Tee to Front Brake RH & LH)
16	2573 4295 01 77	Assy. Hose ( Front Brake Chamber LH/RH)
17	2643 4290 68 02	T Socket
17	2643 4290 68 04	Tee, Socket (Front Brake)
18	2643 4290 01 39	Assy. Nylon Tube (Air Tank Rear to Port 11 of Dual Treadle Valve)
19	2643 4290 01 37	Assy. Nylon Tube (Port No. 21 of Dual Brake Valve to LCRV)
20	2573 4290 01 61	Assy. Hose 3/8 “ (Rear Brake)
20	2573 4290 01 61	Assy. Hose 3/8 “ (Rear Brake)
21	2644 4290 68 02	T Socket (Rear Brake)
23	2573 4290 68 10	Socket (On Port 23 of System Protection Valve)
24	2643 4290 01 34	Assy. Nylon Tube (Port No. 23 of System Protection Valve toHand Brake Valve)
25	2600 4290 68 01	T Socket (On Hand Brake Valve)
26	2643 4290 01 43	Assy. Nylon Tube (Hand Brake Valve to Elbow)
28	2644 4290 01 21	Assy. Nylon Tube (Tee to Rear Brake Chamber LH / RH)
29	2576 4350 68 05	Socket
30	2643 4290 01 42	Assy. Nylon Pipe (Duel Treadle Valve Port 11 to Air Gauge)
31	2643 4290 01 41	Assy. Nylon Pipe (Duel Treadle Valve Port 12 to Air Gauge)
32	2641 4320 01 13	Assy. Support (Air Tank)
33	2576 4320 01 18	Assy. Strap
34	2641 4320 01 21	Assy. Air Tank
35	2576 4320 86 02	Spacer Block
36	2576 4379 01 59	Water Drain Valve
37	2573 4370 01 53	Graduated Hand Brake Valve
37	2643 4370 01 17	Graduated Hand Brake Valve
38	2641 4370 01 41	Quadr.Sys. Prot. Valve (Hi Pr)
38	2782 4370 01 10	System Protection Valve (Knoor-K005517)
40	2641 4370 01 30	Foot Brake Valve
40	2643 4370 01 12	Foot Brake Valve
40	2782 4370 01 59	Dual Brake Vavle W.F.(W/O Silencer)
41	2632 4390 01 03	Modulator Valve-12V
41	2632 4390 01 04	Modulator Valve-12V
41	2632 4390 01 05	Modulator Valve-12V
41	2841 4390 01 33	Madulator Valve 24V
41	2841 4390 01 34	Madulator Valve 24V
41	2841 4390 01 35	Madulator Valve 24V

№	Номер детали	Наименование запчасти
-	2641 4370 01 11	Repair Kit Consisting of :
-	2641 4370 01 12	Plunger Assy. Consisting of :
-	2641 4370 01 13	Assy. Diaphragm Consists of :
-	Silicon Grease Sachet
2	Sealing Ring
4	Filter
5	Sealing Ring
6	Desiccant Cartridge
12	Sealing Ring
13	Unloader Plunger
14	Compression Spring
15	Valve Seat
16	Valve
16	Valve
17	Hexagonal Nyloc Nut
18	Sealing Ring
22	Dust Cap
24	Sealing Ring
26	Valve
27	Sealing Washer
30	Governor Plunger
31	Valve
31	Valve
32	Spring
33	Follower
34	Diaphragm
34	Diaphragm
35	Spring washer
36	Hex Nut
40	Exhaust Flap
45	Conical Spring
46	Non Return Valve
47	Valve Stop & Spring Retainer
50	2641 4370 01 05	Air Drier
50	2809 4370 01 02	Air Drier 24V

REAR AXLE для LP/LPT 613 LHD (список запасных частей)

SPARE WHEEL CARRIER для LP/LPT 613 LHD (список запасных частей)

PROPELLER SHAFT для LP/LPT 613 LHD (список запасных частей)

FRONT WHEEL BRAKE (S-CAM) ABS для LP/LPT 613 LHD (список запасных частей)

REAR WHEEL BRAKE (S-CAM) для LP/LPT 613 LHD (список запасных частей)

AIR LINES для LP/LPT 613 LHD (список запасных частей)

AIR DRIER WITH TYRE INFLATOR для LP/LPT 613 LHD (список запасных частей)

DUAL BRAKE VALVE для LP/LPT 613 LHD (список запасных частей)

FRONT BRAKE CHAMBER для LP/LPT 613 LHD (список запасных частей)

FRONT AND REAR SLACK ADJUSTER для LP/LPT 613 LHD (список запасных частей)

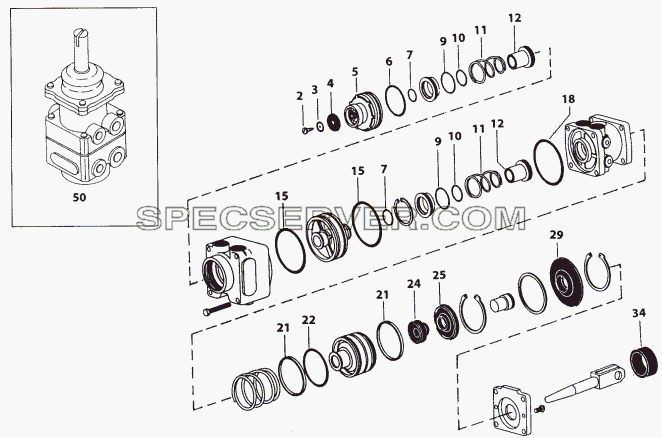

№	Номер детали	Наименование запчасти
-	2576 4373 01 34	Venting Guide Assy. Consisting of :
-	2641 4370 01 26	Repair Kit Consisting of :
2	Self Tapping Screw
3	Cap
4	Washer
4	Washer
5	Venting Guide
6	'O' Ring
7	'O' Ring
9	'O' Ring
10	'O' Ring
11	Spring
12	Valve
15	'O' Ring
18	'O' Ring
21	Guide Ring
22	'O' Ring
24	Rubber Spring
25	Spring Seat
29	Boot
34	Boot
50	2641 4370 01 02	Assy. Dual Brake Valve

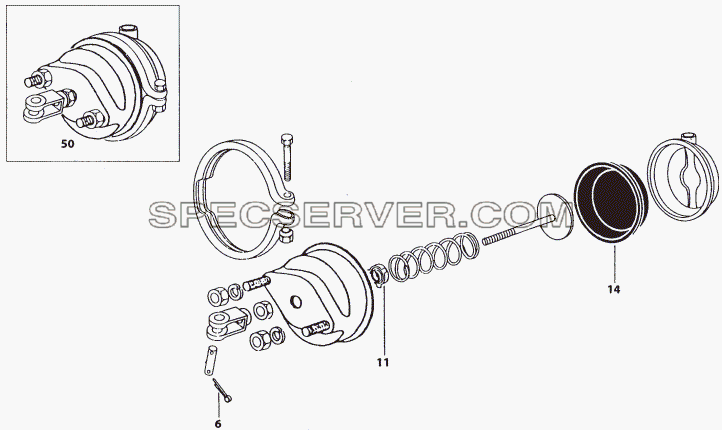

№	Номер детали	Наименование запчасти
-	2641 4210 01 66	Repair Kit Consisting of :
6	Split Pin
11	Seal Assy.
14	Diaphragm
50	2641 4210 01 48	Front Brake Chamber

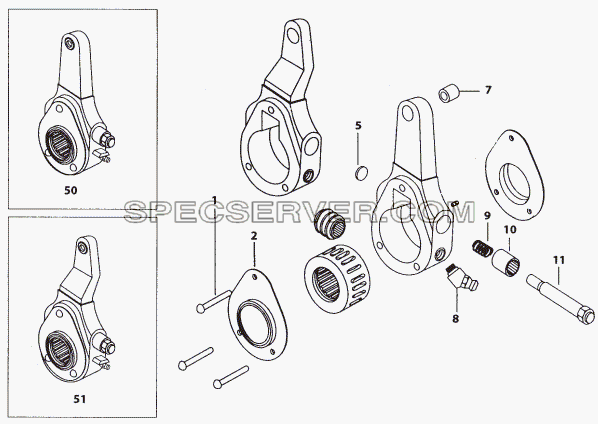

№	Номер детали	Наименование запчасти
-	2641 4210 01 68	Worm Shaft Kit Consisting of :
-	2641 4231 01 34	Major Repair Kit Rear Slack Adjuster Consisting of :
1	Rivet
2	Cover
5	Welch Plug
7	Bush
7	Bush
8	Conical Head Grease Nipple
9	Warm Shaft Lock Spring
9	Worm Shaft Lock Spring
10	Worm Shaft Lock
10	Worm Shaft Lock
11	Worm Shaft
11	Worm Shaft
50	2641 4211 01 64	Slack Adjuster Front
51	2641 4231 01 20	Rear Slack Adjuster LH, 16mm Offset
51	2641 4231 01 21	Rear Slack Adjuster RH, 16mm Offset
