Запчасти: ASSY. OIL FILTER для LP/LPT 613 LHD

ASSY. OIL FILTER для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	2525 1813 01 28	Assy. Oil Filter (30 microns) CMVR 2000
2	2523 1813 01 39	Assy. Cover (for Oil Filter) CMVR 2000
3	1608 100180 8	Sealing Plug AM 18 x 1.5
4	1622 071024 0	Sealing Washer 16x20 Cu
5	2520 1813 72 03	Screw Plug (For Relief Valve)
6	1622 071038 0	Sealing Washer 24x29 Cu
7	1622 071028 2	Sealing Washer 18 x 22
8	2520 1813 87 01	Spring (For Pressure Relief Valve)
9	352 184 00 32	Oil Filter Bye - pass Valve Plunger
10	2522 1813 01 03	Assy. Housing (for Oil Filter)
11	2520 1813 77 01	Sealing Ring
12	1622 071024 0	Sealing Washer 16x20 Cu
13	012 997 00 30J	Sealing Plug
14	2523 1813 01 13	Assy. Spg. Retainer (For Oil Filter)
15	2520 1813 77 02	Oil Seal
16	2520 1813 77 03	Sealing Ring
17	2523 1813 32 01	Centre Pin
18	1622 061022 9	Sealing Washer A 14x20
19	2525 1813 01 24	Oil Filter Cartridge (30 microns) CMVR 2000
20	2523 1813 53 01	Gasket (Oil Filter To Cylinder Block)

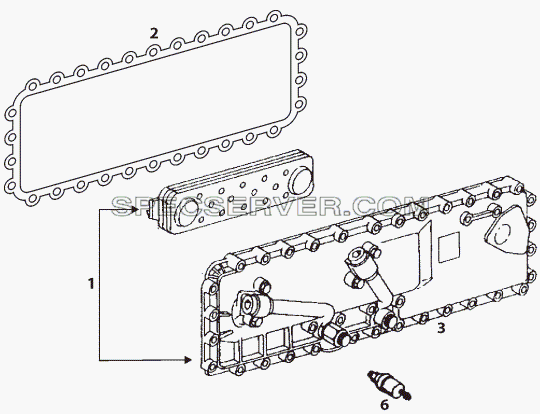

Запчасти: OIL COOLER (PLATE T YPE) для LP/LPT 613 LHD

OIL COOLER (PLATE T YPE) для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	2525 1817 01 69	Assy. Oil Cooler with Aluminium Cover (Plate Type)
2	352 188 07 80	Gasket Oil Cooler
3	2525 1817 38 05	Cover, Oil Cooler
6	2654 5450 99 13	Oil Pressure Switch

Запчасти: PISTON COOLING для LP/LPT 613 LHD

PISTON COOLING для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	2525 1817 01 50	Assy relief Valve (for Nozzle)
-	2525 1817 01 60	Assy Piston Cooling Nozzle
-	2525 1817 92 01	Sealing Washer
-	2525 1817 92 02	Sealing Washer

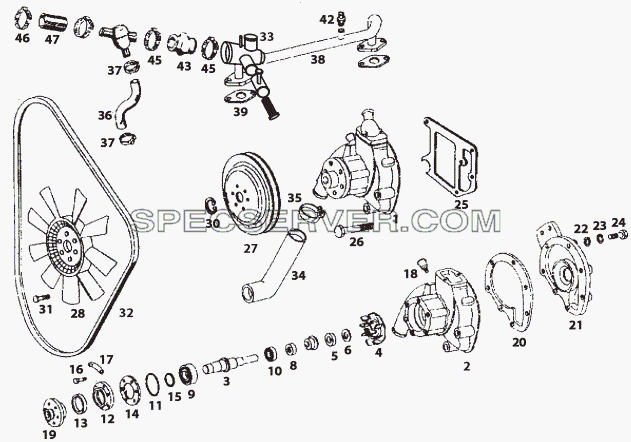

Запчасти: WATER PUMP для LP/LPT 613 LHD

WATER PUMP для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	1428 059926 4	Hose Clip TB 34
-	2525 2010 01 18	Minor Repair Kit (Water Pump) Consisting of
-	2525 2014 01 11	Viscous Coupling
-	2525 5010 02 92	Connector (Radiator To Water pump)
-	2525 5010 58 58	Rubber Hose (Radiator bottom to Water Pump)
-	2641 5450 99 08	Temparature Switch
-	Axle Slide Ring Seal
-	Circlip A 28x2
-	Circlip A 28x2 (Heavy Duty)
-	Cyclam Slide Ring Seal
-	Gasket
-	Gasket
-	Gasket Clutch
-	Gasket Water Pump
-	Gasket Water Pump
-	Gasket Water Pump
-	Hub
-	Impeller, Plastic
-	Major Repair Kit (Water Pump) Consisting of
-	Oil Seal
-	Oil Seal
-	Rubber Seal Ring
-	Seal Sliding Ring
-	Sealing Member
-	Sealing Member
-	Shaft
-	Shim 0.05 mm Thick
-	Shim 0.10 mm Thick
-	Shim 0.15 mm Thick
-	Shim 0.20 mm Thick
-	Shim 0.50 mm Thick
-	Sliding Ring
-	Sliding Ring
-	Taper Roller Bearing
-	Taper Roller Bearing
1	2525 2010 01 16	Assy. Water Pump (Power Steering)
2	2525 2010 37 04	Housing, Water Pump
3	2525 2010 79 03	Shaft, Water Pump
4	2525 2010 01 04	Assy. Impeller
5	000 201 04 63	Slide Ring
6	000 201 01 97	Sealing Member
8	180 997 01 47	Sealing Ring (Rubber)
9	2525 2010 31 01	Taper Roller Bearing
10	1566 200204 3	Taper Roller Bearing
12	2525 2010 51 02	Cover
13	003 997 51 46	Oil Seal
14	2525 2010 53 02	Gasket (Water Pump)
15	2525 2010 83 02	Shim 0.05 mm Thick
15	2525 2010 83 03	Shim 0.10 mm Thick
15	2525 2010 83 04	Shim 0.15 mm Thick
15	2525 2010 83 05	Shim 0.2 mm Thick
15	2525 2010 83 06	Shim 0.5 mm Thick
16	1132 410630 0	Screw, M 6x30 (Cover to Water Pump)
17	2525 2010 61 01	Locking Plate
18	000 997 19 88	Grease Cup
19	352 201 00 39	Hub (Water Pump)
20	2527 2010 53 03	Gasket (Water Pump Back Cover)
21	2525 2010 37 01	Back Cover
22	1258 100082 9	Lock Washer C 8.2 St.
23	1252 069802 5	Spring Washer B 8
24	1134 240828 3	Screw M 8x28
25	2525 2010 53 01	Gasket
27	2525 2014 70 11	Pulley (Three Groove)
28	2525 2014 01 09	Assy Fan (Without Viscous Coupling)
30	1455 050280 2	Circlip A 28x2 (Hub Locking on W/P Shaft)
31	1163 140720 1	Stud AM 8X20
32	2525 2015 63 05	Cogged V Belt (1325 mm long)
33	2525 2012 01 96	Assy. Thermostat
34	2525 5010 58 57	Rubber Hose (Radiator bottom to Water Pump)
35	1428 059821 7	Hose Clip TB 54
36	2525 2012 58 17	Reducer Hose (Thermostat to Water Pump)
37	2547 5010 42 22	Hose Clamp ( 50 Dia )
38	2525 2012 01 78	Assy. Upper Cooling Line LPT 613
39	2520 2012 53 01	Gasket (Upper Cooling Line)
42	2632 5420 99 03	Temperature Transducer
43	2534 5000 58 01	Rubber Hose (Cover To U C Pipe)
44	2525 5010 58 56	Z Hose (Thermostat to Radiator)
45	2547 5010 42 22	Hose Clamp ( 50 Dia )
46	1428 059930 2	Hose Clamp TB 36

ENGINE SUSPENSION для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	2523 2212 32 04	Hex Coller Screw
-	2523 2212 32 05	Hex Coller Screw
-	312 990 05 40	Washer
-	312 990 06 40	Washer
-	312 994 01 32	Locking Plate
-	352 242 05 09	Torque Support
1	2529 2212 51 01	Engine Mounting Arm, Front
4	2643 2410 01 01	Assy. Rubber Support, Front LH
8	2573 2410 01 03	Assy. Engine Mtg. Pad Front
15	2640 2420 01 10	Assy. Rubber Support, Rear
19	2525 2210 71 08	Lifting Hook, Front
20	2525 2210 71 09	Lifting Hook, Rear

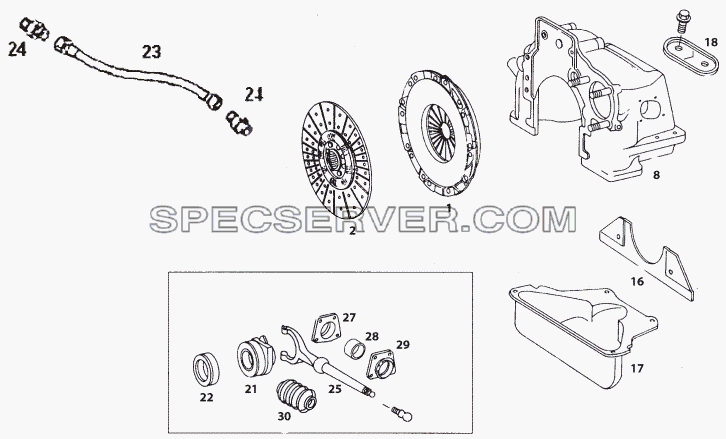

CLUTCH 310 MM DIA для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	2523 2510 67 01	Pin
-	2575 2560 01 04	Assy. Cover
-	2763 2520 01 13	Kit for Clutch Disc Consisting of :
-	2763 2540 01 14	Cover Diaphragm Sub Assy. consisting of :
-	2763 2540 01 15	Kit for Strap and Rivets Consisting of :
-	312 421 10 68	Cover (For Inspection Window)
-	Clutch Cover Housing
-	Clutch Facings (310 Dia.)
-	Cover Plate
-	Diaphragm Plate
-	Diaphragm Rivets
-	Diaphragm Spring
-	Facing Rivet
-	Facing Rivet
-	Fulcrum Plate
-	Rivet (Cover)
-	Rivet (Pressure Plate)
-	Strap
1	2574 2540 01 04	Assy. Cover Plate 310 Dia.
2	2573 2520 01 08	Driven Plate Assy. 310 Dia.
8	2525 2510 37 35	Clutch Housing
16	2523 2510 82 03	Protective Cover (Clutch Housing Front)
17	2523 2510 82 01	Clutch Housing Lower Part
18	042 251 00 04J	Clutch Cover Housing Upper
21	2575 2560 01 10	Clutch Release Bearing with Sleeve
22	2575 2560 31 06	Clutch Release Bearing
23	2575 2560 01 21	Assy. Hose
24	2576 2560 68 01	Double Socket
25	2063 2560 51 01	Clutch Release Fork
27	352 254 00 40	Bracket Inside
28	2575 2560 01 09	Outer Race
29	352 250 02 43	Assy. Bracket Outside
30	352 254 00 97	Rubber Bellow (Clutch Release Fork)

GEAR BOX HOUSING для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

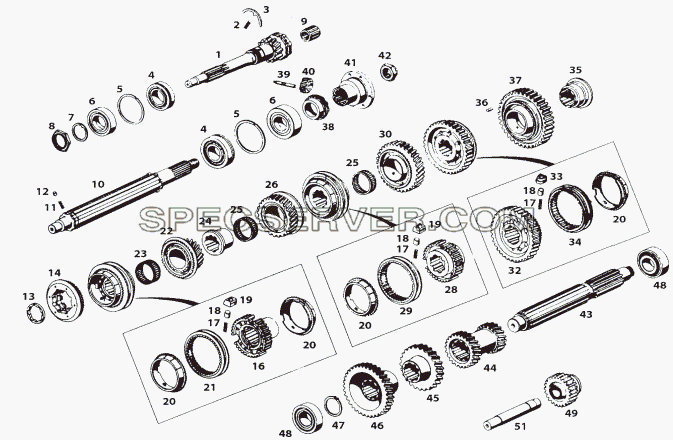

GEAR SHAFT AND GEAR для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	2505 2600 01 01	Gear Box Gasket Kit Consisting of :
-	2505 2620 78 03	Oil Seal
-	2505 2625 82 01	Oil Slinger (Front Cover)
-	2505 2640 53 03	Gasket (For Cover)
-	2505 2671 34 03	Support Piece Check Plate
-	2505 2671 34 07	Stopper Piece Check Plate
-	321 261 03 33	Cover (For PTO Application)
-	8854 2605 16 13	Overhauling Kit - GB 40 consisting of :
-	Gasket (Front cover Top to GB Housing)
-	Gasket (GB cover Lower to GB Housing)
-	Gasket (GB cover RR)
-	Gasket (GB Top cover)
-	Hex Collar Nut
-	Hex Nut
-	Oil Seal
-	Oil Seal (Front Cover)
-	Pin Main Shaft
-	Pressure Spring
-	Shim 0.05 mm Thick
-	Shim 0.10 mm Thick
-	Shim 0.20 mm Thick
-	Shim 0.40 mm Thick
-	Shim 0.80 mm Thick
1	2505 2604 01 24	Assy. GBS - 40 - 5 / 6.34 6 BCF, Full Remote LHD
1	2505 2604 01 80	Assy. GBS - 40 - 5 / 6.34 8 BCF PTO provision, Full Remote LHD
2	2505 2610 37 22	Gear Box Housing (6.34 Ratio)
3	1305 090920 9	Cylindrical Pin 10 H 8x20
4	000 997 00 06J	Plug Oil Filling
5	2506 2610 72 03	Magnetic Drain Plug (Hex head type)
6	2505 3014 53 01	Gasket
6	Gasket Front Cover Lower
7	2505 3014 47 01	Front Cover Lower
11	2505 2625 53 01	Gasket (Fr. Cover Top to Hsg.)
11	Gasket Front CoverUpper
12	2505 3013 47 01	Gear Box Housing Cover Front Top
15	2505 2625 78 08	Oil Seal
16	2505 2625 86 01	Butting Ring 2.95 mm Thick
16	2505 2625 86 02	Butting Ring 3.05 mm Thick
16	2505 2625 86 03	Butting Ring 3.15 mm Thick
16	2505 2625 86 04	Butting Ring 3.25 mm Thick
16	2505 2625 86 05	Butting Ring 3.35 mm Thick
16	2505 2625 86 06	Butting Ring 3.45 mm Thick
16	2505 3013 86 01	Butting Ring 2.90 mm Thick
16	2505 3013 86 02	Butting Ring 3.00 mm Thick
16	2505 3013 86 03	Butting Ring 3.10 mm Thick
16	2505 3013 86 04	Butting Ring 3.20 mm Thick
16	2505 3013 86 05	Butting Ring 3.30 mm Thick
16	2505 3013 86 06	Butting Ring 3.40 mm Thick
16	2505 3013 86 07	Butting Ring 3.50 mm Thick
16	2505 3013 86 08	Butting Ring 3.60 mm Thick
17	2505 3015 37 01	Gear Case Cover Rear
19	321 261 00 31	Adaptor
20	321 260 00 86	Assy. Threaded Bush
21	153 264 00 55	Plug Speedo Drive
23	312 283 10 52	Shim 0.1 mm Thick
23	312 283 11 52	Shim 0.2 mm Thick
23	312 283 12 52	Shim 0.4 mm Thick
23	312 283 17 52	Shim 0.05 mm Thick
23	312 283 21 52	Shim 0.8 mm Thick
27	352 261 07 80	Gasket (Gear Case Cover Rear)
27	Gasket Rear Cover
30	2505 2671 37 55	Gear Case Cover Top (Lower Half)
31	2505 3014 53 01	Gasket
31	Gasket Top Cover
32	2505 3012 88 01	Stud
33	2505 2671 67 01	Pin Swing Lever
37	2668 3515 01 02	Pressure relief Valve
38	2505 3011 67 01	Thrust Pin (Reverse Indicator Switch)
39	312 993 42 01	Pressure Spring (Reverse Indicator Switch)
40	2654 5450 01 34	Reverse Indicator Switch
41	2505 2670 51 05	Swing Lever - 1st Speed
42	2505 3012 92 01	Washer (Swing Lever)
43	2505 2671 34 09	Pressure Piece for Check Plate
44	2505 2671 87 02	Pressure Spring for Pressure Piece
45	321 997 01 03	Slotted Plug
46	2505 2671 34 10	Interlocking Pin
47	321 993 06 01	Pressure Spring for Interlocking Pin
48	1608 250240 1	Sealing Plug M 24x1.5
49	321 260 08 46	Assy. Check Plate
54	321 265 08 05	Selector Shaft for First Speed
55	321 265 18 05	Selector Shaft (2/3)
56	321 265 19 05	Selector Shaft (4/5)
57	322 265 03 05	Selector Shaft (For Reverse Gear)
58	322 265 01 23	Gear Shift Dog (For First Gear)
59	321 265 12 02	Selector Fork (2/3)
60	2505 2651 51 02	Selector Fork (4/5)
61	321 265 13 01	Selector Fork (For 1st Speed Gear)
62	2505 2651 51 01	Selector Fork (For Reverse Gear)
63	312 993 10 01	Pressure Spring
64	1595 010110 2	Steel Ball 11 mm dia.
65	312 265 10 36	Clamp (Selector Shaft to Gear Box Housing)
66	312 994 03 32	Locking Plate (Selector Shaft to Gear Box Housing)
67	2505 2671 37 56	Cover Top (Upper Half)
68	2507 2671 31 05	Needle Bearing
69	2505 2670 51 04	Shifter Finger
70	2505 2670 79 09	Selector & Shifter Shaft
73

№	Номер детали	Наименование запчасти
-	2505 2635 34 01	Bush (Reverse Idler Gear)
-	8854 2604 16 12	Synchro Kit GBS 40 Consisting of :
1	2505 2625 79 04	Drive Shaft (6.34)
2	321 993 12 01	Compression Spring
3	321 262 00 73	Clamping Plate
4	000 981 12 01	Cylindrical Roller Bearing
5	2505 2620 43 02	Snap Ring 2.68 mm Thick
5	2505 2620 43 03	Snap Ring 2.73 mm Thick
5	2505 2620 43 04	Snap Ring 2.78 mm Thick
5	2505 2620 43 05	Snap Ring 2.83 mm Thick
5	2505 2620 43 06	Snap Ring 2.88 mm Thick
5	2505 2620 43 07	Snap Ring 2.93 mm Thick
6	2505 2620 31 06	Four Point Ball Bearing
7	2507 2625 86 01	Spacer on Drive Shaft
8	312 262 11 72	Lock Nut LH Thread
9	2505 2620 31 18	Roller Cage (31mm Long)
10	2505 2620 79 03	Main Shaft (w/o groove)
11	312 993 17 01	Pressure Spring
12	321 262 03 74	Pin on Main Shaft
13	2505 2620 86 08	Butting Ring 6.95 mm Thick
13	2505 2620 86 09	Butting Ring 7.05 mm Thick
13	2505 2620 86 10	Butting Ring 7.15 mm Thick
13	2505 2620 86 11	Butting Ring 7.25 mm Thick
13	2505 2620 86 12	Butting Ring 7.35 mm Thick
13	2505 2620 86 13	Butting Ring 7.75 mm Thick
13	2505 2620 86 14	Butting Ring 7.85 mm Thick
13	2505 2620 86 15	Butting Ring 7.95 mm Thick
13	321 262 04 62	Butting Ring 7.40 mm Thick
13	321 262 05 62	Butting Ring 7.50 mm Thick
13	321 262 06 62	Butting Ring 7.60 mm Thick
13	321 262 07 62	Butting Ring 7.70 mm Thick
13	321 262 17 62	Butting Ring 7.30 mm Thick
13	321 262 18 62	Butting Ring 7.20 mm Thick
13	321 262 19 62	Butting Ring 7.10 mm Thick
13	321 262 20 62	Butting Ring 7.00 mm Thick
13	321 262 21 62	Butting Ring 6.90 mm Thick
13	321 262 25 62	Butting Ring 7.80 mm Thick
13	321 262 26 62	Butting Ring 7.90 mm Thick
13	321 262 27 62	Butting Ring 8.00 mm Thick
13	321 262 28 62	Butting Ring 7.45 mm Thick
13	321 262 29 62	Butting Ring 7.55 mm Thick
13	321 262 30 62	Butting Ring 7.65 mm Thick
14	322 262 01 34	Synchronising Ring
16	2505 3015 54 03	Synchronising Sleeve 4th & 5th
17	Comp. Spring
18	Retention Pin 1st
18	Retention Pin 4/5, 2/3
19	Carrier 4/5 & 2/3
20	2505 2620 38 02	Synchronising Cone
20	2505 2620 38 02	Synchronising Cone
20	2505 2620 38 02	Synchronising Cone
21	321 262 08 23	Shifting Sleeve
22	2505 2620 01 35	Assy. Helical Gear 4th Speed
23	2505 2620 31 23	Double Row Needle Cage
24	322 262 40 50	Collar Bushing 44.5 mm Long (For Third Speed Gear)
24	322 262 41 50	Collar Bushing 44.6 mm Long (For Third Speed Gear)
25	2505 2620 31 24	Double Row Roller Cage
25	2505 2620 31 24	Double Row Roller Cage
26	2505 2620 01 18	Assy. Helical Gear 3rd Speed
28	322 262 04 35	Synchronising Sleeve 2/3
29	321 262 08 23	Shifting Sleeve
30	322 262 01 12	Helical Gear 2nd Speed
32	322 263 03 33	Reverse Gear on Main Shaft
33	Carrier 1st
34	321 262 07 23	Shifter Sleeve 1st Speed
35	2505 3015 34 01	Collar Bushing 47.2 mm Long
35	2505 3015 34 02	Collar Bushing 47.3 mm Long
35	2505 3015 34 03	Collar Bushing 47.4 mm Long
35	2505 3015 34 04	Collar Bushing 47.5 mm Long
35	2505 3015 34 05	Collar Bushing 47.6 mm Long
35	2505 3015 34 06	Collar Bushing 47.7 mm Long
35	2505 3015 34 07	Collar Bushing 47.8 mm Long
35	2505 3015 34 08	Collar Bushing 47.9 mm Long
36	2505 2620 30 01	Cylindrical Roller 4x8
37	2505 3015 54 01	Gear Wheel 1st Speed
38	352 264 01 30	Gear Speedometer Drive
39	2505 2620 79 02	Shaft (Speedo Drive)
40	352 264 01 30	Gear Speedometer Drive
41	322 262 00 45	Coupling Flange (8 Holes)
42	322 262 00 72	Hex. Nut
43	2505 2630 79 01	Counter Shaft (W/o PTO Provision)
43	2505 3014 79 01	Counter Shaft (With PTO Provision)
44	2505 2630 54 02	Twin Gear (Counter Shaft) (2/3)
45	2505 2630 54 01	4th Gear (On Counter Shaft)
46	2505 2630 54 07	Constant Mesh Gear (On Counter Shaft) (6.34)
47	1455 069905 3	Circlip A 52x2.5
48	2505 2630 31 04	Taper Roller Bearing
49	2505 2635 01 02	Reverse Idler Gear with Bush
51	2505 3017 79 01	Reverse Idler Gear Shaft

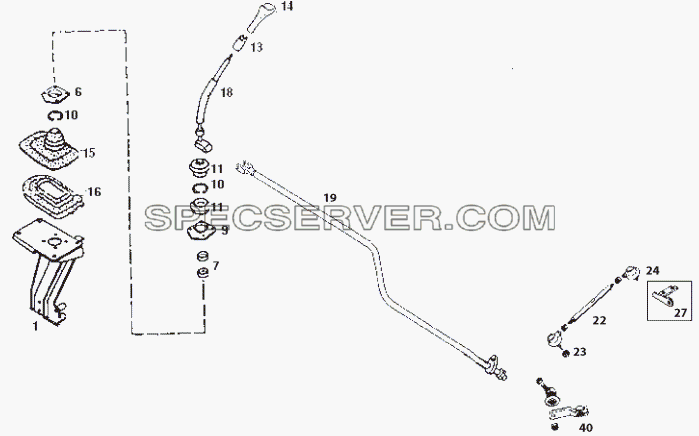

GEAR SHIFT LINKAGE для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	2641 2680 34 12	Bush (Spherical Seat G.S.Lever)
-	2641 2680 77 19	Rexin Bellow
-	2641 2680 82 34	Bellow Holder
-	2643 2681 01 07	Sub assy. Gusset (G S Lever Bkt)
-	2684 2671 34 03	Bush (Extension Arm)
1	2643 2681 01 05	Assy. Bracket
1	2643 2681 01 06	Assy. Bracket
6	2641 2680 02 04	Sub Assy. Cup
7	2641 2680 34 09	Bush (G.S.L.Ball Seat)
9	2641 2680 82 38	Retaining Plate
10	2641 2680 87 02	Spring Ring
11	352 254 00 97	Rubber Bellow (Clutch Release Fork)
13	2641 2680 63 04	Assy. Spacer
14	2630 2670 01 02	Assy. Gear Shift Lever Knob
15	2641 2680 77 17	Rubber Seal
16	2641 2680 77 15	Flap (For Cab Version)
17	2641 2680 01 88	Assy. Rubber Bellow
18	2641 2680 02 27	Assy. Gear Shift Lever with Bushes
19	2643 2680 01 33	Assy. Turning Tube (without Ball Joint)
20	2507 2670 01 52	Sub. Assy. Ball and Socket Joint Big
22	2763 2680 79 01	Link Rod
23	2641 2680 02 24	Assy. Ball Joint, RH Threads
24	2641 2680 02 25	Assy. Ball Joint, LH Threads
27	2505 2671 02 60	Assy. Bracket Gear Shift Lever
40	2507 2670 60 13	Shifting Lever

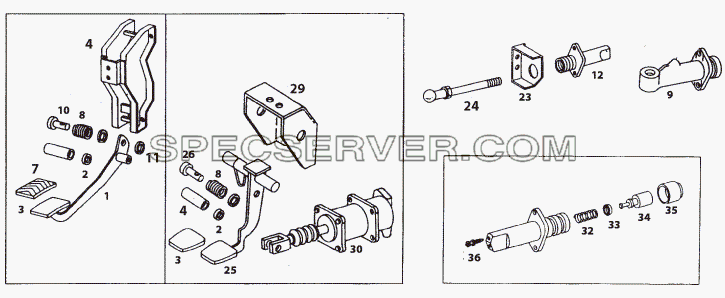

CLUTCH AND BRAKE CONTROLS для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	2641 2910 01 55	Major Repair Kit Clutch Master Cylinder, Consisting of :
-	2641 2910 01 56	Minor Repair Kit Clutch Master Cylinder
-	2641 2910 86 02	Spacer
-	2641 2910 99 02	Sleeve
-	2643 2910 01 04	Assy. Fork with Rod
-	2643 2930 01 03	Assy. Bracket (Slave Cylinder Mounting0
-	Circlip
-	Crimping Sleeve
-	Fork
-	Minor Repair Kit Clutch Master Cylinder
-	Push Rod
-	Rubber Bellow
-	Seal
1	2643 2910 01 33	Assy. Clutch Pedal Complete
1	2643 2920 01 06	Assy. Clutch Pedal Complete
2	2651 2910 34 01	Sintered Bush
2	2651 2910 34 01	Sintered Bush
3	2651 2910 77 03	Rubber Cover
3	2651 2910 77 03	Rubber Cover
4	2643 2910 01 01	Assy. Support Complete (Clutch)
4	2643 2920 01 04	Assy. Support Complete (Clutch)
8	2641 2910 87 01	Torsion Spring
8	2641 2910 87 01	Torsion Spring
9	2618 2910 01 06	Assy. Clutch Master Cyl.
9	2641 2910 01 17	Assy. Clutch Master Cyl.
10	2641 2910 67 02	Pin Clutch Pedal
11	2641 2910 63 01	Bush (Clutch Pedal)
12	2573 2910 01 54	Assy. Slave Cylinder
12	2641 2920 01 01	Assy. Clutch Booster
23	2641 2920 01 13	Assy. Bracket (Clutch Booster Mounting)
24	2641 2930 01 04	Assy. Push Rod
24	2643 2930 01 02	Assy Push Rod
25	2643 2910 01 35	Assy. Brake Pedal Complete, LHD
26	2641 2910 67 03	Brake Pin
29	2641 2910 01 86	Assy. Cover Controls
30	2641 4370 01 02	Assy. Dual Brake Valve
