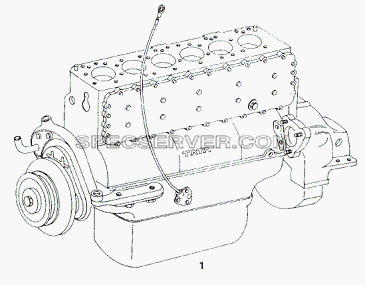

Запчасти: ENGINE для LP/LPT 613 LHD

ENGINE для LP/LPT 613 LHD (список запасных частей)

ENGINE для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 2525 0160 02 56 Assy Engine 697 TC with Clutch Euro II, 613 LHD (12V, Rotary FIP, Power Steering, Tilt Cab)
1 2525 0160 03 08 Assy Engine 697 TC with Clutch Euro II, 613 LHD (24V, Rotary FIP, Power Steering, Cowl)






Запчасти: HALF BLOCK AND LONG BLOCK для LP/LPT 613 LHD

HALF BLOCK AND LONG BLOCK для LP/LPT 613 LHD (список запасных частей)

HALF BLOCK AND LONG BLOCK для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 2525 0199 01 78 Long Block (Rotary FIP)
1 2525 0199 01 77 Half Block (Rotary FIP)






Запчасти: ENGINE OVERHAULING GASKET KIT для LP/LPT 613 LHD

ENGINE OVERHAULING GASKET KIT для LP/LPT 613 LHD (список запасных частей)

ENGINE OVERHAULING GASKET KIT для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 2525 0199 01 76 Decarbonising Gasket Kit Consisting
- Gasket
- Gasket
- Gasket
- Gasket
- Gasket
- Gasket
- Gasket
- Gasket
- Gasket
- Gasket
- Gasket (94 Dia. A.CHead)
- Gasket (Timing Gear Hsg.)
- Gasket Cylinder Head
- Gasket Exhaust Manifold
- Gasket Oil Cooler
- Gasket Push Rod Chamber Cover
- Gasket Support, FIP
- Gasket Top Cover
- Gasket Water Pump
- Gasket Water Pump
- Gasket, Cylinder Head
- Gasket, Cylinder Head Cover
- Gasket, Cylinder Head Cover
- Gasket, Exhaust Manifold
- Gasket, Exhaust Pipe
- Gasket, Turbo Charger
- Sealing Flange
- Sealing Ring Half
- Sealing Washer
- Sealing Washer
- Sealing Washer 10X1
- Sealing Washer 12X1
- Sealing Washer 14X1
- Sealing Washer 14X2
- Sealing Washer 16X2
- Sealing Washer 16X2
- Sealing Washer 18X2
- Sealing Washer 22X2
- Sealing Washer 8X14
- Sealing Washer A10X14
- Sealing Washer A14X20
- Sealing Washer C24X32
- Sealing Washer C8X12
- Sealing Washer D8X12
1 2525 0199 01 15 Engine Overhauling Gasket Kit Consists of :

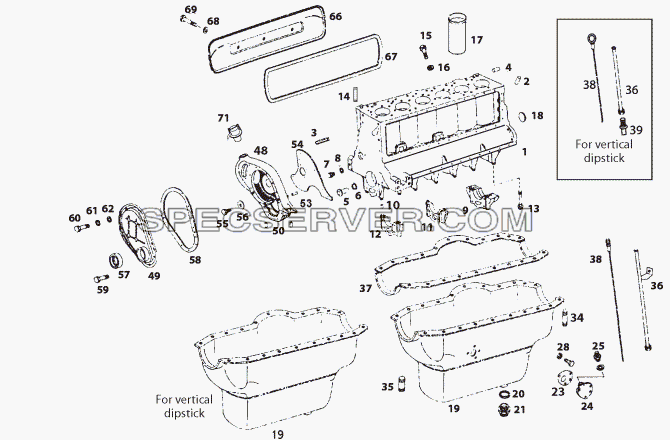

Запчасти: CYLINDER BLOCK для LP/LPT 613 LHD

CYLINDER BLOCK для LP/LPT 613 LHD (список запасных частей)

CYLINDER BLOCK для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 1705 050010 1 O’ Ring 6x1.80 (for Dipstick)
- 2525 0117 42 05 Clamp Support For dipstick
1 2525 0110 02 52 Assy. Cyl. Block with Liner
1 2525 0110 02 98 Assy. Cyl. Block with Liner
2 312 188 1135P Sleeve
3 321 992 00 25 Sleeve, Clamping
4 1305 091030 4 Pin Cylindrical 12x30 (to Locate Clutch Housing)
5 352 011 03 35 Screw Plug
6 1622 071028 2 Sealing Washer 18 x 22
7 1608 100160 3 Sealing Plug AM 16x1.5
8 1622 071025 8 Sealing Washer A 16x22 Cu
9 Main Bearing Cap No. 7
10 1305 050816 6 Cyl. Pin 8m16 x 16
11 Main Bearing Cap No. 4
12 Main Bearing Cap No. 1, 2, 3, 5 & 6
13 2525 0115 99 10 Hex. Head Screw (for Main Bearing Cap)
14 312 991 02 60 Pin Cylindrical (to Locate Cyl. Head on Block)
15 2523 0110 72 01 Sealing Plug
16 1622 071028 2 Sealing Washer 18 x 22
17 2525 0110 37 02 Liner
18 321 997 00 20 Locking Cover (for Camshaft Bore)
19 2525 0113 01 58 Assy. Oil Sump
19 2525 0113 01 63 Assy. Oil Sump
20 1622 071028 2 Sealing Washer 18 x 22
21 2534 0113 01 11 Assy Magnetic Drain Plug
23 352 018 03 80 Gasket
24 2523 0113 37 03 Flange Oil Sump Dipstick
25 2523 0117 85 01 Double Socket
34 1163 249601 1 Stud BM 8x20 (On Front & Last Holes of Oil Sump Gasket)
35 2523 0113 01 14 Assy. Combi Screw
36 2525 0117 02 35 Assy. Tube Dipstick (330 Long)
36 2527 0117 01 19 Assy. Tube Dipstick w/o Nut and Ferrule
37 352 010 19 80 Assy. Gasket Oil Sump
38 2525 0117 01 94 Assy. Dipstick Complete w/o 'O' Ring
38 2525 0117 02 36 Assy. Dipstick
39 2547 0117 99 01 Dipstick Tube Adapter
40 2525 0117 42 07 Support Dipstick
48 2527 0114 01 17 Assy. Timing Gear Housing
49 2527 0114 37 06 Cover, Timing Gear (Front), w/o Oil Hole
50 1305 050816 6 Cyl. Pin 8m16 x 16
53 1305 090925 0 Pin Cylindrical (On Cyl. Block Mtg. Face)
54 2527 0114 53 05 Gasket (T.G. Hsg.)
55 1132 399804 5 Screw M 10x25
56 312 994 03 10 Locking Plate
57 2534 0310 78 01 Seal (Crankshaft Front)
58 312 015 05 80 Gasket (T.G.H. Cover)
59 1132 399806 1 Screw M 6x12
60 1106 380660 1 Bolt M 6x60
61 1252 069801 7 Spg. Washer B 6
62 1265 060064 7 Washer A 6.4 (Cover to T.G. Hsg.)
66 2525 0114 01 14 Assy. Cover (Push Rod Chamber)
67 2525 0114 63 01 Gasket (Push Rod Chamber)
68 1622 071009 6 Sealing Washer 8x11.5 Cu
69 1132 390845 3 Screw M 8x45
71 2523 0117 01 99 Assy Oil Filler On TGH

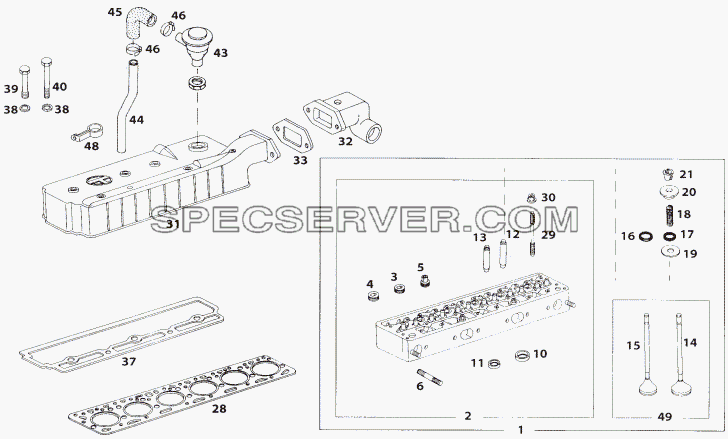

CYLINDER HEAD AND COVER для LP/LPT 613 LHD (список запасных частей)

CYLINDER HEAD AND COVER для LP/LPT 613 LHD (список запасных частей)

CYLINDER HEAD AND COVER для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 2525 0115 01 48 Set of Valve Seat Rings (STD) Consists of :
- 2534 0515 87 02 Valve Spring (Outer)
1 2525 0115 01 86 Assy. Cyl. Head with Valves (DVS - Inclined P Holes)
2 2525 0115 01 68 Assy. Cyl. Head w/o Valves CMVR 2000
3 1608 180300 9 Plug MC 30x15
4 1608 180240 1 Plug MC 24x15
5 312 016 00 61 Sealing Plug
6 1163 161040 6 Stud AM 10x40
10 Valve Seat Ring Inlet STD
11 Valve Seat Ring Exhaust STD
12 2534 0515 34 02 Valve Guide Inlet Std.
13 2534 0515 34 15 Valve Guide Exhaust Std.
14 Inlet Valve
14 Inlet Valve
15 Exhaust Valve
15 Exhaust Valve
16 2534 0515 99 09 Valve Guide Seal (Inlet)
17 2534 0515 99 10 Valve Guide Seal (Exhaust)
18 2534 0515 87 01 Valve Spring (Inner)
19 352 990 20 40 Valve Spring Washer
20 2534 0515 51 01 Lock Retainer Valve Spring
21 312 053 01 27 Valve Spring Lock Half
28 2525 0115 53 37 Gasket Cyl. Head
29 2525 0115 99 12 Hex.Collar Bolt w/ Relief Groove for Cyl. Head
29 322 990 05 05 Stud Bolt Cyl Crankcase
30 315 038 00 72 Hex Nut
31 2525 0115 38 16 Cylinder Head Cover
32 2525 0115 38 68 Air Intake Elbow
33 352 016 02 80 Gasket, Air Intake Elbow
37 2525 0115 53 22 Cylinder Head Cover Gasket
38 1622 071012 6 Sealing Washer 8x14 Cu
39 322 990 00 19 Stretch Bolt (for Cyl head Cover)
40 1106 409608 9 Hex Bolt M8x125 (for Cyl Head Cover)
43 2523 0117 01 96 Assy. Oil Separator
43 2525 0117 02 46 Assy. Oil Separator, with Oil Filling Cap
44 2523 0117 69 41 Tube
45 2525 0117 58 05 Hose
46 1428 050035 7 Hose Clamp 35
48 2523 0117 42 19 Clamp Lower
49 2525 0599 01 03 Set Inlet & Exhaust Valve
49 8854 0507 25 25 Set Inlet & Exhaust Valve Tuffrided

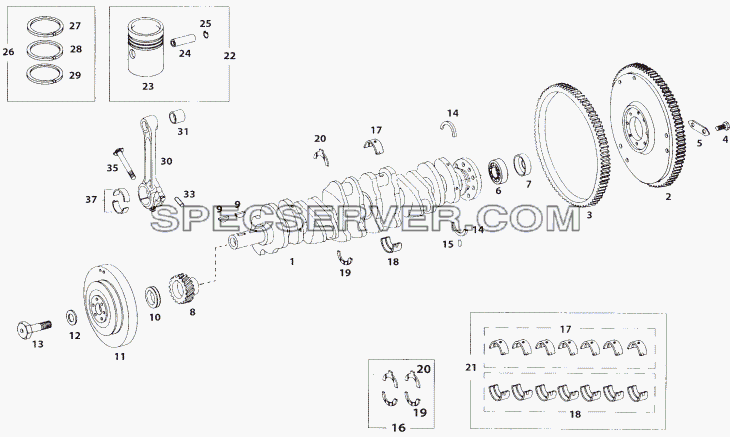

MOVING PARTS для LP/LPT 613 LHD (список запасных частей)

MOVING PARTS для LP/LPT 613 LHD (список запасных частей)

MOVING PARTS для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 2525 0313 82 01 Oil Slinger
- 8854 0308 25 25 Kit, Crankshaft Sealing Ring with Locating Pins Consisting of :
- Bearing Half (Upper & Lower) RS I
- Bearing Half (Upper & Lower) RS II
- Bearing Half (Upper & Lower) RS III
- Bearing Half (Upper & Lower) RS IV
- Bearing Half (Upper & Lower) STD
- Con. Rod Bush STD
1 2525 0310 79 34 Crank Shaft Std. (Integral Type)
2 2525 0311 01 26 Assy. Flywheel with Ring Gear
2 2525 0311 01 33 Assy. Flywheel with Ring Gear
3 352 032 11 05 Ring Gear
4 312 990 03 01 Bolt
5 312 994 02 32 Locking Plate
6 2534 0310 31 02 Ball Bearing
7 312 031 05 33 Locking Ring (In Crankshaft to Fix The Bearing)
8 352 052 00 03 Crank Shaft Gear
9 1365 051009 1 Woodruff Key 8x13
10 2525 0313 86 03 Spacer
11 352 030 31 03 Assy. Vibration Damper (Double Groove)
12 2523 0313 86 03 Thrust Spacer
13 2523 0313 32 02 Lock (V. Damper)
14 2525 0310 78 01 Sealing Ring Half
14 Sealing Ring Half
15 186 991 00 55 Pin
15 Locating Pin
16 8854 0376 25 25 Thrust Washer Set (STD) Consisting of :
16 8854 0377 25 25 Thrust Washer Set (RS I) Consisting of :
16 8854 0378 25 25 Thrust Washer Set (RS II) Consisting of :
17 Bearing Upper Half RS I
17 Bearing Upper Half RS II
17 Bearing Upper Half RS III
17 Bearing Upper Half RS IV
17 Bearing Upper Half STD
18 Bearing Lower Half RS I
18 Bearing Lower Half RS II
18 Bearing Lower Half RS III
18 Bearing Lower Half RS IV
18 Bearing Lower Half STD
19 Thrust Washer Lower Half (116 mm Dia.) RS I
19 Thrust Washer Lower Half (116 mm Dia.) RS II
19 Thrust Washer Lower Half (116 mm Dia.) STD
20 Thrust Washer Upper Half (116 mm Dia.) RS I
20 Thrust Washer Upper Half (116 mm Dia.) RS II
20 Thrust Washer Upper Half (116 mm Dia.) STD
21 8854 0370 25 25 Main Bearing Set (STD) Consisting of :
21 8854 0372 25 25 Main Bearing Set (RS I) Consisting of :
21 8854 0373 25 25 Main Bearing Set (RS II) Consisting of :
21 8854 0374 25 25 Main Bearing Set (RS III) Consisting of :
21 8854 0375 25 25 Main Bearing Set (RS IV) Consisting of :
22 2525 0399 01 48 Bare Piston Set Std (BS II) Consisting of :
22 2525 0399 01 50 Set of Piston Rings Consisting of:
23 Piston
23 Piston
24 Piston Pin
24 Piston Pin
25 Circlip
25 Circlip
26 2525 0399 01 29 Set of Piston Ring Std Consisting of :
26 2525 0399 01 50 Set of Piston Rings Consisting of:
26 2525 0399 01 51 Set of Piston Rings Consisting of:
27 Double Trapez Ring (Gr I)
27 Double Trapez Ring (Gr I)
27 Double Trapez Ring (Gr I)
28 Compression Ring (Gr II)
28 Compression Ring (Gr II)
28 Compression Ring (Gr II)
29 Assy. Oil Control Ring (Gr III)
29 Assy. Oil Control Ring (Gr III)
29 Assy. Oil Control Ring (Gr III)
30 2525 0315 01 07 Assy. Con. Rod Serrated (STD) with Bush
30 2525 0315 01 25 Assy. Con. Rod (STD) with Bush
31 8854 0368 25 25 Con. Rod Bush Set STD Consisting of :
33 1305 050714 3 Pin Cylindrical 6x14
35 2525 0315 32 05 Screw Con. Rod
37 8854 0362 25 25 Bearing Set for Con. Rod (Std) Consisting of :
37 8854 0364 25 25 Bearing Set for Con. Rod. RS I Consisting of :
37 8854 0365 25 25 Bearing Set for Con. Rod. RS II Consisting of :
37 8854 0366 25 25 Bearing Set for Con. Rod. RS III Consisting of :
37 8854 0367 25 25 Bearing Set for Con. Rod. RS IV Consists of :

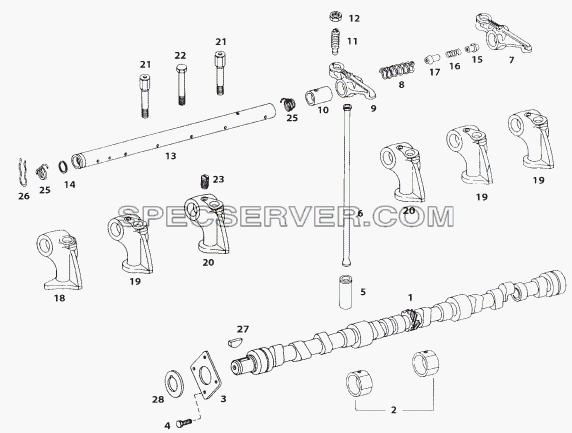

ENGINE TIMING (CAMSHAFT & COMPONENTS) для LP/LPT 613 LHD (список запасных частей)

ENGINE TIMING (CAMSHAFT & COMPONENTS) для LP/LPT 613 LHD (список запасных частей)

ENGINE TIMING (CAMSHAFT & COMPONENTS) для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей







INJECTION TIMER для LP/LPT 613 LHD (список запасных частей)

INJECTION TIMER для LP/LPT 613 LHD (список запасных частей)

INJECTION TIMER для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
2 2527 0713 54 01 Drive Gear, FIP EURO II
5 2523 0510 59 01 Parallel Key
8 352 051 00 62 Butting Ring (Timer to Camshaft)
10 2527 0511 54 03 Gear Camshaft EURO II
11 352 075 00 71 Pin (Timer Mounting)






FUEL INJECTION EQUIPMENT (EURO II) для LP/LPT 613 LHD (список запасных частей)

FUEL INJECTION EQUIPMENT (EURO II) для LP/LPT 613 LHD (список запасных частей)

FUEL INJECTION EQUIPMENT (EURO II) для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 1365 050506 3 Woodruff Key 4X6.5
- 2547 0712 65 01 Self Locking Nut(For Lucas Only)
- 2547 0712 84 01 Locking Sleeve (for Lucas Only)
- 2547 0712 92 01 Hardened Washer EURO II
1 0 460 426 387 Assy. FIP (Rotary) EURO II
2 2527 0712 37 01 Support, Injection Pump EURO II
3 2527 0713 54 02 Injection Pump Gear EURO II
4 2527 0712 53 02 Gasket, Support EURO II
7 2525 0712 33 01 Rear Support Bracket (FIP to Cyl. Block)
10 2525 0714 01 65 Assy. Set of High Pressure Lines for Rotary FIP EURO II Consisting of :
11 High Pressure Line 1st Cyl.
12 High Pressure Line 2nd Cyl.
13 High Pressure Line 3rd Cyl.
14 High Pressure Line 4th Cyl.
15 High Pressure Line 5th Cyl.
16 High Pressure Line 6th Cyl.
20 012 078 00 85J Clamp Upper
21 012 070 00 66J Assy. Clamp Lower
22 2525 0714 01 39 Assy. Fuel Leakage Line CMVR 2000
23 312 997 02 30 Plug
24 312 997 03 30 Plug
25 312 997 08 40 Gasket Ring
26 2520 0714 42 03 Seal Clamp
27 2520 0714 80 01 Hollow Screw






INJECTOR для LP/LPT 613 LHD (список запасных частей)

INJECTOR для LP/LPT 613 LHD (список запасных частей)

INJECTOR для LP/LPT 613 LHD (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 F 002 C8Z 860 Injector Assy. EURO II
