8B-22 Air Bag System:

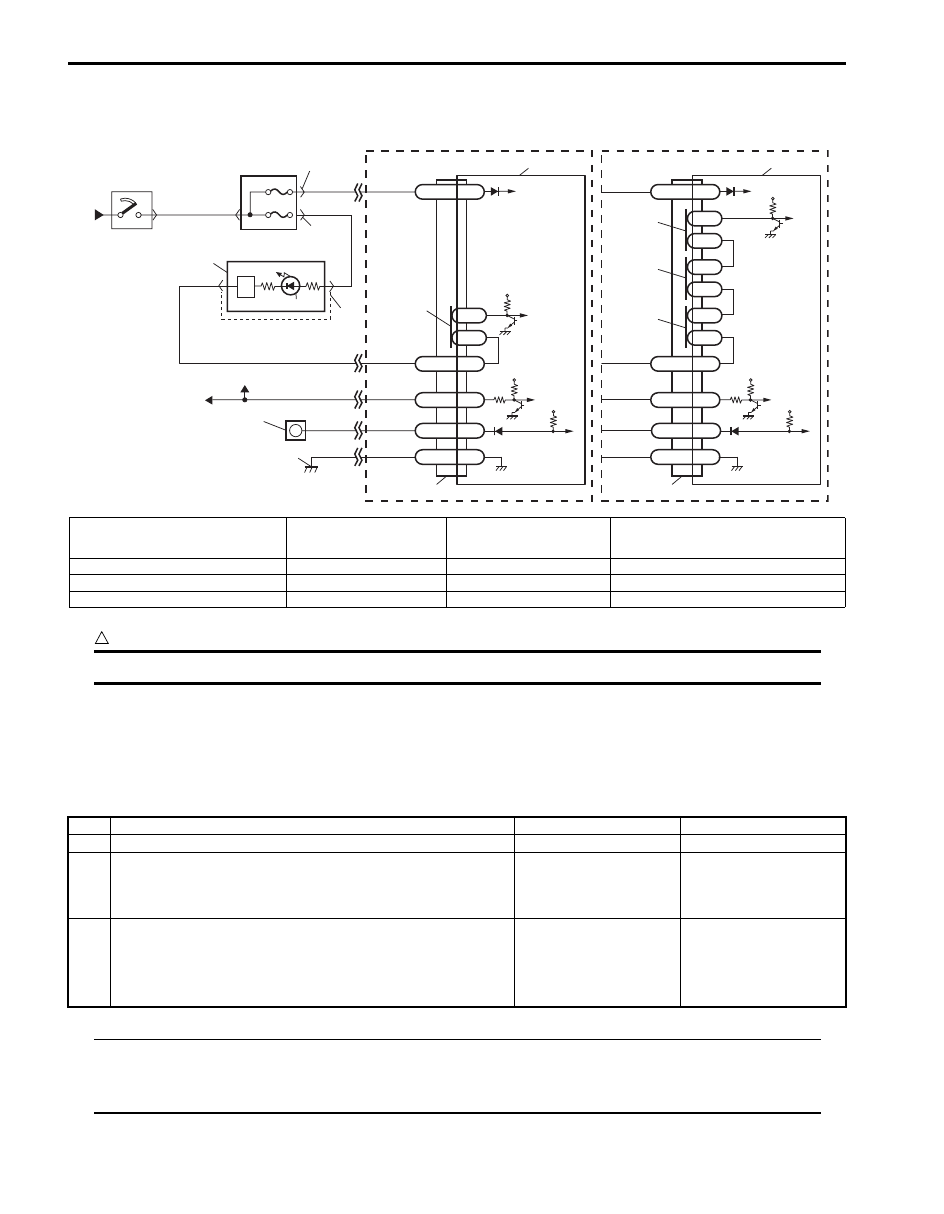

“AIR BAG” Warning Light Flashes

S6JB0B8204009

Wiring Diagram

CAUTION

!



Be sure to observe instructions under CAUTION in “Air Bag Diagnostic System Check Flow”.



Flow Test Description
Step 1: Check that vehicle is equipped with or without “AIR BAG” monitor connector.
Step 2: Check “AIR BAG” monitor coupler.
Step 3, 4: Check for short circuit between diagnosis switch circuit and ground.

Troubleshooting

NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.



G47-14 DNS

BLK

G47-18

G47-20

L2

L1

GND

WL

“G47”

12V

1

2

6

8

4

5

RED

PPL/RED

BLK/YEL

YEL/BLK

“G01”

7

“G28”

“G03”

G47-16

IG

[A]

G46-7

G46-16

L2

L1

GND

WL

“G46”

L4

L3

12V

G46-11

IG

[B]

L6

L5

PPL/WHT

PPL

BLK

RED

YEL/BLK

PPL/WHT

PPL

“G34”

G46-9

ST

ST

G47-13

12V

12V

5V

G46-12 DNS

5V

11

12

3

14

9

13

13

9

9

9

10

I5JB0A820020-01

[A]: Without side-air bag and curtain-air

bag

3. Junction block assembly

7. Light driver

11. To ECM, TCM, BCM, ABS hydraulic unit /

control module assembly and 4WD
control module

[B]: With side-air bag and curtain-air bag

4. “A/B” fuse

8. “AIR BAG” warning light

12. “AIR BAG” monitor coupler (if equipped)

1. From main fuse

5. “METER” fuse

9. Connection detection pin

13. SDM

2. Ignition switch

6. Combination meter

10. To DLC

14. Ground for air bag system

Step

Action

Yes

No

1

Is vehicle equipped with “AIR BAG” monitor connector?

Go to Step 2.

Go to Step 3.

2

Check “AIR BAG” monitor coupler.

Is the diagnosis switch terminal in “AIR BAG” monitor
coupler connected to body ground with service wire?

Remove service wire.

Go to Step 3.

3

1) With ignition switch OFF, disconnect SDM connector

“G47” or “G46”.

2) Check “G47-14” or “G46-12” terminal of SDM connector.

Is it shorted to ground terminal or harness?

Clean up terminal or
harness.

Substitute a known-
good SDM and recheck.

Air Bag System:  8B-23

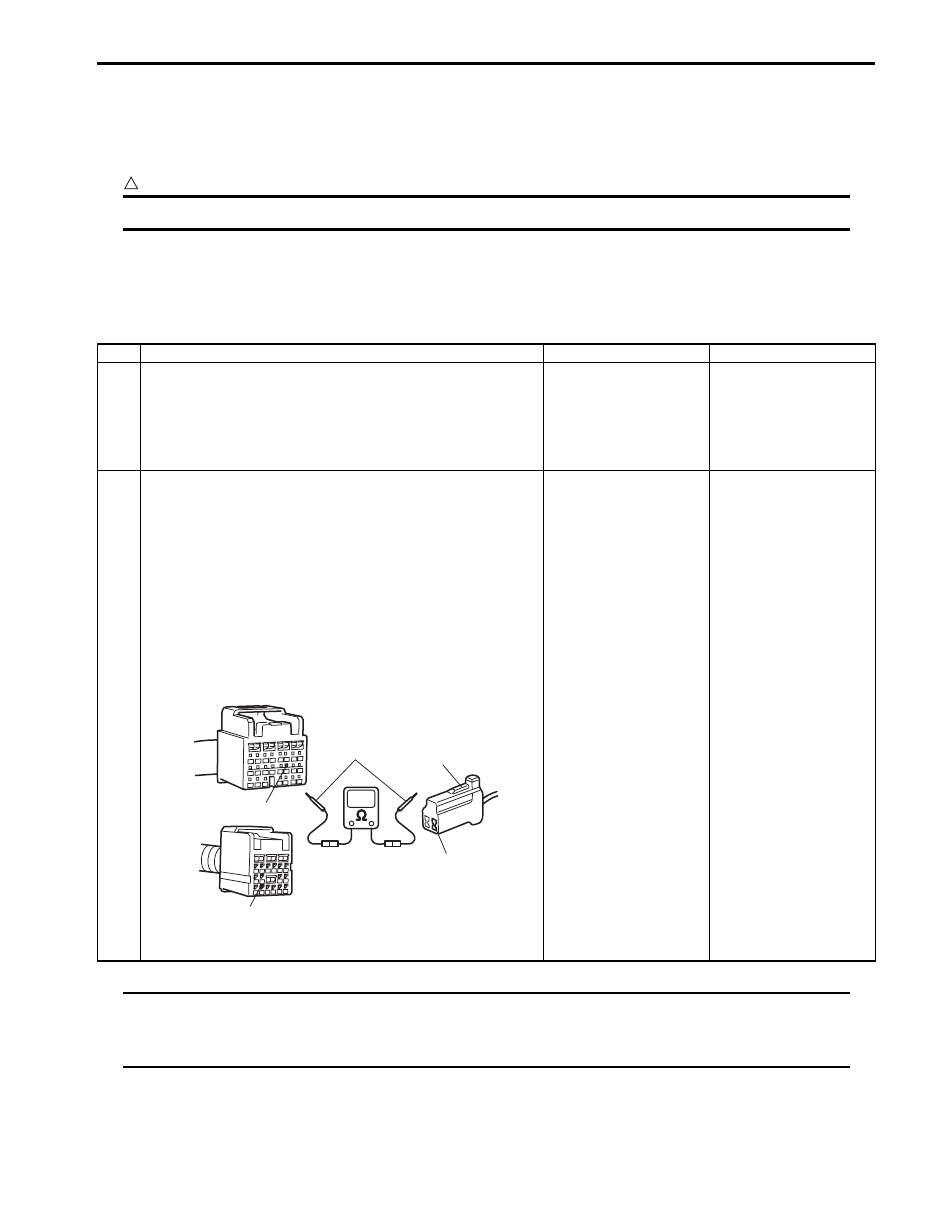

“AIR BAG” Warning Light Cannot Indicate Flashing Pattern of DTC (If Equipped with “AIR BAG”
Monitor Coupler)

S6JB0B8204010

Wiring Diagram
Refer to ““AIR BAG” Warning Light Flashes”.

CAUTION

!



Be sure to observe instructions under CAUTION in “Air Bag Diagnostic System Check Flow”.



Flow Test Description
Step 1: Check “AIR BAG” monitor coupler.
Step 2: Check for open circuit in air bag diagnosis switch circuit.

Troubleshooting

NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.



Step

Action

Yes

No

1

Inspect connection between diagnostic switch terminal on
“AIR BAG” monitor coupler and body ground with service
wire.

Are they connected securely with service wire?

Go to Step 2.

Properly connect
diagnostic switch
terminal on “AIR BAG”
monitor coupler and
body ground with
service wire.

2

1) Disconnect SDM connector from SDM.
2) Check for proper connection at “PPL” wire (“G47-14”

terminal or “G46-12” terminal of SDM connector and
“G34-2” terminal of “AIR BAG” monitor coupler (1))
terminals.

3) If OK, then measure resistance between “G47-14”

terminal [A] or “G46-12” terminal [B] and “G34-2”
terminal.

Special tool
(A):  09932–76010

Is resistance 1

Ω

 or more?

Check “PPL” wire
terminals. If OK, repair
high resistance or open
in “PPL” wire circuit.

Substitute a known
good SDM and recheck.

[A]

[B]

(A)

1

“G47-14”

“G46-12”

“G34-2”

I5JB0A820021-02

8B-24 Air Bag System:

DTC B1013: SDM fault

S6JB0B8204011

DTC Will Set when
An internal SDM fault is detected by SDM.

NOTE
DTC B1013 can never be cleared once it has been set.



DTC Troubleshooting

1) Turn ignition switch OFF.
2) Replace SDM.
3) Repeat “Air Bag Diagnostic System Check”.

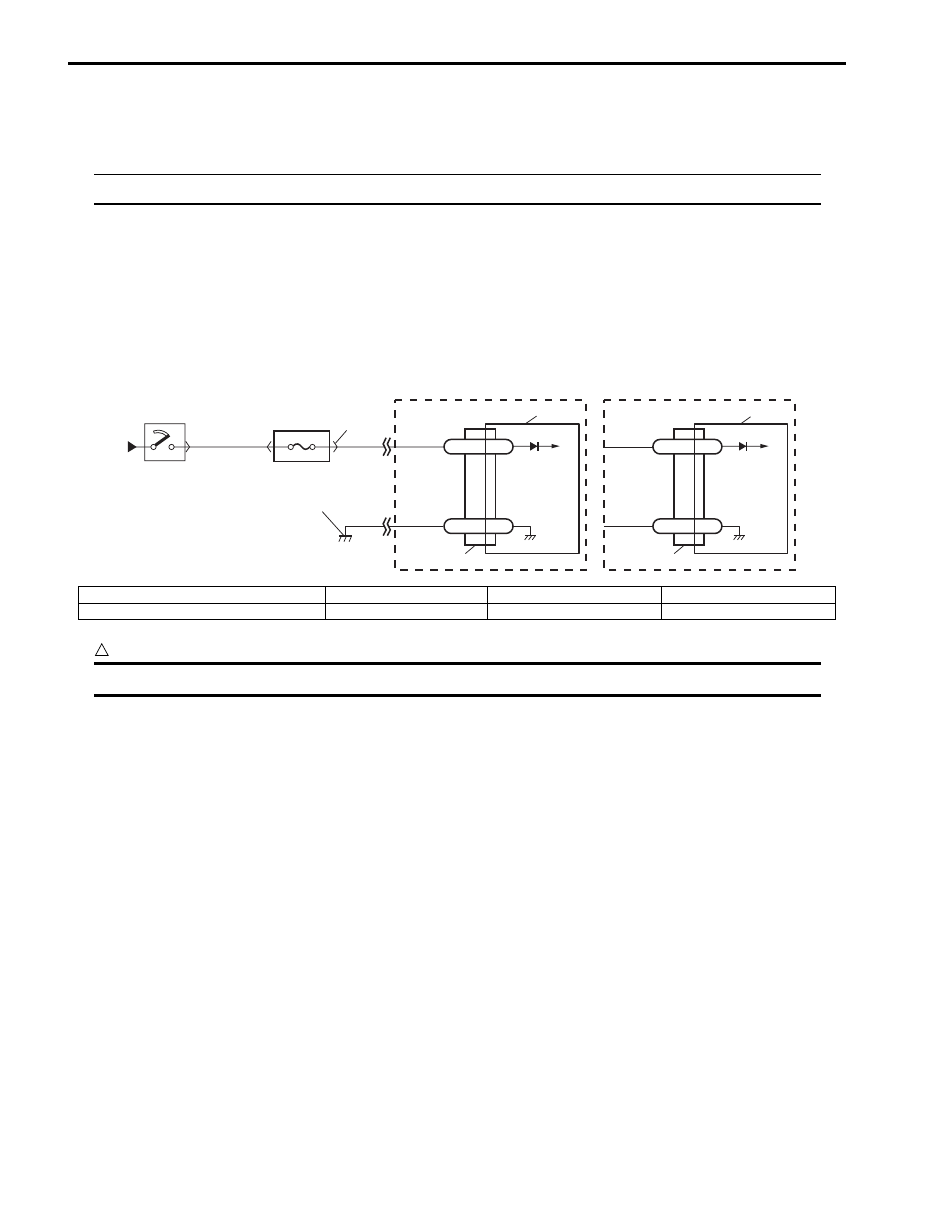

DTC B1016: Power Source Voltage High

S6JB0B8204012

Wiring Diagram

CAUTION

!



Be sure to observe instructions under CAUTION in “Air Bag Diagnostic System Check Flow”.



DTC Will Set when
The power source voltage to SDM is above specified value for specified time.

Flow Test Description
Step 1: Check if voltage applied to SDM is within normal range.
Step 2: Check if DTC B1016 still exists.

BLK

G47-20 GND

“G47”

1

2

4

3

RED

BLK

RED

BLK/YEL

“G01”

G47-16

IG

[A]

G46-16 GND

“G46”

G46-11

IG

[B]

6

5

5

I5JB0A820022-01

[A]: Without side-air bag and curtain air bag

1. From main fuse

3. “A/B” fuse

5. SDM

[B]: With side-air bag and curtain air bag

2. Ignition switch

4. Junction block assembly

6. Ground for air bag system

Air Bag System:  8B-25

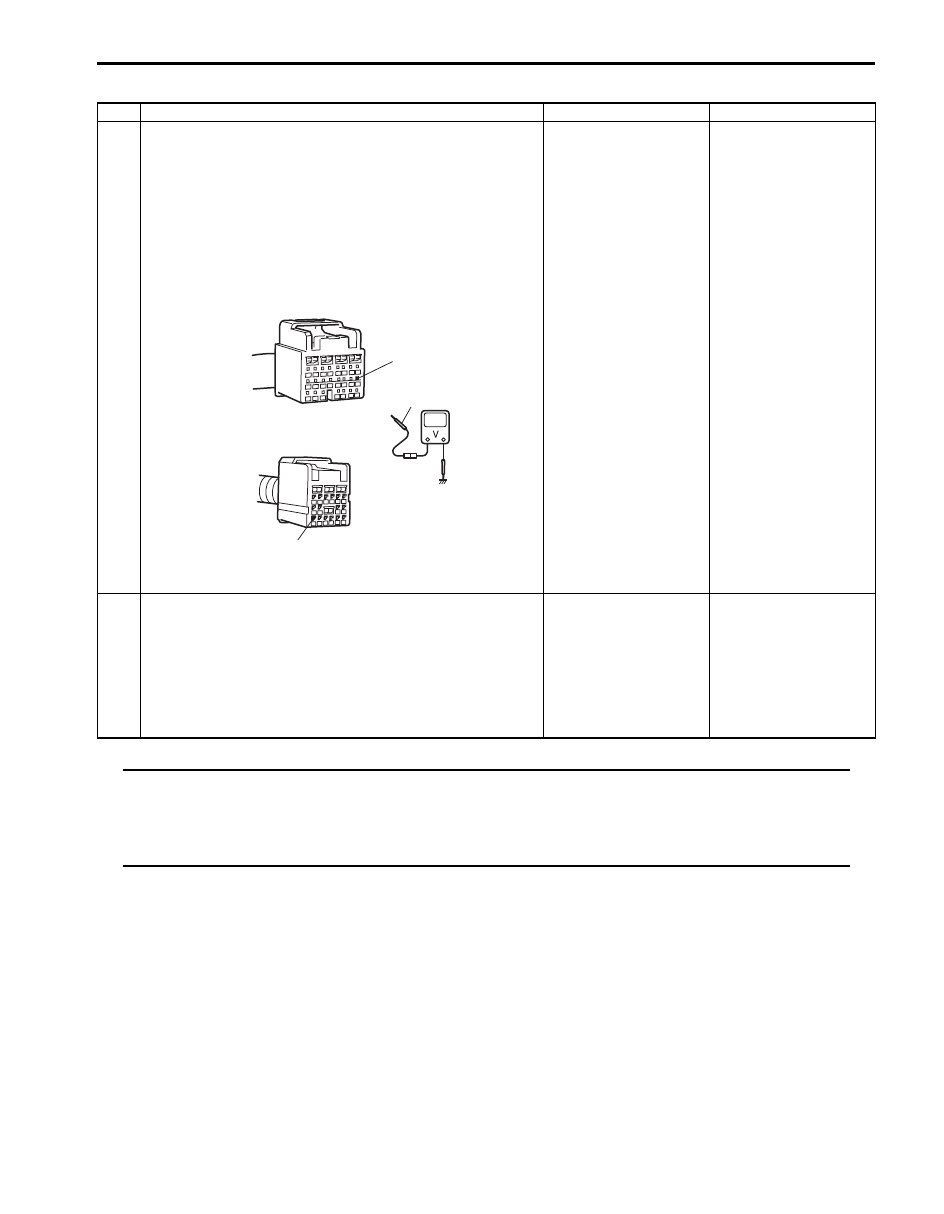

DTC Troubleshooting

NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.



Step

Action

Yes

No

1

1) With ignition switch OFF, disconnect SDM connector.
2) Check proper connection to SDM at “G47-16” or “G46-

11” terminal.

3) If OK, turn ignition switch ON and then check voltage

between “G47-16” [A] or “G46-11” [B] terminal on SDM
connector and body ground.

Special tool
(A):  09932–76010

Is voltage 14 V or less?

Go to Step 2.

Check charging system
and repair as necessary
referring to “Generator
Test (Overcharged
Battery Check) in
Section 1J”.

2

1) With ignition switch OFF, reconnect SDM connector.

With ignition switch ON, is DTC B1016 indicated?

Substitute a known-
good SDM and recheck.

Intermittent trouble.
Check for intermittent
trouble referring to
“Inspection of
Intermittent and Poor
Connections” If OK,
substitute a known-
good SDM and recheck.

(A)

[A]

[B]

“G46-11”

“G47-16”

I5JB0A820023-01
