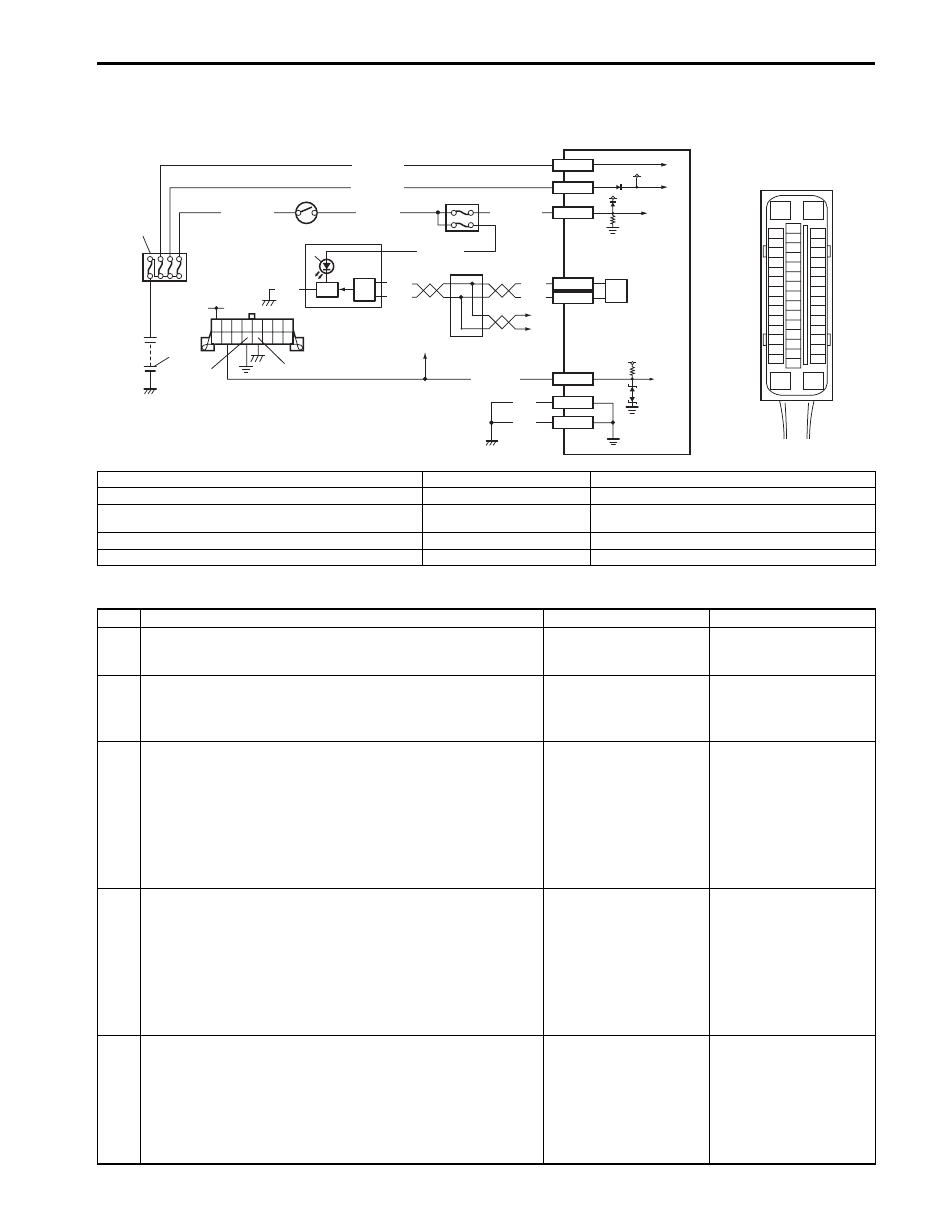

4F-19 Electronic Stability Program:

ESP

® Warning Light Does Not Come ON at Ignition Switch ON

S6JB0B4604008

Wiring Diagram

Circuit Description
Operation (ON/OFF) of ESP

® warning light is controlled by ESP® control module through light driver module in

combination meter.
If ESP

® system is in good condition, ESP® control module turns ESP® warning light ON at the ignition switch ON,

keeps it ON for 2 seconds and then turns it OFF. If an abnormality in the system is detected, ESP

® warning light is

turned ON continuously by ESP

® control module. Also, it is turned ON continuously by light driver module when the

connector of ESP

® control module is disconnected.

Troubleshooting

3

4

2

1

[A]

E53-16

E53-47

12V

12V

E53-32

E53-1

E53-35

GRN/ORN

PPL/RED

BLK/YEL

WHT/GRN

WHT/RED

WHT/BLU

BLK

BLK

BLK

RED

WHT

RED

WHT

E53-13
E53-44

11

10

9

5

7

8

6

8

E53

16

1

15

2

3

4

5

6

7

8

9

10

11

12

13

14

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

I6JB01460013-01

[A]: ESP

® control module connector (viewed from terminal side)

4. Junction block assembly

8. CAN driver

1. Battery

5. Combination meter

9. Junction connector

2. Main fuse box

6. ESP

® warning light

10. To TCM, BCM, 4WD control module, keyless

start control module and steering angle sensor

3. Ignition switch

7. Light driver module

11. ESP

® hydraulic unit / control module assembly

Step

Action

Yes

No

1

1) Turn ignition switch to ON position.

Do other warning lights come ON?

Go to Step 2.

Go to Step 3.

2

1) Connect scan tool to DLC with ignition switch turned

OFF.

2) Turn ignition switch to OFF position and check DTC.

Is there DTC U1073?

Go to “DTC U1073:
Control Module
Communication Bus
Off” for troubleshooting.

Substitute a known-
good combination meter
and recheck. If ESP

®

warning light remains
OFF, substitute a
known-good ESP

®

hydraulic unit / control
module assembly and
recheck.

3

Is Circuit fuse for combination meter in good condition?

Go to Step 4.

Replace fuse and check
for short circuit to
ground.

4

1) Check CAN communication circuit between combination

meter and ESP

®, control module referring to “DTC

U1073: Control Module Communication Bus Off”

Is CAN communication circuit in good condition?

Go to Step 5.

Repair or replace.

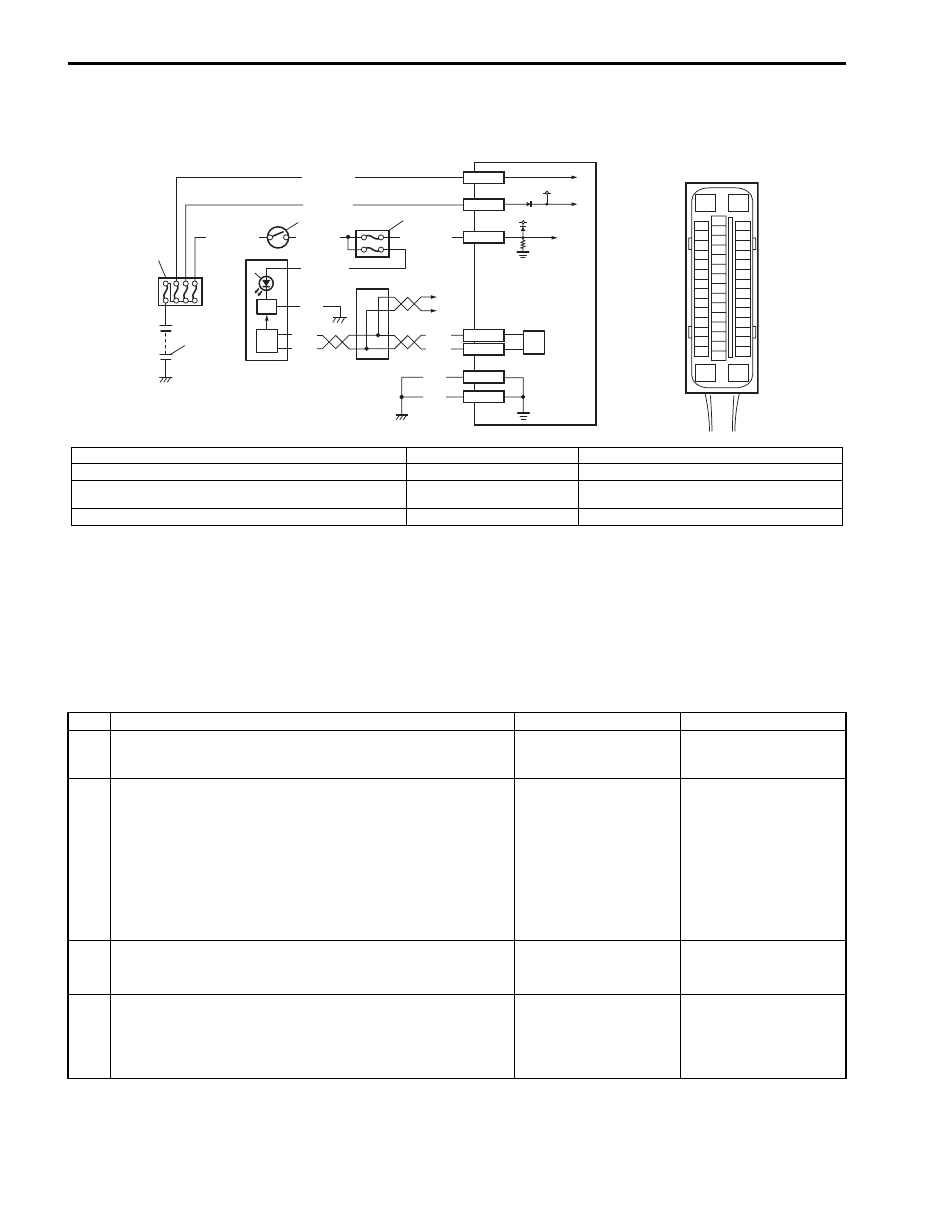

Electronic Stability Program:  4F-20

ESP

® Warning Light Comes ON Steady

S6JB0B4604009

Wiring Diagram

Circuit Description
Operation (ON/OFF) of ESP

® warning light is controlled by ESP® control module through light driver module in

combination meter.
If ESP

® system is in good condition, ESP® control module turns ESP® warning light ON at the ignition switch ON,

keeps it ON for 2 seconds and then turns it OFF. If an abnormality in the system is detected, ESP

® warning light is

turned ON continuously by ESP

® control module. Also, it is turned ON continuously by light driver module when the

connector of ESP

® control module is disconnected.

5

1) Remove combination meter with ignition switch turned

OFF.

2) Check for proper connection to “PPL/RED” and “BLK”

wire of combination meter connector.

3) If OK, turn ON ignition switch and measure voltage at

“PPL/RED” wire of combination meter connector and
vehicle body ground.

Is it 10 – 14 V?

Go to Step 6.

Repair power supply
circuit for combination
meter.

6

1) Measure resistance between “BLK” wire of combination

meter connector and vehicle body ground.

Is resistance less than 2

Ω

?

Replace combination
meter.

“BLK” circuit open or
high resistance.

Step

Action

Yes

No

3

4

2

1

[A]

E53-16

E53-47

12V

12V

E53-32

E53-1

E53-35

GRN/ORN

PPL/RED

BLK/YEL

WHT/GRN

WHT/RED

WHT/BLU

BLK

BLK

BLK

RED

WHT

RED

WHT

E53-13
E53-44

11

10

9

5

7

8

6

8

E53

16

1

15

2

3

4

5

6

7

8

9

10

11

12

13

14

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

I6JB01460013-01

[A]: ESP

® control module connector (viewed from terminal side)

4. Junction block assembly

8. CAN driver

1. Battery

5. Combination meter

9. Junction connector

2. Main fuse box

6. ESP

® warning light

10. To TCM, BCM, 4WD control module, keyless

start control module and steering angle sensor

3. Ignition switch

7. Light driver module

11. ESP

® hydraulic unit / control module assembly

4F-21 Electronic Stability Program:

Troubleshooting

Step

Action

Yes

No

1

1) Perform diagnostic trouble code check.

Is there any DTC(s)?

Go to applicable DTC
diagnosis flow for
troubleshooting.

Go to Step 2.

2

Are main fuses for ABS pump motor and ABS solenoid in
good condition?

Go to Step 3.

Replace fuse and check
circuit for short to
ground.

3

1) Turn ignition switch to OFF.
2) Disconnect ESP

® control module connector.

3) Check for proper connection to ESP

® control module

connector at terminals “E53-35”, “E53-16” and “E53-47”.

4) If OK then turn ignition switch to ON position and

measure voltage between terminal “E53-35” and vehicle
body ground.

Is it 10 – 14 V?

Go to Step 4.

“GRN/ORN” circuit
open.

4

1) Turn ignition switch to OFF position.
2) Check for proper connection to ESP

® control module

connector at terminals “E53-1” and “E53-32”.

3) If OK then turn ignition switch to ON position and

measure voltage between each terminal of “E53-1”,
“E53-32” and vehicle body ground.

Are they 10 – 14 V?

Go to Step 5.

“WHT/RED” and/or
“WHT/BLU” circuit
open.

5

1) Turn ignition switch to OFF and measure resistance

between each terminal of “E53-16”, “E53-47” and vehicle
body ground.

Is resistance less than 2

Ω

?

Go to Step 6.

Ground circuit for ESP

®

control module open or
high resistance.

6

1) Check CAN communication circuit between combination

meter and ESP

® control module referring to “DTC

U1073: Control Module Communication Bus Off”.

Is CAN communication circuit in good condition?

Substitute a known-
good combination meter
and recheck. If ABS
warning light remains
ON, substitute a known-
good ESP

® hydraulic

unit / control module
assembly and recheck.

Repair or replace.

Electronic Stability Program:  4F-22

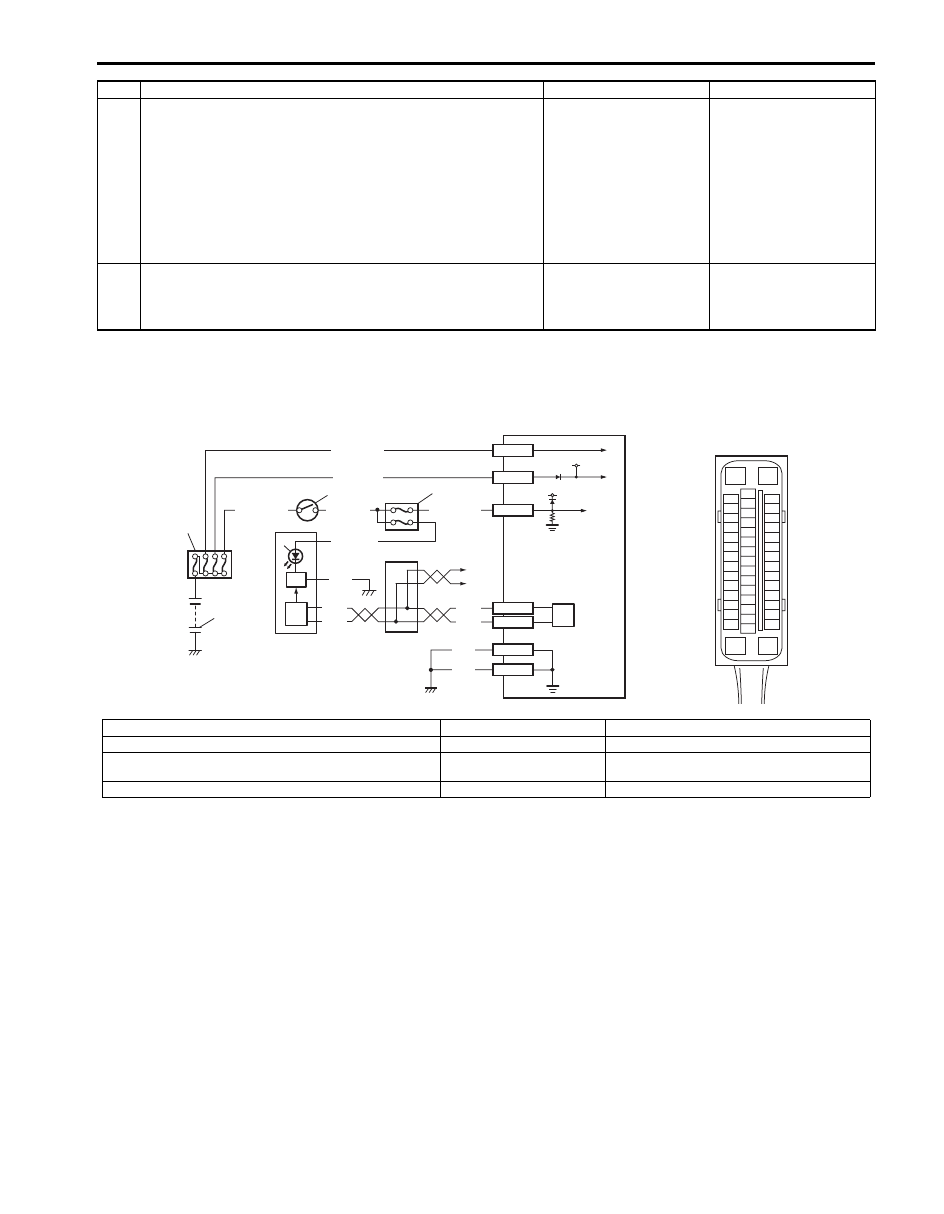

Serial Data Link Circuit Check

S6JB0B4604012

Wiring Diagram

Inspection

3

4

2

1

12V

12V

E53-32

E53-1

E53-35

GRN/ORN

PPL/RED

BLK/YEL

WHT/GRN

WHT/RED

WHT/BLU

E53-16

E53-47

BLK

BLK

BLK

RED

WHT

RED

WHT

E53-13
E53-44

PPL/WHT

12V

+BB

E53-33

[A]

11

12

10

9

G

G1

5

7

6

13

E53

16

1

15

2

3

4

5

6

7

8

9

10

11

12

13

14

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

8

8

I6JB01460014-01

[A]: ESP

® control module connector (viewed from terminal side)

5. Combination meter

10. To ECM, TCM, BCM, SDM and 4WD control module

1. Battery

6. ESP

® warning light

11. Junction connector

2. Main fuse box

7. Light driver module

12. To TCM, 4DW control module, keyless start control

module and steering angle sensor

3. Ignition switch

8. CAN driver

13. ESP

® hydraulic unit / control module assembly

4. Junction block assembly

9. Data link connector (DLC)

Step

Action

Yes

No

1

1) Turn ignition switch to ON position.

Does ESP

®

 warning light come ON?

Go to Step 2.

Go to Step 6.

2

1) Turn ignition switch to OFF position.

Are main fuses for ABS pump motor and ABS solenoid in
good condition?

Go to Step 3.

Replace fuse and check
for short.

3

1) Disconnect ESP

® control module connector.

2) Check for proper connection to ESP

® control module

connector at terminal “E53-35”.

3) If OK then turn ignition switch to ON position and

measure voltage between terminal “E53-35” and vehicle
body ground.

Is it 10 – 14 V?

Go to Step 4.

“GRN/ORN” wire circuit
open.

4

1) Turn ignition switch to OFF position.
2) Check for proper connection to ESP

® control module

connector at terminals “E53-1” and “E53-32”.

3) If OK then turn ignition switch to ON position and

measure voltage between each terminal of “E53-1”,
“E53-32” and vehicle body ground.

Are they 10 – 14 V?

Go to Step 5.

“WHT/RED” and/or
“WHT/BLU” wire circuit
open.

5

1) Turn ignition switch to OFF position.
2) Check for proper connection to ESP

® control module

connector at terminals “E53-16” and “E53-47”.

3) If OK, measure resistance between each terminal of

“E53-16”, “E53-47” and vehicle body ground.

Are resistance less than 2

Ω

?

Go to Step 6.

Ground circuit for ESP

®

control module open or
high resistance.
