(509,1)

.

Dampness in certain parts of the

vehicle remains for a long time, even
though other parts of the vehicle may be
dry.

.

High temperatures will cause corrosion

to parts of the vehicle which cannot dry
quickly due to lack of proper ventilation.

&

To Help Prevent Corrosion

Wash the vehicle regularly to prevent
corrosion of the body and suspension
components. Also, wash the vehicle
promptly after driving on any of the
following surfaces.

.

Roads that have been salted to prevent

them from freezing in winter

.

Mud, sand, or gravel

.

Coastal roads

After the winter has ended, it is recom-
mended that the underbody be given a
very thorough washing.

Before the beginning of winter, check the
condition of underbody components, such
as the exhaust system, fuel and brake
lines, brake cables, suspension, steering
system, floor pan, and fenders. If any of
them are found to be rusted, they should
be given an appropriate rust prevention
treatment or should be replaced. Contact
your SUBARU dealer to perform this kind

of maintenance and treatment if you need
assistance.

Repair chips and scratches in the paint as
soon as you find them.

Check the interior of the vehicle for water
and dirt accumulation under the floor mats
because that could cause corrosion. Oc-
casionally check under the mats to make
sure the area is dry.

Keep your garage dry. Do not park your
vehicle in a damp, poorly ventilated gar-
age. In such a garage, corrosion can be
caused by dampness. If you wash the
vehicle in the garage or put the vehicle into
the garage when wet or covered with
snow, that can cause dampness.

If your vehicle is operated in cold weather
and/or in areas where road salts and other
corrosive materials are used, the door
hinges and locks, trunk lid lock, and hood
latch should be inspected and lubricated
periodically.

10-3. Cleaning the Interior

Use a soft, damp cloth to clean the climate
control panel, audio equipment, instru-
ment panel, center console, combination
meter panel, and switches. (Do not use
organic solvents.)

&

Seat Fabric Material

Remove loose dirt, dust or debris with a
vacuum cleaner. If the dirt is caked on the
fabric or hard to remove with a vacuum
cleaner, use a soft brush then vacuum it.
Wipe the fabric surface with a tightly wrung
cloth and dry the seat fabric thoroughly. If
the fabric is still dirty, wipe using a solution
of mild soap and lukewarm water then dry
thoroughly.

If the stain does not come out, try a
commercially available fabric cleaner.
Use the cleaner on a hidden place and
make sure it does not affect the fabric
adversely. Use the cleaner according to its
instructions.

CAUTION

When cleaning the seat, do not use
benzine, paint thinner, or any similar
materials. Doing so could damage
the surface and cause the color to

– CONTINUED –

Cleaning the Interior

507

10

Appearance

Care

(510,1)

deteriorate.

&

Leather Seat Materials

The leather used by SUBARU is a high
quality natural product which will retain its
distinctive appearance and feel for many
years with proper care.
Allowing dust or road dirt to build up on the
surface can cause leather to become
brittle and wear prematurely. To maintain
its resiliency, leather should be cleaned
monthly or whenever it becomes soiled.
Before cleaning leather upholstery, va-
cuum it to remove dust. Use a soft and
lint-free cloth dampened with lukewarm
water and mild soap, taking care not to
soak the leather or allow water to pene-
trate the stitched seams. Use a gentle
circular motion while cleaning the leather -
do not rub or apply extreme pressure.
Wipe the leather again with another clean,
slightly damp cloth to remove soap residue
and dry with a soft cloth.
Minor surface blemishes or difficult dirt
spots may be treated with a commercial
leather spray. Never use alcohol, cleaning
solvents, leather oils, varnishes or
polishes on your leather as it will dry out
the leather finish.
If your SUBARU is to be parked for a long

time in bright sunlight, it is recommended
that the seats and headrests be covered,
or the windows shaded, to prevent fading
or shrinkage.
You will discover that each leather seat
section will develop soft folds or wrinkles,
which is characteristic of genuine leather.

&

Synthetic Leather Upholstery

The synthetic leather material used on the
SUBARU may be cleaned using mild soap
or detergent and water, after first vacuum-
ing or brushing away loose dirt. Allow the
soap to soak in for a few minutes and wipe
off with a clean, damp cloth. Commercial
foam-type cleaners suitable for synthetic
leather materials may be used when
necessary.

CAUTION

Strong cleaning agents such as
solvents, paint thinners, window
cleaner or gasoline must never be
used on leather or synthetic interior
materials. Doing so could damage
the surface and cause the color to
deteriorate.

&

Instrument Panel, Console
Panel, Switches, Combina-
tion Meter, and Other Plastic
Surface

Use a soft, damp cloth to clean the
instrument panel, center console, combi-
nation meter panel, and switches.

CAUTION

.

Do not use organic solvents such

as paint thinners or gasoline, or
strong cleaning agents that con-
tain those solvents. Doing so
could damage the surface and
cause the color to deteriorate.

.

Do not use chemical solvents that

contain silicone on the vehicle
audio system, electrical compo-
nents of the air-conditioner or
any switches. If silicone adheres
to these parts, it may cause
damage to electrical compo-
nents.

Cleaning the Interior

508

(511,1)

&

Center Information Display

To clean the center information display,
wipe it with a silicone cloth or with a soft
cloth. If the display(s) is/are extremely
dirty, clean it with a soft cloth moistened
with neutral detergent then carefully wipe
off any remaining detergent.

CAUTION

.

Do not spray neutral detergent

directly onto the display(s).
Doing so could damage the moni-
tor’s components.

.

Do not wipe the display(s) with a

hard cloth. Doing so could
scratch the monitor.

.

Do not use cleaning fluid that

contains thinner, gasoline, or
any other volatile substance.
Such cleaning fluid could erase
the lettering on the switches on
the display(s).

Cleaning the Interior

509

10

Appearance

Care

(513,1)

11-1. Maintenance Schedule ................................. 513
11-2. Maintenance Precautions ............................. 513

Before Checking or Servicing in the Engine

Compartment.................................................... 514

When Checking or Servicing in the Engine

Compartment.................................................... 515

When Checking or Servicing in the Engine

Compartment While the Engine Is Running ....... 515

11-3. Maintenance Tips .......................................... 515

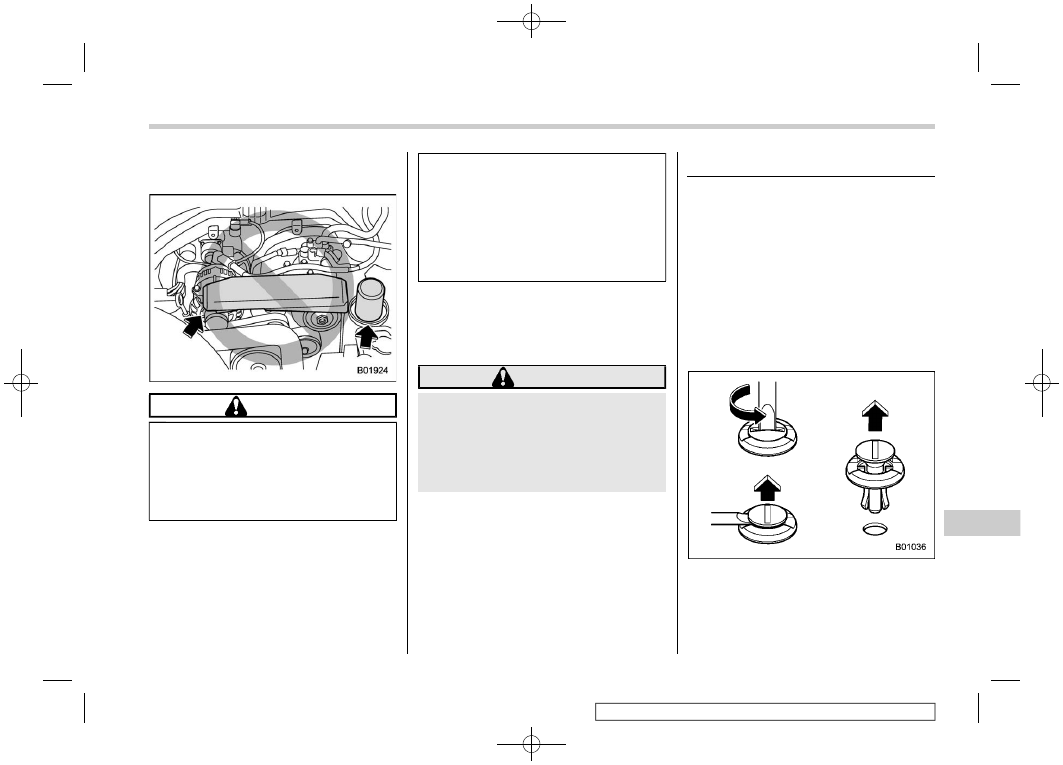

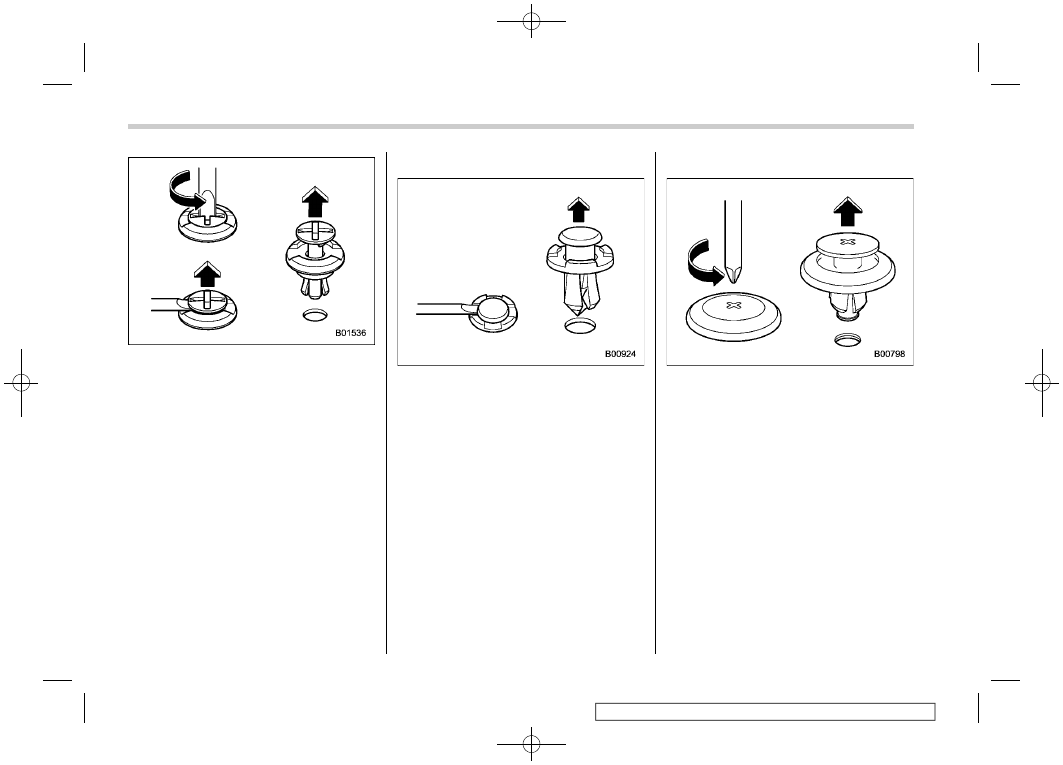

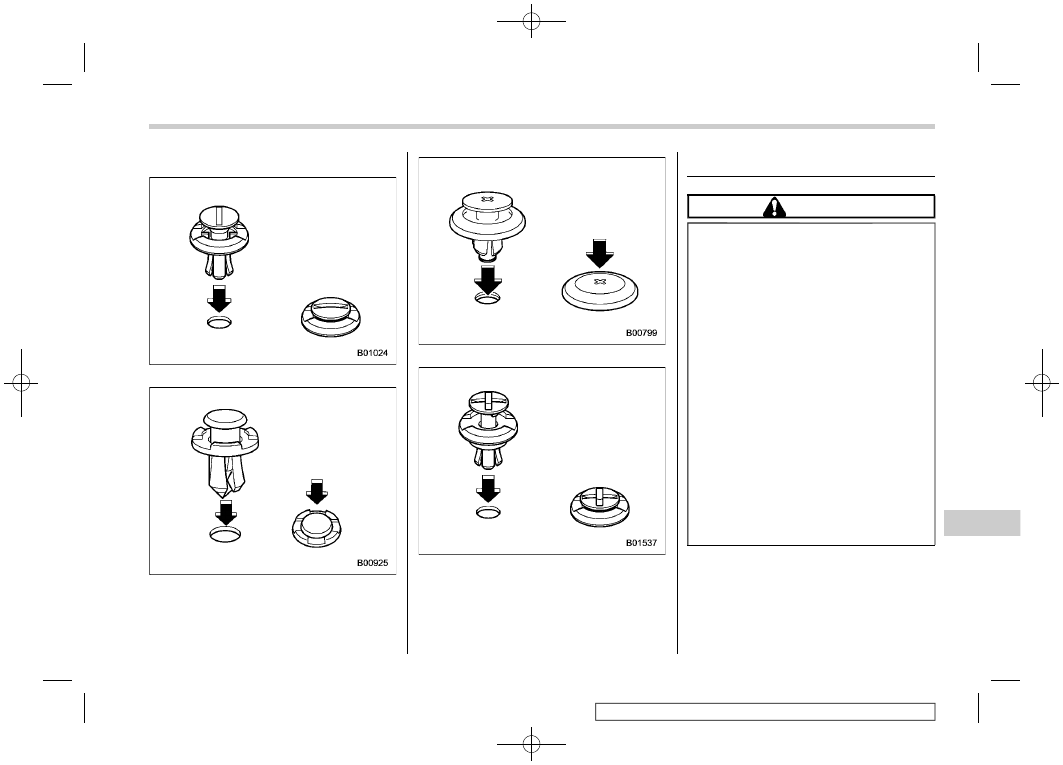

Removing and Reinstalling Clips ........................ 515

11-4. Engine Hood.................................................. 517

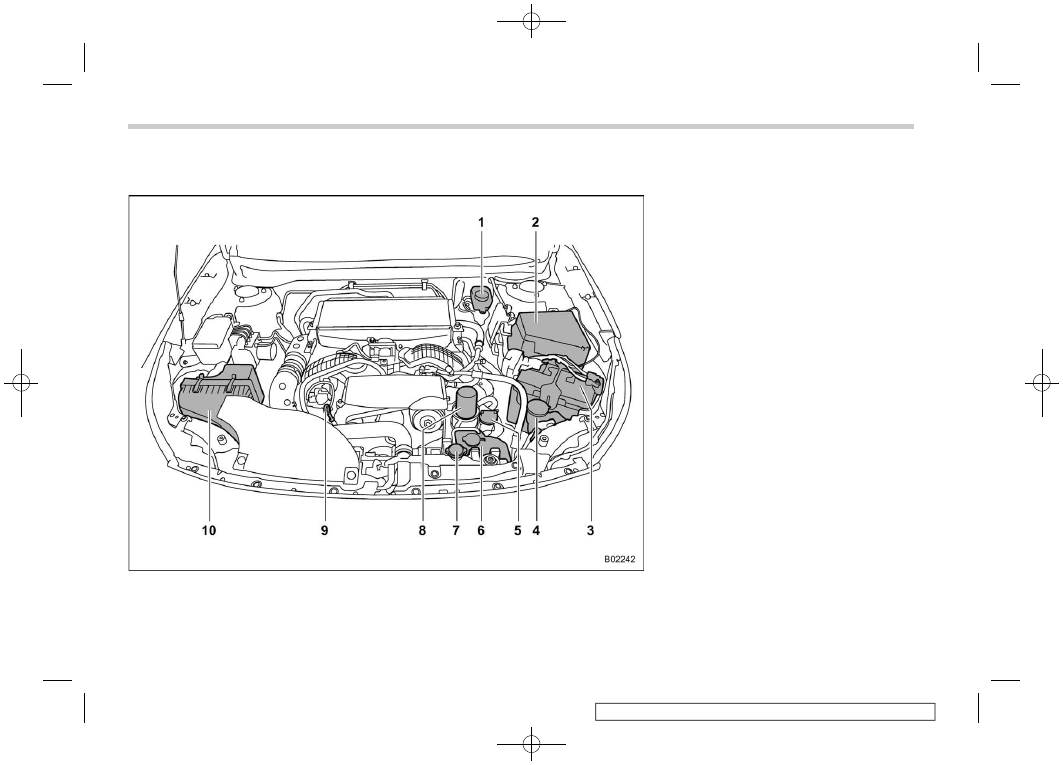

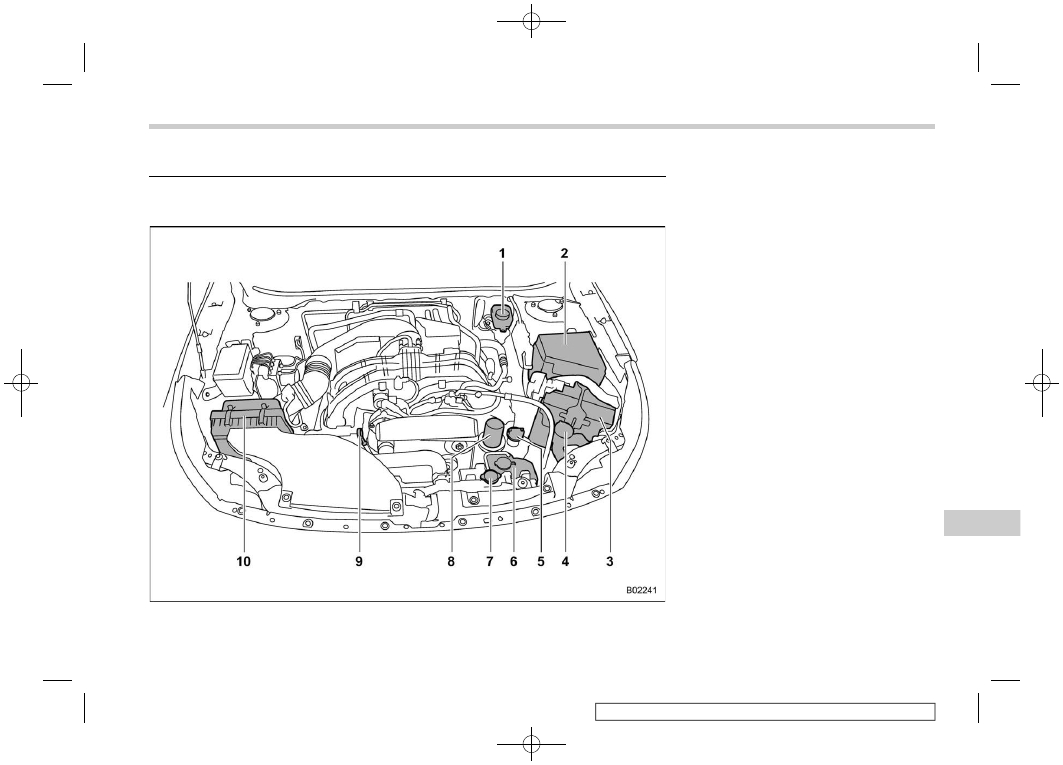

11-5. Engine Compartment Overview ................... 519

2.5 L Models ....................................................... 519
2.4 L Models ....................................................... 520

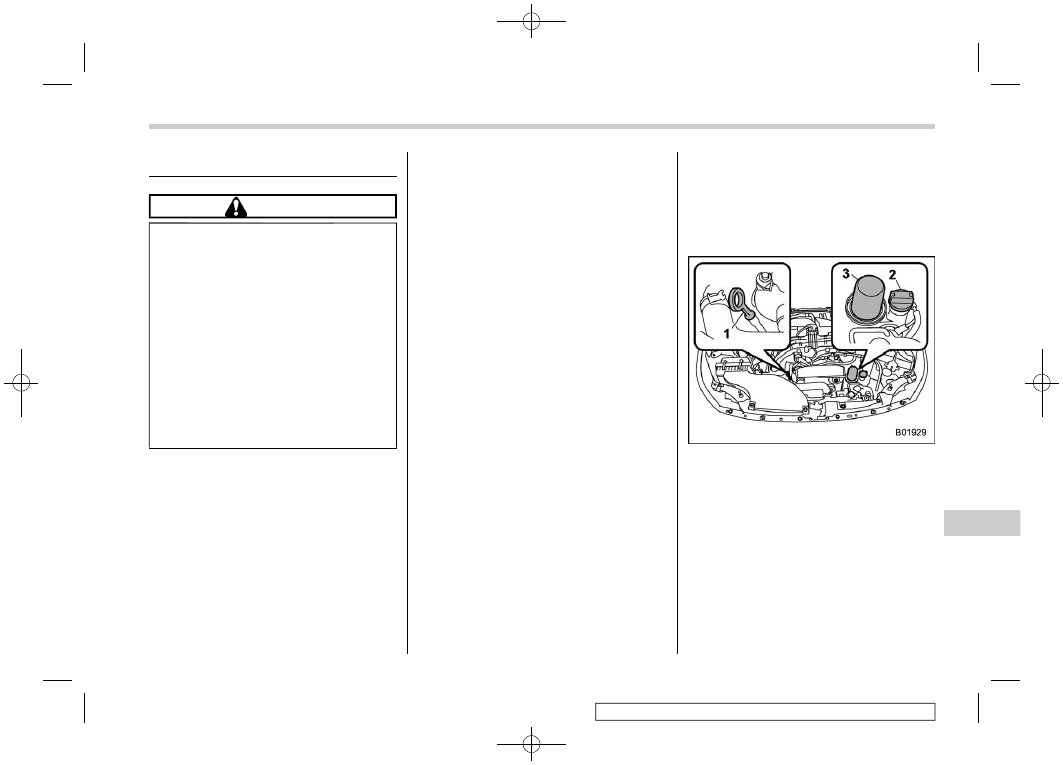

11-6. Engine Oil ...................................................... 521

Engine Oil Consumption ..................................... 521

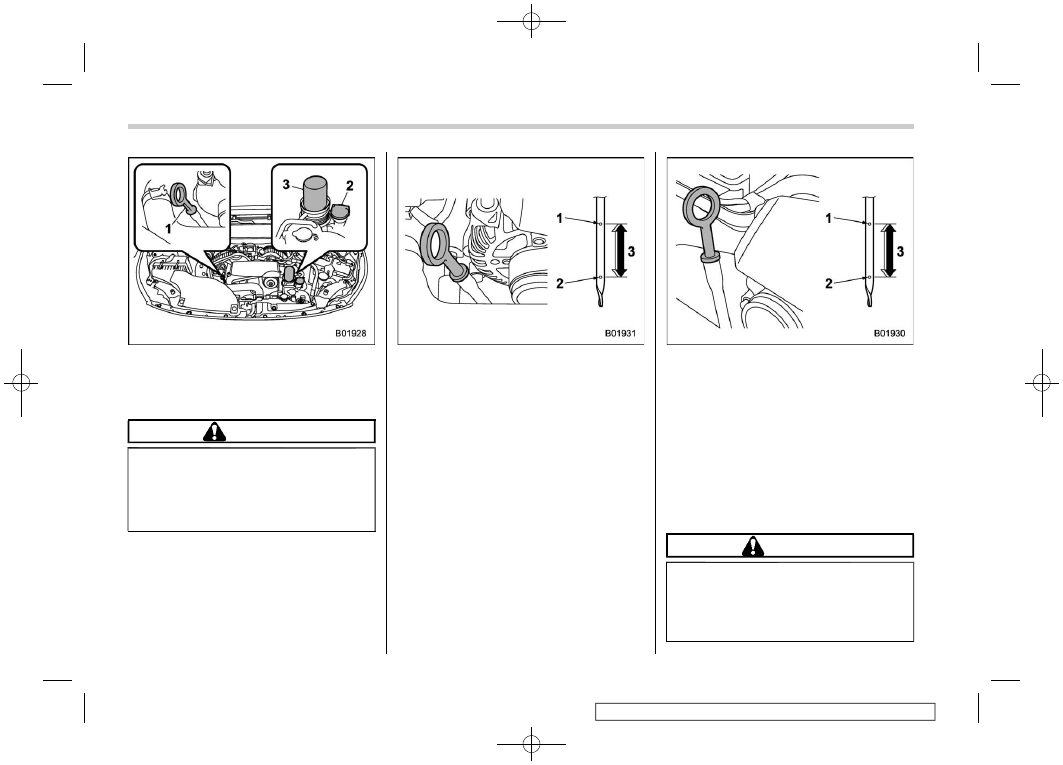

Checking the Oil Level........................................ 521
Changing the Oil and Oil Filter ............................ 523
Recommended Grade and Viscosity.................... 523
Synthetic Oil....................................................... 523

11-7. Cooling System............................................. 524

Cooling Fan, Hose and Connections ................... 524
Engine Coolant ................................................... 524

11-8. Air Cleaner Element...................................... 526

Replacing the Air Cleaner Element ...................... 526

11-9. Spark Plugs ................................................... 528

Recommended Spark Plugs ................................ 528

11-10. Drive Belts ................................................... 529
11-11. Continuously Variable Transmission

Fluid ............................................................... 529

11-12. Front Differential Gear Oil and Rear

Differential Gear Oil ......................................529

Recommended Grade and Viscosity ................... 529

11-13. Brake Fluid ...................................................530

Checking the Fluid Level .................................... 530
Recommended Brake Fluid................................. 530

11-14. Brake Pedal ..................................................531
11-15. Replacement of Brake Pad .........................531
11-16. Tires and Wheels .........................................532

Types of Tires .................................................... 532
Tire Pressure Monitoring System (TPMS)

(U.S.-Spec. Models) .......................................... 532

Tire Inspection ................................................... 534
Tire Pressures and Wear .................................... 534
Wheel Balance ................................................... 536
Wear Indicators .................................................. 536
Rotational Direction of Tires ............................... 537
Tire Rotation ...................................................... 537
Tire Replacement ............................................... 538
Wheel Replacement............................................ 539

11-17. Alloy Wheels ................................................540
11-18. Windshield Washer Fluid ............................540
11-19. Replacement of Wiper Blades ....................541

Windshield Wiper Blade Assembly ..................... 542
Window Wiper Blade Rubber .............................. 543
Rear Window Wiper Blade Assembly (Outback/

Subaru Outback Wilderness) ............................ 543

Rear Window Wiper Blade Rubber (Outback/

Subaru Outback Wilderness) ............................ 544

11-20. Battery ..........................................................545
11-21. Fuses ............................................................546

Maintenance and Service

11

Maintenance

and

Service

(514,1)

11-22. Installation of Accessories......................... 548
11-23. Replacing Bulbs.......................................... 548

Headlights .......................................................... 548
Front Turn Signal Light/Front Position Light........ 549
Rear Combination Lights .................................... 549
Backup Light ...................................................... 552
Door Step Light .................................................. 553

Trunk Light (Legacy) .......................................... 553
Other Bulbs ....................................................... 553
Adjusting Headlight Aim (Legacy/Outback) ......... 554

11-24. Replacing Battery ........................................555

Replacing Battery of Access Key Fob................. 555
Replacing Battery of Transmitter ........................ 556

Maintenance and Service

(515,1)

11-1. Maintenance Schedule

U.S. models

The scheduled maintenance items re-
quired to be serviced at regular intervals
are shown in the “Warranty and Mainte-
nance Booklet”. For details, read the
separate “Warranty and Maintenance
Booklet”.

Canada models

The scheduled maintenance items re-
quired to be serviced at regular intervals
are shown in the “Warranty and Service
Booklet”. For details, read the separate
“Warranty and Service Booklet”.

Except for U.S. and Canada models

Some items of your vehicle are required to
be serviced at scheduled intervals. For
details about your maintenance schedule,
read the separate “Warranty and Main-
tenance Booklet”.

11-2. Maintenance Precau-
tions

When maintenance and service are re-
quired, it is recommended that all work be
done by an authorized SUBARU dealer.

If you perform maintenance and service by
yourself, you should familiarize yourself
with the information provided in this sec-
tion on general maintenance and service
for your SUBARU.

Incorrect or incomplete service could
cause improper or unsafe vehicle opera-
tion. Any problems caused by improper
maintenance and service performed by
you are not eligible for warranty coverage.

WARNING

.

Testing of an All-Wheel Drive

vehicle must NEVER be per-
formed on a single two-wheel
dynamometer or similar appara-
tus. Attempting to do so will
result in transmission damage
and in uncontrolled vehicle
movement and may cause an
accident or injuries to persons
nearby.

.

Always select a safe area when

performing maintenance on your

vehicle.

.

Always be very careful to avoid

injury when working on the vehi-
cle. Remember that some of the
materials in the vehicle may be
hazardous if improperly used or
handled, for example, battery
acid.

.

Your vehicle should only be ser-

viced by persons fully competent
to do so. Serious personal injury
may result to persons not experi-
enced in servicing vehicles.

.

Always use the proper tools and

make certain that they are well
maintained.

.

Never get under the vehicle sup-

ported only by a jack. Always use
safety stands to support the
vehicle.

.

Never keep the engine running in

a poorly ventilated area, such as
a garage or other closed areas.

.

Do not smoke or allow open

flames around the fuel or battery.
This will cause a fire.

.

Because the fuel system is under

pressure, replacement of the fuel
filter should be performed only
by your SUBARU dealer.

– CONTINUED –

Maintenance Schedule

513

11

Maintenance

and

Service

(516,1)

.

Wear adequate eye protection to

guard against getting oil or fluids
in your eyes. If something does
get in your eyes, thoroughly
wash them out with clean water.

.

Do not tamper with the wiring of

the SRS airbag system or seat-
belt pretensioner system, or at-
tempt to take its connectors
apart, as that may activate the
system or it can render it inop-
erative. NEVER use a circuit tes-
ter for these wiring. If your SRS
airbag or seatbelt pretensioner
needs service, consult your near-
est SUBARU dealer.

.

Check the inside of the engine

compartment to see if there are
any cloths and tools left. If they
are left inside, they may be a
cause of malfunction and fire.

NOTE

SUBARU does not endorse the use of
non-SUBARU approved flushing sys-
tems and strongly advises against
performing these services on a
SUBARU vehicle. Non-SUBARU ap-
proved flushing systems use chemi-
cals and/or solvents which have not
been tested or approved by SUBARU.

SUBARU warranties do not cover any
part of the vehicle which is damaged by
adding or applying chemicals and/or
solvents other than those approved or
recommended by SUBARU.

&

Before Checking or Servicing
in the Engine Compartment

WARNING

.

Always stop the engine and apply

the parking brake to prevent the
vehicle from moving.

.

Always let the engine cool down.

Engine parts become very hot
when the engine is running and
remain hot for some time after the
engine is stopped.

.

Do not spill engine oil, engine

coolant, brake fluid or any other
fluid on hot engine components.
This may cause a fire.

.

When the ignition switch is in the

“ON” position, the cooling fan
may operate suddenly even when
the engine is stopped. If your
body or clothes come into con-
tact with a rotating fan, that could
result in serious injury. To avoid
risk of injury, perform the follow-

ing precautions.

– Models with push-button start

system:
Always turn the push-button
ignition switch to the “OFF”
position and confirm that the
operation indicator on the
switch is turned off. Then take
the access key fob out from
the vehicle.

– Models without push-button

start system:
Always remove the key from
the ignition switch.

.

Before performing any servicing

on a vehicle equipped with a
remote engine start system tem-
porarily place that system in the
service mode to prevent it from
unexpectedly starting the engine.

Maintenance Precautions

514

(517,1)

&

When Checking or Servicing
in the Engine Compartment

CAUTION

.

Do not contact the belt cover

while checking the components
in the engine compartment.
Doing so may cause your hand
to slip off the belt cover and
result in an unexpected injury.

.

Do not touch the oil filter until the

engine has cooled down comple-
tely. Doing so may result in a burn
or other injury. Note that the oil
filter becomes very hot when the
engine is running and remains
hot for some time after the engine
has stopped.

&

When Checking or Servicing
in the Engine Compartment
While the Engine Is Running

WARNING

A running engine can be dangerous.
Keep your fingers, hands, clothing,
hair and tools away from the cooling
fan, belts and any other moving
engine parts. Removing rings,
watches and ties is advisable.

11-3. Maintenance Tips

Some clips and fender linings must be
removed before replacing the air cleaner
elements or specific bulbs.

&

Removing and Reinstalling
Clips

!

Removing clips

There are several types of clips used for
your vehicle.

!

Type A and D clips

Type A clips

– CONTINUED –

Maintenance Tips

515

11

Maintenance

and

Service

(518,1)

Type D clips

1. Turn the clips counterclockwise using
a flat-head screwdriver until the center
portion of the clip is raised.
2. Remove the clips with a flat-head
screwdriver using leverage.

!

Type B clips

1. Pull out the center portion of the clip
using a flat-head screwdriver as shown in
the illustration.
2. Pull the protruded center portion to
remove the entire body of the clip.

!

Type C clips

1. Turn the clip counterclockwise using a
Phillips screwdriver until the center portion
of the clip is raised.
2. Remove the entire clip by pulling it up.

Maintenance Tips

516

(519,1)

!

Reinstalling clips

Type A clips

Type B clips

Type C clips

Type D clips

Insert the clip without the center portion
first and then push the center portion of the
clip into the hole.

11-4. Engine Hood

CAUTION

.

Be extremely careful not to catch

fingers or other objects when
closing the engine hood.

.

Do not push the hood forcibly to

close it. It could deform the metal.

.

Be extremely careful opening the

engine hood when the wind is
strong. The engine hood could
close suddenly, possibly causing
injuries from slamming.

.

Do not install accessories other

than genuine SUBARU parts to
the engine hood. If the engine
hood becomes too heavy, the
stay may not be able to support
holding it open.

.

Check that the end of the hood

stay is inserted into the slot. If it is
not inserted properly, the hood
may drop and cause injury.

– CONTINUED –

Engine Hood

517

11

Maintenance

and

Service

(520,1)

To open the hood:

1. If the wiper blades are lifted off the
windshield, return them to their original
positions.

2. Pull the hood release knob under the
instrument panel.

3. Release the secondary hood lock by
moving the lever between the front grille
and the hood toward the left.

4. Lift up the hood, release the hood prop
from its retainer and put the end of the
hood prop into the slot in the engine

compartment.

To close the hood:

1. Lift the hood slightly and remove the
hood prop from the slot in the engine
compartment and return the prop to its
retainer.
2. Lower the hood to a height of approxi-
mately 7.8 to 11.8 in (20 to 30 cm) above its
closed position and then let it drop.
3. After closing the hood, be sure the
hood is securely locked.

If this does not close the hood, release it
from a slightly higher position.

WARNING

Always check that the hood is
properly locked before you start
driving. If it is not, it might fly open
while the vehicle is moving and
block your view, which may cause
an accident and serious bodily in-
jury.

Engine Hood

518

(521,1)

11-5. Engine Compartment Overview

&

2.5 L Models

1)

Brake fluid reservoir (page 530)

2)

Main fuse box (page 546)

3)

Battery (page 545)

4)

Windshield washer tank (page 540)

5)

Engine oil filler cap (page 521)

6)

Engine coolant reservoir (page 524)

7)

Radiator cap (page 524)

8)

Engine oil filter (page 523)

9)

Engine oil level gauge (page 521)

10) Air cleaner case (page 526)

– CONTINUED –

Engine Compartment Overview

519

11

Maintenance

and

Service

(522,1)

&

2.4 L Models

1)

Brake fluid reservoir (page 530)

2)

Main fuse box (page 546)

3)

Battery (page 545)

4)

Windshield washer tank (page 540)

5)

Engine oil filler cap (page 521)

6)

Engine coolant reservoir (page 524)

7)

Radiator cap (page 524)

8)

Engine oil filter (page 523)

9)

Engine oil level gauge (page 521)

10) Air cleaner case (page 526)

Engine Compartment Overview

520

(523,1)

11-6. Engine Oil

CAUTION

.

If the level gauge is not pulled out

easily, twist the level gauge right
and left, then pull it out. Other-
wise, you may be injured acci-
dentally straining yourself.

.

Use only engine oil with the

recommended grade and vis-
cosity.

.

Be careful not to spill engine oil

when adding it. If oil touches the
exhaust pipe, it may cause a bad
smell, smoke, and/or a fire. If
engine oil gets on the exhaust
pipe, be sure to wipe it off.

&

Engine Oil Consumption

Some engine oil will be consumed while
driving. The rate of consumption can be
affected by such factors as transmission
type, driving style, terrain and tempera-
ture. Under the following conditions, oil
consumption can be increased and thus
require refilling between maintenance in-
tervals:

.

When the engine is new and within the

break-in period

.

When the engine oil is of lower quality

.

When the incorrect oil viscosity is used

.

When engine braking is employed

(repeatedly)

.

When the engine is operated at high

engine speeds (for extended periods of
time)

.

When the engine is operated under

heavy loads (for extended periods of time)

.

When towing a trailer (Outback/Subaru

Outback Wilderness)

.

When the engine idles for extended

periods of time

.

When the vehicle is operated in stop

and go and/or heavy traffic situations

.

When the vehicle is used under severe

thermal conditions

.

When the vehicle accelerates and

decelerates frequently

Under these or similar conditions, you
should check your oil at least every 2nd
fuel fill-up and change your engine oil more
frequently. Different drivers in the same
car may experience different results. If
your oil consumption rate is greater than
expected, contact your authorized
SUBARU retailer who may perform a test
under controlled conditions.

&

Checking the Oil Level

1. Park the vehicle on a level surface and
stop the engine. If you check the oil level
just after stopping the engine, wait for at
least 5 minutes for the oil to drain back into
the oil pan before checking the level.

2.5 L models

1)

Oil level gauge

2)

Oil filler cap

3)

Oil filter

– CONTINUED –

Engine Oil

521

11

Maintenance

and

Service

(524,1)

2.4 L models

1)

Oil level gauge

2)

Oil filler cap

3)

Oil filter

CAUTION

If the level gauge is not pulled out
easily, twist the level gauge right and
left, then pull it out. Otherwise, you
may be injured accidentally strain-
ing yourself.

2. Pull out the level gauge, wipe it clean,
and insert it again.
3. Be sure the level gauge is correctly
inserted until it stops.

2.5 L models

1)

Full level

2)

Low level

3)

Approximately 1.1 US qt (1.0 liter, 0.9 Imp
qt) from low level to full level

2.4 L models

1)

Full level

2)

Low level

3)

Approximately 1.1 US qt (1.0 liter, 0.9 Imp
qt) from low level to full level

4. Pull out the oil level gauge again.
5. Check the oil level on both sides of the
level gauge. The engine oil level must be
judged by the lowest of the two levels. If
the oil level is below the low level mark,
add oil so that the full level is reached.

CAUTION

.

Be careful not to touch the engine

oil filter when removing the oil
filler cap. Doing so may result in a
burn, a pinched finger, or may
cause some other injury.

Engine Oil

522

(525,1)

.

Use only engine oil with the

recommended grade and vis-
cosity.

.

Be careful not to spill engine oil

when adding it. If oil touches the
exhaust pipe, it may cause a bad
smell, smoke, and/or a fire. If
engine oil gets on the exhaust
pipe, be sure to wipe it off.

To add engine oil, remove the engine oil
filler cap and slowly pour engine oil
through the filler neck. After pouring oil
into the engine, you must use the level
gauge to confirm that the oil level is
correct.

NOTE

.

To prevent overfilling the engine oil,

do not add any additional oil above the
full level when the engine is cold.

.

After adding or changing the engine

oil, warm up the engine and stop it on a
level surface, then start the engine after
a lapse of 1 minute or more. Confirm
that the warning light has turned off
after the engine has started. Refer to
“Engine Low Oil Level Warning Indica-
tor”

P185.

&

Changing the Oil and Oil Filter

Change the oil and oil filter according to
the maintenance schedule in the “War-
ranty and Maintenance Booklet”.

NOTE

.

Changing the engine oil and oil filter

should be performed by a well-trained
expert. Contact your SUBARU dealer
for changing the engine oil and oil filter.
Fully trained mechanics are on standby
at a SUBARU dealer to utilize the
special tools, spare parts and recom-
mended oil for this work, and also, used
oils are properly disposed of.

.

If performing oil replacement your-

self, observe the local regulations and
dispose of waste oil properly.

&

Recommended Grade and
Viscosity

CAUTION

Use only engine oil with the recom-
mended grade and viscosity.

Refer to “Engine Oil”

P562.

NOTE

Engine oil viscosity (thickness) affects
fuel economy. Oils of lower viscosity

provide better fuel economy. However,
in hot weather, oil of higher viscosity is
required to properly lubricate the en-
gine.

&

Synthetic Oil

You should use synthetic engine oil that
meets the same requirements given for
conventional engine oil. When using syn-
thetic oil, you must use oil of the same
classification, viscosity and grade shown
in this Owner’s Manual. Refer to “Engine
Oil”

P562. Also, you must follow the oil

and filter changing intervals shown in the
“Warranty and Maintenance Booklet”.

NOTE

Synthetic oil of the grade and viscosity
noted in chapter 12 is the recom-
mended engine oil for optimum engine
performance. Conventional oil may be
used if synthetic oil is unavailable.

Engine Oil

523

11

Maintenance

and

Service















Content      ..     30      31      32      33     ..
