CAUTION

If the pointer exceeds the normal
operating range, safely stop the
vehicle as soon as possible.

Refer to “Engine overheating” F9-
14.

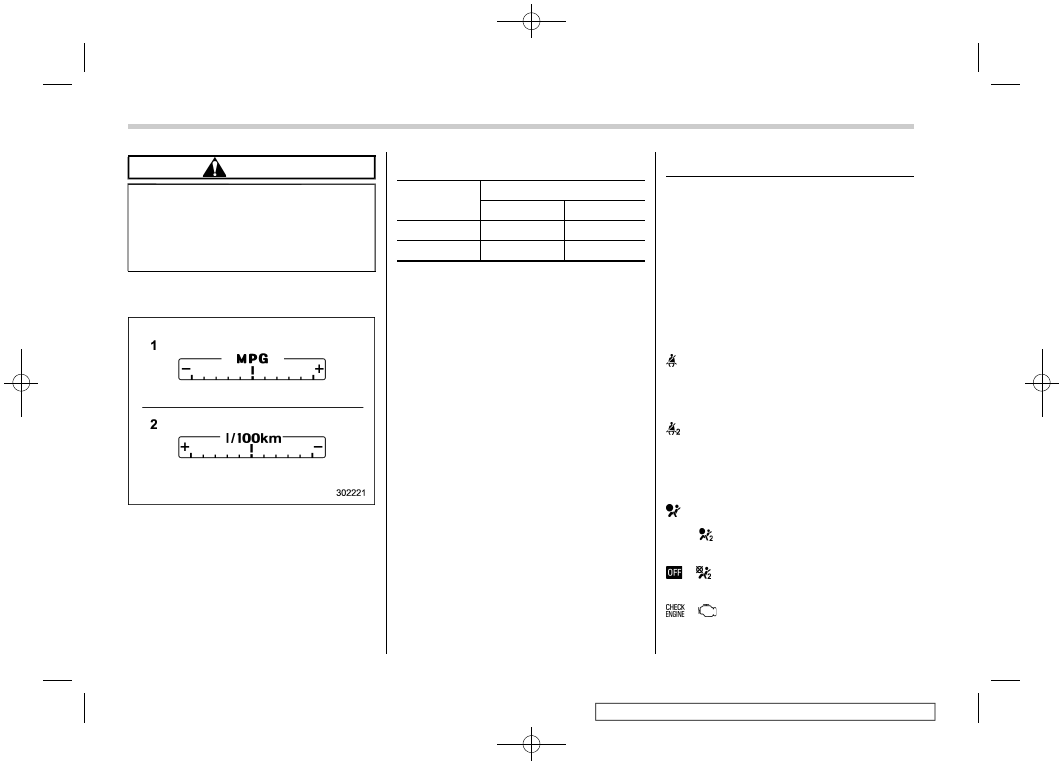

ECO gauge

U.S. spec. models

Except U.S. spec. models

The ECO gauge shows the difference
between the average rate of fuel con-
sumption since the trip meter was last
reset and the current rate of fuel consump-
tion.

The ECO gauge indicates the current fuel

efficiency as shown in the following chart.

Displayed unit

Needle position

“+” side

“-” side

MPG

Better

Poorer

l/100km

Poorer

Better

NOTE

The ECO gauge shows only an

approximate indication.
.

After resetting the trip meter, the

average rate of fuel consumption is not
shown until driving 0.6 mile (1 km). Until
that time, the ECO gauge does not
operate.

Warning and indicator lights

Several of the warning and indicator lights
illuminate momentarily and then go out
when the ignition switch is initially turned to
the “ON” position. This permits checking
the operation of the bulbs.
Apply the parking brake and turn the
ignition switch to the “ON” position. For
the system check, the following lights
illuminate and turn off after several sec-
onds or after the engine has started:

: Seatbelt warning light

(The seatbelt warning light turns off
only when the driver fastens the seat-
belt.)

: Front passenger’s seatbelt warning

light
(The seatbelt warning light turns off
only when the front seat passenger
fastens the seatbelt.)

: SRS airbag system warning light

ON /

: Front passenger’s frontal airbag

ON indicator light

: Front passenger’s frontal airbag

OFF indicator light

: CHECK ENGINE warning light/

Malfunction indicator light

Instruments and controls/Warning and indicator lights

3-12

(171,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

: Charge warning light

: Oil pressure warning light

: AT OIL TEMP warning light

: ABS warning light

: Vehicle Dynamics Control warning light/

Vehicle Dynamics Control operation
indicator light

: Vehicle Dynamics Control OFF indicator

light

: Brake system warning light

: Hill Holder indicator light

: All-Wheel Drive warning light

: Power steering warning light

: Low tire pressure warning light

(U.S. spec. models)

: Low fuel warning light

: Hill descent control indicator (if

equipped)

: Automatic headlight beam leveler

warning light (if equipped)

If any lights fail to illuminate, it indicates a
burned-out bulb or a malfunction of the
corresponding system.
Consult your authorized SUBARU dealer

for repair.

Seatbelt warning light
and chime

Your vehicle is equipped with a seatbelt
warning device at the driver’s and front
passenger’s seat, as required by current
safety standards.
With the ignition switch turned to the “ON”
position, this device reminds the driver and
front passenger to fasten their seatbelts by
the warning lights in the locations indicated
in the following illustration and a chime.

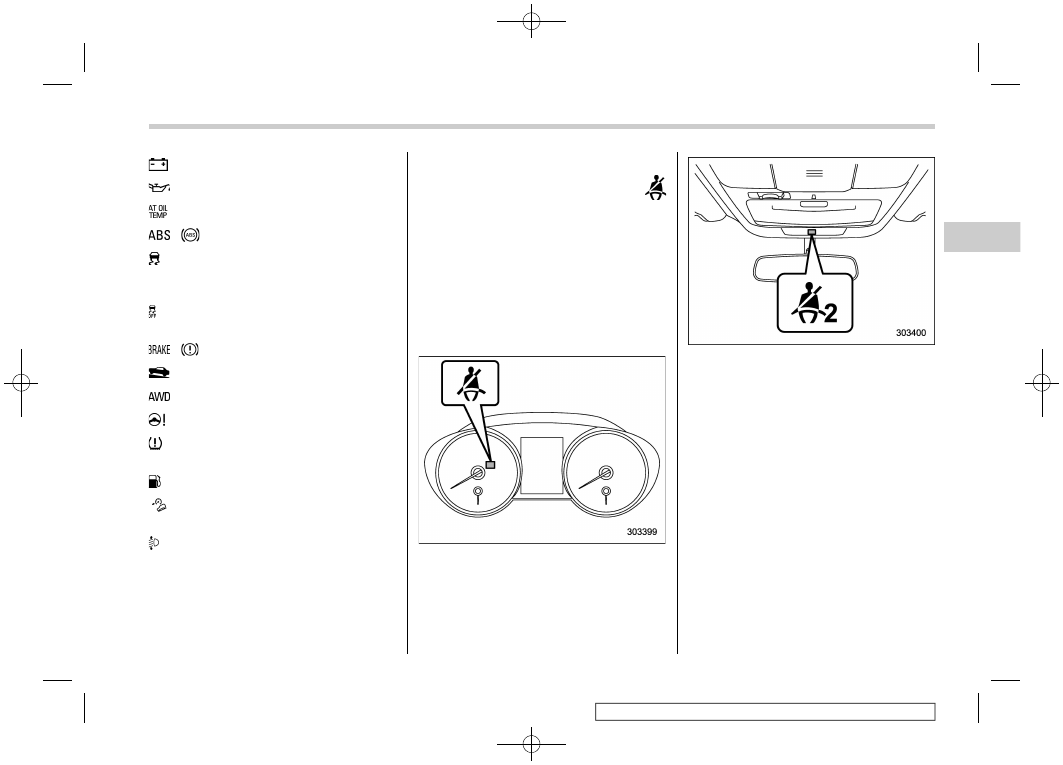

Driver’s warning light

Front passenger’s warning light

Operation

If the driver and/or front passenger have/
has not yet fastened the seatbelt(s) when
the ignition switch is turned to the “ON”
position, the seatbelt warning light(s) will
flash for 6 seconds, to warn that the
seatbelt(s) is/are unfastened. If the driver’s
seatbelt is not fastened, a chime will also
sound simultaneously.

NOTE

If the driver’s and/or front passen-

ger’s seatbelt(s) are/is still not fastened
6 seconds later, the seatbelt warning
device operates as follows according
to the vehicle speed.

– At speeds lower than approxi-
mately 9 mph (15 km/h)

– CONTINUED –

Instruments and controls/Warning and indicator lights

3-13

(172,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

The warning light(s) for unfastened
seatbelt(s) will alternate between
steady illumination and flashing at
15-second intervals. The chime will
not sound.
– At speeds higher than approxi-
mately 9 mph (15 km/h)
The warning light(s) for unfastened
seatbelt(s) will alternate between
flashing and steady illumination at
15-second intervals and the chime
will sound while the warning light(s)
is/are flashing.

If there is no passenger on the front
passenger’s seat, the seatbelt warning
device for the front passenger’s seat will
be deactivated. The front passenger’s
occupant detection system monitors
whether or not there is a passenger on
the front passenger’s seat.

Observe the following precautions. Failure
to do so may prevent the device from
functioning correctly or cause the device to
fail.
.

Do not install any accessory such as a

table or TV onto the seatback.
.

Do not store a heavy load in the

seatback pocket.
.

Do not allow the rear seat occupant to

place his/her hands or legs on the front
passenger’s seatback, or allow him/her to

pull the seatback.
.

Do not use front seats with their back-

ward-forward position and seatback not
being locked into place securely. If any of
them are not locked securely, adjust them
again. For adjusting procedure, refer to
“Manual seat” F1-4 (models equipped
with manual seats only).

If the seatbelt warning device for the front
passenger’s seat does not function cor-
rectly (e.g., it is activated even when the
front passenger’s seat is empty or it is
deactivated even when the front passen-
ger has not fastened his/her seatbelt), take
the following actions.
.

Ensure that no article is placed on the

seat other than a child restraint system and
its child occupant.
.

Ensure that there is no article left in the

seatback pocket.
.

Ensure that the backward-forward po-

sition and seatback of front passenger’s
seat are locked into place securely by
moving the seat back and forth. (Models
equipped with manual seats only)

If still the seatbelt warning device for front
passenger’s seat does not function cor-
rectly after taking relevant corrective ac-
tions described above, immediately con-
tact your SUBARU dealer for an inspec-
tion.

SRS airbag system
warning light

WARNING

If the warning light exhibits any of
the following conditions, there may
be a malfunction in the seatbelt
pretensioners and/or SRS airbag
system.

Flashing or flickering of the warn-

ing light

No illumination of the warning

light when the ignition switch is
first turned to the “ON” position

Continuous illumination of the

warning light

Illumination of the warning light

while driving

Immediately take your vehicle to
your nearest SUBARU dealer to
have the system checked. Unless
checked and properly repaired, the
seatbelt pretensioners and/or SRS
airbags will operate improperly (e.g.
SRS airbags may inflate in a very
minor collision or not inflate in a
severe collision), which may in-
crease the risk of injury.

For details about the components mon-

Instruments and controls/Warning and indicator lights

3-14

(173,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

itored by the warning light, refer to “SRS
airbag system monitors” F1-69.

Front passenger’s frontal air-
bag ON and OFF indicators

NOTE

For details about the operating condi-
tions of SRS seat cushion airbag, refer
to “SRS seat cushion airbag operation”
F1-62.

ON /

: Front passenger’s frontal airbag ON

indicator

: Front passenger’s frontal airbag OFF

indicator

The front passenger’s frontal airbag ON
and OFF indicators show you the status of
the front passenger’s SRS frontal airbag.

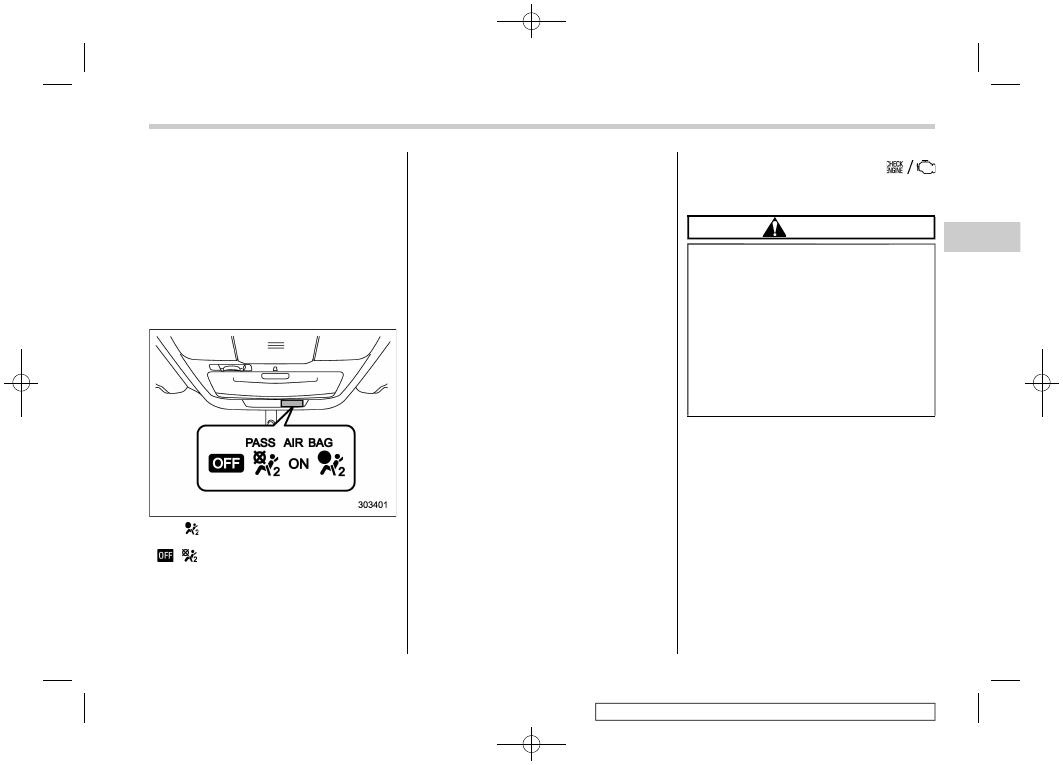

The indicators are located as shown in the

illustration.
When the ignition switch is turned to the
“ON” position, both the ON and OFF
indicators illuminate for 6 seconds during
which time the system is checked. Follow-
ing the system check, both indicators turn
off for 2 seconds. After that, one of the
indicators illuminates depending on the
status of the front passenger’s SRS frontal
airbag determined by the SUBARU ad-
vanced frontal airbag system monitoring.

If the front passenger’s SRS frontal airbag
is activated, the passenger’s frontal airbag
ON indicator will illuminate while the OFF
indicator will remain off.
If the front passenger’s SRS frontal airbag
is deactivated, the passenger’s frontal
airbag ON indicator will remain off while
the OFF indicator will illuminate.

With the ignition switch turned to the “ON”
position, if both the ON and OFF indicators
remain illuminated or off simultaneously
even after the system check period, the
system is malfunctioning. Contact your
SUBARU dealer immediately for an in-
spection.

CHECK ENGINE
warning light/Malfunc-
tion indicator light

CAUTION

If the CHECK ENGINE warning light/
malfunction indicator light illumi-
nates while you are driving, have
your vehicle checked/repaired by
your SUBARU dealer as soon as
possible. Continued vehicle opera-
tion without having the emission
control system checked and re-
paired as necessary could cause
serious damage, which may not be
covered by your vehicle’s warranty.

If this light illuminates steadily or blinks
while the engine is running, it may indicate
that there is at least one problem or
potential problem somewhere in the emis-
sion control system.

If the light illuminates constantly

If the light illuminates constantly while
driving or does not turn off after the engine
starts, an emission control system mal-
function has been detected.
You should have your vehicle checked by
an authorized SUBARU dealer immedi-
ately.

– CONTINUED –

Instruments and controls/Warning and indicator lights

3-15

(174,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

NOTE

This light also illuminates when the fuel
filler cap is not tightened until it clicks.

If you have recently refueled your vehicle,
the cause of the CHECK ENGINE warning
light/malfunction indicator light coming on
could be a loose or missing fuel filler cap.
Remove the cap and retighten it until it
clicks. Make sure nothing is interfering with
the sealing of the cap. Tightening the cap
will not make the CHECK ENGINE warn-
ing light/malfunction indicator light turn off
immediately. It may take several driving
trips. If the light does not turn off, take your
vehicle to your authorized SUBARU dealer
immediately.

If the light is blinking

If the light is blinking while driving, an
engine misfire condition has been de-
tected which may damage the emission
control system.
To prevent serious damage to the emis-
sion control system, you should conform to
the following instructions.
.

Reduce vehicle speed.

Avoid hard acceleration.

Avoid steep uphill grades.

Reduce the amount of cargo, if possi-

ble.
.

Stop towing a trailer as soon as

possible (Outback).

The CHECK ENGINE warning light/mal-
function indicator light may stop blinking
and illuminate steadily after several driving
trips. You should have your vehicle
checked by an authorized SUBARU dealer
immediately.

Charge warning light

If this light illuminates when the engine is
running, it may indicate that the charging
system is not working properly.

If the light illuminates while driving or does
not turn off after the engine starts, stop the
engine at the first safe opportunity and
check the alternator belt. If the belt is
loose, broken or if the belt is in good
condition but the light remains illuminated,
contact your nearest SUBARU dealer
immediately.

Oil pressure warning
light

CAUTION

Do not operate the engine with the
oil pressure warning light on. This
may cause serious engine damage.

If this light illuminates when the engine is

running, it may indicate that the engine oil
pressure is low and the lubricating system
is not working properly.

If the light illuminates while driving or does
not turn off after the engine starts, stop the
engine at the first safe opportunity and
check the engine oil level. If the oil level is
low, add oil immediately. If the engine oil is
at the proper level but the light remains
i l l u m i n a t e d , c o n t a c t y o u r n e a r e s t
SUBARU dealer immediately.

Engine low oil level
warning indicator

This indicator appears when the engine oil
level decreases to the lower limit.
If the engine low oil level warning indicator
appears while driving, park the vehicle at a
safe and level location, and then check the
engine oil level. When the engine oil level
is not within the normal range, refill with
engine oil. Refer to “Engine oil” F11-11.
If the warning indicator does not disappear
after refilling with engine oil or the warning
indicator appears even though the engine
oil level is within the normal range, have
the system checked by a SUBARU dealer.

NOTE

After replacing or adding the engine

oil, if the engine oil level is within the

Instruments and controls/Warning and indicator lights

3-16

(175,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

normal range when restarting the en-
gine on a level surface, the warning
indicator will be off.
.

The warning indicator may appear

temporarily in the following conditions
because a low oil level may be detected
as a result of significant oil movement
in the engine.

– when the vehicle is considerably
inclined on an uphill or steep slope
– when the vehicle has continu-
ously accelerated and decelerated
– when the vehicle is continuously
turned
– when the vehicle is driven on a
road that alternates continuously
between uphill and downhill

AT OIL TEMP warning
light

If this light illuminates when the engine is
running, it may indicate that the transmis-
sion fluid temperature is too hot.
If the light illuminates while driving, im-
mediately stop the vehicle in a safe place
and let the engine idle until the warning
light turns off.

Transmission control system warn-
ing

If the “AT OIL TEMP” warning light flashes

after the engine has started, it may indicate
that the transmission control system is not
working properly. Contact your nearest
SUBARU dealer for service immediately.

Low tire pressure
warning light (U.S.
spec. models)

When the ignition switch is turned to the
“ON” position, the low tire pressure warn-
ing light will illuminate for approximately 2
seconds to check that the tire pressure
monitoring system (TPMS) is functioning
properly. If there is no problem and all tires
are properly inflated, the light will go out.
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on
the vehicle placard or tire inflation pres-
sure label. (If your vehicle has tires of a
different size than the size indicated on the
vehicle placard or tire inflation pressure
label, you should determine the proper tire
inflation pressure for those tires.)

As an added safety feature, your vehicle
has been equipped with a tire pressure
monitoring system (TPMS) that illuminates
a low tire pressure telltale when one or
more of your tires is significantly under-
inflated. Accordingly, when the low tire

pressure telltale illuminates, you should
stop and check your tires as soon as
possible, and inflate them to the proper
pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability.
Please note that the TPMS is not a
substitute for proper tire maintenance,
and it is the driver’s responsibility to
maintain correct tire pressure, even if
under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction,
the telltale will flash for approximately one
minute and then remain continuously
illuminated. This sequence will continue
upon subsequent vehicle start-ups as long
as the malfunction exists. When the mal-
function indicator is illuminated, the sys-
tem may not be able to detect or signal low
tire pressure as intended. TPMS malfunc-
tions may occur for a variety of reasons,
including the installation of replacement or

– CONTINUED –

Instruments and controls/Warning and indicator lights

3-17

(176,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

alternate tires or wheels on the vehicle that
prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.
Should the warning light illuminate steadily
after blinking for approximately one min-
ute, have the system inspected by your
nearest SUBARU dealer as soon as
possible.

WARNING

If this light does not illuminate
briefly after the ignition switch is
turned ON or the light illuminates
steadily after blinking for approxi-
mately one minute, you should have
your Tire Pressure Monitoring Sys-
tem checked at a SUBARU dealer as
soon as possible.

If this light illuminates while driving,
never brake suddenly. Instead, per-
form the following procedure. Other-
wise an accident involving serious
vehicle damage and serious perso-
nal injury could occur.

1) Keep driving straight ahead while

gradually reducing speed.

2) Slowly pull off the road to a safe

place.

If this light still illuminates while
driving after adjusting the tire pres-
sure, a tire may have significant
damage and a fast leak that causes
the tire to lose air rapidly. If you have
a flat tire, replace it with a spare tire
as soon as possible.

When a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/transmitter
being transferred, the Low tire pres-
sure warning light will illuminate
steadily after blinking for approxi-
mately one minute. This indicates
the TPMS is unable to monitor all
four road wheels. Contact your
SUBARU dealer as soon as possible
for tire and sensor replacement and/
or system resetting. If the light
illuminates steadily after blinking
for approximately one minute,
promptly contact a SUBARU dealer
to have the system inspected.

CAUTION

The tire pressure monitoring system
is NOT a substitute for manually
checking tire pressure. The tire

pressure should be checked peri-
odically (at least monthly) using a
tire gauge. After any change to tire
pressure(s), the tire pressure mon-
itoring system will not re-check tire
inflation pressures until the vehicle
is first driven more than 20 mph (32
km/h). After adjusting the tire pres-
sures, increase the vehicle speed to
at least 20 mph (32 km/h) to start the
TPMS re-checking of the tire infla-
tion pressures. If the tire pressures
are now above the severe low pres-
sure threshold, the low tire pressure
warning light should turn off a few
minutes later. Therefore, be sure to
install the specified size for the front
and rear tires.

ABS warning light

CAUTION

If any of the following conditions

occur, we recommend that you
have the ABS repaired at the first
available opportunity by your
SUBARU dealer.

– The warning light does not

illuminate when the ignition
switch is turned to the “ON”

Instruments and controls/Warning and indicator lights

3-18

(177,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

position.

– The warning light illuminates

when the ignition switch is
turned to the “ON” position,
but it does not turn off even
after starting the vehicle.

– The warning light illuminates

during driving.

When the warning light is on (and

brake system warning light is
off), the ABS function shuts
down; however, the conventional
brake system continues to oper-
ate normally.

The ABS warning light illuminates together
with the brake system warning light if the
EBD system malfunctions. For further
details of the EBD system malfunction
warning, refer to “Brake system warning
light” F3-19.

NOTE

If the warning light behavior is as
described in the following conditions,
the ABS may be considered normal.
.

The warning light illuminates right

after the engine is started but turns off
immediately, remaining off.
.

The warning light remains illumi-

nated after the engine has been started,
but it turns off while driving.

The warning light illuminates during

driving, but it turns off immediately and
remains off.

When driving with an insufficient battery
voltage such as when the engine is jump
started, the ABS warning light may illumi-
nate. This is due to the low battery voltage
and does not indicate a malfunction. When
the battery becomes fully charged, the
light will turn off.

Brake system
warning light

WARNING

Driving with the brake system

warning light on is dangerous.
This indicates your brake system
may not be working properly. If
the light remains illuminated,
have the brakes inspected by a
SUBARU dealer immediately.

If at all in doubt about whether the

brakes are operating properly, do
not drive the vehicle. Have your
vehicle towed to the nearest
SUBARU dealer for repair.

If the brake system warning light

illuminates, the electronic park-
ing brake system may be mal-
functioning. Immediately stop

your vehicle in a safe location,
use tire stops under the tires to
prevent the vehicle from moving
and contact your SUBARU deal-
er. For details, refer to “Electro-
nic parking brake” F7-40.

NOTE

Even if the brake system warning

light illuminates, if the warning light
behavior is as described in the follow-
ing examples, the electronic parking
brake system is not malfunctioning.

– The warning light turns off when
the electronic parking brake is ap-
plied or released.
– The warning light turns off when
the ignition switch is turned to the
“ON” position again.

The brake system warning light may

illuminate immediately after the engine
is started. However, it is not malfunc-
tioning if the warning light turns off
after the electronic parking brake is
released.
.

The brake system warning light may

illuminate after the electronic parking
brake is frequently applied and re-
leased. However, the electronic parking
brake system is not malfunctioning if
the light turns off after a short period of

– CONTINUED –

Instruments and controls/Warning and indicator lights

3-19

(178,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

time.
.

When the engine is started while the

electronic parking brake is applied/
released, the system may judge an
abnormal situation and the warning
light may illuminate. If the warning light
illuminates, turn the ignition switch
once to the “LOCK”/“OFF” position
and then restart the engine. Then,
apply/release the electronic parking
brake. If the warning light turns off,
the system will be restored.

This light has the following functions.

Brake fluid level warning

This light illuminates when the brake fluid
level has dropped to near the “MIN” level of
the brake fluid reservoir with the ignition
switch in the “ON” position and with the
parking brake fully released.

If the brake system warning light should
illuminate while driving (with the parking
brake fully released and with the ignition
switch positioned in “ON”), it could be an
indication of leaking of brake fluid or worn
brake pads. If this occurs, immediately
stop the vehicle at the nearest safe place
and check the brake fluid level. If the fluid
level is below the “MIN” mark in the
reservoir, do not drive the vehicle. Have
the vehicle towed to the nearest SUBARU
dealer for repair.

Electronic Brake Force Distribution
(EBD) system warning

The brake system warning light also
illuminates if a malfunction occurs in the
EBD system. In that event, it illuminates
together with the ABS warning light.
The EBD system may be malfunctioning if
the brake system warning light and ABS
warning light illuminate simultaneously
during driving.

Even if the EBD system fails, the conven-
tional braking system will still function.
However, the rear wheels will be more
prone to locking when the brakes are
applied harder than usual and the vehicle’s
motion may therefore become somewhat
harder to control.

If the brake system warning light and ABS
warning light illuminate simultaneously,
take the following steps.
1. Stop the vehicle in the nearest safe, flat
place.
2. Shut down the engine, apply the
parking brake and then restart it.
3. Release the parking brake. If both
warning lights turn off, the EBD system
may be malfunctioning. Drive carefully to
the nearest SUBARU dealer and have the
system inspected.
4. If both warning lights illuminate again

and remain illuminated after the engine
has been restarted, shut down the engine
again, apply the parking brake, and check
the brake fluid level.
5. If the brake fluid level is not below the
“MIN” mark, the EBD system may be
malfunctioning. Drive carefully to the
nearest SUBARU dealer and have the
system inspected.
6. If the brake fluid level is below the
“MIN” mark, DO NOT drive the vehicle.
Instead, have the vehicle towed to the
nearest SUBARU dealer for repair.

Electronic parking brake system
warning

The brake system warning light illuminates
when the electronic parking brake system
is malfunctioning. If the warning light
illuminates, promptly park in a safe loca-
tion as soon as possible and contact your
SUBARU dealer.
The brake system warning light remains
illuminated when the parking brake cannot
be released even if the parking brake
switch is pushed. For details, refer to
“Electronic parking brake” F7-40.

Frequent operation warning

The brake system warning light illuminates
and a chirp sound will be heard if the
parking brake switch is operated too

Instruments and controls/Warning and indicator lights

3-20

(179,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

frequently. In this case, the operation of the
parking brake switch is restricted to protect
the electronic parking brake system.

Electronic parking
brake indicator light

Parking brake indicator

The light illuminates with the parking brake
applied while the ignition switch is in the
“ON” position. It turns off when the parking
brake is fully released.

Electronic parking brake system
warning

WARNING

When you release the electronic

parking brake while the engine is
running, the electronic parking
brake indicator light will turn off.
However, if the light still illumi-
nates, stop the vehicle in a safe
location immediately and have
the system inspected by a
SUBARU dealer.

If at all in doubt about whether the

brakes are operating properly, do
not drive the vehicle. Have your
vehicle towed to the nearest
SUBARU dealer for repair.

If the electronic parking brake

indicator light flashes, the elec-
tronic parking brake system may
be malfunctioning. Immediately
stop your vehicle in a safe loca-
tion, use tire stops under the tires
to prevent the vehicle from mov-
ing and contact your SUBARU
dealer. For details, refer to “Elec-
tronic parking brake” F7-40.

NOTE

When the ignition switch is turned to

the “LOCK”/“OFF” position with the
electronic parking brake applied, the
electronic parking brake indicator light
remains illuminated for approximately
30 seconds and then turns off.
.

When the electronic parking brake

switch is pulled to apply the electronic
parking brake while the ignition switch
is in the “LOCK”/“OFF” position, the
electronic parking brake indicator light
illuminates, remains illuminated for
approximately 30 seconds and then
turns off.
.

Even if the electronic parking brake

indicator light flashes, if the warning
light behavior is as described in the
following examples, the electronic
parking brake system is not malfunc-
tioning.

– The indicator light turns off when
the electronic parking brake is re-
leased.

The electronic parking brake indica-

tor light may flash immediately after the
engine is started. However, it is not
malfunctioning if the indicator light
turns off after the electronic parking
brake is released.
.

The electronic parking brake indica-

tor light may flash after the electronic
parking brake is frequently applied and
released. However, the electronic park-
ing brake system is not malfunctioning
if the light turns off after a short period
of time.

The electronic parking brake indicator light
flashes when the electronic parking brake
system is malfunctioning. If the indicator
light flashes, promptly park in a safe
location as soon as possible and contact
your SUBARU dealer.
The electronic parking brake indicator light
remains illuminated when the parking
brake cannot be released even if the
parking brake switch is pushed. For de-
tails, refer to “Electronic parking brake”
F7-40.

– CONTINUED –

Instruments and controls/Warning and indicator lights

3-21

(180,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Parking brake apply inhibit warn-
ing

The electronic parking brake indicator light
flashes for 10 seconds and a chirp sound
will be heard if the parking brake switch is
operated when the parking brake cannot
be applied.

Frequent operation warning

The electronic parking brake indicator light
flashes for 10 seconds and a chirp sound
will be heard if the parking brake switch is
operated too frequently. In this case, the
operation of the parking brake switch is
restricted to protect the electronic parking
brake system.

NOTE

Wait until the indicator light turns off.

Hill Holder indicator
light

WARNING

If the Hill Holder indicator light does
not illuminate even when the Hill
Holder switch is pressed to activate
the Hill Holder function, the electro-
nic parking brake system may be
malfunctioning. Immediately stop
the vehicle in a safe location and

contact your SUBARU dealer.

The light illuminates when the Hill Holder
switch is pressed to activate the Hill Holder
function. For details about the Hill Holder
function, “Hill Holder function” F7-42.

Low fuel warning
light

The low fuel warning light illuminates when
the tank is nearly empty approximately 2.6
US gal (10.0 liters, or 2.2 Imp gal). It only
operates when the ignition switch is in the
“ON” position.

CAUTION

Promptly put fuel in the tank when-
ever the low fuel warning light
illuminates. Engine misfires as a
result of an empty tank could cause
damage to the engine.

Door open indicator

When any of the doors, the rear gate
(Outback) or the trunk lid (Legacy) is not
fully closed, the door open indicator
appears. This function is effective even if
the ignition switch is in the “LOCK”/“OFF”
or “ACC” position (all models) or the key is
removed from the ignition switch (models

without “keyless access with push-button
start system”).
The open door is indicated by the corre-
sponding part of the door open indicator.

Always make sure this indicator does not
appear before you start to drive.

Windshield washer
fluid warning light

This light appears when the fluid level in
the windshield washer fluid tank de-
creases to the lower limit (approximately
1.0 US qt, 0.9 liter, 0.8 Imp qt).

All-Wheel Drive warn-
ing light

WARNING

Continued driving with the AWD
warning light flashing can lead to
powertrain damage. If the AWD
warning light flashes, promptly park
in a safe location and then check
whether all four tires are the same
diameter and whether any of the
tires has a puncture or has lost air
pressure for some other reason.

Instruments and controls/Warning and indicator lights

3-22

(181,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

NOTE

If the temporary spare tire is used, the
AWD warning light may flash. Use of the
temporary spare tire should therefore
be restricted to the minimum time
necessary. Replace the temporary
spare tire with a conventional tire as
soon as possible.

This light flashes if the vehicle is driven
with tires of different diameters fitted on its
wheels or with the air pressure excessively
low in any of its tires.

Power steering warning
light

While the engine is running, this warning
light illuminates when a malfunction has
been detected in the electric power steer-
ing system.

CAUTION

When the power steering warning
light is illuminated, there may be
more resistance when the steering
wheel is operated. Drive carefully to
the nearest SUBARU dealer and
have the vehicle inspected immedi-
ately.

NOTE

If the steering wheel is operated in the
following ways, the power steering
control system may temporarily limit
the power assist in order to prevent the
system components, such as the con-
trol computer and drive motor, from
overheating.
.

The steering wheel is operated fre-

quently and turned sharply while the
vehicle is maneuvered at extremely low
speeds, such as while frequently turn-
ing the steering wheel during parallel
parking.
.

The steering wheel remains in the

fully turned position for a long period of
time.

At this time, there will be more resis-
tance when steering. However this is
not a malfunction. Normal steering
force will be restored after the steering
wheel is not operated for a while and
the power steering control system has
an opportunity to cool down. However,
if the power steering is operated in a
non-standard way which causes power
assist limitation to occur too frequently,
that may result in a malfunction of the
power steering control system.

Vehicle Dynamics Con-
trol warning light/Vehi-
cle Dynamics Control
operation indicator
light

Vehicle Dynamics Control warning
light

CAUTION

The Vehicle Dynamics Control sys-
tem provides its ABS control
through the electrical circuit of the
ABS. Accordingly, if the ABS is
inoperative, the Vehicle Dynamics
Control system becomes unable to
provide ABS control. As a result, the
Vehicle Dynamics Control system
becomes inoperative, causing the
warning light to illuminate. Although
both the Vehicle Dynamics Control
and ABS are inoperative in this case,
the ordinary functions of the brake
system are still available. You will be
safe while driving in this condition,
but drive carefully and have your
vehicle checked at a SUBARU dealer
as soon as possible.

– CONTINUED –

Instruments and controls/Warning and indicator lights

3-23

(182,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

NOTE

If the electrical circuit of the Vehicle

Dynamics Control system itself mal-
functions, the warning light only illumi-
nates. At this time, the ABS (Anti-lock
Brake System) remains fully opera-
tional.
.

The warning light illuminates when

the electronic control system of the
ABS/Vehicle Dynamics Control system
malfunctions.

The Vehicle Dynamics Control system is
probably inoperative under any of the
following conditions. Have your vehicle
checked at a SUBARU dealer immedi-
ately.
.

The warning light does not illuminate

when the ignition switch is turned to the
“ON” position.
.

The warning light illuminates while the

vehicle is running.

NOTE

If the warning light behavior is as
described in the following examples,
the Vehicle Dynamics Control system
may be considered normal.
.

The warning light illuminates right

after the engine is started but turns off
immediately and remains off.
.

The warning light illuminates after

the engine has started and turns off
while the vehicle is subsequently being
driven.
.

The warning light illuminates during

driving, but turns off immediately and
remains off.

Vehicle Dynamics Control operation
indicator light

The indicator light flashes during activation
of the skid suppression function and during
activation of the traction control function.

NOTE

The light may remain illuminated for

a short period of time after the engine
has been started, especially in cold
weather. This does not indicate the
existence of a problem. The light
should turn off as soon as the engine
has warmed up.
.

The indicator light illuminates when

the engine has developed a problem
and the CHECK ENGINE warning light/
malfunction indicator light is on.

The Vehicle Dynamics Control system is
probably malfunctioning under the follow-
ing condition. Have your vehicle checked
at a SUBARU dealer as soon as possible.
.

The light does not turn off even after the

lapse of several minutes (the engine has
warmed up) after the engine has started.

Vehicle Dynamics Con-
trol OFF indicator light

The light illuminates when the Vehicle
Dynamics Control OFF switch is pressed
to deactivate the Vehicle Dynamics Con-
trol system.

The Vehicle Dynamics Control system is
probably malfunctioning under any of the
following conditions. Have your vehicle
checked at a SUBARU dealer immedi-
ately.
.

The light does not illuminate when the

ignition switch is turned to the “ON”
position.
.

The light does not turn off even after a

period of approximately 2 seconds after
the ignition switch has been turned to the
“ON” position.

Instruments and controls/Warning and indicator lights

3-24

(183,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Warning chimes and warning
indicator of the keyless ac-
cess with push-button start
system (if equipped)

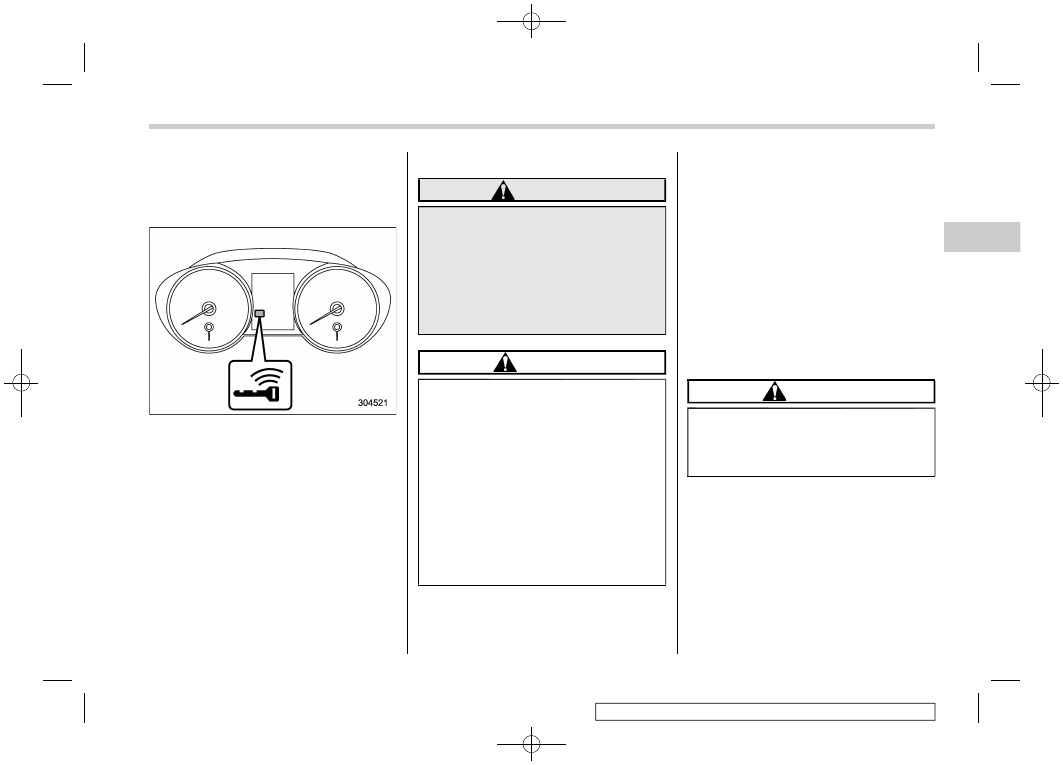

Access key warning indicator

The keyless access with push-button start
system is equipped with a warning chime
and the access key warning indicator in
order to minimize improper operations and
help protect your vehicle from theft.

When the warning chime sounds and/or
the warning indicator appears, take the
appropriate action.

You cannot turn the warning chimes off.
However, the volume setting of the outside
warning chime can be changed by a
SUBARU dealer. Consult your SUBARU

dealer for details.

WARNING

Never drive the vehicle if the indica-
tor on the push-button ignition
switch is flashing in green when
starting the engine. This indicates
the status that the steering wheel is
not released and could result in an
accident involving serious injury or
death.

CAUTION

When starting the engine again

after the operation indicator on
the push-button ignition switch
flashes in green, if the operation
indicator is still flashing in green,
there could be a steering lock
m a l f u n c t i o n . C o n t a c t y o u r
SUBARU dealer as soon as pos-
sible.

When the operation indicator on

the push-button ignition switch
flashes in orange, contact a
SUBARU dealer immediately.

NOTE

Even when the access key fob is

within the operating ranges inside the
vehicle, the access key warning for
engine start may be provided depend-
ing on the status of the access key fob
and the environmental conditions.
.

When the access key fob is taken out

of the vehicle through an open window,
the access key takeout warning or
passenger access key takeout warning
will not be provided.

List of warnings

CAUTION

When any of the following warnings
occurs even if the access key warn-
ing indicator does not appear, take
the appropriate action.

– CONTINUED –

Instruments and controls/Warning and indicator lights

3-25

(184,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Inside warning

chime

Outside warning

chime

Operation indica-

tor on push-button

ignition switch

Status

Action

Ding,

ding ...

(intermittent)

—

The driver’s door is opened while the push-
button ignition switch is “ACC” and the select
lever is in the “P” position.

Switch the push-button ignition switch to
“OFF”, or close the driver’s door.
*When exiting the vehicle, be sure to switch
the push-button ignition switch to “OFF”.

The push-button ignition switch is switched
to “OFF” while the driver’s door is open.

Close the driver’s door.

Ding

Short beep

(2 seconds)

—

Lockout warning:
An attempt was made to lock all doors using
the power door locking switch or access key
fob while the access key fob is left inside the
vehicle.

Take out the access key fob from the vehicle,
and lock the doors.
*The doors cannot be locked while the
access key fob is inside the vehicle.
*A chirp sound will be heard, and all doors will
be unlocked.

—

Short beep

(2 seconds)

—

Access key lock-in warning:
The door lock sensor is touched while the
push-button ignition switch is “OFF” and the
access key fob is inside the vehicle.

Take out the access key fob from the vehicle,
and lock the doors.
*If the access key fob is inside the vehicle, the
doors cannot be locked.

—

Beep, beep,

beep, beep,

beep

(5 times)

—

Door ajar warning:
The door lock sensor is touched while the
ignition switch is in the “OFF” position and
one of the doors including the rear gate is
opened.

Close the doors securely and lock them.
*If one of the doors including the rear gate is
opened, the doors cannot be locked.

Ding

Long beep (60
seconds max.)

—

Power warning:
The door lock sensor is touched while you
are carrying the access key fob, the push-
button ignition switch is in a position other
than “OFF” and the select lever is in the “P”
position.

Return the access key fob inside the vehicle,
or switch the push-button ignition switch to
“OFF”.
*If the push-button ignition switch is not
switched to “OFF”, the doors cannot be
locked.

Ding,

ding ...

(7 seconds)

—

Access key warning:
The vehicle is driven while the access key fob
is not inside the vehicle.

Carry the access key fob, and drive the
vehicle.

Instruments and controls/Warning and indicator lights

3-26

(185,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Inside warning

chime

Outside warning

chime

Operation indica-

tor on push-button

ignition switch

Status

Action

Ding

—

Access key warning for engine start:
The push-button ignition switch is pressed
while the access key fob is not inside the
vehicle.

Carry the access key fob, and press the
push-button ignition switch.

Ding

Beep, beep,

beep (3 times)

—

Access key takeout warning:
The driver exits the vehicle with the access
key fob and closes the driver’s door while the
push-button ignition switch is in a position
other than “OFF” and the select lever is in the
“P” position.

Switch the push-button ignition switch to
“OFF”, and get out of the vehicle.

Ding

Beep, beep,

beep (3 times)

—

Passenger access key takeout warning:
A fellow passenger exits the vehicle with the
access key fob and closes a door other than
the driver’s door while the push-button
ignition switch is in a position other than
“OFF”.

Return the access key fob to inside the
vehicle, or switch the push-button ignition
switch to “OFF”.

Long beep

(continuous)

Long beep

(continuous)

—

Access key takeout without “P” position
warning:
The driver exits the vehicle with the access
key fob and closes the driver’s door while the
push-button ignition switch is in a position
other than “OFF” and the select lever is in a
position other than the “P” position.

Shift the select lever to the “P” position,
switch the push-button ignition switch to
“OFF” and exit the vehicle.

Long beep

(continuous)

—

Select lever position warning:
.

Case 1: The engine is turned off by
pressing the push-button ignition switch
while the select lever is in a position other
than the “P” position.

Case 2: The driver’s door is opened
while the push-button ignition switch is in
a position other than “OFF” and the
select lever is in a position other than the
“P” position.

Case 1: Start the engine, shift the
select lever to the “P” position, switch the
push-button ignition switch to “OFF” and
exit the vehicle.

Case 2: Shift the select lever to the
“P” position, switch the push-button
ignition switch to “OFF” and exit the
vehicle.

– CONTINUED –

Instruments and controls/Warning and indicator lights

3-27

Subaru Outback (2019 year). Instruction - part 11
