Subaru Impreza (2019 year). Instruction

(447,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

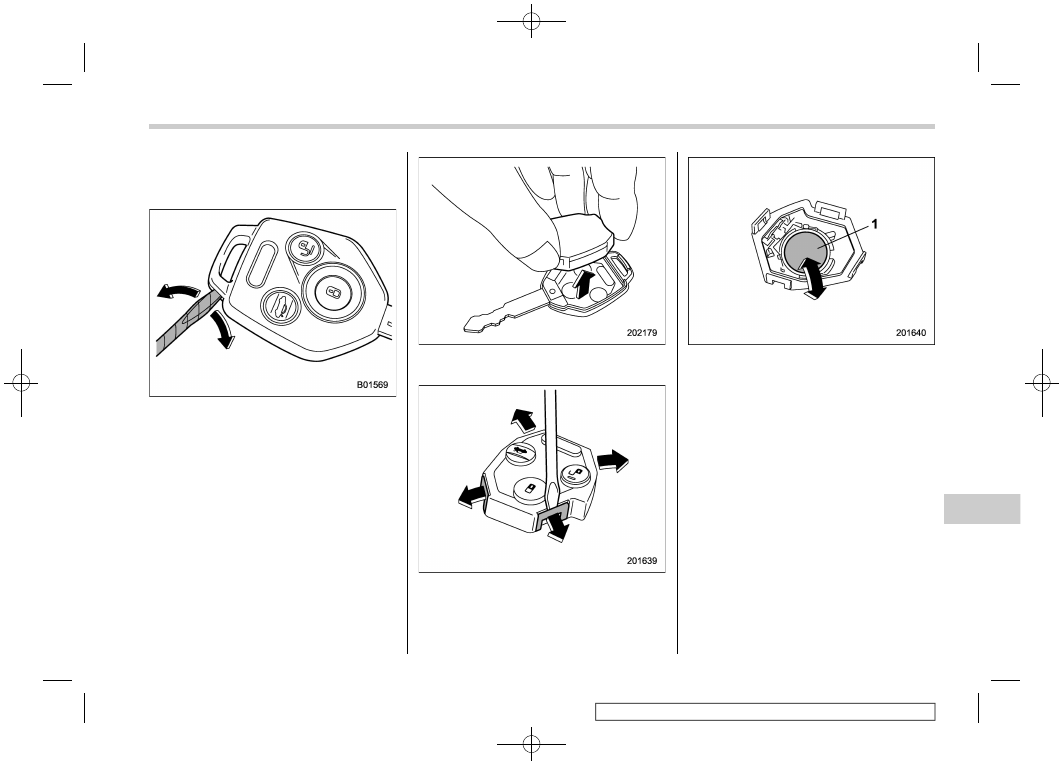

Replacing transmitter battery

Battery: Button battery CR1620 or
equivalent

1. Wrap a flat-head screwdriver with vinyl
tape or a cloth. Open the key head using a
flat-head screwdriver.

2. Remove the transmitter case from the
key head.

3. Open the transmitter case by releasing
the hooks.

Negative (−) side facing up

4. Replace the old battery with a new
battery making sure to install the new
battery with the negative (−) side facing up.
5. Put together the transmitter case by
fitting the hooks on the case.
6. Reinstall the transmitter case in the
key head.
7. Refit the removed half of the key head.

Maintenance and service/Replacing key battery

11-49

(451,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Specifications........................................................ 12-2

Dimensions........................................................... 12-2
Engine .................................................................. 12-3
Fuel ...................................................................... 12-3
Engine oil ............................................................. 12-4
Manual transmission, front differential and rear

differential gear oil .............................................. 12-6

Fluids ................................................................... 12-7
Engine coolant...................................................... 12-7
Electrical system .................................................. 12-8

Tires..................................................................... 12-8
Temporary spare tires ........................................... 12-9
Brake disc ............................................................ 12-9

Fuses and circuits .............................................. 12-10

Fuse panel located in the passenger

compartment ................................................... 12-10

Fuse panel located in the engine compartment ... 12-12

Bulb chart............................................................ 12-14

Safety precautions.............................................. 12-14
Bulb chart .......................................................... 12-15

Vehicle identification .......................................... 12-18

Specifications

(452,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Specifications

These specifications are subject to change without notice.

Dimensions

in (mm)

Item

5-door models

Sedan

Overall length

175.6 (4,460)

182.1 (4,625)

Overall width

70.0 (1,775)

Overall height

Models with roof rails

58.9 (1,495)

57.3 (1,455)

Models without roof rails

58.3 (1,480)*

57.3 (1,455)*

Wheel base

105.1 (2,670)

Tread

Front

60.6 (1,540)

Rear

60.8 (1,545)

Ground clearance*

5.1 (130)

*1: Models with shark fin type roof antenna
*2: Models with monopole roof antenna
*3: Measured with vehicle empty

Specifications/Specifications

12-2

(453,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Engine

Engine model

FB20

(2.0 L, DOHC, non-turbo)

Engine type

Horizontally opposed, liquid cooled 4 cylinder, 4-stroke direct injection gasoline engine

Displacement cu-in (cc)

122 (1,995)

Bore 6 Stroke in (mm)

3.31 6 3.54 (84.0 6 90.0)

Compression ratio

12.5 : 1

Firing order

1 – 3 – 2 – 4

Fuel

Fuel requirement

Fuel tank capacity

Unleaded gasoline with 87 AKI (90 RON) or higher

13.2 US gal (50 liters, 11.0 Imp gal)

For more details, refer to “Fuel” F7-3.

– CONTINUED –

Specifications/Specifications

12-3

(454,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Engine oil

For the checking, adding and replacing procedure or other details, refer to “Engine oil” F11-8.

NOTE

The procedure for changing the engine oil and oil filter should be performed by a properly-trained expert. It is recommended
that you have this service performed by your SUBARU dealer.

Approved engine oil

Always use the SUBARU approved engine oil. For further details, please contact your SUBARU dealer.
If the approved engine oil is unavailable, use the alternative engine oil described on the next page.

Specifications/Specifications

12-4

(455,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

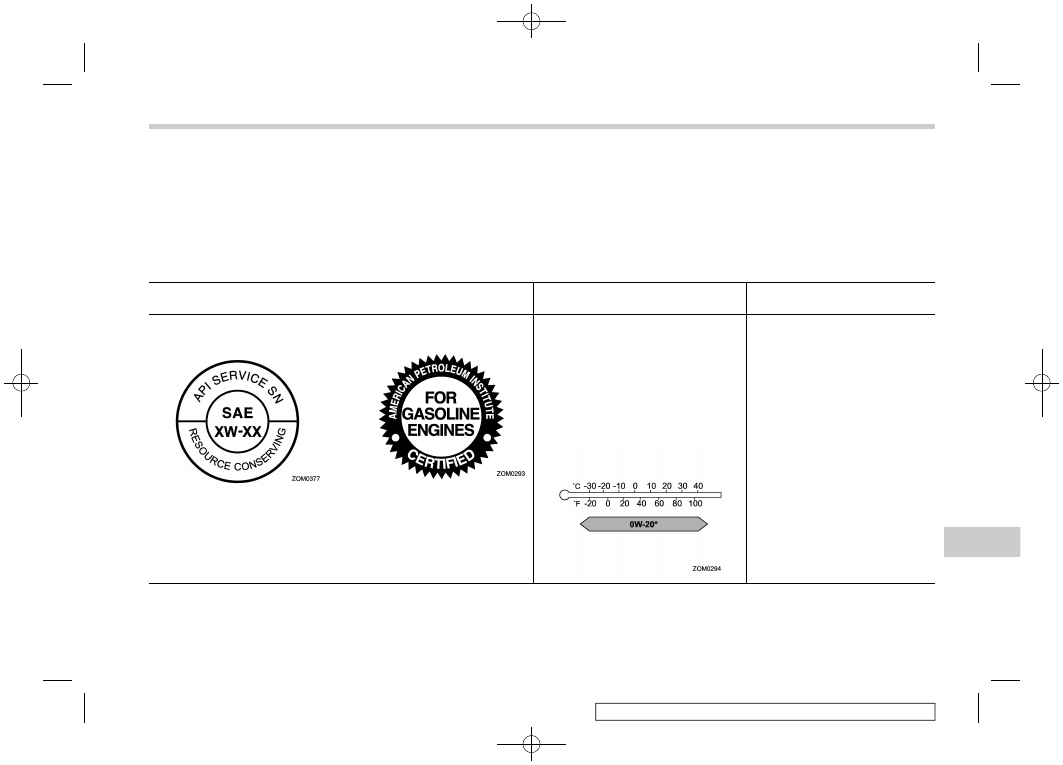

Alternative engine oil

If the SUBARU approved oil is unavailable, the following alternative oil can be used.

NOTE

Each quantity indicated here is only a guideline. The necessary quantity for replacement may differ slightly depending on the
temperature and other factors.

Oil grade

SAE viscosity No. and

applicable temperature

Engine oil capacity

API (American Petroleum Insti-
tute) classification SN with the
words “RESOURCE CONSER-
VING”

ILSAC (International Lubricant
Specification Advisory Commit-
tee) GF-5, which can be identi-
fied with the ILSAC certification
mark (Starburst mark)

0W-20 synthetic oil is the required oil
for optimum engine performance and
protection. Conventional oil may be
used if synthetic oil is unavailable.

*: If 0W-20 synthetic oil is not available,
5W-30 conventional oil may be used if
replenishment is needed but should be
changed to 0W-20 synthetic oil at the
next oil change.

– Adding the oil from low level to

full level:
1.1 US qt (1.0 liter, 0.9 Imp qt)

– Changing the oil and oil filter:

4.7 US qt (4.4 liters, 3.9 Imp qt)

– CONTINUED –

Specifications/Specifications

12-5

(456,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

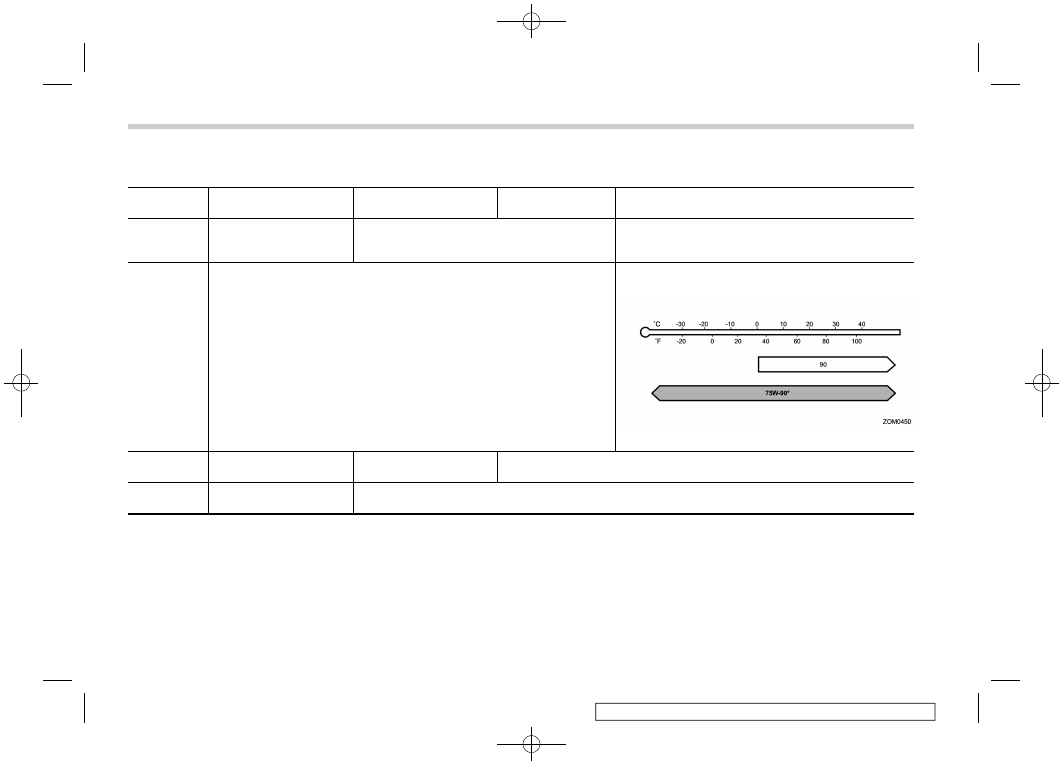

Manual transmission, front differential and rear differential gear oil

Oil

Manual transmission oil

Front differential gear oil

(CVT models)

Rear differential gear
oil (CVT models)

Rear differential gear oil (MT models)

Oil grade

SUBARU Extra MT*

API classification
GL-5 (75W-90)*

SUBARU Extra MT*

API classification GL-5
(75W-90)

API classification GL-5

SAE viscosity
No. and ap-
plicable tem-
perature

—

75W-90*

*: Recommended

Oil capacity*

3.7 US qt (3.5 liters, 3.1
Imp qt)

1.4 US qt (1.3 liters, 1.1
Imp qt)

0.8 US qt (0.8 liters, 0.7 Imp qt)

Remarks*

“Manual transmission oil”

F11-14

“Front differential gear oil (CVT models) and rear differential gear oil” F11-15

*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. After refilling the gearbox with oil, the oil level should be checked.
*2: For more details about maintenance and service, refer to the indicated section.
*3: The vehicle is filled at the factory with this type of oil.
*4: You may use this type of manual transmission oil. However, using this type of oil will detract from driveability and fuel efficiency.

Specifications/Specifications

12-6

(457,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Fluids

Fluid

Fluid type*

Fluid capacity*

Remarks*

Continuously variable transmission
fluid (CVT models)

Consult your SUBARU dealer.

11.3 US qt (10.7 liters, 9.4 Imp qt)

“Continuously variable trans-
mission fluid” F11-15

Brake fluid

FMVSS No. 116, DOT 3 or DOT 4 brake
fluid

–

“Brake fluid” F11-15

Clutch fluid (MT models)

FMVSS No. 116, DOT 3 or DOT 4 brake
fluid

–

“Clutch fluid (MT models)” F11-
16

*1: Use one of the indicated types of fluid.
*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors.
*3: For more details about maintenance and service, refer to the indicated section.

Engine coolant

Vehicle model

Coolant capacity

Coolant type

MT models

8.0 US qt (7.6 liters, 6.7 Imp qt)

SUBARU Super Coolant

CVT models

8.2 US qt (7.8 liters, 6.9 Imp qt)

The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. For more details about maintenance and service, refer to “Cooling system” F11-10.

– CONTINUED –

Specifications/Specifications

12-7

(458,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Electrical system

Battery type

75D23L

Alternator

12V-130A

Spark plugs

DILKAR7B8 (NGK)

Tires

Tire size

P205/55R16 89V

205/50R17 89V

P225/40R18 88V

Wheel size

16 6 6

17 6 7 J

18 6 7

Pressure

Front

33 psi (230 kPa, 2.3 kgf/cm

)

Rear

32 psi (220 kPa, 2.2 kgf/cm

)

Wheel nut tightening torque

89 lbf·ft (120 N·m, 12 kgf·m)*

*1: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts
by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure,
refer to “Changing a flat tire” F9-6.

Specifications/Specifications

12-8

(459,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Temporary spare tires

U.S.-spec. models and Canada-spec. models

Other models

Temporary spare tire size

T135/80 D16

P205/55R16

205/50 R17

Temporary spare tire inflation pressure
(recommended cold tire inflation pres-
sure)

60 psi (420 kPa, 4.2 kgf/cm

)

33 psi (230 kPa, 2.3 kgf/cm

)

Brake disc

If you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consult your
SUBARU dealer.

Specifications/Specifications

12-9

(460,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Fuses and circuits

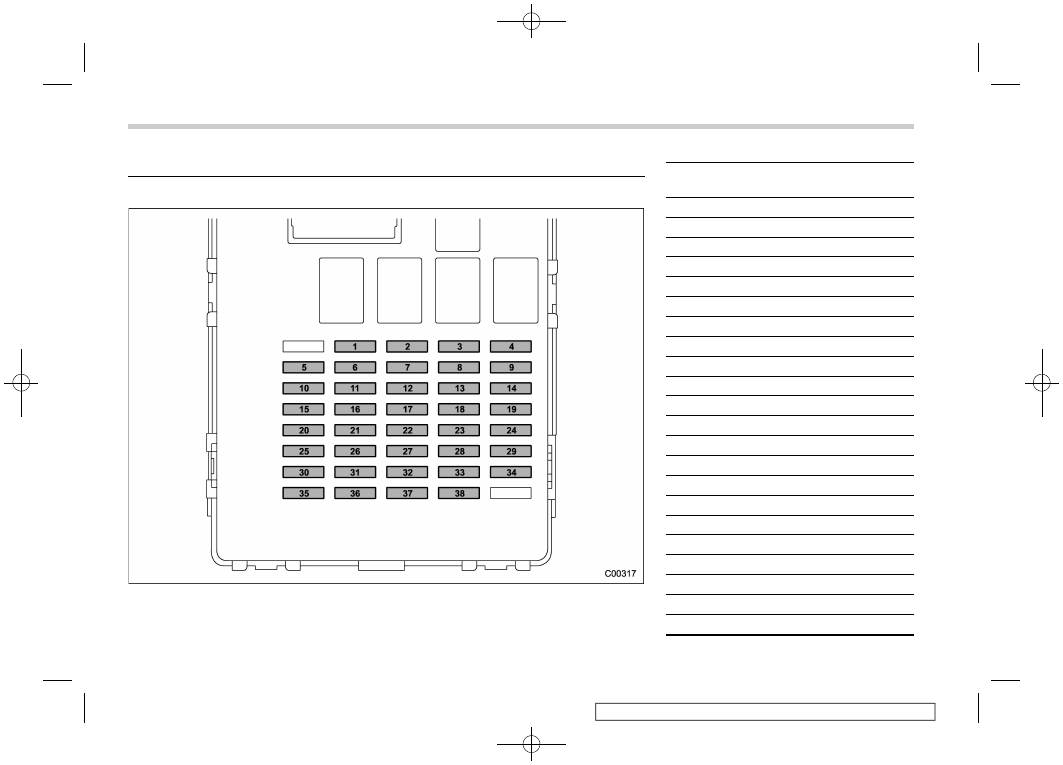

Fuse panel located in the passenger compartment

Fuse

panel

Fuse

rating

Circuit

Empty

20A

CIGAR SEAT/H

7.5A

IG A-1

15A

AUDIO NAVI

15A

IG B-2

Empty

15A

12V SOCKET

15A

A/C IG

7.5A

ACC

7.5A

IG B-1

Empty

7.5A

IG A-3

7.5A

UNIT +B

7.5A

METER IG

Empty

7.5A

MIRROR

7.5A

LAMP IG

10A

IG A-2

10A

SRS AIR BAG

Empty

15A

STRG/H

Specifications/Fuses and circuits

12-10

(461,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Fuse

panel

Fuse

rating

Circuit

10A

DRL

Empty

10A

BACK UP

10A

A/C +B

20A

TRAIL R.FOG

Empty

7.5A

ILLUMI

7.5A

KEY SW A

Empty

7.5A

KEY SW B

7.5A

STOP

7.5A

EYE SIGHT

– CONTINUED –

Specifications/Fuses and circuits

12-11

(462,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

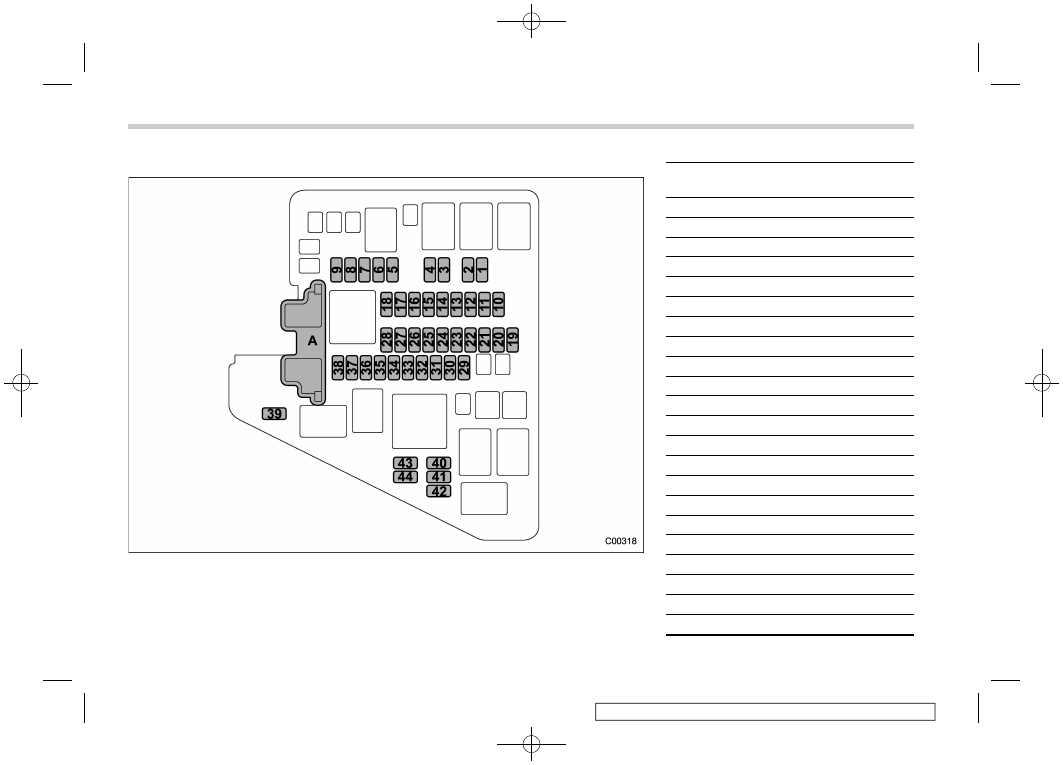

Fuse panel located in the engine compartment

Main fuse

Fuse

panel

Fuse

rating

Circuit

7.5A

HORN 2

7.5A

HORN 1

15A

H/L LO RH

15A

H/L LO LH

Empty

10A

H/L HI RH

10A

H/L HI LH

10A

TAIL

10A

ODS

7.5A

OBD

7.5A

PU B/UP

30A

JB-B

15A

HAZARD

20A

FUEL

Empty

10A

MB-B

15A

D/L

10A

DCM

20A

TCU

7.5A

CVT SSR

15A

IG COIL

10A

AVCS

Specifications/Fuses and circuits

12-12

(463,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Fuse

panel

Fuse

rating

Circuit

10A

E/G2

Empty

20A

O2 HTR

15A

E/G1

Empty

30A

BACKUP

25A

R. DEF

20A

AUDIO

30A

VDC SOL

25A

MAIN FAN

25A

SUB FAN

10A

DEICER

15A

F. FOG, AGS

15A

BLOWER

15A

BLOWER

Empty

30A

F. WIPER

15A

F. WASH

15A

R. WIPER

Empty

Specifications/Fuses and circuits

12-13

(464,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

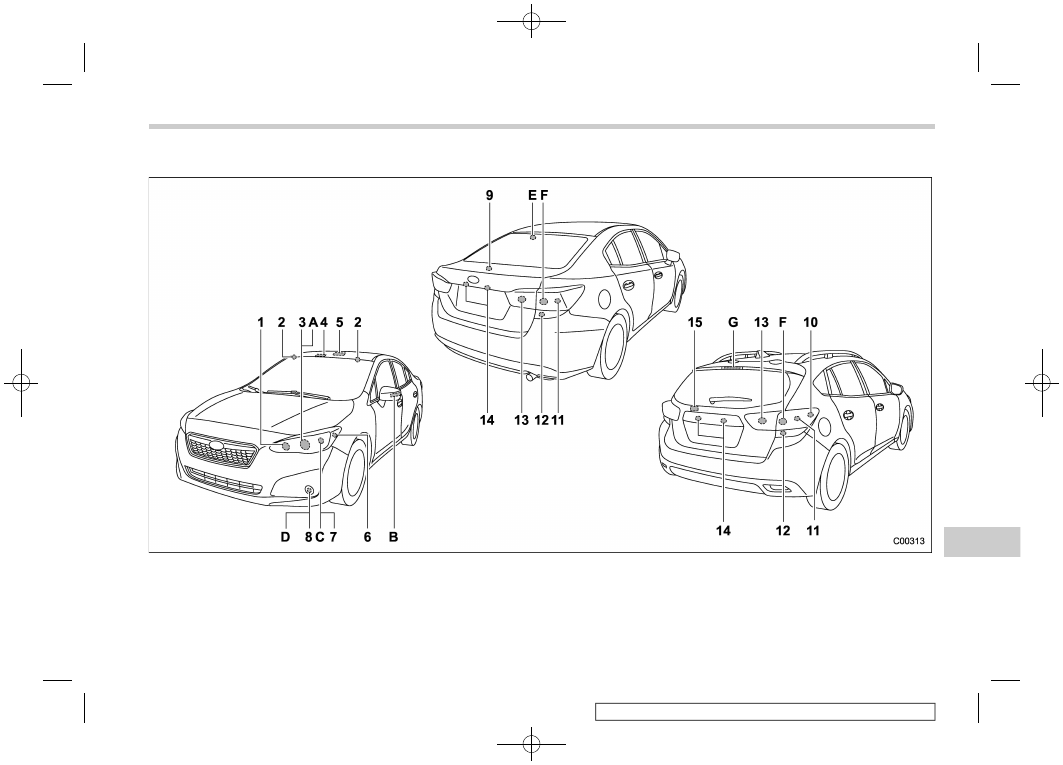

Bulb chart

Safety precautions

WARNING

Bulbs may become very hot while
illuminated. Before replacing bulbs,
turn off the lights and wait until the
bulbs cool down. Otherwise, there is
a risk of sustaining a burn injury.

CAUTION

Replace any bulb only with a new
bulb of the specified wattage. Using
a bulb of different wattage could
result in a fire.

Specifications/Bulb chart

12-14
