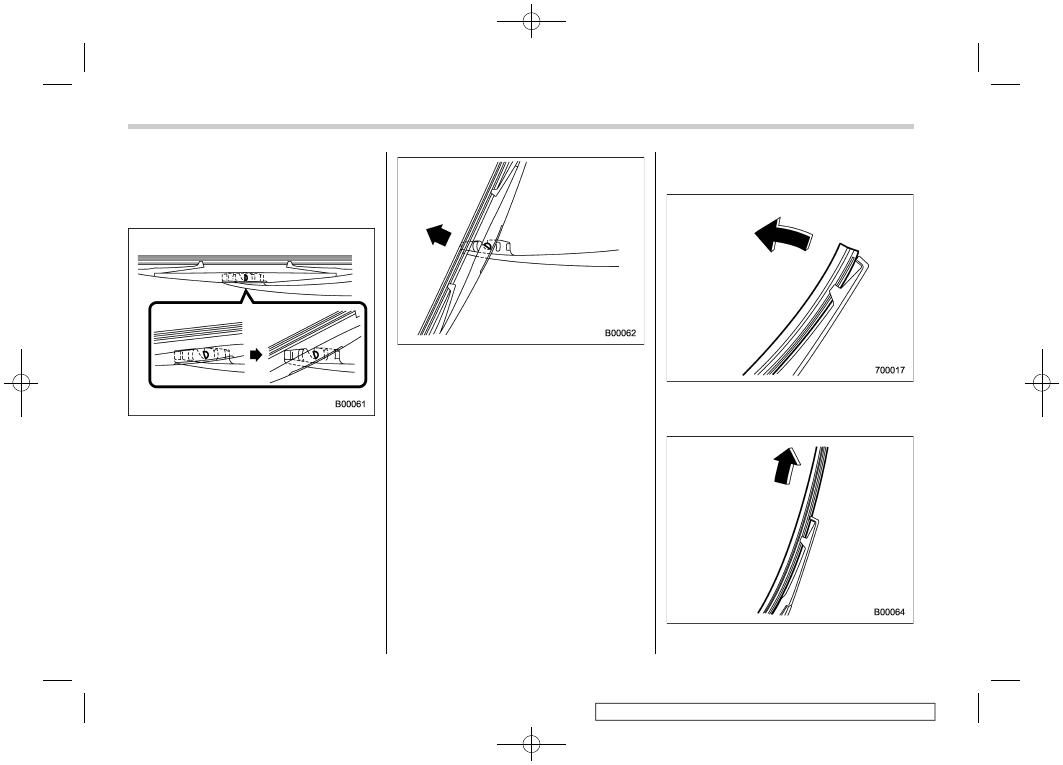

Subaru Impreza (2019 year). Instruction - part 27

(431,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

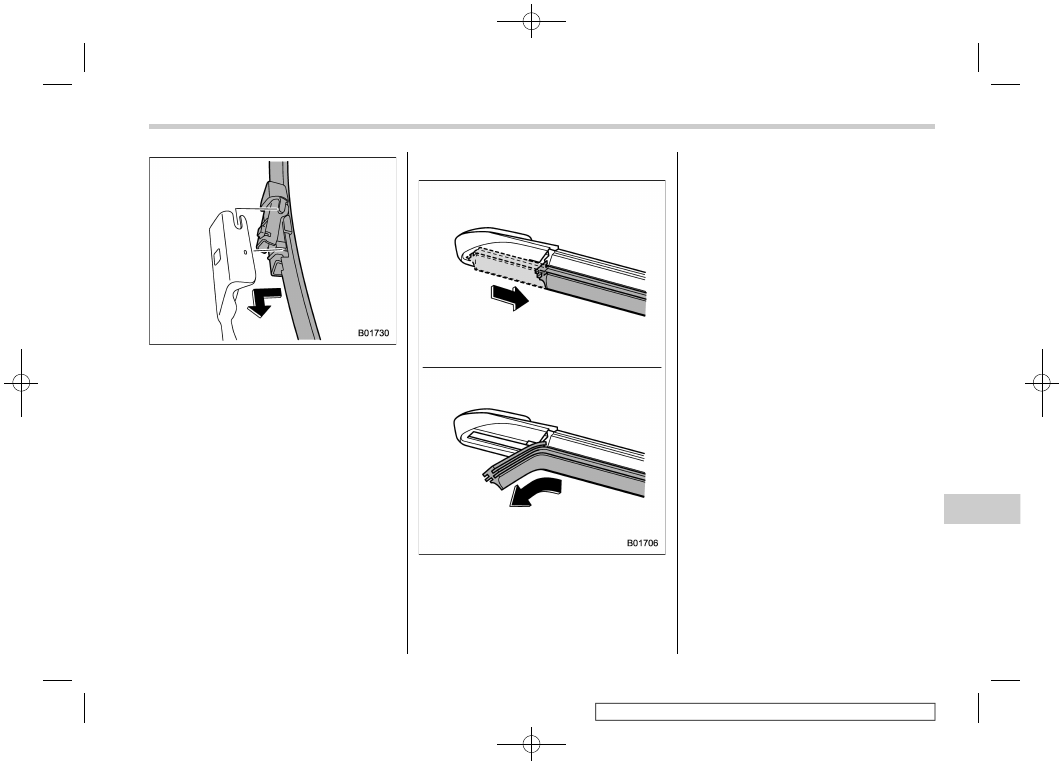

3. When installing the wiper blade as-
sembly, align it with the wiper arm connec-
tion part and then slide it in the opposite
direction of removal to install. After instal-
ling the wiper blade assembly, check that
the connection part is locked completely.
4. Hold the wiper arm by hand and slowly
lower it in position.

Window wiper blade rubber

Replace the wiper blade rubber according
to the following procedure.
1. Pull the wiper blade rubber until the slit
on the underside of the wiper blade is in
the removal position, as shown in the

illustration, so that it can be removed.
2. Pull the end of the wiper blade rubber
through the slit to remove it.
3. To install a new wiper blade rubber,
perform the removal procedure in the
reverse order. After installation, check that
the tip of the wiper rubber has reached the
end of the cap.

NOTE

It may be difficult to perform the wiper
blade rubber replacement. We recom-
mend that you contact your SUBARU
dealer for wiper blade rubber replace-
ment if necessary.

– CONTINUED –

Maintenance and service/Replacement of wiper blades

11-33

(432,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Rear window wiper blade as-
sembly

1. Raise the wiper arm off the rear
window.

2. Turn the wiper blade assembly coun-
terclockwise.

3. Pull the wiper blade assembly toward
you to remove it from the wiper arm.
4. Install the wiper blade assembly to the
wiper arm. Make sure that it locks in place.
5. Hold the wiper arm by hand and slowly
lower it in position.

Rear window wiper blade
rubber

1. Pull out the end of the blade rubber
assembly to unlock it from the plastic
support.

Maintenance and service/Replacement of wiper blades

11-34

(433,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

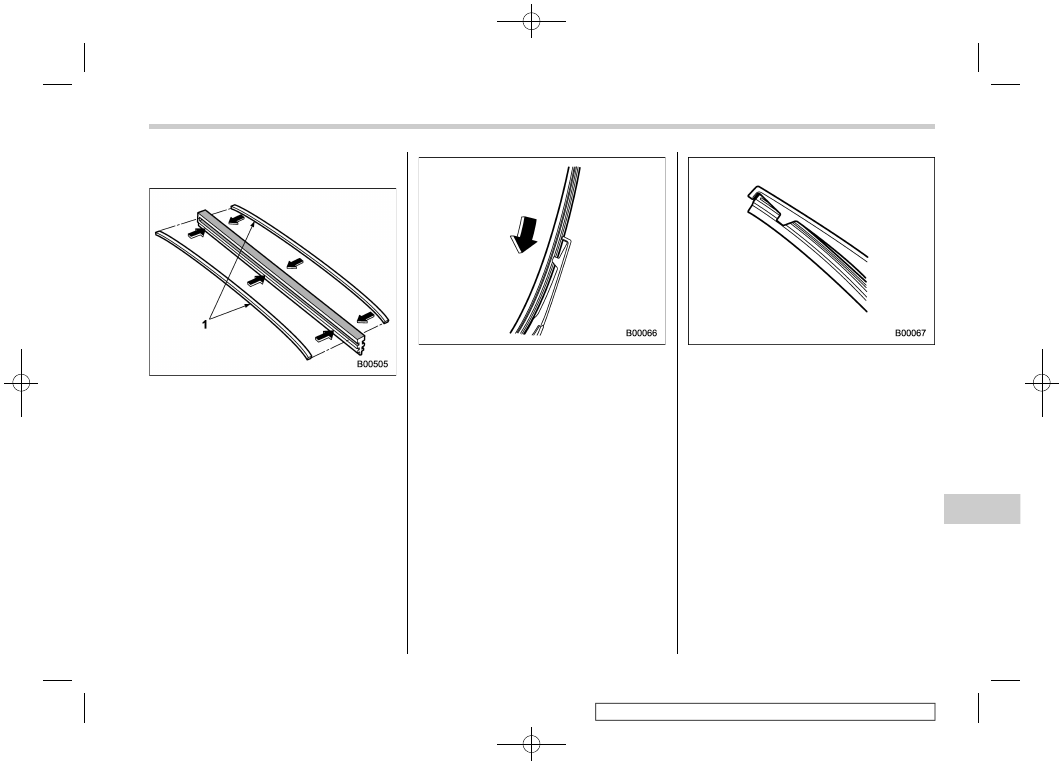

2. Pull the blade rubber assembly out of
the plastic support.

Metal spines

3. If the new blade rubber is not provided
with two metal spines, remove the metal
spines from the old blade rubber and install
them in the new blade rubber.

4. Align the claws of the plastic support
with the grooves in the blade rubber
assembly, then slide the blade rubber
assembly into place.

Securely retain both ends of the rubber
with the stoppers on the plastic support
ends. If the rubber is not retained properly,
the wiper may scratch the rear window
glass.
5. Install the wiper blade assembly to the
wiper arm. Make sure that it locks in place.
6. Hold the wiper arm by hand and slowly
lower it in position.

Maintenance and service/Replacement of wiper blades

11-35

(434,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Battery

WARNING

Before beginning work on or near

any battery, be sure to extinguish
all cigarettes, matches, and light-
ers. Never expose a battery to an
open flame or electric sparks.
Batteries give off a gas which is
highly flammable and explosive.

For safety, in case an explosion

does occur, wear eye protection
or shield your eyes when working
near any battery. Never lean over
a battery.

Do not let battery fluid contact

eyes, skin, fabrics, or paint be-
cause battery fluid is a corrosive
acid. If battery fluid gets on your
skin or in your eyes, immediately
flush the area with water thor-
oughly. Seek medical help imme-
diately if acid has entered the
eyes.

If battery fluid is accidentally
swallowed, immediately drink a
large amount of milk or water,
and seek medical attention im-
mediately.

To lessen the risk of sparks,

remove rings, metal watchbands,
and other metal jewelry. Never
allow metal tools to contact the
positive battery terminal and any-
thing connected to it WHILE you
are at the same time in contact
with any other metallic portion of
the vehicle because a short cir-
cuit will result.

Keep everyone including children

away from the battery.

Charge the battery in a well-

ventilated area.

Battery posts, terminals and re-

lated accessories contain lead
and lead compounds, chemicals
known to the State of California
to cause cancer and reproductive
harm. Batteries also contain
other chemicals known to the
State of California to cause can-
cer.

Wash hands after handling

CAUTION

Never use more than 10 amperes
when charging the battery because
it will shorten battery life.

It is unnecessary to periodically check the
battery fluid level or periodically refill with
distilled water.

For “SUBARU STARLINK Safety and
Security” without navigation system:
When the vehicle battery is discharged or
replaced, certain internal settings can be
restored only by pairing the vehicle to a
smartphone via Bluetooth, or by visiting a
SUBARU dealer. Until those internal set-
tings are restored, certain convenience
features, including the “Service Appoint-
ment Scheduler,” may be unavailable.

Maintenance and service/Battery

11-36

(435,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

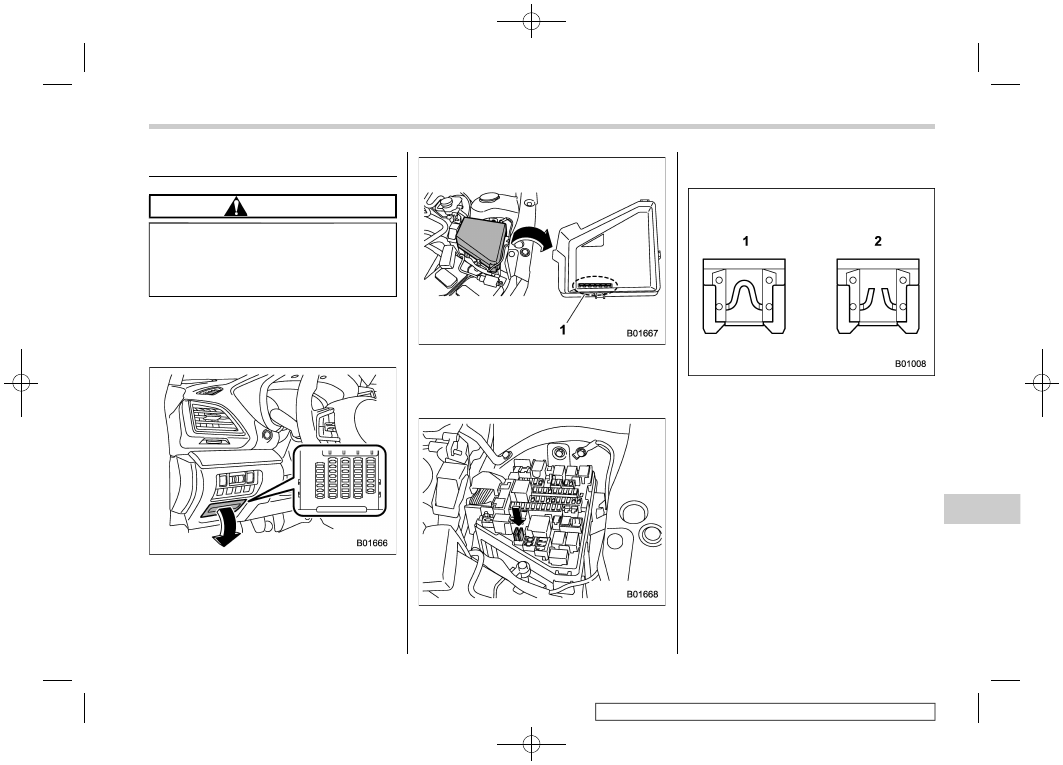

Fuses

CAUTION

Never replace a fuse with one having
a higher rating or with material other
than a fuse because serious damage
or a fire could result.

The fuses are designed to melt during an
overload to prevent damage to the wiring
harness and electrical equipment. The
fuses are located in two fuse boxes.

One is located under the instrument panel
behind the fuse box cover on the driver’s
seat side. To remove the cover, pull it out.

Spare fuses

The other one (main fuse box) is housed in
the engine compartment. Also, the spare
fuses are stored in the fuse box cover.

The fuse puller is stored in the main fuse
box in the engine compartment.

Pinch the upper part of the fuse puller
when removing it from the main fuse box.

Good

Blown

If any lights, accessories or other electrical
controls do not operate, inspect the corre-
sponding fuse. If a fuse has blown, replace
it.
1. Turn the ignition switch to the “LOCK”/
“OFF” position and turn off all electrical
accessories.
2. Remove the cover.
3. Determine which fuse may be blown.
Look at the back side of each fuse box
cover and refer to “Fuses and circuits”
F12-10.

– CONTINUED –

Maintenance and service/Fuses

11-37

(436,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

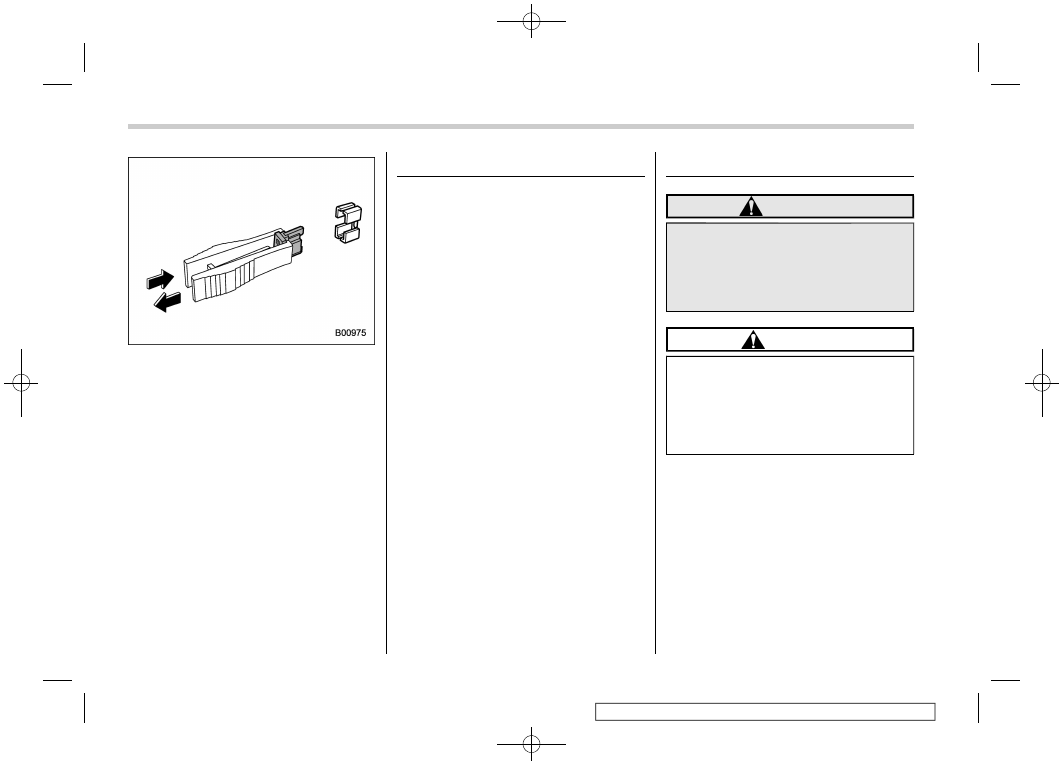

4. Pull out the fuse with the fuse puller.
5. Inspect the fuse. If it has blown,
replace it with a spare fuse of the same
rating.
6. If the same fuse blows again, this
indicates that its system has a problem.
Contact your SUBARU dealer for repairs.

Installation of accessories

Always consult your SUBARU dealer
before installing fog lights or any other
electrical equipment in your vehicle. Such
accessories may cause the electronic
system to malfunction if they are incor-
rectly installed or if they are not suited for
the vehicle.

Replacing bulbs

WARNING

Bulbs may become very hot while
illuminated. Before replacing bulbs,
turn off the lights and wait until the
bulbs cool down. Otherwise, there is
a risk of sustaining a burn injury.

CAUTION

Replace any bulb only with a new
bulb of the specified wattage. Using
a bulb of different wattage could
result in a fire. For the specified
wattage of each bulb, refer to “Bulb
chart” F12-14.

NOTE

For models with type B combination
meter, if SRH is malfunctioning, the
SRH OFF indicator appears on the
combination meter when the ignition
switch is in the “ON” position. It
indicates that SRH has been deacti-
vated. Contact a SUBARU dealer for an
inspection.

Maintenance and service/Installation of accessories

11-38

(437,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

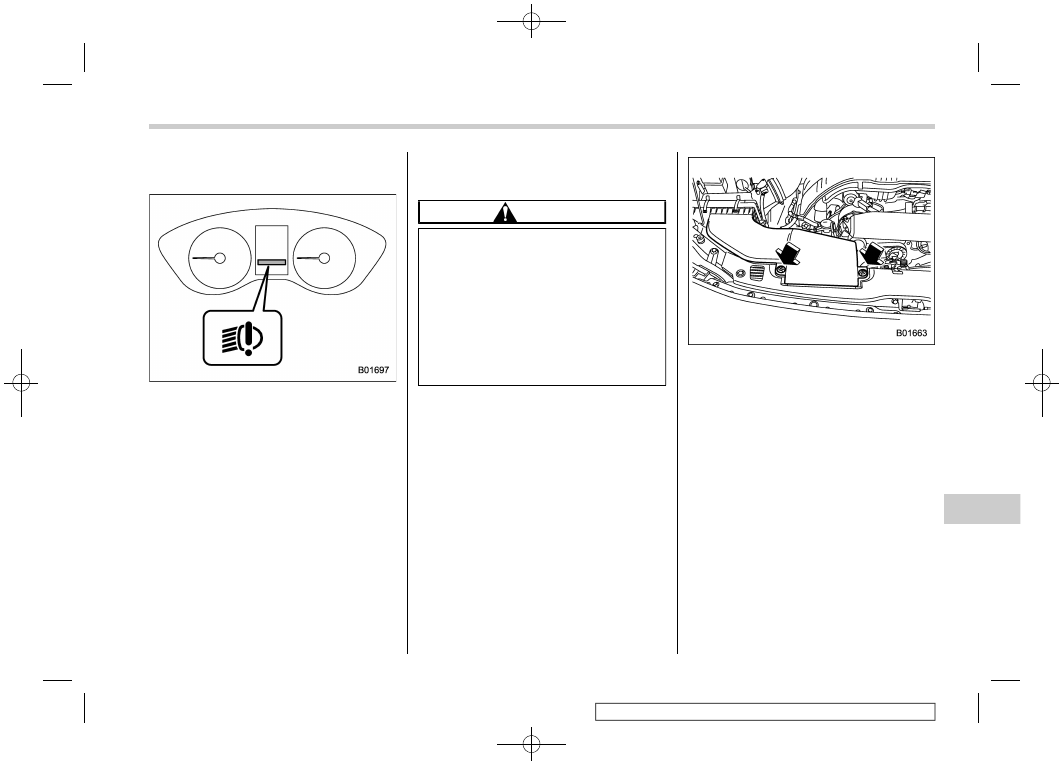

Headlights (models with LED
headlights)

LED headlight warning light (type B)

The LED headlight warning light illumi-
nates if the LED headlights malfunction.
Have your vehicle inspected at a SUBARU
dealer as soon as possible.

Headlights (models with ha-
logen headlights)

CAUTION

Halogen headlight bulbs become
very hot while in use. If you touch
the bulb surface with bare hands or
greasy gloves, fingerprints or
grease on the bulb surface will
develop into hot spots, causing the
bulb to break. If there are finger
prints or grease on the bulb surface,
wipe them away with a soft cloth
moistened with alcohol.

NOTE

If headlight aiming is required, con-

sult your SUBARU dealer for proper
adjustment of the headlight aim.
.

It may be difficult to replace the

bulbs. Have the bulbs replaced by your
SUBARU dealer if necessary.

Perform the following steps to replace the
bulbs.

Right-hand side

1. Use a screwdriver to undo the clips on
the air intake duct, then remove the air
intake duct.

– CONTINUED –

Maintenance and service/Replacing bulbs

11-39

(438,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

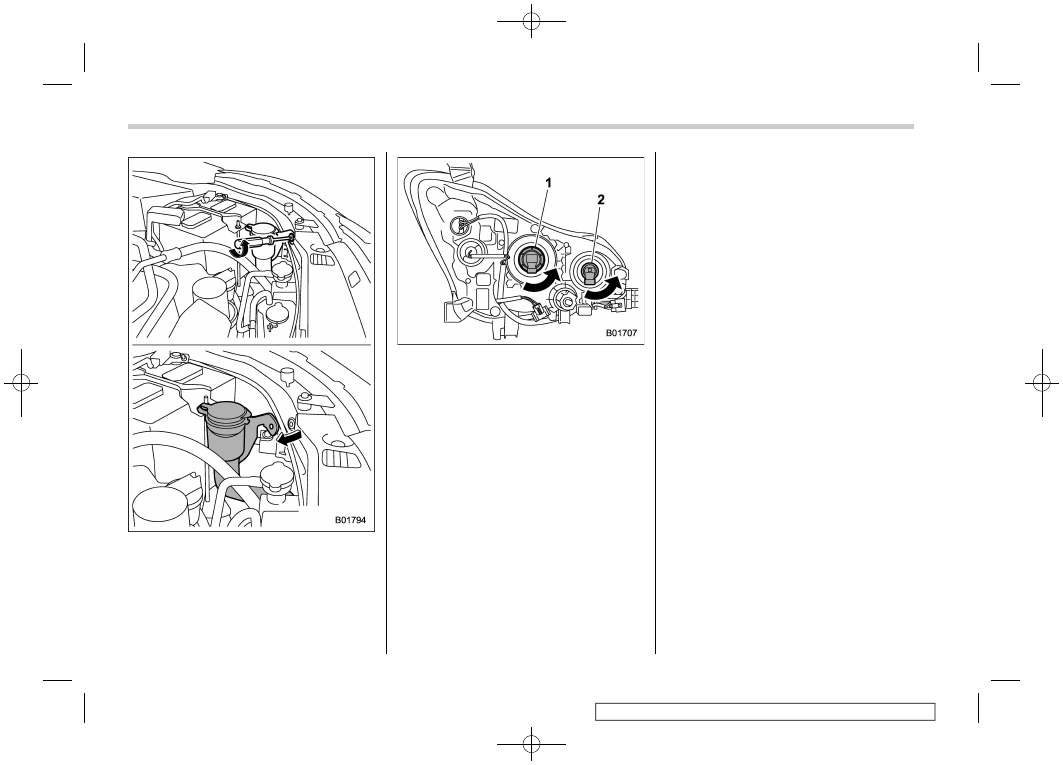

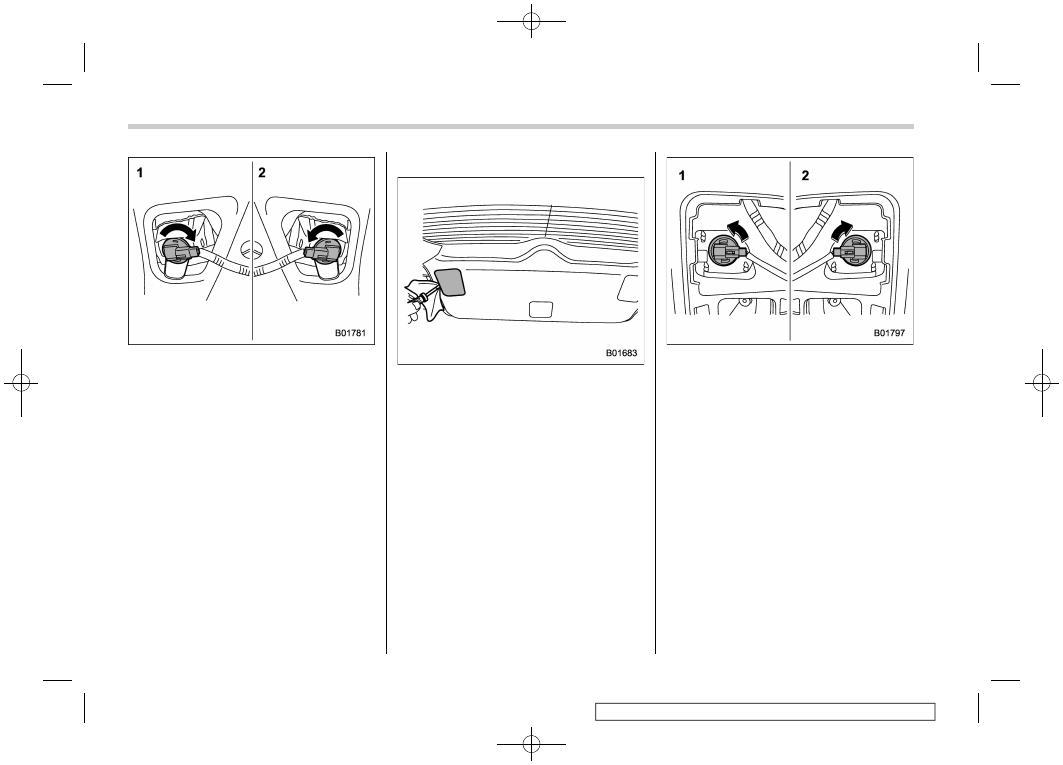

Left-hand side

2. Use a screwdriver to remove the
secured clip of the washer tank. To make
it easy to access the bulb, turn the neck of
the washer fluid filler pipe as illustrated.

Low beam bulb

High beam bulb

3. Disconnect the electrical connector
from the bulb and remove the bulb from
the headlight assembly by turning it
counterclockwise.
4. Replace the bulb with new one. At this
time, use care not to touch the bulb
surface.
5. To install the bulb to the headlight
assembly, turn it clockwise until it clicks.
6. Reconnect the electrical connector.
7. Install the air intake duct with clips
(right-hand side).
8. Set the washer fluid filler pipe to the
original place and secure it by clip (left-
hand side).

Front turn signal light

It may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.

Parking light

It may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.

Front fog light (if equipped)

It may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.

Maintenance and service/Replacing bulbs

11-40

(439,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

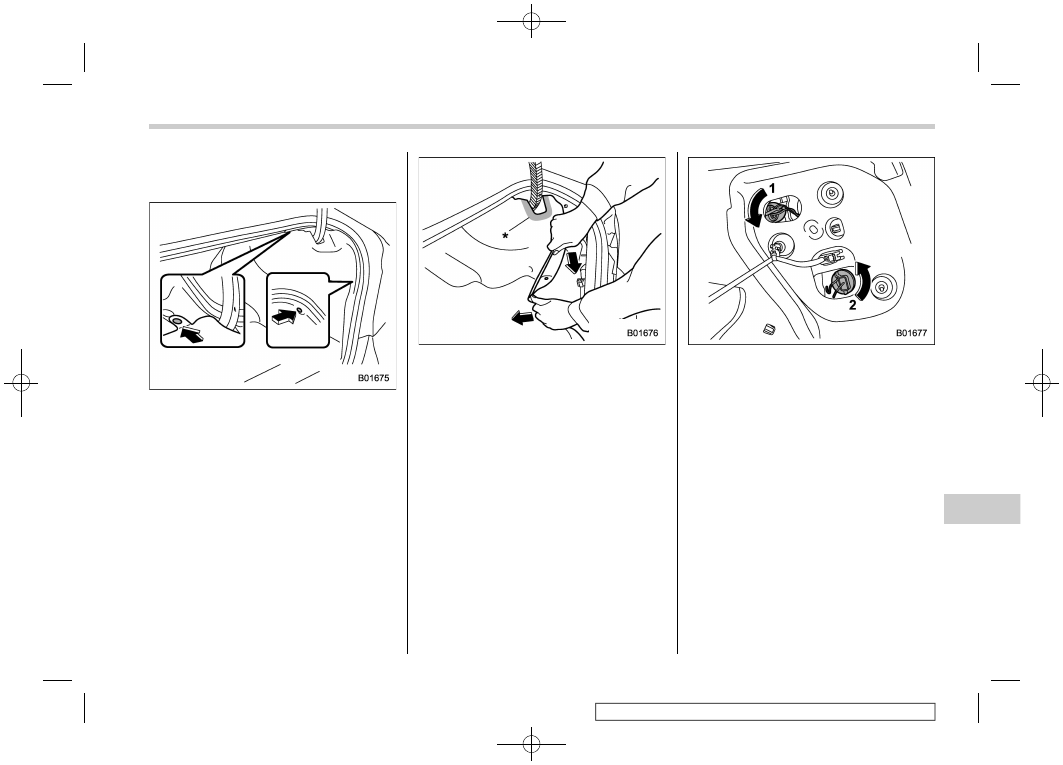

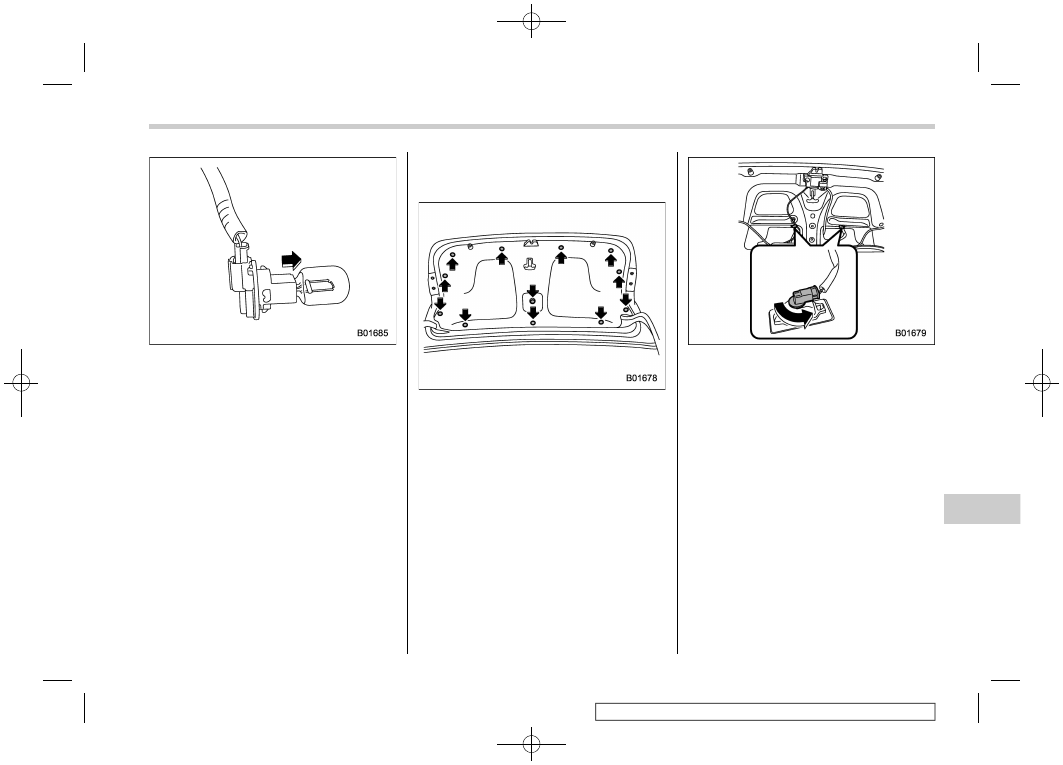

Rear combination lights

Sedan

1. Remove the clips from the trunk trim
with a flat-head screwdriver.

2. Open the rear portion of the trunk trim
panel as illustrated.

NOTE

Make sure that the “

” part of the trunk

trim in the illustration does not contact
the trunk lid stay. If the “

” part is bent,

the trunk trim may be torn.

Tail and rear side marker light

Rear turn signal light

3. Remove the bulb socket from the rear
combination light assembly by turning it
counterclockwise.
4. Pull the bulb out of the bulb socket and
replace it with a new one.
5. Set the bulb socket into the rear
combination light assembly and turn it
clockwise until it locks.
6. Secure the rear trunk trim panel with
the clips.

– CONTINUED –

Maintenance and service/Replacing bulbs

11-41

(440,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

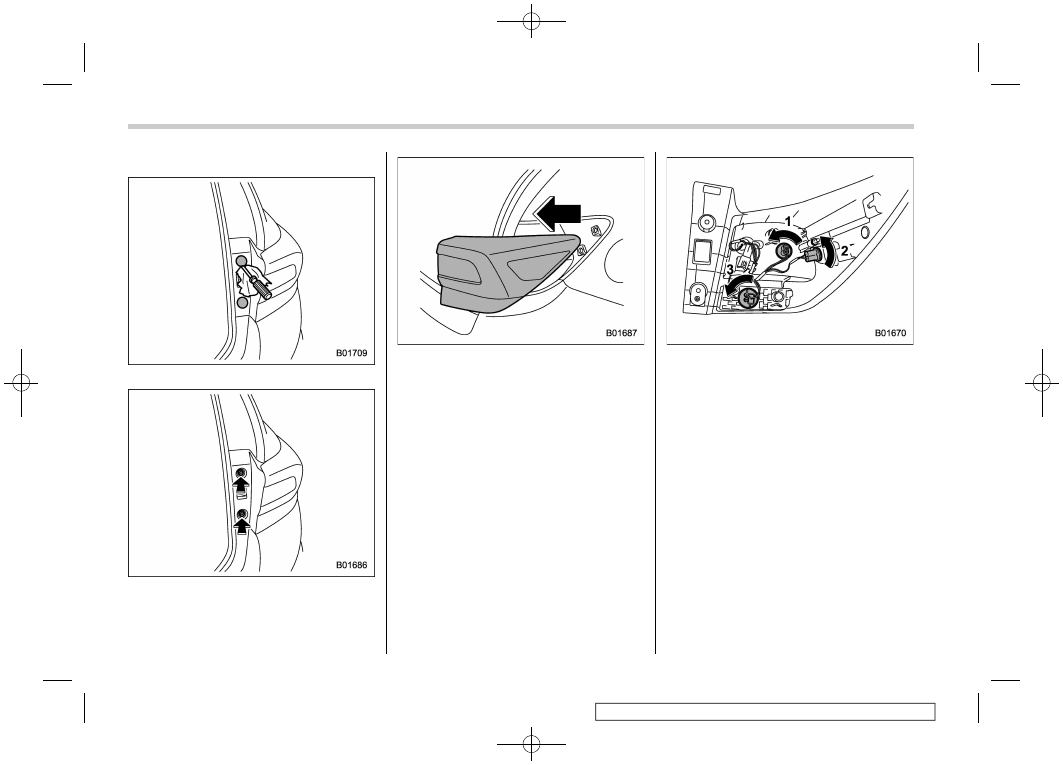

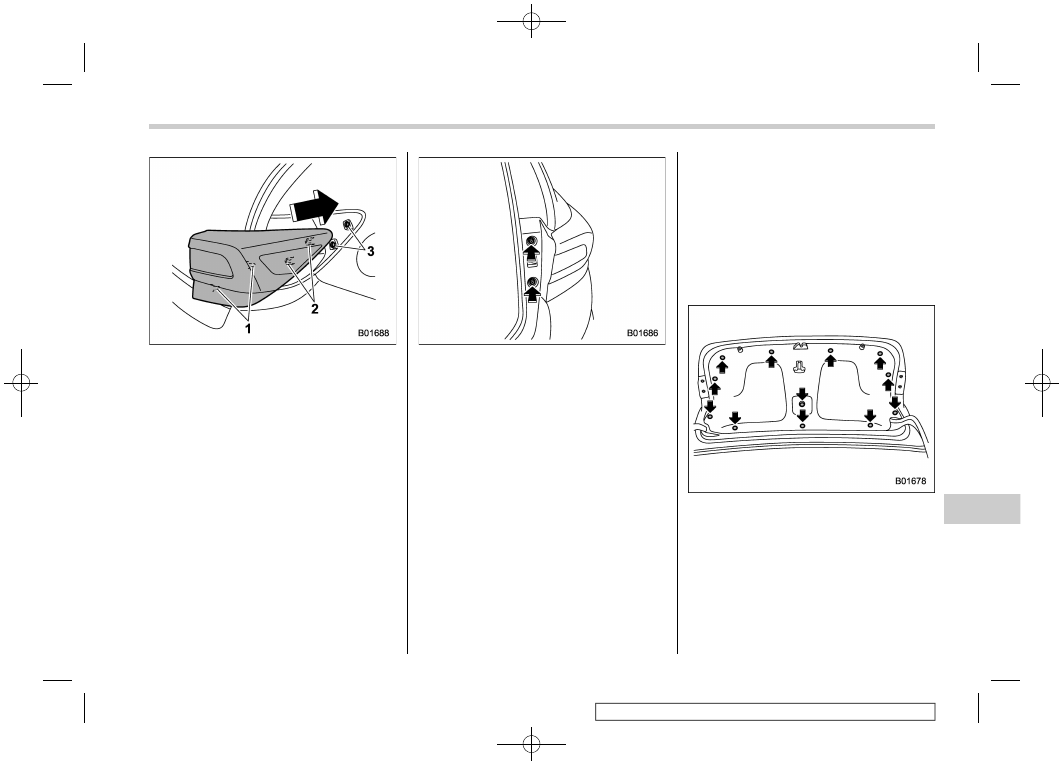

5-door models

1. Remove the covers.

2. Using a Phillips screwdriver, remove
the upper and lower screws that secure the
rear combination light assembly.

3. Slide the rear combination light as-
sembly rearward and remove it from the
vehicle.

Tail light

Rear side marker light

Rear turn signal light

4. Remove the bulb socket from the rear
combination light assembly by turning it
counterclockwise.
5. Pull the bulb out of the bulb socket and
replace it with a new one.
6. Set the bulb socket into the rear
combination light assembly and turn it
clockwise until it locks.

Maintenance and service/Replacing bulbs

11-42

(441,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Guide pins

Catch

Clip

7. Put the rear combination light assem-
bly into place while aligning the 2 guide
pins and a catch with the guide holes and a
clip on the vehicle.

8. Tighten the upper and lower screws.
9. Reinstall the covers.

Backup light

Sedan

NOTE

It may be difficult to replace the bulbs.
We recommend that you have the bulbs
replaced by your SUBARU dealer if
necessary.

1. Open the trunk.

2. Remove the trunk trim lining by remov-
ing the clips indicated in the illustration.

– CONTINUED –

Maintenance and service/Replacing bulbs

11-43

(442,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Left side light

Right side light

3. For left side light, turn the bulb socket
clockwise and remove it.
For right side light, turn the bulb socket
counterclockwise and remove it.
4. Pull the bulb out of the bulb socket and
replace it with a new one.
5. Install the bulb socket by turning it
clockwise.
6. Reconnect the electrical connector.
7. Reinstall the trunk trim lining.

5-door models

1. Apply a flat-head screwdriver to the
light cover as shown in the illustration, and
pry the light cover off from the rear gate
trim.

Right side light

Left side light

2. For left side light, turn the bulb socket
clockwise and remove it.
For right side light, turn the bulb socket
counterclockwise and remove it.

Maintenance and service/Replacing bulbs

11-44

(443,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

3. Pull the bulb out of the bulb socket and
replace it with a new one.
4. Install the bulb socket by turning it
clockwise.
5. Install the light cover on the rear gate.

License plate light

Sedan

1. Open the trunk and remove the clips
from the trunk lid trim with a flat-head
screwdriver.

2. Turn the bulb socket counterclockwise
and pull out the socket.
3. Pull the bulb out of the socket.
4. Install a new bulb.
5. Reinstall the bulb socket and the trunk
lid trim.

– CONTINUED –

Maintenance and service/Replacing bulbs

11-45

(444,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

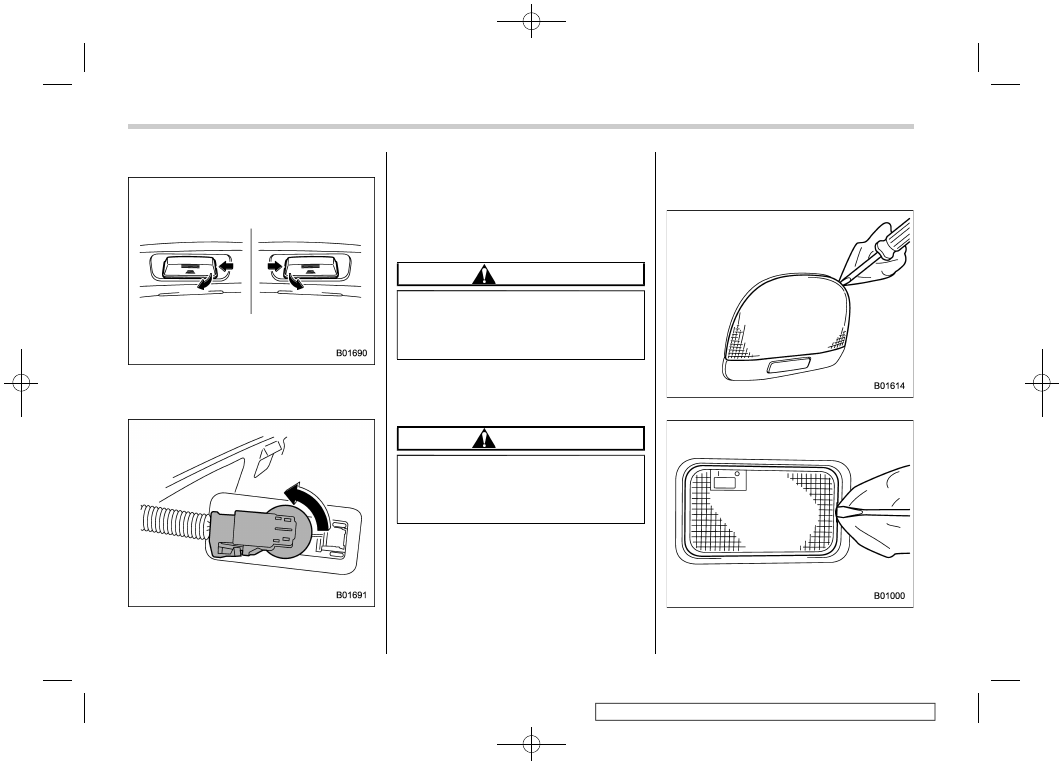

5-door models

1. The license plate lights must be
pushed outwards, and then pulled out to
be removed.

2. Turn the bulb socket counterclockwise
and pull out the socket.

3. Pull the bulb out of the socket.
4. Install a new bulb.
5. Reinstall the bulb socket and the
license plate light cover.

Map light

CAUTION

Replacing the bulb could cause
burns since the bulb may be very
hot. Have the bulb replaced by your
SUBARU dealer.

Vanity mirror light
(if equipped)

CAUTION

Replacing the bulb could cause
burns since the bulb may be very
hot. Have the bulb replaced by your
SUBARU dealer.

Dome light (all models) and
cargo area light (5-door mod-
els)

Dome light

Cargo area light

Maintenance and service/Replacing bulbs

11-46

(445,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

1. Remove the lens by prying the edge of
the lens with a flat-head screwdriver.
2. Pull the bulb out of the socket.
3. Install a new bulb.
4. Reinstall the lens.

Trunk light (sedan)

CAUTION

Replacing the bulb could cause
burns since the bulb may be very
hot. Have the bulb replaced by your
SUBARU dealer.

Other bulbs

It may be difficult to replace the bulbs.
Have the bulbs replaced by your
SUBARU dealer if necessary.

Replacing key battery

The access key fob/transmitter battery
may be discharged under the following
conditions.
.

The operation of the keyless access

function is unstable
.

The operating distance of the remote

keyless entry system is unstable
.

The transmitter does not operate prop-

erly when used within the standard dis-
tance

Replace the battery with a new one.

Safety precautions

CAUTION

Do not let dust, oil or water get on

or in the access key fob/transmit-
ter when replacing battery.

Before replacing the battery, re-

move any static electricity.

Be careful not to touch or damage

the printed circuit board in the
access key fob/transmitter when
replacing the battery.

Be careful not to allow children to

touch the battery and any re-
moved parts; children could
swallow them.

There is a danger of an explosion

if the battery is incorrectly re-
placed. Replace only with the
same or equivalent type of the
battery.

Batteries should not be exposed

to excessive heat such as bright
sunlight, fire or the like.

NOTE

Replace only with the same or

equivalent type of battery recom-
mended by the manufacturer.
.

Dispose of used batteries according

to local laws.
.

Mount the battery in the correct

orientation to prevent fluid leakage.
Be careful not to bend the terminals. It
may result in a malfunction.
.

It is recommended that the battery

be replaced by a SUBARU dealer.
.

Use a new battery.

After replacing the battery, confirm

that the transmitter functions properly.

– CONTINUED –

Maintenance and service/Replacing key battery

11-47

(446,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

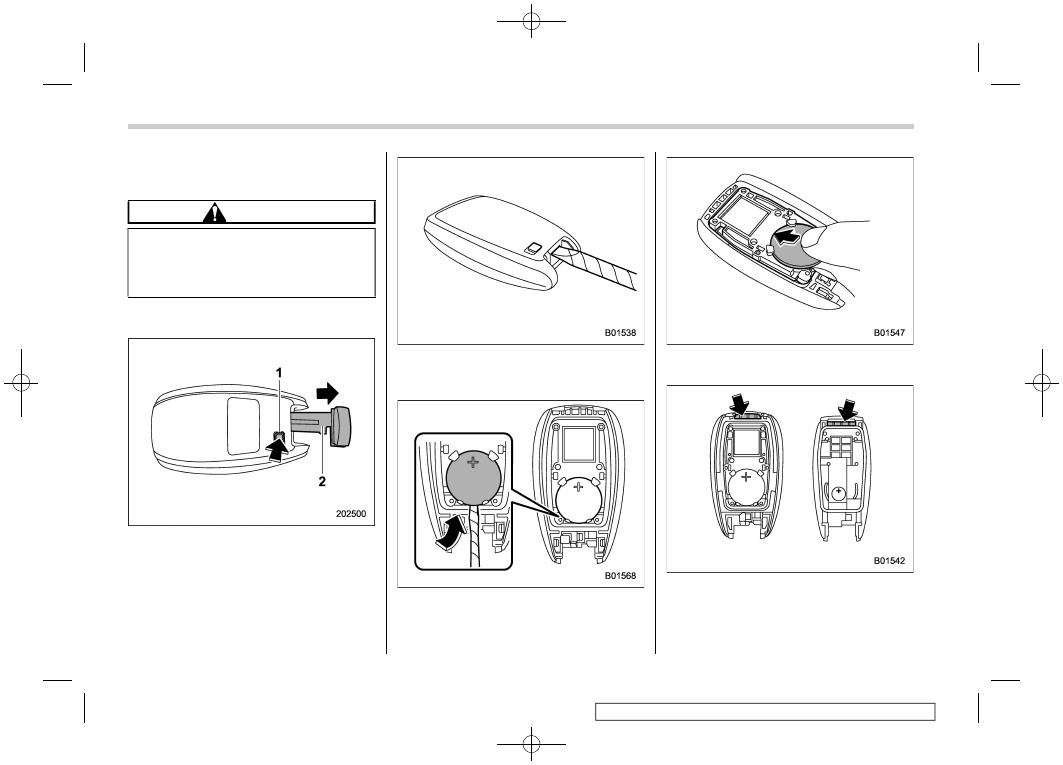

Replacing battery of access
key fob

CAUTION

When removing or reinstalling the
access key fob cover, make sure that
the plastic part does not come off or
become misaligned.

Battery: Button battery CR2032 or
equivalent

Release button

Emergency key

1. Take out the emergency key.

2. Wrap a flat-head screwdriver with vinyl
tape or a cloth, and insert it in the gap to
remove the cover.

3. Take out the battery using a flat-head
screwdriver with vinyl tape or a cloth.

4. Insert a new battery with its positive (+)
side facing upward as shown in the figure.

5. Attach the cover to the access key fob
by fitting the projections and recesses
together.

Maintenance and service/Replacing key battery

11-48

Content .. 25 26 27 28 ..
