Subaru Legacy III (2000-2003 year). Manual - part 988

EB-4

EXTERIOR BODY PANELS

GENERAL DESCRIPTION

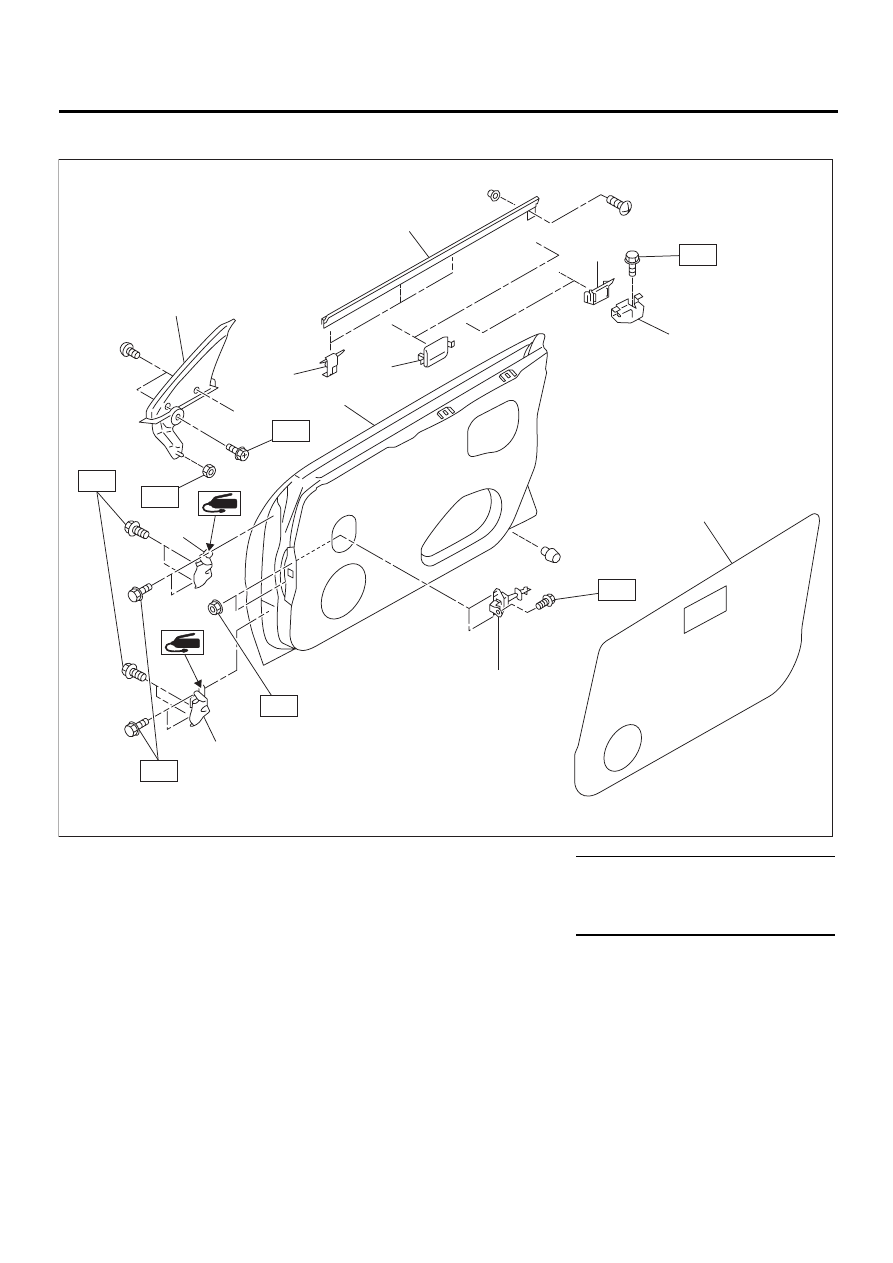

2. FRONT DOOR PANEL

(1) Gusset

(7) Sealing cover

Tightening torque: N·m (kgf-m, ft-lb)

(2) Weatherstrip (Outer)

(8) Door checker

T1: 7.35 (0.75, 5.4)

(3) Clip (Weatherstrip, outer)

(9) Lower hinge

T2: 18 (1.8, 13)

(4) Stabilizer (Lifter)

(10) Upper hinge

T3: 30 (3.1, 22)

(5) Stabilizer (Outer)

(11) Door panel

(6) Stabilizer (Inner)

EB-00040

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

T1

T1

T3

T1

T3

T2

T1

EB-5

EXTERIOR BODY PANELS

GENERAL DESCRIPTION

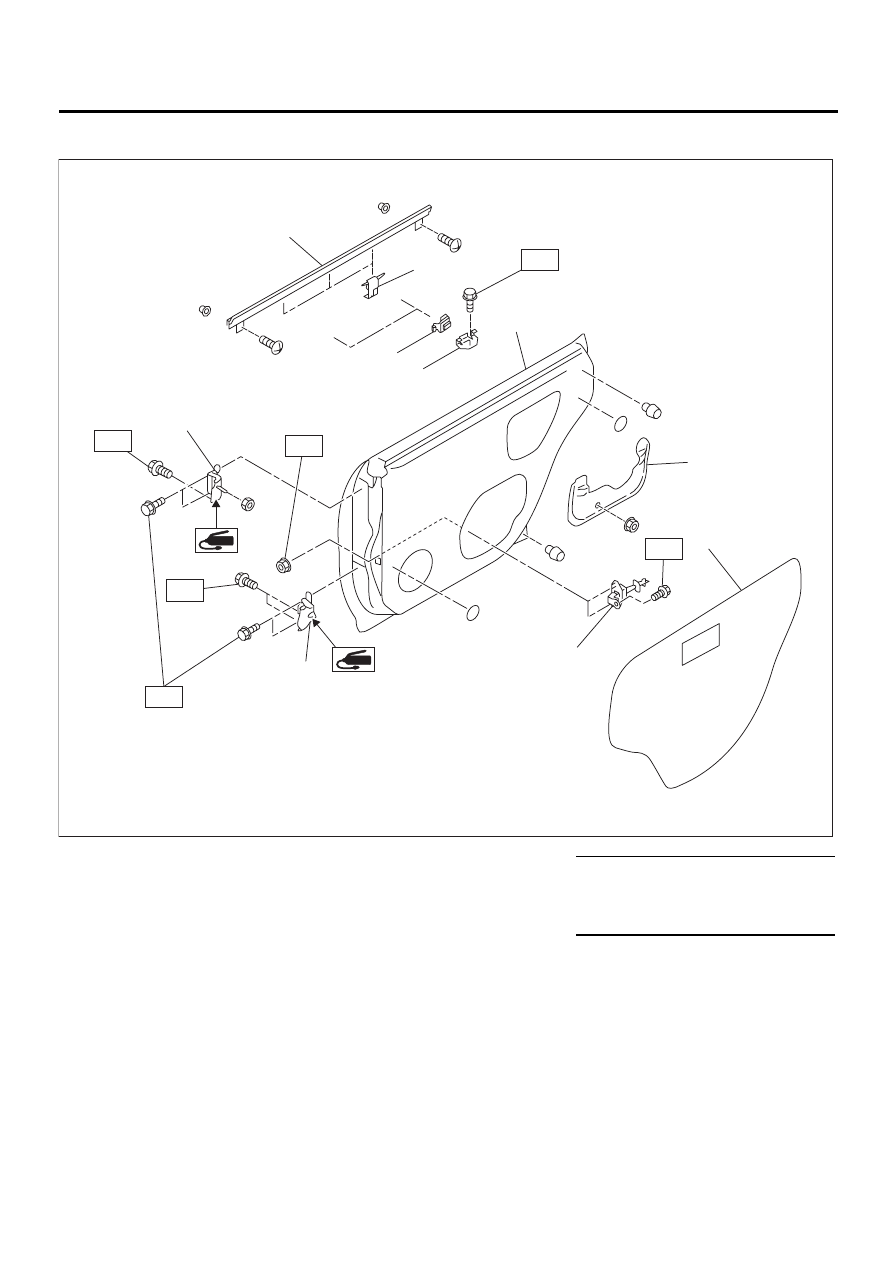

3. REAR DOOR PANEL

(1) Weatherstrip (Outer)

(6) Bracket

Tightening torque: N·m (kgf-m, ft-lb)

(2) Clip (Weatherstrip, outer)

(7) Sealing cover

T1: 7.35 (0.75, 5.4)

(3) Stabilizer (Outer)

(8) Door checker

T2: 18 (1.8, 13)

(4) Stabilizer (Inner)

(9) Lower hinge

T3: 30 (3.1, 22)

(5) Door panel

(10) Upper hinge

EB-00041

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

T1

T2

T1

T3

T3

T3

EB-6

EXTERIOR BODY PANELS

GENERAL DESCRIPTION

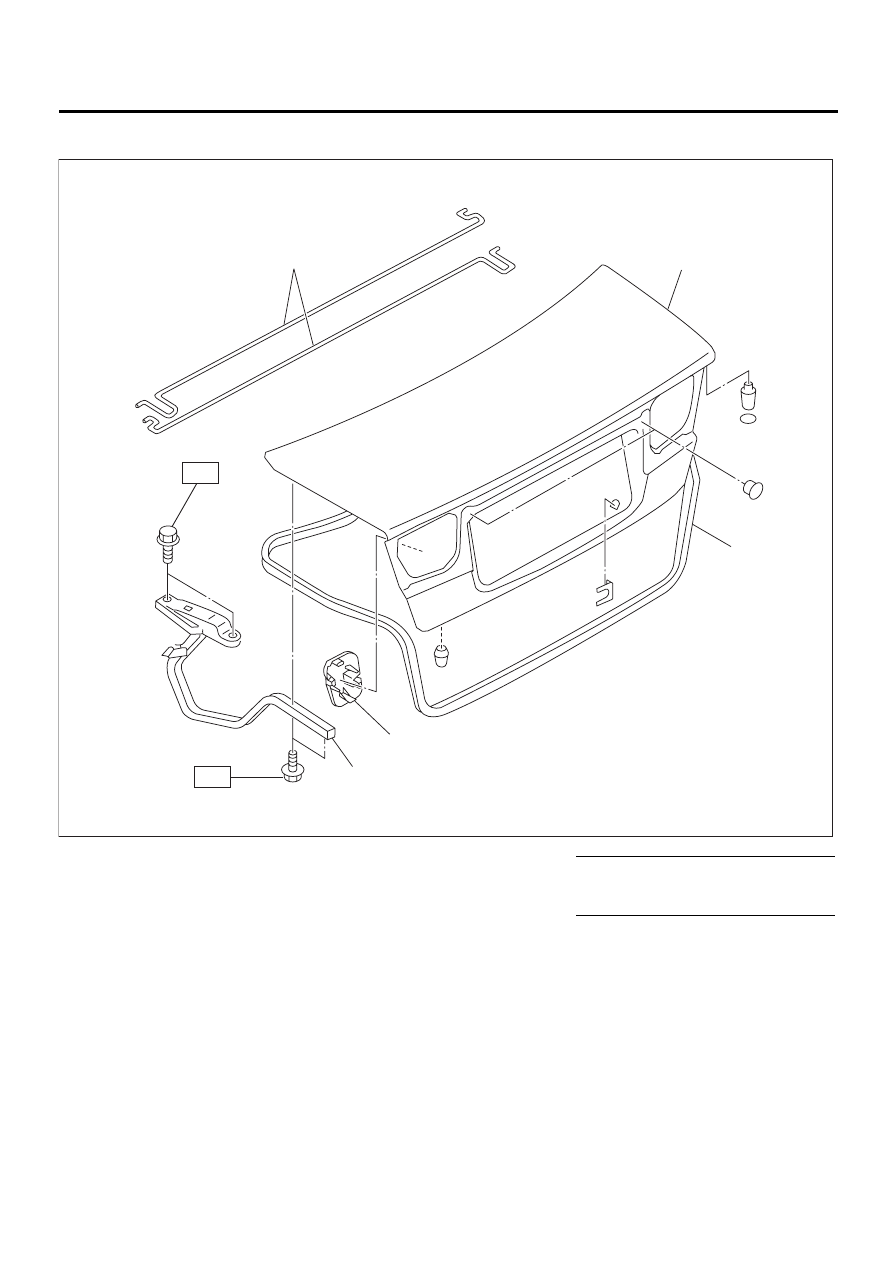

4. TRUNK LID PANEL

(1) Torsion bar

(4) Hinge ASSY

Tightening torque: N·m (kgf-m, ft-lb)

(2) Trunk lid

(5) Cover

T1: 18 (1.8, 13)

(3) Weatherstrip

T2: 14 (1.4, 10)

EB-00042

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

T1

T1

EB-7

EXTERIOR BODY PANELS

GENERAL DESCRIPTION

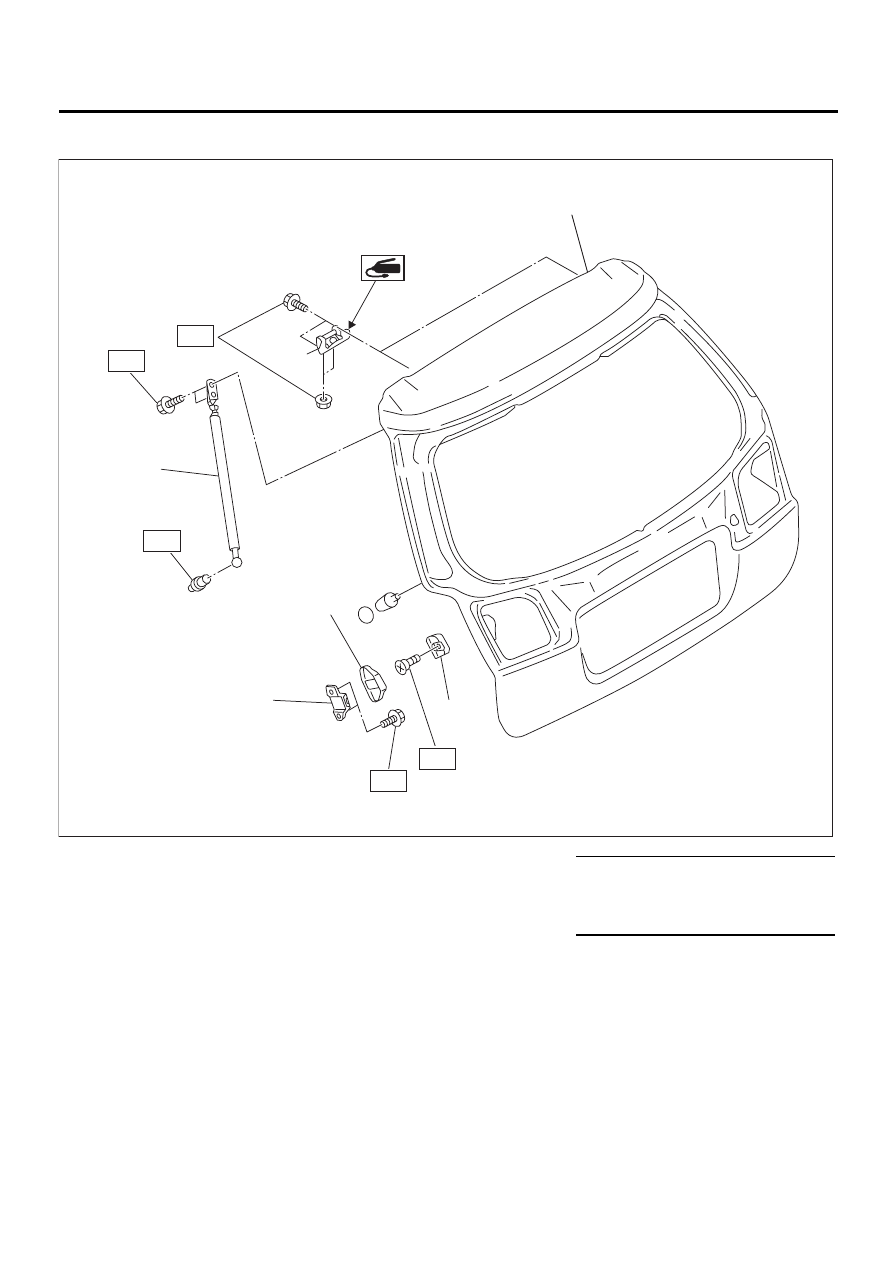

5. REAR GATE PANEL

(1) Gas stay

(4) Buffer (Rear gate)

Tightening torque: N·m (kgf-m, ft-lb)

(2) Hinge

(5) Buffer cover

T1: 7.5 (0.76, 5.5)

(3) Rear gate

(6) Buffer (Back door)

T2: 14 (1.4, 10.1)

T3: 25 (2.5, 18.1)

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

T1

T1

T1

T3

T2

EB-00043
