GLASS/WINDOWS/MIRRORS

REAR QUARTER GLASS

12.Rear Quarter Glass

A: REMOVAL

1. SEDAN

Remove glass in the same procedure as for windshield glass. <Ref. to GW-19, REMOVAL, Windshield
Glass.>

2. WAGON

Remove glass in the same procedure as for windshield glass. <Ref. to GW-19, REMOVAL, Windshield
Glass.>

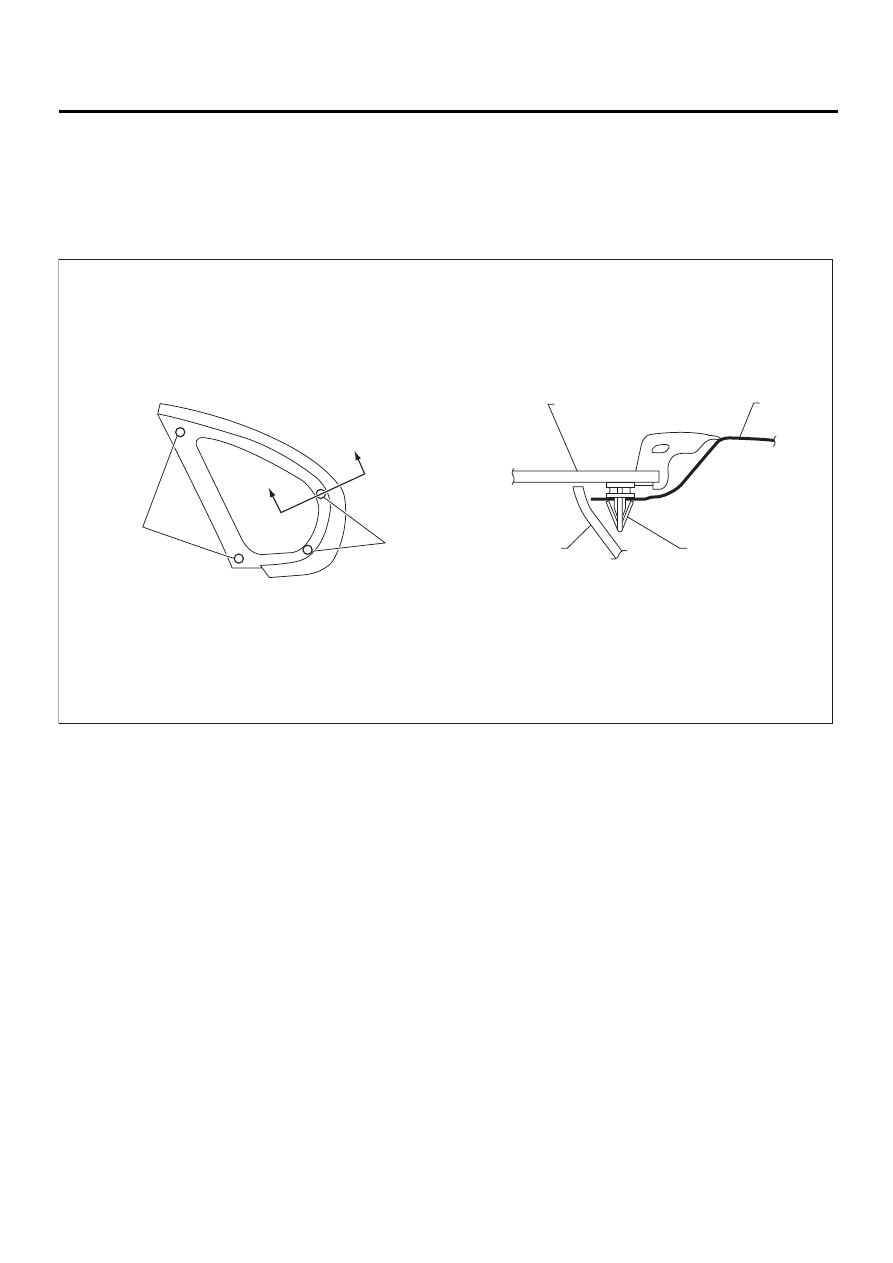

(1) Locating pin

(3) Body panel

(2) Rear quarter glass

(4) Trim panel

( 1 )

( 2 )

( 3 )

( 4 )

A - A

GW-00118

GW-25

GLASS/WINDOWS/MIRRORS

REAR QUARTER GLASS

B: INSTALLATION

1) Cut off nozzle tip as shown in the figure.

2) Install glass in the same procedure as for wind-
shield glass. <Ref. to GW-18, INSTALLATION,
Rear Regulator and Motor Assembly.>
3) After completion of all work, allow vehicle to
stand for about 24 hours.

NOTE:
For minimum drying time and time the vehicle must
be left standing before driving after bonding, follow
instructions or instruction manual from the adhe-
sive manufacturer.
4) After curing of adhesive, pour water on external
surface of vehicle to check that there are no water
leaks.

NOTE:
When a vehicle is returned to the user, tell him or
her that the vehicle should not be subjected to
heavy impact for at least three days.

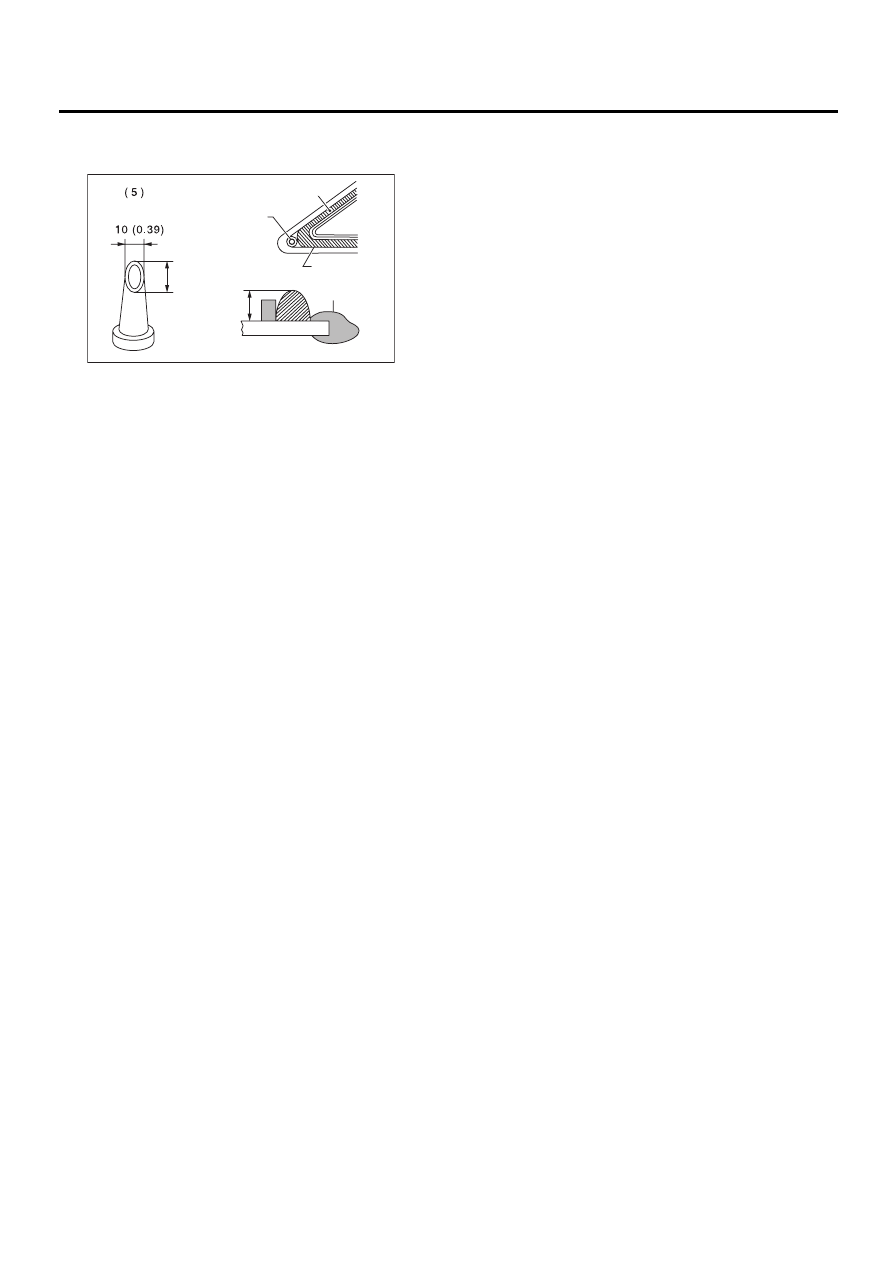

(1) Dam rubber

(2) Locating pin

(3) Adhesive

(4) Molding

(5) Unit: mm (in)

GW-00119

15 (0.59)

12 – 15
(0.47 – 0.59)

( 1 )

( 2 )

( 3 )

( 4 )

GW-26

GLASS/WINDOWS/MIRRORS

REAR WINDOW GLASS

13.Rear Window Glass

A: REMOVAL

1) Disconnect connectors from rear defogger ter-
minals.
2) Remove glass in the same procedure as for
windshield glass. <Ref. to GW-19, REMOVAL,
Windshield Glass.>

B: INSTALLATION

1) Bond dam rubber and matching pin.

2) Install glass in the same procedure as for wind-
shield glass. <Ref. to GW-18, INSTALLATION,
Rear Regulator and Motor Assembly.>
3) Connect rear defogger terminals.
4) After completion of all work, allow vehicle to
stand for about 24 hours.

NOTE:
For minimum drying time and time the vehicle must
be left standing before driving after bonding, follow
instructions or instruction manual from the adhe-
sive manufacturer.

5) After curing of adhesive, pour water on external
surface of vehicle to check that there are no water
leaks.

NOTE:
When a vehicle is returned to the user, tell him or
her that the vehicle should not be subjected to
heavy impact for at least three days.

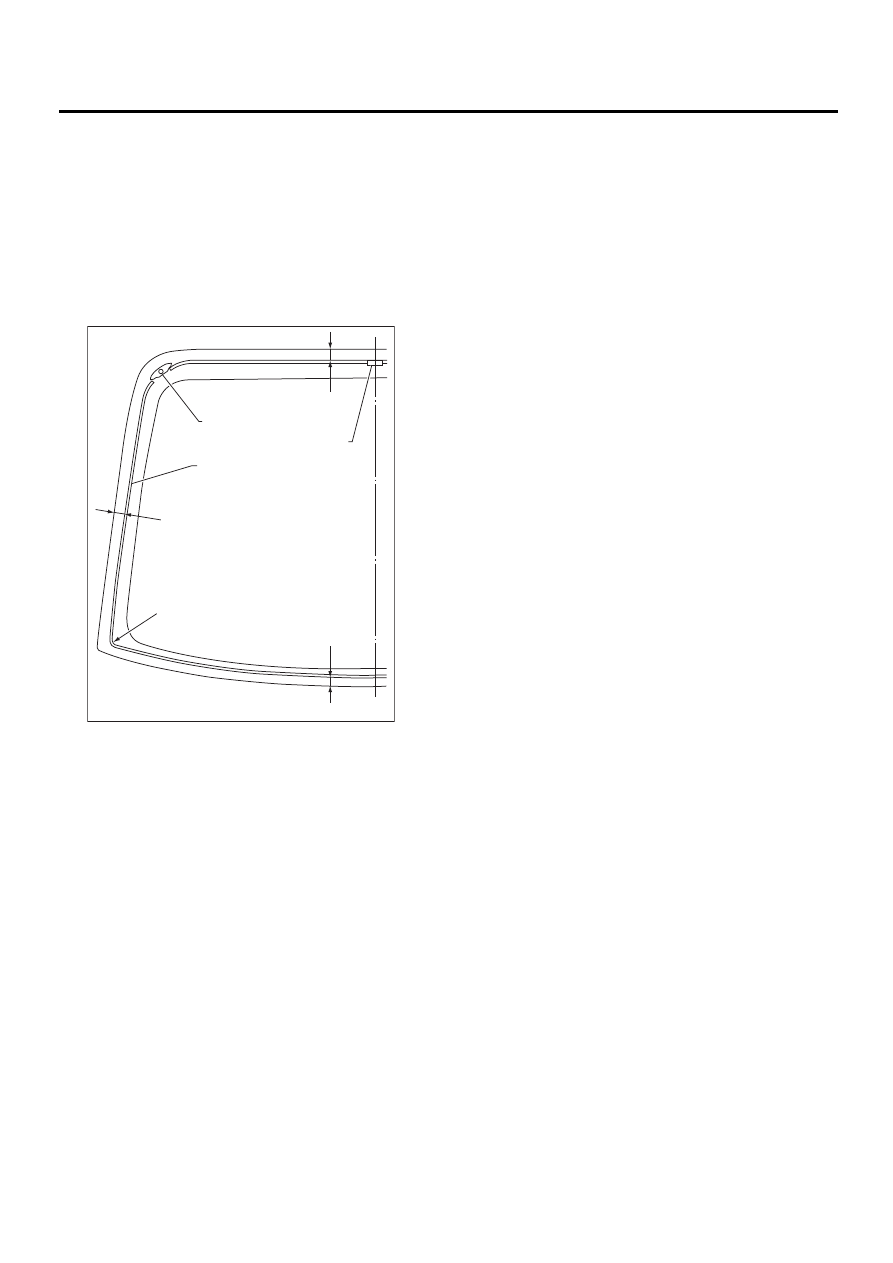

(1) Locating pin

(2) Dam rubber

(3) Fastener

(4) Unit: mm (in)

GW-00120

14.5

17.5

R15

14.5

( 1 )
