ANTENNA AMPLIFIER
11.Antenna Amplifier

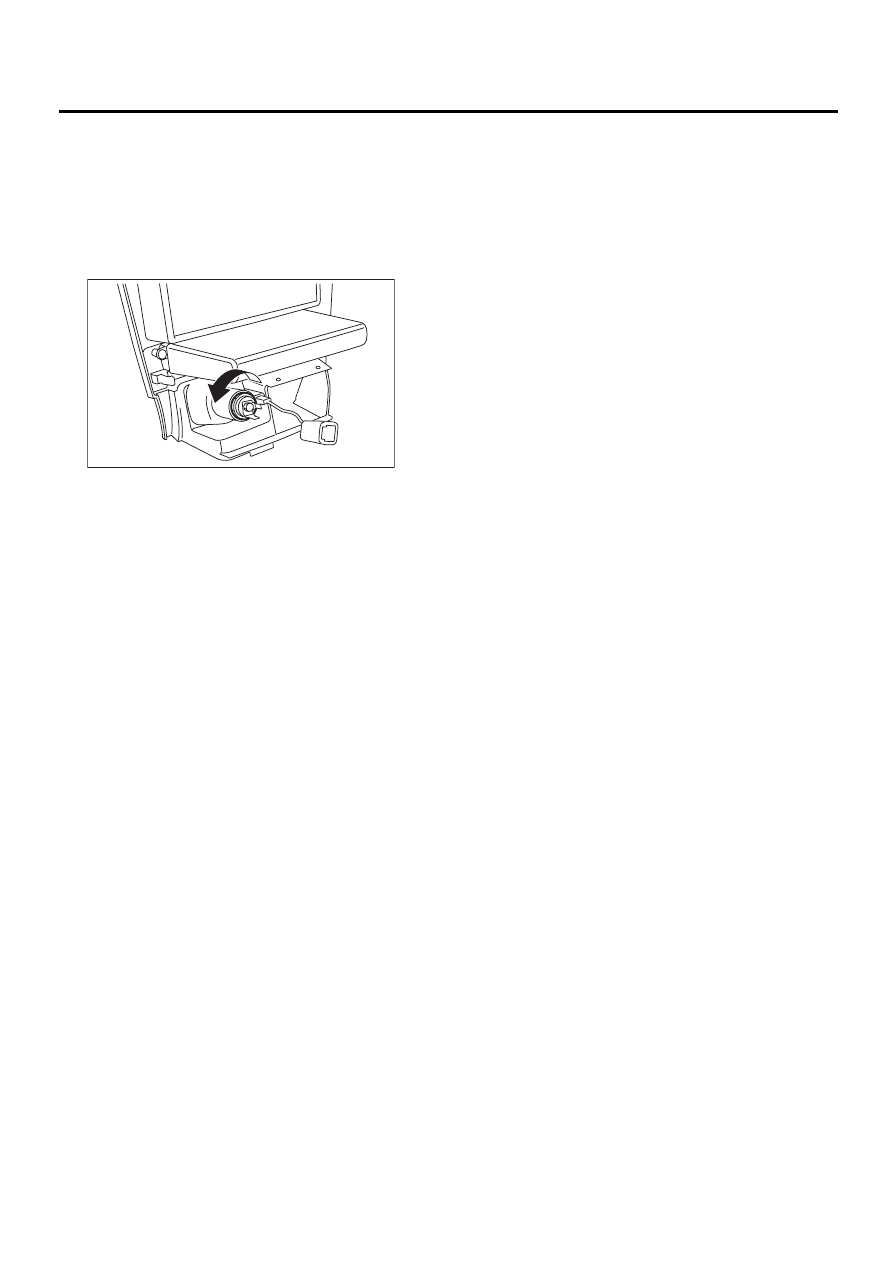

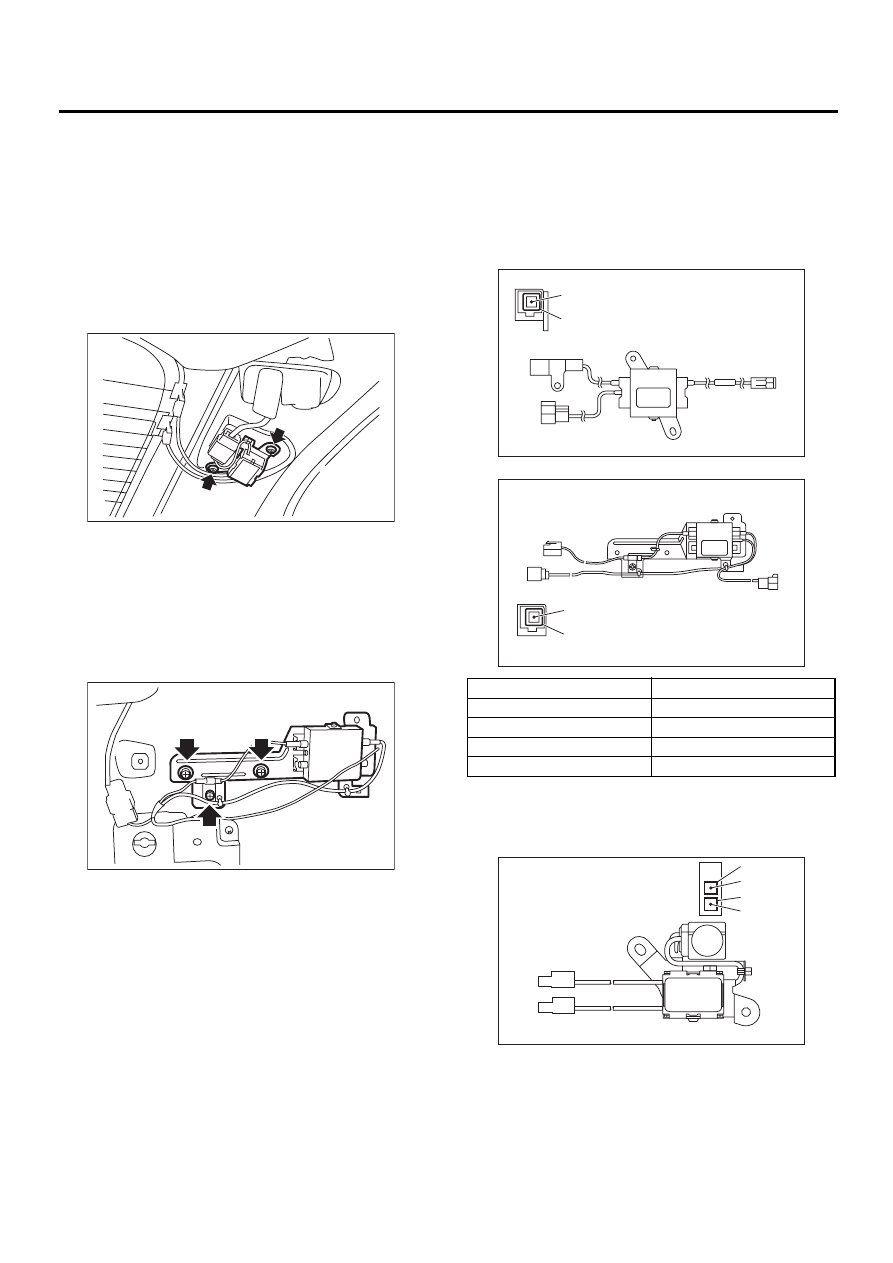

A: REMOVAL
1. SEDAN
1) Disconnect ground cable from battery.
2) Remove rear pillar upper trim. <Ref. to EI-40,
SEDAN, REMOVAL, Rear Quarter Trim.>
3) Disconnect harness connector and terminal.
4) Remove mounting screw and detach antenna
amplifier.
2. WAGON
1) Disconnect ground cable from battery.
2) Remove rear quarter lower trim. <Ref. to EI-40,
WAGON, REMOVAL, Rear Quarter Trim.>
3) Disconnect harness connector and terminal.
4) Remove mounting screw and detach antenna
amplifier.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1. FOR EUROPE

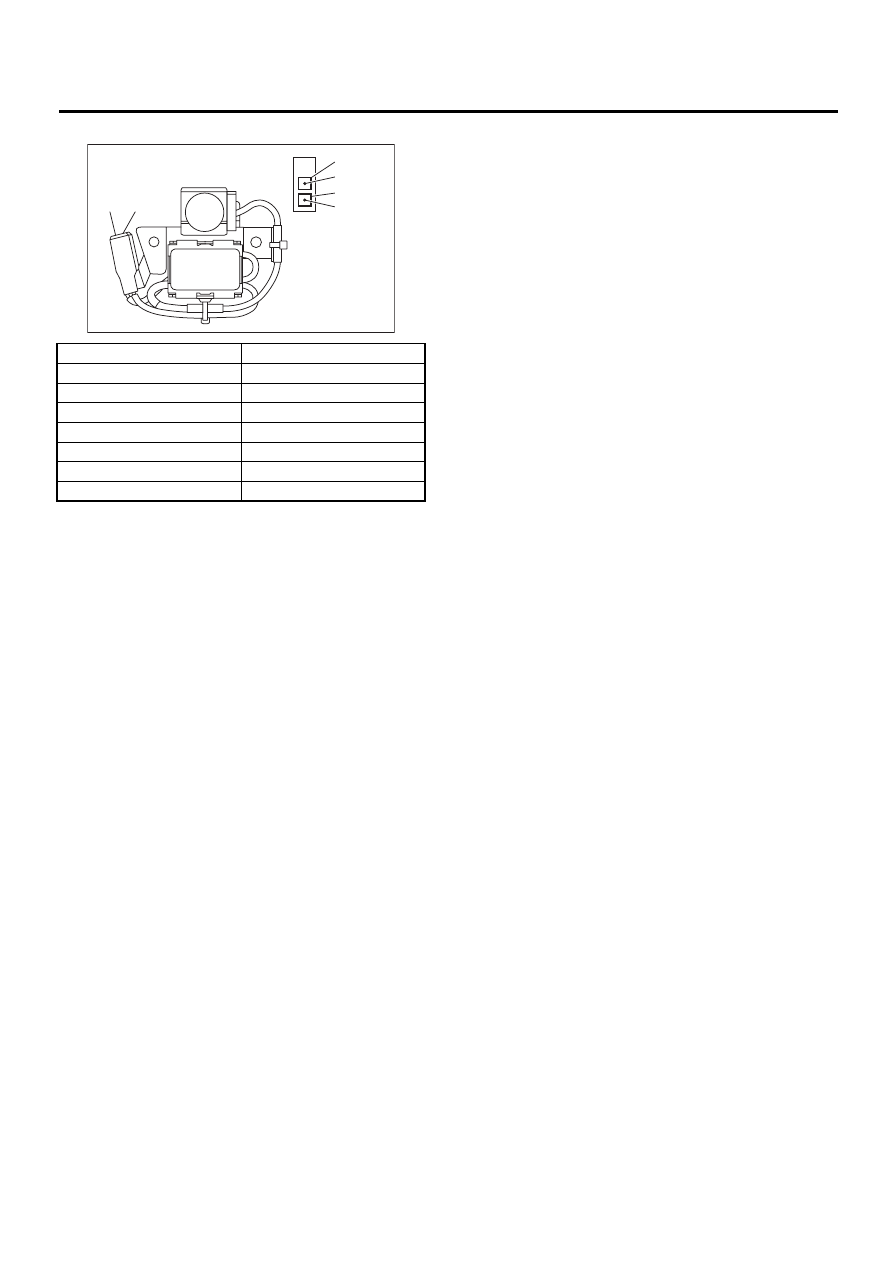

Measure antenna amplifier resistance.
SEDAN:
WAGON:
2. EXCEPT FOR EUROPE
Measure antenna amplifier resistance.
SEDAN:
ET-00030
ET-00031
Terminal No.
Standard
1-a and Amplifier
More than 100 k
Ω
1-b and Amplifier
Less than 1
Ω
2 and Amplifier
More than 100 k
Ω
3 and Amplifier
More than 100 k
Ω
ET-00039
–a
–b
( 1 )
( 1 )
( 1 )
( 2 )
( 3 )
ET-00040
–a
–b
( 1 )
( 1 )
( 1 )
( 2 )
( 3 )
ET-00041
–a
–b
–c
–d
( 1 )
( 1 )
( 1 )
( 1 )
( 1 )
( 2 )
( 3 )
