CIGARETTE LIGHTER SYSTEM

3. Cigarette Lighter System

A: SCHEMATIC

1. CIGARETTE LIGHTER

<Ref. to WI-233, SCHEMATIC, Front Accessory
Power Supply System.>

ET-5

ENTERTAINMENT

RADIO BODY

4. Radio Body

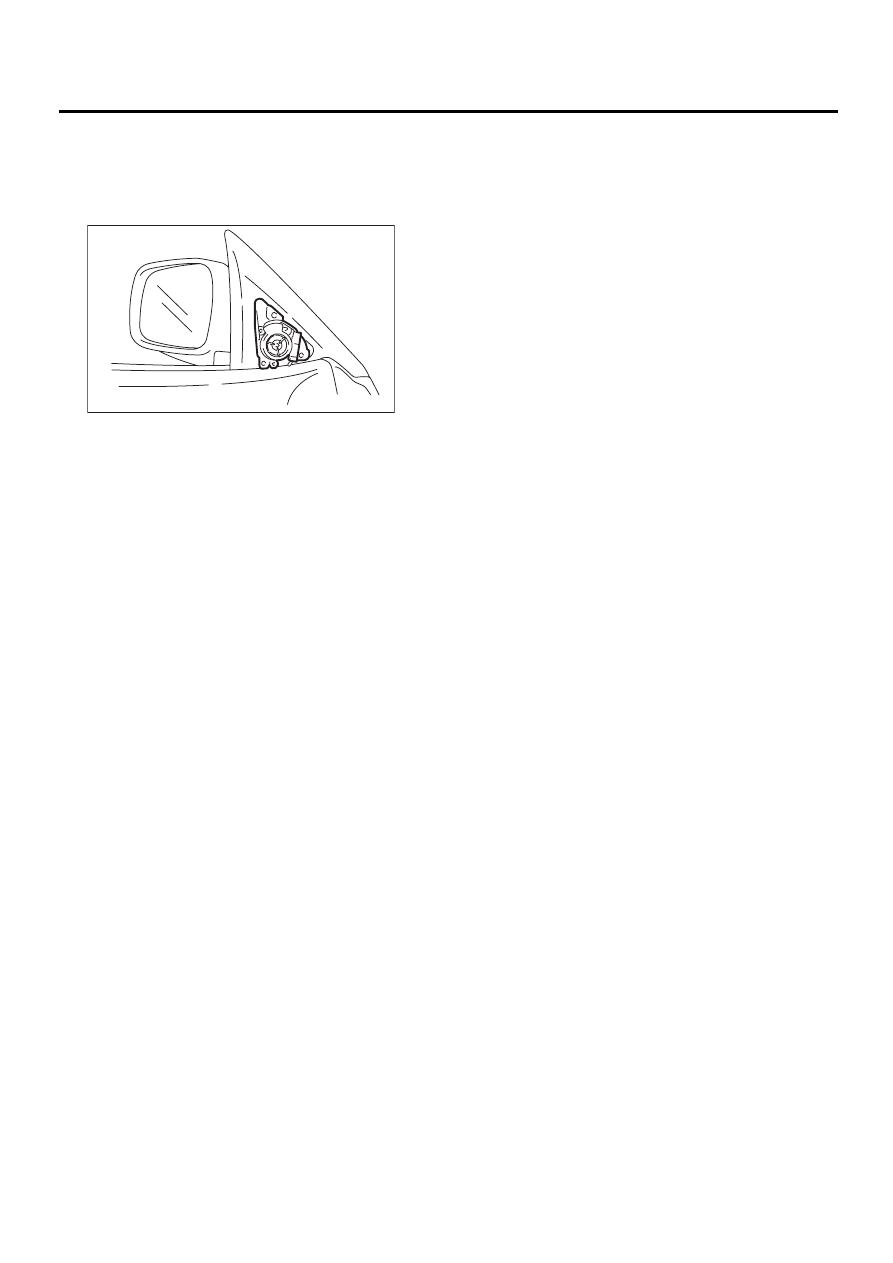

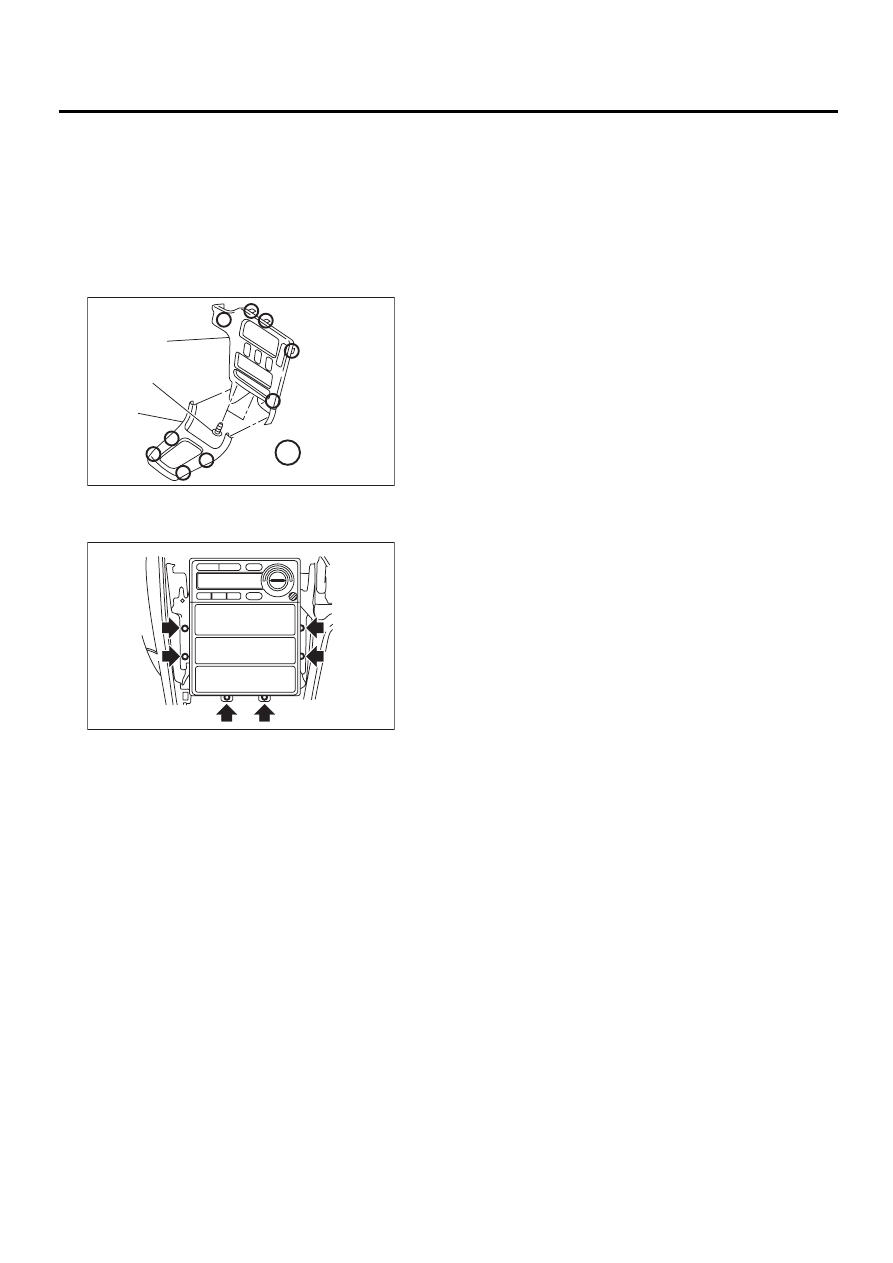

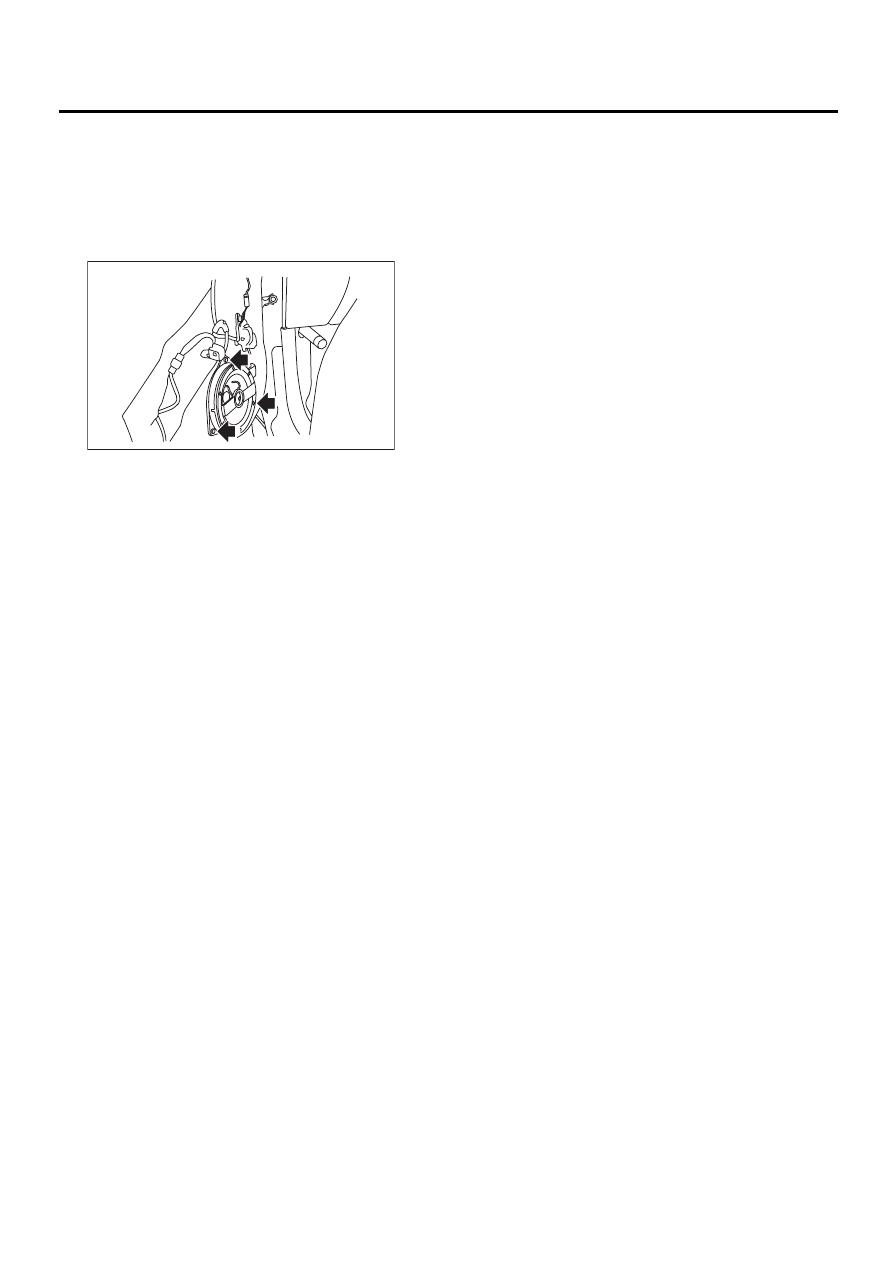

A: REMOVAL

1) Disconnect ground cable from battery.
2) Remove hook  (D) and then remove front cover
(A).
3) Remove two screws (B) and hook  (D), then re-
move center panel (C) while disconnecting connec-
tor.

4) Remove fitting screws, and slightly pull radio out
from center console.

5) Disconnect electric connectors and antenna
feeder cord and then disconnect heater control
unit.

B: INSTALLATION

Install in the reverse order of removal.

ET-00022

: ( D )

( A )

( B )

( C )

ET-00023

ET-6

ENTERTAINMENT

FRONT SPEAKER

5. Front Speaker

A: REMOVAL

1) Disconnect ground cable from battery.
2) Remove front door trim. <Ref. to EI-30, REMOV-
AL, Front Door Trim.>
3) Remove front speaker mounting screws.

4) Disconnect harness connector and remove front
speaker.

B: INSTALLATION

Install in the reverse order of removal.

ET-00024

ET-7

ENTERTAINMENT

FRONT TWEETER

6. Front Tweeter

A: REMOVAL

1) Disconnect ground cable from battery.
2) Remove gusset cover.

3) Disconnect harness connector and remove
tweeter.

B: INSTALLATION

Install in the reverse order of removal.

ET-00025
