Subaru Legacy III (2000-2003 year). Manual - part 930





WW-18

WIPER AND WASHER SYSTEMS

WIPER CONTROL RELAY

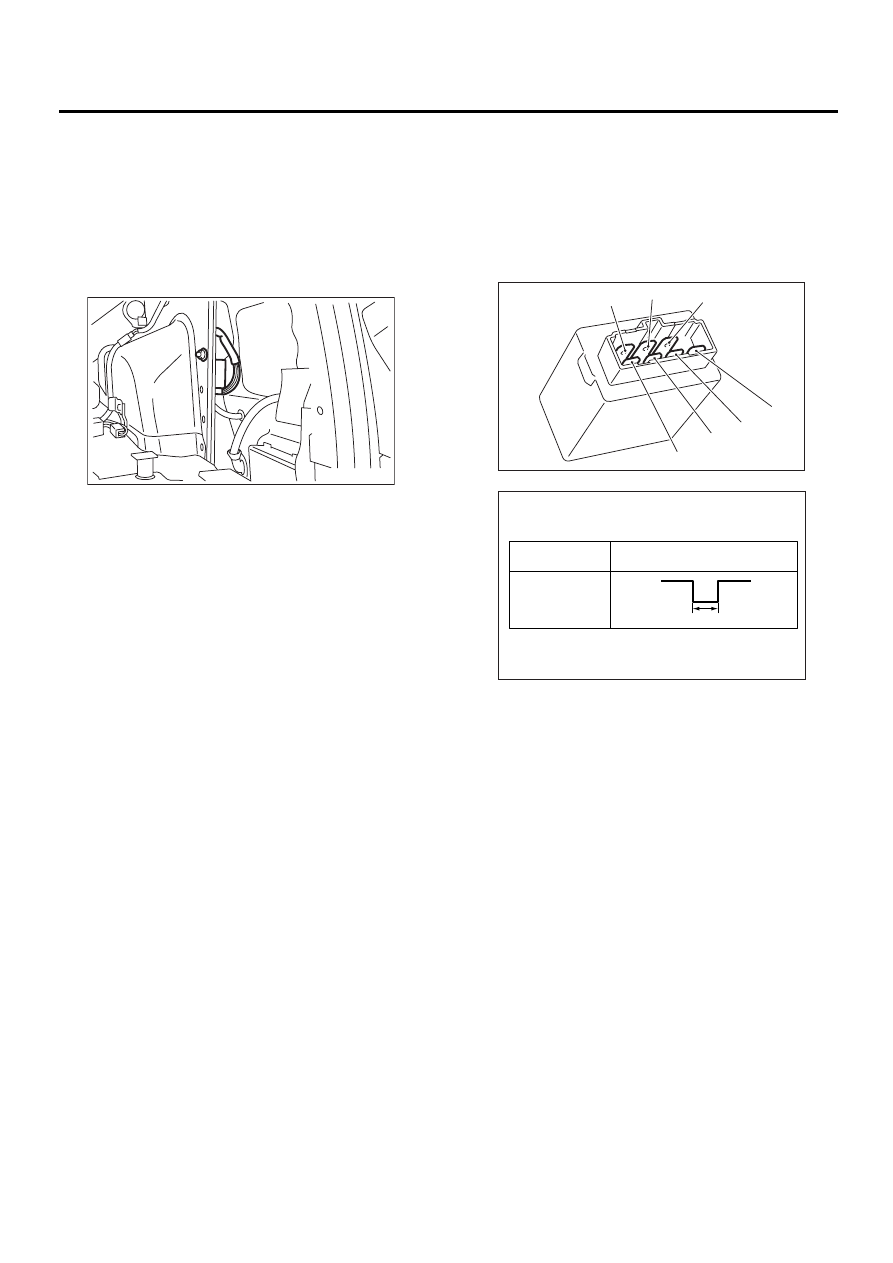

12.Wiper Control Relay

A: REMOVAL

1. WAGON

1) Remove right quarter lower trim.  <Ref. to EI-40,
REMOVAL, Rear Quarter Trim.>
2) Remove quarter pocket.
3) Loosen nut to remove control unit.

B: INSTALLATION

1. WAGON

Install in the reverse order of removal.

C: INSPECTION

1. WAGON

1) Turn the rear wiper switch to ON.
2) Apply battery voltage to the rear terminals 8 and
2, and then inspect the voltage of 6 and 2.  (Mea-
sure the voltage from after the second time the wip-
er stops.)

If operation is not as specified, replace the switch.

WW-00093

(A) Switch position

(B) Voltage

(C) ON

(D) 12 V

(E) 0 V

(F) 9 ± 2 sec.

WW-00094

4

3

2

5

6

7

8

WW-00055

(A)

(B)

(C)

(D)

(E)

(F)

ET-2

ENTERTAINMENT

GENERAL DESCRIPTION

1. General Description

A: CAUTION

• Before disassembling or reassembling parts, al-
ways disconnect battery ground cable. When re-
placing radio, control module, and other parts
provided with memory functions, record memory
contents before disconnecting the battery ground
cable. Otherwise, the memory will be erased.
• Reassemble in reverse order of disassembly, un-
less otherwise indicated.
• Adjust parts to the given specifications.
• Connect connectors and hoses securely during
reassembly.
• After reassembly, make sure functional parts op-
erate smoothly.

B: PREPARATION TOOL

1. GENERAL TOOLS

TOOL NAME

REMARKS

Circuit Tester

Used for measuring resis-
tance and voltage.

Conductive Silver Composition
(DUPONT NO. 4817 or equiva-
lent)

Used for repairing
antenna wire.

ET-3

ENTERTAINMENT

RADIO SYSTEM

2. Radio System

A: SCHEMATIC

1. AUDIO SYSTEM

<Ref. to WI-118, SCHEMATIC, Audio System.>

B: INSPECTION

Symptom

Repair order

No power coming in (No display and no sound from speakers)

(1) Check fuse and power supply for radio.
(2) Check radio ground.
(3) Remove radio for repair.

A specific speaker does not operate.

(1) Check speaker.
(2) Check output circuit between radio and speaker.

Radio generates noise with engine running.

(1) Check radio ground.
(2) Check generator.
(3) Check ignition coil.
(4) Remove radio for repair.

AM and FM modes are weak or noisy.

(1) Check antenna.
(2) Check antenna amplifier.
(3) Check radio ground.
(4) Remove radio for repair.
