WW-10

WIPER AND WASHER SYSTEMS

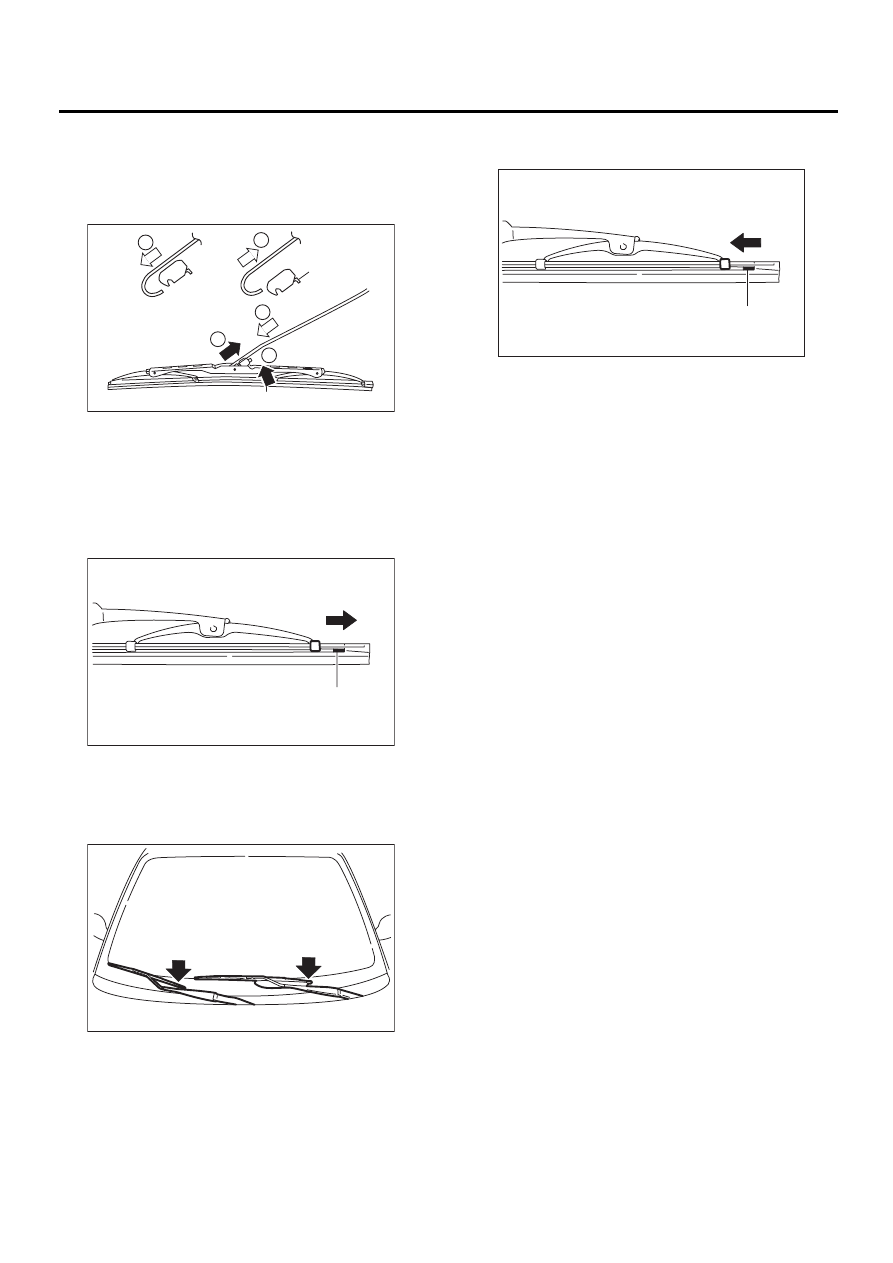

WIPER BLADE

4. Wiper Blade

A: REMOVAL

While pushing locking clip (A) up, pull out blade
from arm to arrow direction.

B: INSTALLATION

1) Install in the reverse order of removal.
2) Confirm that clip was locked securely.

C: DISASSEMBLY

Pull on side (A) of the wiper rubber stopper and re-
move the rubber from the blade assembly.

D: ASSEMBLY

1) Insert the wiper rubber onto the blade so that the
stopper is in the position shown (at the bottom of
the wiper arm).

2) Make sure the wiper rubber is securely fastened
to the pull stopper (A).

E: INSPECTION

1) When the wiper does not perform well, inspect
the following:
• Make sure the movable part of the blade assem-
bly moves smoothly.
• Make sure the wiper rubber is not deformed or
damaged.
2) Replace with a new part if damage is found.

WW-00064

1

2

2

3

3

( A )

WW-00009

( A )

WW-00049

WW-00037

( A )

WW-11

WIPER AND WASHER SYSTEMS

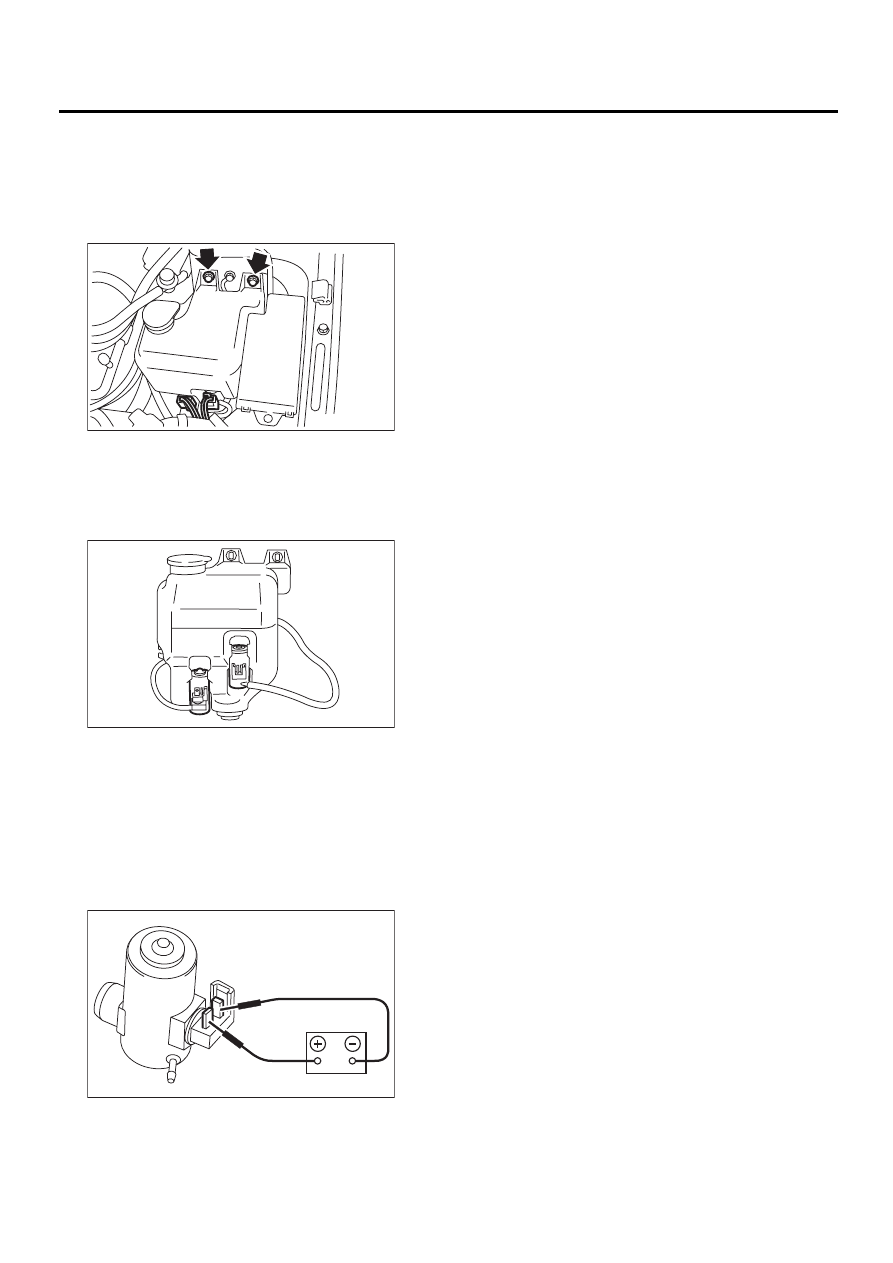

WASHER TANK AND MOTOR

5. Washer Tank and Motor

A: REMOVAL

1) Open hood.
2) Remove the 2 bolts, hose and connector and
then remove the tank.

B: INSTALLATION

Install in the reverse order of removal.

C: DISASSEMBLY

Remove washer motor from tank.

D: ASSEMBLY

1) Assemble in the reverse order of disassembly.
2) Confirm that water does not leak from installa-
tion area of motor.

E: INSPECTION

Apply battery voltage to the connector terminal of
the washer motor and make sure the motor oper-
ates.

WW-00011

WW-00012

WW-00013

WW-12

WIPER AND WASHER SYSTEMS

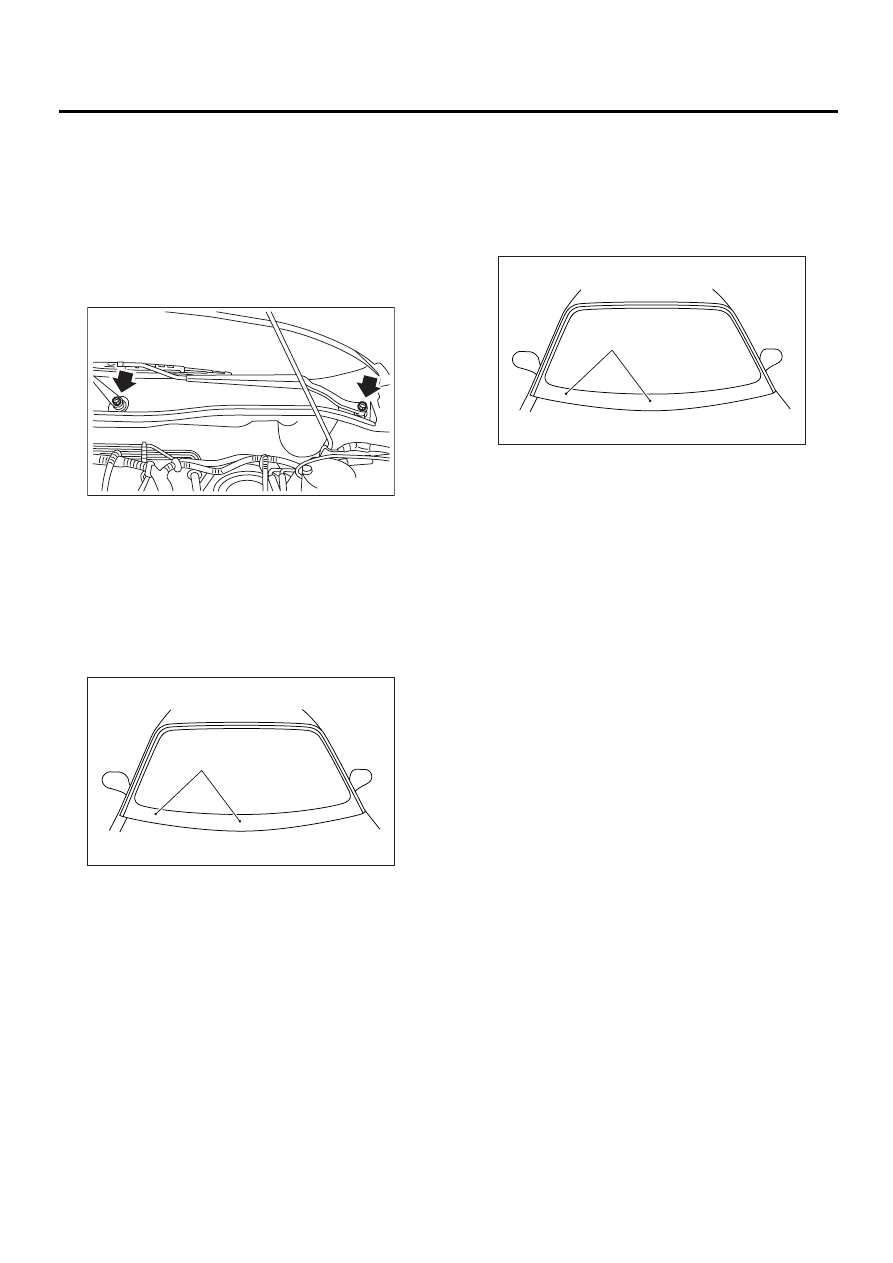

FRONT WIPER ARM

6. Front Wiper Arm

A: REMOVAL

NOTE:
The positions for RHD model are symmetrically op-
posite.
1) Open hood.
2) Remove cap.
3) Loosen nut to remove arm.

B: INSTALLATION

NOTE:
The positions for RHD model are symmetrically op-
posite.
1) Install in the reverse order of removal.
2) Operate wiper once.
3) Align wiper blade to ceramic print point mark (A)
of front window pane.

Tightening torque:

Refer to COMPONENT in General Descrip-
tion. <Ref. to WW-3, FRONT WIPER, COM-
PONENT, General Description.>

C: ADJUSTMENT

NOTE:
The positions for RHD model are symmetrically op-
posite.
Operate wiper once. Align wiper blade to ceramic
print point mark (A) of front window pane.

WW-00071

WW-00048

(A)

WW-00048

(A)

WW-13

WIPER AND WASHER SYSTEMS

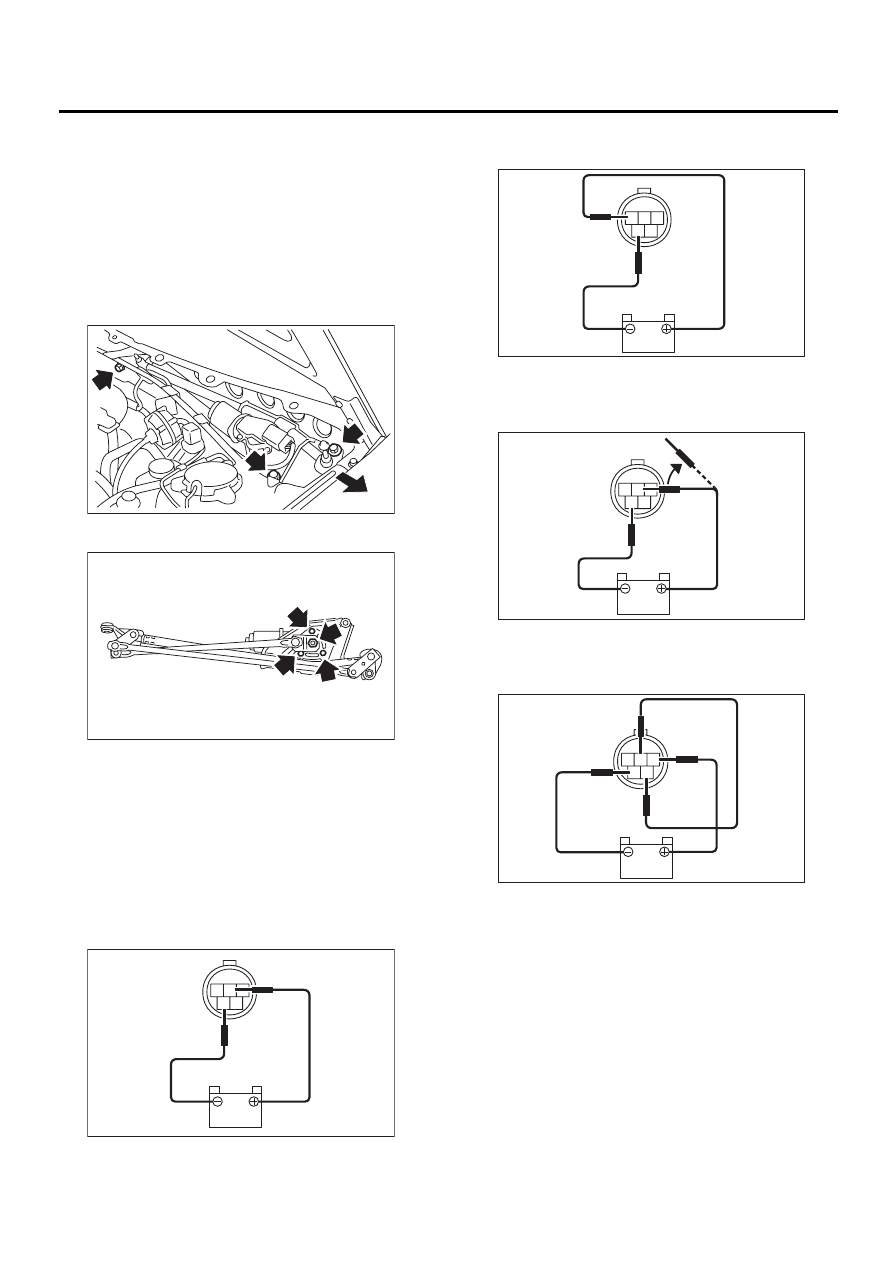

FRONT WIPER MOTOR AND LINK

7. Front Wiper Motor and Link

A: REMOVAL

NOTE:
The positions for RHD model are symmetrically op-
posite.
1) Remove cowl panel.  <Ref. to EI-27, REMOVAL,
Cowl Panel.>
2) Disconnect connector of motor.
3) Loosen bolts and nuts to remove wiper link.

4) Loosen bolts and nuts to remove motor.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

Refer to COMPONENT in General Descrip-
tion. <Ref. to WW-3, FRONT WIPER, COM-
PONENT, General Description.>

C: INSPECTION

1) When battery is connected to terminal of con-
nectors, confirm that motor operates at low speed.

2) When battery is connected to terminal of con-
nectors, confirm that motor operates at high speed.

3) Connect battery to terminals of connector, and
remove terminal connection with motor rotated at
low speed, and stop wiper motor through operation.

4) Connect battery and confirm that motor stops at
automatic stop position after motor operates at low
speed again.

WW-00074

WW-00075

WW-00076

1

2

3

4

5

WW-00077

1

2

3

4

5

WW-00078

1

2

3

4

5

WW-00079

1

2

3

4

5
