SIDE TURN SIGNAL LIGHT

26.Side Turn Signal Light

A: REMOVAL

1) Disconnect ground cable from battery.

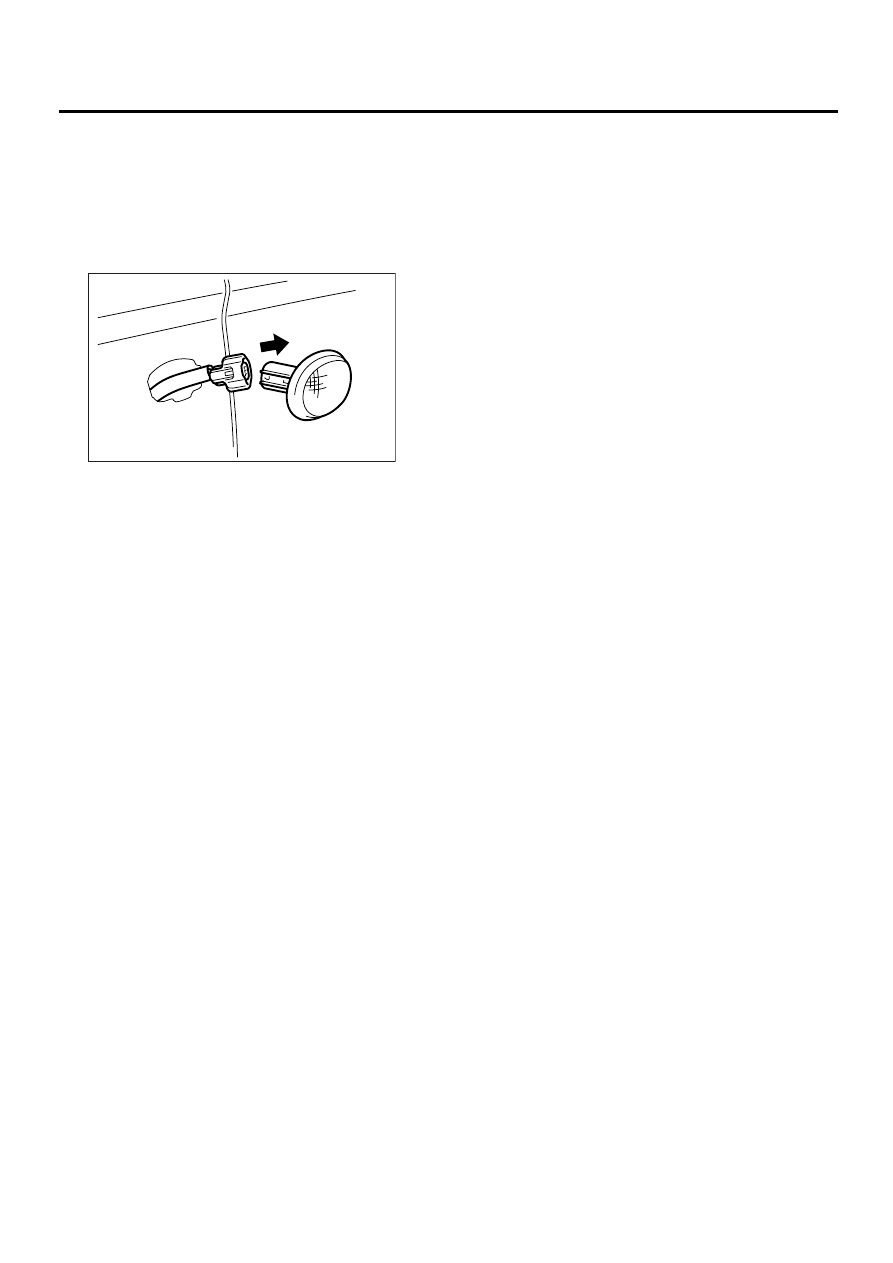

2) Pull out the light from body while pushing it in di-
rection of vehicle front.
3) Disconnect harness connector and remove the
light.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Check the bulb for blow out using a tester.
2) If NG, replace the side turn signal light assembly
with a new one.

LI-00067

LI-31

LIGHTING SYSTEM

SPOT LIGHT

27.Spot Light

A: REMOVAL

1) Disconnect ground cable from battery.

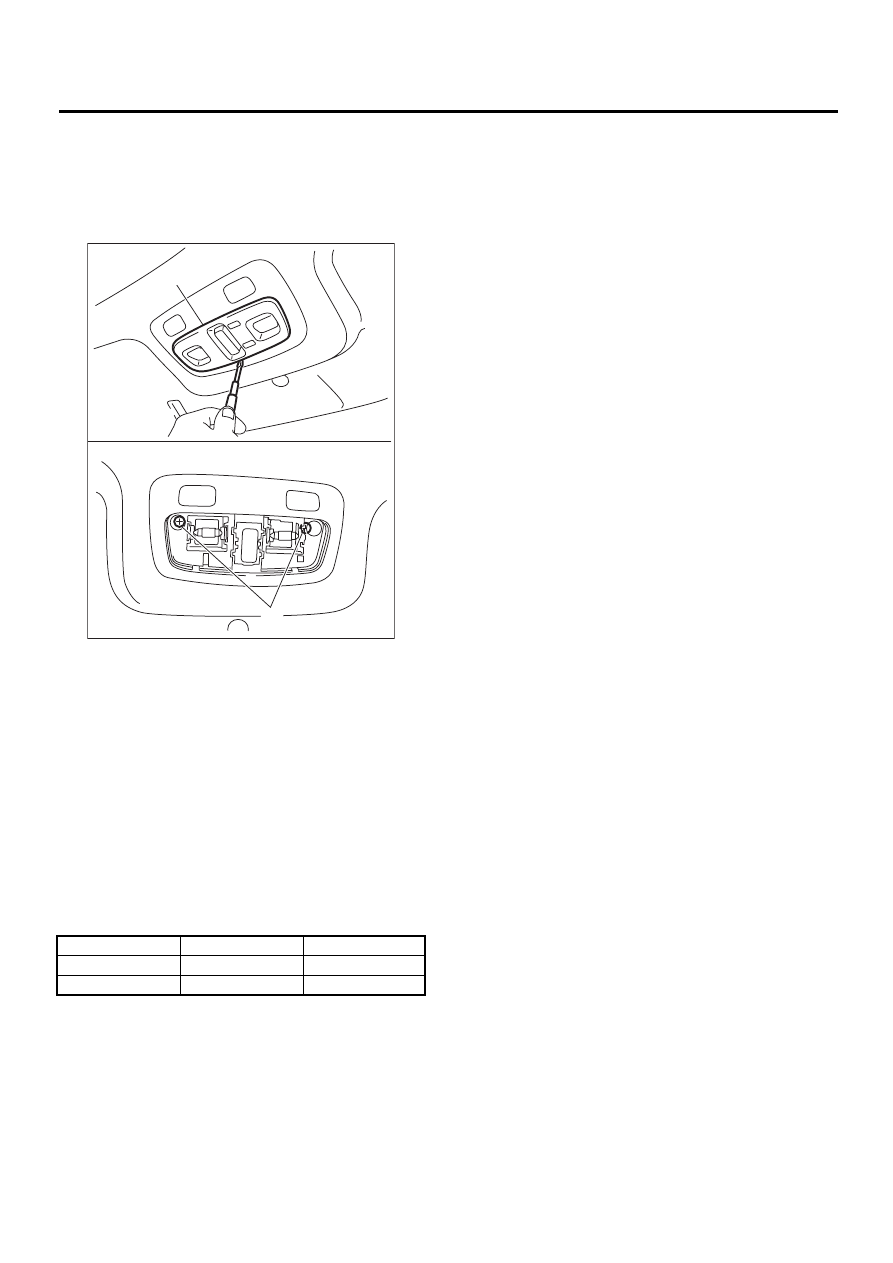

2) Remove lens (A) and spot light mounting screw
(B).

3) Disconnect harness connectors and remove
spot light.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1. SPOT LIGHT BULB

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATIONS, General Description.>
3) If NG, replace the bulb with a new one.

2. SPOT LIGHT SWITCH

Measure spot light resistance.

Switch position

Terminal No.

Standard

OFF

—

More than 1 M

Ω

ON

1 and 2

18

±

5.4

Ω

LI-00109

( A )

( B )

LI-32

LIGHTING SYSTEM

ROOM LIGHT

28.Room Light

A: REMOVAL

1) Disconnect ground cable from battery.

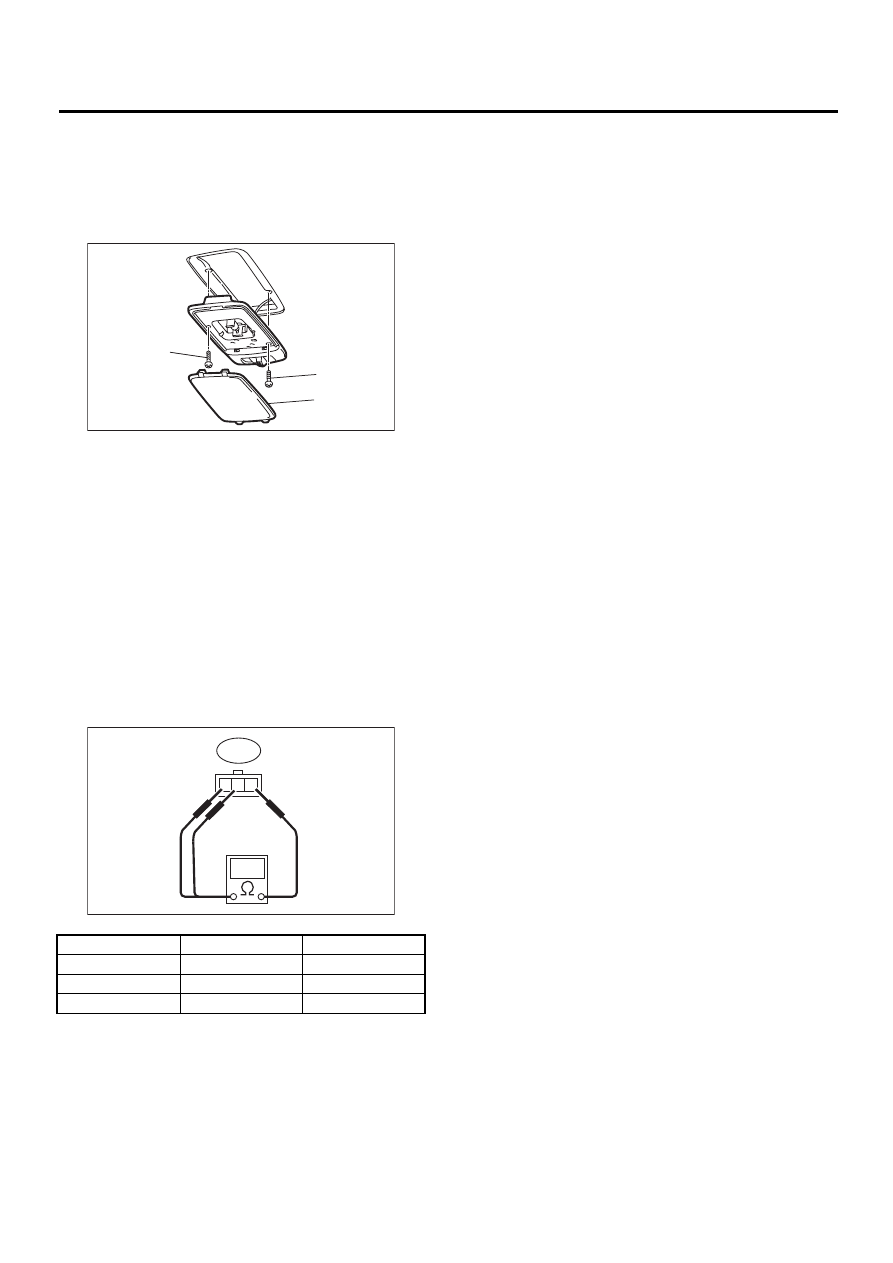

2) Remove lens (A) and room light mounting
screws (B).

3) Disconnect harness connectors and remove the
light.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1. ROOM LIGHT BULB

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATIONS, General Description.>
3) If NG, replace the bulb with a new one.

2. ROOM LIGHT SWITCH

Measure room light switch resistance.

Switch position

Terminal No.

Standard

OFF

—

More than 1 M

Ω

ON

1 and 3

1.5

±

0.5

Ω

DOOR

1 and 2

1.5

±

0.5

Ω

LI-00040

( A )

( B )

( B )

LI-00041

R52

2 1

3

LI-33

LIGHTING SYSTEM

LUGGAGE ROOM LIGHT

29.Luggage Room Light

A: REMOVAL

1) Disconnect ground cable from battery.

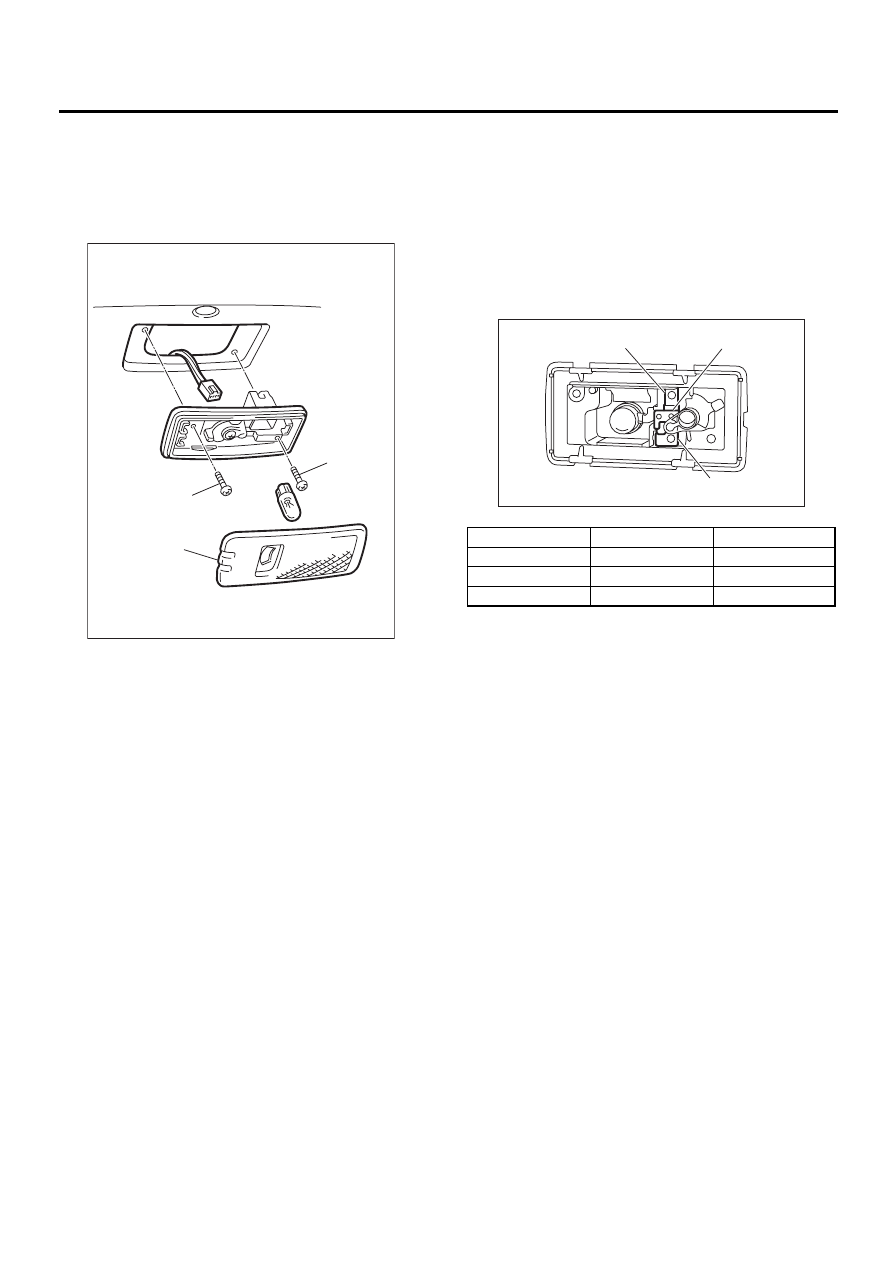

2) Remove lens (A) and luggage room light mount-
ing screws (B).

3) Disconnect harness connectors and remove lug-
gage room light.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1. LUGGAGE ROOM LIGHT BULB

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATIONS, General Description.>
3) If NG, replace the bulb with a new one.

2. LUGGAGE ROOM LIGHT SWITCH

Measure luggage room light resistance.

LI-00042

( A )

( B )

( B )

Switch position

Terminal No.

Standard

OFF

—

More than 1 M

Ω

ON

1 and 3

1.5

±

0.5

Ω

DOOR

1 and 2

1.5

±

0.5

Ω

( 2 )

( 1 )

( 3 )

LI-00043
