LI-26

LIGHTING SYSTEM

REAR TURN SIGNAL LIGHT BULB

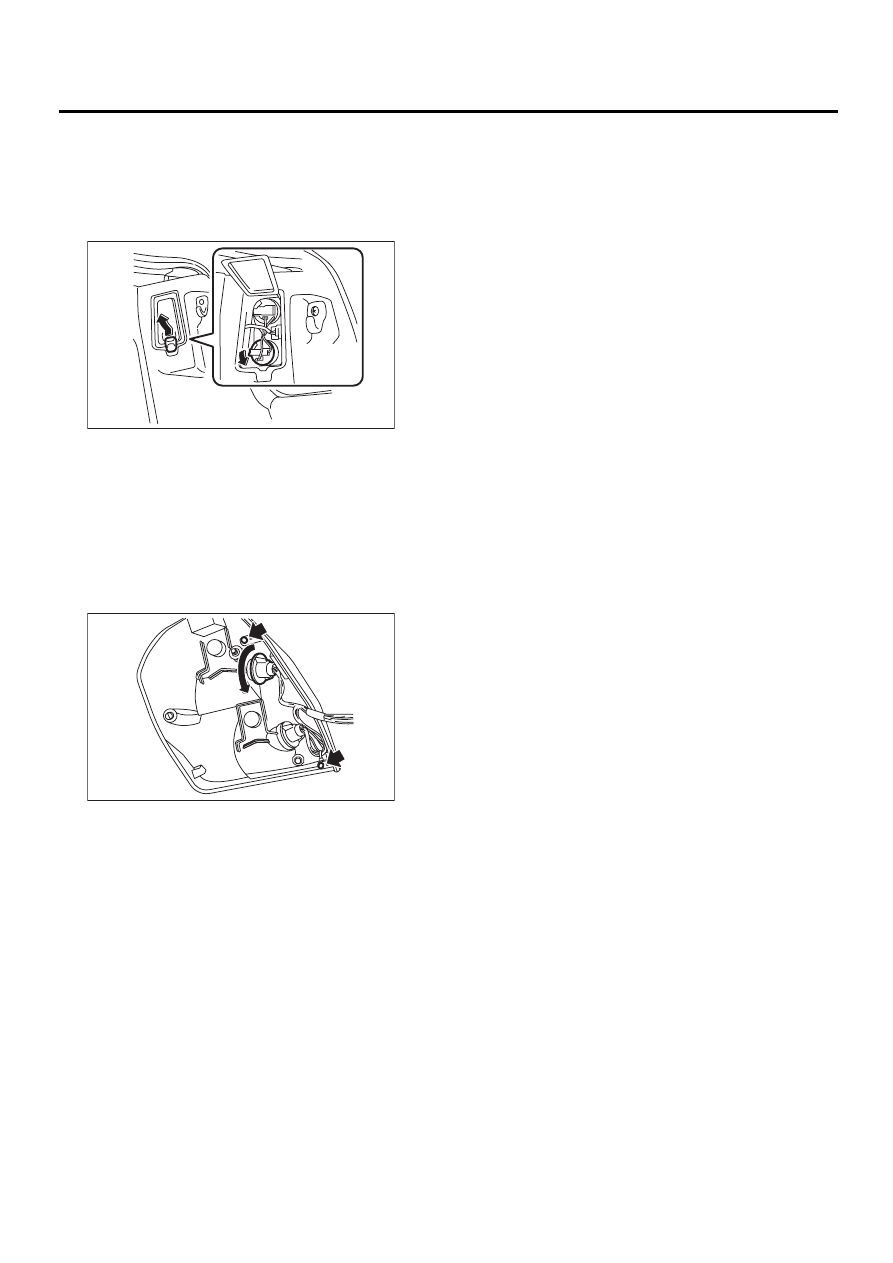

22.Rear Turn Signal Light Bulb

A: REMOVAL

1. SEDAN

1) Open trunk lid and remove cover.

2) Turn the socket and remove the bulb.

2. WAGON

1) Remove rear combination light assembly. <Ref.
to LI-22, WAGON, REMOVAL, Rear Combination
Light Assembly.>
2) Remove the light cover mounting screws then
detach the cover.
3) Turn the socket and remove the bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATIONS, General Description.>
3) If NG, replace the bulb with a new one.

LI-00104

LI-00105

LI-27

LIGHTING SYSTEM

REAR FOG LIGHT BULB

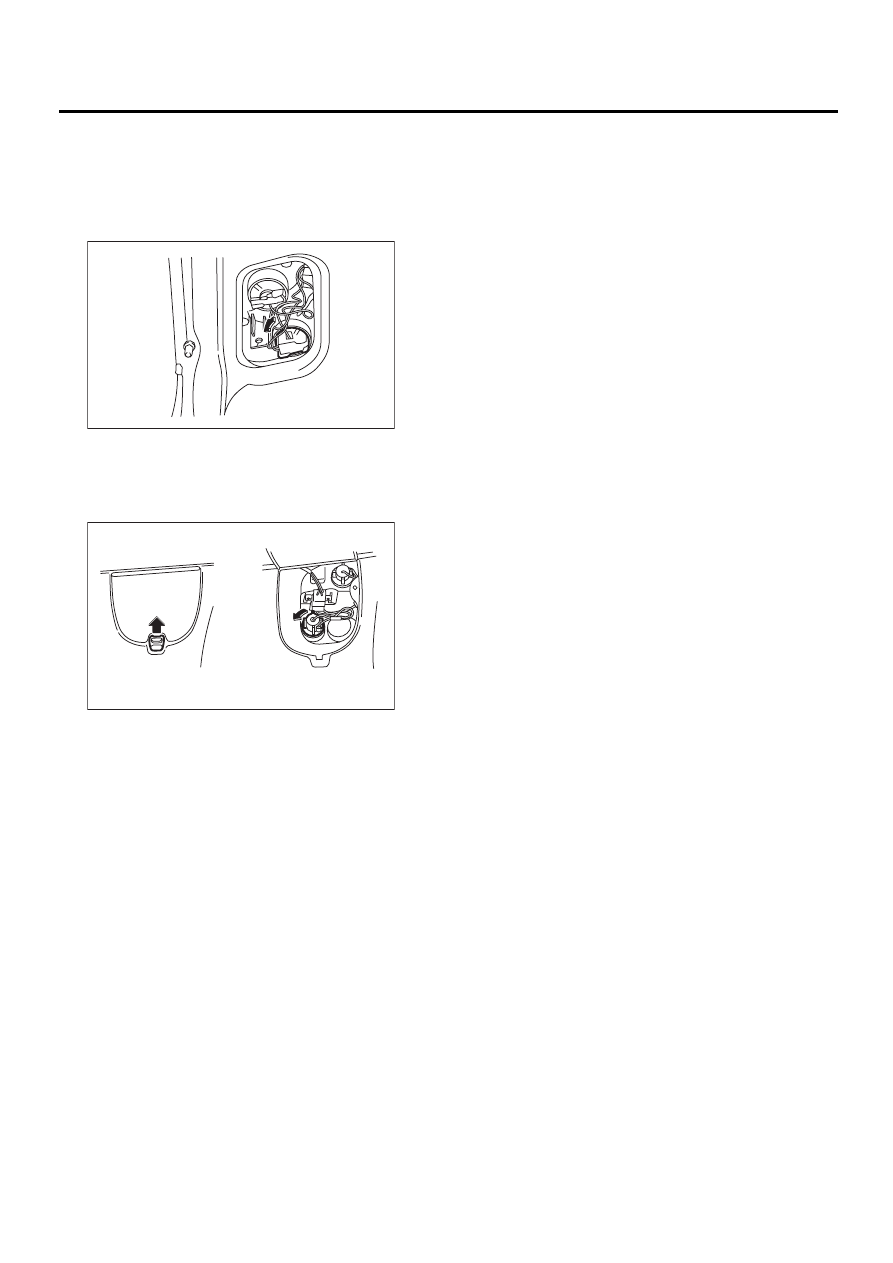

23.Rear Fog Light Bulb

A: REMOVAL

1. SEDAN

1) Open trunk lid and remove cover.

2) Turn the socket and remove the bulb.

2. WAGON

1) Open rear gate lower trim cover.

2) Turn the socket and remove the bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
Specifications.>
3) If NG, replace the bulb with a new one.

LI-00099

LI-00101

LI-28

LIGHTING SYSTEM

LICENSE PLATE LIGHT

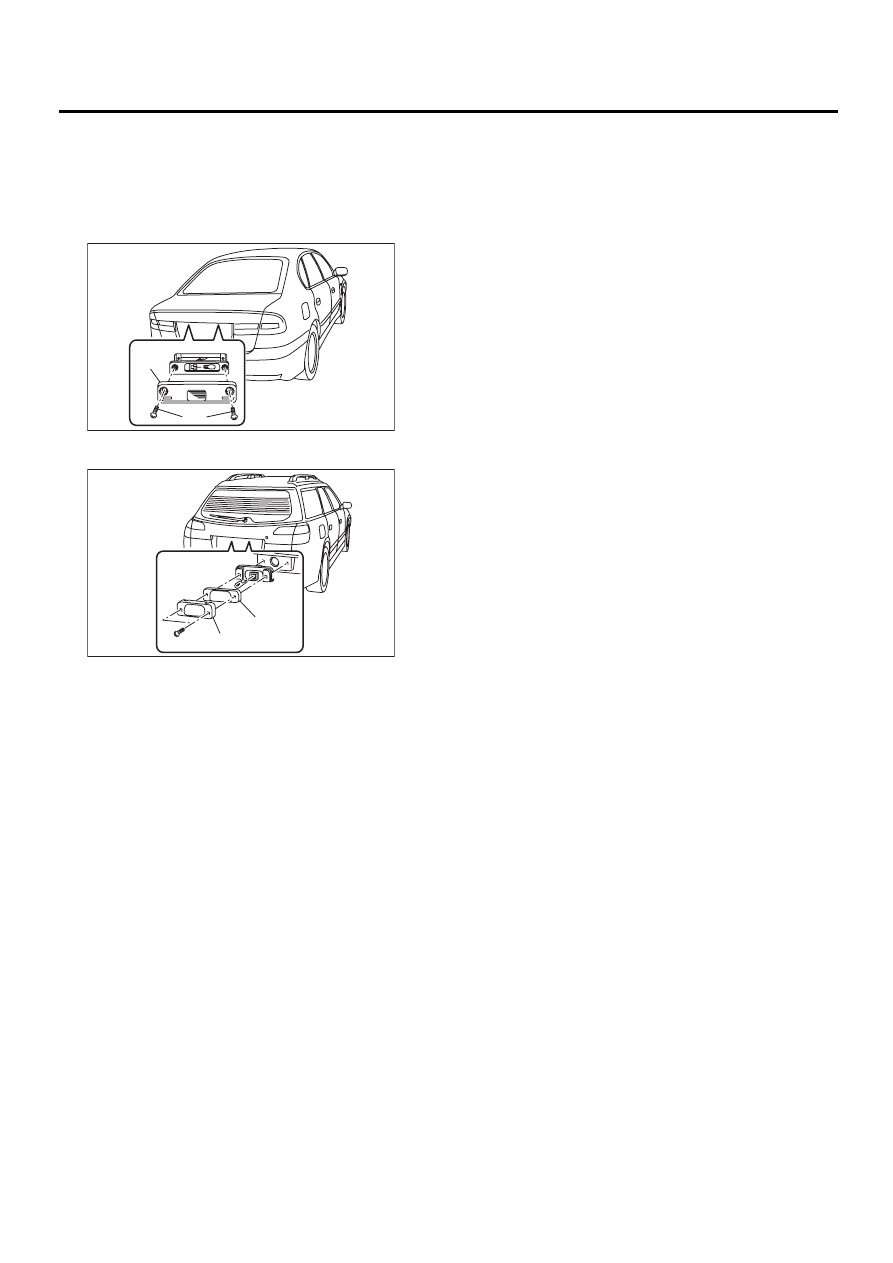

24.License Plate Light

A: REMOVAL

1) Remove license plate light mounting screw (A)
and then remove the lens (B)
SEDAN

WAGON

2) Remove the bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATIONS, General Description.>
3) If NG, replace the bulb with a new one.

LI-00106

( A )

( B )

LI-00107

( B )

( A )

LI-29

LIGHTING SYSTEM

HIGH-MOUNTED STOP LIGHT

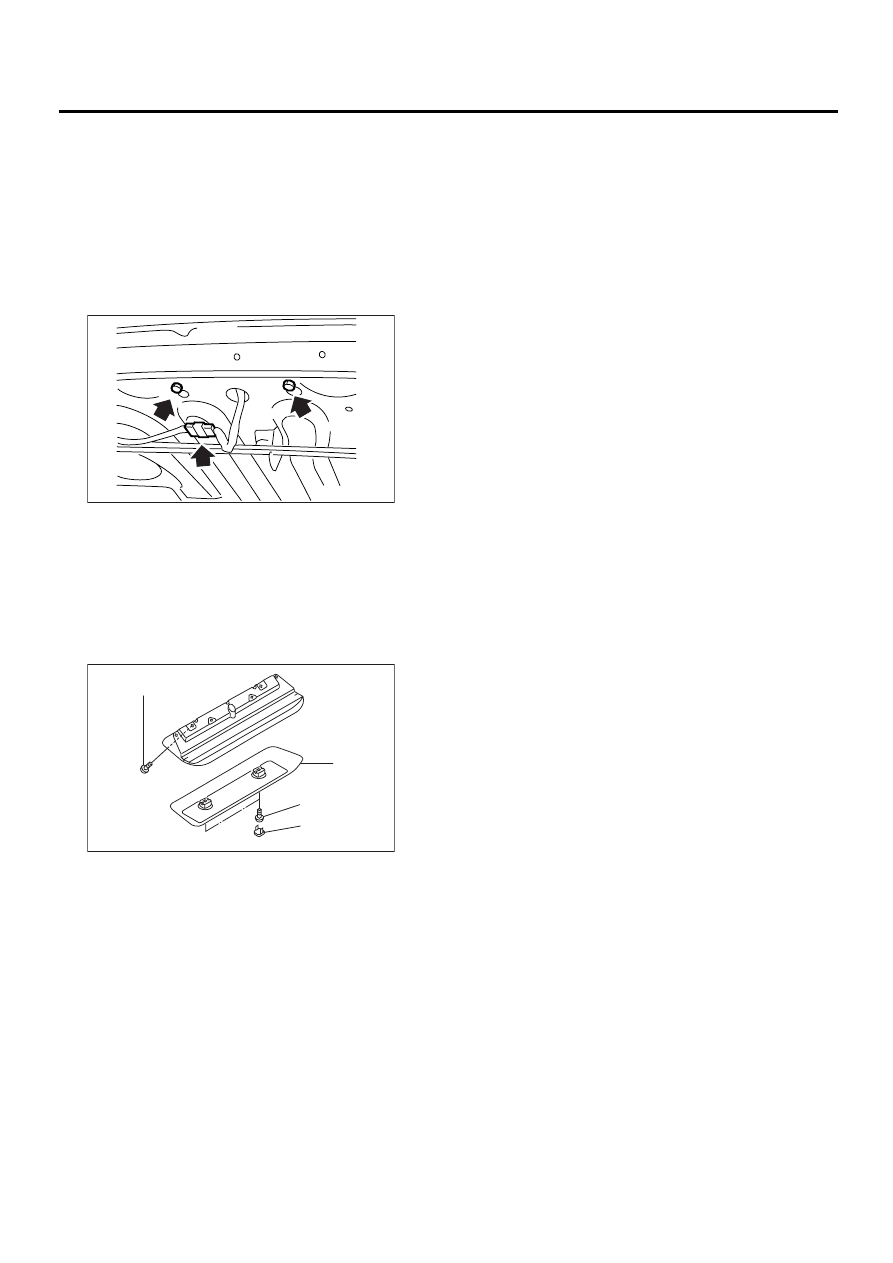

25.High-mounted Stop Light

A: REMOVAL

1. SEDAN

1) Disconnect ground cable from battery.
2) Disconnect connector of high-mounted stop light
from body harness.
3) Remove bolts, then detach high-mounted stop
light assembly.

2. WAGON

1) Disconnect ground cable from battery.
2) Remove cap (a) by prying on the edge with a
screwdriver.
3) Remove screws (b) and then detach cover (c).
4) Remove screws (d) and then detach high-
mounted stop light while disconnecting connector.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATIONS, General Description.>
3) If NG, replace the bulb with a new one.

LI-00108

LI-00036

( a )

( b )

( c )

( d )
