Subaru Legacy III (2000-2003 year). Manual - part 921

LI-18

LIGHTING SYSTEM

FRONT TURN SIGNAL LIGHT BULB

14.Front Turn Signal Light Bulb

A: REMOVAL

1) Remove headlight assembly. <Ref. to LI-15, RE-
MOVAL, Headlight Assembly.>
2) Turn the socket and remove the bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATIONS, General Description.>
3) If NG, replace the bulb with a new one.

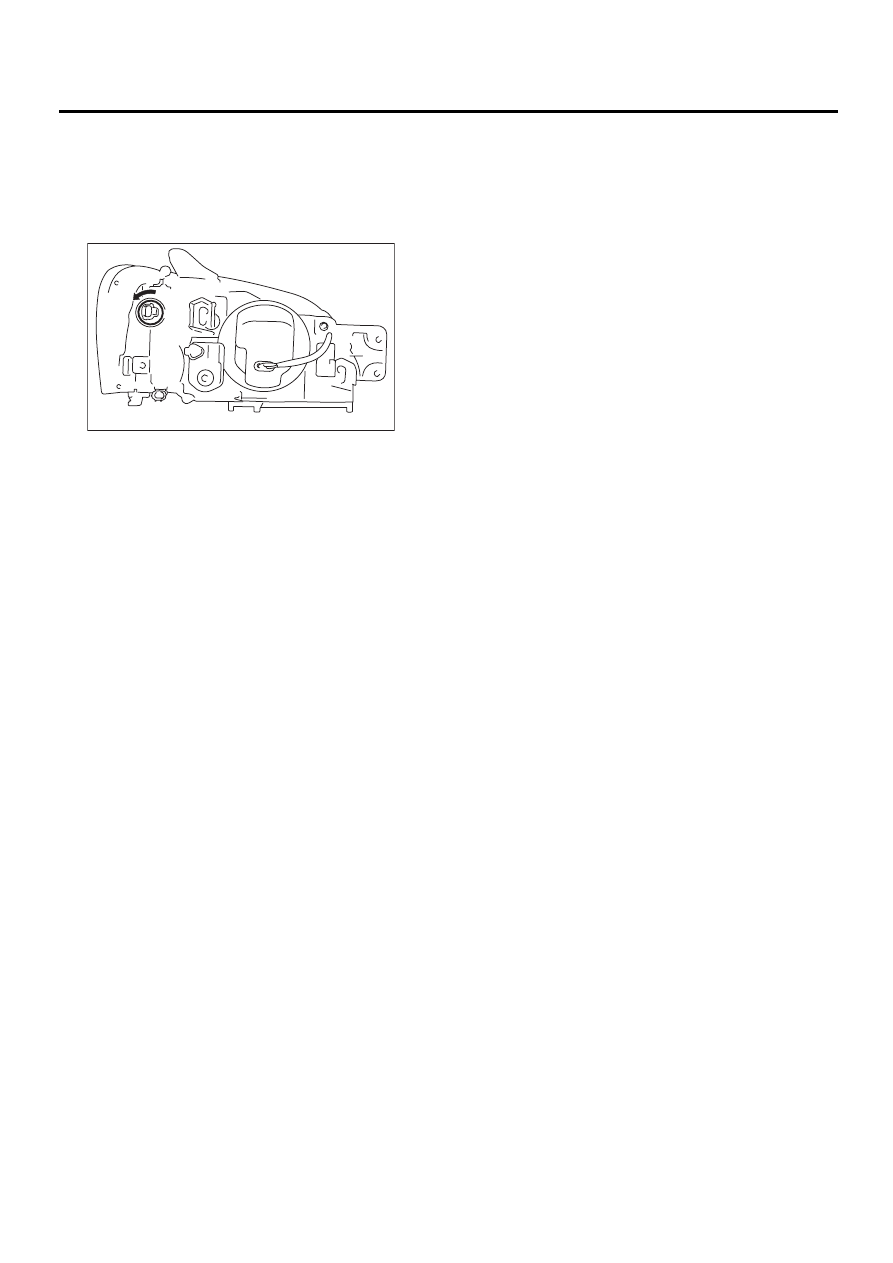

LI-00136

LI-19

LIGHTING SYSTEM

PARKING LIGHT BULB

15.Parking Light Bulb

A: REMOVAL

1) Remove headlight assembly. <Ref. to LI-15, RE-
MOVAL, Headlight Assembly.>
2) Turn the socket and remove the bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATIONS, General Description.>
3) If NG, replace the bulb with a new one.

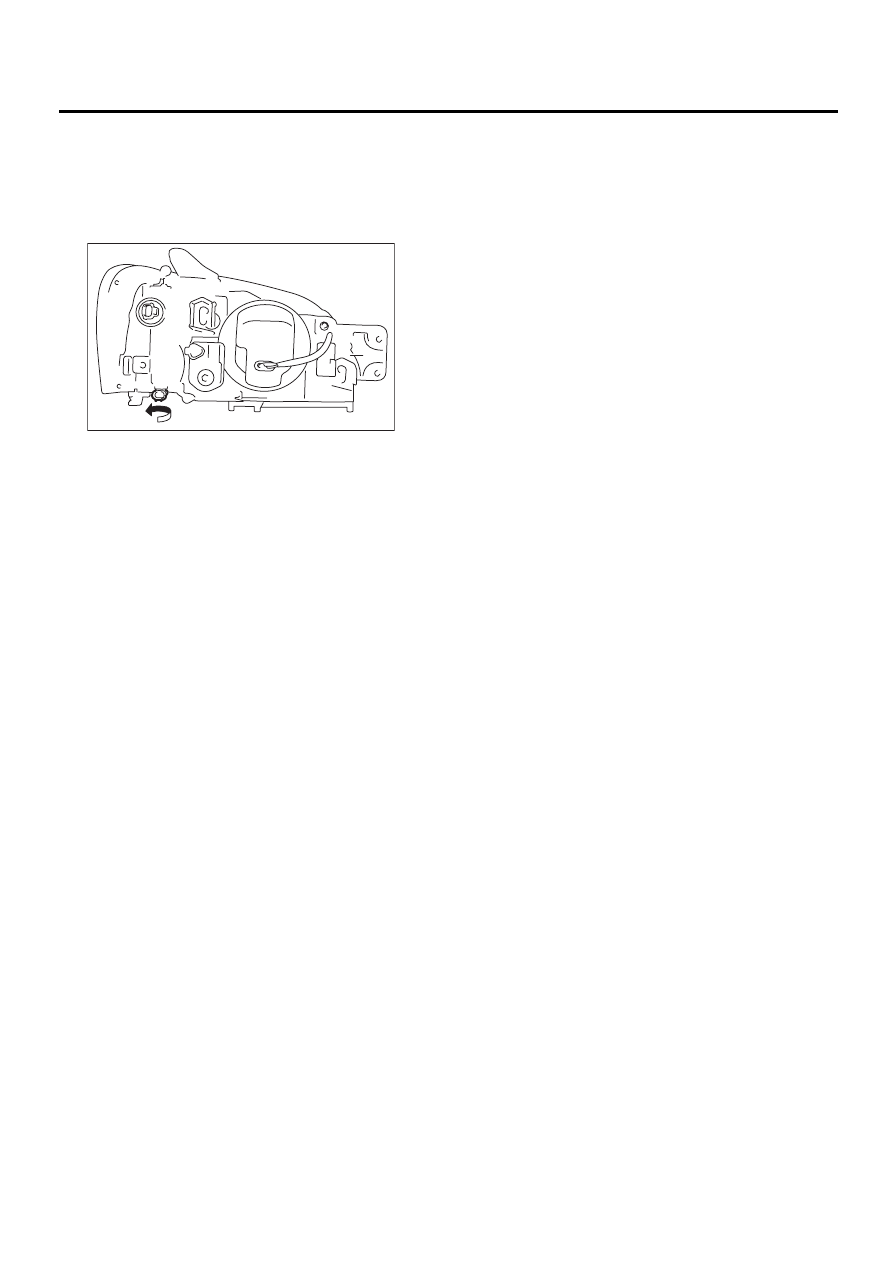

LI-00137

LI-20

LIGHTING SYSTEM

FRONT FOG LIGHT ASSEMBLY

16.Front Fog Light Assembly

A: REMOVAL

1. EXCEPT OUTBACK

1) Disconnect ground cable from battery.
2) Remove two clips and lower the mudguard.

3) Disconnect harness connector.
4) Remove mounting bolts, and then detach fog
light assembly.

2. OUTBACK

1) Disconnect ground cable from battery.
2) Turn stone guard counterclockwise, and then re-
move it.

3) Remove mounting bolts.

4) Remove two clips and lower the mudguard.

5) Disconnect harness connector (a).
6) Remove nut (b) then detach fog light assembly.

B: INSTALLATION

Install in the reverse order of removal.

LI-00084

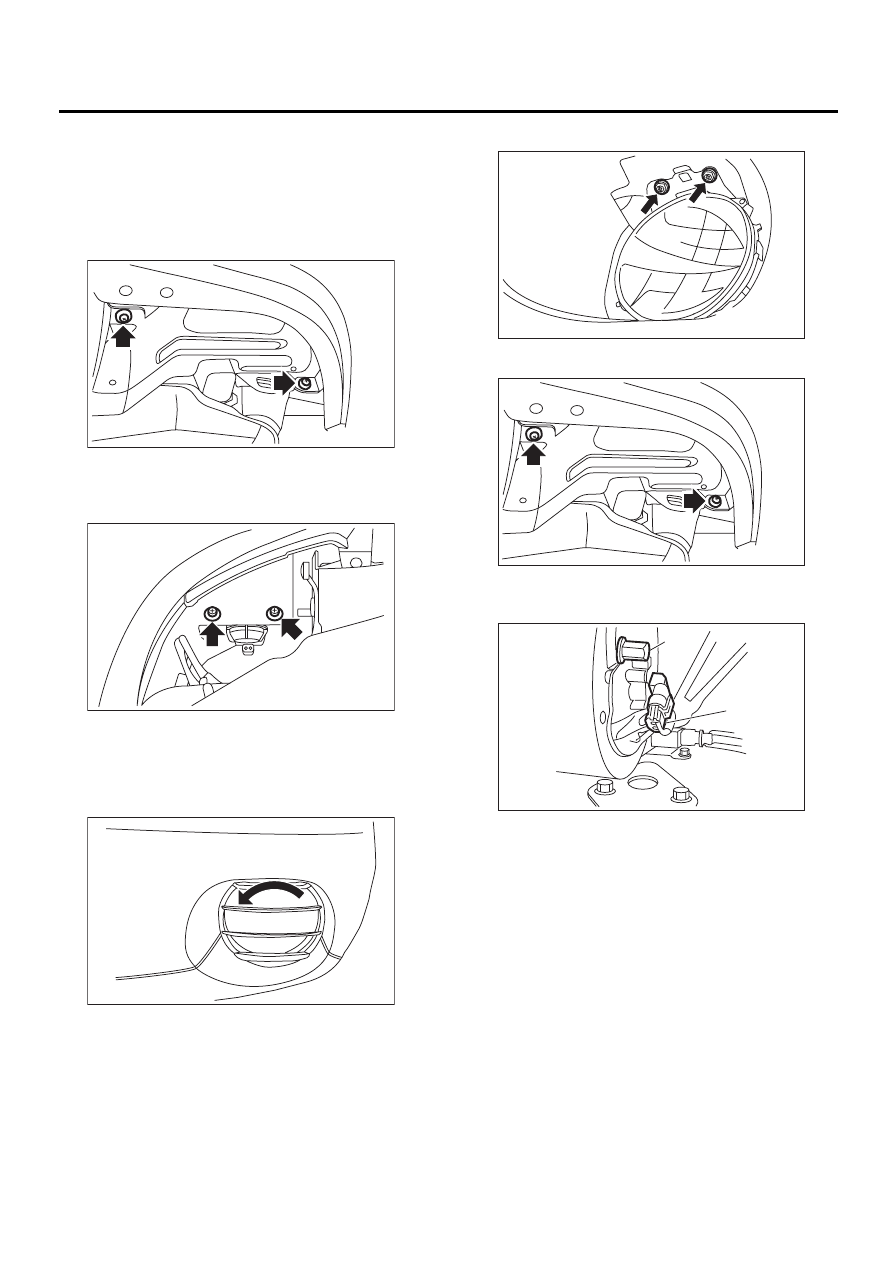

LI-00085

LI-00086

LI-00087

LI-00084

LI-00088

( a )

( b )

LI-21

LIGHTING SYSTEM

FRONT FOG LIGHT BULB

17.Front Fog Light Bulb

A: REMOVAL

1. EXCEPT OUTBACK

1) Disconnect ground cable from battery.
2) Remove the two clips and lower the mudguard.

3) Disconnect harness connector.
4) Remove back cover (A).

5) Remove spring retainer then detach fog light
bulb.

2. OUTBACK

1) Remove fog light assembly. <Ref. to LI-20,
OUTBACK, REMOVAL, Front Fog Light Assem-
bly.>
2) Disconnect harness connector.
3) Loosen screws and turn the bulb assembly
counterclockwise, and then detach the bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2, PRE-
CAUTIONS, General Description.>
3) If NG, replace the bulb with a new one.

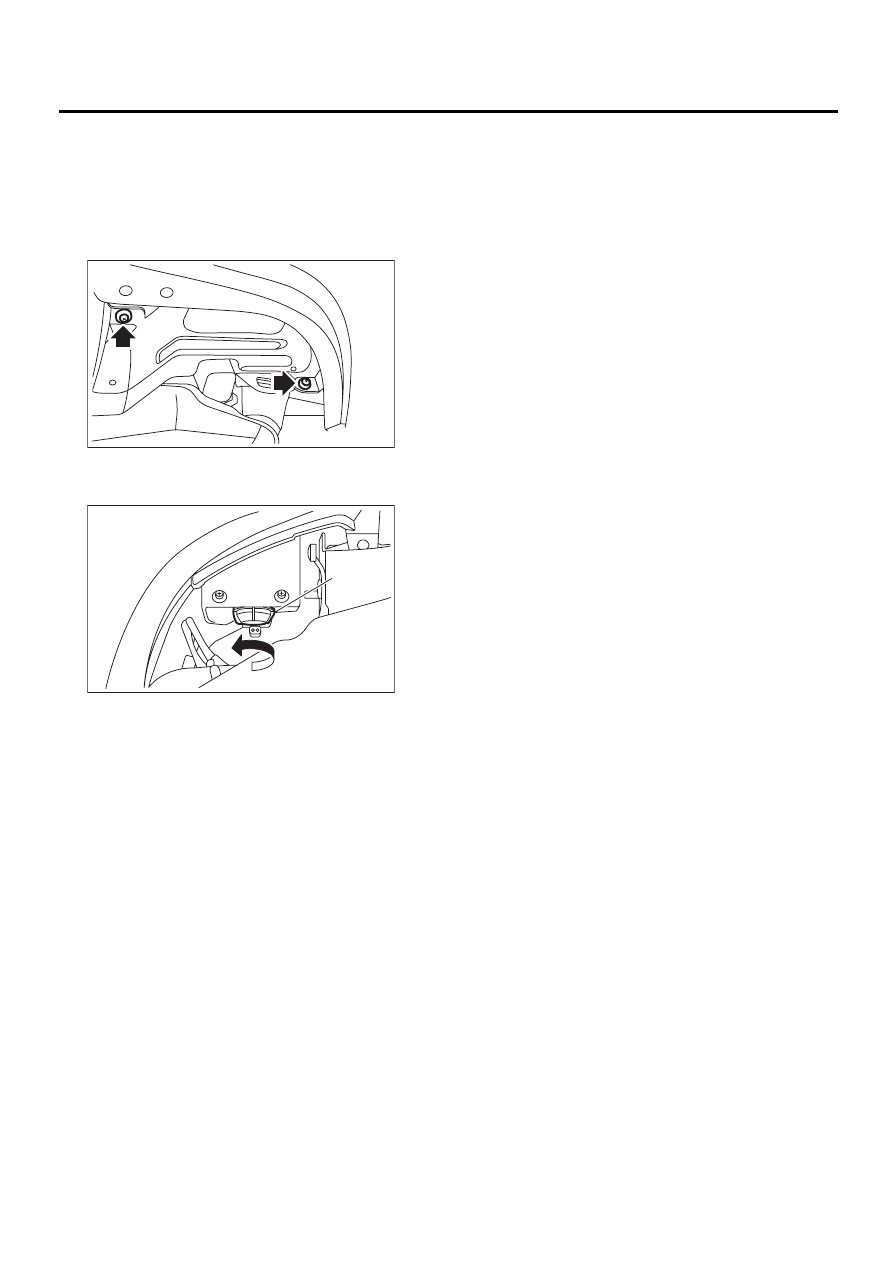

LI-00084

LI-00089

( A )
