Subaru Legacy III (2000-2003 year). Manual - part 683

DS-10

DRIVE SHAFT SYSTEM

GENERAL DESCRIPTION

927080000

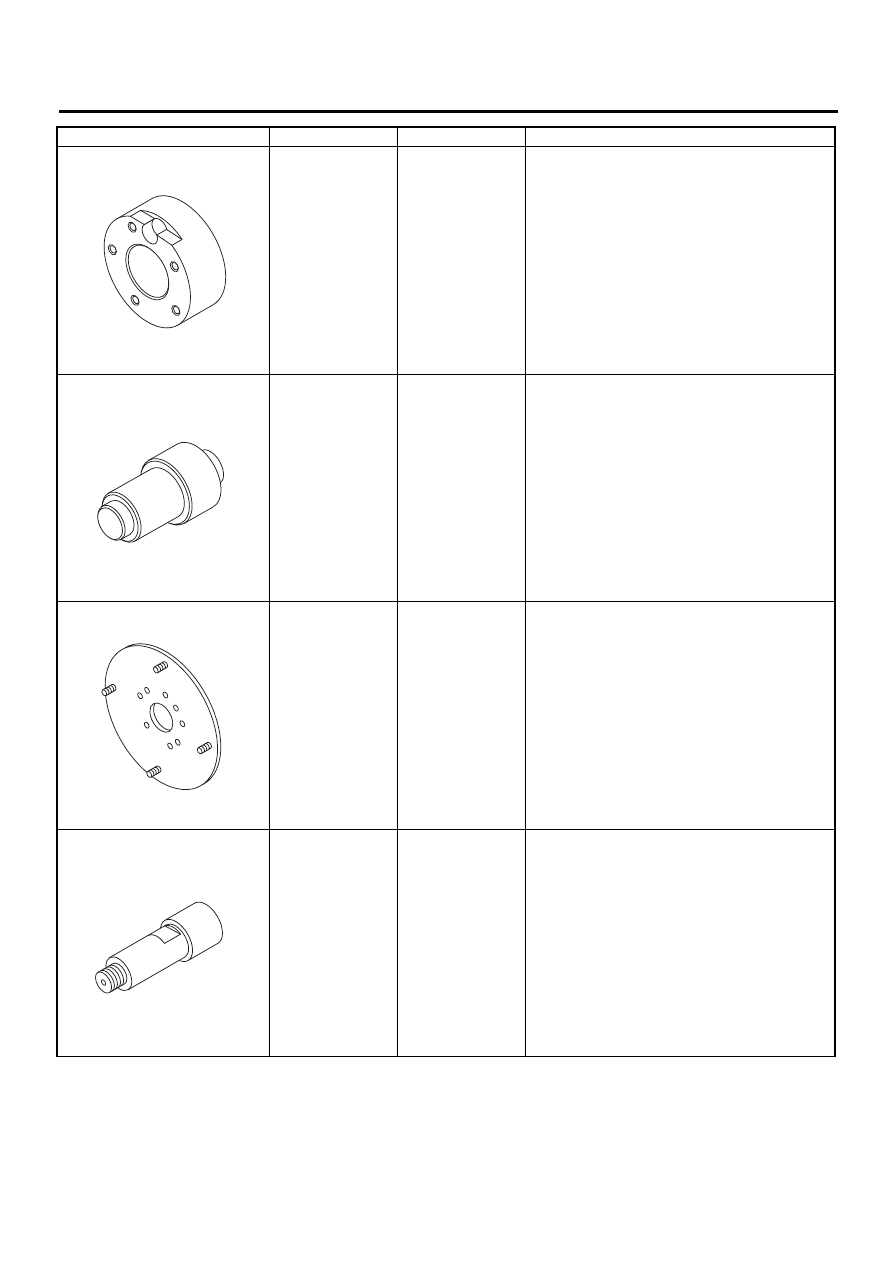

HUB STAND

Used for disassembling and assembling hub bolt
in hub.

927100000

BEARING
PULLER

• Used for disassembling and assembling front
housing bearing.
• Used with HOUSING STAND (927400000).

927140000

AXLE SHAFT
PULLER PLATE

Same as plate 2 included in AXLE SHAFT
PULLER (926470000).

927390000

ADAPTER

Used as an adapter for AXLE SHAFT INSTALLER
(922431000).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-927080000

ST-927100000

ST-927140000

ST-927390000

DS-11

DRIVE SHAFT SYSTEM

GENERAL DESCRIPTION

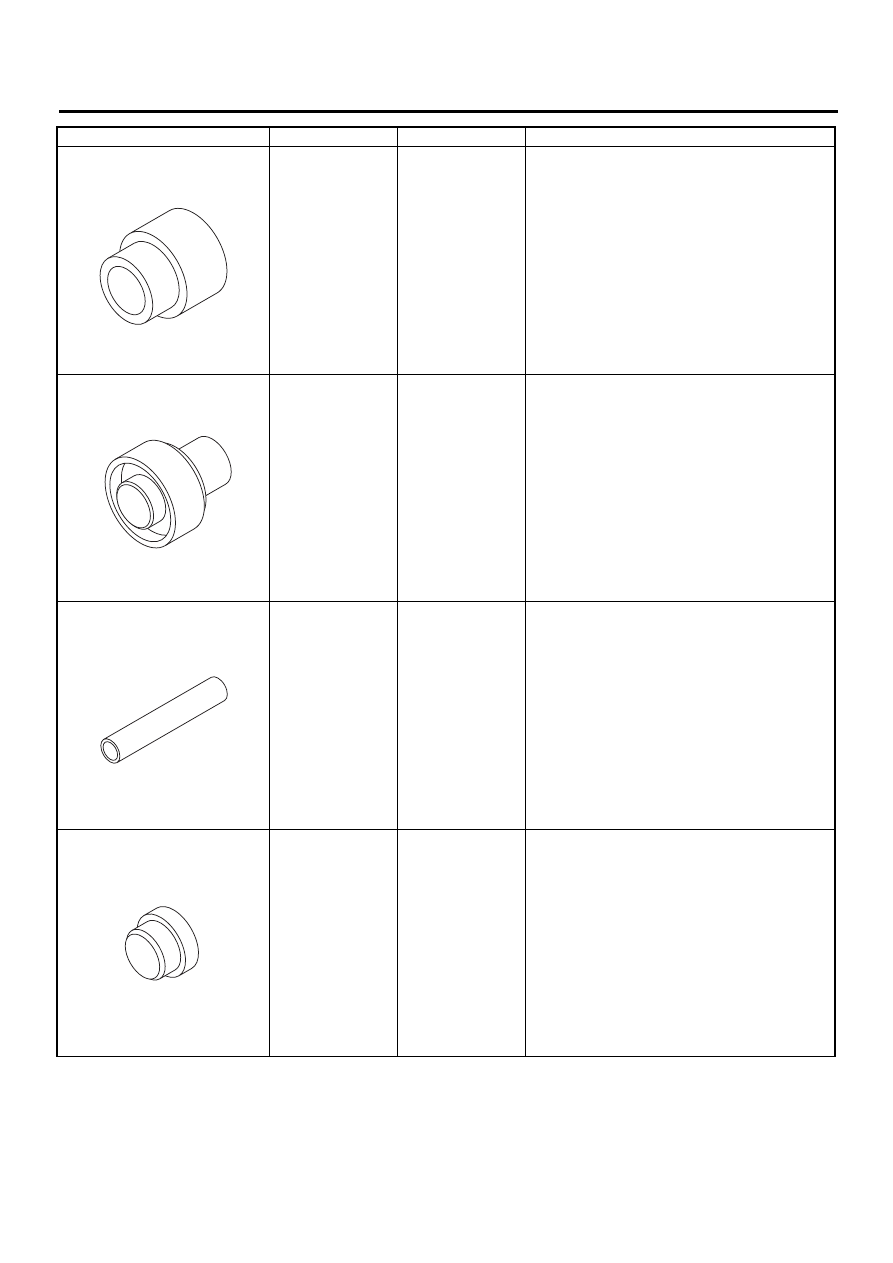

927400000

HOUSING STAND

• Used for disassembling and assemblig front
housing bearing.
• Used with BEARING PULLER (927100000).

927410000

OIL SEAL
INSTALLER

• Used for installing oil seal into front housing.
• Used with HOUSING STAND (927400000).

398507703

DUMMY COLLAR

Used for removing hub ASSY from hub unit.

399520105

SEAT

Used for removing inner race from hub ASSY.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-927400000

ST-927410000

ST-398507703

ST-399520105

DS-12

DRIVE SHAFT SYSTEM

GENERAL DESCRIPTION

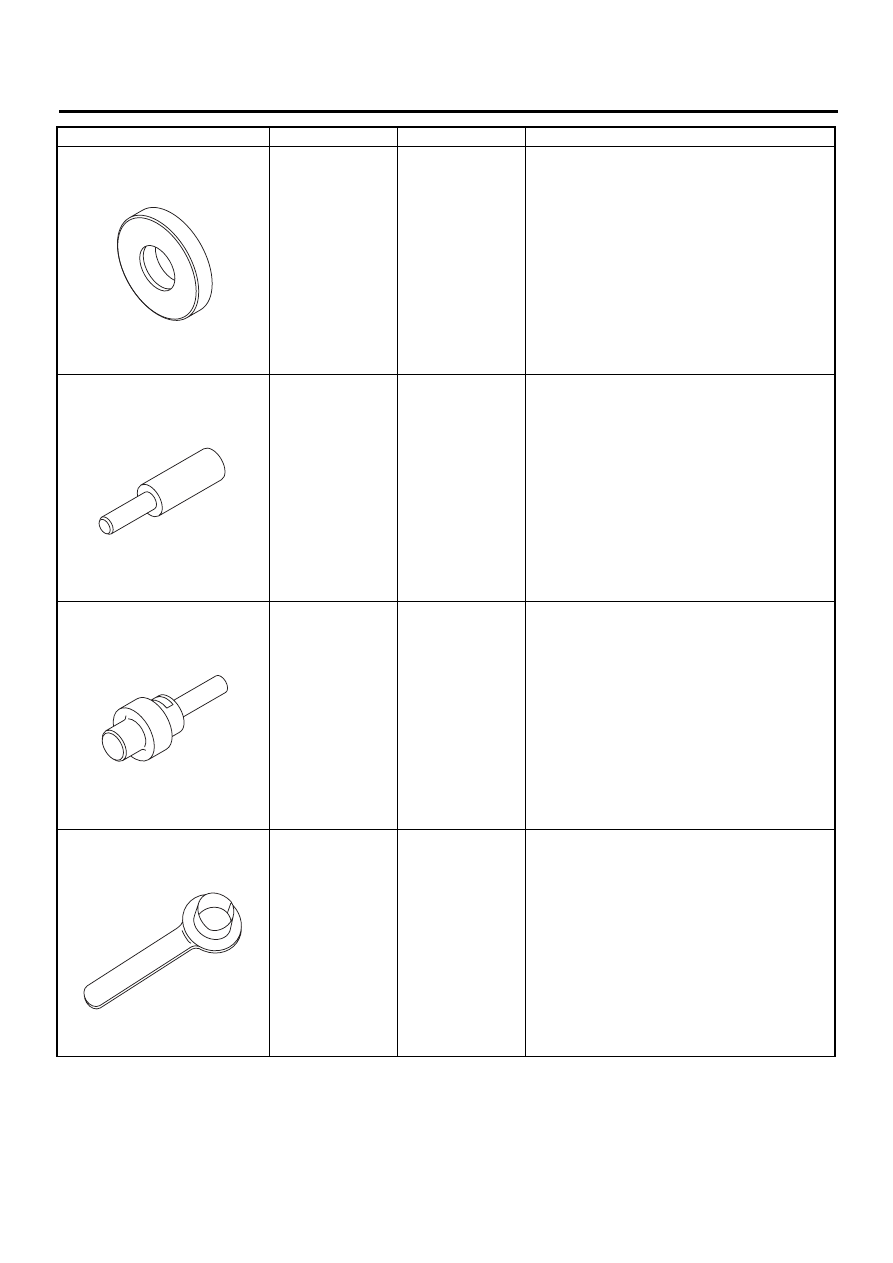

28499AE000

BEARING
SPACER

Used for installing hub unit into hub ASSY.

927120000

HUB INSTALLER

Used for installing hub.

927450000

HUB INSTALLER

• Used for installing hub unit into hub ASSY.
• Used with BEARING SPACER (28499AE000)
and HUB STAND (927080000).

28099PA090

OIL SEAL PRO-
TECTOR

• Used for installing rear drive shaft into rear dif-
ferential.
• For protecting oil seal.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST28499AE000

ST-927120000

ST-927450000

ST28099PA090

DS-13

DRIVE SHAFT SYSTEM

GENERAL DESCRIPTION

2. GENERAL PURPOSE TOOLS

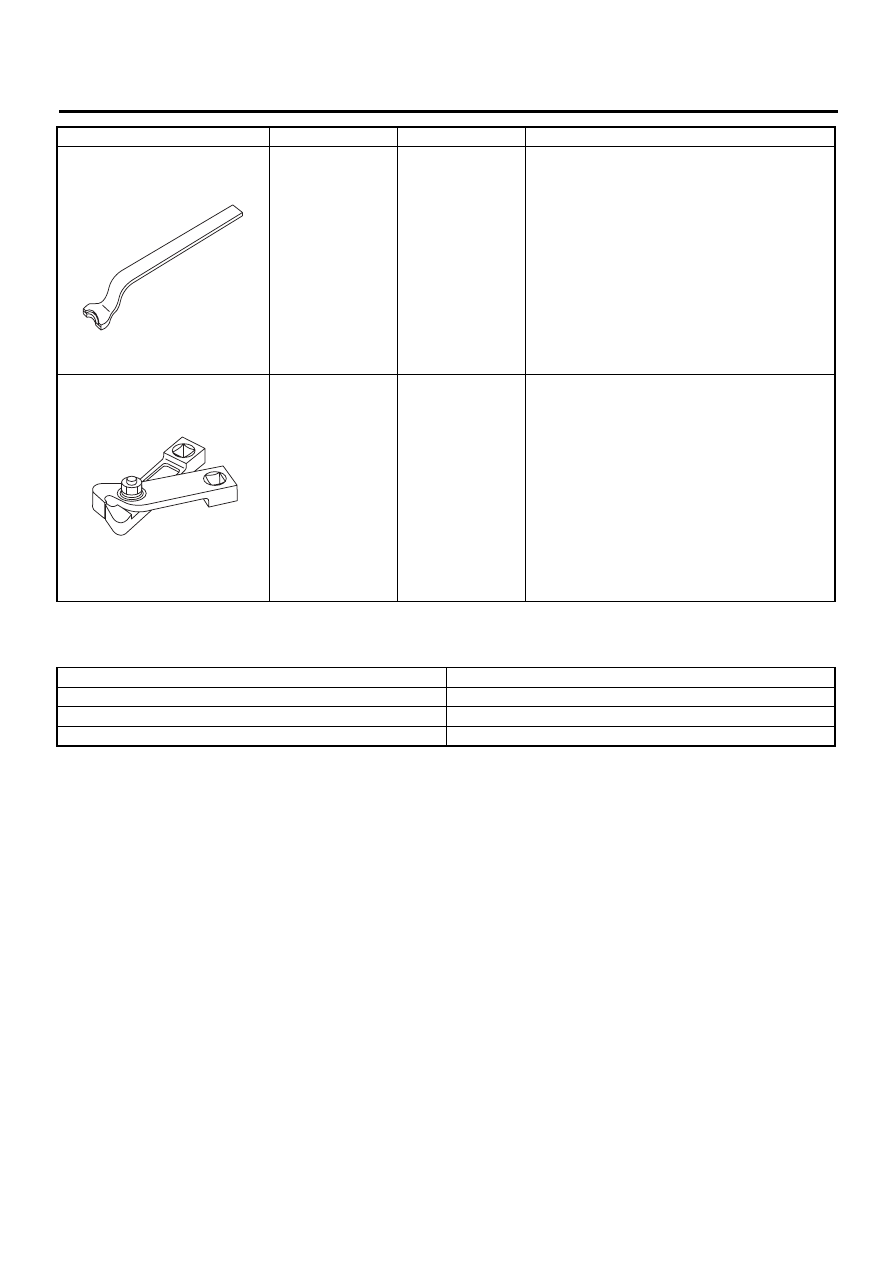

28099PA100

DRIVE SHAFT
REMOVER

Used for removing rear drive shaft from rear differ-
ential.

28099AC000

BOOT BAND PLI-
ERS

Used for tightening front BJ boot band.

TOOL NAME

REMARKS

Puller

Used for removing ball joint from knuckle arm.

Dial Gauge

Used for inspecting propeller shaft run-out.

Snap Ring Pliers

Used for installing and removing snap ring.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST28099PA100

ST28099AC000
