DRIVE SHAFT SYSTEM

GENERAL DESCRIPTION

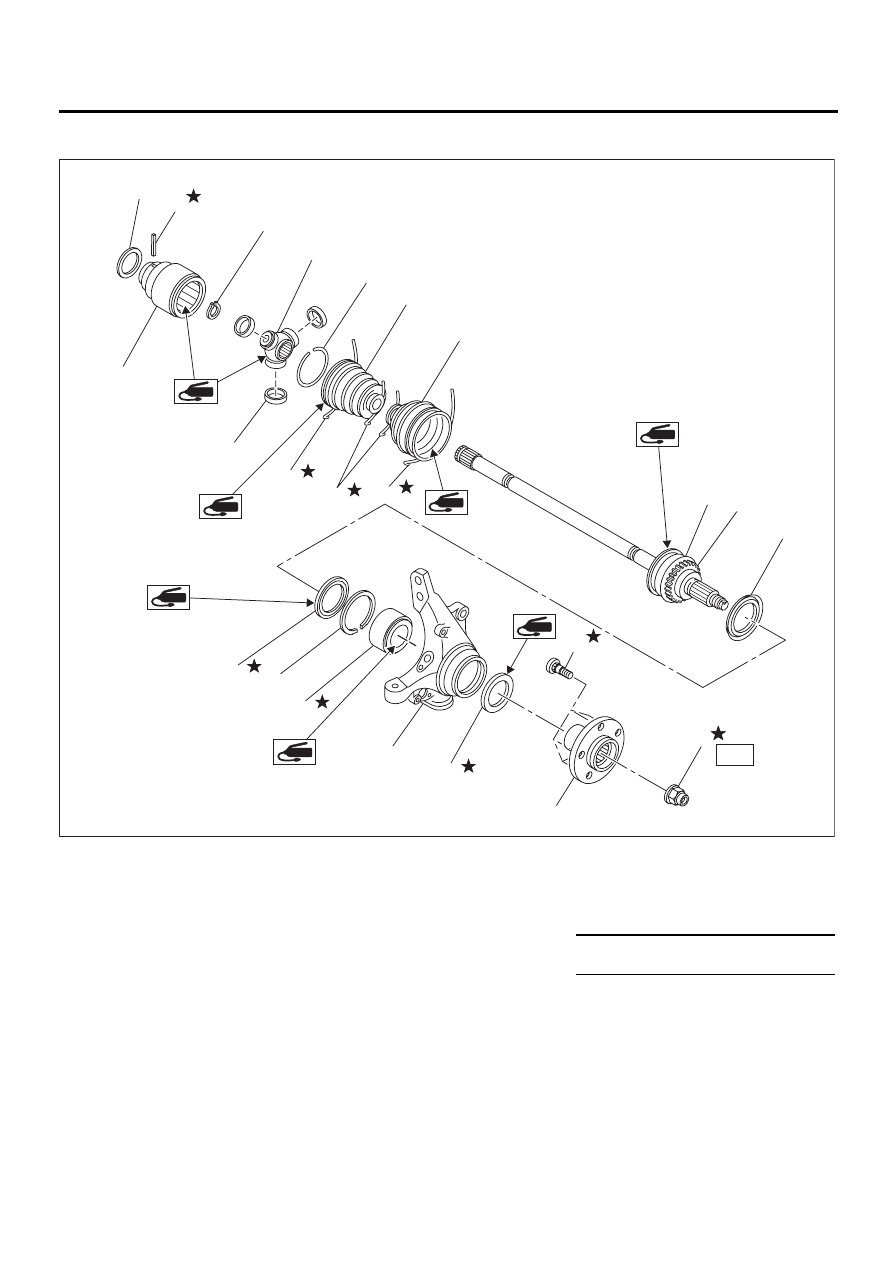

2. FRONT AXEL

(1) Baffle plate (SFJ)

(10) Boot (BJ)

(19) Hub bolt

(2) Spring pin

(11) BJ ASSY

(20) Hub

(3) Outer race (SFJ)

(12) Tone wheel

(21) Axle nut (Olive color)

(4) Snap ring

(13) Baffle plate

(5) Trunnion

(14) Oil seal (IN)

Tightening torque: N·m (kgf-m, ft-lb)

(6) Free ring

(15) Snap ring

T: 216 (22, 159)

(7) Circlip

(16) Bearing

(8) Boot band

(17) Housing

(9) Boot (SFJ)

(18) Oil seal (OUT)

DS-00138

( 3 )

( 6 )

( 8 )

( 8 )

( 8 )

( 9 )

( 7 )

( 5 )

( 4 )

( 2 )

( 1 )

(21)

(19)

(20)

(18)

(17)

(16)

(15)

(14)

(13)

(12)

(10)

(11)

T

DS-7

DRIVE SHAFT SYSTEM

GENERAL DESCRIPTION

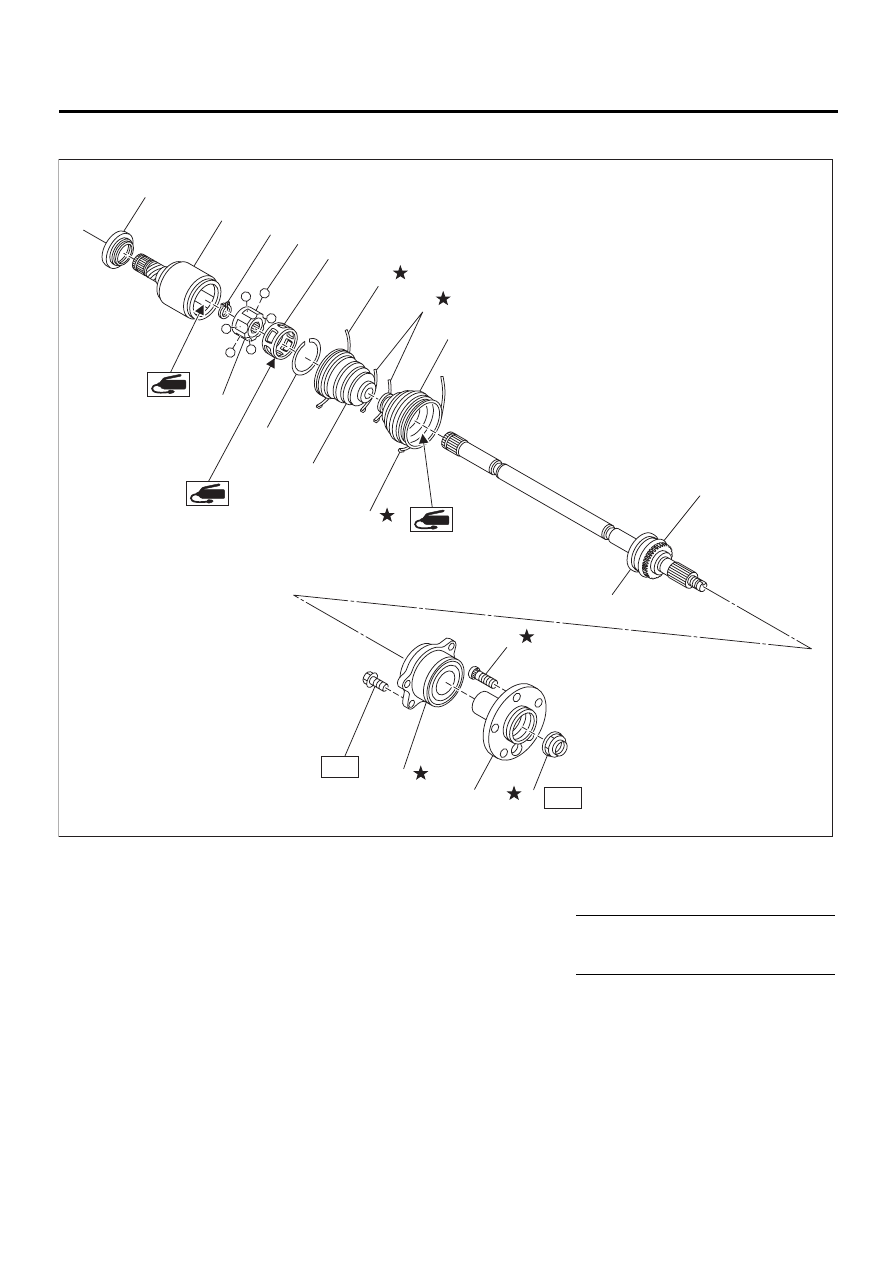

3. REAR AXLE

(1) Baffle plate (DOJ)

(8) Boot band

(15) Hub

(2) Outer race (DOJ)

(9) Boot (DOJ)

(16) Axle nut (Olive color)

(3) Snap ring

(10) Boot (BJ)

(4) Inner race

(11) BJ ASSY

Tightening torque: N·m (kgf-m, ft-lb)

(5) Ball

(12) Tone wheel

T1: 66 (6.7, 48.5)

(6) Cage

(13) Hub unit bearing

T2: 186 (19, 137)

(7) Circlip

(14) Hub bolt

DS-00139

( 4 )

( 7 )

( 9 )

( 8 )

( 8 )

( 8 )

( 6 )

( 5 )

( 3 )

( 2 )

( 1 )

(16)

(15)

(13)

(14)

(11)

(12)

(10)

T1

T2

DS-8

DRIVE SHAFT SYSTEM

GENERAL DESCRIPTION

C: CAUTION

• Wear working clothing, including a cap, protec-
tive goggles, and protective shoes during opera-
tion.
• Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
• Keep the disassembled parts in order and pro-
tect them from dust or dirt.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly, and replacement.
• Be careful not to burn your hands, because each
part on the vehicle is hot after running.
• Use SUBARU genuine grease etc. or the equiv-
alent. Do not mix grease etc. with that of another
grade or from other manufacturers.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or safety stands at the specified
points.
•  Apply grease onto sliding or revolution surfaces
before installation.
• Before installing O-rings or snap rings, apply suf-
ficient amount of grease to avoid damage and de-
formation.
• Before securing a part on a vise, place cushion-
ing material such as wood blocks, aluminum plate,
or shop cloth between the part and the vise.

DS-9

DRIVE SHAFT SYSTEM

GENERAL DESCRIPTION

D: MPREPARATION TOOL

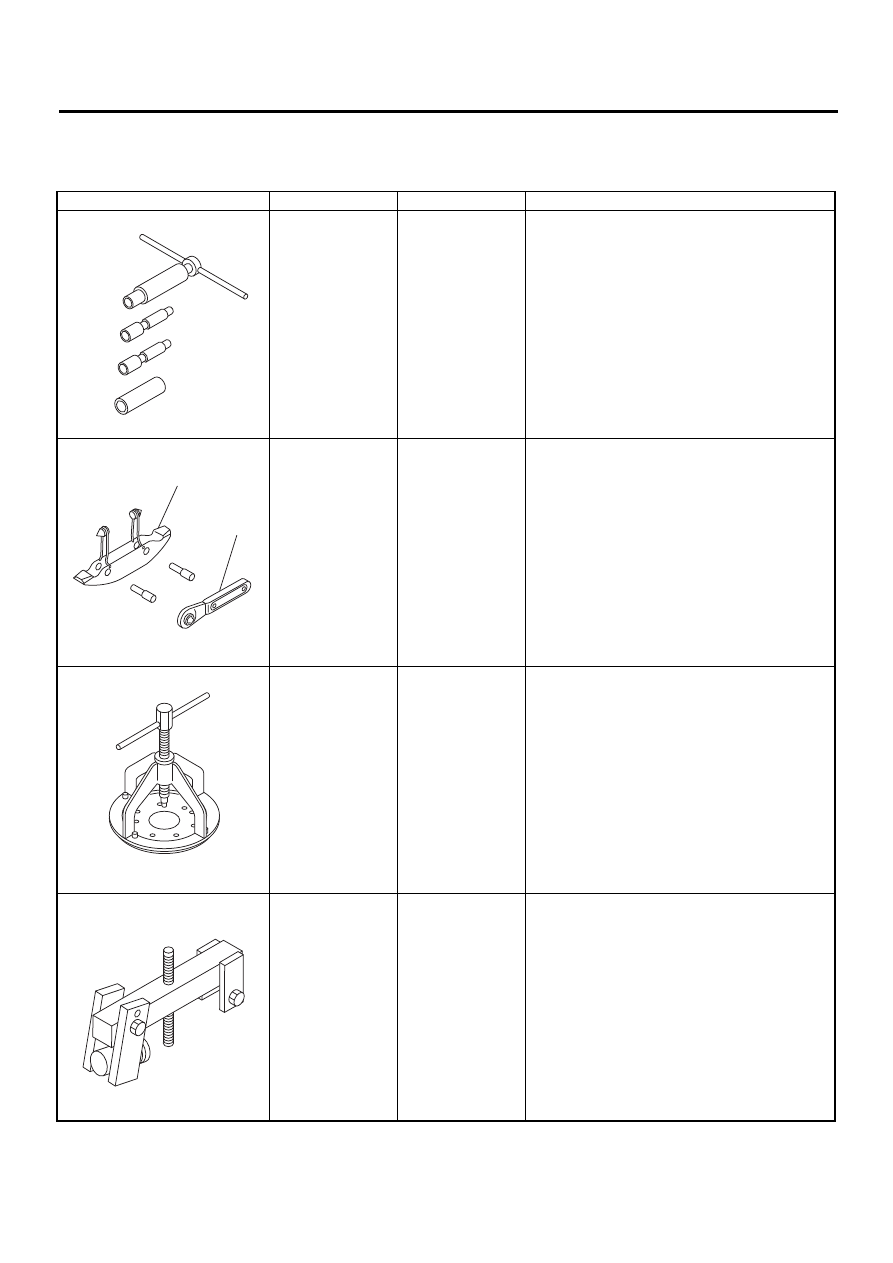

1. SPECIAL TOOLS

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

922431000

AXLE SHAFT
INSTALLER

• Used for installing axle shaft into housing.
• Used with ADAPTER (927390000).

925091000

BAND TIGHTEN-
ING TOOL

• Used for tightening boot band.
(A) Jig for band
(B) Ratchet wrench

926470000

AXLE SHAFT
PULLER

Used for removing axle shaft.

927060000

HUB REMOVER

• Used for removing front hub.
• Used with HUB STAND (927080000).

ST-922431000

ST-925091000

( A )

( B )

ST-926470000

ST-927060000
