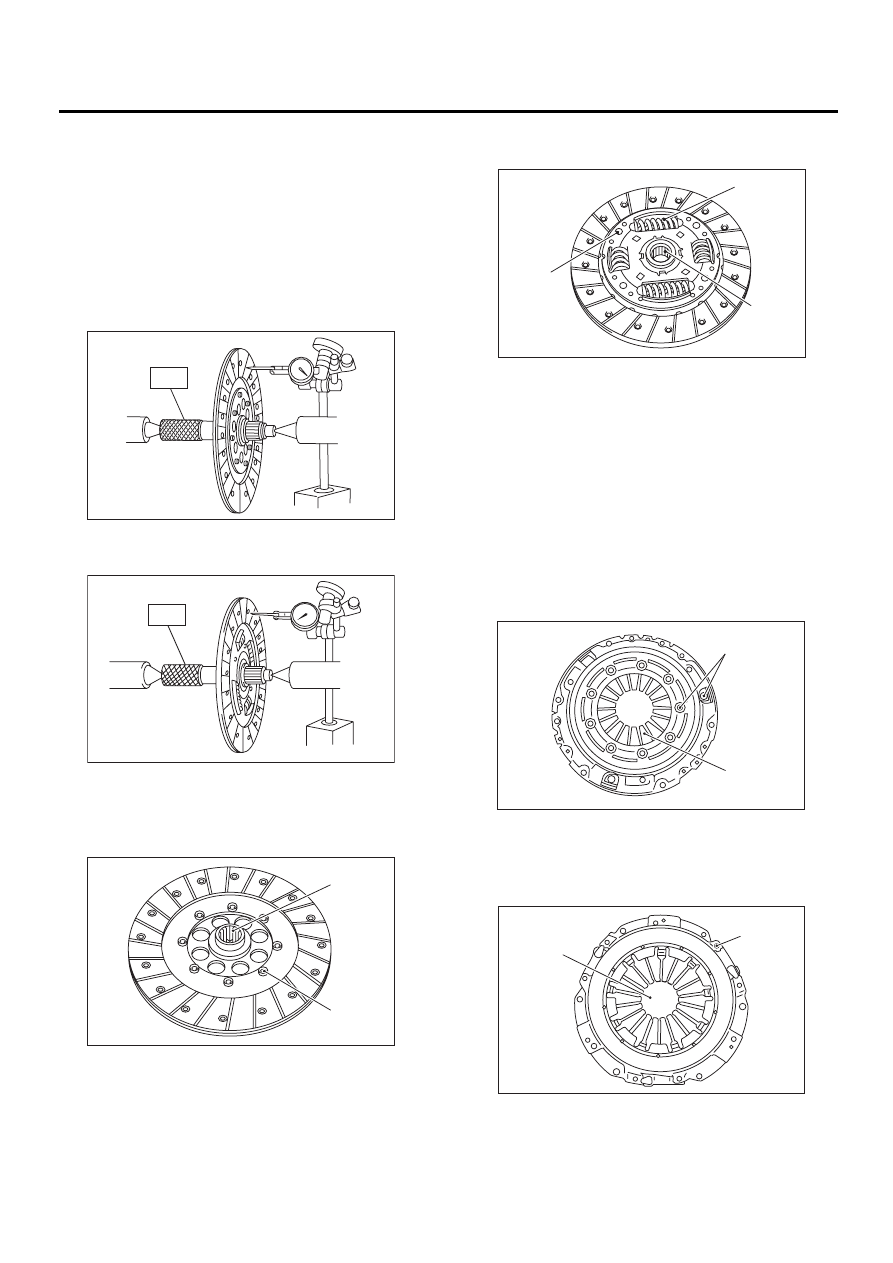

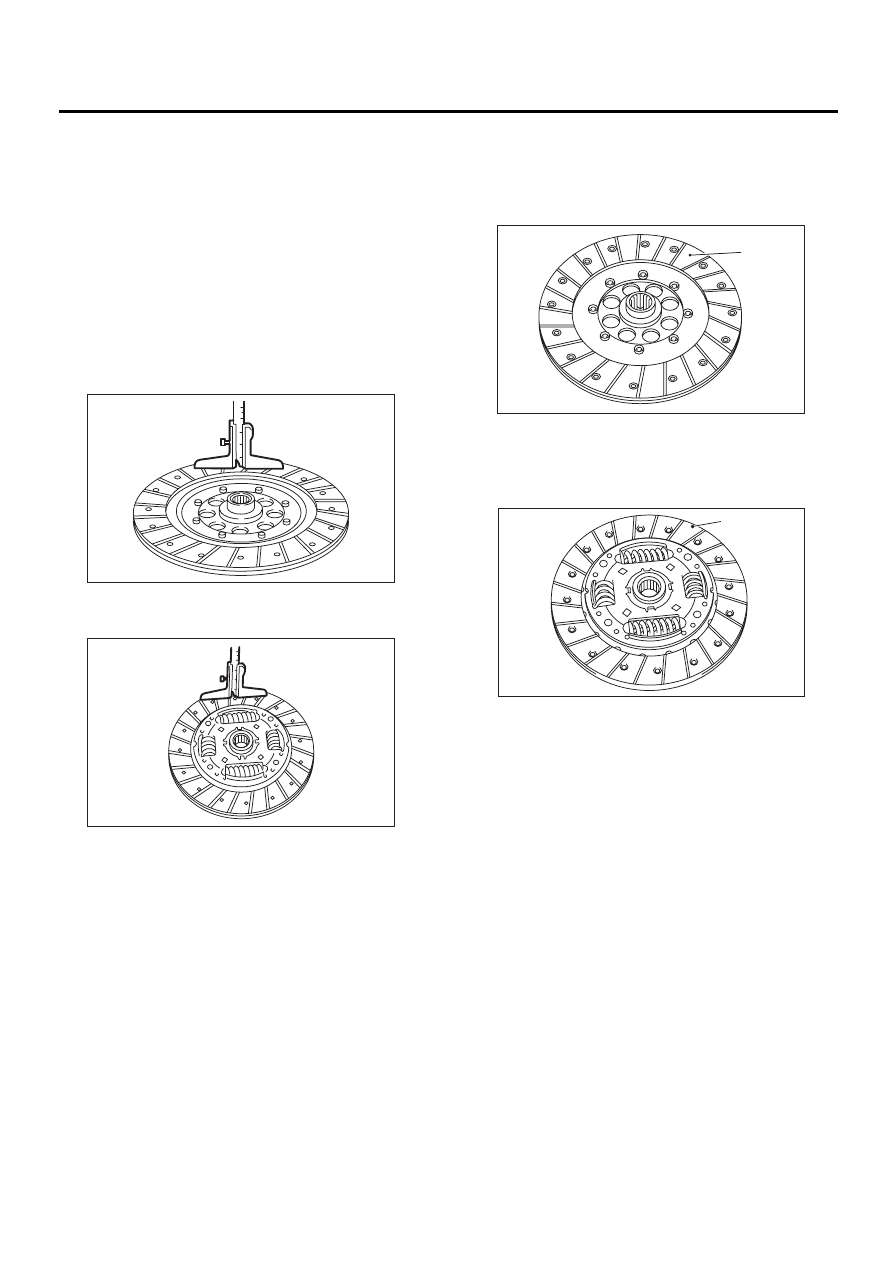

CLUTCH DISC AND COVER

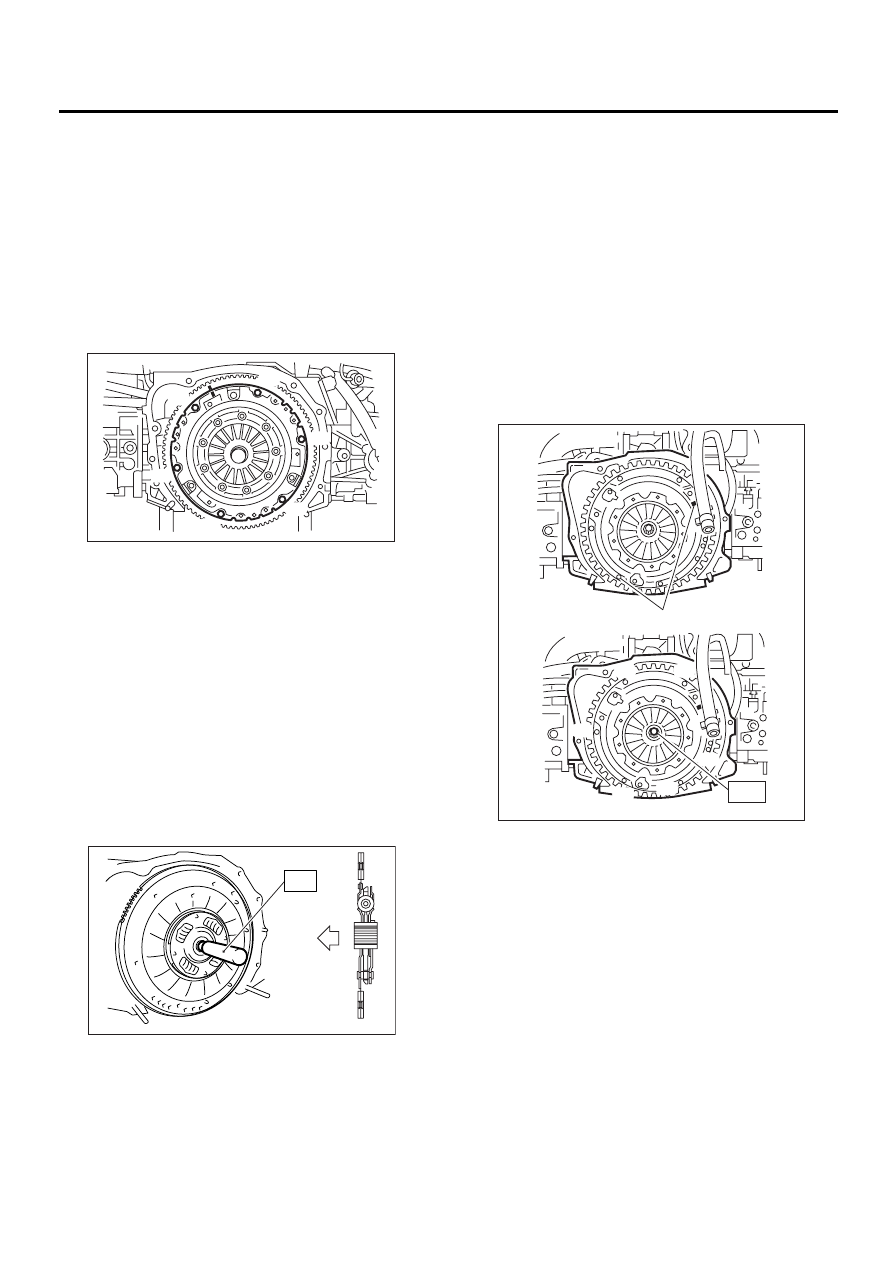

2) Install clutch cover on flywheel and tighten bolts
to the specified torque.
NOTE:
• Align matching marks.
• Note the front and rear of the clutch disc when in-
stalling.
• Tighten clutch cover installing bolts gradually.
Each bolt should be tightened to the specified
torque in a crisscross fashion.
Tightening torque:
15.7 N·m (1.6 kgf-m, 11.6 ft-lb)
3) Remove ST.
ST
499747100
CLUTCH DISC GUIDE
4) Install transmission assembly. <Ref. to MT-35,
INSTALLATION, Manual Transmission Assem-
bly.>
2. EXCEPT EUROPE AND AUSTRALIA
NON-TURBO MODELS AND TURBO MOD-
EL
1) Insert ST into the clutch disc and install them on
the flywheel by inserting the ST end into the pilot
bearing.
NOTE:
When installing clutch disc, be careful its direction.
ST
499747100
CLUTCH DISC GUIDE
2) Install clutch cover on flywheel and tighten bolts
to the specified torque.
NOTE:

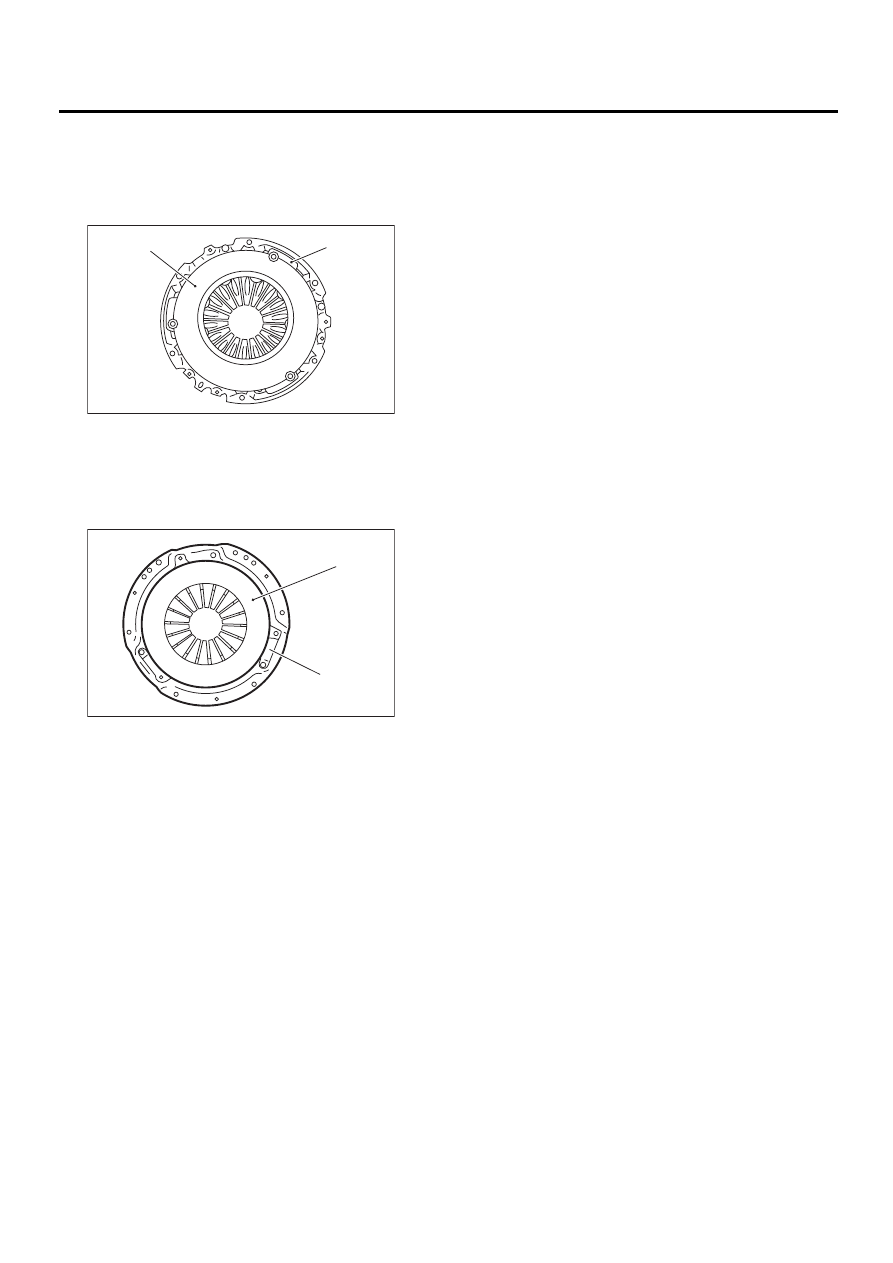

• When installing the clutch cover on the flywheel,
position the clutch cover so that there is a gap of
120
°
or more between “0” marks on the flywheel
and clutch cover. (“0” marks indicate the directions
of residual unbalance.)
• Note the front and rear of the clutch disc when in-
stalling.
• Temporarily tighten bolts by hand. Each bolt
should be tightened to the specified torque in a
crisscross fashion.
Tightening torque:
15.7 N·m (1.6 kgf-m, 11.6 ft-lb)
3) Remove ST.
ST
499747100
CLUTCH DISC GUIDE
4) Install transmission assembly. <Ref. to MT-35,
INSTALLATION, Manual Transmission Assem-
bly.>
